Scanning Samples Analysis of CS Distortion at CERN: July 2006 Refresh

This report details the scanning of samples related to CS distortion analysis conducted at CERN in September 2006, following a refresh in July. The study examines various parameters including scanning conditions, angle acceptance, and the characteristics of multiple films installed and exposed at 10 GeV π. Highlights of the findings include localized distortions exceeding 50 mrad, while global distortion remained minimal—less than 10 mrad for three films. The conditions of the scan room, including temperature and humidity, were carefully controlled to ensure accuracy.

bebe
Télécharger la présentation

Scanning Samples Analysis of CS Distortion at CERN: July 2006 Refresh

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

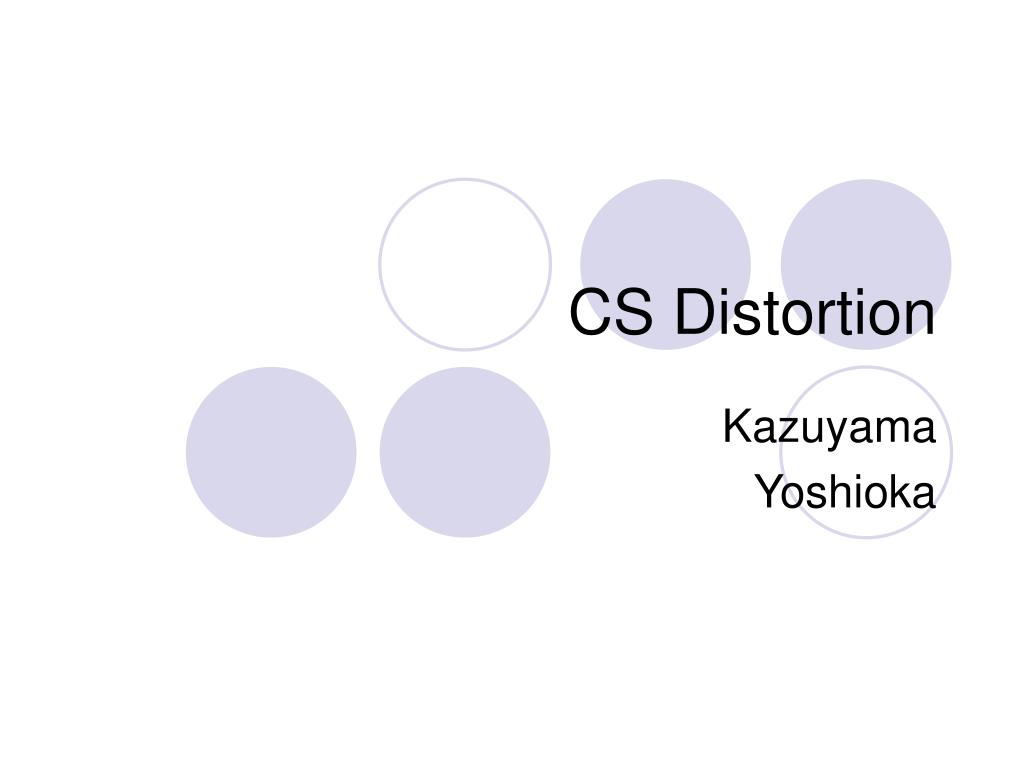

  1. CS Distortion Kazuyama Yoshioka

  2. Scanning Samples • Realistic CS film x 10 • 2nd refresh from ’06 July • (include Aug. run TTCS) • Some are installed to wall • Exposed 10 GeV π • Exposed & Developed in CERN in ’06 Sep.

  3. Scanning Condition • Scanning Machine • UTS stage1 and stage2 • Angle acceptance : ±400mrad • PH cut : 7 • Scan room condition • Temp. 25℃ Humi. 40~45% • Emulsion thickness • 43.5~47.5μm (by manual)

  4. Scanning Area y <Scan Area> 12mm x 9mm = 108 mm2 <Scan Area center> (x,y) = (60mm,50mm) 9mm 12mm x (0,0)

  5. Base Track parameter • Angle Acceptance • Angle Difference< 100mrad • |(micro track angle) – (base track angle)|<100mrad • PH cut • PH Sum. > 20 • Sum. of 2 surface of 1 film.

  6. “TTCS CS1 / 1st surface”

  7. “TTCS CS1 / 2nd surface”

  8. “TTCS CS2 / 1st surface”

  9. “TTCS CS2 / 2nd surface”

  10. “P6 CS1 / 1st surface”

  11. “P6 CS1 / 2nd surface”

  12. “P6 CS2 / 1st surface”

  13. “P6 CS2 / 2nd surface”

  14. “P8 CS1 / 1st surface”

  15. “P8 CS1 / 2nd surface”

  16. “P8 CS2 / 1st surface”

  17. “P8 CS2 / 2nd surface”

  18. “P18 CS1 / 1st surface”

  19. “P18 CS1 / 2nd surface”

  20. “P18 CS2 / 1st surface”

  21. “P18 CS2 / 2nd surface”

  22. “P22 CS1 / 1st surface”

  23. “P22 CS1 / 2nd surface”

  24. “P22 CS2 / 1st surface”

  25. “P22 CS2 / 2nd surface”

  26. Summary • Global Distortion • No Big Global Distortion • Over 10mrad … 3film • Local Distortion • Some point have big distortion (50mrad~) • 1 is scar • Future • SUTS 大面積… + Other Sample…
