  1. Teaching Soaring Weather Soaring Safety Foundation FIRC Rich Carlson

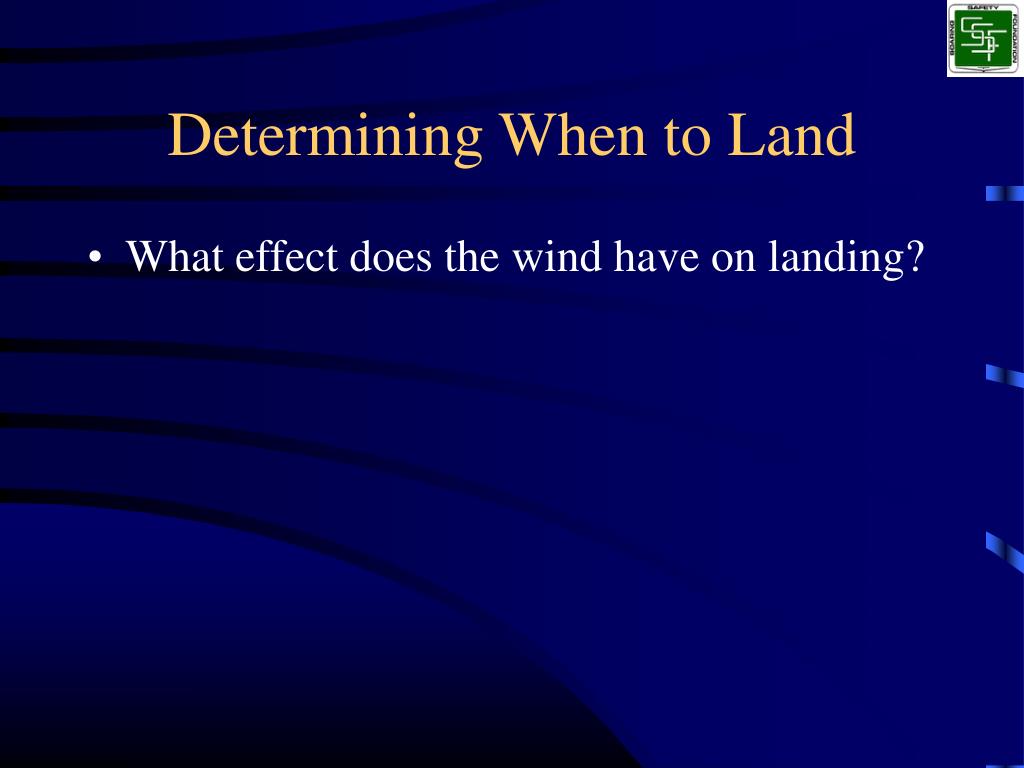

  2. Determining When to Land • What effect does the wind have on landing?

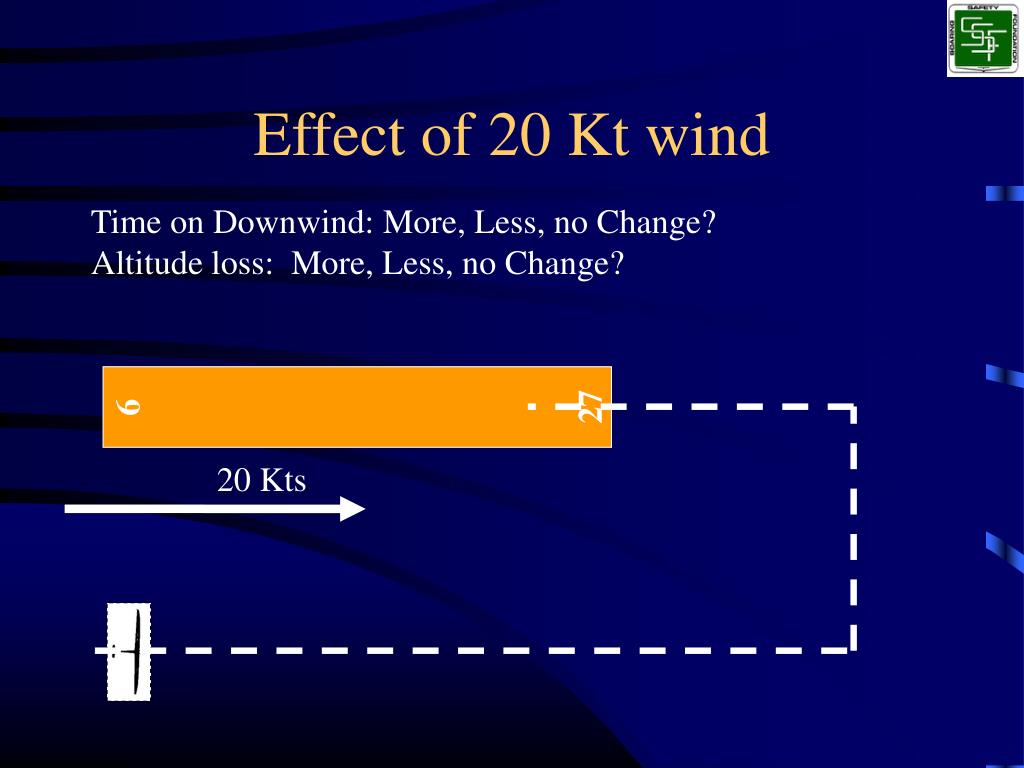

  3. 27 9 Effect of 20 Kt wind Time on Downwind: More, Less, no Change? Altitude loss: More, Less, no Change? 20 Kts

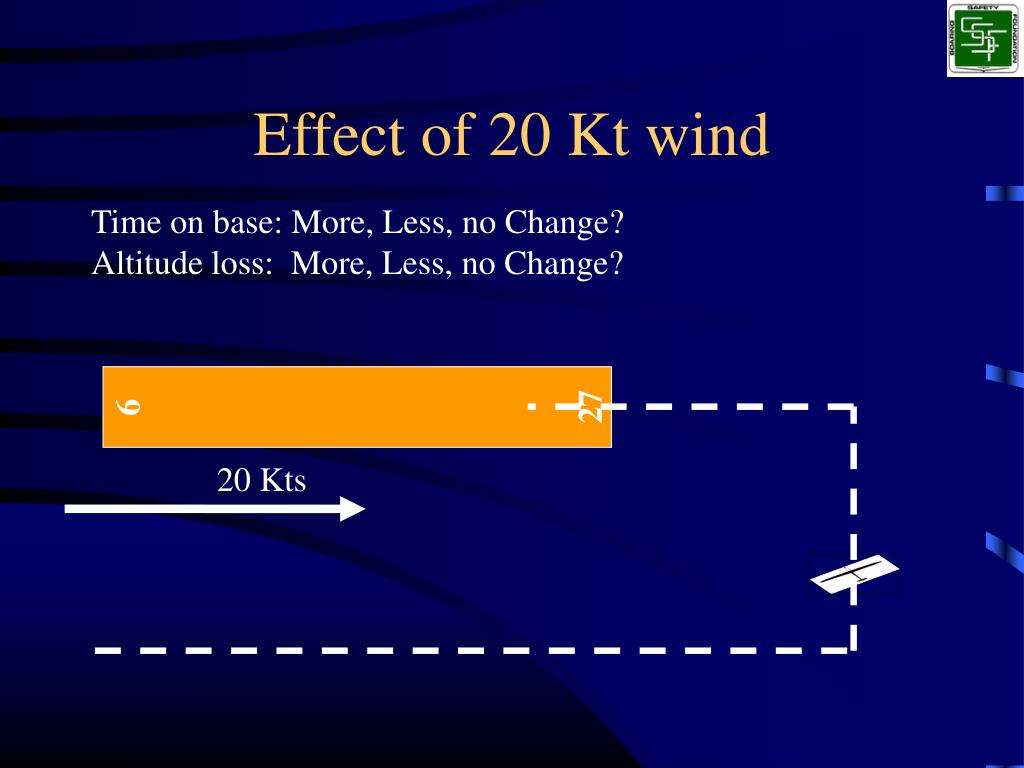

  4. 27 9 Effect of 20 Kt wind Time on base: More, Less, no Change? Altitude loss: More, Less, no Change? 20 Kts

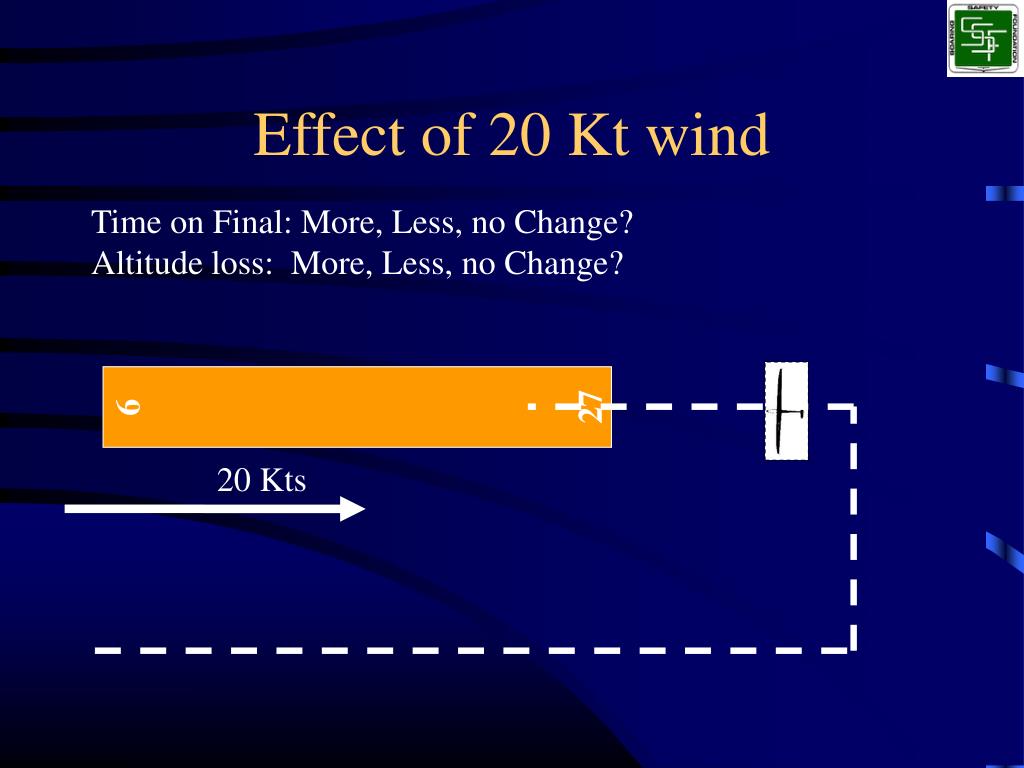

  5. 27 9 Effect of 20 Kt wind Time on Final: More, Less, no Change? Altitude loss: More, Less, no Change? 20 Kts

  6. 27 9 Effect of 20 Kt wind Which path is your student likely to fly? Which path do you want them to fly? 4 20 Kts 3 1 2

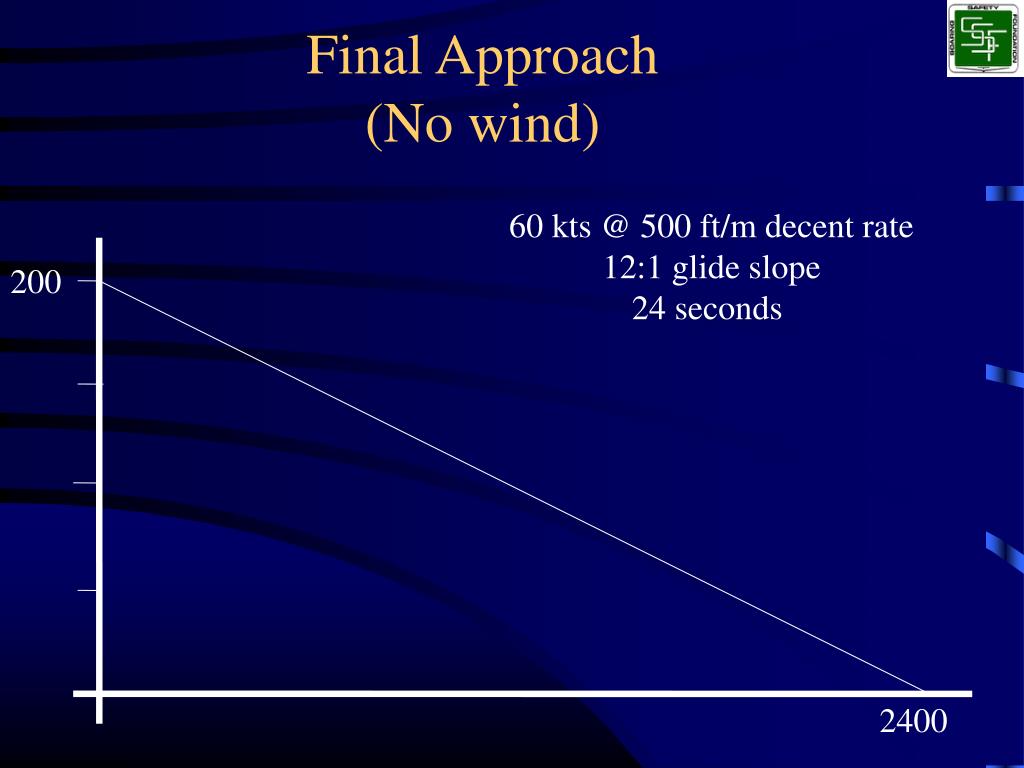

  7. Final Approach(No wind) 60 kts @ 500 ft/m decent rate 12:1 glide slope 24 seconds 200 2400

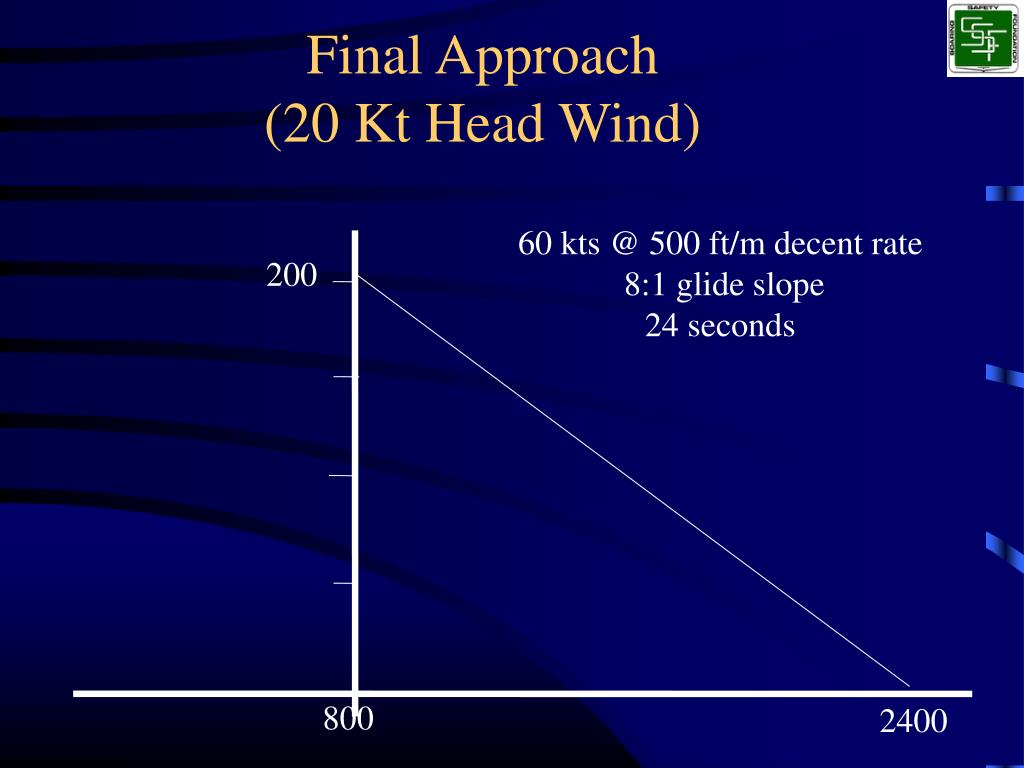

  8. Final Approach(20 Kt Head Wind) 60 kts @ 500 ft/m decent rate 8:1 glide slope 24 seconds 200 800 2400

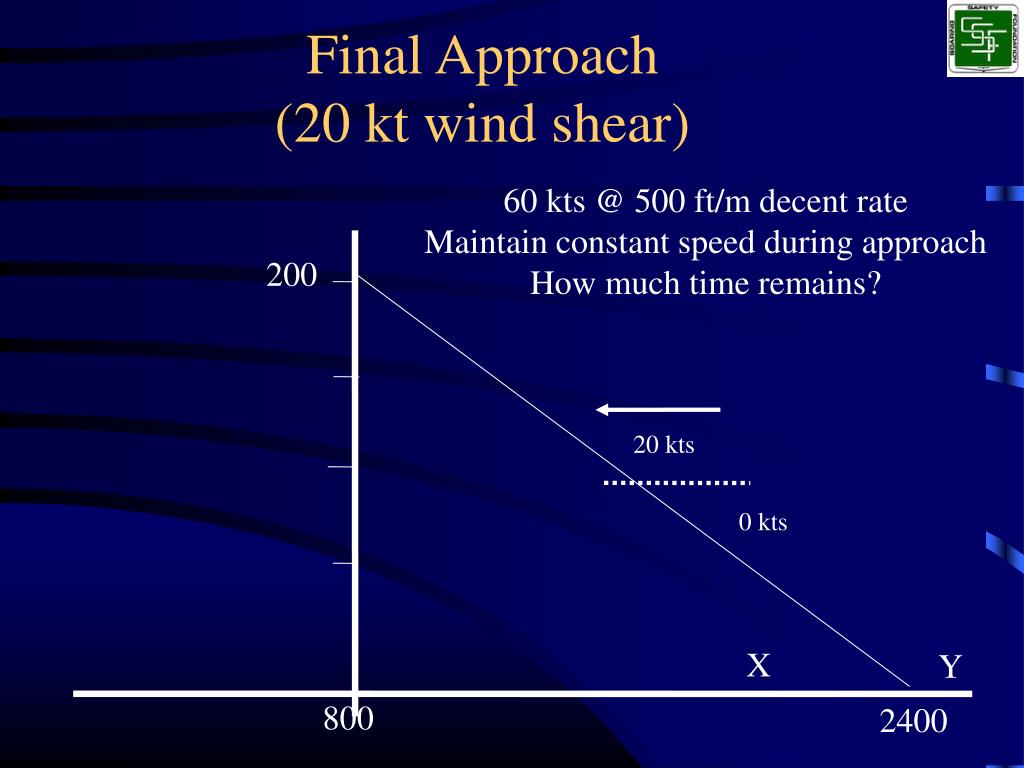

  9. Final Approach(20 kt wind shear) 60 kts @ 500 ft/m decent rate Maintain constant speed during approach How much time remains? 200 20 kts 0 kts X Y 800 2400

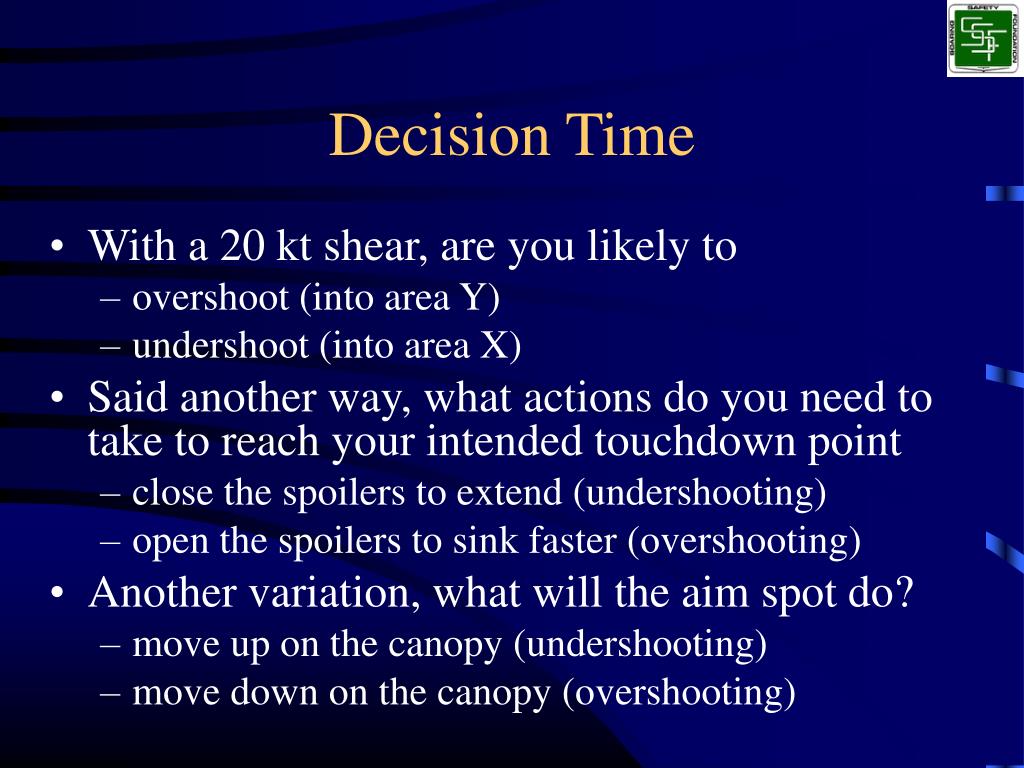

  10. Decision Time • With a 20 kt shear, are you likely to • overshoot (into area Y) • undershoot (into area X) • Said another way, what actions do you need to take to reach your intended touchdown point • close the spoilers to extend (undershooting) • open the spoilers to sink faster (overshooting) • Another variation, what will the aim spot do? • move up on the canopy (undershooting) • move down on the canopy (overshooting)

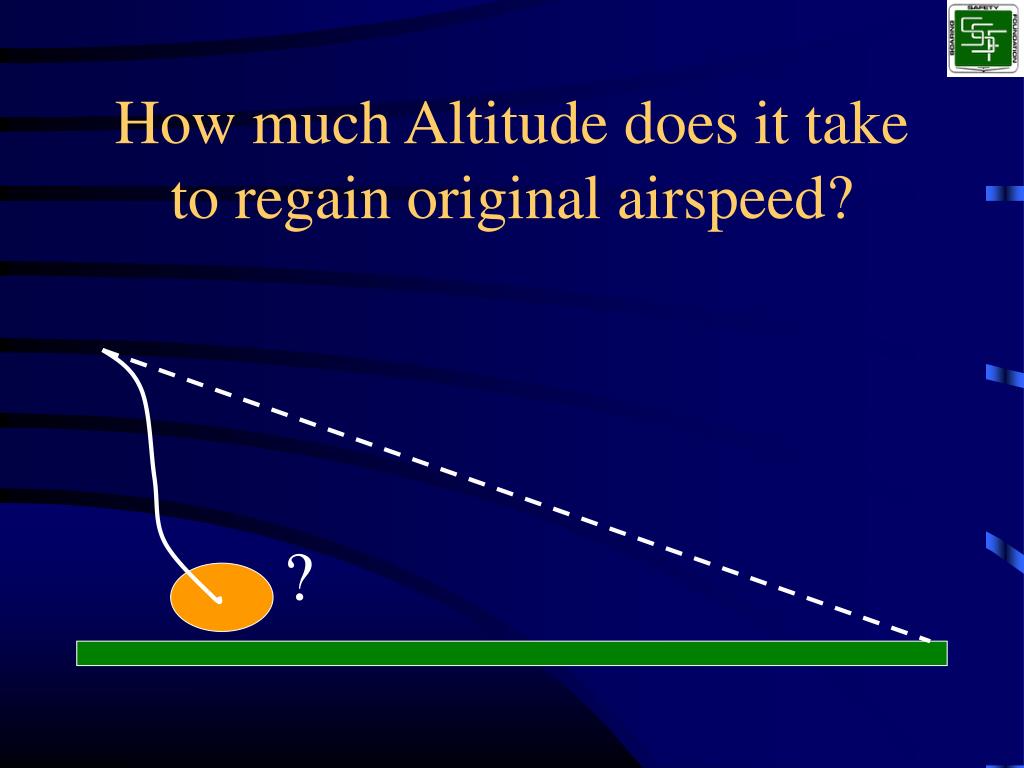

  11. How much Altitude does it take to regain original airspeed? ?

  12. Preliminary Analytical Results • No Wind • Distance is X • Steady 20 Kt head wind • Distance is X * 0.67 (33% shorter) • Wind Gradient Case • Distance is X * 0.47 (53% shorter)

  13. Shear Encounters • When can this happen? • Landing in gusty conditions • Landing area shielded by obstructions • During good thermal conditions

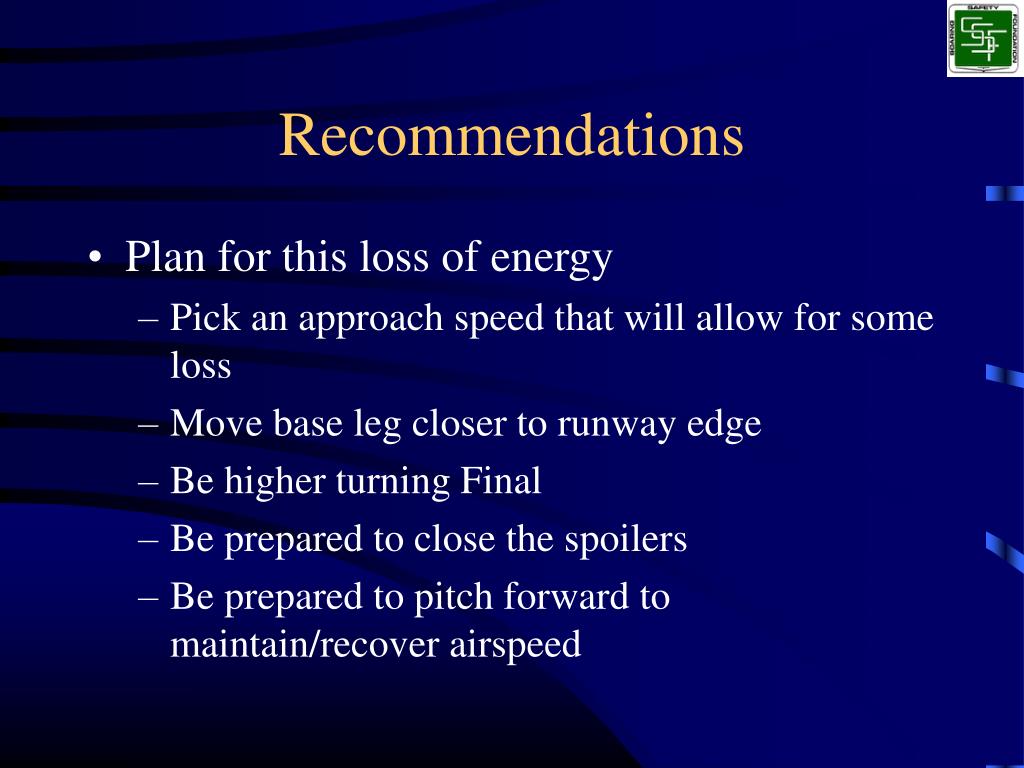

  14. Recommendations • Plan for this loss of energy • Pick an approach speed that will allow for some loss • Move base leg closer to runway edge • Be higher turning Final • Be prepared to close the spoilers • Be prepared to pitch forward to maintain/recover airspeed

  15. Conclusions • Shear line causes loss of Total Energy • Large Pitch change required to rapidly recover lost energy • Large amount of Time ‘lost’ while total energy changes • Immediate action is required to reach original touchdown point!
