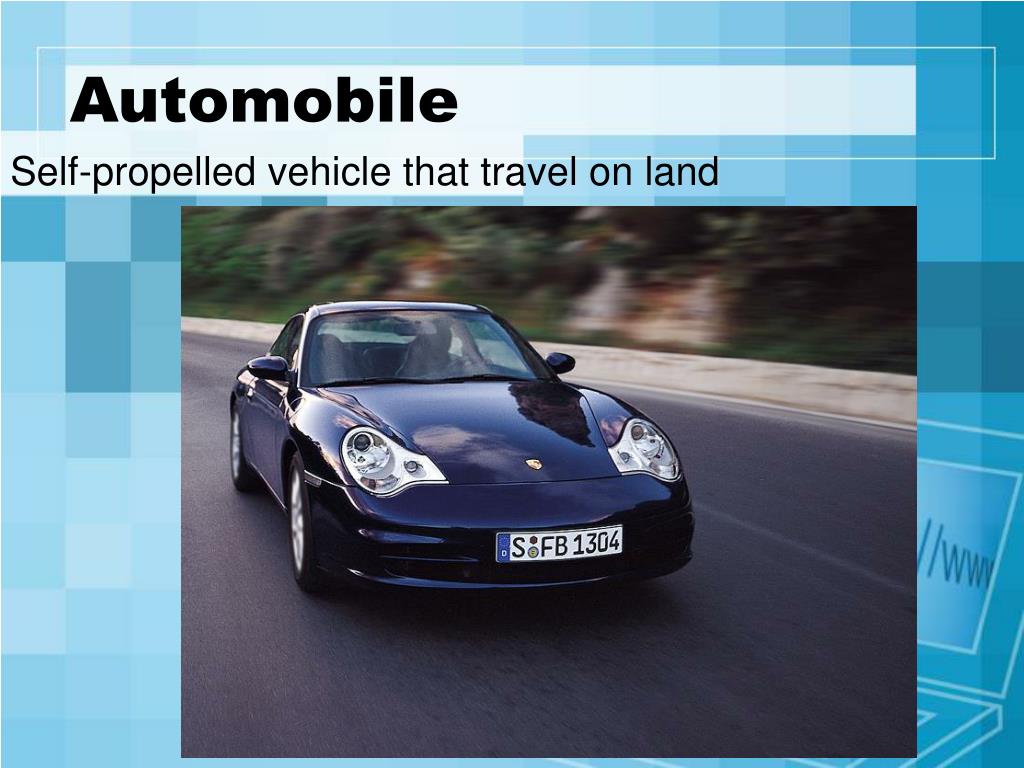

  1. Automobile Self-propelled vehicle that travel on land

  2. Automobile Timeline 1769 - Nicholas Joseph Cugnot designs and M. Brezon constructs the first “automobile”. 1750 1840 1896 - The company later named after him, Henry Ford produced his first car, the two-cylinder “quadricycle”. 1876 - German, Nikolaus A. Otto designed and developed the first practical 4 stroke engine. 1840 1885 1930 1860 - Lenoir built first internal combustion engine, operated by vegetable oil. 1914 - Henry Ford introduces the assembly-line technique for manufacture of the Model T. 1892 - German engineer, Rudolph Diesel constructed the first diesel engine. 1886 –Daimler&Benz produced first automobile

  3. History of Automobile • 1769 - Nicholas-Joseph Cugnot built a steam tractor • 1860 - Lenoir engine • 1876 - Otto four stroke “spark ignition” engine • 1880s - Two stroke engine • 1886 - First automobile was produced by Daimler& Benz • 1892 - Diesel four stroke “compression ignition” engine • 1957 - Wenkel “rotary” engine

  4. History of Automobile 1769 - Nicholas Joseph Cugnot with Steam “automobile”. SI Engine(1876) by Nicolaus August Otto

  5. 1886 –Daimler&Benz produced first automobile

  6. History of Automobile Diesel Engine 1892 by Rudolf Diesel 1914 - Henry Ford introduces the assembly-line technique for manufacture of the Model T

  7. Automobile History • 1849 -- Volvo ติดตั้งระบบเข็มขัดนิรภัย • 1854 -- Samuel McKeen ออกแบบเครื่องวัดระยะทาง odometer • 1901 -- Frederick William Lanchesterคิดค้นdisc brakes • 1904 – Christie modelถูกติดตั้งยางและล้อรถยนต์ที่สามารถถอดเปลี่ยนได้ • 1905 -- Mary Anderson ผลิตที่ปัดน้ำฝน และถูกติดตั้งเข้ากับรถยนต์เมื่อปี1916

  8. Automobile History • 1929 -- Paul Galvin ผลิตเครื่องเสียงสำหรับรถยนต์ • 1938 -- Buick ติดตั้งระบบสตาร์ทด้วยไฟฟ้า • 1940 – Packardมีระบบหล่อเย็นให้กับเครื่องยนต์ • 1951 – Power steering ถูกผลิตออกมาเพื่อจำหน่าย • 1953 – General Motors,Chrysler and Packard ติดระบบทำความเย็น • 1958 -- Cruise control ถูกติดตั้งเข้ากับChrysler Imperial, New Yorker and Windsor car models. • 1973 -- General Motorsผลิตair bags เป็นออปชั่นติดกับรถChevrolet

  9. Construction • Under the hood • แหล่งกำเนิดขุมกำลัง (power source) • ระบบเชื้อเพลิง Fuel system • ระบบจุดระเบิด Ignition system • ระบบหล่อลื่น Lubrication system • ระบบหล่อเย็น Cooling system

  10. Engine Throttle Radiator

  11. Engine overview

  12. Engine Component Crank Case Cylinder Head System Exhaust System Cooling System Intake System

  13. Manifold Cam shaft Drive belt

  14. Power to Wheels • Power train • Clutch • Transmission • Differential • Tires and wheels

  15. Body transmission Engine chassis suspension 4 wheel drive

  16. 4 wheel drive

  17. Front wheel drive

  18. Controlling ride and Handling • Suspension system • Steering system • Braking system

  19. Suspension Overview

  20. Accessories • Electronic controls system • Body design • Regulation • Air pollution • Safety • Fuel economy

  21. Aerodynamic wind tunnel test

  22. New Technology GDI(Gasoline Direct Injection) Engine PILOT/MAIN/POST INJECTION (Diesel Engine)
