  1. Rectangles, Rhombi and Squares Notes 23 – Sections 6.4 & 6.5

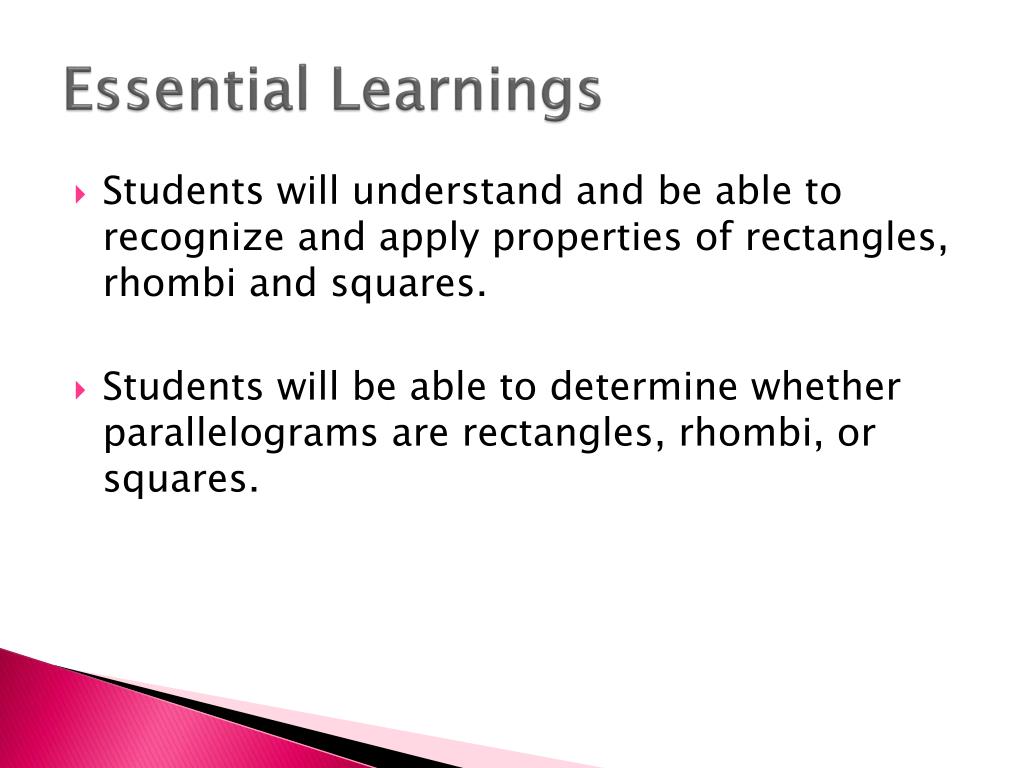

  2. Essential Learnings • Students will understand and be able to recognize and apply properties of rectangles, rhombi and squares. • Students will be able to determine whether parallelograms are rectangles, rhombi, or squares.

  3. Rectangles • A rectangle is a parallelogram with four right angles.

  4. Diagonals of a Rectangle • If a parallelogram is a rectangle, then its diagonals are congruent.

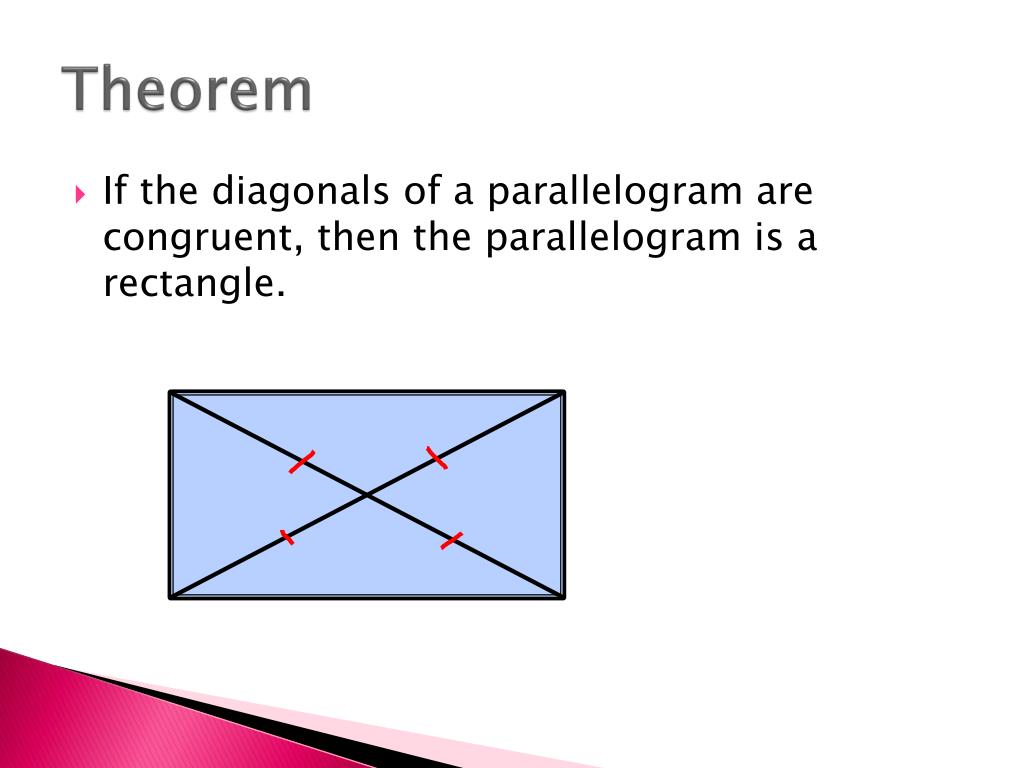

  5. Theorem • If the diagonals of a parallelogram are congruent, then the parallelogram is a rectangle.

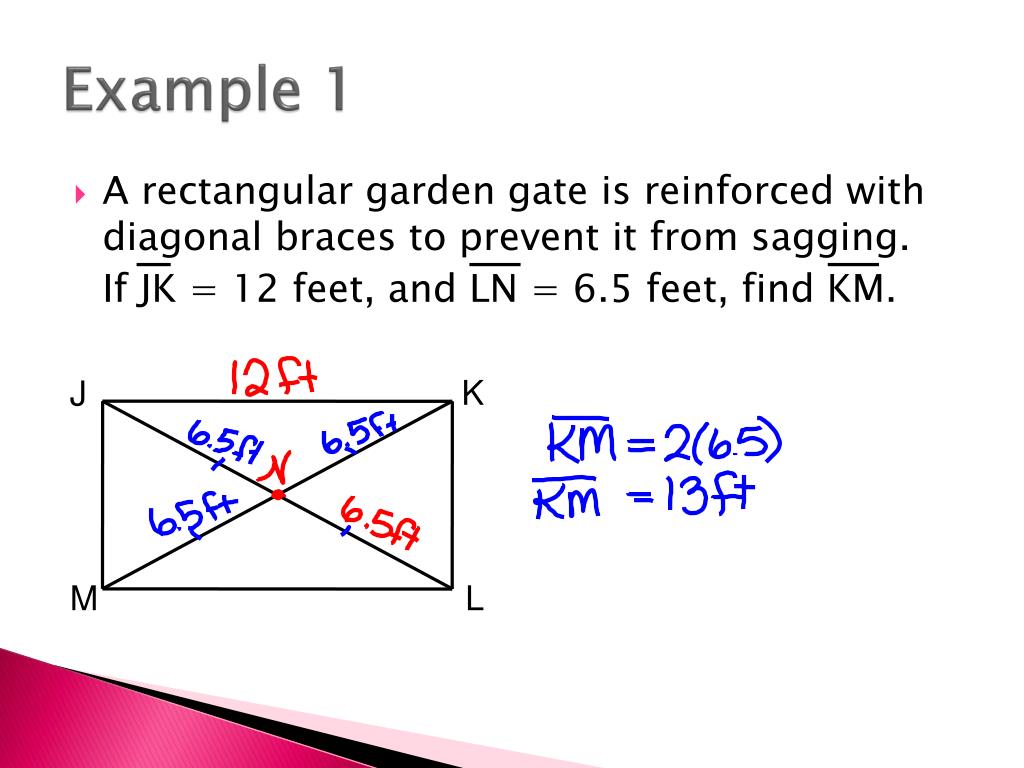

  6. Example 1 • A rectangular garden gate is reinforced with diagonal braces to prevent it from sagging. If JK = 12 feet, and LN = 6.5 feet, find KM. K J M L

  7. Example 2 • Quadrilateral RSTU is a rectangle. If m∠RTU = 8x+4 and m∠SUR = 3x–2, find x. R S U T

  8. Example 3 • Quadrilateral WXYZ is a rectangle. If PW = 2x+3 and XP= x+4, find XZ. X Y P W Z

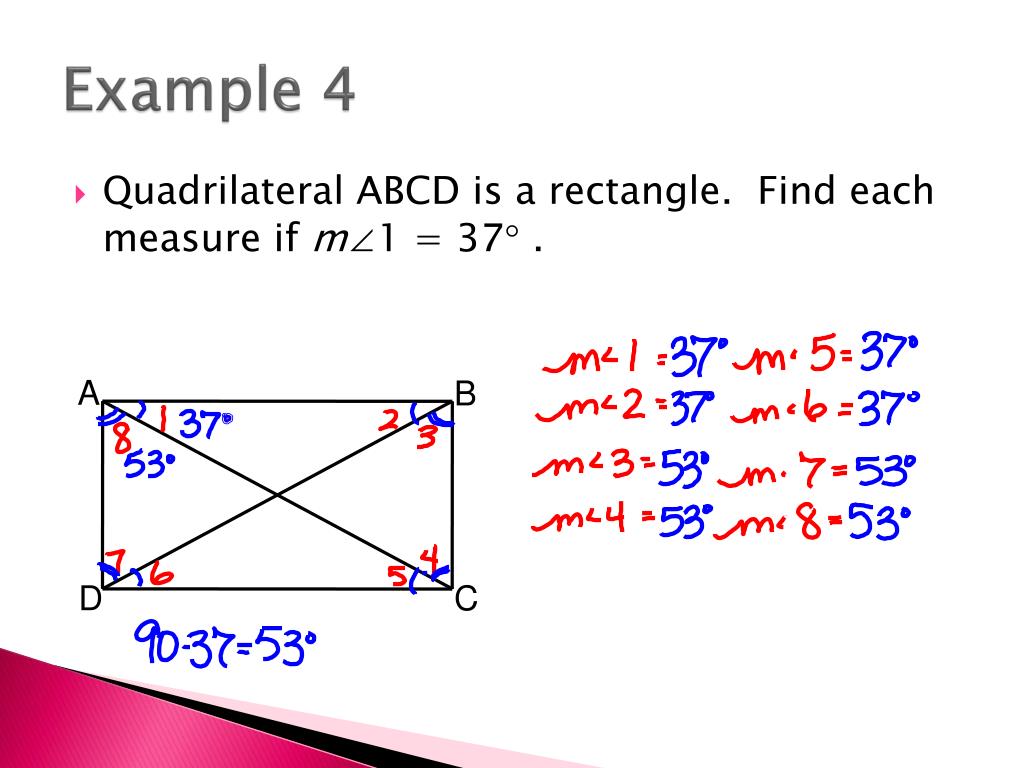

  9. Example 4 • Quadrilateral ABCD is a rectangle. Find each measure if m∠1 = 37 . A B D C

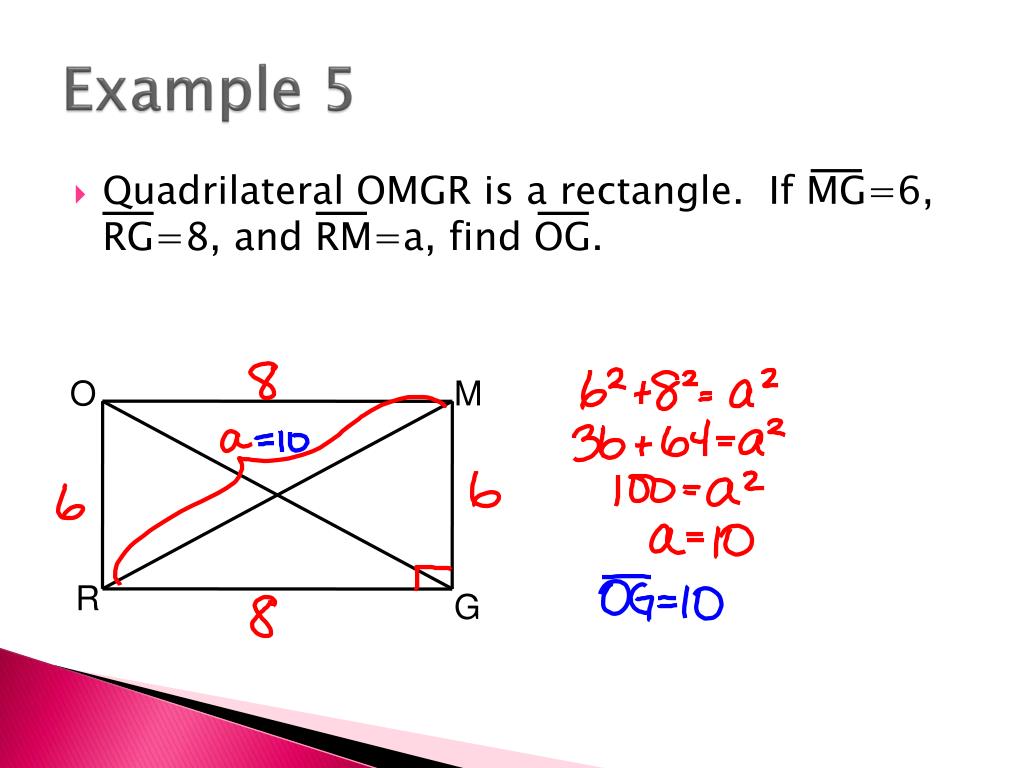

  10. Example 5 • Quadrilateral OMGR is a rectangle. If MG=6, RG=8, and RM=a, find OG. O M R G

  11. Rhombus • A rhombus is a parallelogram with all four sides congruent. • The plural of rhombus is rhombi.

  12. Diagonals of a Rhombus • If a parallelogram is a rhombus, then its diagonals are perpendicular.

  13. Conditions for Rhombi and Squares • If the diagonals of a parallelogram are perpendicular, then the parallelogram is a rhombus. A B D C

  14. Diagonals of a Rhombus • If a parallelogram is a rhombus, then each diagonal bisects a pair of opposite angles.

  15. Conditions for Rhombi and Squares • If one diagonal of a parallelogram bisects a pair of opposite angles, then the parallelogram is a rhombus. A B D C

  16. Conditions for Rhombi and Squares • If one pair of consecutive sides of a parallelogram are congruent, then the parallelogram is a rhombus. B A C D

  17. Square • A square is a parallelogram with all four congruent sides and four right angles. • All squares are rhombi.

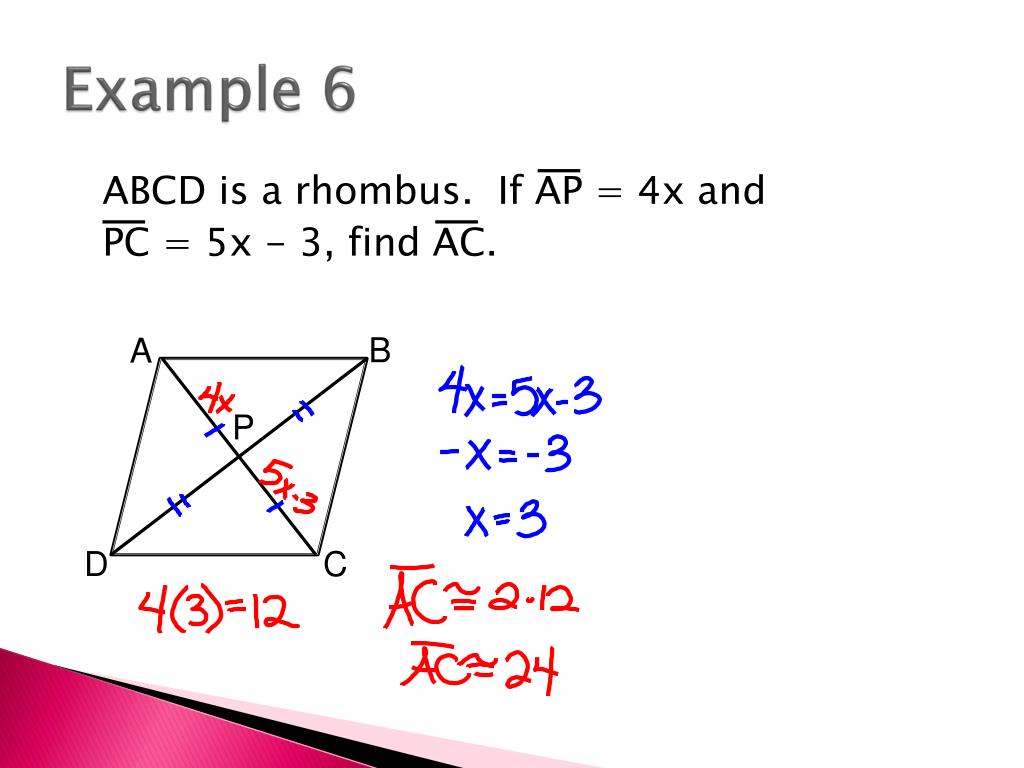

  18. Example 6 ABCD is a rhombus. If AP = 4x and PC = 5x - 3, find AC. B A P D C

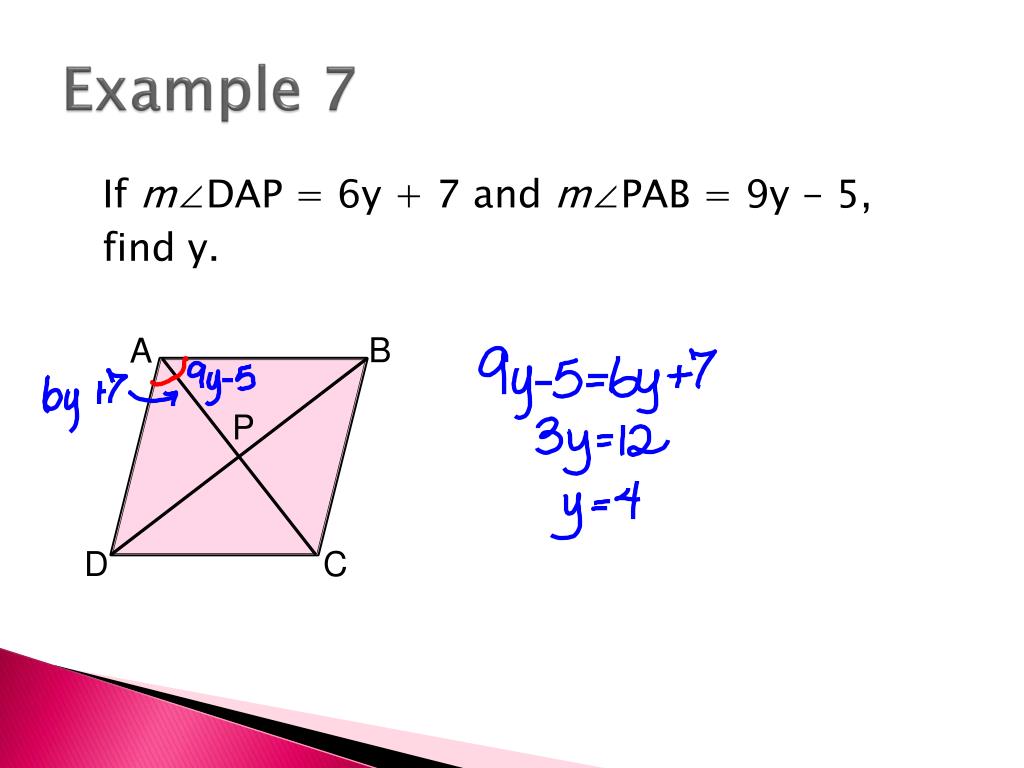

  19. Example 7 Ifm∠DAP = 6y + 7 and m∠PAB = 9y - 5, find y. B A P D C

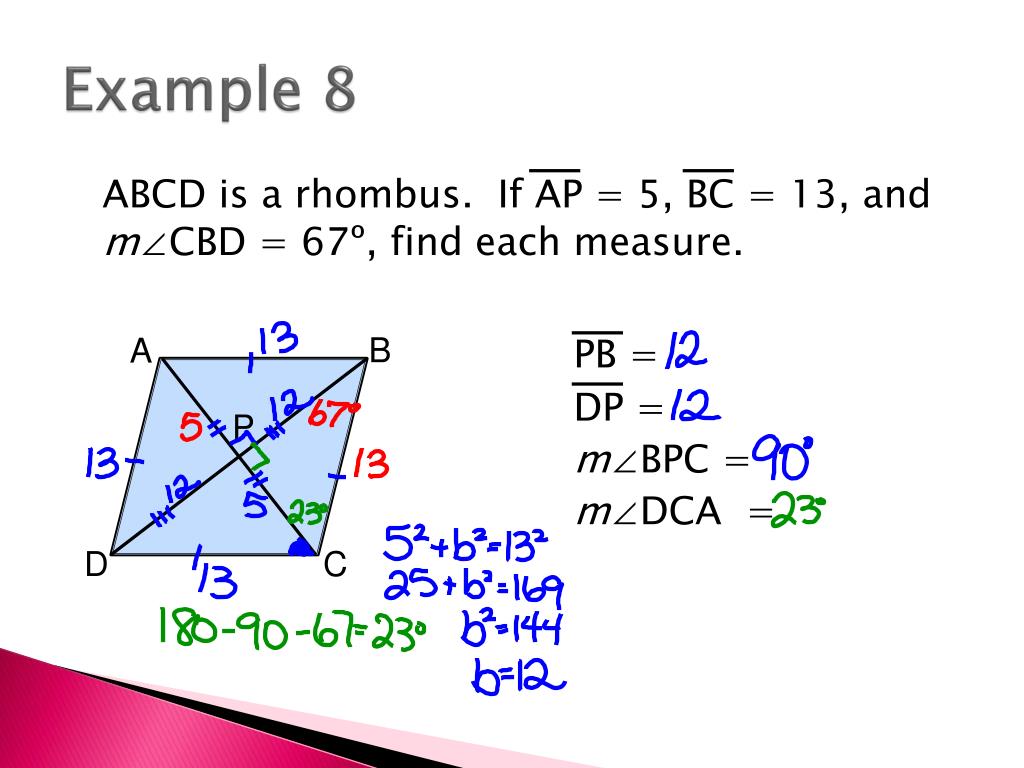

  20. Example 8 ABCD is a rhombus. If AP = 5, BC = 13, and m∠CBD = 67º, find each measure. PB = DP = m∠BPC = m∠DCA = B A P D C

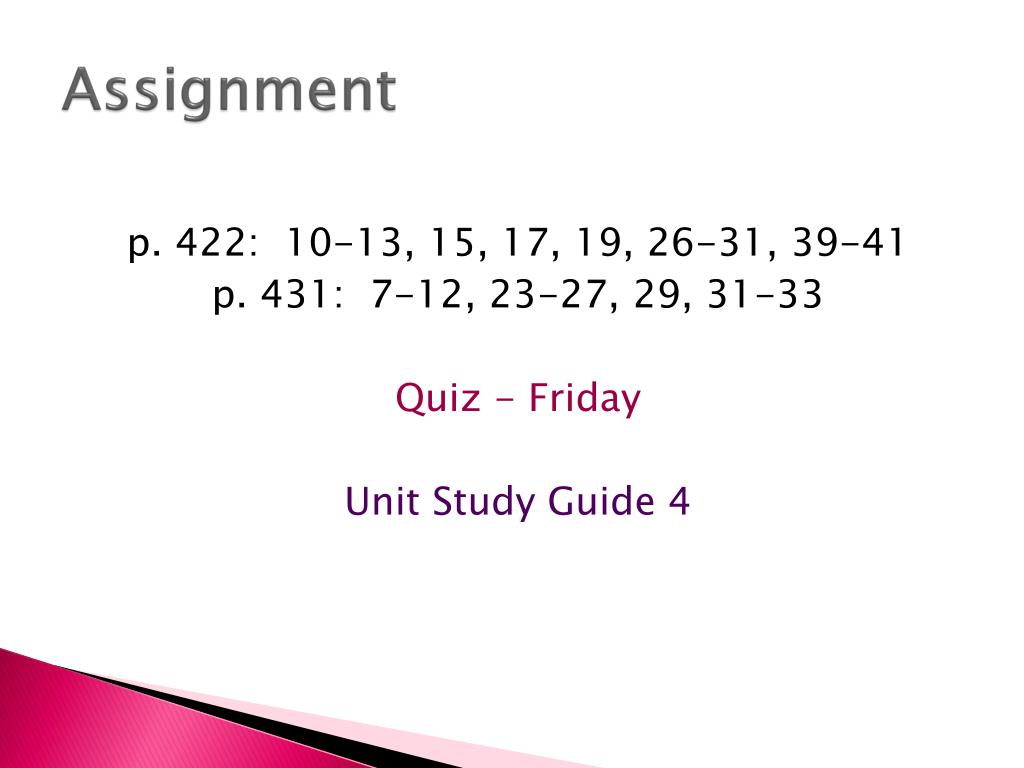

  21. Assignment p. 422: 10-13, 15, 17, 19, 26-31, 39-41 p. 431: 7-12, 23-27, 29, 31-33 Quiz - Friday Unit Study Guide 4
