  1. Microsoft SQL Server Administration for SAPSQL Server with SAP

  2. SQL Server Architecture SQL Server with SAP Performance Monitoring and Tuning Administration and Troubleshooting Database Backup and Restore Overview

  3. R/3 Dispatcher R/3 Work Process R/3 Work Process SQL Server R3 Architecture Presentation server SAPGUI SAPGUI SAPGUI SAPGUI R/3 instance R/3 instance R/3 Dispatcher Application server R/3 Work process R/3 Work process Database server Databases

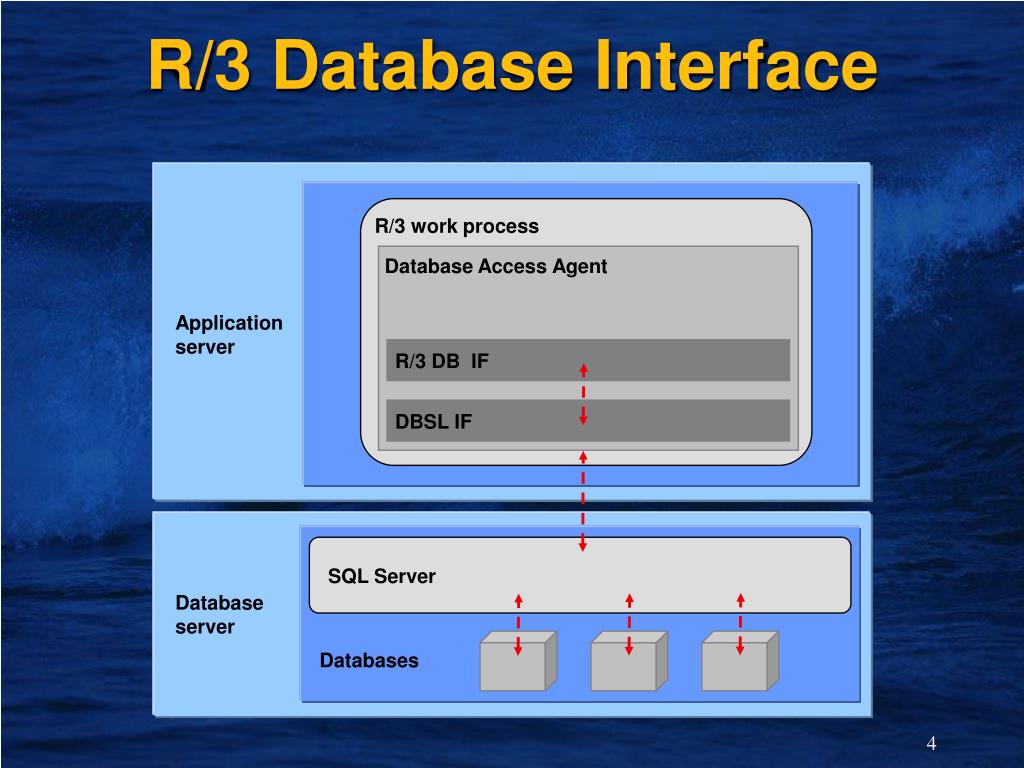

  4. R/3 DB IF DBSL IF SQL Server R/3 Database Interface R/3 work process Database Access Agent Application server Database server Databases

  5. TCP/IP Database Connections R/3 Work process R/3 Work process Application server OLEDB TCP/IP sockets TCP/IP sockets ODS (Open data services) Database server SQL Server

  6. SQL Server Database Connections to R/3 Work Processes R/3 Work process R/3 Work process 0 Consistent transactions 1 DDL transactions 2 Select single 3..N Dirty read selects Application server dbs/oledb/add_procs = X or rsdb/mssql/add_procs = X -> X+3 connections 01234567 01234567 READ UNCOMMITTED Database server READ COMMITTED

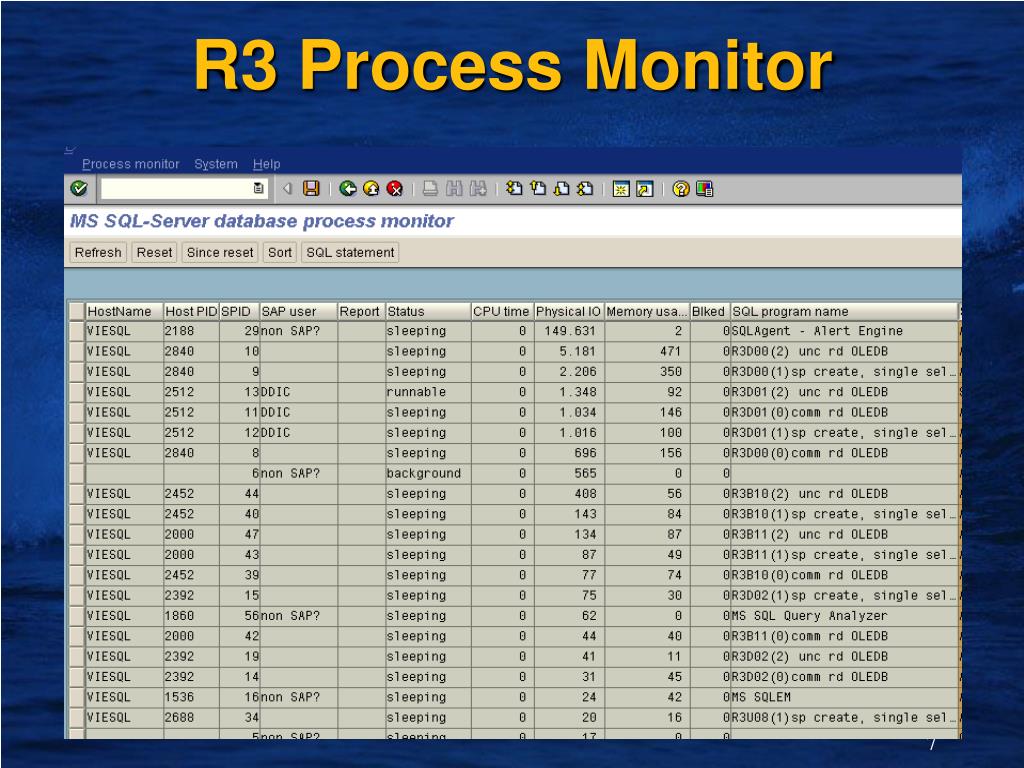

  7. R3 Process Monitor

  8. R3 Process Monitor

  9. SQL Enterprise Manager Process Info

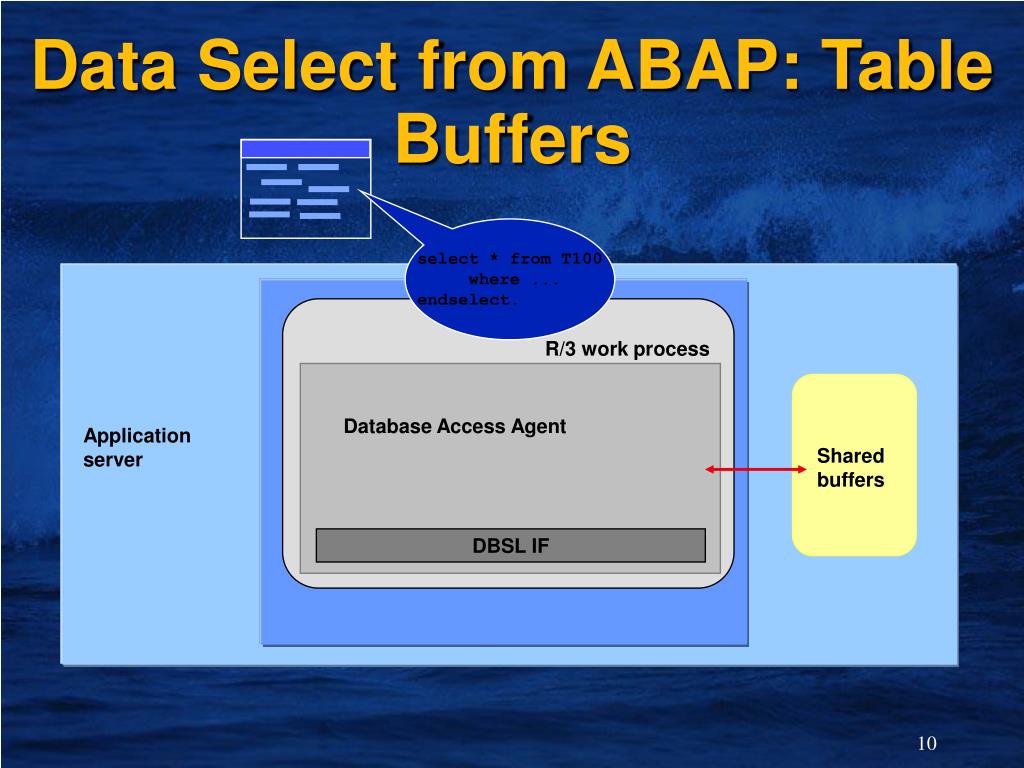

  10. Database Access Agent DBSL IF Data Select from ABAP: Table Buffers select * from T100 where ... endselect. R/3 work process Application server Shared buffers

  11. Data Select from ABAP select * from T100 where ... endselect. R/3 work process Application server Shared buffers Database Access Agent DBSL IF create Y7R6GH78J676ABC0000T100 exec Y7R6GH78J676ABC0000T100

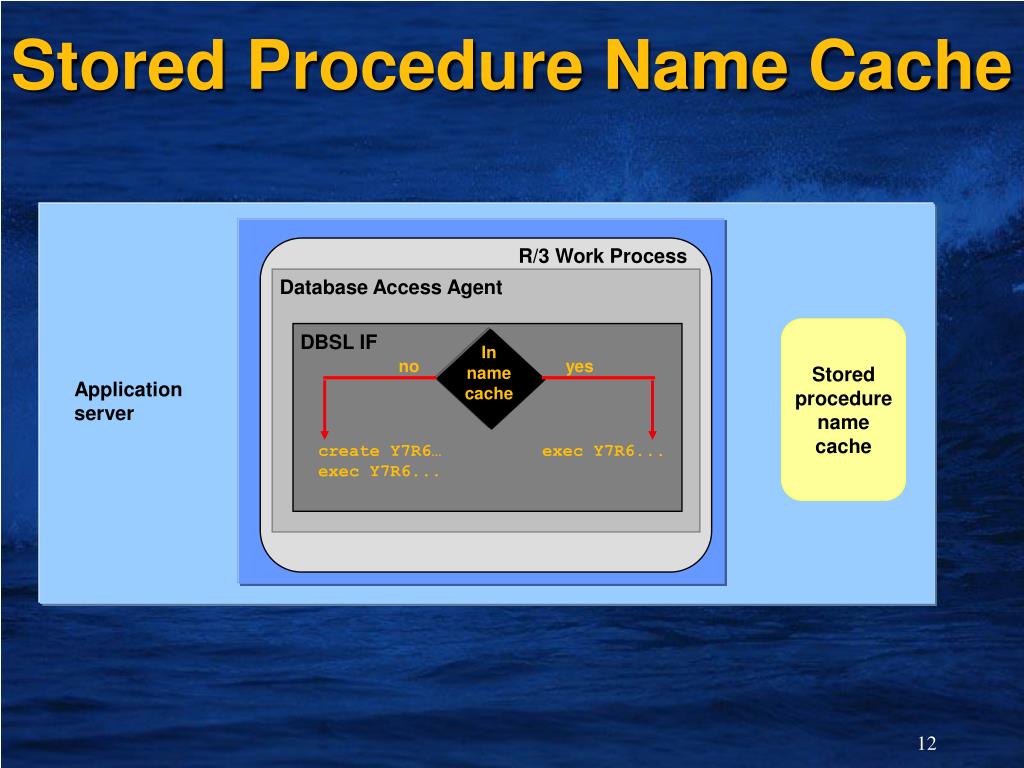

  12. Stored procedure name cache Stored Procedure Name Cache R/3 Work Process Database Access Agent YR... DBSL IF In name cache in cache no yes Application server create Y7R6… exec Y7R6... exec Y7R6... exec YR...

  13. Stored Procedure Names ##Y7DRESDENPRD0047000027100934 ##Y7DRESDENPRD0047700528106935 ##Y7DRESDENPRD0047000027100934 ##Y7DRESDENPRD0047700528106935 ##Y7DRESDENPRD0047000027100934 ##Y7PARISPRD0047700765528107036 ##Y7PARISPRD0047000027580100939 ##Y7PARISPRD0047700528106000936 ... tempdb Y7R61000068BKI3757MONI Y7R200000015BKI3757MONI Y7A0000051787LG0732SDB1FMSS Y7A000000B9B822D0010SAPLSTAM Y7C0000094197624847DBSYFMSS Y7R400000015BK998757MARA Y7A0000015BKI89H930489MARA Y7A000000016BKI89H93347MARD ... <SID>

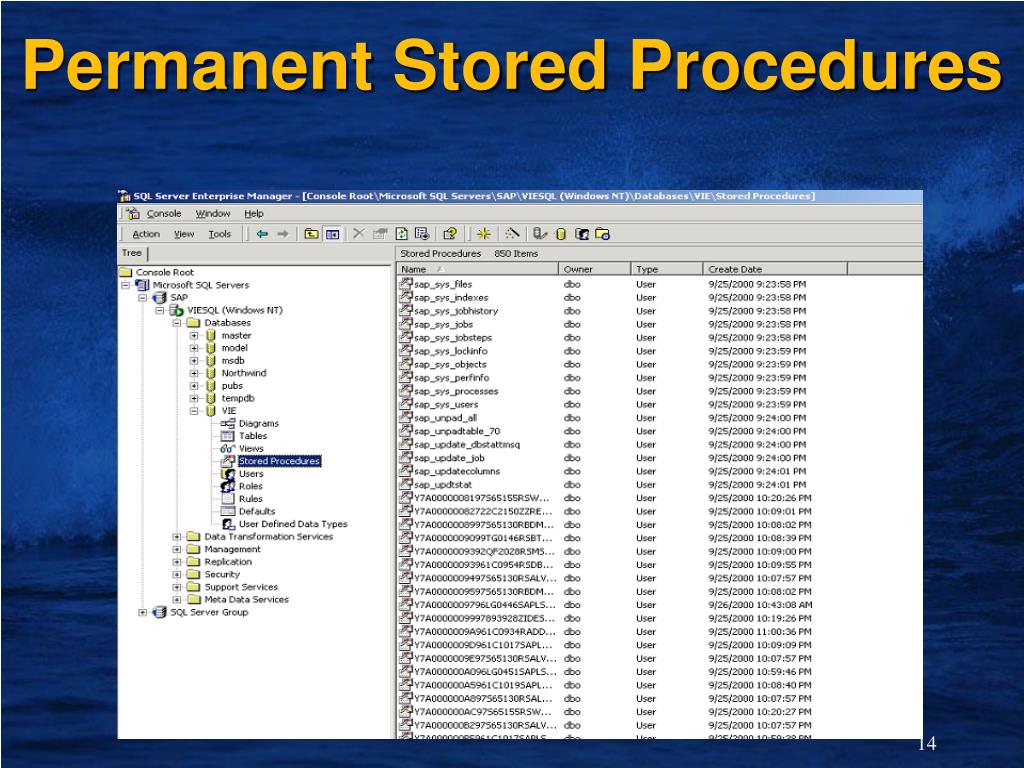

  14. Permanent Stored Procedures

  15. Temporary Stored Procedures

  16. SAP GUI SAP user: ..... PW: ..... Windows NT Authentication Presentation server Application server Database server <DOMAIN>\ SAP_<SID>_GlobalAdmin <SID> sapusr MSSQL server R/3 pubs § NT user SAP user Login Id Server role Example: Joe SAPUSR <DOMAIN>\ System SAP_<SID>_ Administrator, GlobalAdmin default DB <SID> Authori- Logon at Access to Logon at Access to zation: workstation SAP objects SQL Server DB objects

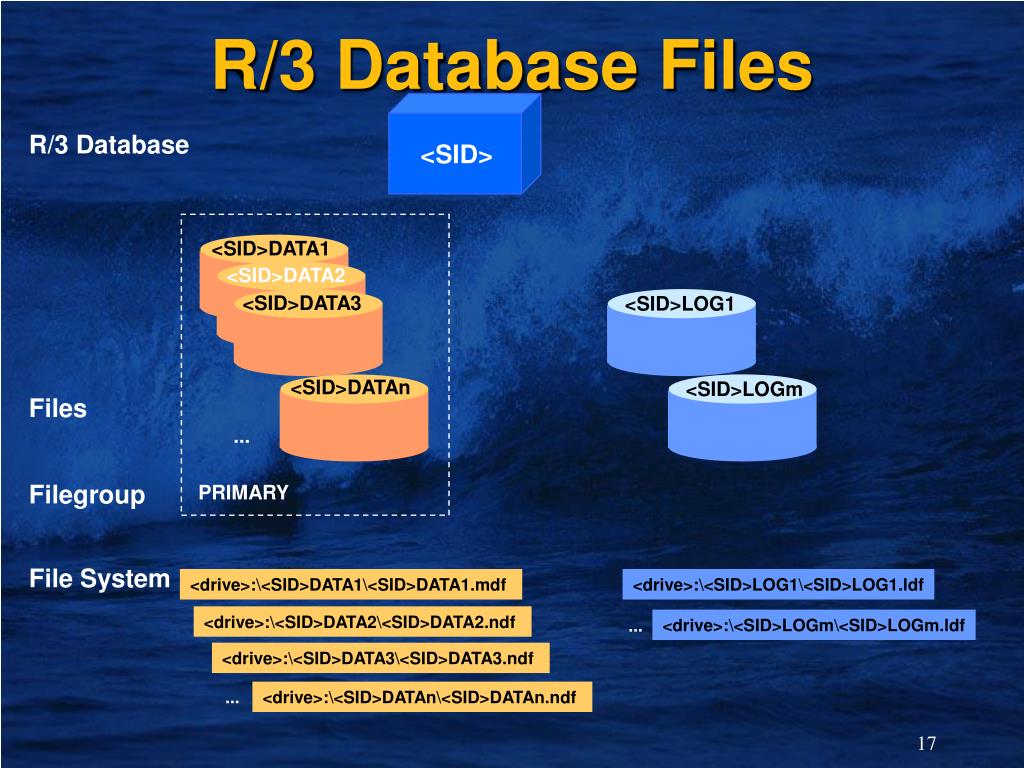

  17. R/3 Database Files R/3 Database <SID> <SID>DATA1 <SID>DATA2 <SID>DATA3 <SID>LOG1 <SID>DATAn <SID>LOGm Files ... Filegroup PRIMARY File System <drive>:\<SID>DATA1\<SID>DATA1.mdf <drive>:\<SID>LOG1\<SID>LOG1.ldf <drive>:\<SID>DATA2\<SID>DATA2.ndf <drive>:\<SID>LOGm\<SID>LOGm.ldf ... <drive>:\<SID>DATA3\<SID>DATA3.ndf ... <drive>:\<SID>DATAn\<SID>DATAn.ndf

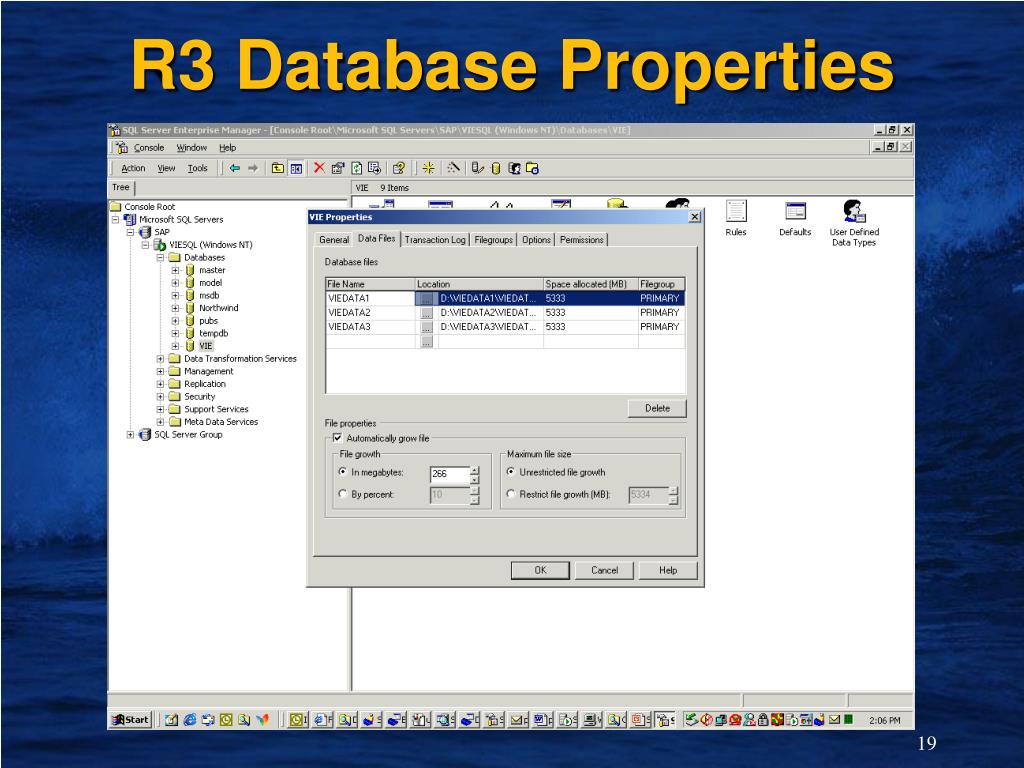

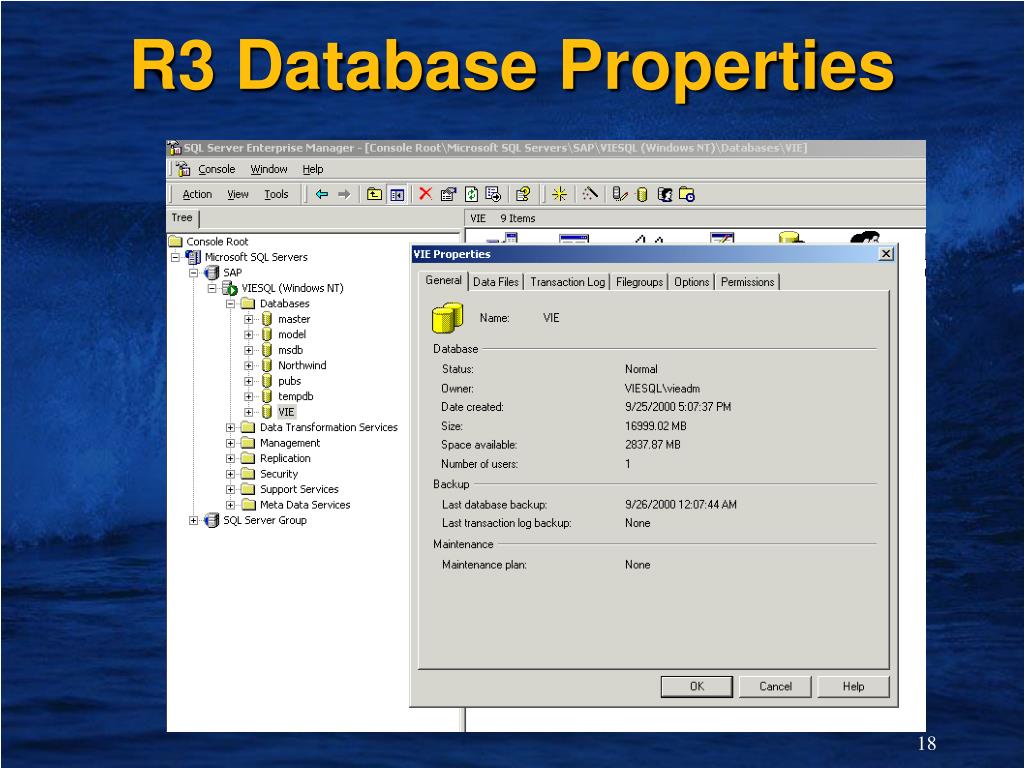

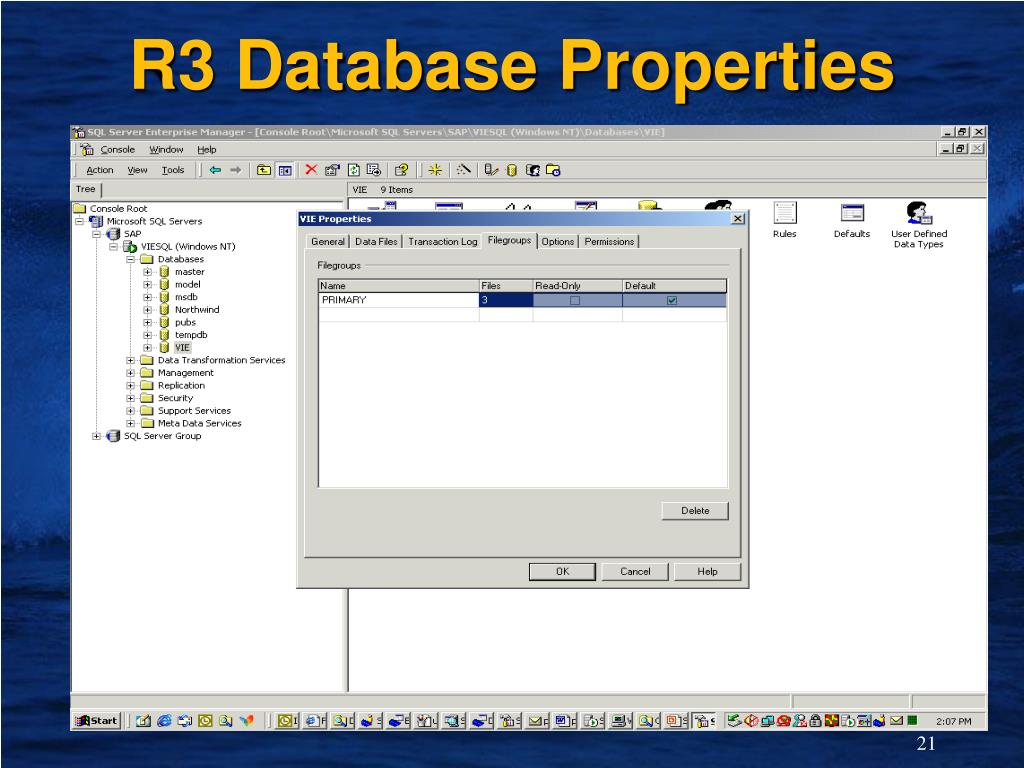

  18. R3 Database Properties

  19. R3 Database Properties

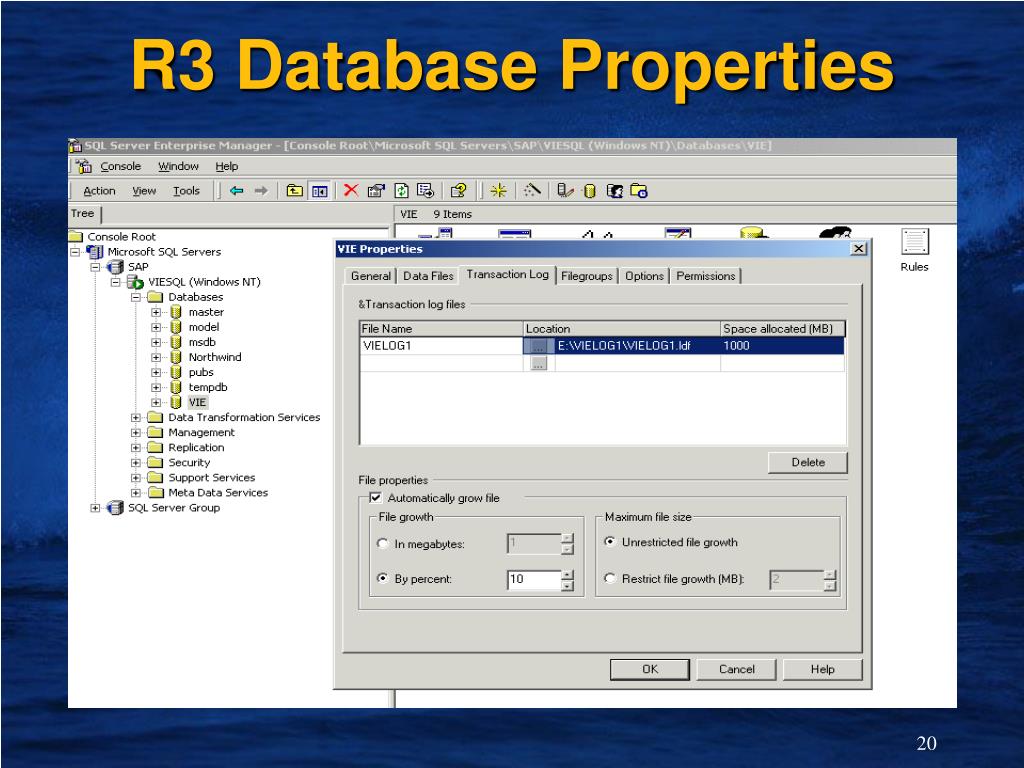

  20. R3 Database Properties

  21. R3 Database Properties

  22. R3 Database Properties

  23. R3 Table List

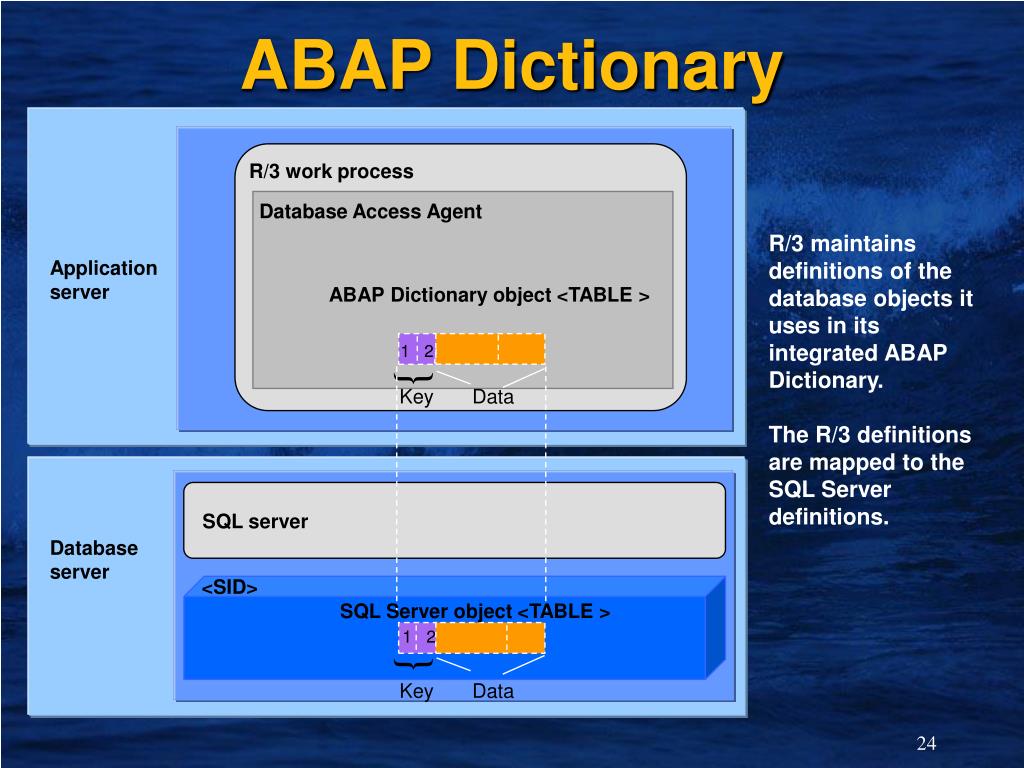

  24. SQL server ABAP Dictionary R/3 work process Database Access Agent R/3 maintains definitions of the database objects it uses in its integrated ABAP Dictionary. The R/3 definitions are mapped to the SQL Server definitions. Application server ABAP Dictionary object <TABLE > 1 2 } Key Data Database server <SID> SQL Server object <TABLE > 1 2 } Key Data

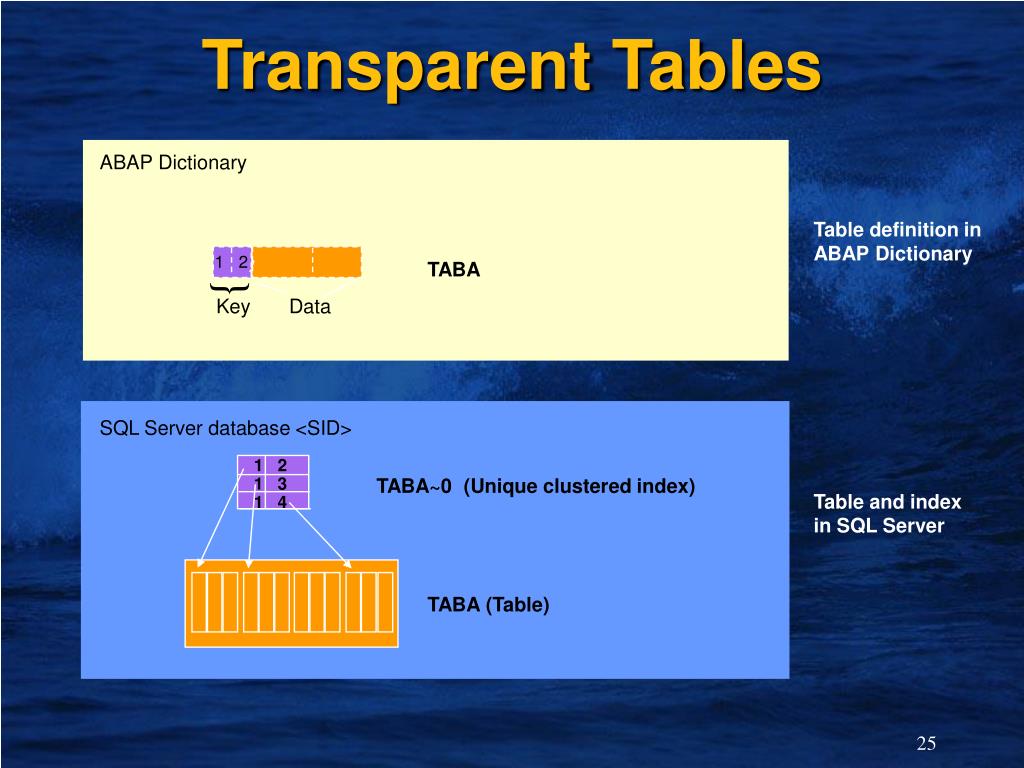

  25. Transparent Tables ABAP Dictionary Table definition in ABAP Dictionary 1 2 TABA } Key Data SQL Server database <SID> 1 2 1 3 1 4 TABA~0 (Unique clustered index) Table and index in SQL Server TABA (Table)

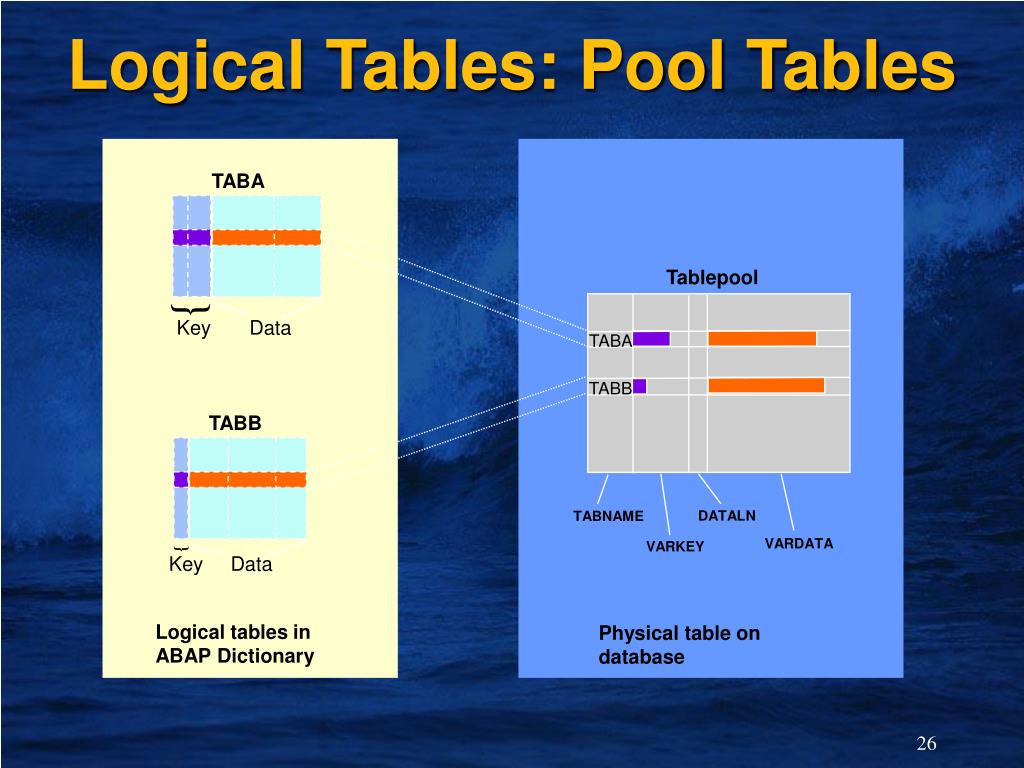

  26. TABA TABB Logical Tables: Pool Tables TABA Tablepool } Key Data TABB DATALN TABNAME VARDATA VARKEY } Key Data Logical tables in ABAP Dictionary Physical table on database

  27. Logical Tables: Cluster Tables TABA 1 2 Tablecluster } Key Data 1 2 TABB } 1 2 KEY PAGELG TIMESTMP } PAGENO VARDATA Key Data Logical tables in ABAP Dictionary Physical table on database

  28. Lab • Identify the SPID for the first Batch Processes • Determine the Stored Procedures related to report ?? • Find the ABAP Dictionary definition for the following tables • MARA, TCOLL and DOKTL • Check the database for their existence • Kill the SPID for the first Batch Processes

  29. Write Summary for this module Summary
