Multiple Device Driver (Linux Software RAID)

1. Multiple Device Driver (Linux Software RAID) Ted Baker  Andy Wang CIS 4930 / COP 5641

2. The md driver • Provides virtual devices • Created from one or more independent underlying devices • The basic mechanism to support RAIDs • Redundant arrays of inexpensive disks

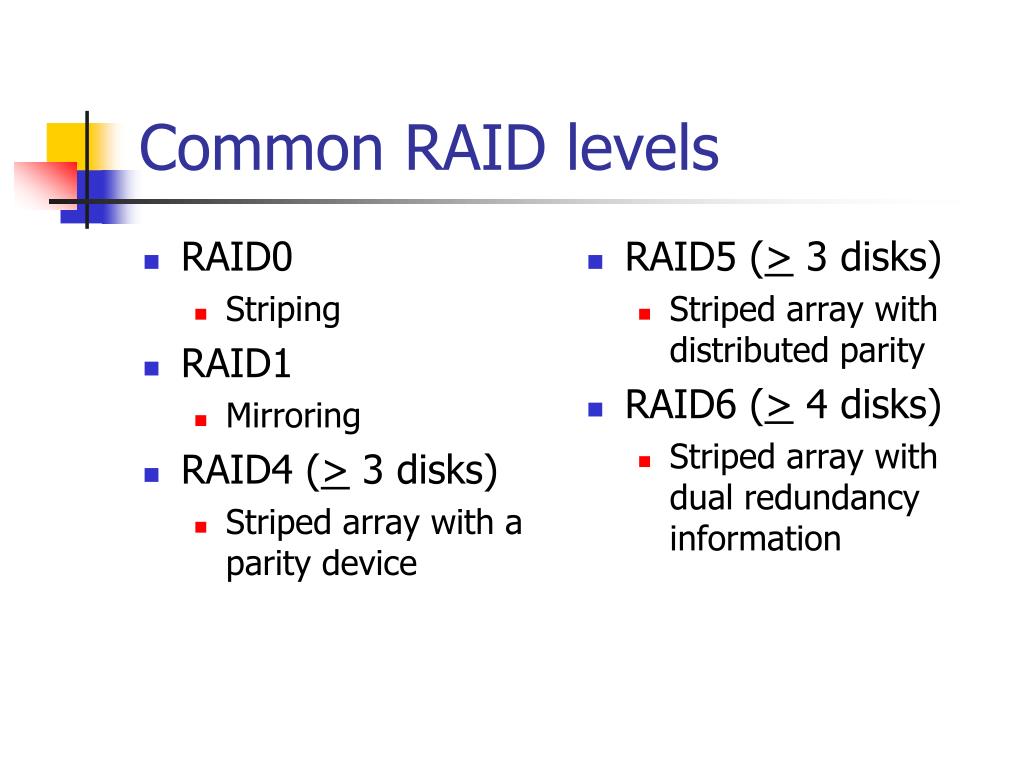

3. RAID0 Striping RAID1 Mirroring RAID4 (> 3 disks) Striped array with a parity device RAID5 (> 3 disks) Striped array with distributed parity RAID6 (> 4 disks) Striped array with dual redundancy information Common RAID levels

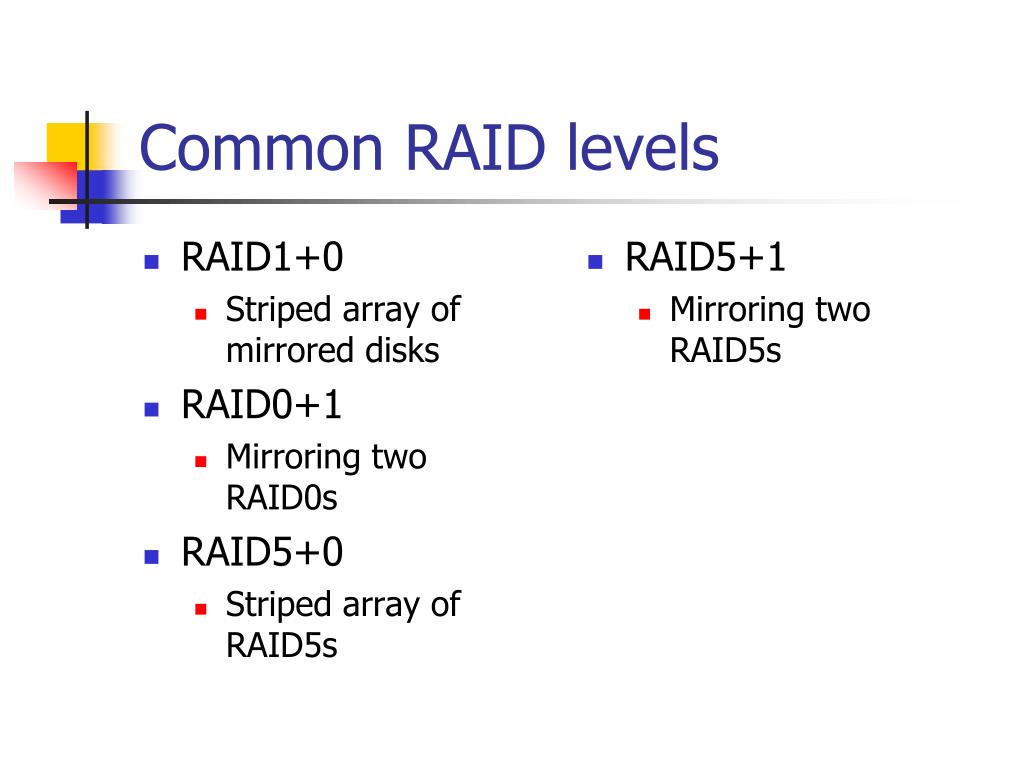

4. RAID1+0 Striped array of mirrored disks RAID0+1 Mirroring two RAID0s RAID5+0 Striped array of RAID5s RAID5+1 Mirroring two RAID5s Common RAID levels

5. md pseudo RAID configurations • Linear (catenates multiple disks into a single one) • Multipath • A set of different interfaces to the same device (e.g., multiple disk controllers) • Faulty • A layer over a single device into which errors can be injected

6. RAID Creation > mdadm --create /dev/md0 --level=1 --raid-devices=2 /dev/hd[ac]1 • Create /dev/md0 as RAID1 • Consisting of /dev/hda1 and /dev/hdc1

7. RAID Status • To check the status for RAIDs • See /proc/mdstat Personalities : [raid1] md0 : active raid1 sda5[0] sdb5[1] 979840 blocks [2/2] [UU] md1 : active raid1 sda6[2] sdb6[1] 159661888 blocks [2/1] [_U] [===>.................] recovery = 17.9% (28697920/159661888) finish=56.4min speed=38656K/sec unused devices: <none>

8. md Super Block • Each device in a RAID may have a superblock with various information • Level • UUID • 128 bit identifier that identifies an array

9. Personality RAID level Chunk size Power of two > 4KB A RAID assigns chunks to disks in a round robin fashion Stripe A collection of ith chunk at each disk form a stripe Parity A chunk constructed via XORing other chunks Some RAID Concepts

10. Synchrony • An update may involve both the data block and the parity block • Implications • A RAID may be shut down in an inconsistency state • Resynchronization may be required at startup, in the background • Reduced performance

11. Recovery • If the md driver detects a write error, it immediately disables that device • Continues operation on the remaining devices • Starts recreating the content if there is a spare drive

12. Recovery • If the md driver detects a read error • Overwrites the bad block • Read the block again • If fails, treat it as a write error • Recovery is a background process • Can be configured via • /proc/sys/dev/raid/speed_limit_min • /proc/sys/dev/raid/speed_limit_max

13. Bitmap Write-Intent Logging • Records which blocks of the array may be out of sync • Speeds up resynchronization • Allows a disk to be temporarily removed and reinserted without causing an enormous recovery cost • Can spin down disks for power savings

14. Bitmap Write-Intent Logging • Can be stored on a separate device

15. Write-Behind • Certain devices in the array can be flagged as write-mostly • md will not wait for writes to write-behind devices to complete before returning to the file system

16. Restriping (Reshaping) • Change the number of disks • Change the RAID levels • Not robust against failures

17. faulty.c static int __init raid_init(void) { return register_md_personality(&faulty_personality); } static void raid_exit(void) { unregister_md_personality(&faulty_personality); } module_init(raid_init); module_exit(raid_exit);

18. faulty.c static struct mdk_personality faulty_personality = { .name = "faulty", .level = LEVEL_FAULTY, .owner = THIS_MODULE, .make_request = make_request, .run = run, .stop = stop, .status = status, .check_reshape = reshape, .size = faulty_size };

19. faulty.c typedef struct faulty_conf { int period[Modes]; atomic_t counters[Modes]; sector_t faults[MaxFault]; int modes[MaxFault]; int nfaults; mdk_rdev_t *rdev; } conf_t; static int run(mddev_t *mddev) { mdk_rdev_t *rdev; struct list_head *tmp; int i; conf_t *conf = kmalloc(sizeof(*conf), GFP_KERNEL); .../* error handling + zero out conf */ list_for_each_entry(rdev, mddev, same_set) conf->rdev = rdev; md_set_array_sectors(mddev, mddev->dev_sectors); mddev->private = conf; reshape(mddev); return 0; } list head A field in mdk_rdev_t

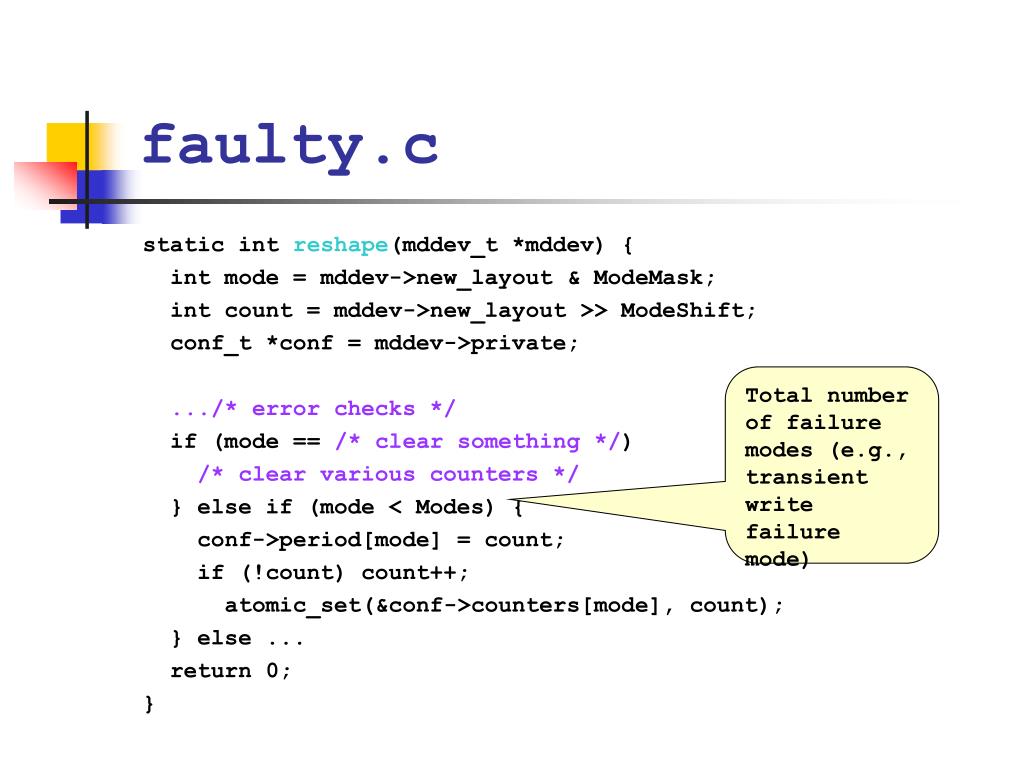

20. faulty.c static int reshape(mddev_t *mddev) { int mode = mddev->new_layout & ModeMask; int count = mddev->new_layout >> ModeShift; conf_t *conf = mddev->private; .../* error checks */ if (mode == /* clear something */) /* clear various counters */ } else if (mode < Modes) { conf->period[mode] = count; if (!count) count++; atomic_set(&conf->counters[mode], count); } else ... return 0; } Total number of failure modes (e.g., transient write failure mode)

21. faulty.c static int stop(mddev_t *mddev) { conf_t *conf = (conf_t *)mddev->private; kfree(conf); mddev->private = NULL; return 0; }

22. faulty.c static int make_request(request_queue_t *q, struct bio *bio) { mddev_t *mddev = q->queuedata; conf_t *conf = (conf_t*)mddev->private; int failit = 0; if (bio_data_dir(bio) == WRITE) { /* data direction */ .../* misc cases */ /* if a sector failed before, need to stay failed */ if (check_sector(conf, bio->bi_sector, bio->bi_sector + (bio->bi_size >> 9), WRITE)) failit = 1; /* if the period (some predefined constant) is reached for a sector, record the sector and fail it */ if (check_mode(conf, WritePersistent)) { add_sector(conf, bio->bi_sector, WritePersistent); failit = 1; } ...

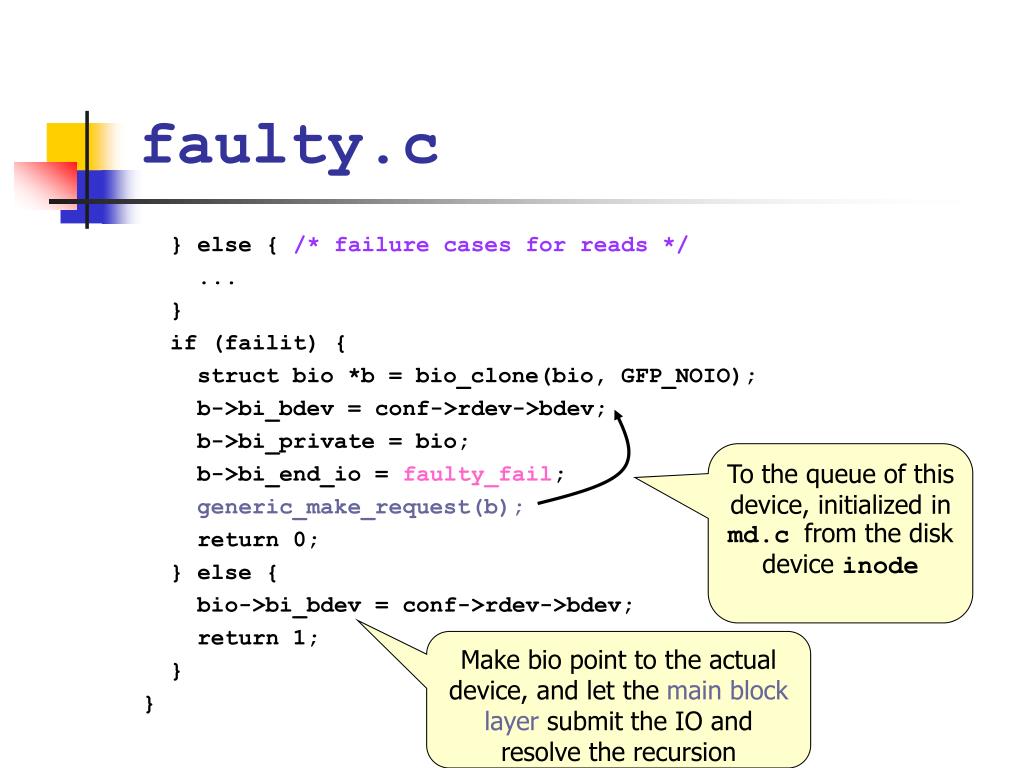

23. faulty.c } else { /* failure cases for reads */ ... } if (failit) { struct bio *b = bio_clone(bio, GFP_NOIO); b->bi_bdev = conf->rdev->bdev; b->bi_private = bio; b->bi_end_io = faulty_fail; generic_make_request(b); return 0; } else { bio->bi_bdev = conf->rdev->bdev; return 1; } } To the queue of this device, initialized in md.c from the disk device inode Make bio point to the actual device, and let the main block layer submit the IO and resolve the recursion

24. faulty.c static int faulty_fail(struct bio *bio, int error) { struct bio *b = bio->bi_private; b->bi_size = bio->bi_size; b->bi_sector = bio->bi_sector; bio_put(bio); bio_io_error(b); }

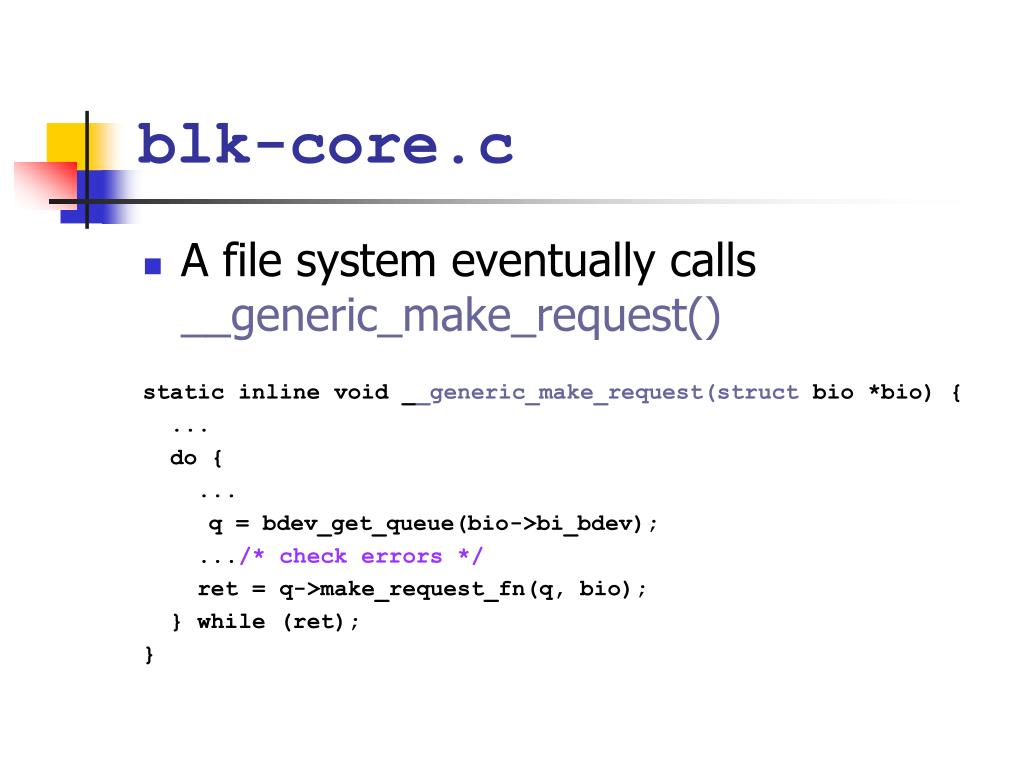

25. blk-core.c • A file system eventually calls __generic_make_request() static inline void __generic_make_request(struct bio *bio) { ... do { ... q = bdev_get_queue(bio->bi_bdev); .../* check errors */ ret = q->make_request_fn(q, bio); } while (ret); }

26. linear.c static int __init linear_init(void) { return register_md_personality(&linear_personality); } static void linear_exit (void) { unregister_md_personality(&linear_personality); } module_init(linear_init); module_exit(linear_exit);

27. linear.c static struct mdk_personality linear_personality = { .name = "linear", .level = LEVEL_LINEAR, .owner = THIS_MODULE, .make_request = linear_make_request, .run = linear_run, .stop = linear_stop, .status = linear_status, /* for proc */ .hot_add_disk = linear_add, .size = linear_size, };

28. linear.c static int linear_run(mddev_t *mddev) { linear_conf_t *conf; /* initialize conf = linear_conf(mddev, mddev->raid_disks); if (!conf) return 1; mddev->private = conf; md_set_array_sectors(mddev, conf->array_sectors; ... initialize conf->disks[i].end_sector typedef struct linear_private_data { sector_t array_sectors; dev_info_t disks[0]; struct rcu_head rcu; } linear_conf_t;

29. linear.c ... /* determines whether two bio can be merged */ /* overrides the default merge_bvec function */ blk_queue_merge_bvec(mddev->queue, linear_mergeable_bvec); /* queues are first plugged to build up the queue length, then unplugged to release requests to devices */ mddev->queue->unplug_fn = linear_unplug; /* disable prefetching when the device is congested */ mddev->queue->backing_dev_info.congested_fn = linear_congested; mddev->queue->backing_dev_info.congested_data = mddev; md_integrity_register(mddev); return 0; }

30. linear.c static int linear_stop(mddev_t *mddev) { linear_conf_t *conf = mddev->private; /* the unplug fn references 'conf‘ */ rcu_barrier(); blk_sync_queue(mddev->queue); kfree(conf); return 0; }

31. linear.c static int linear_make_request(request_queue_t *q, struct bio *bio) { const int rw = bio_data_dir(bio); mddev_t *mddev = q->queuedata; dev_info_t *tmp_dev; sector_t start_sector; .../* check for errors and update statistics */ rcu_read_lock(); tmp_dev = which_dev(mddev, bio->bi_sector); start_sector = tmp_dev->end_sector – tmp_dev->rdev->sectors; .../* more error checks */

32. linear.c if (unlikely(bio->bi_sector + (bio->bi_size >> 9) > tmp_dev->end_sector)) { /* This bio crosses a device boundary, so we have to * split it. */ struct bio_pair *bp; sector_t end_sector = tmp_dev->end_sector; rcu_read_unlock(); bp = bio_split(bio, end_sector – bio->bi_sector); if (linear_make_request(q, &bp->bio1)) /* recursion!?# */ generic_make_request(&bp->bio1); if (linear_make_request(q, &bp->bio2)) /* recursion#!% */ generic_make_request(&bp->bio2); bio_pair_release(bp); /* remove bio hazard */ return 0; }

33. linear.c Points to the specific device instead of the linear device bio->bi_bdev = tmp_dev->rdev->bdev; bio->bi_sector = bio->bi_sector – start_sector + tmp_dev->rdev->data_offset; rcu_read_unlock(); return 1; } Translates the virtual sector number to the physical sector number for the specific device Again, let the main block layer submit the IO and resolve the recursion
