  1. IW Series Installation Guide – Can installing an IR Window really be this easy? IW Series - Intelligent Infrared Windows By: Nick Copeland CorDEX Instruments Ltd

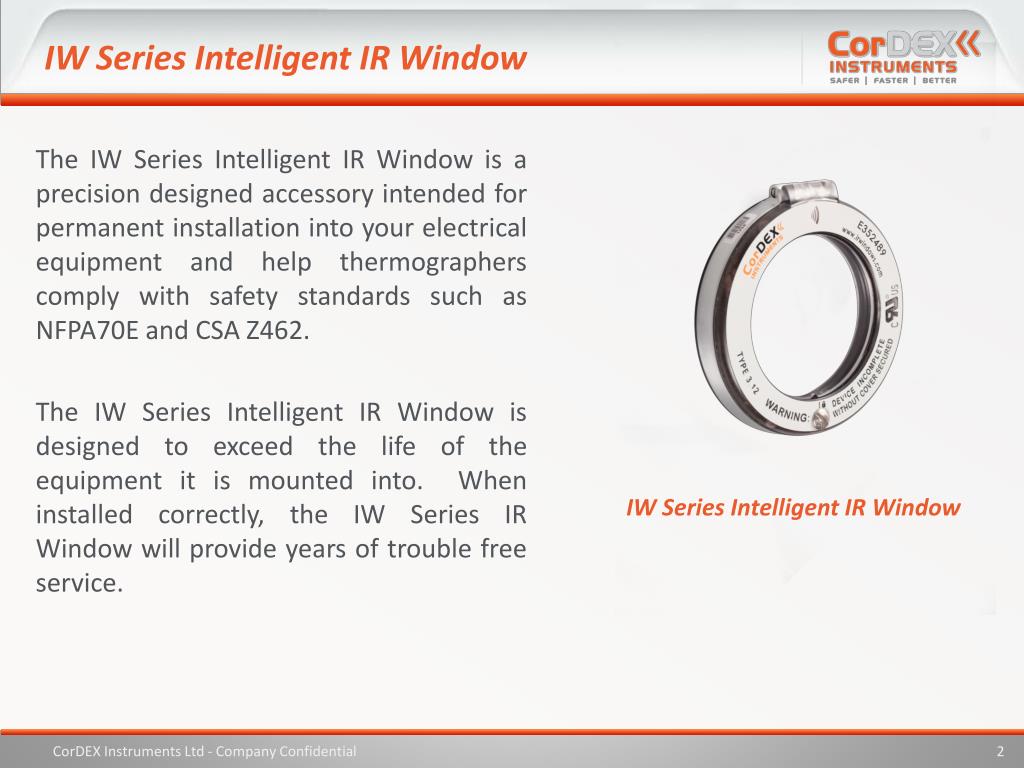

  2. IW Series Intelligent IR Window The IW Series Intelligent IR Window is a precision designed accessory intended for permanent installation into your electrical equipment and help thermographers comply with safety standards such as NFPA70E and CSA Z462. The IW Series Intelligent IR Window is designed to exceed the life of the equipment it is mounted into. When installed correctly, the IW Series IR Window will provide years of trouble free service. IW Series Intelligent IR Window CorDEX Instruments Ltd - Company Confidential

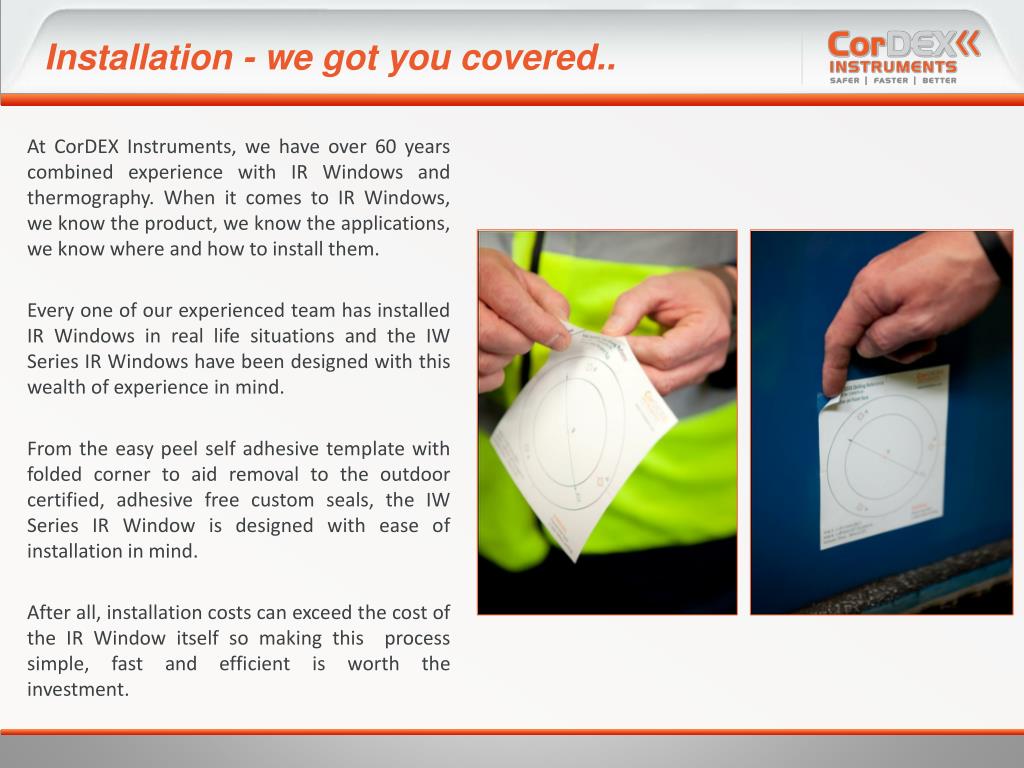

  3. Installation - we got you covered.. At CorDEX Instruments, we have over 60 years combined experience with IR Windows and thermography. When it comes to IR Windows, we know the product, we know the applications, we know where and how to install them. Every one of our experienced team has installed IR Windows in real life situations and the IW Series IR Windows have been designed with this wealth of experience in mind. From the easy peel self adhesive template with folded corner to aid removal to the outdoor certified, adhesive free custom seals, the IW Series IR Window is designed with ease of installation in mind. After all, installation costs can exceed the cost of the IR Window itself so making this process simple, fast and efficient is worth the investment.

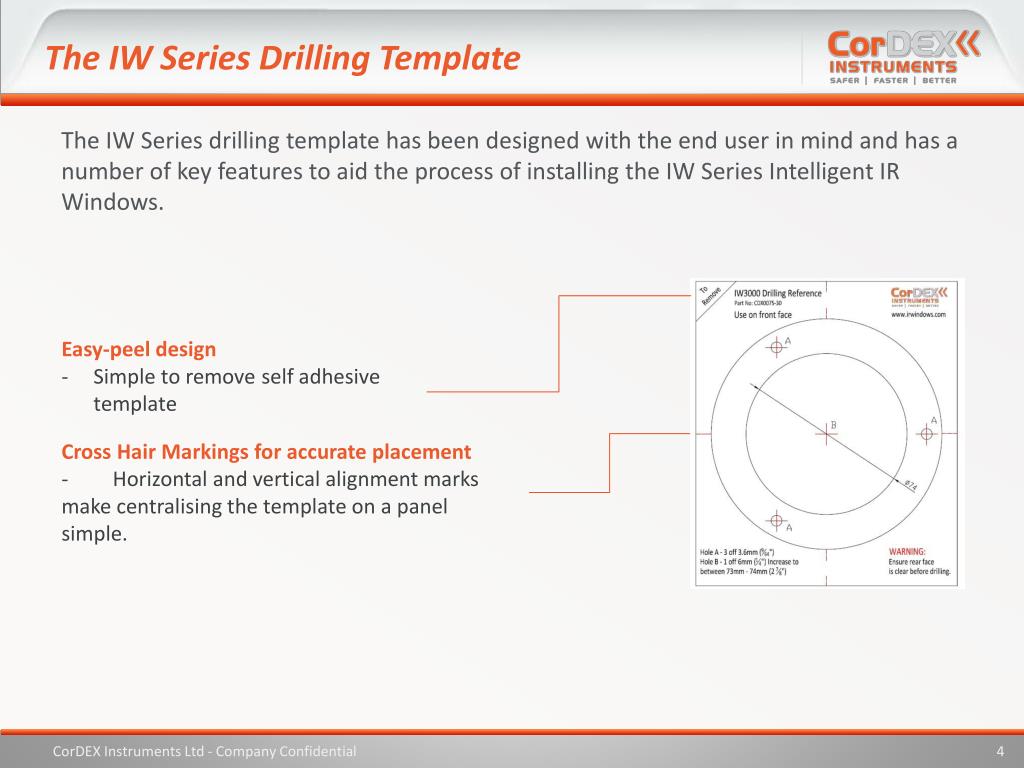

  4. The IW Series Drilling Template The IW Series drilling template has been designed with the end user in mind and has a number of key features to aid the process of installing the IW Series Intelligent IR Windows. • Easy-peel design • Simple to remove self adhesive template • Cross Hair Markings for accurate placement • - Horizontal and vertical alignment marks make centralising the template on a panel simple. CorDEX Instruments Ltd - Company Confidential

  5. Mistakes wont cost you... If you get your set up incorrect, or need to move the template before drilling, the plastic sticker reduces the risk of tear and damage requiring a new template. A common issue when installing older IR Window designs occurs when the installation template sticks to the panel surface and being difficult to remove. Often removing the template could take longer than installing the IR Window. With the CorDEX IW Series Intelligent IR Windows, the template can be removed easily and quickly time and again..

  6. IW Series – Easy Install? The IW Series Intelligent IR Windows are designed to be simple and fast to install. • Easy peel template for hole cutting / drilling - Precise, quick and leaves no mess! • IW Series supplied ready to go! - No requirement to apply gaskets or build windows! • 3 Screw Fixing - Quick and easy to install with only three screw holes • Replace the panel and away you go! - Once the three screws are in place and tightened, replace your panel cover and away you go using the easy access ¼ turn access cover.

  7. Thank you! CorDEX Instruments Ltd - Company Confidential
