Chapter 12: Telecommunications Systems

1. Data Communications and Computer Networks: A Business User’s Approach Third Edition Chapter 12: Telecommunications Systems

2. Objectives • Identify the basic elements of a telephone system, and discuss the limitations of telephone signals • Describe the composition of the telephone industry before and after the 1984 Modified Final Judgment, and explain the differences • Describe the difference between a local exchange carrier and an interexchange carrier, and list the services each offers Data Cummunications & Computer Networks: A Business User's Approach, Third Edition

3. Objectives (continued) • Differentiate between the roles of the local telephone company before and after the Telecommunications Act of 1996 • List the types of leased lines that are available and their basic characteristics • Outline the features of ISDN, and distinguish a basic rate interface from a primary rate interface • List the basic characteristics of frame relay, such as permanent virtual circuits, committed information rate, and switched virtual circuits Data Cummunications & Computer Networks: A Business User's Approach, Third Edition

4. Objectives (continued) • Identify the main characteristics of Asynchronous Transfer Mode, including the roles of the virtual path connection and the virtual channel connection, the importance of the classes of service available, and ATM’s advantages and disadvantages • Identify the main characteristics of digital subscriber line, and recognize the difference between a symmetric system and an asymmetric system Data Cummunications & Computer Networks: A Business User's Approach, Third Edition

5. Introduction • Students used to go into either data communications or voice communications • Today, the two fields are merging • Voice systems transfer computer data and data networks support voice • Anyone studying the field of data communications and networks must learn some basic telecommunications too Data Cummunications & Computer Networks: A Business User's Approach, Third Edition

6. The Basic Telephone System • POTS is the plain old telephone system that connects most homes and small businesses • POTS lines were designed to transmit the human voice, which has a bandwidth less than 4000 Hz • A telephone conversation requires two channels, each occupying 4000 Hz Data Cummunications & Computer Networks: A Business User's Approach, Third Edition

7. The Basic Telephone System (continued) Data Cummunications & Computer Networks: A Business User's Approach, Third Edition

8. The Basic Telephone System (continued) • A 4000 Hz analog signal can only carry about 33,600 bits per second of information while a 4000 Hz digital signal can carry about 56,000 bits per second • If you want to send information faster, you need a signal with a higher frequency OR you need to incorporate more advanced modulation techniques • POTS cannot deliver faster signals Data Cummunications & Computer Networks: A Business User's Approach, Third Edition

9. The Basic Telephone System (continued) • Local loop is the telephone line that runs from the telephone company’s central office to your home or business • Central office is the building that houses the telephone company’s switching equipment and provides a local dial tone on your telephone • If you place a long distance call, the central office passes your telephone call off to a long distance provider Data Cummunications & Computer Networks: A Business User's Approach, Third Edition

10. The Basic Telephone System (continued) Data Cummunications & Computer Networks: A Business User's Approach, Third Edition

11. The Basic Telephone System (continued) • The country is divided into a few hundred local access transport areas (LATAs) • If your call goes from one LATA to another, it is a long distance call and is handled by a long distance telephone company • If your call stays within a LATA, it is a local distance call and is handled by a local telephone company Data Cummunications & Computer Networks: A Business User's Approach, Third Edition

12. The Basic Telephone System (continued) • A trunk is a special telephone line that runs between central offices and other telephone company switching centers • A trunk is usually digital, high speed, and carries multiple telephone circuits • A trunk is typically a 4-wire circuit, while a telephone line is a 2-wire circuit Data Cummunications & Computer Networks: A Business User's Approach, Third Edition

13. The Basic Telephone System (continued) • A trunk is not associated with a single telephone number like a line is • A telephone number consists of an area code, an exchange, and a subscriber extension • The area code and exchange must start with the digits 2-9 to separate them from long distance and operator services Data Cummunications & Computer Networks: A Business User's Approach, Third Edition

14. The Basic Telephone System (continued) Data Cummunications & Computer Networks: A Business User's Approach, Third Edition

15. The Basic Telephone System (continued) • When the telephone company installs a line, it must not proceed any further than 12 inches into the building • This point is the demarcation point, or demarc • Modular connectors, such as the RJ-11, are commonly used to interconnect telephone lines and the telephone handset to the base • When the handset is lifted off the base (off-hook), an off-hook signal is sent to the central office Data Cummunications & Computer Networks: A Business User's Approach, Third Edition

16. The Basic Telephone System (continued) • When the off-hook signal arrives at the central office, a dial tone is generated and returned to the telephone • When the user hears the dial tone, they dial (or press) the number • The central office equipment collects the dialed digits, and proceeds to place the appropriate call Data Cummunications & Computer Networks: A Business User's Approach, Third Edition

17. The Basic Telephone System (continued) • Foreign exchange service (FX) - customer calls a local number which is then connected to a leased line to a remote site • Wide area telecommunications services (WATS) - discount volume calling to local and long distance sites • Off premises extensions (OPX) - dial tone at location B comes from the PBX at location A Data Cummunications & Computer Networks: A Business User's Approach, Third Edition

18. The Telephone Network Before and After 1984 • In 1984, the U.S. government broke up AT&T • Before then, AT&T owned a large majority of all local telephone circuits and all the long distance service • With the Modified Final Judgment of 1984, AT&T had to split off the local telephone companies from the long distance company • The local telephone companies formed seven Regional Bell Operating Companies • Today, there are only 4 left: Bell South, SBC, Qwest (US West), and Verizon (Bell Atlantic) Data Cummunications & Computer Networks: A Business User's Approach, Third Edition

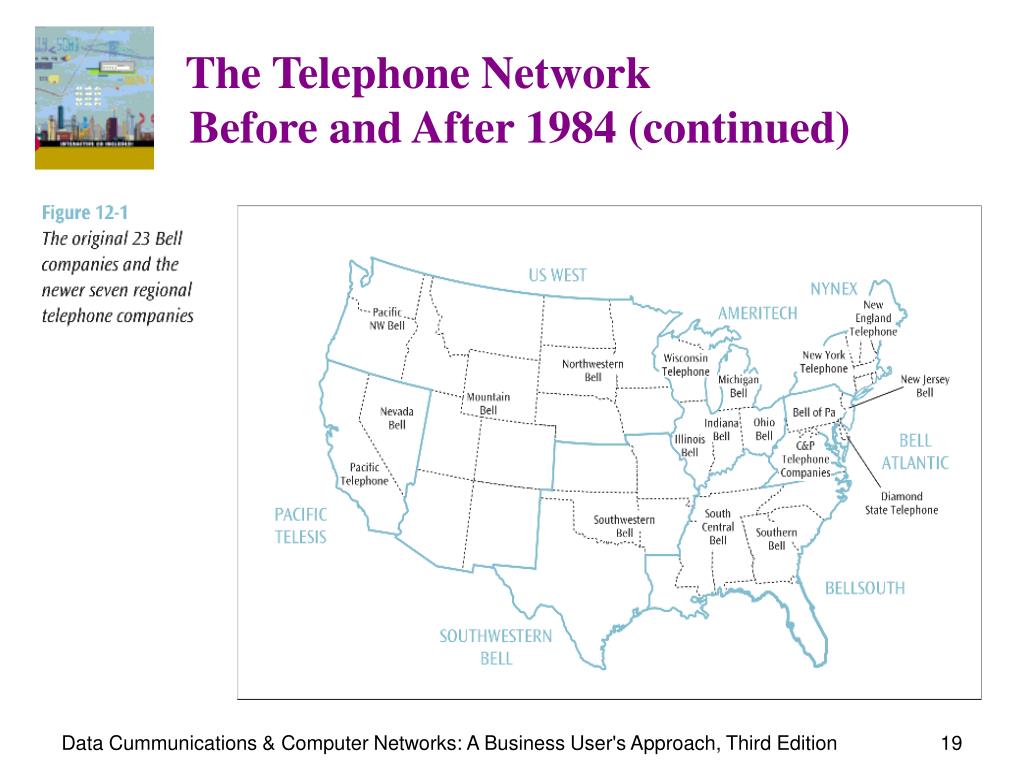

19. The Telephone Network Before and After 1984 (continued) Data Cummunications & Computer Networks: A Business User's Approach, Third Edition

20. The Telephone Network Before and After 1984 (continued) • Another result of the Modified Judgment was the creation of the LATA (local access and transport area) • Local telephone companies became known as local exchange carriers (LECs) • Long distance telephone companies became known as interexchange carriers (IEC, or IXC) • Calls that remain within a LATA are intra-LATA, or local calls • Calls that pass from one LATA to another are inter-LATA, or long distance Data Cummunications & Computer Networks: A Business User's Approach, Third Edition

21. The Telephone Network Before and After 1984 (continued) • Before 1984, the telephone network in the U.S. resembled a large hierarchical tree, with Class 5 offices at the bottom and Class 1 offices at the top • Users were connected to the Class 5 offices • The longer the distance of a telephone call, the further up the tree the call progressed • Today’s telephone structure is a collection of LECs, POPs, and IECs Data Cummunications & Computer Networks: A Business User's Approach, Third Edition

22. Telephone Networks after 1996 • Telecommunications Act of 1996: opened up the local telephone market to competitors • Now cable TV companies (cable telephony), long distance telephone companies, or anyone that wanted to start a local telephone company could offer local telephone service • Local phone companies that existed before the Act are known as incumbent local exchange carriers (ILEC) while the new companies are competitive local exchange carriers (CLEC) Data Cummunications & Computer Networks: A Business User's Approach, Third Edition

23. Telephone Networks after 1996 (continued) • LECs are supposed to allow CLECs access to all local loops and switching centers / central offices • If a local loop is damaged, the LEC is responsible for repair • The LEC is also supposed to provide the CLEC with a discount to the dial tone (17-20%) • LECs can also provide long distance service if they can show there is sufficient competition at the local service level Data Cummunications & Computer Networks: A Business User's Approach, Third Edition

24. Other Players in the Market • Alternate operator services - pay phones, hotel phones • Aggregators - pulls a bunch of small companies together and goes after phone discounts • Reseller - rents or leases variety of lines from phone companies, then resells to customers • Specialized mobile radio carriers - mobile communication services to businesses and individuals, including dispatch, paging, and data services • ARDIS and RAM Mobile Data two good examples Data Cummunications & Computer Networks: A Business User's Approach, Third Edition

25. PBX • Private branch exchange (PBX) - common internal phone switching system for medium to large-sized businesses • Provides advanced intelligent features to users, such as: • 4-digit internal dialing • Special prefixes for WATS, FX, etc (private dialing plans) • PBX intelligently decides how to route a call for lowest cost Data Cummunications & Computer Networks: A Business User's Approach, Third Edition

26. More PBX Features • Voice mail • Routes incoming calls to the best station set (automatic call distribution) • Provides recorded messages and responds to touch-tone requests (automated attendant) • Access to database storage and retrieval (interactive voice response) • VoIP Data Cummunications & Computer Networks: A Business User's Approach, Third Edition

27. PBX Components • CPU, memory, telephone lines, trunks • Switching network • Supporting logic cards • Main distribution frame • Console or switchboard • Battery back-up system Data Cummunications & Computer Networks: A Business User's Approach, Third Edition

28. Automated Attendant • Plays a recorded greeting and offers a set of options • Lets the caller enter an extension directly (touch tone or voice) and bypass an “operator” • Forwards the caller to a human operator if the caller does not have a touch tone phone • Available as an option on a PBX Data Cummunications & Computer Networks: A Business User's Approach, Third Edition

29. Automatic Call Distributor • Automatic Call Distributor: perhaps you’ve experienced this when you call a business, are told all operators / technicians / support staff etc. are busy, and that your call will be answered in the order it was received • Used in systems where incoming calling volume is large, such as customer service, help desk, order entry, credit authorization, reservations, and catalog sales • Early systems used hunt groups • Original systems routed call to first operator in line (kept person very busy!) Data Cummunications & Computer Networks: A Business User's Approach, Third Edition

30. Automatic Call Distributor (continued) • Modern systems perform more advanced functions, such as: • Prioritize the calls • Route calls to appropriate agent based on the skill set of the agent • If all agents busy, deliver call to waiting queue and play appropriate message (like how long they may have to wait) • Forward calls to another call center, or perform automatic return call Data Cummunications & Computer Networks: A Business User's Approach, Third Edition

31. Interactive Voice Response • IVR is similar to AA EXCEPT: • IVR incorporates a connection to a database (on a mainframe or server) • IVR allows caller to access and/or modify database information • IVR can also perform fax on demand Data Cummunications & Computer Networks: A Business User's Approach, Third Edition

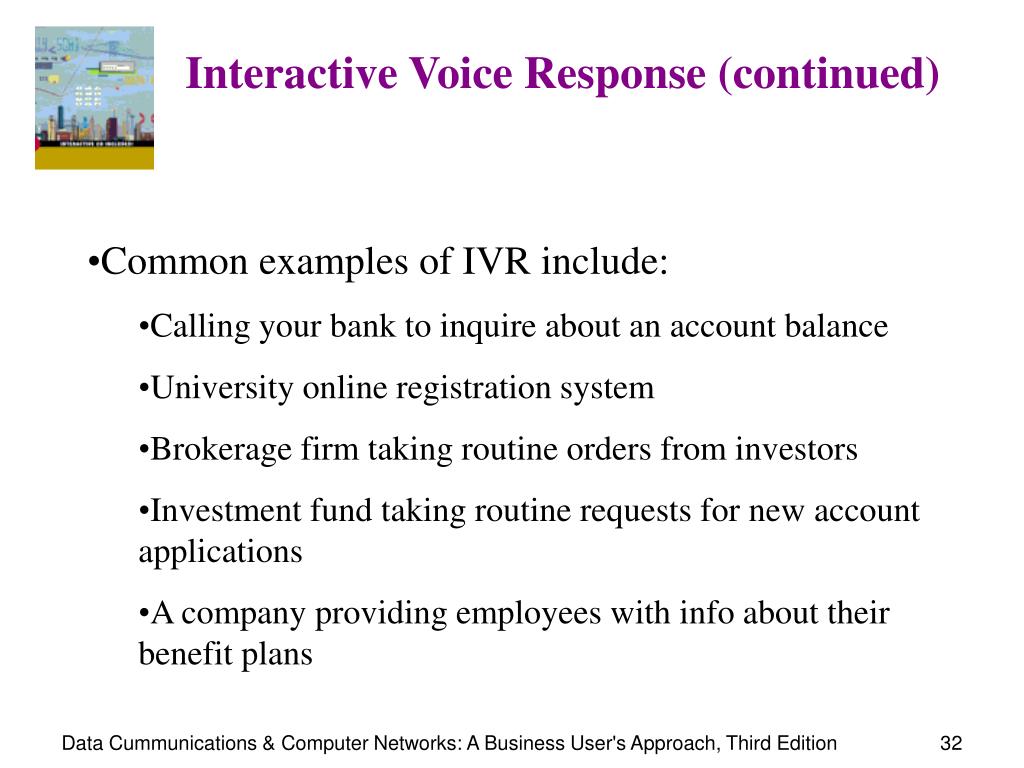

32. Interactive Voice Response (continued) • Common examples of IVR include: • Calling your bank to inquire about an account balance • University online registration system • Brokerage firm taking routine orders from investors • Investment fund taking routine requests for new account applications • A company providing employees with info about their benefit plans Data Cummunications & Computer Networks: A Business User's Approach, Third Edition

33. Key Telephone System • Used within a small office or a branch office, a key telephone system (KTS) is an on-premise resource sharing device similar to a PBX • For example, a key system might distribute 48 internal telephone sets over 16 external phone lines • The business would pay for the 16 individual lines but have 48 telephone sets operating • User selects outside line by pressing corresponding line button on key set (phone) Data Cummunications & Computer Networks: A Business User's Approach, Third Edition

34. Leased Line Services • Most home computer users use POTS lines and conventional modems to connect to other computer systems • What if you need a faster service, or need one that is always on? • You can get a leased line service • A basic leased line, or tie line, gives you a 56 kbps data transfer rate • T-1 (or T1) service provides 1.544 Mbps rate • Used by businesses to connect their in-house telephone systems (PBX) and data networks to the outside world Data Cummunications & Computer Networks: A Business User's Approach, Third Edition

35. T-1 Service • A T-1 service is a digital, synchronous TDM stream used by businesses and telephone companies • A T-1 service is always on and always transmitting • One T-1 service can support up to 24 simultaneous channels • These channels can be either voice or data (PBX support) • A T-1 service can also be provisioned as a single channel delivering 1.544 Mbps of data (LAN to ISP connection) Data Cummunications & Computer Networks: A Business User's Approach, Third Edition

36. T-1 Service (continued) • A T-1 service requires 4 wires, as opposed to a 2-wire telephone line • A T-1 can be either intra-LATA (local) which costs roughly $350-$400 per month, or inter-LATA (long distance) which can cost thousands of dollars per month (usually based on distance) • A customer may also be able to order a ¼ T-1 or a ½ T-1 Data Cummunications & Computer Networks: A Business User's Approach, Third Edition

37. T-1 Service (continued) • T-1constantly transmits frames (8000 frames per second) • Each frame consists of one byte from each of the 24 channels, plus 1 sync bit (8 * 24 + 1 = 193 bits) • 8000 frames per second * 193 bits per frame = 1.544 Mbps • If a channel is used for voice, each byte is one byte of PCM-encoded voice • If a channel is used for data, each byte contains 7 bits of data and 1 bit of control information (7 * 8000 = 56 kbps) Data Cummunications & Computer Networks: A Business User's Approach, Third Edition

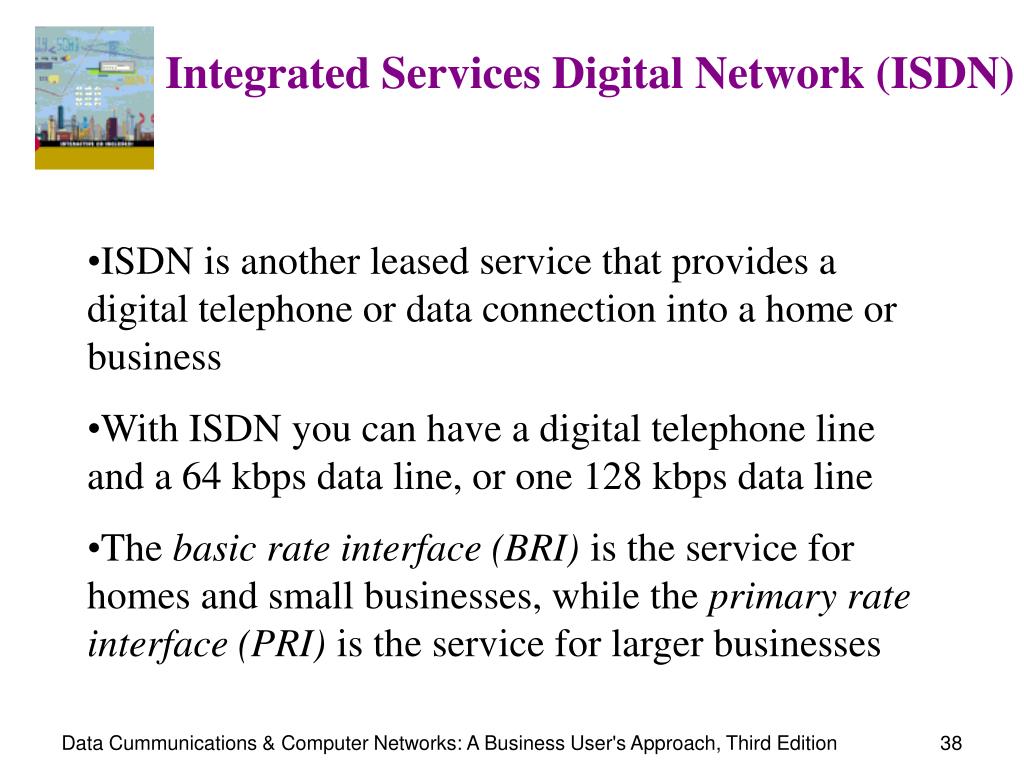

38. Integrated Services Digital Network (ISDN) • ISDN is another leased service that provides a digital telephone or data connection into a home or business • With ISDN you can have a digital telephone line and a 64 kbps data line, or one 128 kbps data line • The basic rate interface (BRI) is the service for homes and small businesses, while the primary rate interface (PRI) is the service for larger businesses Data Cummunications & Computer Networks: A Business User's Approach, Third Edition

39. ISDN (continued) • BRI ISDN consists of two B channels and one D channel • A B channel can carry 64 kbps of data or PCM-encoded voice • The D channel is 16 kbps and carries signaling information • The B channels are dialable, and the D channel can be always on • Many users combine both B channels for a 128 kbps data channel Data Cummunications & Computer Networks: A Business User's Approach, Third Edition

40. ISDN (continued) • PRI ISDN is used by larger businesses and contains 23 B channels and one 64 kbps D channel • PRI ISDN is essentially equivalent to a T-1, but with ISDN, the 23 channels are dialable! • The appropriate ISDN modems / multiplexors are necessary to support this service • What could you use an always-on D channel for? Data Cummunications & Computer Networks: A Business User's Approach, Third Edition

41. Frame Relay • Frame relay is the leased service that can provide a high-speed connection for data transfer between two points either locally or over long distances • A business only has to connect itself to the local frame relay port • Hopefully this connection is a local telephone call • Once the data reaches the local frame relay port, the frame relay network, or cloud, transmits the data to the other side Data Cummunications & Computer Networks: A Business User's Approach, Third Edition

42. Frame Relay (continued) Data Cummunications & Computer Networks: A Business User's Approach, Third Edition

43. Frame Relay (continued) • A connection between two endpoints is called a permanent virtual circuit (PVC) • PVCs are created by the provider of the frame relay service • User uses a high-speed telephone line to connect its company to a port, which is the entryway to the frame relay network • The high-speed line, the port, and the PVC should all be chosen to support a desired transmission speed Data Cummunications & Computer Networks: A Business User's Approach, Third Edition

44. Frame Relay (continued) Data Cummunications & Computer Networks: A Business User's Approach, Third Edition

45. Frame Relay (continued) • Consider a company that has four office locations and currently has six leased lines interconnecting the four locations • To install frame relay, the company would ask for six PVCs in place of the six leased lines • The company would also need four high-speed telephone lines and four ports connecting the four locations to the frame relay cloud Data Cummunications & Computer Networks: A Business User's Approach, Third Edition

46. Frame Relay Setup Data Cummunications & Computer Networks: A Business User's Approach, Third Edition

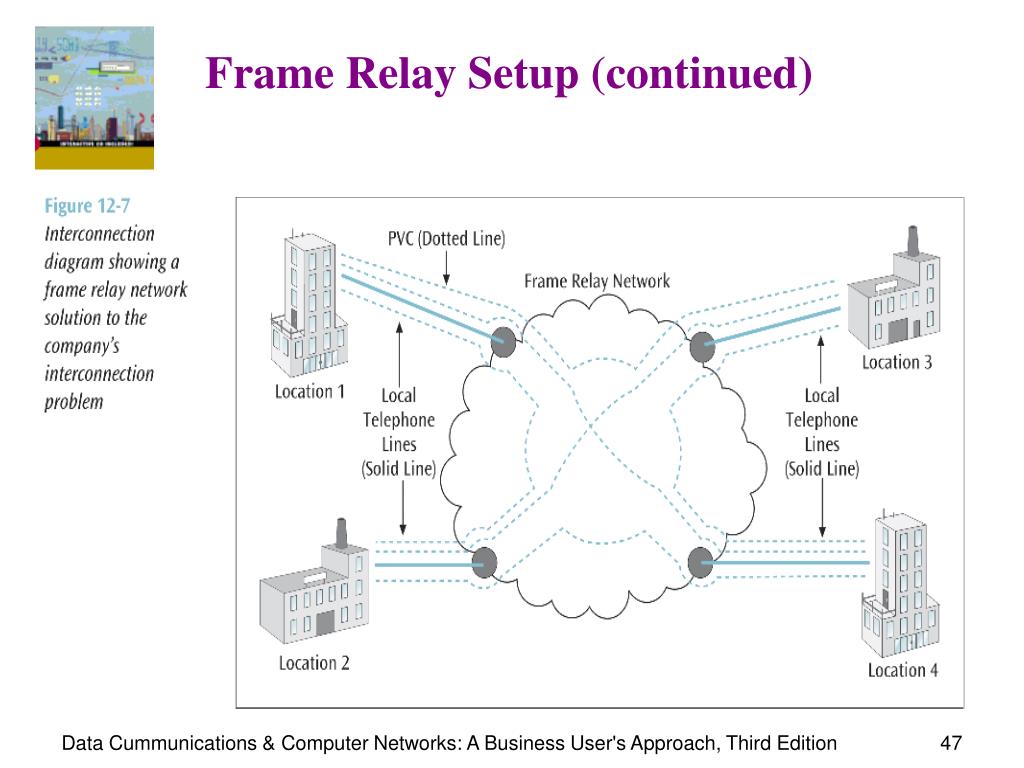

47. Frame Relay Setup (continued) Data Cummunications & Computer Networks: A Business User's Approach, Third Edition

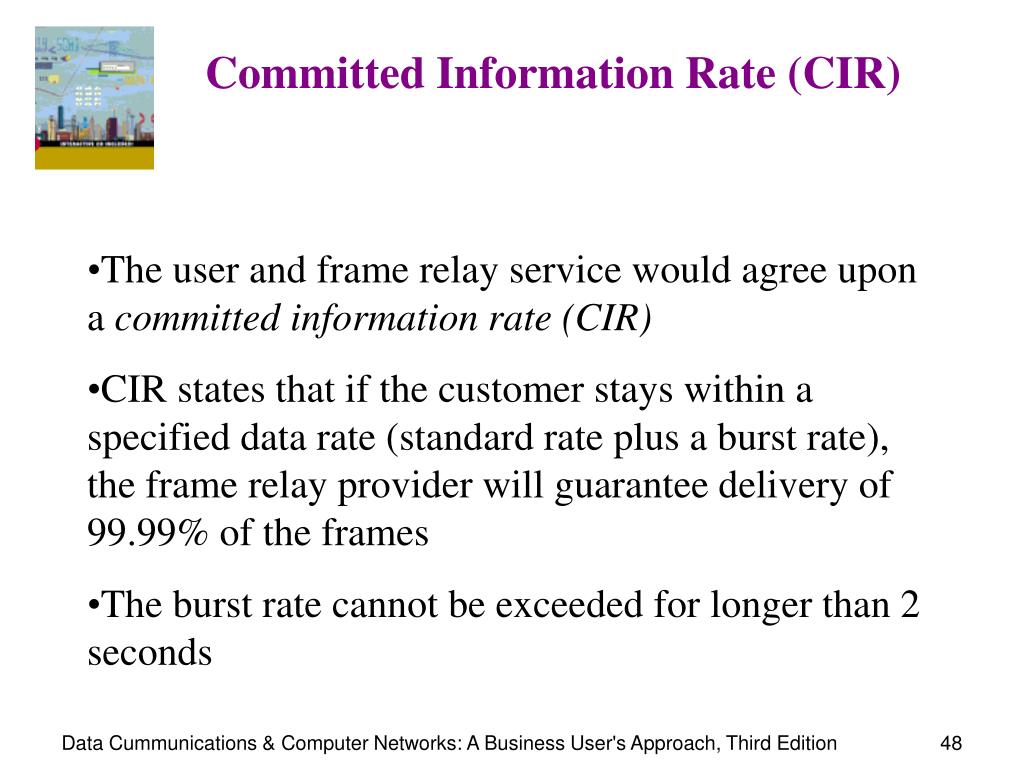

48. Committed Information Rate (CIR) • The user and frame relay service would agree upon a committed information rate (CIR) • CIR states that if the customer stays within a specified data rate (standard rate plus a burst rate), the frame relay provider will guarantee delivery of 99.99% of the frames • The burst rate cannot be exceeded for longer than 2 seconds Data Cummunications & Computer Networks: A Business User's Approach, Third Edition

49. CIR (continued) • Example: If a company agrees to a CIR of 512 kbps with a burst rate of 256 kbps, the company must stay at or below 512 kbps, with an occasional burst up to 768 kbps, as long as the burst does not last longer than 2 seconds • If the company maintains their end of the agreement, the carrier will provide something like 99.99% throughput and a network delay of no longer than 20 ms • If the customer exceeds its CIR, and the network becomes congested, the customer’s frames may be discarded Data Cummunications & Computer Networks: A Business User's Approach, Third Edition

50. Frame Relay vs. the Internet • Frame relay has many advantages over the Internet, including guaranteed throughput and minimum delay as well as better security • Internet has the advantage of being practically everywhere • Cheaper and simpler to create connections (no PVCs necessary) • Internet tunnels (VPNs) are also attractive Data Cummunications & Computer Networks: A Business User's Approach, Third Edition
