1. DATA ANALYSIS Module Code: CA660 Lecture Block 7:Non-parametrics

2. WHAT ABOUT NON-PARAMETRICS? How Useful are ‘Small Data’? • General points • -No clear theoretical probability distribution, so empiricaldistributions needed • -So, less knowledgeof formof data* e.g. ranks instead of values • - Quick and dirty • - Need notfocus on parameter estimation or testing; when do - • frequently based on “less-good”parameters/ estimators, e.g. Medians; otherwise test “properties”, e.g. randomness, symmetry, quality etc. • - weaker assumptions, implicit in * • - smaller sample sizes ‘typical’ • - different data - implicit from other points. Levels of Measurement- Nominal, Ordinal typical for non-parametric/ distribution-free

3. ADVANTAGES/DISADVANTAGES Advantages - Power may be better using N-P, if assumptions weaker - Smaller samples and less work etc. – as stated Disadvantages- alsoimplicit from earlier points, specifically: - loss of information /power etc. whendo know moreon data /when assumptionsdo apply - Separate tables each test General bases/principles: Binomial - cumulative tables, Ordinal data, Normal - large samples, Kolmogorov-Smirnov for Empirical Distributions - shift in Median/Shape, Confidence Intervals- more work to establish. Use Confidence Regions and Tolerance Intervals Errors– Type I, Type II . Power as usual. Relative Efficiency – asymptotic, e.g. look at ratio of sample sizes needed to achieve same power

4. STARTING SIMPLY: - THE ‘SIGN TEST’ • Example.Suppose want to test if weights of a certain item likely to be more or less than 220 g. • From 12 measurements, selected at random, count how many above, how many below. Obtain 9(+), 3(-) • Null Hypothesis: H0: Median  = 220. “Test” on basis of counts of signs. • Binomialsituation, n=12, p=0.5. • For this distribution • P{3 X 9} = 0.962 while P{X 2 or X  10}= 1-0.962 = 0.038 • Result not strongly significant. • Notes:Need not be Median as “Location of test” • (Describe distributions by Location, dispersion, shape). Location = median, “quartile” or other percentile. • Many variants of Sign Test- including e.g. runs of + and - signs for “randomness”

5. PERMUTATION/RANDOMIZATION TESTS • Example:Suppose have 8 subjects, 4 to be selected at random for new training. All 8 rankedin order of level of abilityafter a given period, ranking from 1 (best) to 8 (worse). • P{subjects ranked 1,2,3,4 took new training} = ?? • Clearly any 4 subjects could be chosen. Select r=4units from n = 8, • If new scheme ineffective, sets of ranks equally likely: P{1,2,3,4} = 1/70 • More formally, Sumranks in each grouping. Low sumsindicate that the trainingis effective, High sumsthat it is not. • Sums 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 • No. 1 1 2 3 5 5 7 7 8 7 7 5 5 4 2 1 1 • Critical Regionsize 2/70 given by rank sums 10 and 11 while • size 4/70 from rank sums 10, 11, 12 (both “Nominal”5%) • Testing H0: new training scheme no improvement vsH1: some improvement

6. MORE INFORMATION WILCOXON ‘SIGNED RANK’ • Direction and Magnitude : H0:  = 220 ?Symmetry • Arrange all sample deviations from median in order of magnitude and replace by ranks (1 = smallest deviation, n largest). High sum for positive (or negative) ranks, relative to the other  H0 unlikely. • Weights 126 142 156 228 245 246 370 419 433 454 478 503 • Diffs. -94 -78 -64 8 25 26 150 199 213 234 258 283 • Rearrange 8 25 26 -64 -78 -94 150 199 213 234 258 383 • Signedranks 1 2 3 -4 -5 -6 7 8 9 10 11 12 • Clearly Snegative = 15 and < Spositive • Tables of form: Reject H0 if lower of Snegative, Spositive tabled value • e.g. here, n=12 at  = 5 % level, tabled value =13, so do notreject H0

7. LARGE SAMPLES andC.I. • Normal Approximation for S the smaller in magnitude of rank sums • so C.I. as usual • General for C.I. Basic idea is to take pairs of observations, calculate mean and omit largest / smallest of (1/2)(n)(n+1) pairs. Usually, computer-based - re-samplingor graphicaltechniques. • Alternative Forms -common for non-parametrics • e.g. for Wilcoxon Signed Ranks. Use = magnitude of differences between positive /negative rank sums. Different Table • Ties- complicate distributions and significance. Assign mid-ranks

8. KOLMOGOROV-SMIRNOV and EMPIRICAL DISTRIBUTIONS • Purpose- to compare set of measurements (two groups with each other) or one group with expected - to analyse differences. • CannotassumeNormalityof underlying distribution, (usual shape), so need enough sample values to base comparison on (e.g.  4, 2 groups) • Major features- sensitivity to differences in both shape and location of Medians: (does not distinguish whichis different) • Empirical c.d.f.not p.d.f. - looks for consistencyby comparing popn. curve (expected case) with empiricalcurve (sample values) • Step fn. • i.e. value at each step from data • S(x) should never be too far from F(x) = “expected” form • Test Basisis

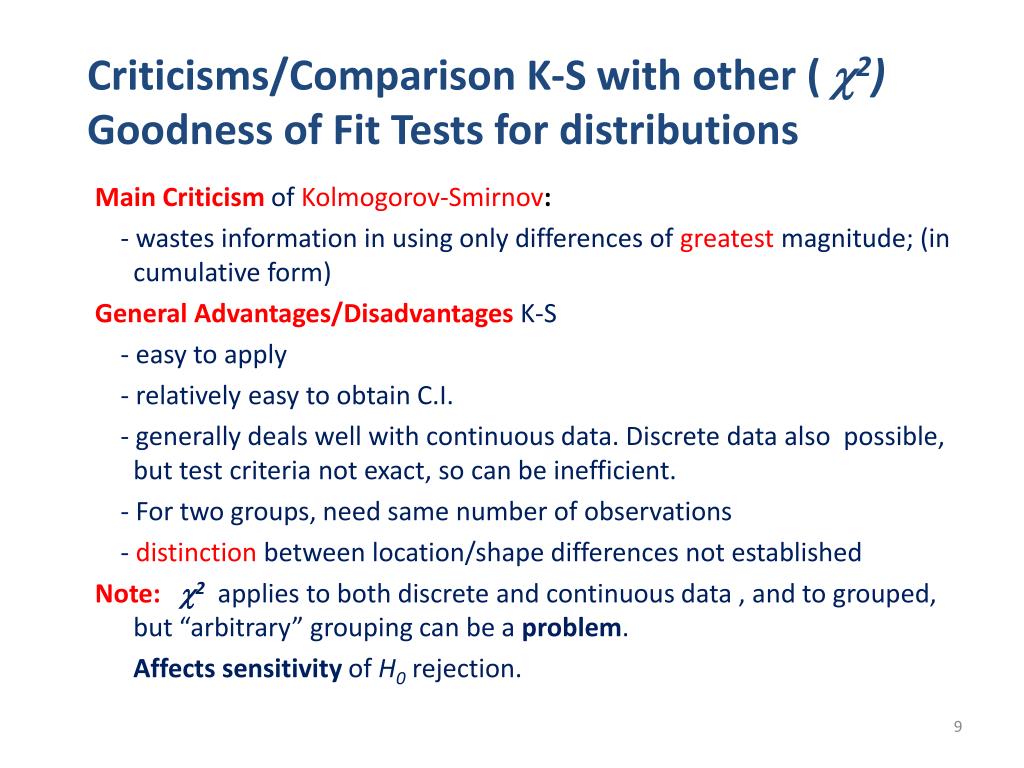

9. Criticisms/Comparison K-S with other ( 2) Goodness of Fit Tests for distributions Main Criticismof Kolmogorov-Smirnov: - wastes information in using only differences of greatest magnitude; (in cumulative form) General Advantages/DisadvantagesK-S - easy to apply - relatively easy to obtain C.I. - generally deals well with continuous data. Discrete data also possible, but test criteria not exact, so can be inefficient. - For two groups, need same number of observations - distinctionbetween location/shape differences not established Note: 2 applies to both discrete and continuous data , and to grouped, but “arbitrary” grouping can be a problem. Affects sensitivity of H0 rejection.

10. COMPARISON 2 INDEPENDENT SAMPLES: WILCOXON-MANN-WHITNEY • Parallelwith parametric (classical)again. H0 : Samples from same population (Medians same) vs H1 : Medians not the same • For two samples, size m, n, calculate joint ranking and Sum for eachsample, giving Sm and Sn . Should be similarif populations sampled are alsosimilar. • Sm+Sn = sum of all ranks = and result tabulated for • Clearly, so need only calculate one from 1st principles • Tables typicallygive, for various m, n, the value to exceedfor smallest U in order to reject H0 . 1-tailed/2-tailed. • Easier : use the sum of smallerranks or fewer values. • Example in brief: If sum of ranks =12 say, probability based on no. possible ways of obtaining a 12 out of Total no. of possible sums

11. Example - W-M-W • For example on weights earlier. Assume now have 2ndsample set also: • 29 39 60 78 82 112 125 170 192 224 263 275 276 286 369 756 • Combined ranksfor the two samples are: • Value 29 39 60 78 82 112 125 126 142 156 170 192 224 228 245 • Rank 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 • Value 246 263 275 276 286 369 370 419 433 454 478 503 756 • Rank 16 17 18 19 20 21 22 23 24 25 26 27 28 • Here m = 16, n=12 and Sm= 1+ 2+ 3 + ….+21+ 28= 187 • So Um=51, and Un=141. (Clearly, can check by calculating Un directly also) • For a 2-tailed test at 5%level,Um= 53 from tables and our value is less, i.e. more extreme, so rejectH0 . Medians are different here

12. MANY SAMPLES - Kruskal-Wallis • Direct extensionof W-M-W. Tests: H0: Medians are the same. • Rank total number of observations for all samples from smallest (rank 1) to highest (rank N) for N values. Ties given mid-rank. • rijis rank of observationxijand si = sum of ranks in ith sample (group) • Compute treatment and total SSQ ranks - uncorrectedgiven as • For no ties,this simplifies • Subtract off correction for average for each, given by • Test Statistic • i.e. approx. 2for moderate/large N. Simplifies further if no ties.

13. PAIRING/RANDOMIZED BLOCKS - Friedman • Blocks of units, so e.g. twotreatments allocated at random within block = matched pairs; can use a variant of sign test(on differences) • Many samplesorunits= Friedman(simplest case of R.B. design) • Recallcomparisons withinpairs/blocks more precise than between, so including Blocks term, “removes” block effect as source of variation. • Friedman’s test- replaces observations by ranks (within blocks) to achieve this. (Thus, ranked data can also be used directly). • Have xij = response. Treatmenti, (i=1,2..t) in eachblock j, (j=1,2...b) • Ranked within blocks • Sum of ranks obtained each treatmentsi, i=1,…t • For rank rij(or mid-rank if tied), raw (uncorrected) rank SSQ

14. Friedman contd. • With no ties, the analysis simplifies • Need alsoSSQ(All treatments –appear in blocks) • Again, the correction factor analogous to that for Kruskal-Wallis • and common form of Friedman Test Statistic • t, b not verysmall, otherwise need exacttables.

15. Other Parallels with Parametric cases • Correlation- Spearman’s Rho( Pearson’s P-Mcalculated using ranks or mid-ranks) • where • used to compare e.g. ranks on two assessments/tests. • Regression– LSE robustin general. Some use of “median methods”, such as Theil’s (not dealt with here, so assume usual least squares form).

16. NON-PARAMETRIC C.I. in Informatics: BOOTSTRAP • Bootstrapping = re-samplingtechniqueused to obtain Empirical distribution for estimator in construction of non-parametric C.I. • - Effective when distribution unknownor complex • - More computationthan parametric approaches and may fail when sample size of original experiment is small • - Re-samplingimplies sampling from a sample - usually to estimate empirical properties, (such as variance, distribution, C.I. of an estimator) and to obtain EDF of a test statistic- common methods are Bootstrap,Jacknife,shuffling • - Aim= approximate numerical solutions (like confidence regions). Can handle biasin this way - e.g. to find MLE of variance 2, mean unknown • - both Bootstrap and Jacknife used, Bootstrap more often for C.I.

17. Bootstrap/Non-parametric C.I. contd. Basis- both Bootstrapand othersrely on fact that sample cumulative distn fn. (CDF or just DF) = MLE of a population Distribution Fn. F(x) DefineBootstrap sampleas a random sample,size n, drawn with replacementfrom a sample of n objects ForS the original sample, P{drawing each item, object or group} = 1/n Bootstrap sampleSBobtained from original, s.t. sampling n times with replacement gives Powerrelies on the fact that large number of resampling samples can be obtained from a single original sample, so if repeat process b times, obtain SjB, j=1,2,….b, with each of these being a bootstrap replication

18. Contd. • Estimator- obtained from each sample. If is the estimate for the jthreplication, then bootstrap mean and variance • while BiasB= • CDFofEstimator = for b replications • soC.I. with confidence coefficient for some percentile is then • Normal Approx. for mean: Large b • (tb-1 - distribution if No. bootstrap replications small). Standardised Normal Deviate

19. Example • Recall (gene and marker) or (sex and purchasing) example • MLE, 1000 bootstrapping replications might give results: • ParametricVariance 0.0001357 0.00099 • 95% C.I. (0, 0.0455) (0.162, 0.286) • 95% Interval (Likelihood) (0.06, 0.056) (0.17, 0.288) • BootstrapVariance 0.0001666 0.0009025 • Bias 0.0000800 0.0020600 • 95% C.I. Normal (0, 0.048) (0.1675, 0.2853) • 95% C.I. (Percentile) (0, 0.054) (0.1815, 0.2826)

20. SUMMARY: Non-Parametric Use Simple property : Sign Tests – large number of variants. Simple basis Paired data Wilcoxon Signed Rank -Compare medians Conditions/Assumptions - No. pairs  6; Distributions- Same shape Independent data Mann-Whitney U - Compare medians - 2 independent groups Conditions/Assumptions -(N  4);Distributions same shape Correlation –as before. Parallels parametric case. Distributions: Kolmogorov-Smirnov - Compare either location, shape Conditions/Assumptions - (N  4), but the two are not separately distinguished. If 2 groups compared) need equal no. observations Many Group/Sample Comparisons: Friedman– compare Medians. Conditions : Data in Randomised Block design. Distributions same shape. Kruskal-Wallis- Independent groups. Conditions : Completely randomised. Groups can be unequal nos. Distributions same shape. Regression – robust, as noted, so use parametric form.
