# Data Analysis

Data Analysis. Basic Problem. There is a population whose properties we are interested in and wish to quantify statistically: mean, standard deviation, distribution, etc. The Question – Given a sample, what was the random system that generated its statistics?. Central Limit Theorem.

Télécharger la présentation

## Data Analysis

An Image/Link below is provided (as is) to download presentation Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

### Presentation Transcript

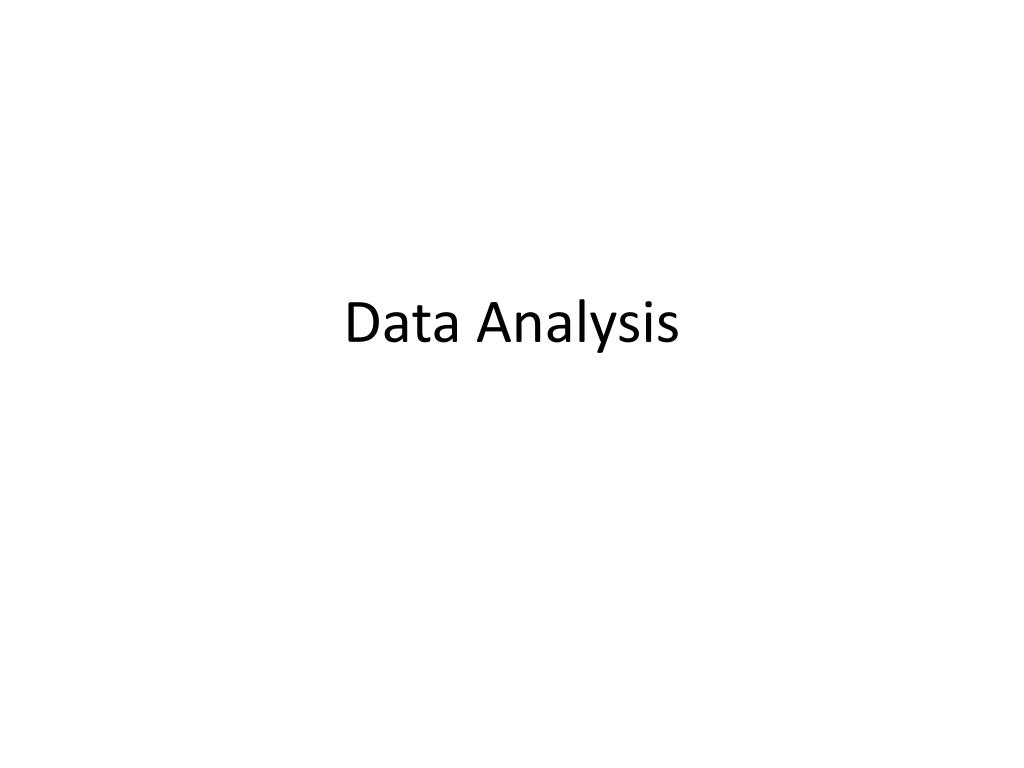

1. Data Analysis

2. Basic Problem • There is a population whose properties we are interested in and wish to quantify statistically: mean, standard deviation, distribution, etc. • The Question – Given a sample, what was the random system that generated its statistics?

3. Central Limit Theorem • If one takes random samples of size n from a population of mean m and standard deviation s, then as n gets large, approaches the normal distribution with mean m and standard deviation • s is generally unknown and often replaced by the sample standard deviation s resulting in , which is termed the Standard Error of the sample.

4. Example

5. Normal distribution

6. Critical Values for Confidence Levels

7. Student’s t-distribution

8. Critical Values for Confidence Levelst-distribution

9. Confidence Interval for Mean(small sample size, t-distribution) OR

10. Comparing Population Means Unequal Variance Pooled Variance

11. Hypothesis Testing (t-test) • Null Hypothesis – differences in two samples occurred purely by chance • t statistic = (estimated difference)/SE • Test returns a “p” value that represents the likelihood that two samples were derived from populations with the same distributions • Samples may be either independent or paired

12. Tails • One tailed test – hypothesis is that one sample is: less than, greater than, taller than, • Two tailed test – hypothesis is that one sample is different (either higher or lower) than the other

13. Paired Test • Samples are not independent • Much more robust test to determine differences since all other variables are controlled • Analysis is performed on the differences of the paired values • Equivalent to Confidence interval for the mean

14. Paired Samples – New Site

15. TSS Concentrations vs. Time

16. BMP Performance Comparison • Commonly expressed as a % reduction in concentration or load • Highly dependent on influent concentration • Potentially ignores reduction in volume (load) • May lead to very large differences in pollutant reduction estimates • Preferable to compare discharge concentrations

17. Effect of TSS Influent Concentration

18. Sand Filter - TSS

19. Comparison of Effluent Quality

20. Exercise • Calculate average concentrations for each constituent for the two watersheds • Determine whether any concentrations are significantly different, report p value for null hypothesis • Calculate average effluent concentrations for the two BMPs and determine whether they are different from the influent concentrations – p values • Compare effluent concentrations for the two BMPs and determine whether one BMP is better than the other for a particular constituent.
