  1. Runge 4th Order Method Industrial Engineering Majors Authors: Autar Kaw, Charlie Barker http://numericalmethods.eng.usf.edu Transforming Numerical Methods Education for STEM Undergraduates http://numericalmethods.eng.usf.edu

  2. Runge-Kutta 4th Order Methodhttp://numericalmethods.eng.usf.edu

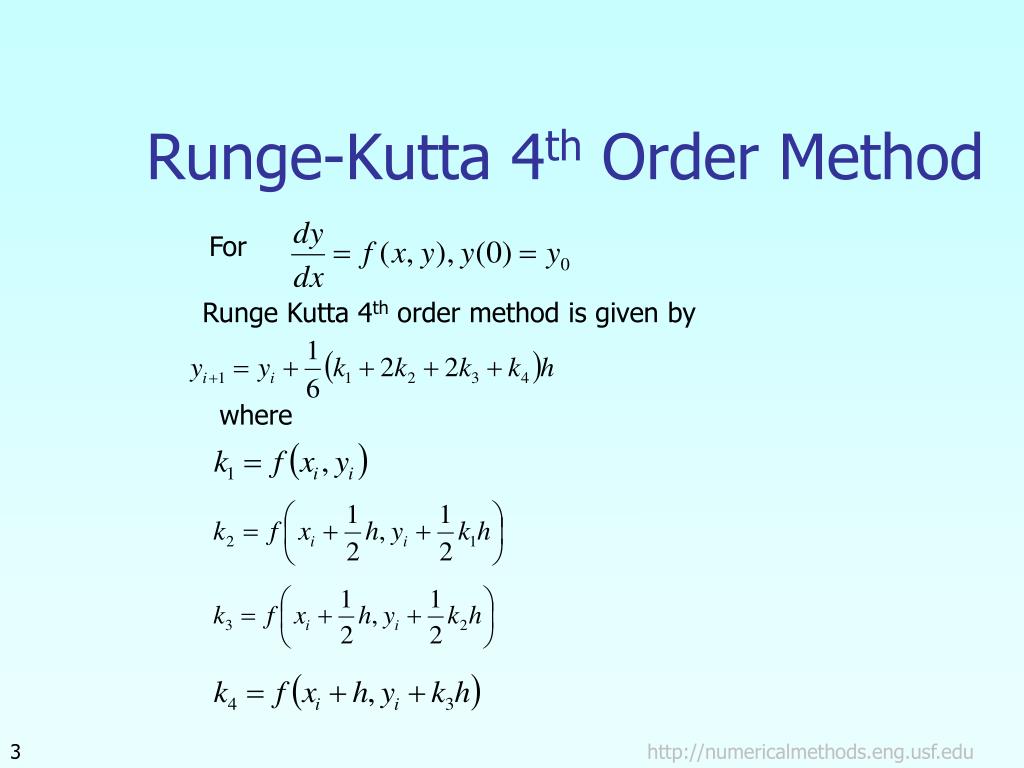

  3. Runge-Kutta 4th Order Method For Runge Kutta 4th order method is given by where http://numericalmethods.eng.usf.edu

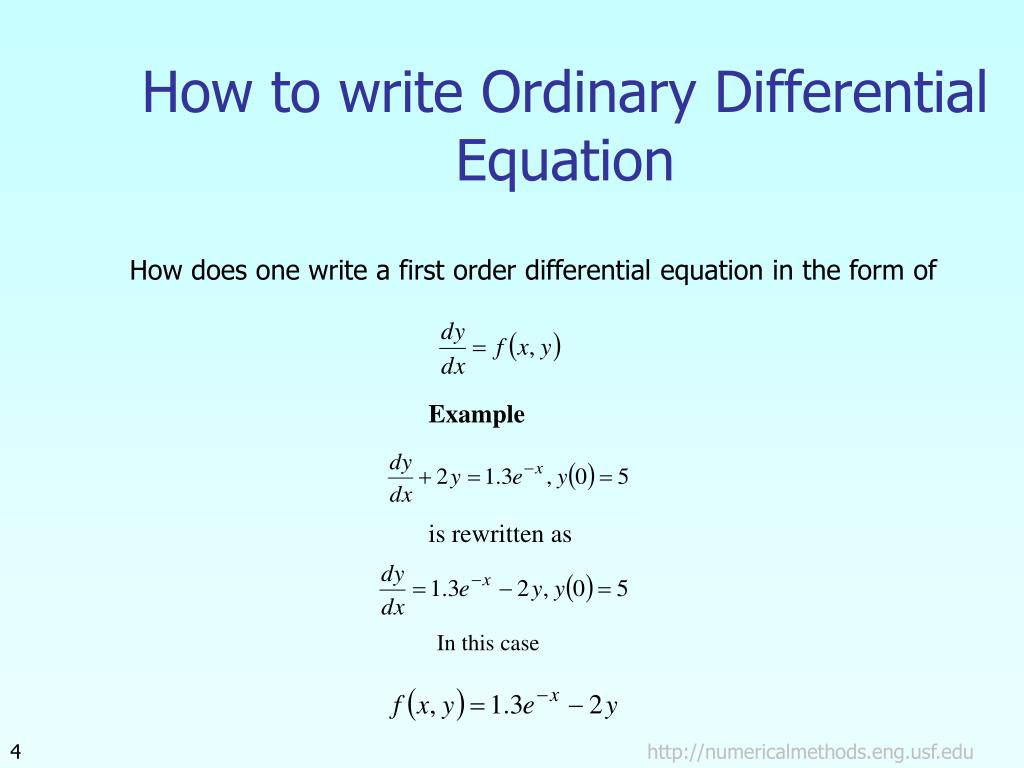

  4. How to write Ordinary Differential Equation How does one write a first order differential equation in the form of Example is rewritten as In this case http://numericalmethods.eng.usf.edu

  5. Example The open loop response, that is, the speed of the motor to a voltage input of 20 V, assuming a system without damping is If the initial speed is zero , and using the Runge-Kutta 4th order method, what is the speed at t = 0.8 s? Assume a step size of h = 0.4 s. http://numericalmethods.eng.usf.edu

  6. Solution Step 1: For http://numericalmethods.eng.usf.edu

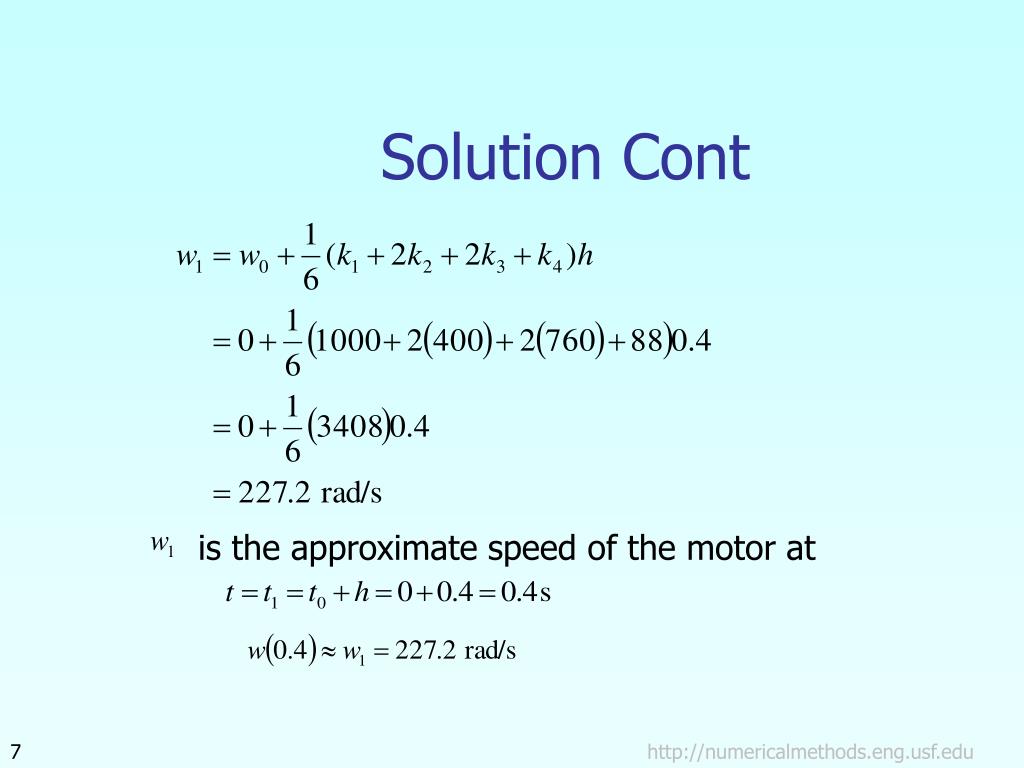

  7. Solution Cont is the approximate speed of the motor at http://numericalmethods.eng.usf.edu

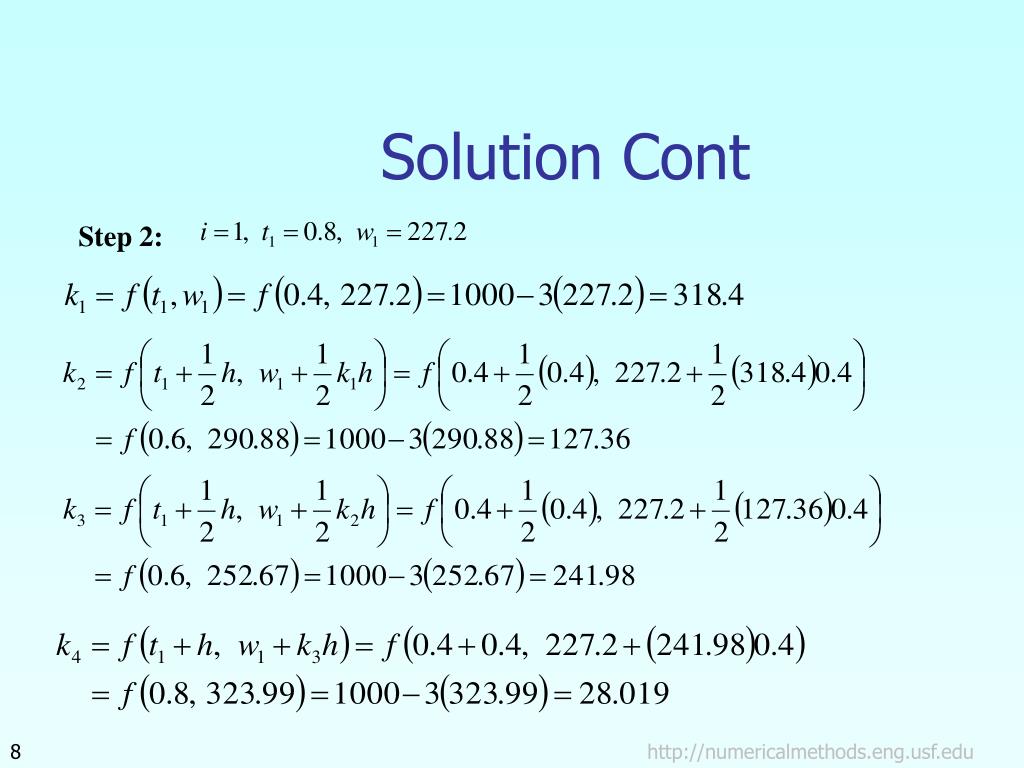

  8. Solution Cont Step 2: http://numericalmethods.eng.usf.edu

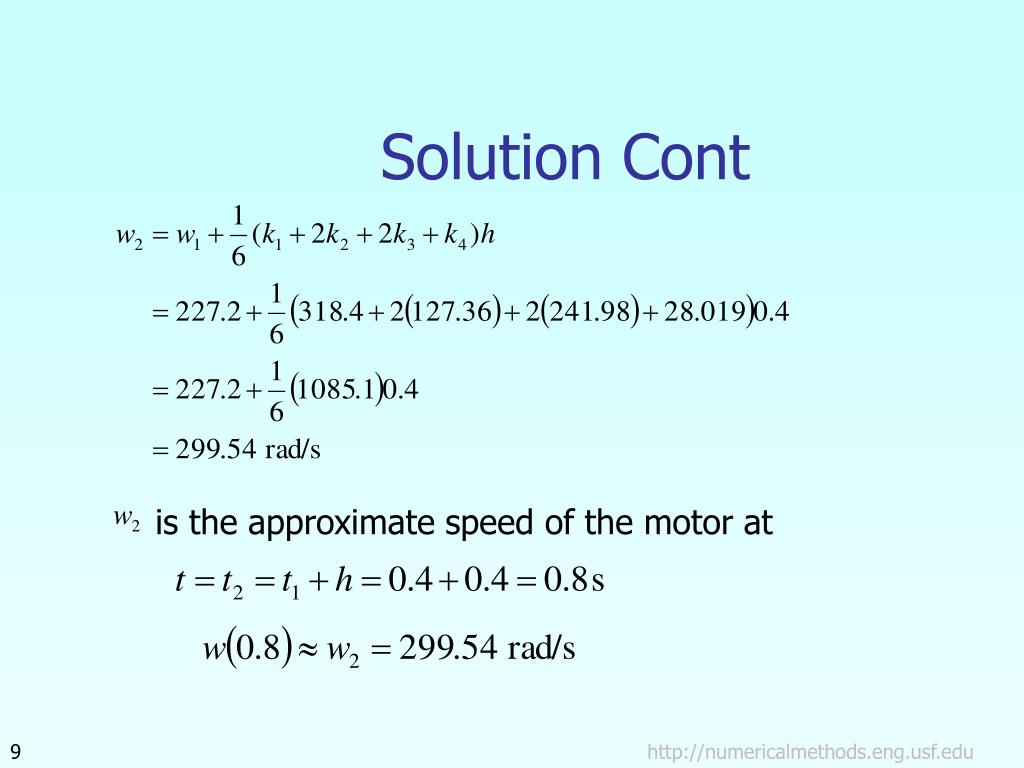

  9. Solution Cont is the approximate speed of the motor at http://numericalmethods.eng.usf.edu

  10. Solution Cont The exact solution of the ordinary differential equation is given by The solution to this nonlinear equation at t=0.8 seconds is http://numericalmethods.eng.usf.edu

  11. Comparison with exact results Figure 1. Comparison of Runge-Kutta 4th order method with exact solution http://numericalmethods.eng.usf.edu

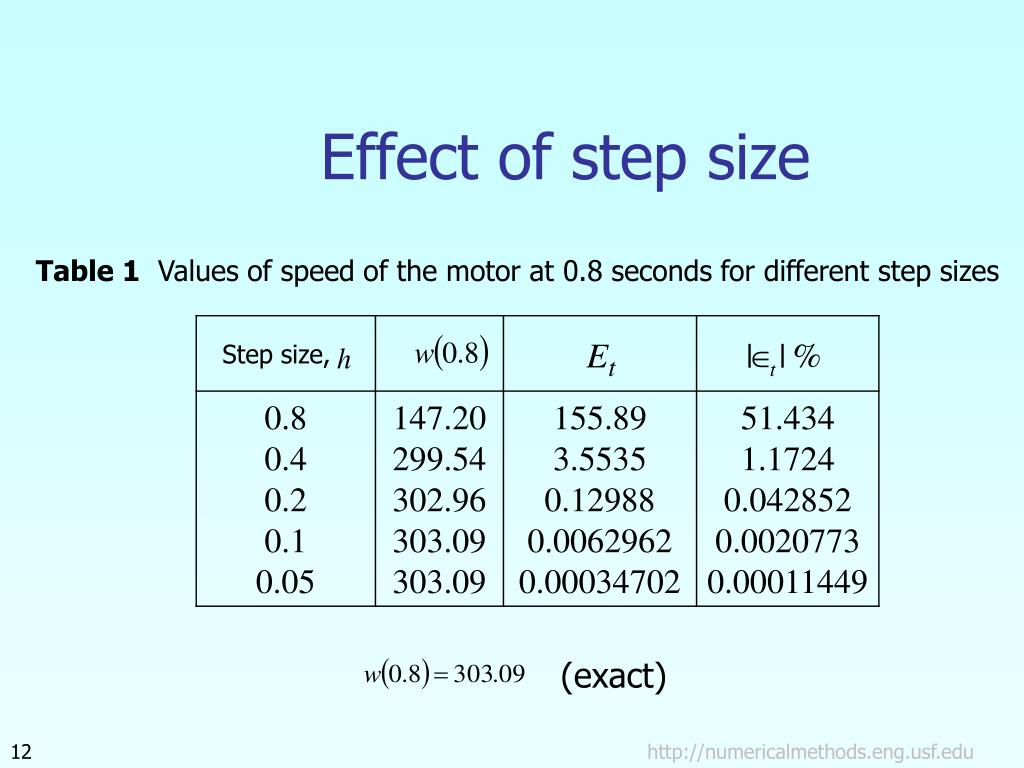

  12. Effect of step size Table 1 Values of speed of the motor at 0.8 seconds for different step sizes (exact) http://numericalmethods.eng.usf.edu

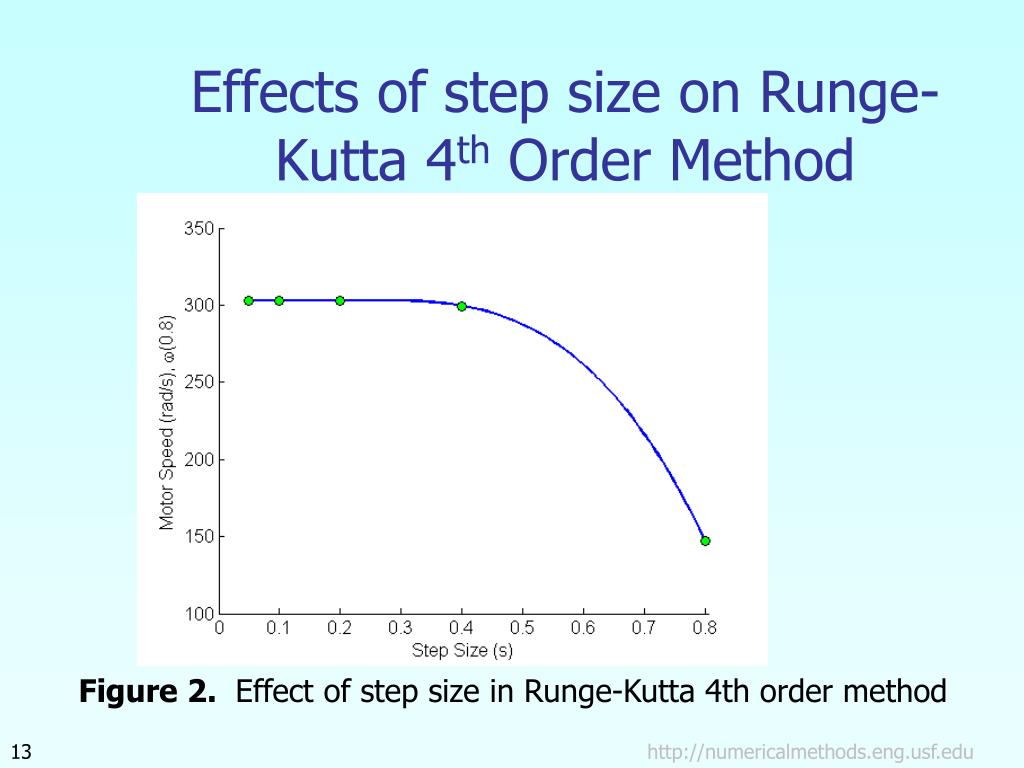

  13. Effects of step size on Runge-Kutta 4th Order Method Figure 2. Effect of step size in Runge-Kutta 4th order method http://numericalmethods.eng.usf.edu

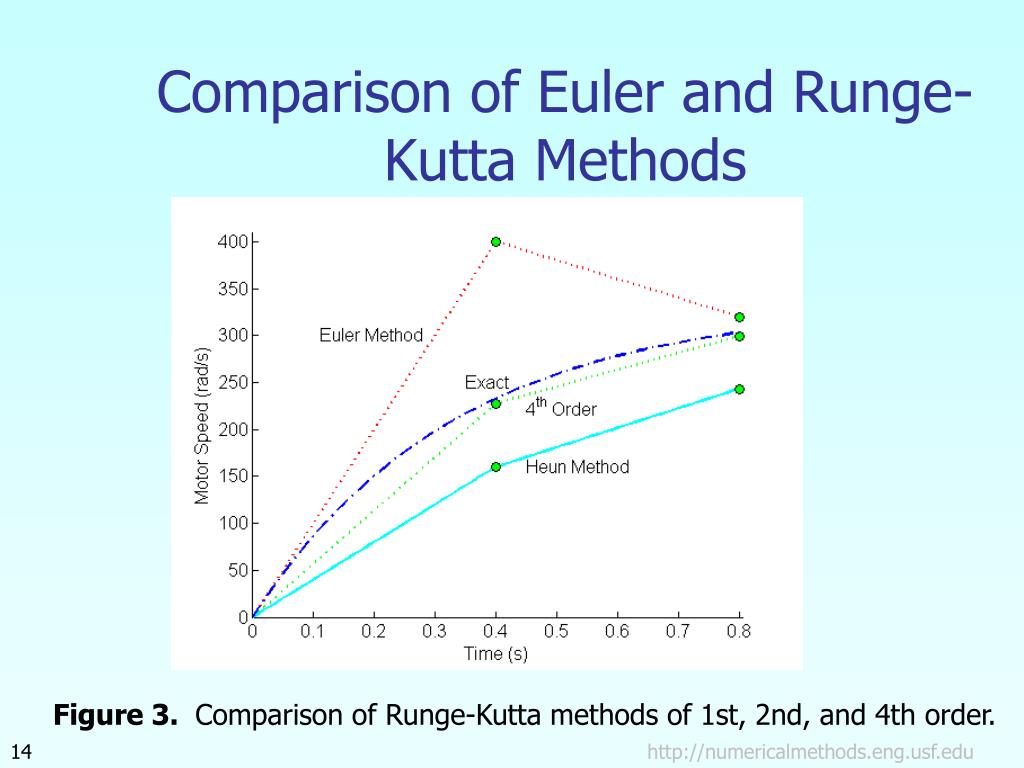

  14. Comparison of Euler and Runge-Kutta Methods Figure 3. Comparison of Runge-Kutta methods of 1st, 2nd, and 4th order. http://numericalmethods.eng.usf.edu

  15. Additional Resources For all resources on this topic such as digital audiovisual lectures, primers, textbook chapters, multiple-choice tests, worksheets in MATLAB, MATHEMATICA, MathCad and MAPLE, blogs, related physical problems, please visit http://numericalmethods.eng.usf.edu/topics/runge_kutta_4th_method.html

  16. THE END http://numericalmethods.eng.usf.edu
