  1. Andy Lian (EE) Gabriel Miranda (EE) Andrew Perez (EE) Chris McManus (EE) Drew Pearson (EE) April 25, 2011 Solar Jackets Motor Control

  2. Project Overview • Design motor control system for the Solar Jackets solar racing vehicle • Continuing work from previous group • Fall 2010 • System responsibilities: • Electric motor operation • Central communication between vehicle subsystems

  3. Technical Objectives • Dynamic control of air gap motor • Functional cruise control using SBC • Regenerative braking • Load testing • Communication with vehicle subsystems

  4. Actual Design • Load testing setup conducted with motor/generator setup • Air gap control via relay system and switch • Cruise control • Throttle control

  5. System Block Diagram • Communications • RS-485 • MPPT • Battery Management • RS-232 • Motor Controller • USB • HMI • Digital I/O • Window Lift Motor • Cruise Control & Air Gap Switches • A/D Converter • 10-Turn Potentiometer

  6. SBC System Communications • Communications • RS-485 • MPPT • Battery Management • RS-232 • Motor Controller • USB • HMI • Digital I/O • Window Lift Motor • Cruise Control & Air Gap Switches • A/D Converter • 10-Turn Potentiometer

  7. SBC System Communications • Communications • RS-485 • MPPT • Battery Management • RS-232 • Motor Controller • USB • HMI • Digital I/O • Window Lift Motor • Cruise Control & Air Gap Switches • A/D Converter • 10-Turn Potentiometer

  8. SBC System Communications • Communications • RS-485 • MPPT • Battery Management • RS-232 • Motor Controller • USB • HMI • Digital I/O • Window Lift Motor • Cruise Control & Air Gap Switches • A/D Converter • 10-Turn Potentiometer

  9. SBC System Communications • Communications • RS-485 • MPPT • Battery Management • RS-232 • Motor Controller • USB • HMI • Digital I/O • Window Lift Motor • Cruise Control & Air Gap Switches • A/D Converter • 10-Turn Potentiometer

  10. SBC System Communications • Communications • RS-485 • MPPT • Battery Management • RS-232 • Motor Controller • USB • HMI • Digital I/O • Window Lift Motor • Cruise Control & Air Gap Switches • A/D Converter • 10-Turn Potentiometer

  11. SBC User Communications • Ethernet • Telnet • Login • FTP • File Transfer • Default IP Config • 192.168.0.50 • 255.255.255.0 • 192.168.0.255

  12. SBC Programs • motord • Motor control daemon • Handles state variable generation, cruise control, air gap control, & log file generation • mcon • Allows discrete user control of motor controller • mmon • Allows monitoring of state variables through terminal • capture • Continuously captures state variable data and saves it to specified CSV file

  13. motord • Features • Runs on startup • Serial timeout and recovery • Log file generation • Cruise control • Air gap control • State variable generation as separate file accessible by other programs • RS-485 communication is handled separately by a stand alone program still under development • Pavel has been heading up this effort • These programs communicate using the state variable file

  14. mcon • Features • Discrete user control • Serial line flushing • Verbose debug mode • Directly monitor message and response registers

  15. mmon • Features • Continuously monitors state variables • Displays on terminal • Non-intrusive • Simple

  16. capture • Features • Continuously monitors state variables • Stores data in CSV file • Easy import into Excel • Example program call • capture /var/capture.csv

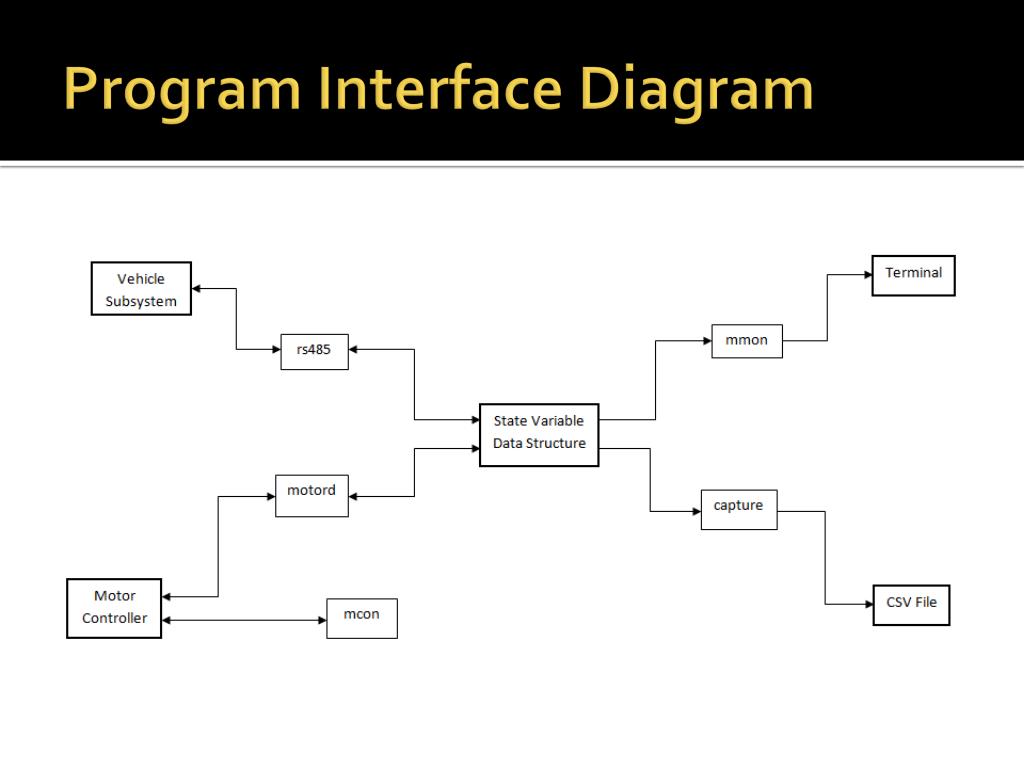

  17. Program Interface Diagram

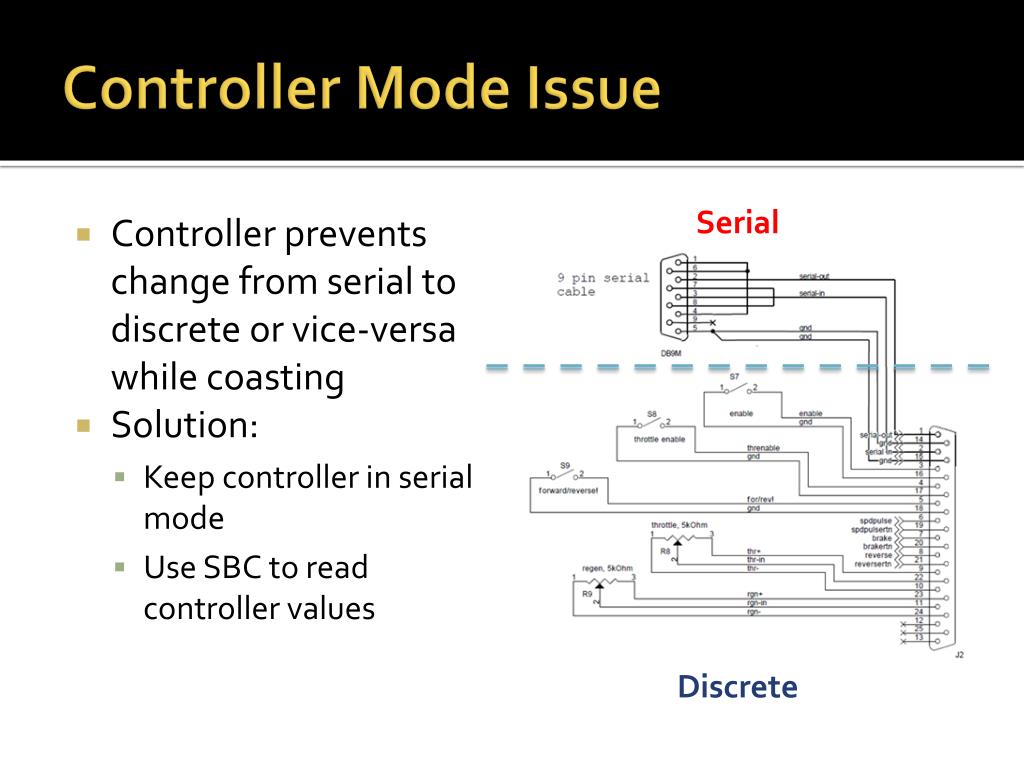

  18. Controller Mode Issue Serial • Controller prevents change from serial to discrete or vice-versa while coasting • Solution: • Keep controller in serial mode • Use SBC to read controller values Discrete

  19. Air Gap Adjustment • FIRST Robotics Window Lift Motor • Custom Mounting Gear

  20. Air Gap Motor Control • Currently only one speed, fast • Possibility of a slow speed • Add extra relay to turn a resistor on/off • Gives option of both a fast and a slow speed • Add resistor to existing circuit • One speed, slow • Need to ensure torque is adequate • Actual motor operating speed to be verified

  21. Air Gap Control • Relay controlled • Directional switch on control box sends signal to SBC • SBC controls relays Air Gap Adjustment Switch

  22. Air Gap Control Schematic

  23. Air Gap Control Circuit • Input 12V

  24. Air Gap Control Circuit • Input 12V • SBC Controls

  25. Air Gap Control Circuit • Input 12V • SBC Controls • On/Off Relay

  26. Air Gap Control Circuit • Input 12V • SBC Controls • On/Off Relay • Forward/ Reverse Relay

  27. Air Gap Control Circuit • Input 12V • SBC Controls • On/Off Relay • Forward/ Reverse Relay • Output to Motor

  28. Determining Air Gap Position • 10 Turn potentiometer • In-line with air gap screw • Measure voltage on wiper to determine air gap’s position

  29. Load Testing • Motor-generator setup with resistor box • Provided variable loading to verify: • General motor functionality • Cruise control capability • Control in throttle mode

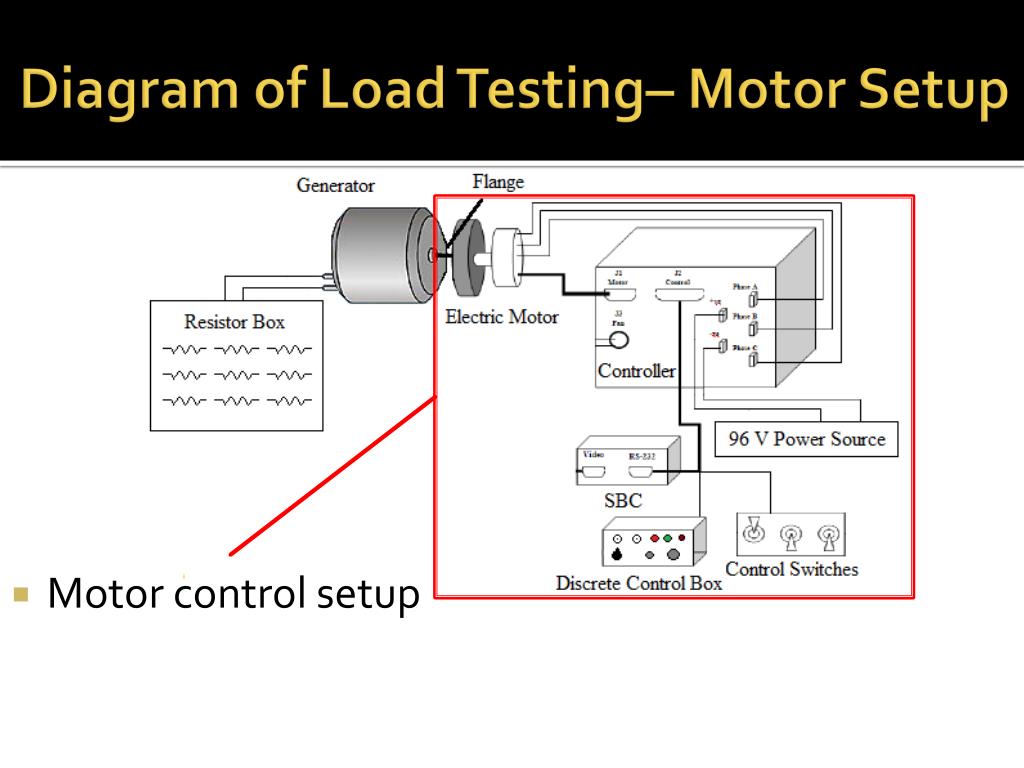

  30. Diagram of Load Testing– Motor Setup • Motor control setup

  31. Diagram of Load Testing– Generator • Generator • Added to provide load for motor • Connected to motor via flange

  32. Diagram of Load Testing– Resistor Box • Resistor Box • Connected to generator • Decrease resistance to increase load on motor • Allowed simulation of drive cycles

  33. Was Load Testing Successful? • Normal operation of motor under variable load was successful • Operation of cruise control under variable load was effectively verified • Throttle control mode was tested and debugged • Data was gathered and various load profiles were created

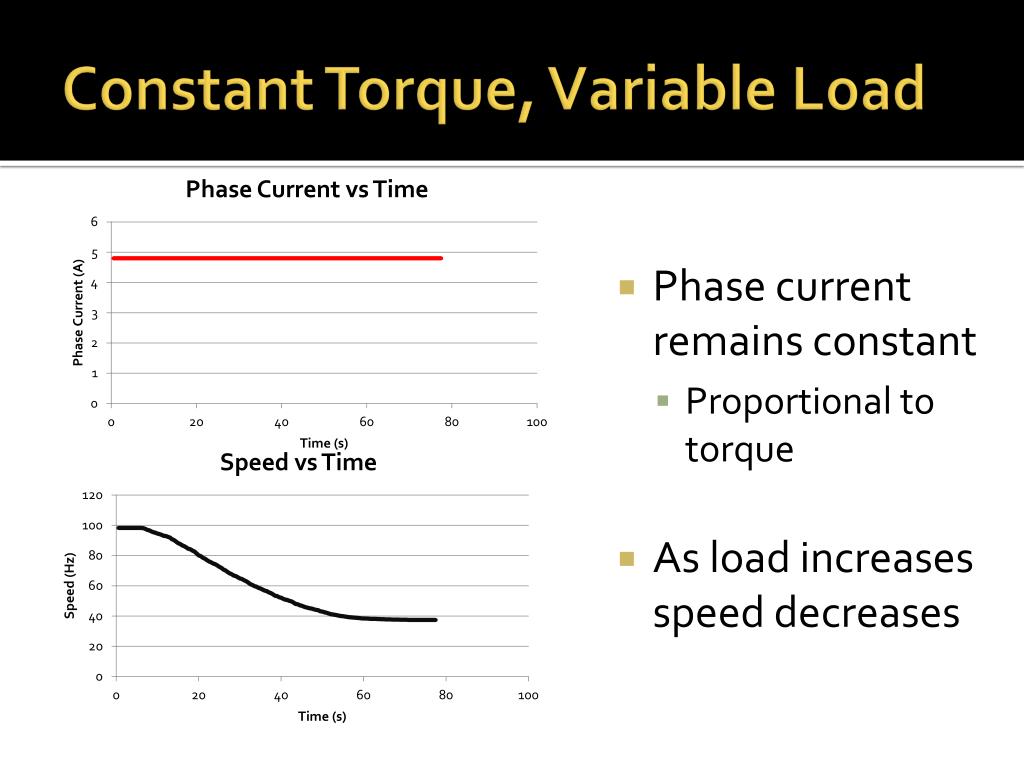

  34. Constant Torque, Variable Load • Phase current remains constant • Proportional to torque • As load increases speed decreases

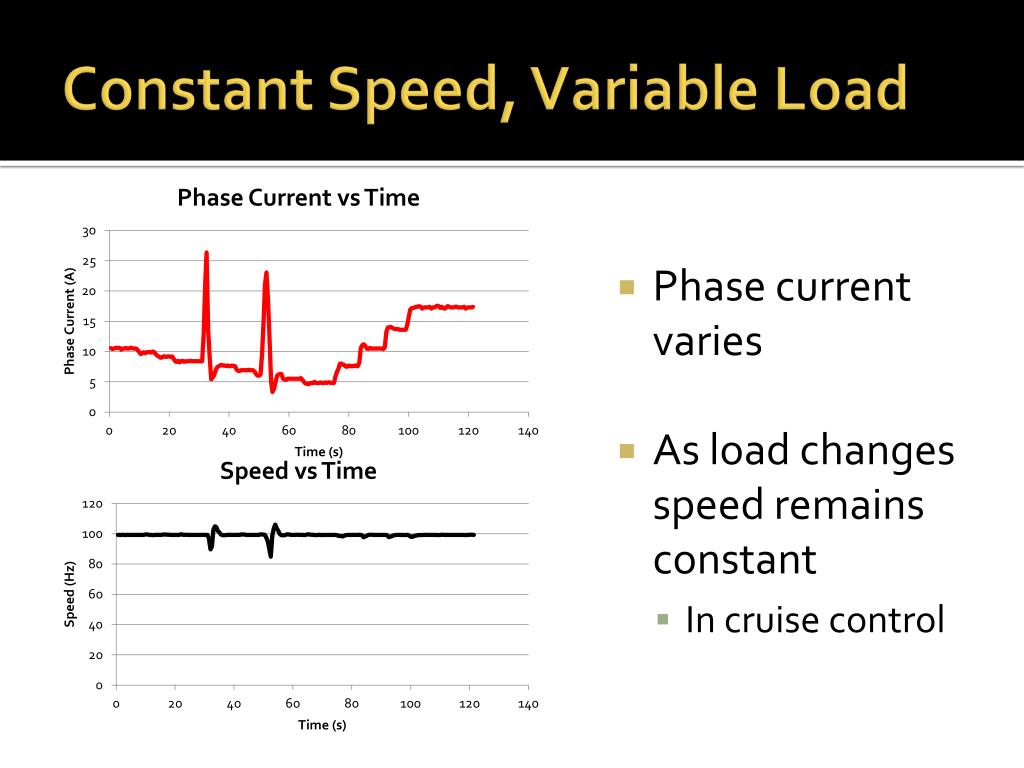

  35. Constant Speed, Variable Load • Phase current varies • As load changes speed remains constant • In cruise control

  36. Future Work • Use of pot to judge closeness to air gap extremes (ADC) • Testing of air gap adjustment system after mounting onto gear • Communication with other subsystems • Test refurbished motor • Mounting motor onto vehicle

  37. Discussion of Demo • Motor functionality • Cruise (speed) control • Manual (throttle) control • Cruise control • Maintain set speed under variable load • Disengages when braking • Air gap adjustment via SBC • Event logging

  38. Questions
