  1. TENTATIVE 2008 HD HARD DISK CAMCORDER New Product Information

  2. 45% smaller** than the GZ-HD7 The World’s Smallest1920x1080 Full HD Hard Disk Camcorder* * As of October 2007 ** As compared to GZ-HD5

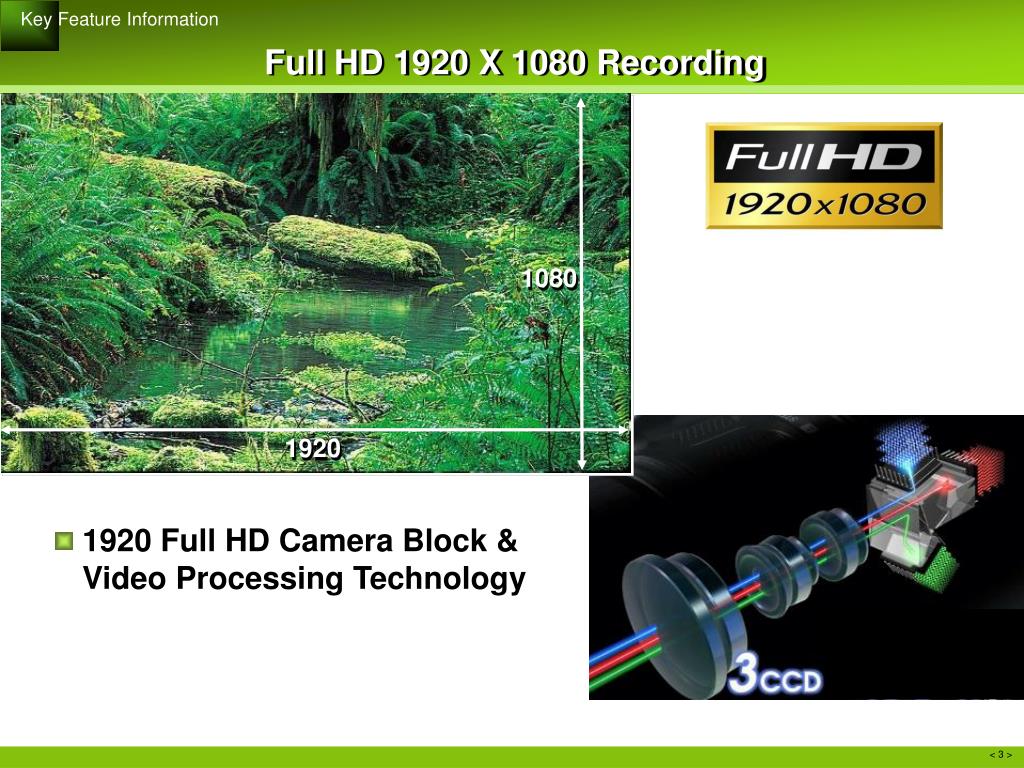

  3. Key Feature Information Full HD 1920 X 1080 Recording 1080 1920 1920 Full HD Camera Block & Video Processing Technology

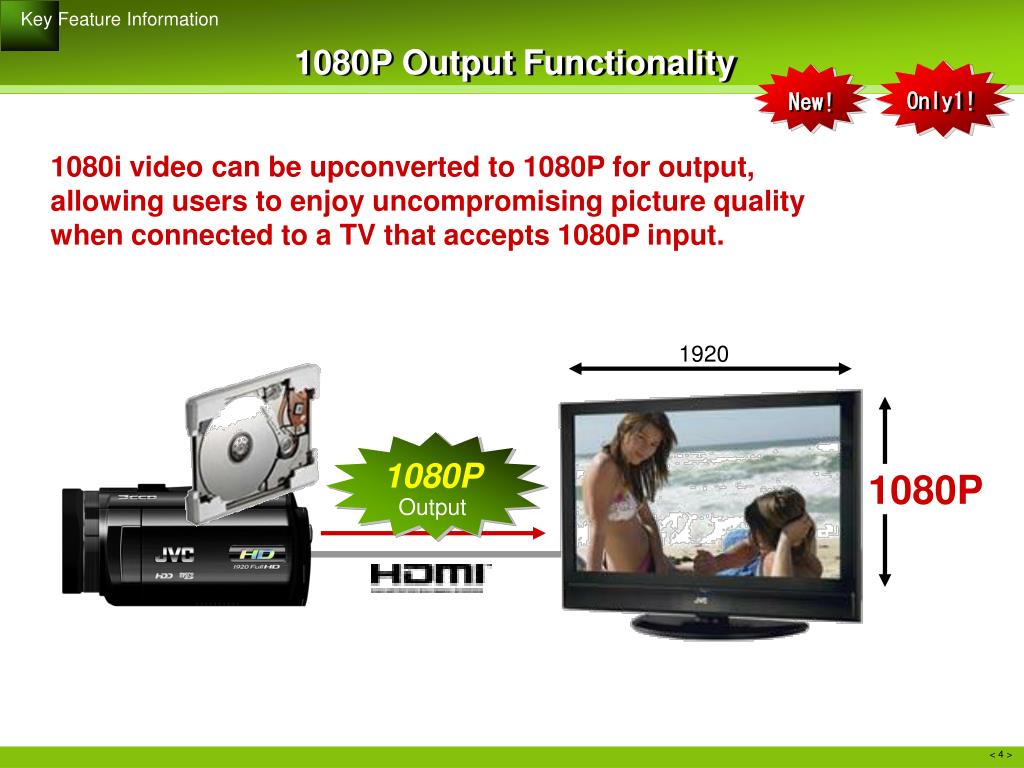

  4. New! Only1! 1080POutput Key Feature Information 1080P Output Functionality 1080i video can be upconverted to 1080P for output, allowing users to enjoy uncompromising picture quality when connected to a TV that accepts 1080P input. 1920 1080P

  5. “x.v.Color” and are trademarks. Key Feature Information HDMI 1.3 (x.v.Color) Colors that are closer to how the human eye perceives them Traditional (sRGB) system can only display 55% of the existing colors… x.v.Color can display 100%! Difference can be seen especially in greens and yellows.

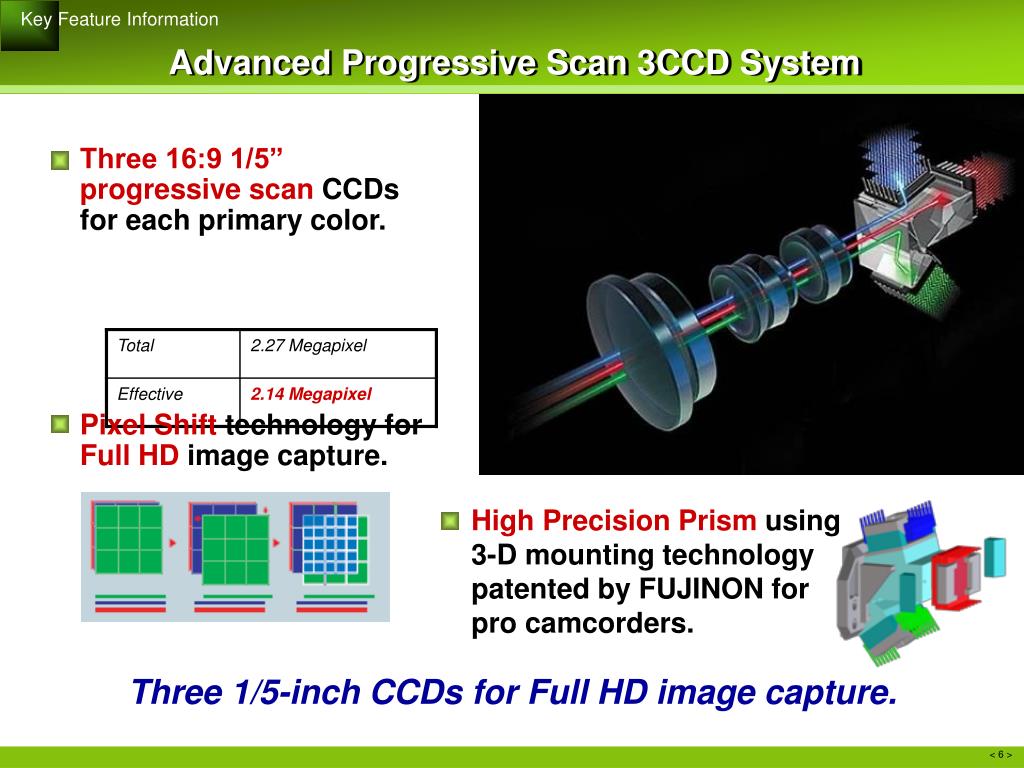

  6. Key Feature Information Advanced Progressive Scan 3CCD System Three 16:9 1/5” progressive scan CCDs for each primary color. Pixel Shift technology for Full HD image capture. High Precision Prism using 3-D mounting technology patented by FUJINON for pro camcorders. Three 1/5-inch CCDs for Full HD image capture.

  7. Progressive processing is done throughout the length of this signal chain. Progressive! Key Feature Information HD Gigabrid Engine Processes signals in full 1920 x 1080 progressive. Uses 5 digital noise-reduction algorithms as well as signal processing to improve vertical scan resolution by approx. 30%. R PS CCD 14bit AFE Y Signal NR Luminance Signal Color Differential Signal Matrix Processing Chroma Signal Processing Image Interpolation Processing 3D Noise Reduction G PS CCD 14bit AFE P / I Conversion Video Encoder C Signal NR B PS CCD 14bit CCD

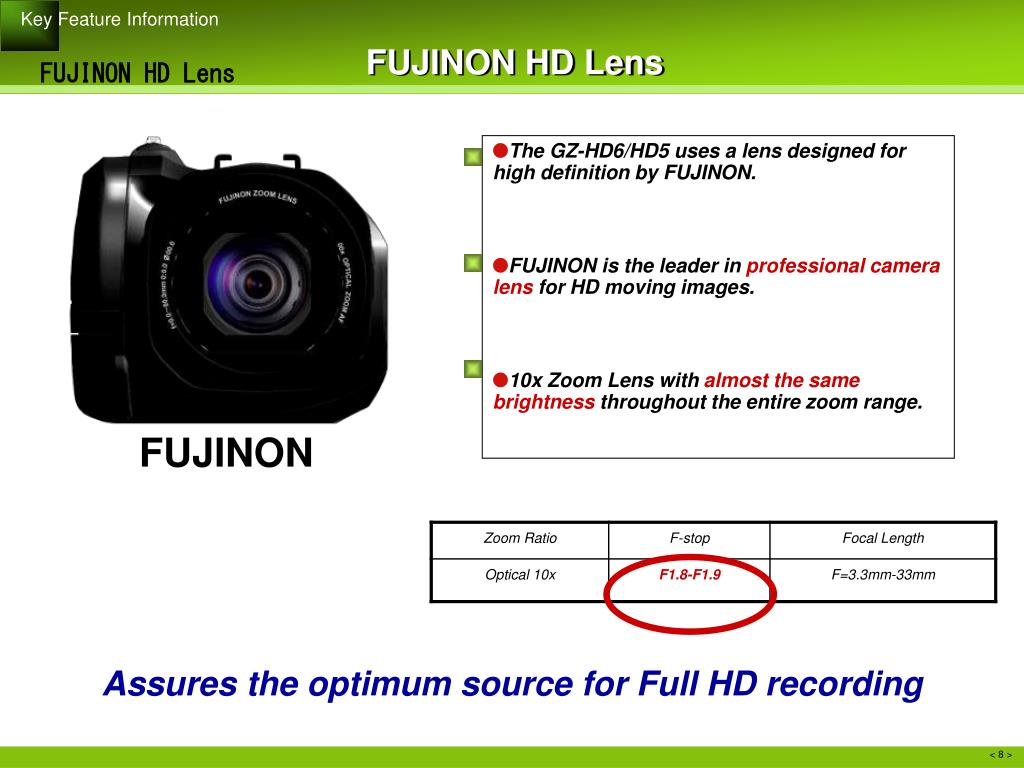

  8. Key Feature Information FUJINON HD Lens FUJINON HD Lens • The GZ-HD6/HD5 uses a lens designed for high definition by FUJINON. • FUJINON is the leader in professional camera lens for HD moving images. • 10x Zoom Lens with almost the same brightness throughout the entire zoom range. FUJINON Assures the optimum source for Full HD recording

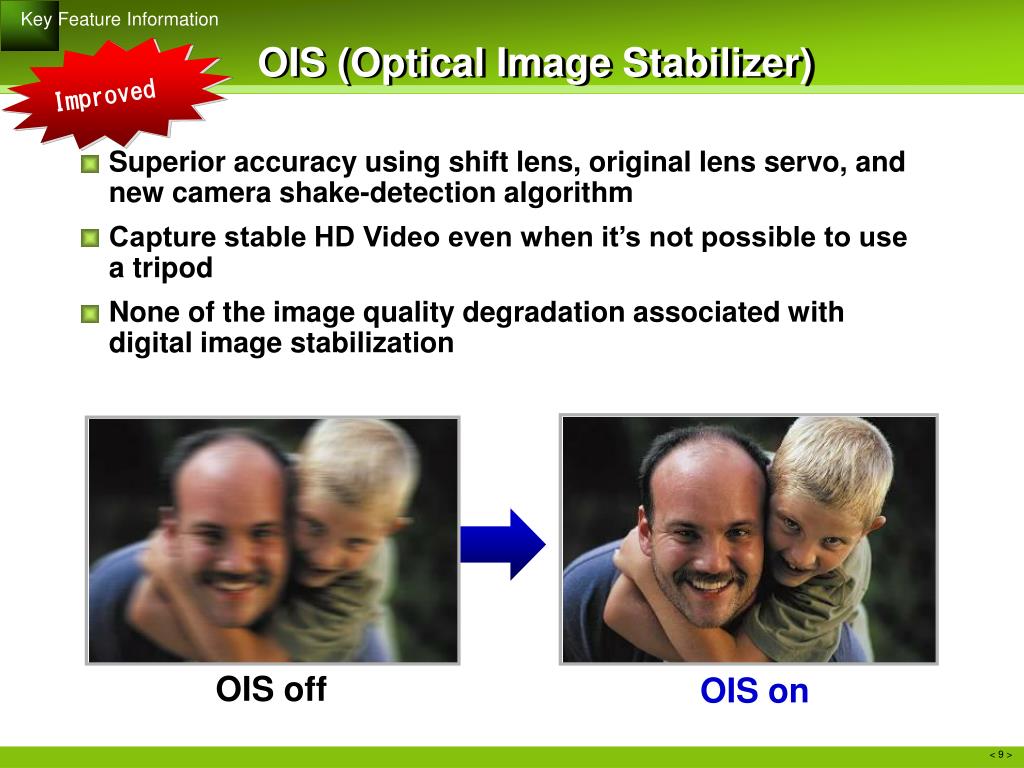

  9. Improved Key Feature Information OIS (Optical Image Stabilizer) Superior accuracy using shift lens, original lens servo, and new camera shake-detection algorithm Capture stable HD Video even when it’s not possible to use a tripod None of the image quality degradation associated with digital image stabilization OIS off OIS on

  10. New! internal120 GB HDD internal60 GB HDD Key Feature Information 10 Hours of 1920 Full HD Recording (GZ-HD6) * for HDV compatible stream via i.LINK. GZ-HD6 GZ-HD5

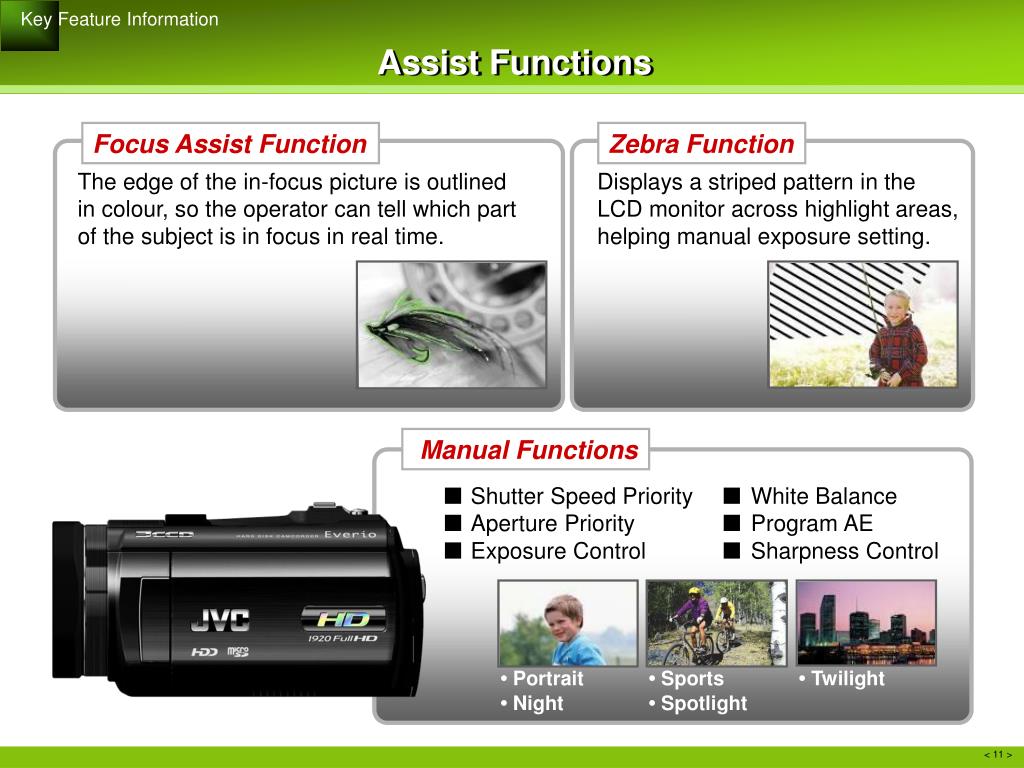

  11. Key Feature Information Assist Functions Focus Assist Function Zebra Function The edge of the in-focus picture is outlined in colour, so the operator can tell which part of the subject is in focus in real time. Displays a striped pattern in the LCD monitor across highlight areas, helping manual exposure setting. Manual Functions • Shutter Speed Priority • Aperture Priority • Exposure Control • White Balance • Program AE • Sharpness Control • Portrait • Sports • Twilight • Night • Spotlight

  12. Key Feature Information Multiple Digital Interfaces MPEG2-TS File Data *Copy *View USB2.0 *Copy *Edit HD MPEG2-TS Component USB2.0 Y,Pb,Pr MPEG2-TS Streaming Data (1440x1080i CBR 27 Mbps) *Copy *Edit HD : MPEG2 SD :DV Conv. i.LINK DVSD DV Streaming Data Video *Copy Hybrid Designwith microSD card slot

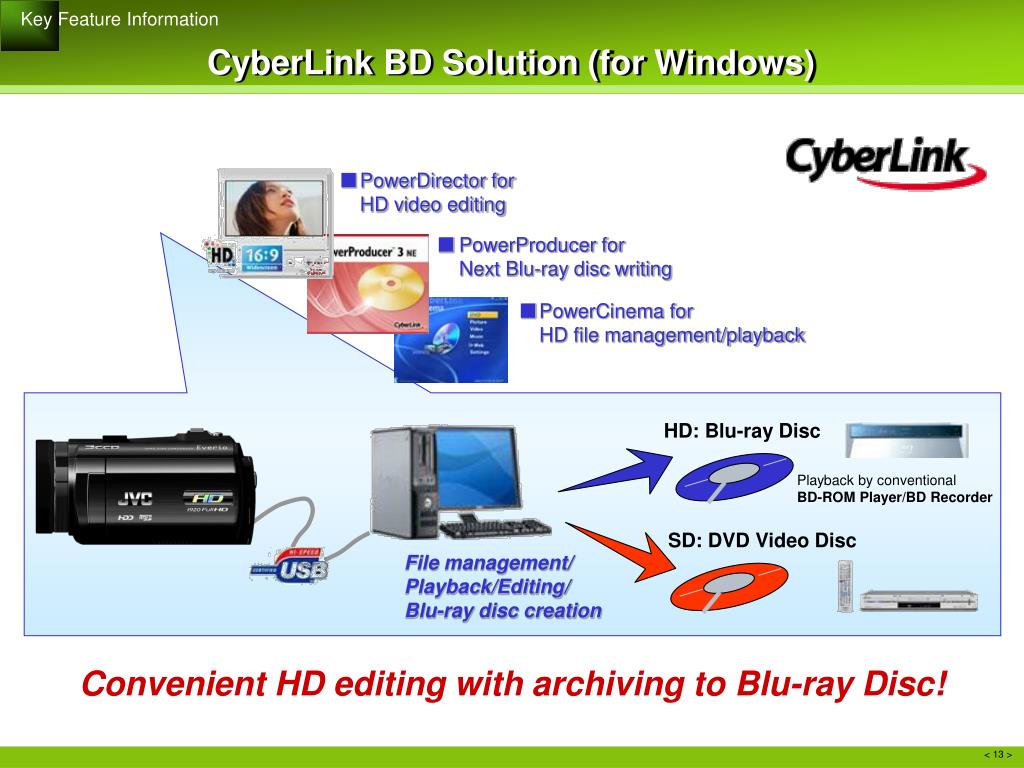

  13. Key Feature Information CyberLink BD Solution (for Windows) • PowerDirector forHD video editing • PowerProducer for Next Blu-ray disc writing • PowerCinema for HD file management/playback HD: Blu-ray Disc Playback by conventional BD-ROM Player/BD Recorder SD: DVD Video Disc File management/Playback/Editing/Blu-ray disc creation Convenient HD editing with archiving to Blu-ray Disc!

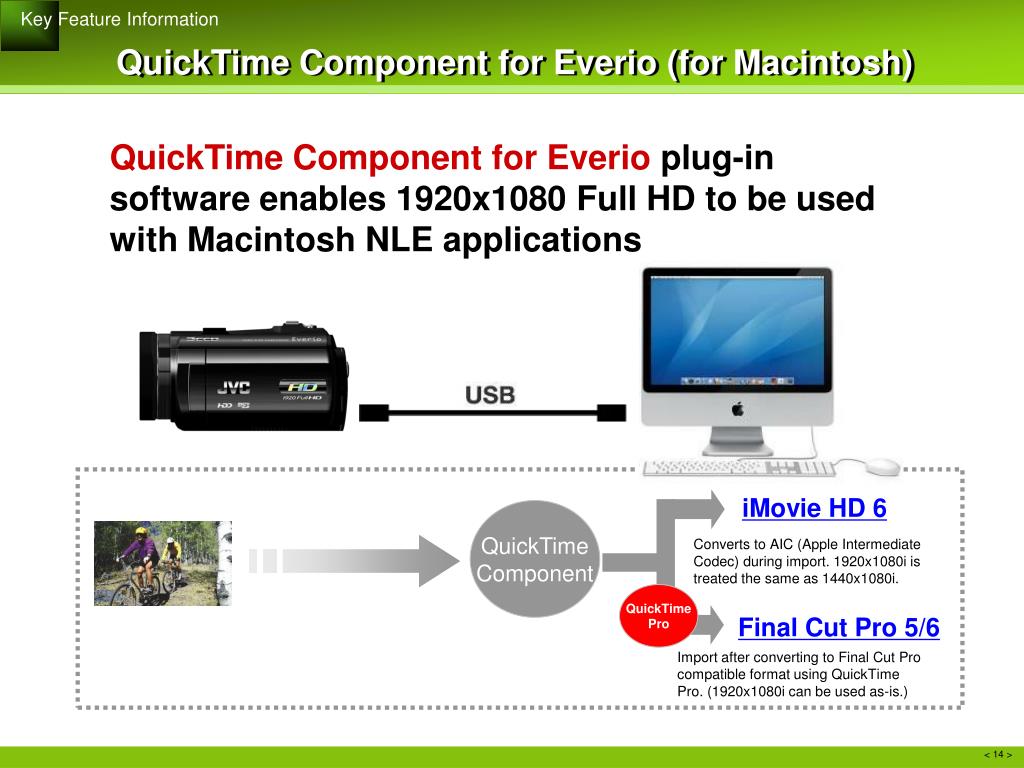

  14. Key Feature Information QuickTime Component for Everio (for Macintosh) QuickTime Component for Everio plug-in software enables 1920x1080 Full HD to be used with Macintosh NLE applications iMovie HD 6 QuickTime Component Converts to AIC (Apple Intermediate Codec) during import. 1920x1080i is treated the same as 1440x1080i. QuickTime Pro Final Cut Pro 5/6 Import after converting to Final Cut Pro compatible format using QuickTime Pro. (1920x1080i can be used as-is.)

  15. JVC GZ-HD5: 5-1/8 x 3-1/8 x 2-7/8 (130 x 78 x 73) JVC GZ-HD3: 5-3/4 x 3-3/16 x 2-15/16 (144.5 x 79.5 x 74) SONY SR7: 5-15/16 x 3-1/4 x 3 (149 x 81 x 75) Canon HG10: 5-1/8 x 3-1/4 x 3 (129 x 81 x 75) Design Size Comparison 3-1/4 (81) 5-15/16 (149) 5-3/4 (144.5) 3-3/16 (79.5) 5-1/8 (129) 3-1/4 (81) 5-1/8 (130) 3-1/8 (78) 3 (75) 2-15/16 (74) 3 (75) 2-7/8 (73) Unit: inches (mm)

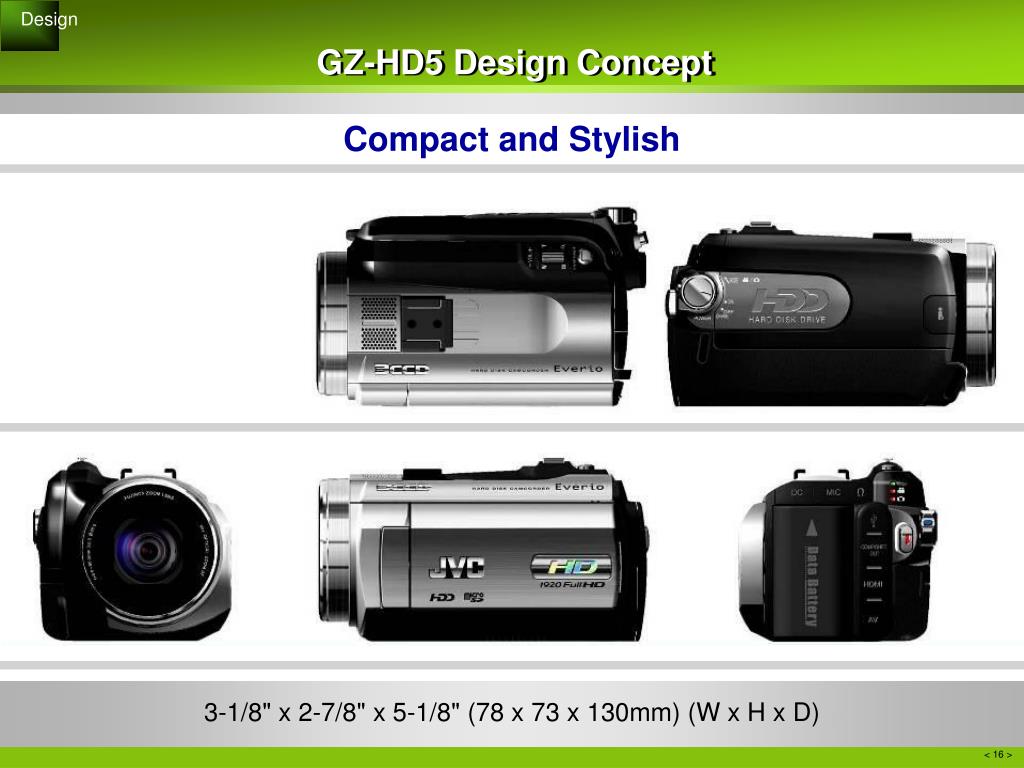

  16. Design GZ-HD5 Design Concept Compact and Stylish 3-1/8" x 2-7/8" x 5-1/8" (78 x 73 x 130mm) (W x H x D)

  17. Design GZ-HD6 Design Concept Compact and Stylish 3-1/8" x 2-7/8" x 5-1/2" (79 x 73 x 139mm) (W x H x D)

  18. 2008 HD Everio Line Up GZ-HD6 $1399 Mar 08 Black GZ-HD5 $1199 Mar 08 Silver GZ-HD3 $899 Current Black • 1440 CBR Recording Mode • HD Gigabrid Engine • Cyberlink Software (Win) • Quicktime Component (Mac) 3CCD: 1/5” 530K 3CCD: 1/5” 530K 3CCD: 1/5” 530K OIS OIS DIS • Focus Assist • Zebra Function 10x Optical 10x Optical 10x Optical • USB 2.0 • i.Link (Firewire) 120 GB 60 GB 60 GB 1920 x 1080 1440 x 1080 1920 x 1080 • Component Output • AV Output 1080P Output 1080i Output 1080P Output • Power-Linked Operation • 2.8” LCD Konica Minolta FUJINON FUJINON HDMI HDMI 1.3 x.v. color HDMI 1.3 x.v. color • Mic Input • Remote Control 3 Rec. Modes 4 Rec. Modes 4 Rec. Modes • Built-in Lens Cap • Stick Control No No Headphone Out

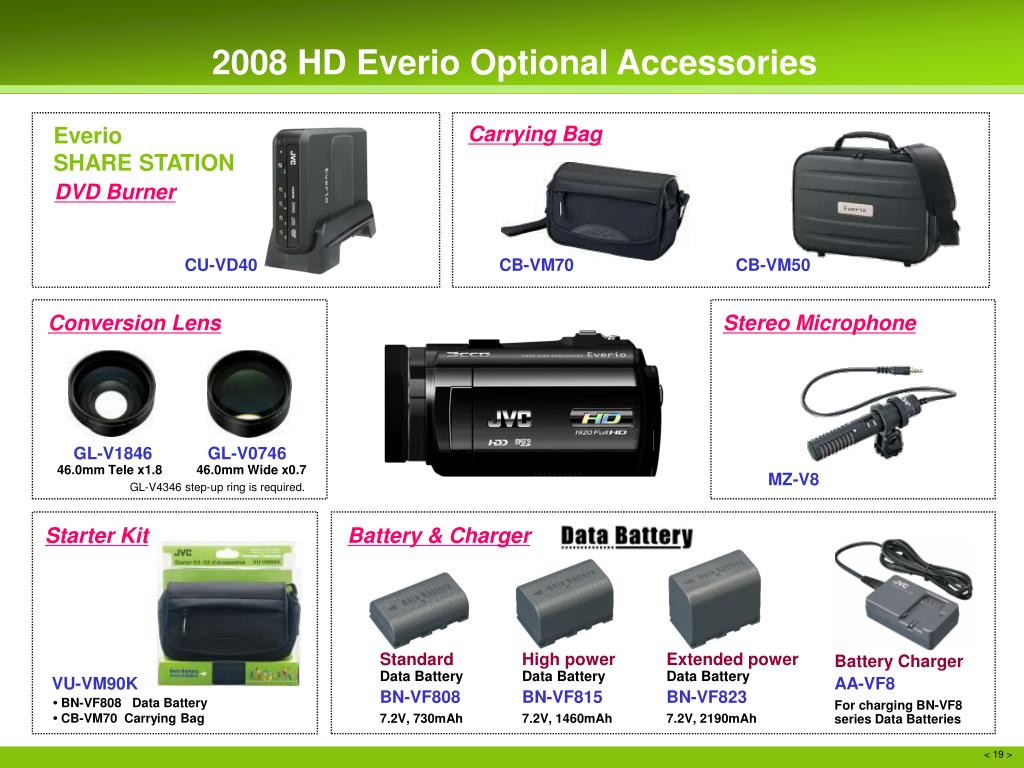

  19. 2008 HD Everio Optional Accessories Carrying Bag Everio SHARE STATION DVD Burner CU-VD40 CB-VM70 CB-VM50 Conversion Lens Stereo Microphone GL-V1846 GL-V0746 46.0mm Tele x1.8 46.0mm Wide x0.7 MZ-V8 GL-V4346 step-up ring is required. Starter Kit Battery & Charger Standard Data Battery BN-VF808 7.2V, 730mAh High power Data Battery BN-VF815 7.2V, 1460mAh Extended power Data Battery BN-VF823 7.2V, 2190mAh Battery Charger AA-VF8 For charging BN-VF8 series Data Batteries VU-VM90K • BN-VF808 Data Battery • CB-VM70 Carrying Bag

  20. Thank You! 2008 Digital Imaging New Product Information
