3.7: Midsegments of Triangles and Trapezoids

3.7: Midsegments of Triangles and Trapezoids. G1.2.2: Construct and justify arguments and solve multistep problems involving angle measure, side length, perimeter, and area of all types of triangles.

blaze
Télécharger la présentation

3.7: Midsegments of Triangles and Trapezoids

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

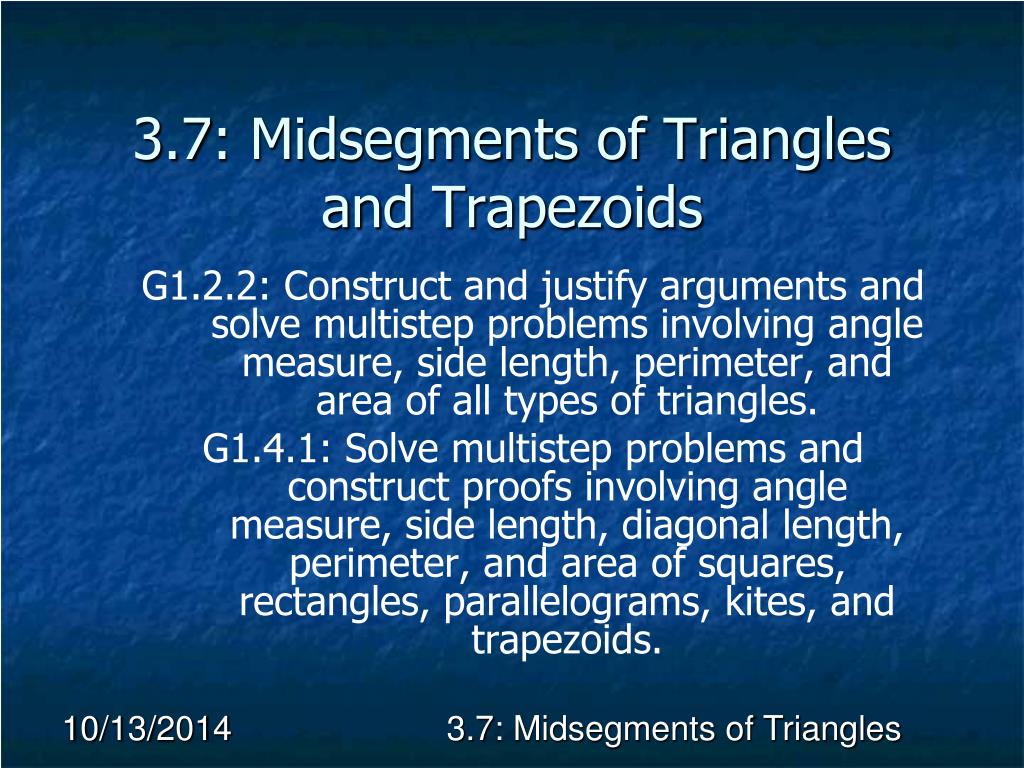

  1. 3.7: Midsegments of Triangles and Trapezoids G1.2.2: Construct and justify arguments and solve multistep problems involving angle measure, side length, perimeter, and area of all types of triangles. G1.4.1: Solve multistep problems and construct proofs involving angle measure, side length, diagonal length, perimeter, and area of squares, rectangles, parallelograms, kites, and trapezoids. 3.7: Midsegments of Triangles

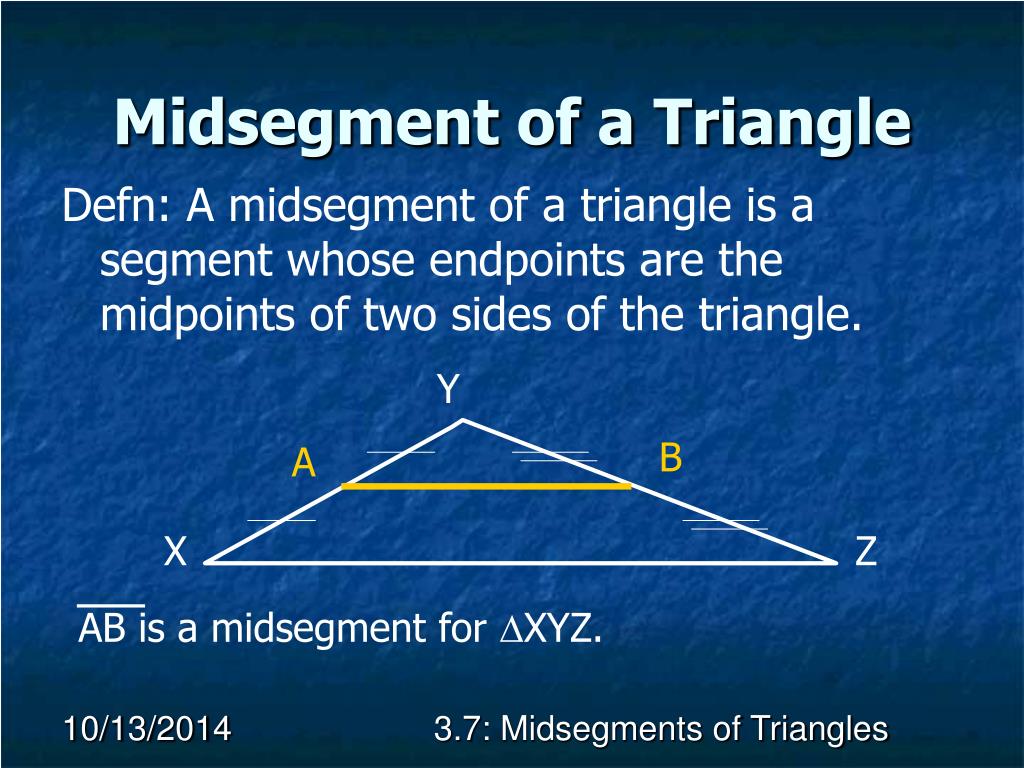

  2. Y B A X Z AB is a midsegment for XYZ. Midsegment of a Triangle • Defn: A midsegment of a triangle is a segment whose endpoints are the midpoints of two sides of the triangle. 3.7: Midsegments of Triangles

  3. b. Label the midpoints of AB and AC as M and N. Draw MN. Triangle Midsegment Conjecture • a. Draw ∠ABC c. Determine MN and BC. Conjecture a relationship between BC and MN. 3.7: Midsegments of Triangles

  4. Triangle Midsegment Conjecture • d. Measure ∠ABC and ∠AMN. Measure ∠ACB and ∠ANM. According to your findings, what is true about BC and MN? Justify this response. 3.7: Midsegments of Triangles

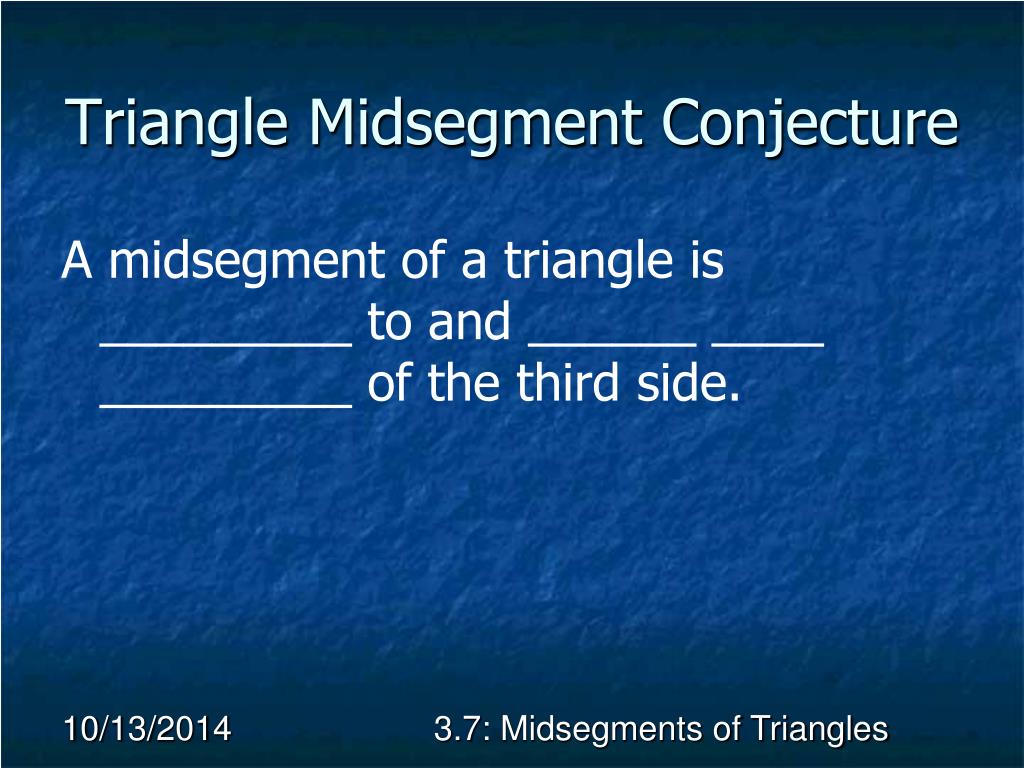

  5. Triangle Midsegment Conjecture • A midsegment of a triangle is _________ to and ______ ____ _________ of the third side. 3.7: Midsegments of Triangles

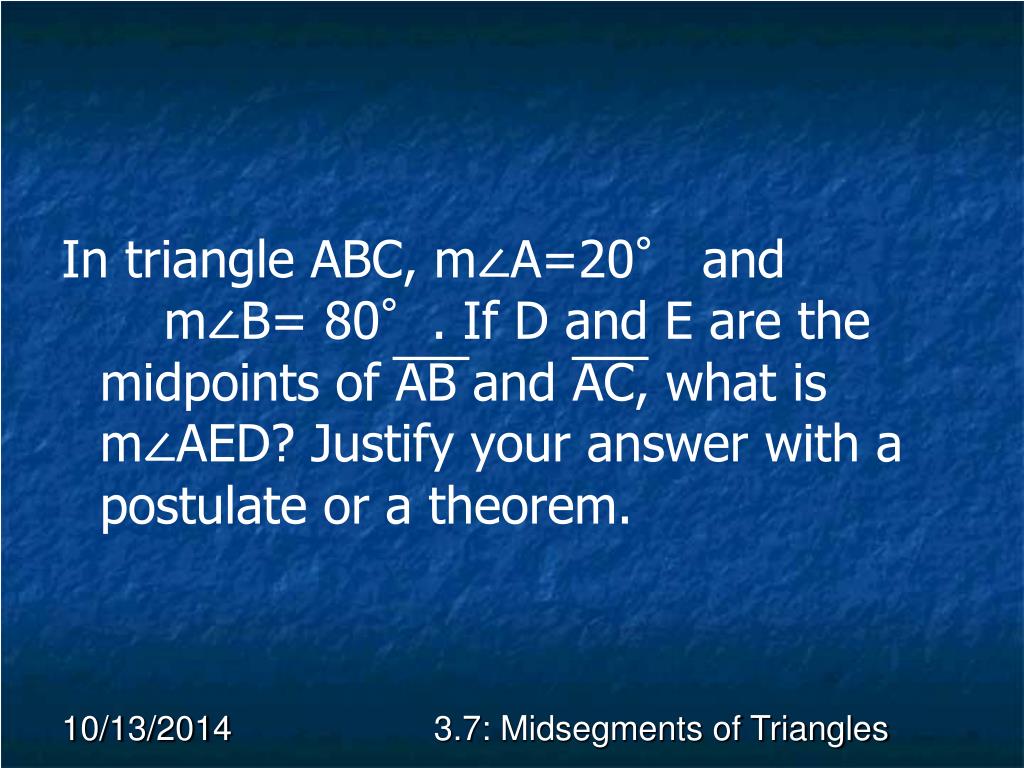

  6. In triangle ABC, m∠A=20° and m∠B= 80°. If D and E are the midpoints of AB and AC, what is m∠AED? Justify your answer with a postulate or a theorem. 3.7: Midsegments of Triangles

  7. Midsegment of a Trapezoid • Defn: A midsegment of a trapezoid is a segment whose endpoints are the midpoints of the nonparallel sides. 3.7: Midsegments of Triangles

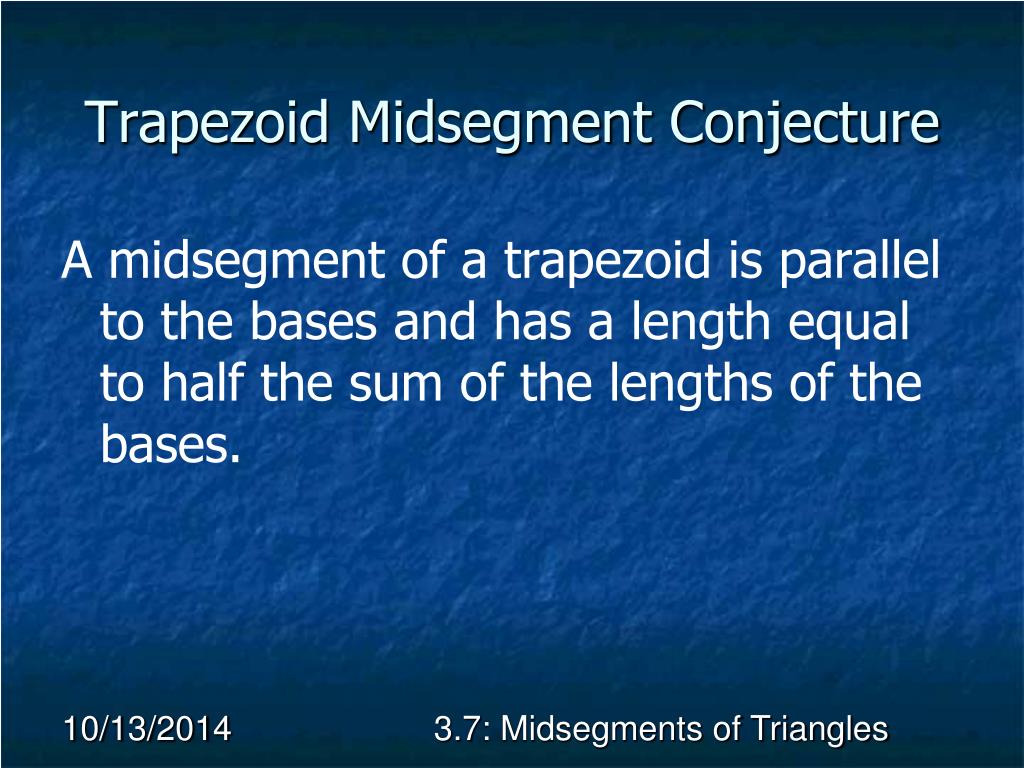

  8. Trapezoid Midsegment Conjecture • A midsegment of a trapezoid is parallel to the bases and has a length equal to half the sum of the lengths of the bases. 3.7: Midsegments of Triangles

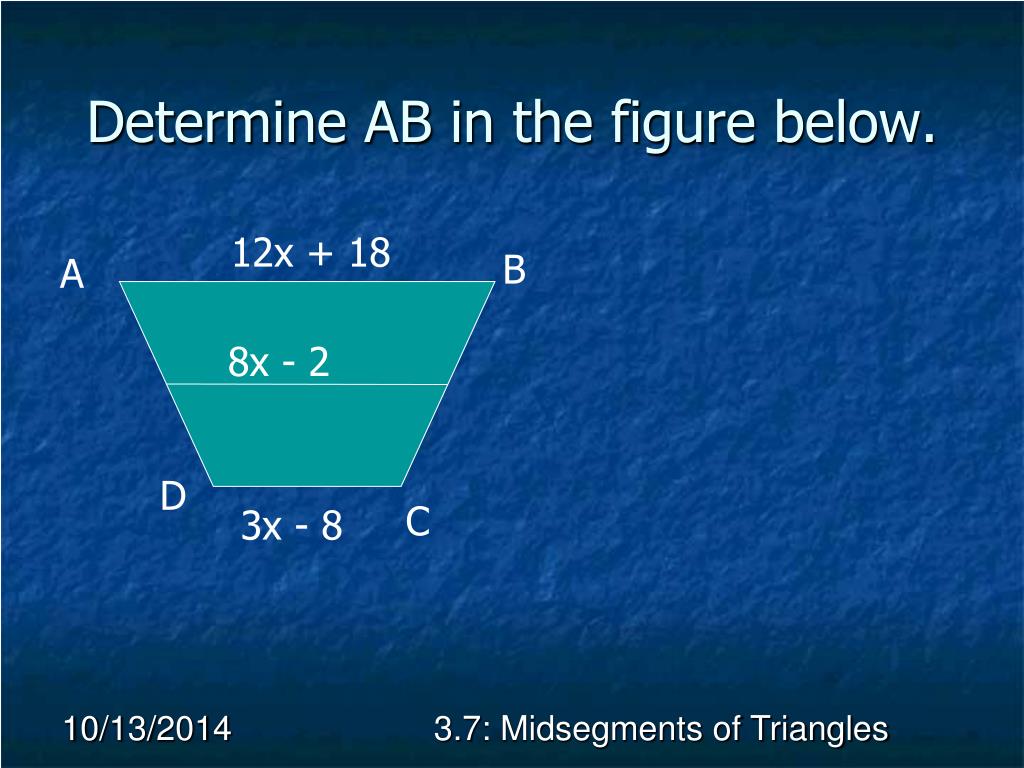

  9. Determine AB in the figure below. 12x + 18 B A 8x - 2 D C 3x - 8 3.7: Midsegments of Triangles

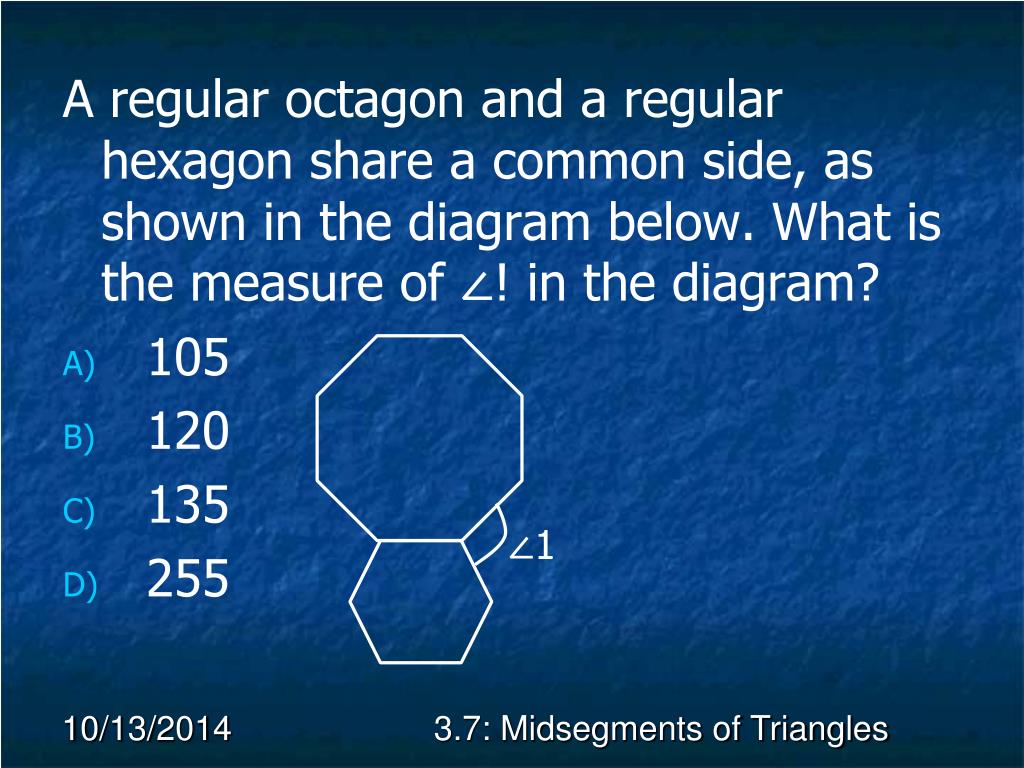

  10. A regular octagon and a regular hexagon share a common side, as shown in the diagram below. What is the measure of ∠! in the diagram? • 105 • 120 • 135 • 255 ∠1 3.7: Midsegments of Triangles

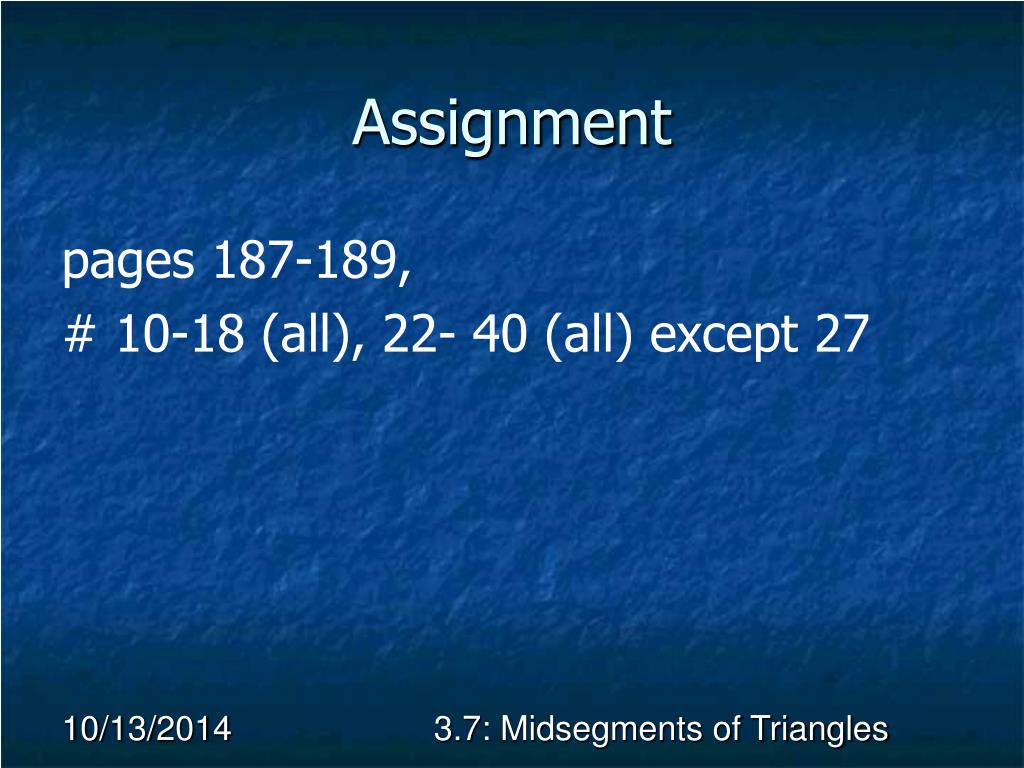

  11. Assignment • pages 187-189, • # 10-18 (all), 22- 40 (all) except 27 3.7: Midsegments of Triangles
