Supervision. Control request (EqpName, Property, Data, ...). Applicative. ETHERNET. PLC master IP @, IP EqpStruct. EqpNb, [ClassNb]. DSC. Generic. ETHERNET. read buffer. write buffer. Master DB. Master process. CCV CCV1. AQN STAQ. - Nb of Eqp. Generic. For Nb of Eqp. CCV CCV1

blaze
Télécharger la présentation

Supervision

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

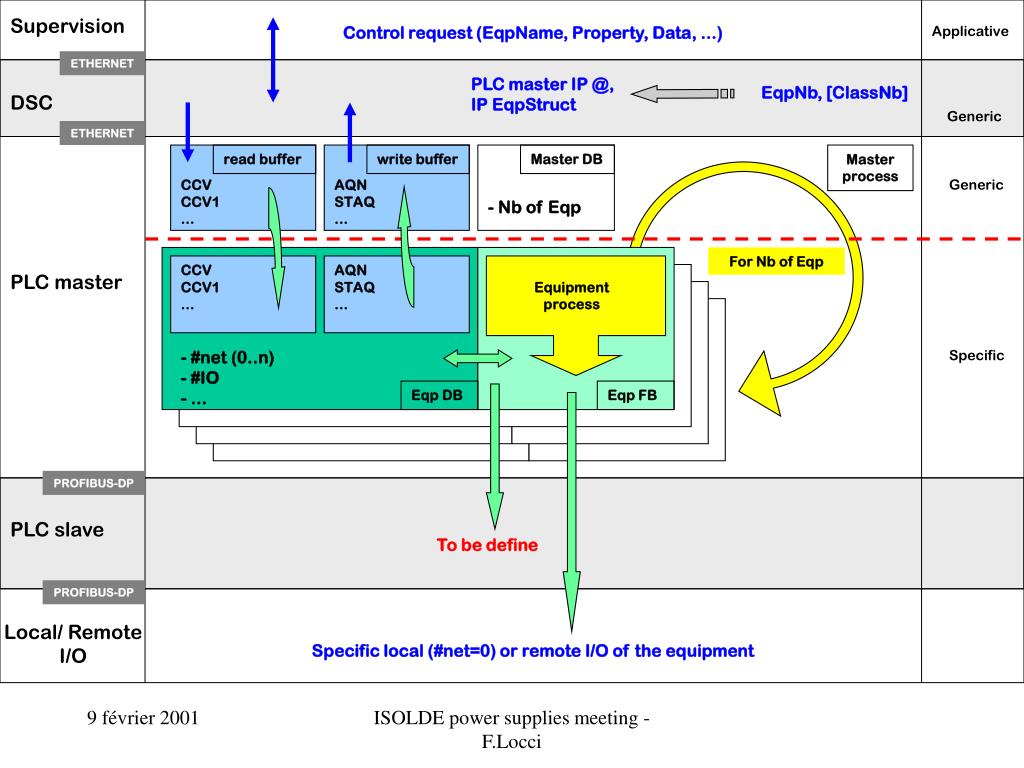

  1. Supervision Control request (EqpName, Property, Data, ...) Applicative ETHERNET PLC master IP @, IP EqpStruct EqpNb, [ClassNb] DSC Generic ETHERNET read buffer write buffer Master DB Master process CCV CCV1 ... AQN STAQ ... - Nb of Eqp Generic For Nb of Eqp CCV CCV1 ... AQN STAQ ... PLC master Equipment process - #net (0..n) - #IO - ... Specific Eqp DB Eqp FB PROFIBUS-DP PLC slave To be define PROFIBUS-DP Local/ Remote I/O Specific local (#net=0) or remote I/O of the equipment ISOLDE power supplies meeting - F.Locci
