Setting Up Xbox 360 S Wireless Connection with Built-in Wi-Fi

bliss avatar
bliss
13 diapositives · 281 Views · Sep 07, 2014

Learn how to set up your Xbox 360 S console's built-in Wi-Fi for Xbox LIVE. Follow these steps to configure your wireless network settings: access System Settings, choose Network Settings, select your wireless network, enter the password, and test your connection. If you're having issues, check the wireless signal and reset your network settings to factory defaults. This guide ensures a smooth connection to Xbox LIVE for gaming and online services.

Setting Up Xbox 360 S Wireless Connection with Built-in Wi-Fi - slide 1
01 / 13Setting Up Xbox 360 S Wireless Connection with Built-in Wi-Fi
1 / 17

Télécharger la présentation

Setting Up Xbox 360 S Wireless Connection with Built-in Wi-Fi
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. Xbox Wireless setup Xbox 360 S console with built-in Wi-Fi

  2. You need to configure the wireless settings and test the Xbox LIVE connection. The steps vary slightly, depending on the console’s software. • My screen looks like this:

  3. Configure the wireless settings 1. On the console, go to My Xbox, and then select System Settings. 2. Select Network Settings. 3. Select the name of the wireless network. Note :If you do not see the wireless network, select Advanced Options. Then select Specify Unlisted Network, and enter the wireless network name. Next, you are prompted to choose the security type.

  4. 4. Enter the wireless network password. 5. Select Yes if you are prompted to update the console software. When you successfully connect to Xbox LIVE, the screen will look like this:

  5. My screen looks like this:

  6. Configure the wireless settings 1. On the console, go to My Xbox, and then select System Settings. 2. Select Network Settings. 3. Select Configure Network. 4. On the Basic Settings tab, select Wireless Mode.

  7. 5. Select Scan for Networks. • 6. Select the wireless network name. • 7. Enter the wireless network password, and then select Done. • 8. Select Test Xbox LIVE Connection. • 9. Select Yes when you are prompted to update the console software. Once the console software is updated.

  8. How to ensure wireless is working? Built-in Wi-Fi (Xbox 360 S console)1. If you have a network cable or a wireless networking adapter attached to the console, unplug it. 2. Go to My Xbox, and then select System Settings.3.Select Network Settings.4. Look for the wireless signal bars. Built-in Wi-Fi is working

  9. Built-in Wi-Fi is not working.

  10. Reset network settings 1. If you are using an Xbox 360 Wireless Networking Adapter, unplug the adapter from the console.

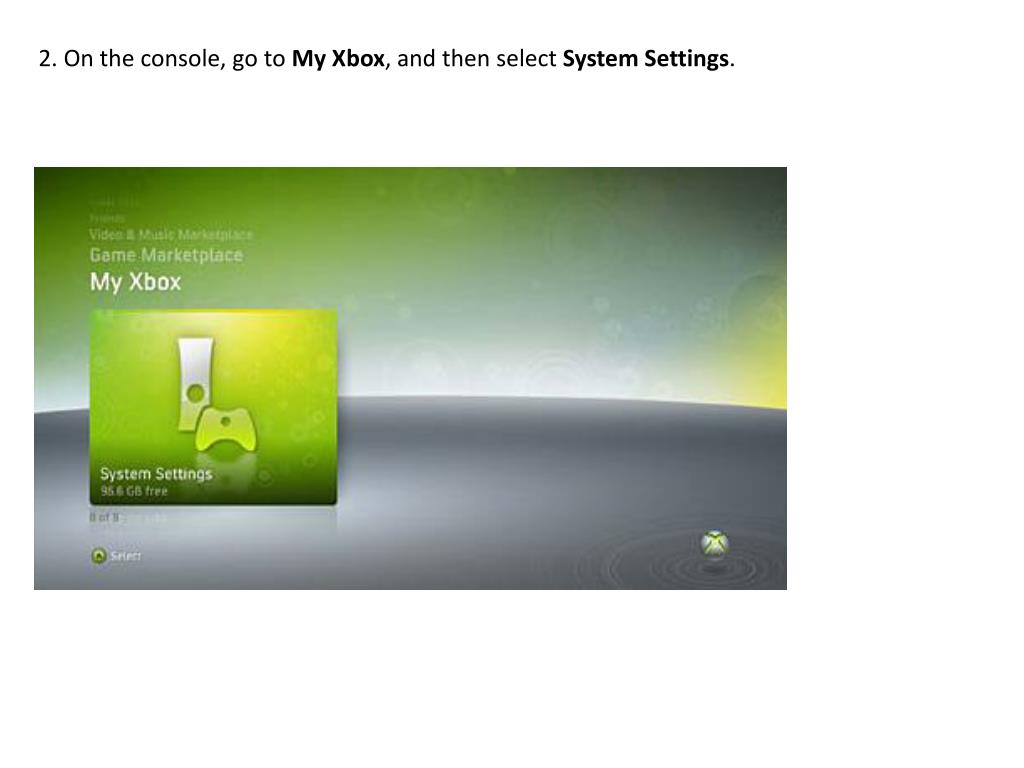

  11. 2. On the console, go to My Xbox, and then select System Settings.

  12. 3. Select Network Settings. 4. Select Configure Network.

  13. 5. Move right on the D-pad to access the Additional Settings tab and select Restore to Factory Defaults. Select Yes, restore to factory defaults when prompted. • 6. Plug the Xbox 360 Wireless Networking Adapter back into the USB port (if you are using an adapter). • 7. Turn on the console.
