Speech Audiometry

Speech Audiometry. Thresholds, Recognition Tests, MCL &UCL. Testing with Recorded Speech. 1000 Hz Calibration tone provided on recording Balance calibration tone on VU meter at 0. Live Voice Testing:. Controlled Vocal Effort, Adjust microphone sensitivity

blue
Télécharger la présentation

Speech Audiometry

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

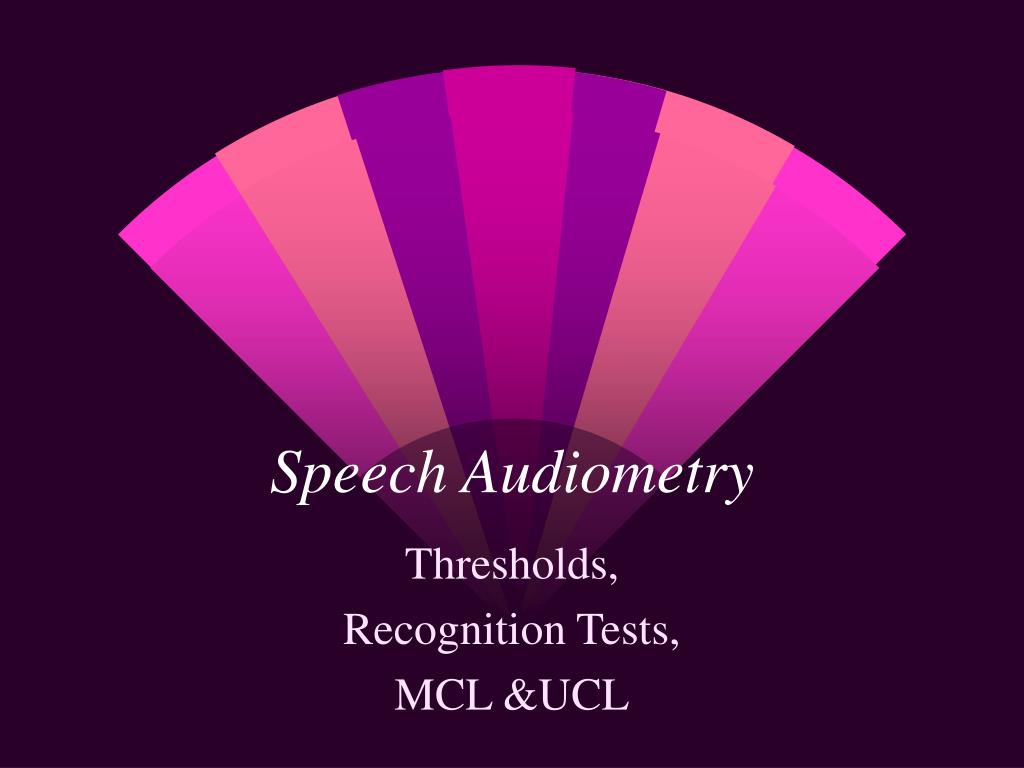

  1. Speech Audiometry Thresholds, Recognition Tests, MCL &UCL

  2. Testing with Recorded Speech • 1000 Hz Calibration tone provided on recording • Balance calibration tone on VU meter at 0

  3. Live Voice Testing: • Controlled Vocal Effort, • Adjust microphone sensitivity • to have the speech balanced at 0 dB on VU meter

  4. Thresholds for Speech: • Speech Detection Threshold: lowest level at which the listener can tell that something is there (when the signal happens to be speech). • Speech Recognition Threshold: lowest level at which the listener can actual identify what the speech stimulus is.

  5. SRT Stimuli: Spondees • 2-syllable words with equal stress • can be divided into two monosyllables • e.g., hotdog, baseball, whitewash, mousetrap, birthday, eardrum...

  6. Why spondees? • because their intelligibility curves rise from near chance to 100% performance within a few decibels. • This provides a much more accurate threshold.

  7. ASHA: Instruct Familiarize (16 words) Find Starting Level Begin Descending procedure Thresh = Start Level - # C + Corr. Factor Adaptive Instruct Familiarize Bracket (2-4 wds/level) Thresh = lowest level where you get at least 50% correctly repeated. SRT Methods

  8. The SRT should agree with the PTA • (-8 to +6 dB of best threshold at these frequencies). • This way we have a double-check on results.

  9. Exception for steeply-sloped high frequency losses. • SRT will be better than PTA • In this case use Fletcher average: 500 Hz + 1000 Hz / 2.

  10. Masking for SRT's: • IF SRT - IA > best BC THRESH in NTE. • WHITE or PINK NOISE • STARTING LEVEL=SRTTE –35 +ABGNTE

  11. Long Term Spectrum of Speech And the variance around it.

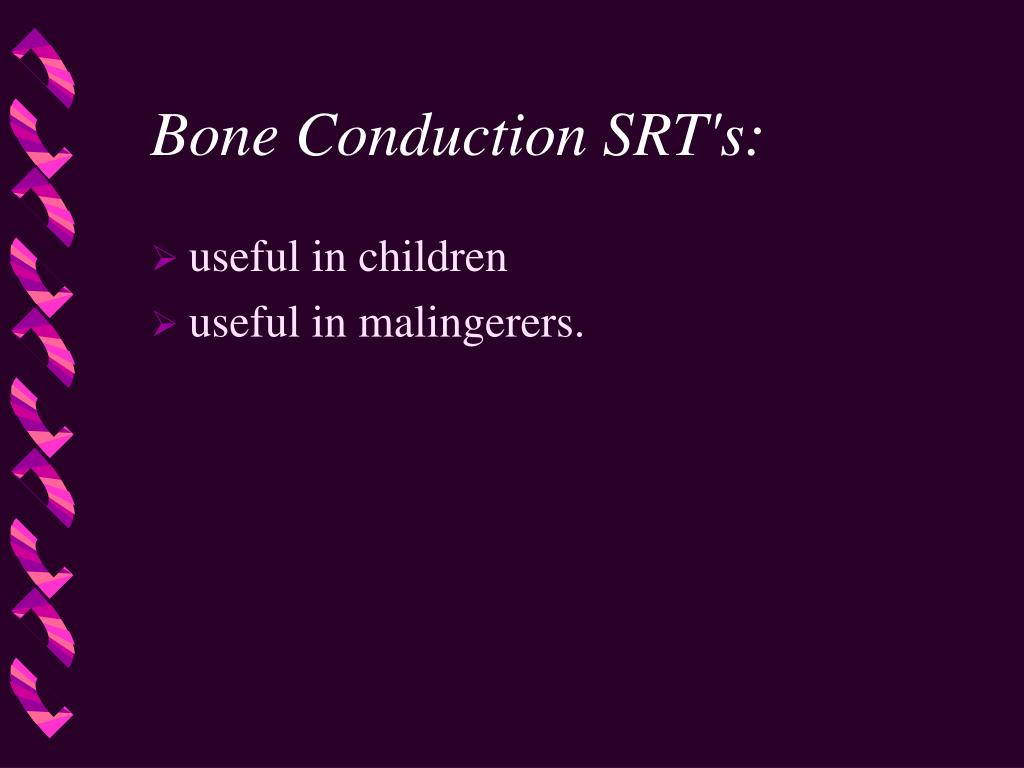

  12. Bone Conduction SRT's: • useful in children • useful in malingerers.

  13. Masking for SRT • If SRT - IA > best BC Thresh NTE • Put in at least: STARTING LEVEL=SRTTE –35 +ABGNTE But no more than: OVERMASK = EMNTE-IA> Best BC Thresh TE

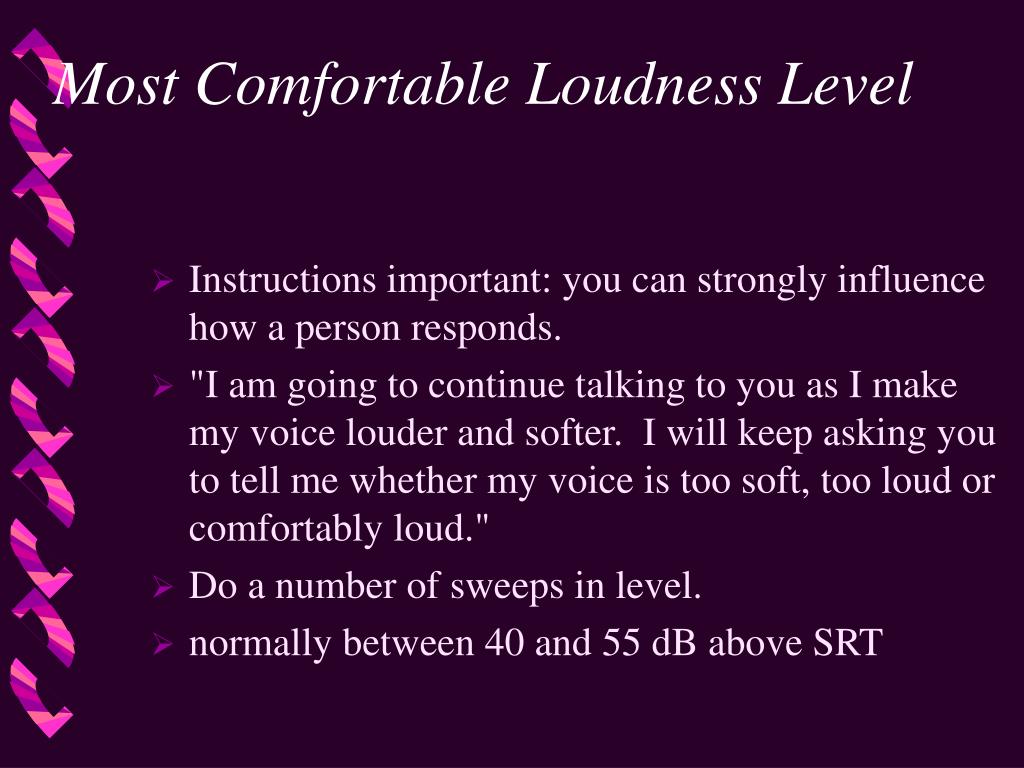

  14. Most Comfortable Loudness Level • Instructions important: you can strongly influence how a person responds. • "I am going to continue talking to you as I make my voice louder and softer. I will keep asking you to tell me whether my voice is too soft, too loud or comfortably loud." • Do a number of sweeps in level. • normally between 40 and 55 dB above SRT

  15. Uncomfortable Loudness Level • Begin at MCL, raise level as you continue to talk. • "I am now going to ask you to tell me how my voice sounds to you as I make it louder. Please tell me if the level is comfortable, a little loud, or uncomfortably loud.” • Uncomfortable = loud enough so you would not want to listen to my voice for a long time.

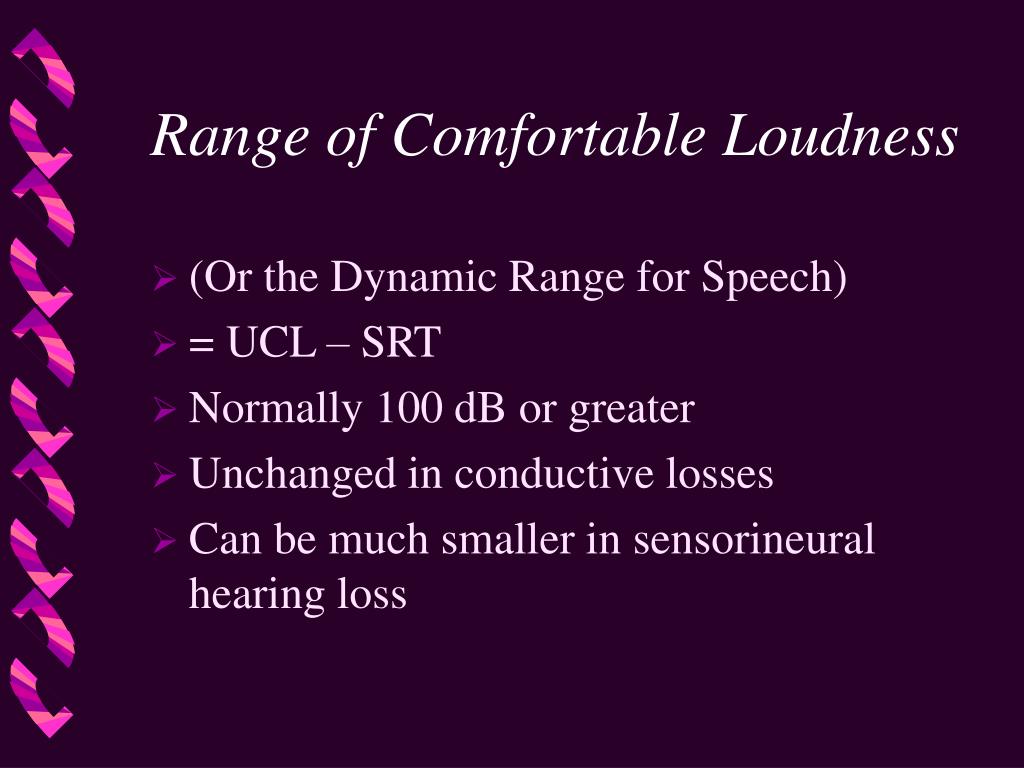

  16. Range of Comfortable Loudness • (Or the Dynamic Range for Speech) • = UCL – SRT • Normally 100 dB or greater • Unchanged in conductive losses • Can be much smaller in sensorineural hearing loss

  17. Word Recognition Testing • Open set-client can respond with any word he/she can think of. • Closed set-response options are provided for the client (multiple choice test). • Free response-client is free to respond or not. • Forced Response-client must say something. • [Forced choice = closed set forced response.]

  18. Phonetically Balanced Word Lists • selection of a group of words so that each phoneme appears with the same frequency it has in the normal lexicon. Based on Thorndike-Lorge lists of words and word frequencies. • So-called PB word lists-- CID W-22 Lists • Four lists of 50 words each.

  19. CNC Word Lists • Consonant-Nucleus-Consonant words • Phonemically balanced • Four 50-item lists: the NU-6 Word Lists

  20. Alternative Speech Choices • High Frequency Word Lists • Gardner’s Hi Frequency Word Lists • California Consonant Test • Nonsense Syllable Lists • The Nonsense Syllable Test (NST) • Sentence Tests • The Synthetic Sentence Identification (SSI) test • Speech Perception in Noise (SPIN) test • Connected Speech Test (CST) • The Hearing In Noise Test (HINT)

  21. Children’s Tests • Word Intelligibility by Picture Identification (WIPI) test – six pictures to choose from. • Northwestern University Children’s Perception of Speech (NUCHIPS) test – four pictures to choose from • Monosyllable-Spondee-Trochee test – distinguishing word shapes, not identifying particular words; used in cochlear implant cases.

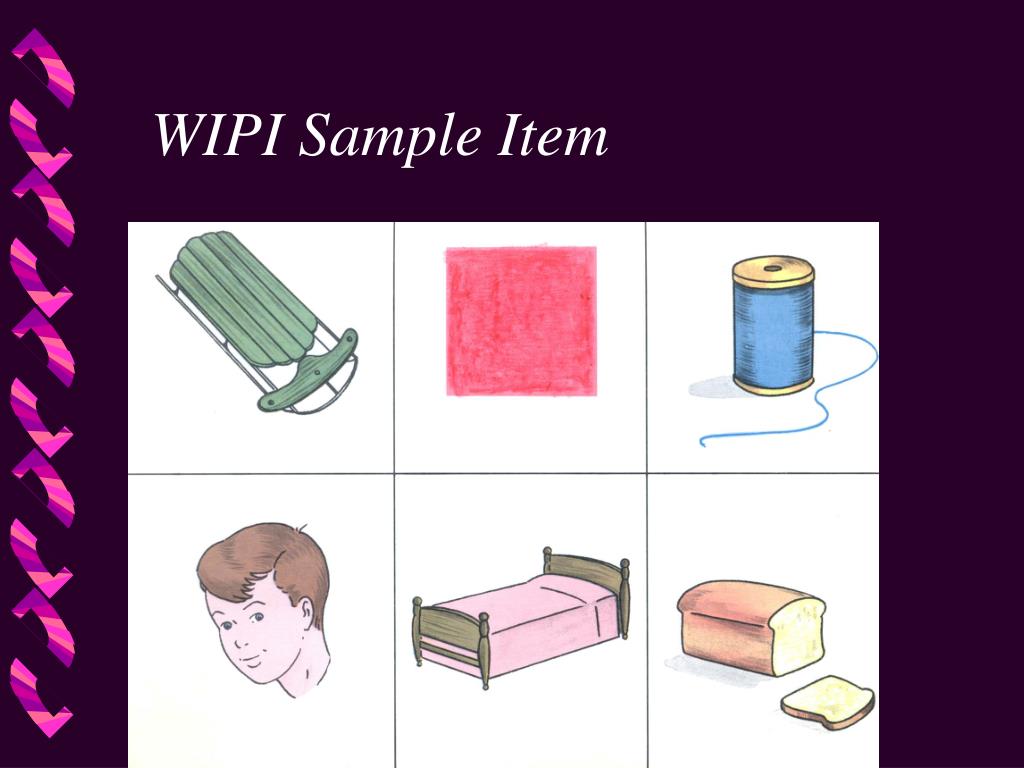

  22. WIPI Sample Item

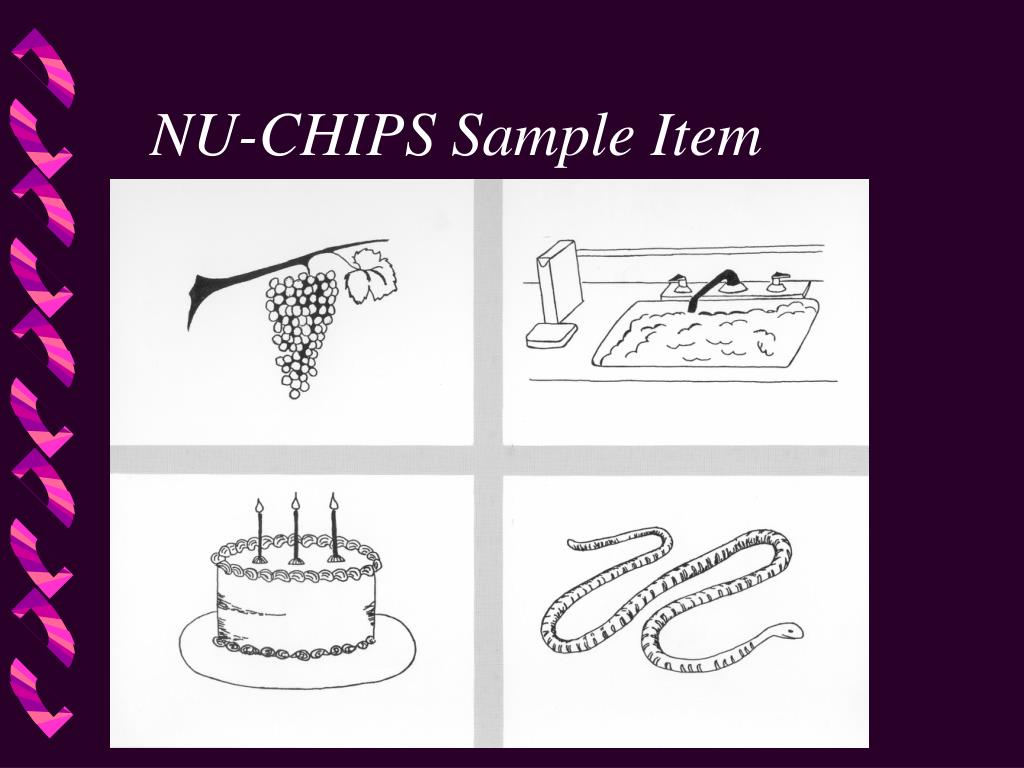

  23. NU-CHIPS Sample Item

  24. Administration: once you've chosen materials • transducer: AC, BC, or sound field. • level: at some SL (40)--may be specified by test. • response: repeat, write, or mark on list. • competing noise: what, how loud. • masking: calculate (Test Level - IA) - BC nte

  25. Adaptive Testing • Finding a threshold, not a % score • Typically in presence of competing noise • Measure has low variance • Not yet common in clinical practice • (although we will talk about the HINT soon)

  26. Performance-Intensity Functions • PI function: word recognition scores obtained at a range of stimulus levels. • Curve reaches a peak (Pbmax), and then • Either remains high (normal), or • Drops at higher levels (Rollover) • Rollover Index = (PBmax – Pbmin)/PBmax

  27. Rollover Indices for the preceding examples • Normal: (100 - 100) / 100 = 0.0 • Rollover: (44 - 20) / 44 = 0.54 • Cochlear: (80 - 70)/80 = 0.125 • Rollover Indices of 0.45 or greater indicate a neural (VIIIth nerve) problem.

  28. Cross Hearing & the Need to Mask • If Word level (HL)TE – IA > Best BCNTE • Use Pink (Speech) Noise, or white noise • Suggested Levels: EM = PBHL TE – IA + ABGNTE + 20 dB

  29. Reliability of Word Recognition Scores • Range of possible scores upon retest Thornton & Raffin (1978)

  30. NU-6 Words Ordered by Difficulty • Present 10 words- stop if 0 or 1 error • If >1 error, present next 15 words • If < 3 errors (out of 25), stop • If > 3 errors administer all 50 words Hurley & Sells, 2003

  31. Interpreting Word Recognition Scores

  32. Expected PB max by Hearing Loss Dubno, J. et al.JSHR 1995

  33. SPRINT: Speech Recognition Interpretation Chart Abnormally Low Word Recognition for HL PTA (dB HL) 2nd % Score 1st % Correct Score © by Linda M. Thibodeau, 1999

  34. SPRINT: Speech Recognition Interpretation Chart 95% Confidence Limits for Word Recognition Score PTA (dB HL) 2nd % Score 1st % Correct Score © by Linda M. Thibodeau, 1999

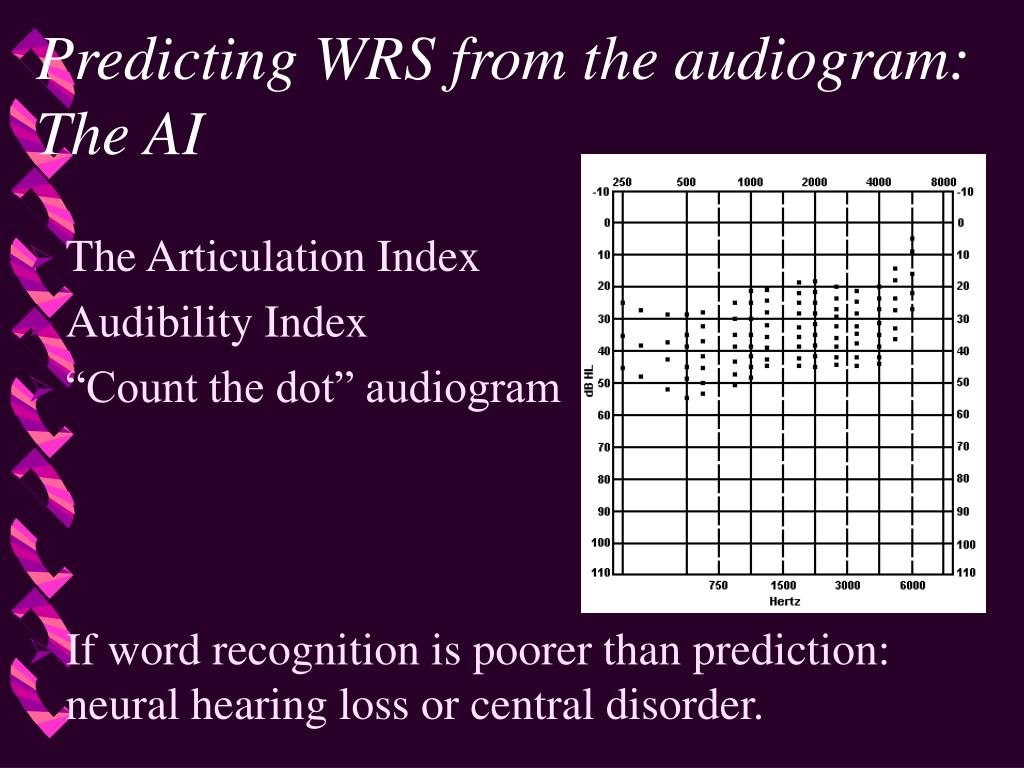

  35. Predicting WRS from the audiogram: The AI • The Articulation Index • Audibility Index • “Count the dot” audiogram • If word recognition is poorer than prediction: neural hearing loss or central disorder.

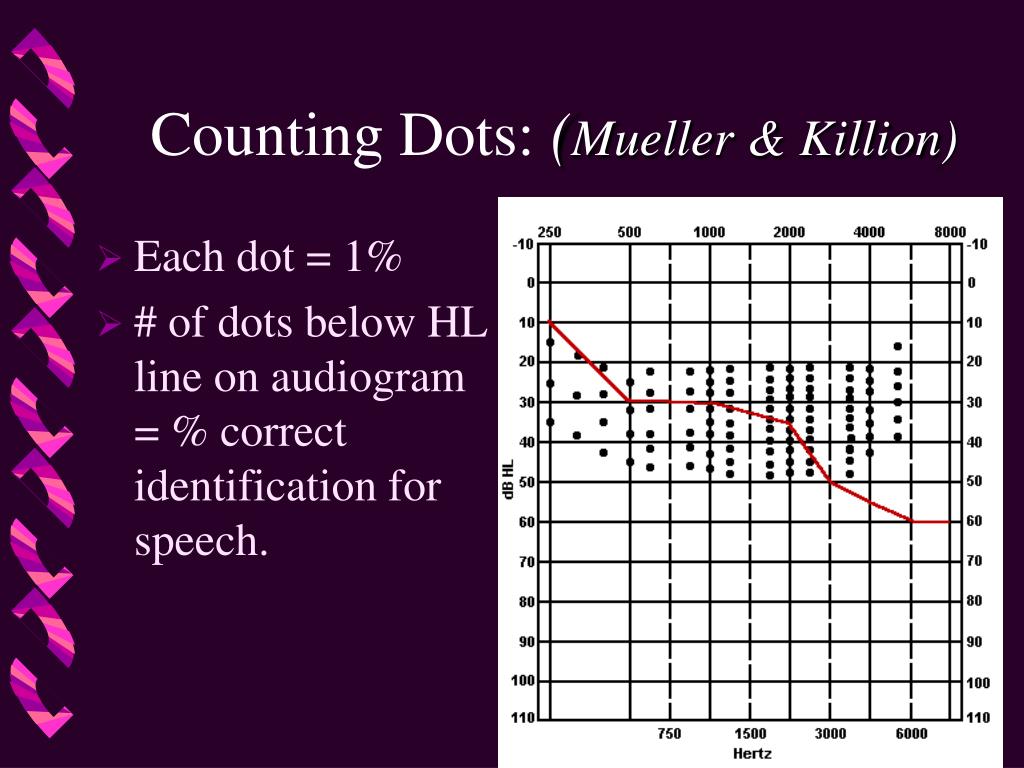

  36. Counting Dots:(Mueller & Killion) • Each dot = 1% • # of dots below HL line on audiogram = % correct identification for speech.
