  1. Respirator Selection based on OSHA APFs Scott Shinn, CIH, Technical Service Specialist, 3M Company

  2. AGENDA • Types of Respiratory Protection • Definitions • Respirator Selection Process • Examples of Acceptable Respiratory Protection

  3. Respiratory Protection • Air Purifying Respirator • Negative Pressure Respirator

  4. Respiratory Protection • Air Purifying Respirator • Powered Air Purifying Respirator (PAPR)

  5. Respiratory Protection • Atmosphere Supplying Respirator

  6. Respiratory Protection • Self-Contained Breathing Apparatus (SCBA)

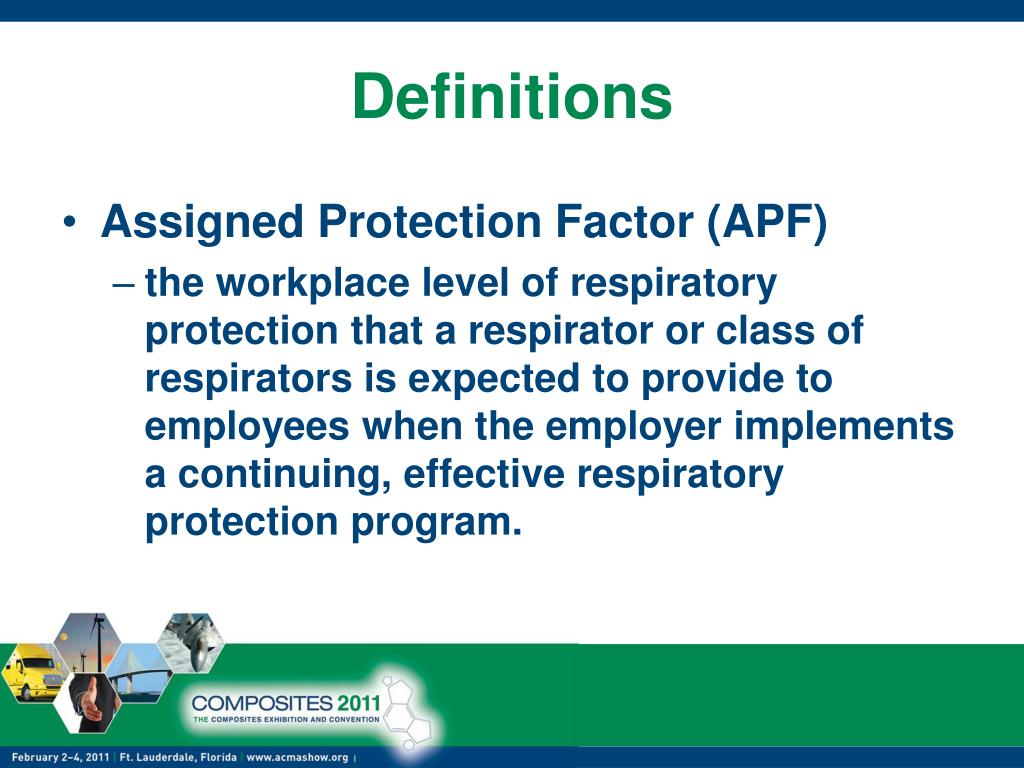

  7. Definitions • Assigned Protection Factor (APF) • the workplace level of respiratory protection that a respirator or class of respirators is expected to provide to employees when the employer implements a continuing, effective respiratory protection program.

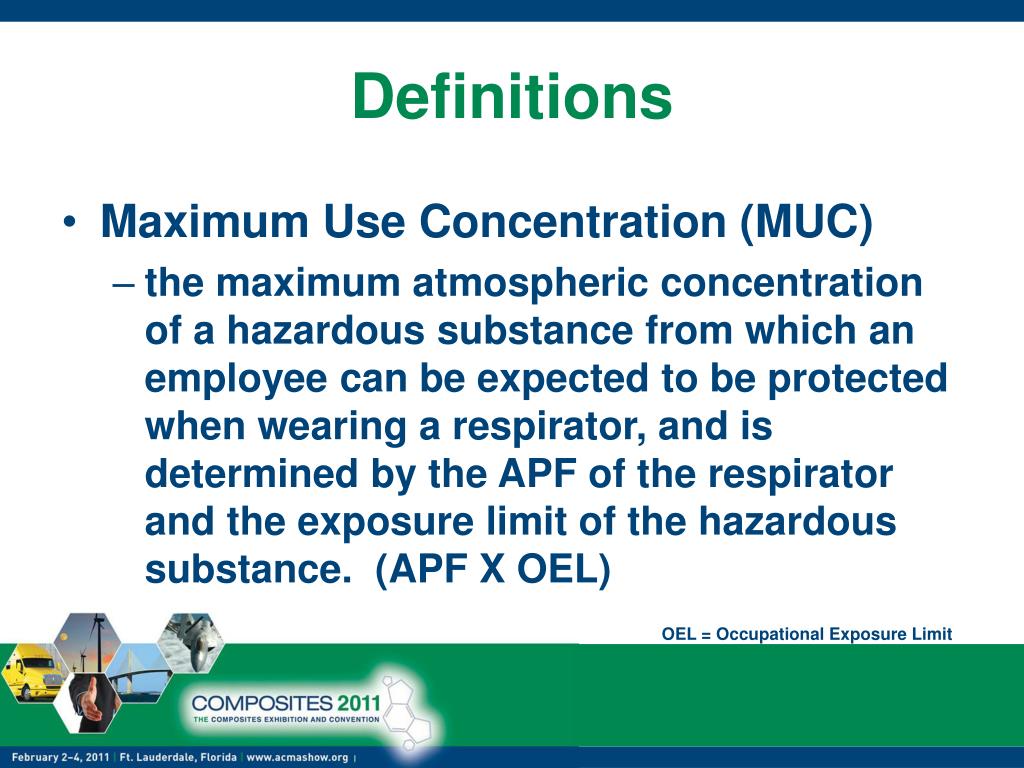

  8. Definitions • Maximum Use Concentration (MUC) • the maximum atmospheric concentration of a hazardous substance from which an employee can be expected to be protected when wearing a respirator, and is determined by the APF of the respirator and the exposure limit of the hazardous substance. (APF X OEL) OEL = Occupational Exposure Limit

  9. Definitions • Immediately Dangerous to Life or Health (IDLH) • an atmosphere that poses an immediate threat to life, would cause irreversible adverse health effects, or would impair an individual's ability to escape from a dangerous atmosphere.

  10. Respiratory Protection Program Per 29 CFR 1910.134 Written Respiratory Protection Program must include… Procedures for selecting respirators Medical evaluation Fit testing Use of respirators Maintenance and care of respirators Breathing air quality and use Training Program evaluation Recordkeeping

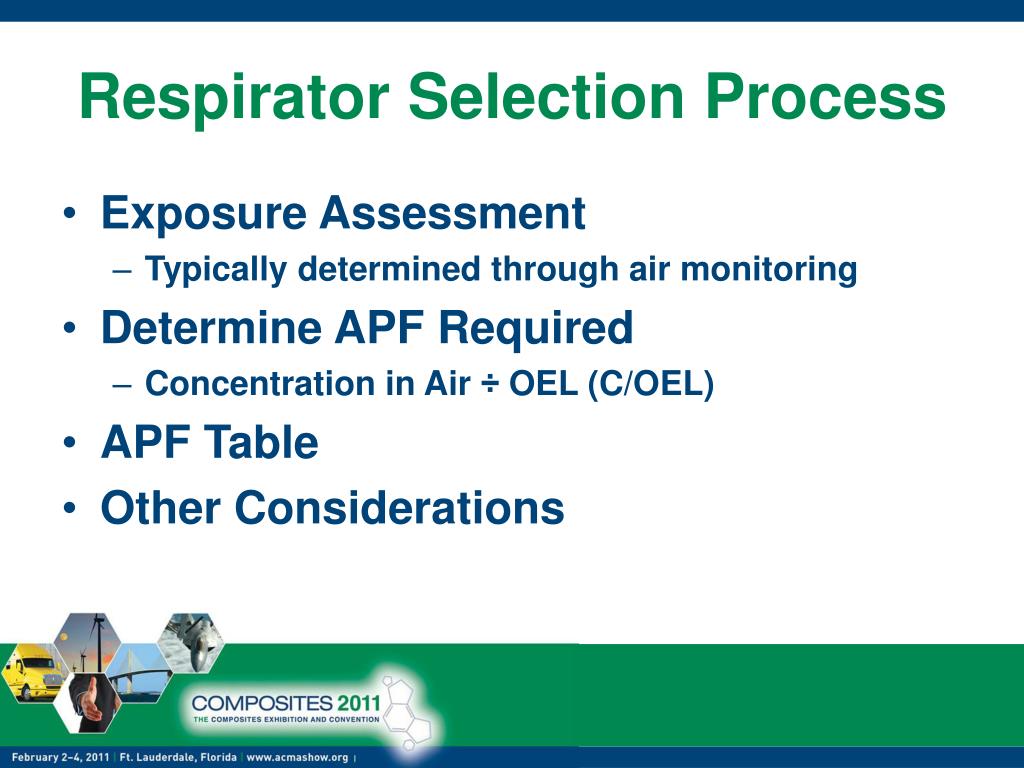

  11. Respirator Selection Process • Exposure Assessment • Typically determined through air monitoring • Determine APF Required • Concentration in Air ÷ OEL (C/OEL) • APF Table • Other Considerations

  12. Assigned Protection Factors

  13. Assigned Protection Factors Assigned Protection Factors for the Revised Respiratory Protection Standard, OSHA 3352-02 2009 Original Illustrations created by Attiliis & Associates

  14. Assigned Protection Factors APF=1000 if manufacture has documentation Assigned Protection Factors for the Revised Respiratory Protection Standard, OSHA 3352-02 2009 Original Illustrations created by Attiliis & Associates

  15. Assigned Protection Factors Also includes hooded supplied air respirator APF=1000 if manufacturer has documentation Assigned Protection Factors for the Revised Respiratory Protection Standard, OSHA 3352-02 2009 Original Illustrations created by Attiliis & Associates

  16. Assigned Protection Factors Assigned Protection Factors for the Revised Respiratory Protection Standard, OSHA 3352-02 2009 Original Illustrations created by Attiliis & Associates

  17. Example 1: Styrene OEL = 50 ppm Voluntary TWA-OEL for Styrene Industry (1) Manufacturer must demonstrate protection factor of 1000

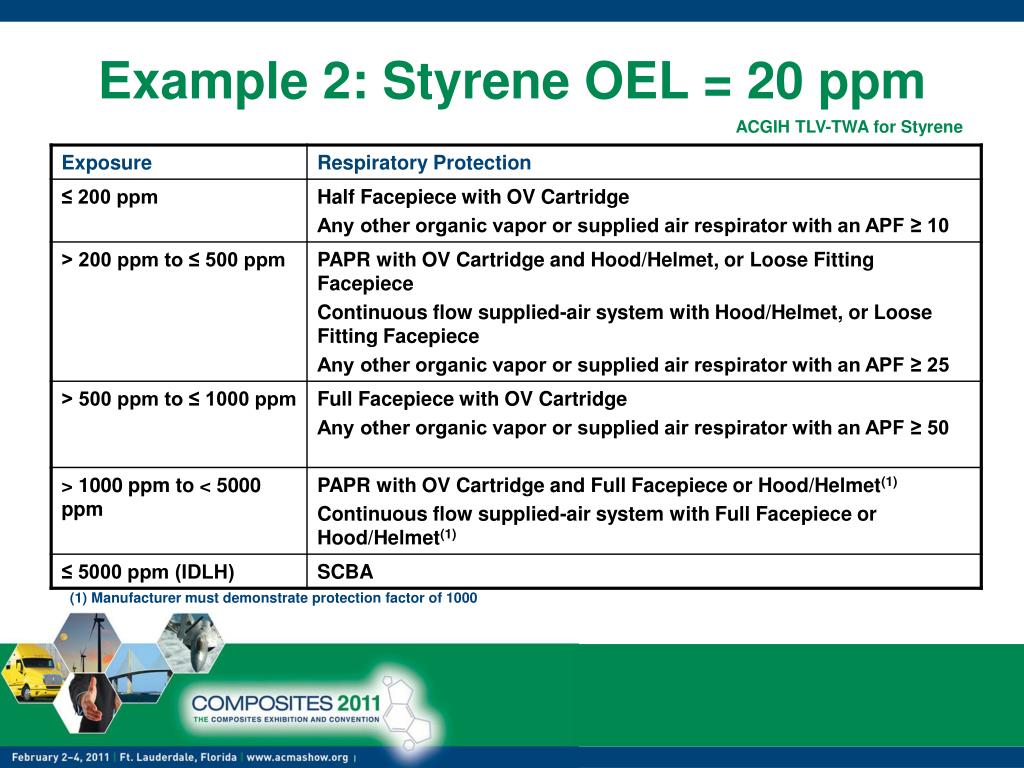

  18. Example 2: Styrene OEL = 20 ppm ACGIH TLV-TWA for Styrene (1) Manufacturer must demonstrate protection factor of 1000

  19. Thank You! Scott Shinn, CIH, Technical Service Specialist, 3M Company
