  1. ASAP 2.0 Discrete Object Thresholds (DOTs) September 17, 2001 Joe.Davis@hp.cm

  2. ASAP 2.0 DOTs • Monitored Domains • Objectives • Events

  3. Controlling Monitored Domains • ASAP auto-configuration • All objects • CPU, DISK, PROCESSBUSY, RDF, TAPE, TMF • Selected objects • FILE - ASAPMON • PROCESS - $<ASAP-id>M • SPOOLER - $SPLS • DOTs lets you control the domains (objects) that ASAP monitors • Monitored objects support is encapsulated in the ASAP MONITOR command

  4. Taking Ownership • When you add an object (domain) to be monitored, you are assuming control of the ASAP configuration for that entity • MONITOR DISK $DATA • Only $DATA will be monitored • MONITOR DISK $DATA, OFF • No “ON” records, but records do exist • No disks will be monitored • MONITOR DISK $DATA, DELETE • ASAP auto-configures all disks again

  5. Commit Processing • MONITOR (and RANK) commands add records to the Objectives database, not to a running copy of ASAP • Database is read at ASAP startup time • Database is re-read online by a running ASAP component when it receives a COMMIT request • Two ways to commit monitored objects • MONITOR <entity>, COMMIT • COMMIT

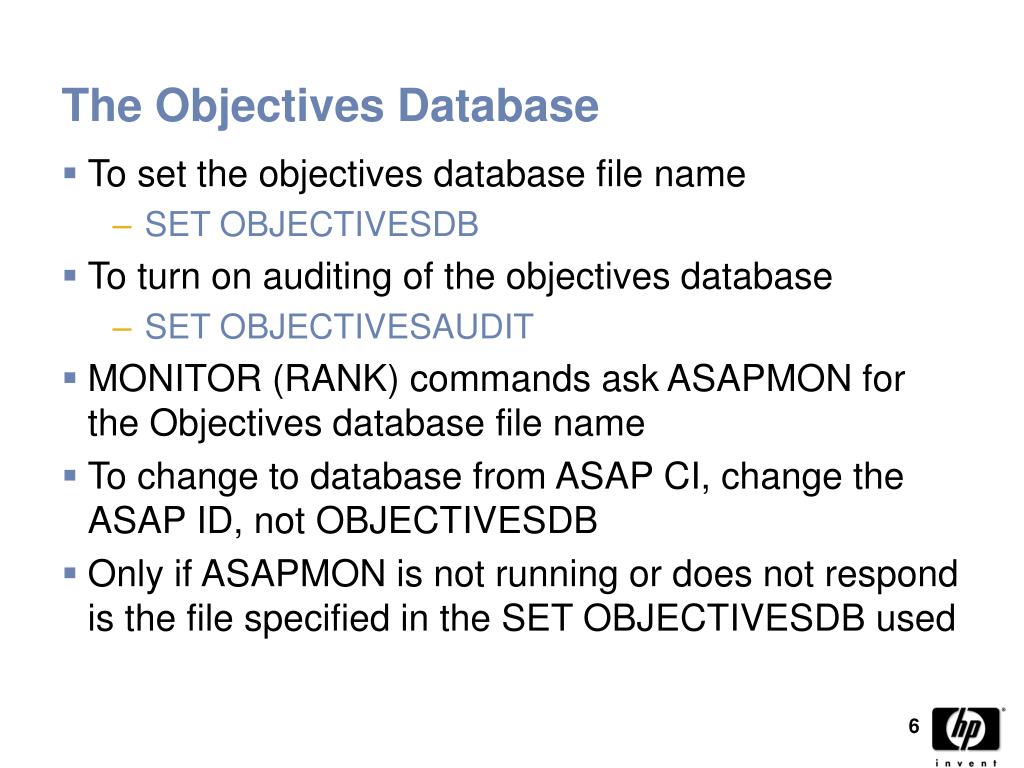

  6. The Objectives Database • To set the objectives database file name • SET OBJECTIVESDB • To turn on auditing of the objectives database • SET OBJECTIVESAUDIT • MONITOR (RANK) commands ask ASAPMON for the Objectives database file name • To change to database from ASAP CI, change the ASAP ID, not OBJECTIVESDB • Only if ASAPMON is not running or does not respond is the file specified in the SET OBJECTIVESDB used

  7. The Objectives Database SET ID $SG SET OBJECTIVESAUDIT ON SET OBJECTIVESDB $mm.joedb.testme +m expand Opened ObjectivesDB: \Centdiv.$Mm.Joedb.Testme Expand \Centdiv On - $Abc +set objectivesdb $system.zasap.dbobjs +m expand Expand \Centdiv On - $Abc + ASAPMON $SGM returned this name New database is not opened !

  8. The Objectives Database SET ObjectivesDB $mm.joedb.testme +m expand Opened ObjectivesDB: \Centdiv.$Mm.Joedb.Testme Expand \Centdiv On - $Abc +set id $zoo +m expand Opened ObjectivesDB: \Centdiv.$System.Zasap.Dbobjs Expand \Centdiv On - $Lhchi On - $Lhcomm On - $Lhdome On - $Lheast + New database is opened !

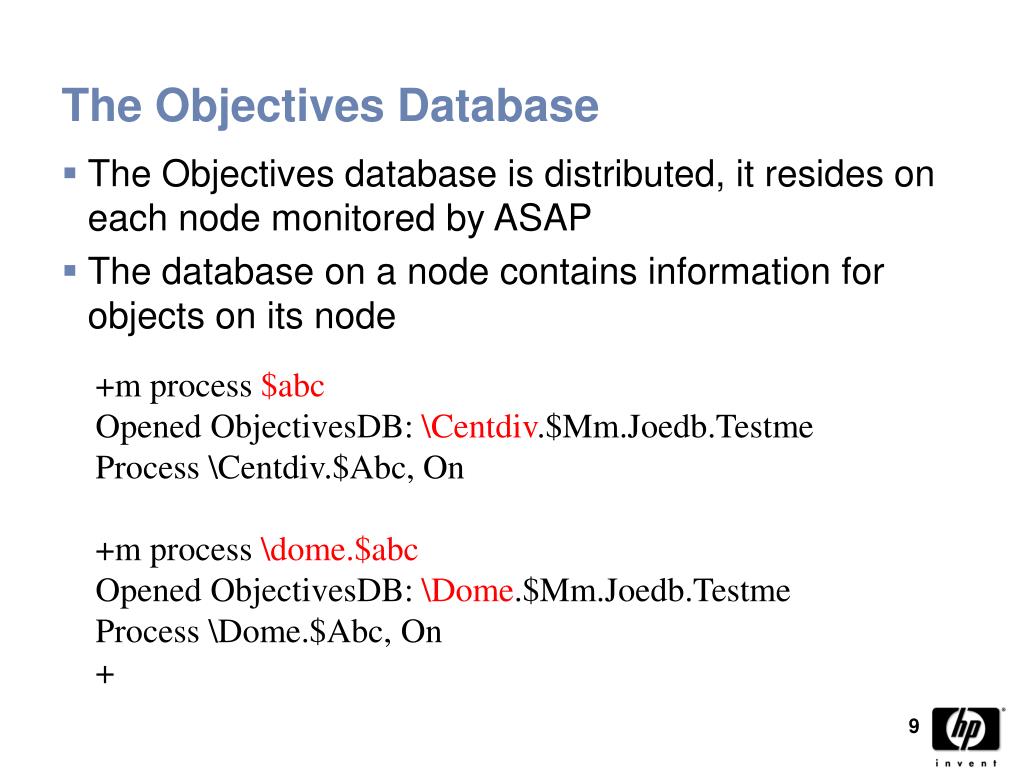

  9. The Objectives Database • The Objectives database is distributed, it resides on each node monitored by ASAP • The database on a node contains information for objects on its node +m process $abc Opened ObjectivesDB: \Centdiv.$Mm.Joedb.Testme Process \Centdiv.$Abc, On +m process \dome.$abc Opened ObjectivesDB: \Dome.$Mm.Joedb.Testme Process \Dome.$Abc, On +

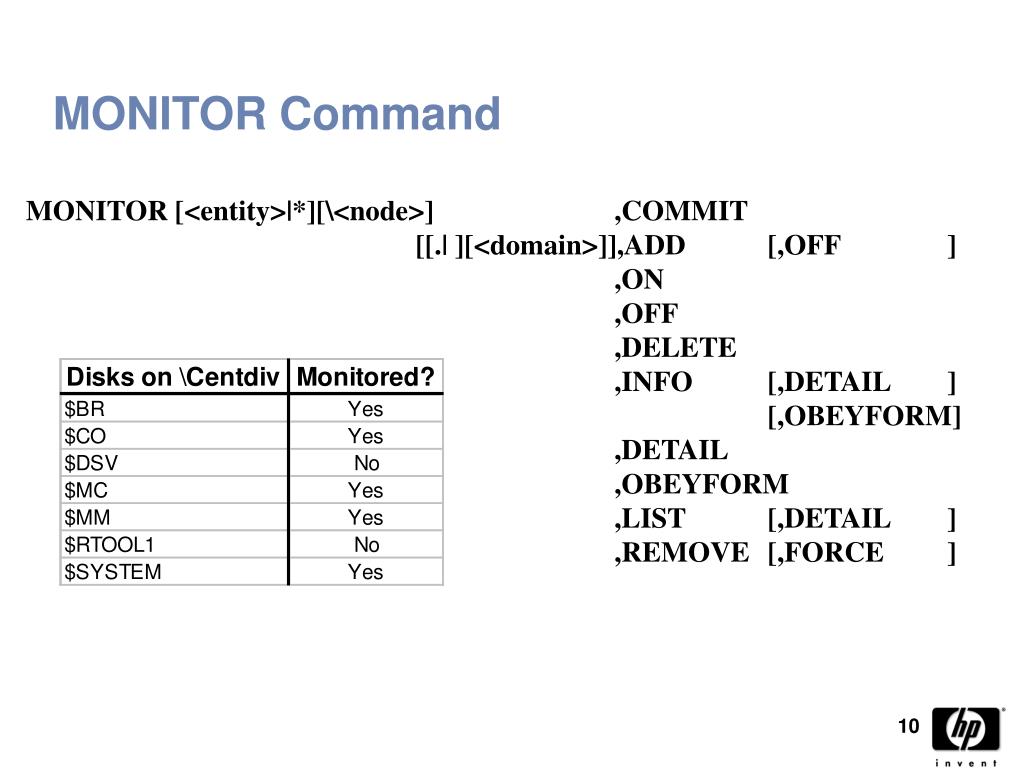

  10. MONITOR Command MONITOR [<entity>|*][\<node>] ,COMMIT [[.| ][<domain>]],ADD [,OFF ] ,ON ,OFF ,DELETE ,INFO [,DETAIL ] [,OBEYFORM] ,DETAIL ,OBEYFORM ,LIST [,DETAIL ] ,REMOVE [,FORCE ]

  11. Domain name space NODE is not supported • CPU <cpu-number> • DISK $<disk-device-name> • EXPAND [Path\|Line\]$<line-name> • FILE $<subvolume-name>|$<file-name> • PROCESS $<process-name> • PROCESSBUSY <cpu-number> • RDF <node1><node2> (no backslashes) • SPOOLER $<supervisor-name> • SYSTEM n/a • TAPE $<tape-device-name> • TMF AUDITDUMP | AUDITTRAIL | TMF | TRANSACTION

  12. MONITOR Command • ADD [, OFF] • Adds an object to the Objectives database • Automatically turns object ON (unless OFF) • The default when a domain name is specified without wildcards • ON • Turns an object in the database ON • OFF • Turns an object in the database OFF • COMMIT • Commits database changes to a running copy of ASAP

  13. MONITOR Command • DELETE • Deletes a domain from the Objectives database • Commands must be entered twice to delete non-specific domains • INFO [, DETAIL | OBEYFORM ] • Displays information about domains in the database • DETAIL • Displays ADD, ON and OFF times for domain(s) • OBEYFORM • Outputs domains in Obey format for replay

  14. MONITOR Command • LIST [, DETAIL] • Returns information about domains directly from running ASAP components • DETAIL returns subsystem-specific detailed information about domains • Also supported for user-defined entities • REMOVE [, FORCE] • For user-defined entities only • Removes DOWN domains from ASAPX • FORCE forces removal of a domain regardless of its state

  15. MONITOR Examples • MONITOR CPU 2 • MONITOR DISK $DATA • M EXPAND $EX23 • M FILE $SYSTEM.SYSTEM, ADD, OFF • M PROCESS \REMOTE.$ZTC0 • M PROCESSBUSY \REMOTE.2 • M RDF CHICAGODENVER • M SPOOLER $S2LS • M SYSTEM • M TAPE \REMOTE.$TAPE3 • M TMF AUDITTRAIL

  16. MONITOR Examples • MONITOR CPU *,INFO • MONITOR ATM, LIST, DETAIL • MONITOR ATM CHICAGO\TEST\ATM24, REMOVE • M EXPAND \REMOTE • M FILE \REMOTE.*, OFF • M PROCESS \REMOTE.CPU *,DELETE • M PROCESS \REMOTE.CPU *,DELETE (enter twice)

  17. Objectives • DOTs provides the ability to set up to 6 discrete objectives on any system or user-defined attribute where StatePair is YES in EDL, and where the attribute is not the StateIsOp attribute • The attribute must be immediately followed by an associated state attribute in the EDL file • Objectives processing is encapsulated in the ASAP RANK command

  18. RANK Command • Use the RANK command to establish discrete objectives • RANK DISK, BUSY < 35 • Sets a global objective for all disks • Disks must be less than 35 percent busy • RANK DISK $BR, BUSY < 50 • Sets a specific objective on $BR • $BR must be less than 50 percent busy

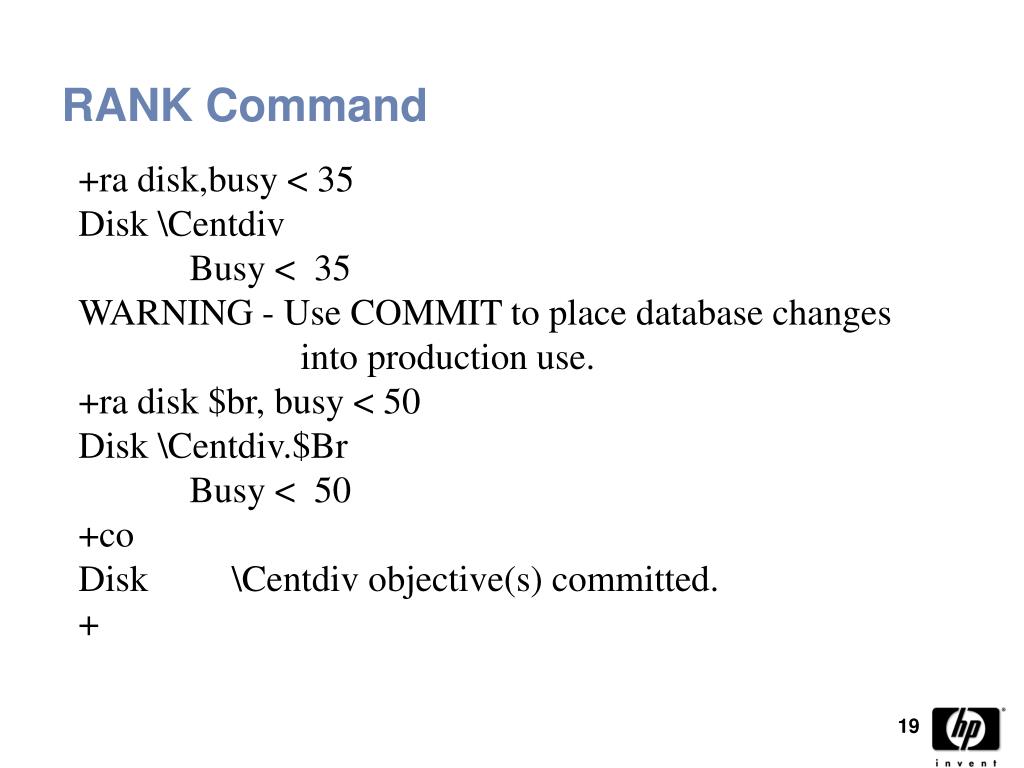

  19. RANK Command +ra disk,busy < 35 Disk \Centdiv Busy < 35 WARNING - Use COMMIT to place database changes into production use. +ra disk $br, busy < 50 Disk \Centdiv.$Br Busy < 50 +co Disk \Centdiv objective(s) committed. +

  20. RANK Command RANK [<entity>|*][\<node>] ,COMMIT [.| ]][<domain>]],<rankspec> [,<rankspec>,...] ,LIKE <domain> ,ACTIVATE ,DEACTIVATE ,DELETE ,INFO [,OBEYFORM ] ,OBEYFORM ,LIST

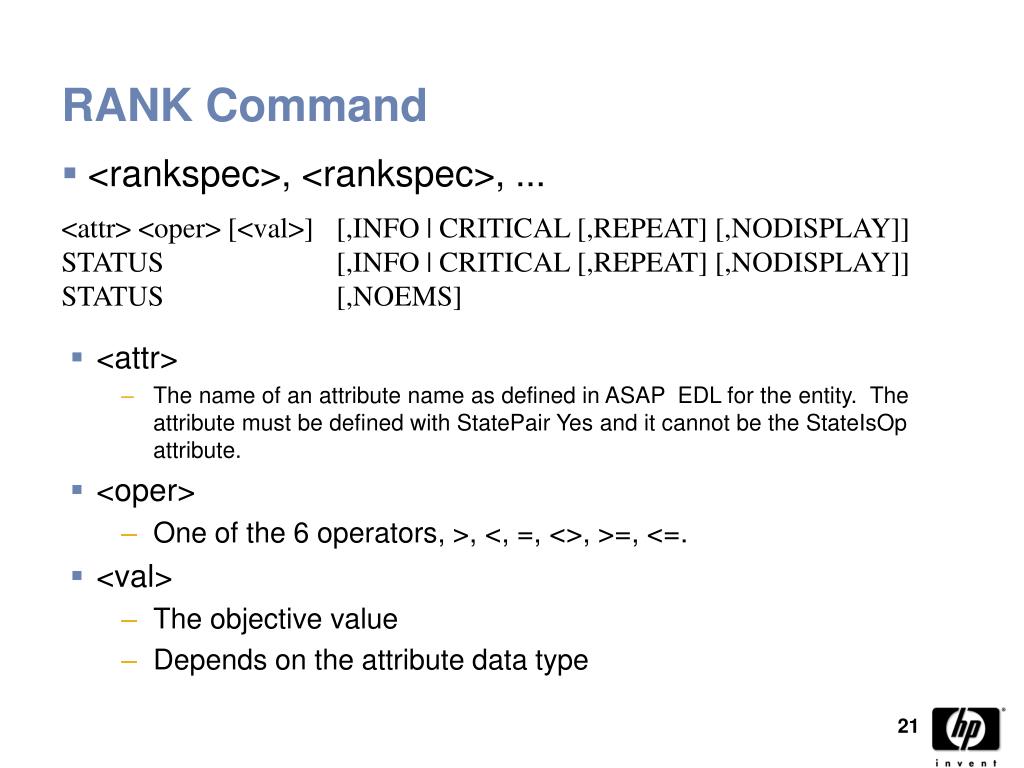

  21. RANK Command • <rankspec>, <rankspec>, ... <attr> <oper> [<val>] [,INFO | CRITICAL [,REPEAT] [,NODISPLAY]] STATUS [,INFO | CRITICAL [,REPEAT] [,NODISPLAY]] STATUS [,NOEMS] • <attr> • The name of an attribute name as defined in ASAP EDL for the entity. The attribute must be defined with StatePair Yes and it cannot be the StateIsOp attribute. • <oper> • One of the 6 operators, >, <, =, <>, >=, <=. • <val> • The objective value • Depends on the attribute data type

  22. RANK Command • STATUS • The StateIsOp attribute as defined in EDL. • Can only be used with EMS control keywords. • Cannot be used to set objectives on the value of Status. • RANK CPU, STATUS = “UP” is invalid! • Is used to change the default behavior for event generation for status changes of system domains. • Is used to turn on and define event generation for status changes in user-defined domains.

  23. RANK Command • INFO • Generate an Info event if the objective is not met • CRITICAL • Generate a Critical event • REPEAT • Repeat the event for each interval the alert persists. • NODISPLAY • Suppress event display on the console. • NOEMS • Used only with the STATUS attribute. • Stops display of Status events for System entities.

  24. RANK Command • ACTIVATE • Activates a domain(s) which was previously deactivated • COMMIT • Commits database changes to a running ASAP • DEACTIVATE • Deactivates a domain (DOTs returns OEM State 1) • DELETE • Deletes a record from the Objectives database • Commands must be entered twice to delete non-specific domains

  25. RANK Command • INFO [, OBEYFORM] • Displays objectives information from the database • LIKE <domain> • Adds ranking for a domain like <domain> • Specific ranks follow LIKE • LIST • Lists actual in-use objectives for a domain from a running ASAP component(s) • Fully qualified domain names only • OBEYFORM • Outputs information is Obey file format for replay

  26. RANK Examples • RANK CPU, BUSY > 10, BUSY < 90 • RANK FILE $SYSTEM.SYSTEM.USERID, RWEP = “OOOO” • RANK PROCESS $ABC, PSTATE = RUNNABLE • RANK SPOOLER $SPLS\COLL\$S,FULLPCT < 80 • RANK TMF • RANK TMF, STATUS NOEMS • RANK SPOOLER, STATUS CRITICAL REPEAT • RANK ATM CHICAGO\$ATM2, STATUS CRITICAL REPEAT • RANK DISK $DATA, LIST

  27. Objectives - Thresholding • Out-of-box defaults are UseThreshold • GraphMax and Threshold sliders determine alerting

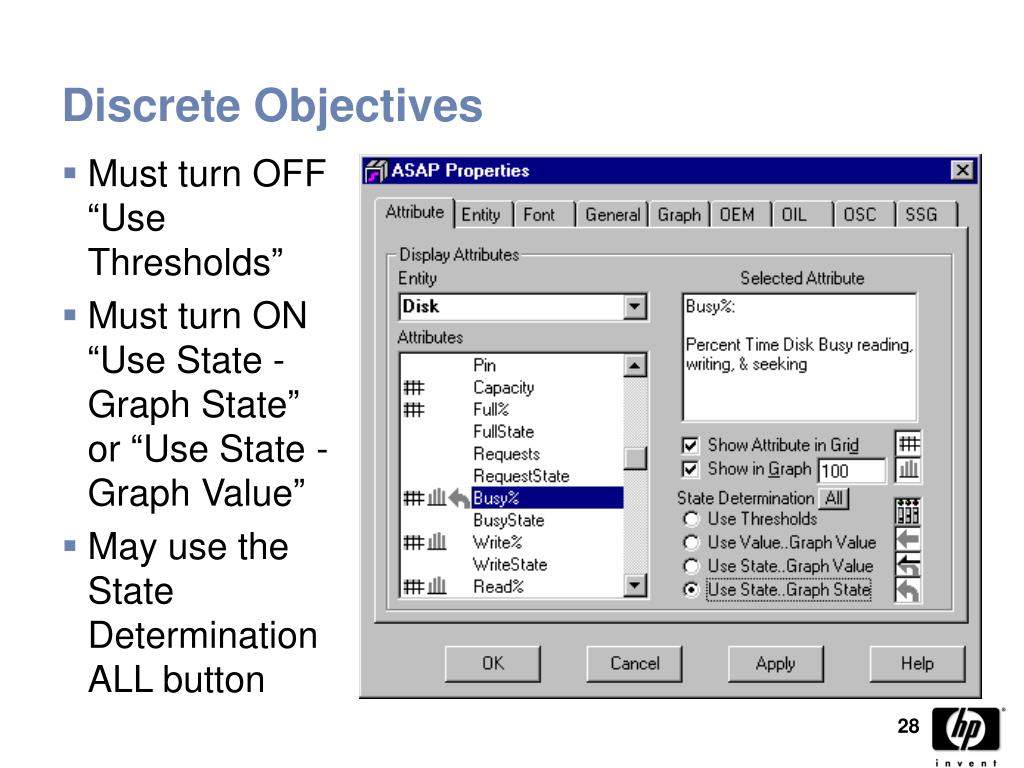

  28. Discrete Objectives • Must turn OFF “Use Thresholds” • Must turn ON “Use State - Graph State” or “Use State - Graph Value” • May use the State Determination ALL button

  29. Objectives - Standard Ranking

  30. 0-5% 6-14% 15-24% 35-44% 25-34% > 44% Objectives - Percent Ranking

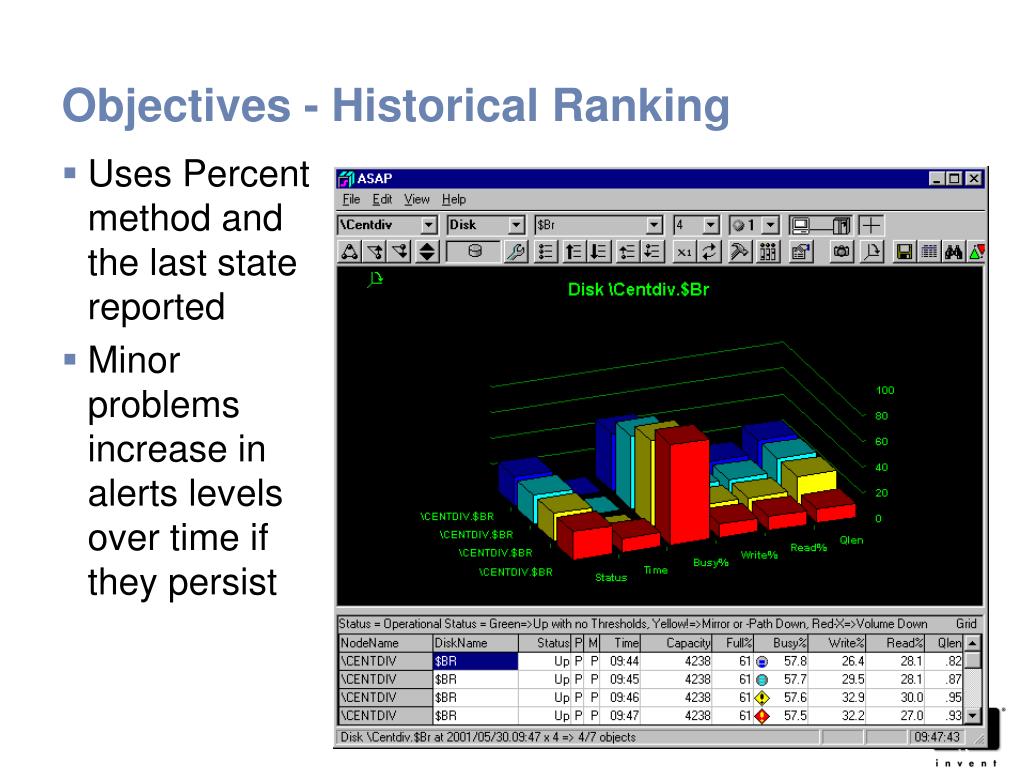

  31. Objectives - Historical Ranking • Uses Percent method and the last state reported • Minor problems increase in alerts levels over time if they persist

  32. Events • By default DOTs will generate an EMS CRITICAL event for any System object for Status changes, IF • events are turned on • SET OBJECTIVESEVENT ON • Default is OFF due to richness of ASAP Client displays • the operational state is greater or equal to event state • SET OBJECTIVESEVENTSTATE <state> • Default is CRITICAL (state 7) resulting in CRITICAL and DOWN Status events • maximum events haven’t already been written • SET OBJECTIVESEVENTMAX <n> • Default is 1

  33. Events • DOTs will generate an EMS INFO or CRITICAL event when an attribute fails to meet an objective, IF • events are turned on • SET OBJECTIVESEVENT ON • the state is greater or equal to event state • SET OBJECTIVESEVENTSTATE <state> • maximum events haven’t already been written • SET OBJECTIVESEVENTMAX <n> • the objective was specified using event keywords • RANK DISK $DATA, BUSY < 40CRITICAL • the event wasn’t already written in a prior interval • INFO | CRITICAL [ REPEAT ]

  34. Events - Other Controls • To generate UP events for repaired attributes • SET OBJECTIVESEVENTUP ON • Default is OFF • To suppress display of DOWN events on the console • SET OBJECTIVESEVENTCONSOLE OFF • Default is ON • To suppress display of UP events on the console • SET OBJECTIVESEVENTCONSOLEUP OFF • Default is ON

  35. Events Examples • ASAPCONF file • SET OBJECTIVESEVENT ON • SET OBJECTIVESEVENTUP ON • SET OBJECTIVESEVENTMAX 2 • SET OBJECTIVESEVENTSTATE WARNING • RANK Examples • RANK CPU, BUSY < 99 CRITICAL REPEAT • RANK CPU, STATUS CRITICAL REPEAT • RANK CPU, QUEUE < 2 INFO • RANK PROCESS $XYZ, STATUS NOEMS
