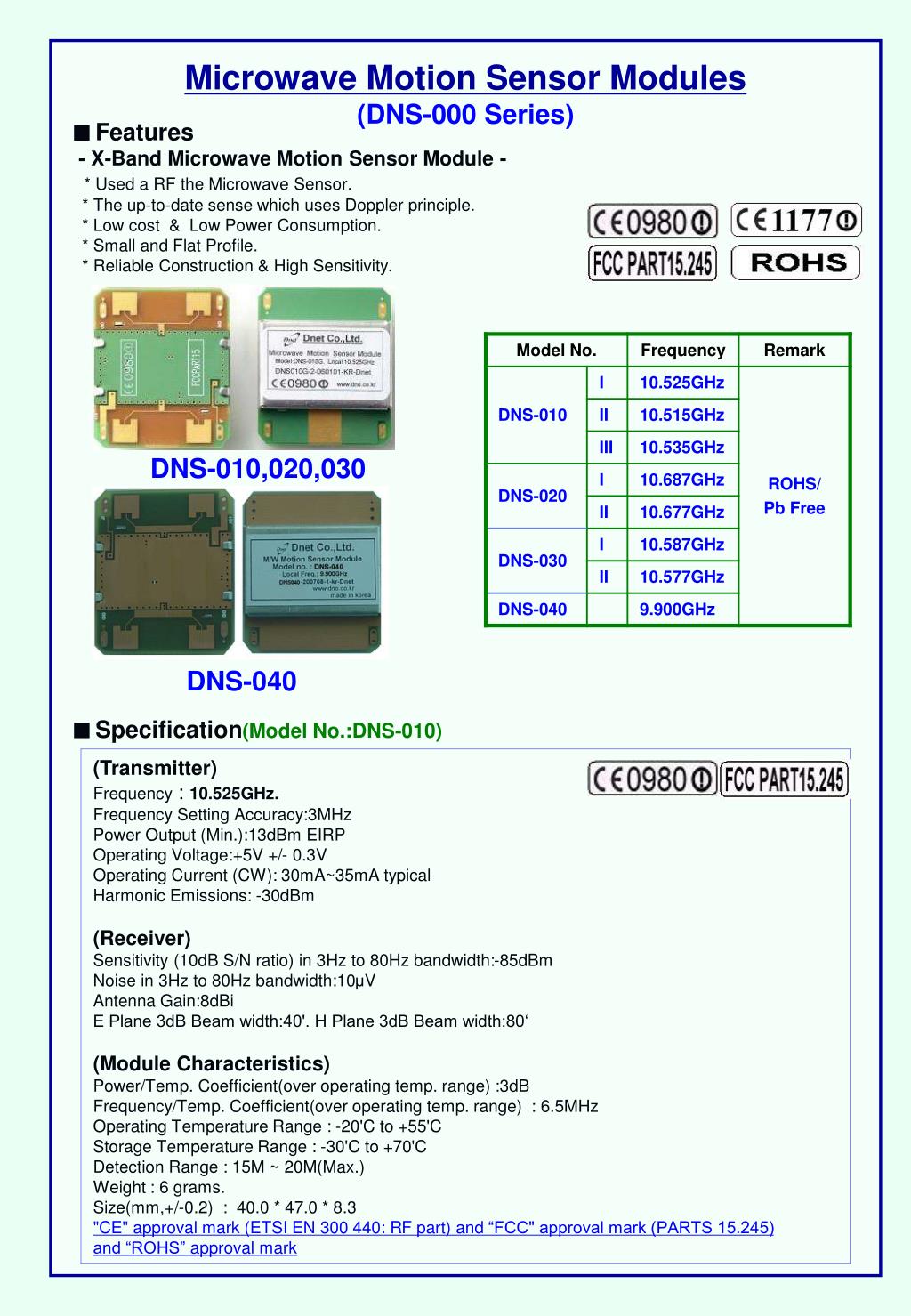

  1. Microwave Motion Sensor Modules (DNS-000 Series) ■Features - X-Band Microwave Motion Sensor Module - * Used a RF the Microwave Sensor. * The up-to-date sense which uses Doppler principle. * Low cost & Low Power Consumption. * Small and Flat Profile. * Reliable Construction & High Sensitivity. ■Specification(Model No.:DNS-010) DNS-010,020,030 DNS-040

  2. ■Specification (Model No.:DNS-030) ■Specification (Model No.:DNS-020)

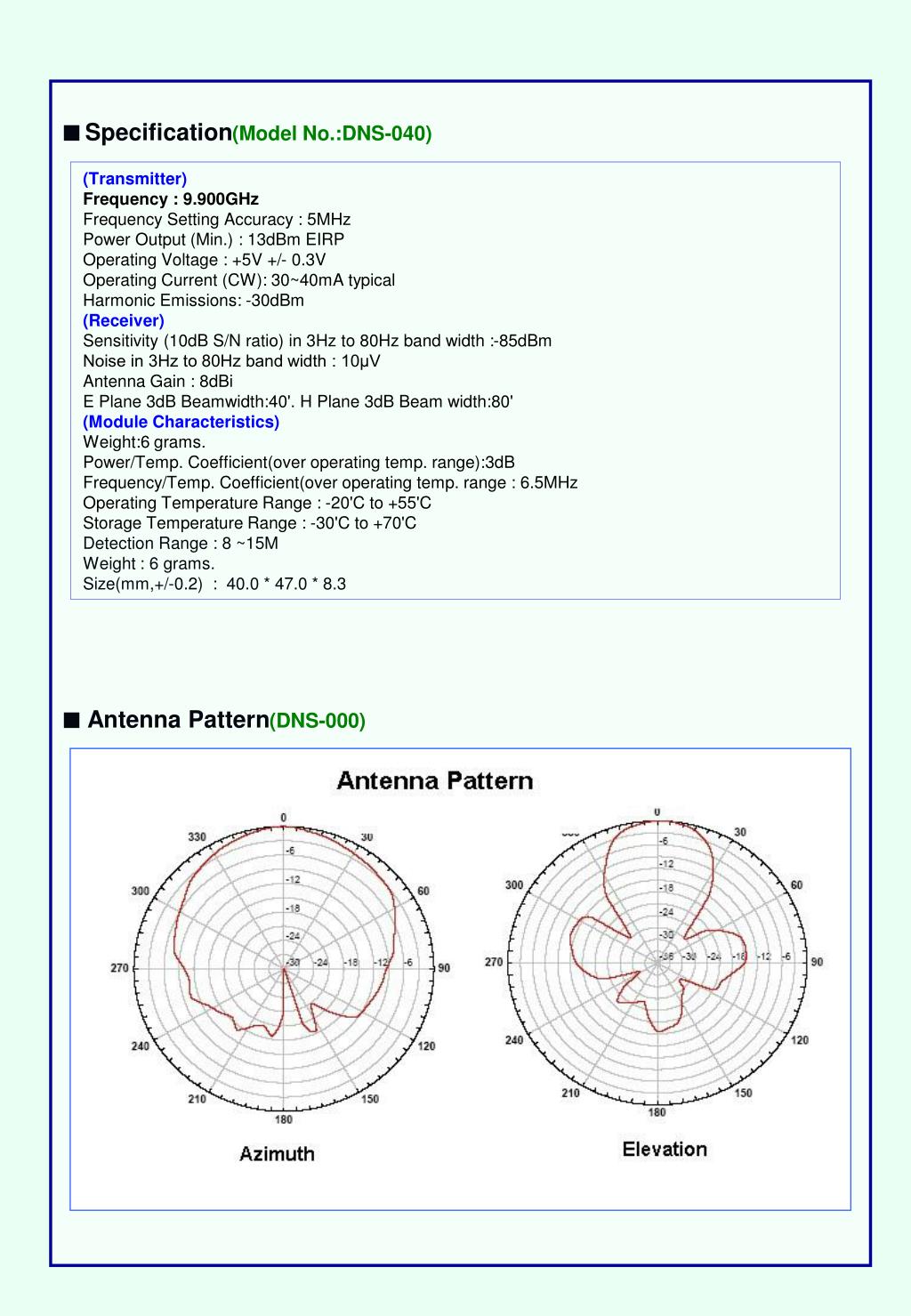

  3. ■Antenna Pattern(DNS-000) ■Specification(Model No.:DNS-040)

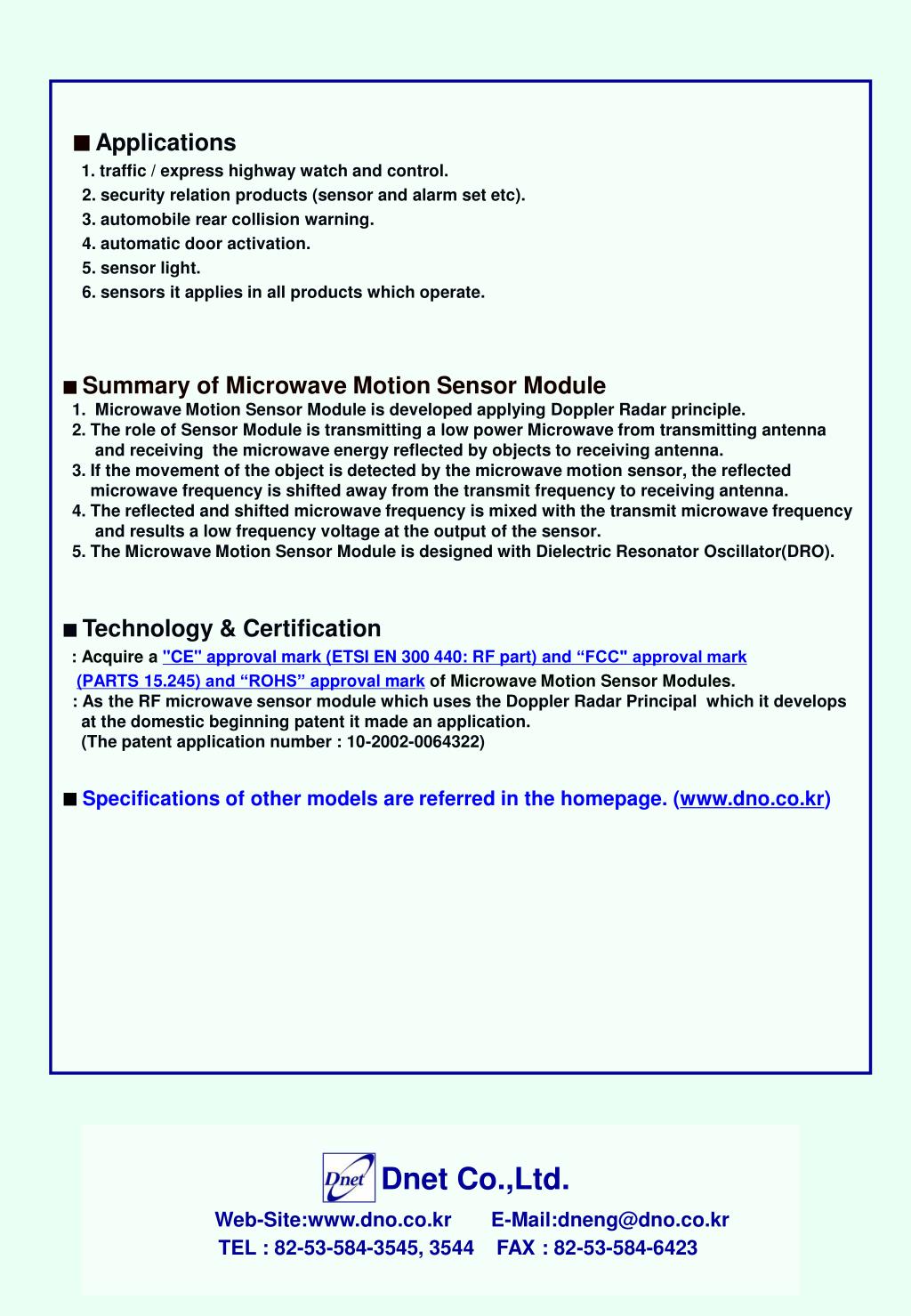

  4. ■ Technology & Certification : Acquire a "CE" approval mark (ETSI EN 300 440: RF part) and “FCC" approval mark (PARTS 15.245) and “ROHS” approval mark of Microwave Motion Sensor Modules. : As the RF microwave sensor module which uses the Doppler Radar Principal which it develops at the domestic beginning patent it made an application. (The patent application number : 10-2002-0064322) ■ Summary of Microwave Motion Sensor Module 1. Microwave Motion Sensor Module is developed applying Doppler Radar principle. 2. The role of Sensor Module is transmitting a low power Microwave from transmitting antenna and receiving the microwave energy reflected by objects to receiving antenna. 3. If the movement of the object is detected by the microwave motion sensor, the reflected microwave frequency is shifted away from the transmit frequency to receiving antenna. 4. The reflected and shifted microwave frequency is mixed with the transmit microwave frequency and results a low frequency voltage at the output of the sensor. 5. The Microwave Motion Sensor Module is designed with Dielectric Resonator Oscillator(DRO). ■Applications 1. traffic / express highway watch and control. 2. security relation products (sensor and alarm set etc). 3. automobile rear collision warning. 4. automatic door activation. 5. sensor light. 6. sensors it applies in all products which operate. ■Specifications of other models are referred in the homepage. (www.dno.co.kr) Dnet Co.,Ltd. Web-Site:www.dno.co.kr E-Mail:dneng@dno.co.kr TEL : 82-53-584-3545, 3544 FAX : 82-53-584-6423
