X-Band Microwave Motion Sensor Modules - DNS-000 Series for Versatile Applications

The DNS-000 Series X-Band Microwave Motion Sensor Modules by Dnet Co., Ltd. provide reliable motion detection capabilities with an output voltage of 0.02VCC ± 0.02VCC (X10). Designed for various applications, these sensors are ideal for traffic monitoring on highways, security products including alarms, rear collision warning systems in automobiles, automatic door activation, and light sensors. Utilize this advanced technology to enhance safety and convenience in diverse settings. For inquiries, contact Dnet Co., Ltd. at +82-53-584-3545 or email dneng@dno.co.kr.

kareem
Télécharger la présentation

X-Band Microwave Motion Sensor Modules - DNS-000 Series for Versatile Applications

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

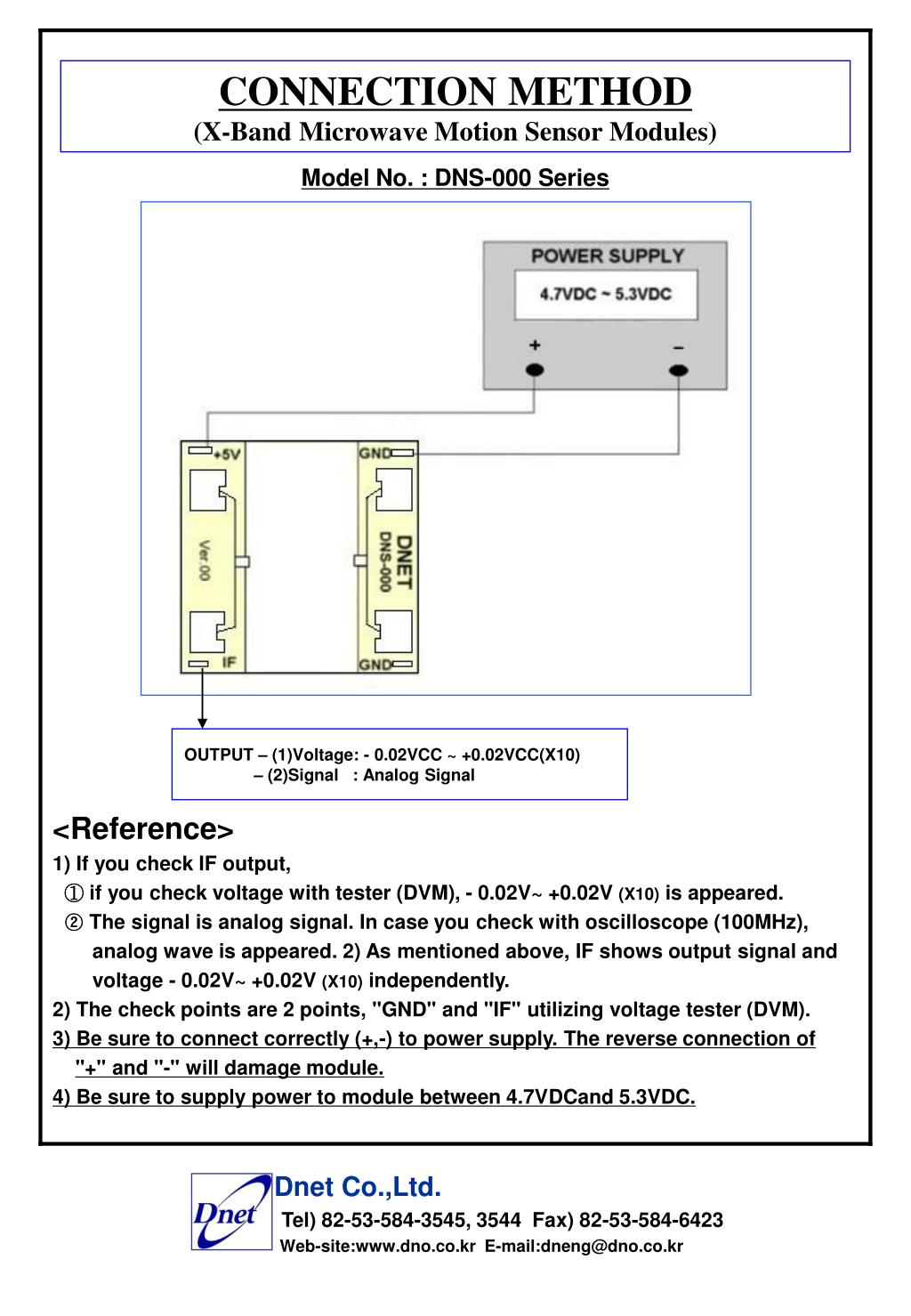

  1. CONNECTION METHOD(X-Band Microwave Motion Sensor Modules) Model No. : DNS-000 Series OUTPUT – (1)Voltage: - 0.02VCC ~ +0.02VCC(X10) – (2)Signal : Analog Signal Dnet Co.,Ltd. Tel) 82-53-584-3545, 3544 Fax) 82-53-584-6423 Web-site:www.dno.co.kr E-mail:dneng@dno.co.kr

  2. Outline Drawing(X-Band Microwave Motion Sensor Modules) Model No.:DNS-000 Series (Applications) 1. traffic / express highway watch and control. 2. security relation products (sensor and alarm set etc). 3. automobile rear collision warning. 4. automatic door activation. 5. sensor light. 6. sensors it applies in all products which operate. GND GND +5V IF Dnet Co.,Ltd. Tel) 82-53-584-3545, 3544 Fax) 82-53-584-6423 Web-site:www.dno.co.kr E-mail:dneng@dno.co.kr
