  1. AADISH INTERNATIONAL MACHINES COMPLETE PRINTING SOLUTIONS we are growing to serve & serving to grow………….

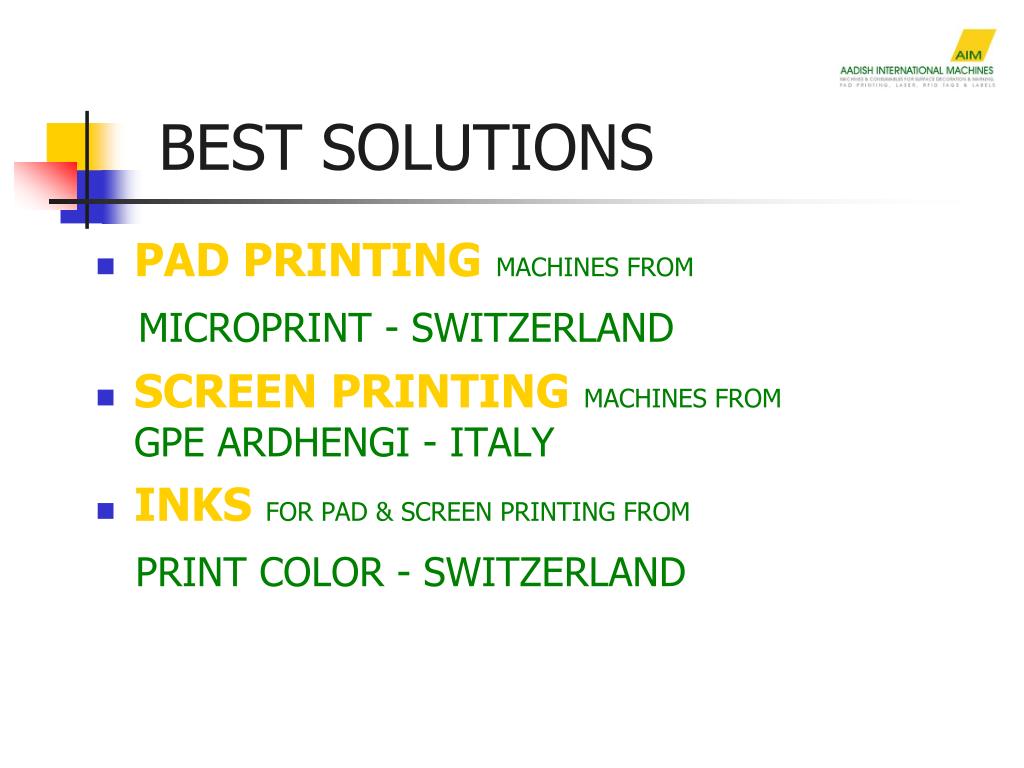

  2. BEST SOLUTIONS • PAD PRINTINGMACHINES FROM MICROPRINT - SWITZERLAND • SCREEN PRINTINGMACHINES FROMGPE ARDHENGI - ITALY • INKSFOR PAD & SCREEN PRINTING FROM PRINT COLOR - SWITZERLAND

  3. about this presentation……. • The presentation in following pages demonstrates the vastness of printing solutions offered by us & the possibilities of printing applications. • Due to the very wide range of machines we offer, showcased here are most of the standard machines. We can also develop customized printing machines as per your production requirements. • At AIM we are equipped to provide printing solutions for practically every product. You are kindly advised to discuss your requirements & show us your product samples, so that our experts can offer the best possible solution.

  4. CONTENTS • The first section has details of pad printing machines from MicroPrint - Switzerland with printing application & production details. • The second section has application wise classification of screen printing machines from GPE Ardhengi – Italy with production details. • The third section has details on the regular & specialty inks for the various printing processes from Print Color – Switzerland.

  5. PRINTING INCREASES SALES

  6. FOR GOOD PRINTING YOU NEED GOOD MACHINES

  7. MICROPRINT & GPE ARDHEGIPrinting machinesSwiss quality & Italian craftsmanship now in India The fantastically accurate pad printing & screen printing machines for printing 1-8 colors & many more from MicroPrint & GPE Ardhengi are now available in India. With our more than 20 years experience in printing industry our experts are best placed to guide you in the choice of right Printing solution for your application.

  8. PrintColorINKSthe world trusted Swiss inks to print on allsurfaces for Pad & Screen Printing now in India

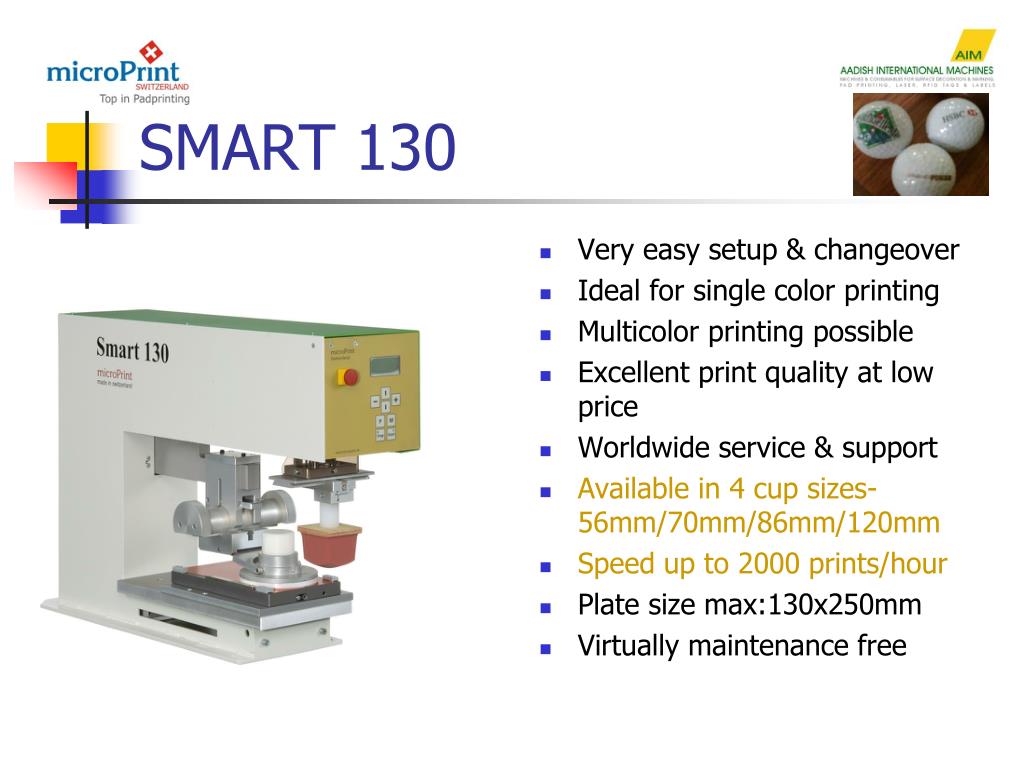

  9. SMART 130 • Very easy setup & changeover • Ideal for single color printing • Multicolor printing possible • Excellent print quality at low price • Worldwide service & support • Available in 4 cup sizes-56mm/70mm/86mm/120mm • Speed up to 2000 prints/hour • Plate size max:130x250mm • Virtually maintenance free

  10. SMART 250 • Very easy setup & changeover • Ideal for 2/3 & 4 color printing • Excellent quality multicolor printing possible at very low price • Worldwide service & support • Available as 2/3/4 color machine with pad shuttle in cup size 120mm/86mm/56mm respectively • Speed up to 2000 prints/hour • Plate size max:250x250mm • Virtually maintenance free

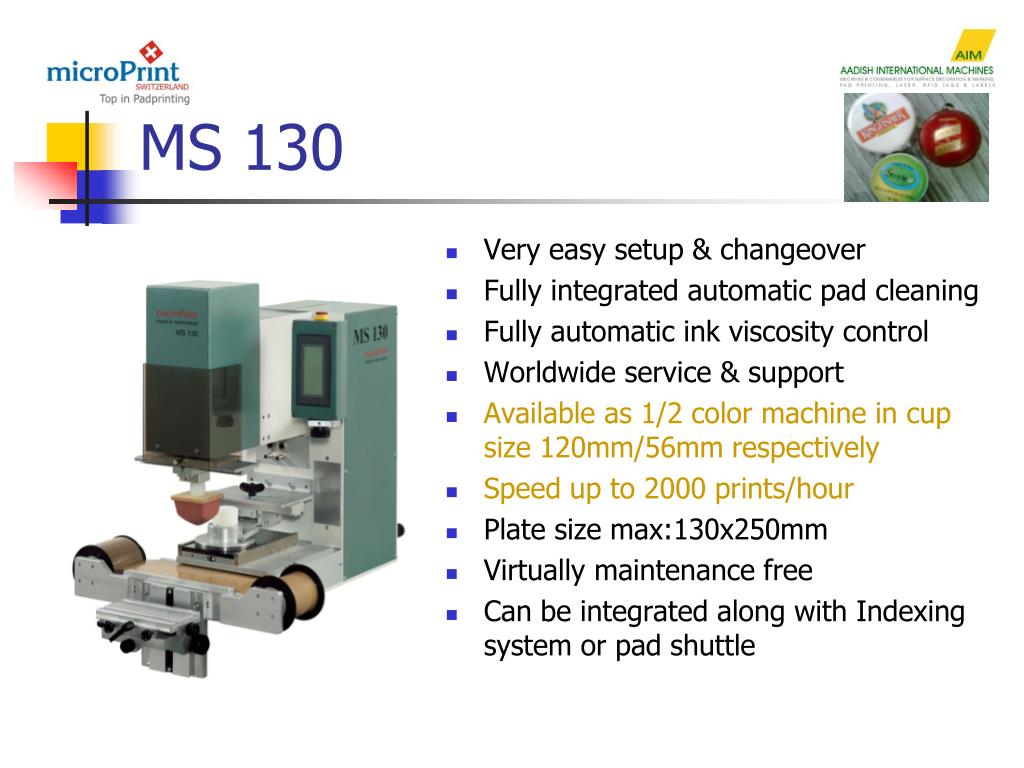

  11. MS 130 Very easy setup & changeover Fully integrated automatic pad cleaning Fully automatic ink viscosity control Worldwide service & support Available as 1/2 color machine in cup size 120mm/56mm respectively Speed up to 2000 prints/hour Plate size max:130x250mm Virtually maintenance free Can be integrated along with Indexing system or pad shuttle

  12. MS 250 Very easy setup & changeover Fully integrated automatic pad cleaning Fully automatic ink viscosity control Worldwide service & support Available as 2/3/4 color machine in cup size 120mm/86mm/56mm respectively Speed up to 1800 prints/hour Plate size max:260x250mm Virtually maintenance free Can be integrated along with Indexing system or pad shuttle

  13. MS 350 Very easy setup & changeover Fully integrated automatic pad cleaning Fully automatic ink viscosity control Worldwide service & support Available as 3/4/5/6 color machine in cup size 120mm/86mm/70mm/56mm respectively Speed up to 1450 prints/hour Plate size max:420x250mm Virtually maintenance free Can be integrated along with Indexing system or pad shuttle

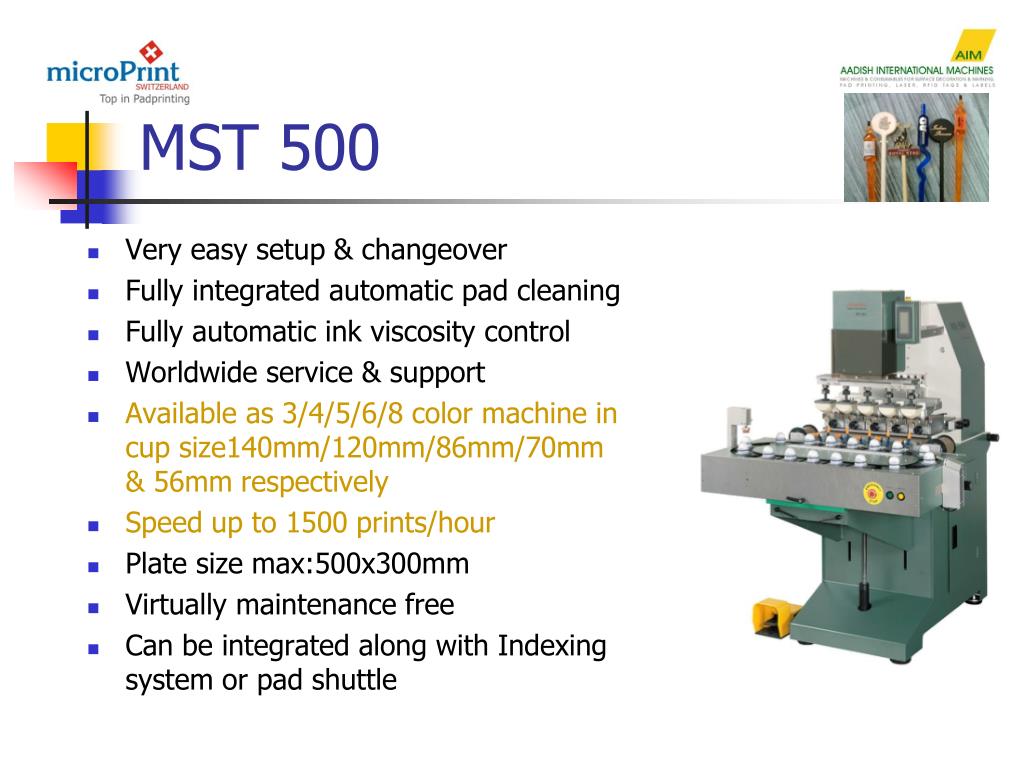

  14. MST 500 Very easy setup & changeover Fully integrated automatic pad cleaning Fully automatic ink viscosity control Worldwide service & support Available as 3/4/5/6/8 color machine in cup size140mm/120mm/86mm/70mm & 56mm respectively Speed up to 1500 prints/hour Plate size max:500x300mm Virtually maintenance free Can be integrated along with Indexing system or pad shuttle

  15. MS 250 ROTARY TABLE Very easy setup & changeover Fully integrated automatic pad cleaning Worldwide service & support Available as 2 color machine in cup size 120mm, with pad shuttle Speed up to 1800 prints/hour Plate size max:260x250mm Virtually maintenance free Integrated along with Mini 2 station Rotary Indexing system

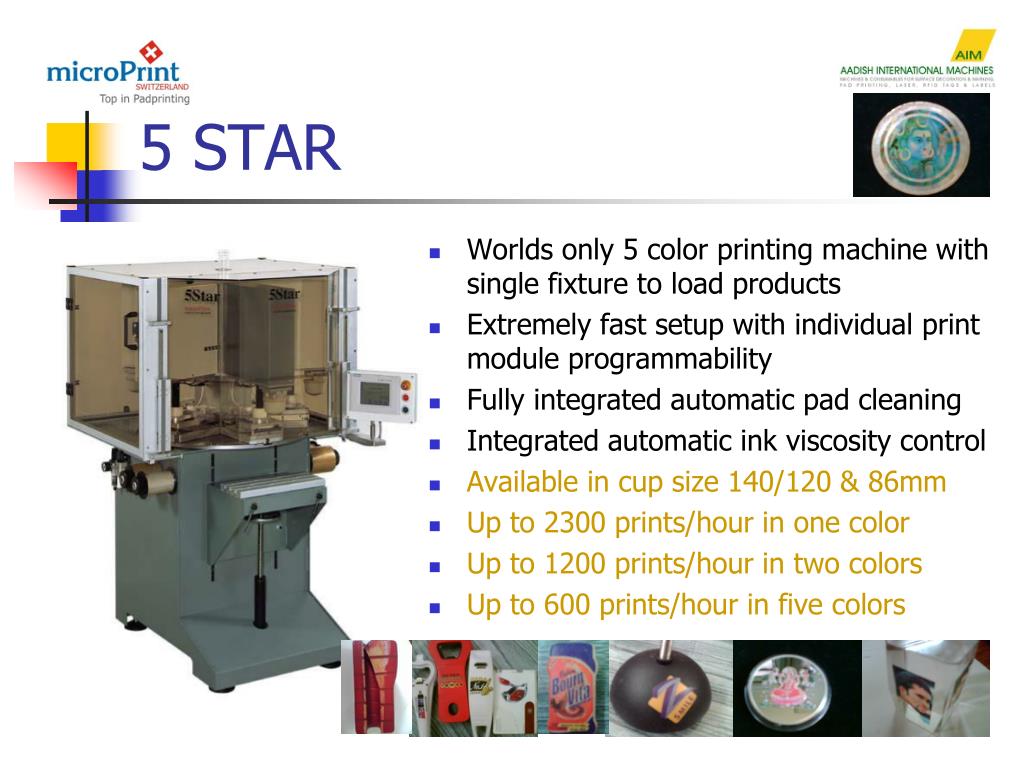

  16. 5 STAR • Worlds only 5 color printing machine with single fixture to load products • Extremely fast setup with individual print module programmability • Fully integrated automatic pad cleaning • Integrated automatic ink viscosity control • Available in cup size 140/120 & 86mm • Up to 2300 prints/hour in one color • Up to 1200 prints/hour in two colors • Up to 600 prints/hour in five colors

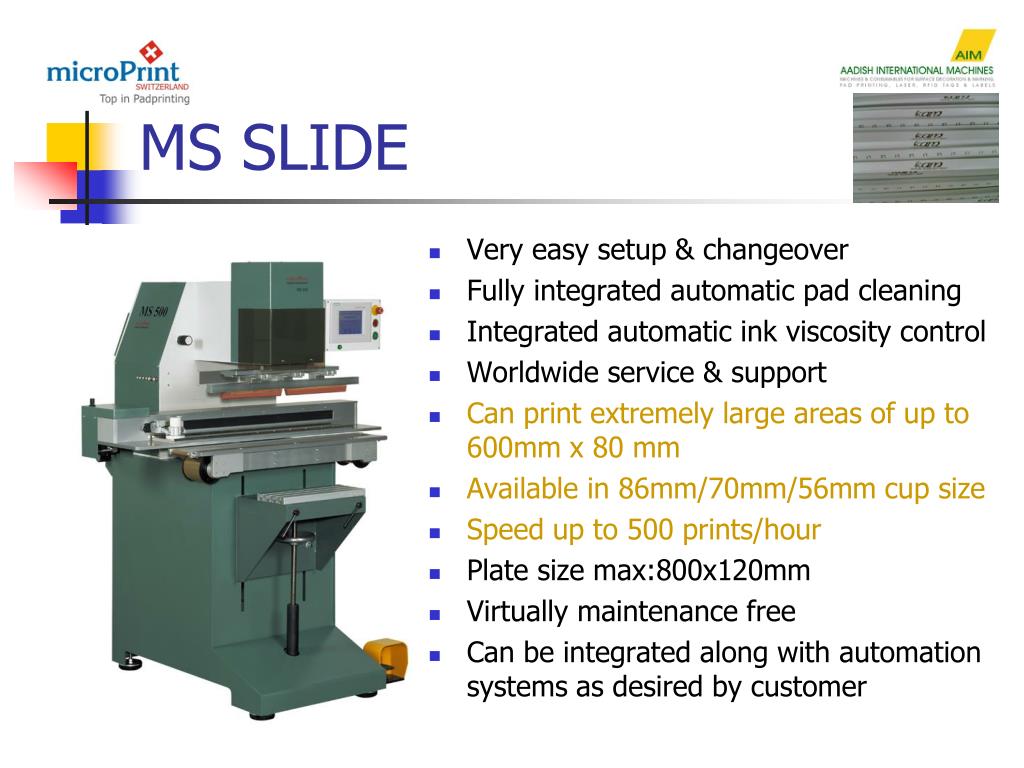

  17. MS SLIDE • Very easy setup & changeover • Fully integrated automatic pad cleaning • Integrated automatic ink viscosity control • Worldwide service & support • Can print extremely large areas of up to 600mm x 80 mm • Available in 86mm/70mm/56mm cup size • Speed up to 500 prints/hour • Plate size max:800x120mm • Virtually maintenance free • Can be integrated along with automation systems as desired by customer

  18. MSL 350 Very easy setup & changeover Fully integrated automatic pad cleaning Fully automatic ink viscosity control Worldwide service & support Available for 3/4/5/6 color in cup size 120mm/86mm/70mm/56mm respectively Speed up to 1450 prints/hour Plate size max:420x250mm Virtually maintenance free Can be integrated along with Indexing system or pad shuttle Integrated Liner Motor Controls, permits extremely fine automation possibilities

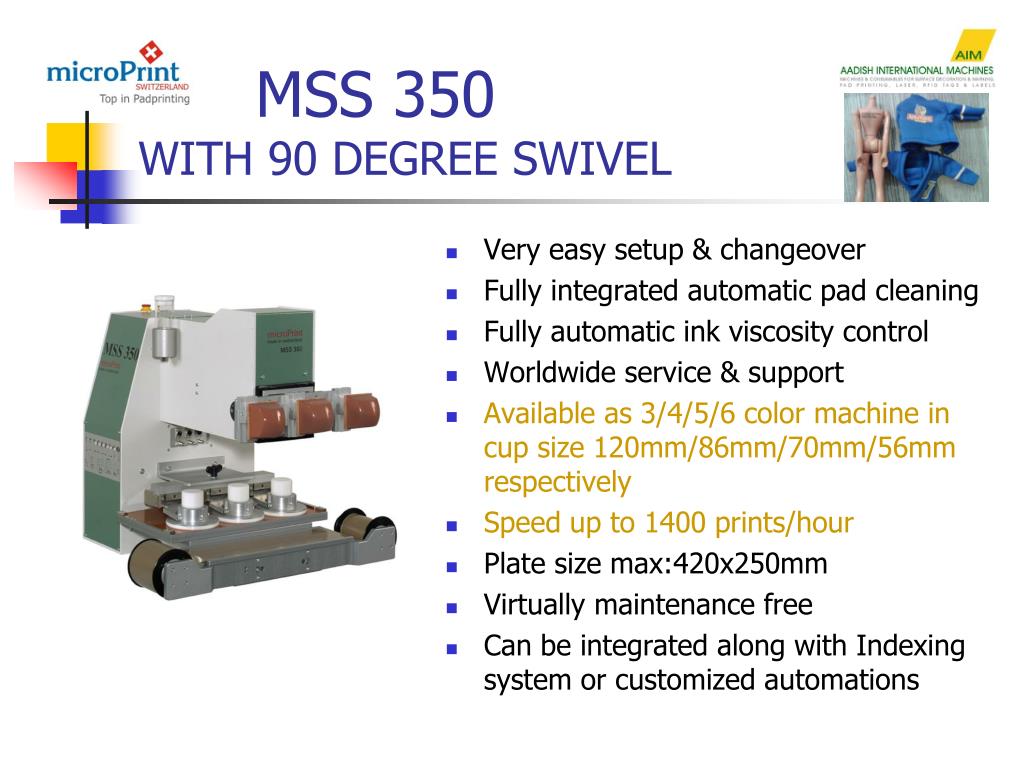

  19. MSS 350WITH 90 DEGREE SWIVEL Very easy setup & changeover Fully integrated automatic pad cleaning Fully automatic ink viscosity control Worldwide service & support Available as 3/4/5/6 color machine in cup size 120mm/86mm/70mm/56mm respectively Speed up to 1400 prints/hour Plate size max:420x250mm Virtually maintenance free Can be integrated along with Indexing system or customized automations

  20. MSS 130WITH 90 DEGREE SWIVEL Very easy setup & changeover Fully integrated automatic pad cleaning Fully automatic ink viscosity control Worldwide service & support Available as 1 color machine in cup size 120mm/86mm/70mm & 2 color machine in 56mm cup size. Speed up to 2000 prints/hour Plate size max:130x250mm Virtually maintenance free Can be integrated along with Indexing system or customized automations

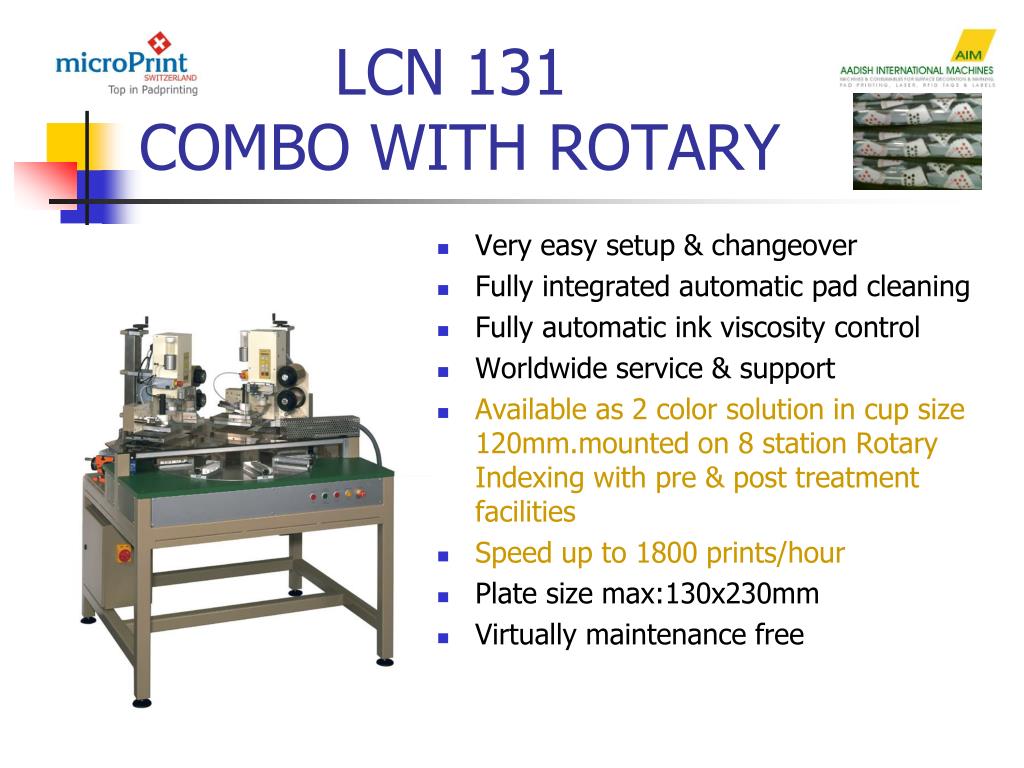

  21. LCN 131COMBO WITH ROTARY Very easy setup & changeover Fully integrated automatic pad cleaning Fully automatic ink viscosity control Worldwide service & support Available as 2 color solution in cup size 120mm.mounted on 8 station Rotary Indexing with pre & post treatment facilities Speed up to 1800 prints/hour Plate size max:130x230mm Virtually maintenance free

  22. LCN 132 • Very easy setup & changeover • Fully integrated automatic pad cleaning • Fully automatic ink viscosity control • Worldwide service & support • Available as 1/2/3 color machine in cup size 120mm/86mm/56mm. • High speed multicolor pad shuttle used for multicolor printing • Speed up to 1800 prints/hour • Plate size max:200x230mm • Virtually maintenance free • Can be integrated along with Indexing system or customized automations.

  23. LCN 150 Very easy setup & changeover Fully integrated automatic pad cleaning Fully automatic ink viscosity control Worldwide service & support Available as 1 color machine in cup size 140mm. Speed up to 2000 prints/hour Plate size max:150x300mm Virtually maintenance free Can be integrated along with Indexing system or customized automations

  24. VISCOMATthe revolution in pad printing quality control systems Solvent storage container Solvent flows from these pipes to the respective cups Viscomat motor control switch Cord carrying the dosage signal from the sensor to the pumping station Ink churner with built in sensors to detect any thickening of ink viscosity. Solvent added in the cup at this point Inside the cup the churner constantly churns the inks around at constant speed, to prevent the idle ink from thickening. Virtually maintenance free

  25. SELECTA 150Computer controlled pad printer for programmable-variable data printing • Selecta transfers the graphics from the cliché, which the computer gives X/Y coordinates for pickup and placement of images on to the product. • Speed up to 2100 graphics/prints /hour • Specially designed to print like typewriter or laser marking machines, using standard pad inks, can print on virtually everything • Fully integrated automatic pad cleaning • Fully automatic ink viscosity control • Worldwide service & support • Available as 1 color machine in cup size 130mm.Plate size max:150x300mm • Virtually maintenance free • Can be integrated along with Indexing system or customized automations

  26. MODULE 200 Fully integrated automatic pad cleaning & ink viscosity control Worldwide service & support Available in 1/2/3/4/5/6/7/8 colors Speed up to 2000 prints/hour Virtually maintenance free

  27. MINI/3 - table screen printing machine for round & flat objects Printing surface max:150-100mm Printing dia max:45mm Output/hour:500-1000 Registration printing possible ARBIS/33 - universal screen printing machine for round & flat objects Printing surface max:320-150mm Printing dia max:100mm Output/hour:500-1000 Registration printing possible PENS & BARRELSscreen printing machines available to print1/2/3/4 & more colors in one operation

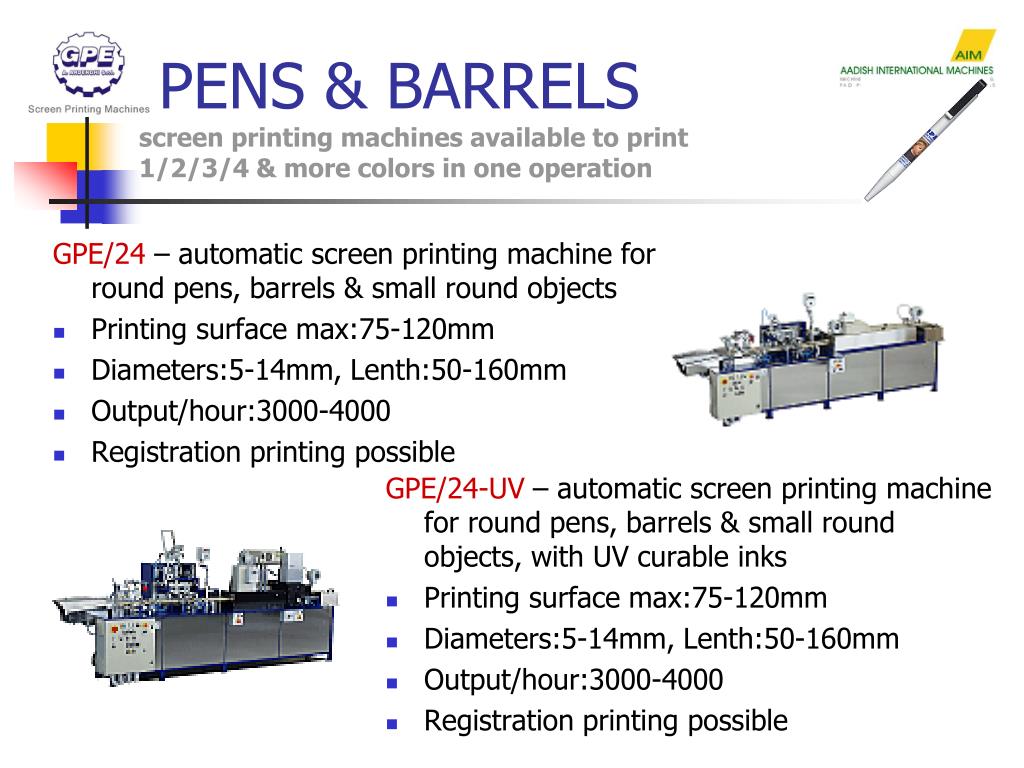

  28. PENS & BARRELSscreen printing machines available to print1/2/3/4 & more colors in one operation GPE/24 – automatic screen printing machine for round pens, barrels & small round objects Printing surface max:75-120mm Diameters:5-14mm, Lenth:50-160mm Output/hour:3000-4000 Registration printing possible GPE/24-UV – automatic screen printing machine for round pens, barrels & small round objects, with UV curable inks Printing surface max:75-120mm Diameters:5-14mm, Lenth:50-160mm Output/hour:3000-4000 Registration printing possible

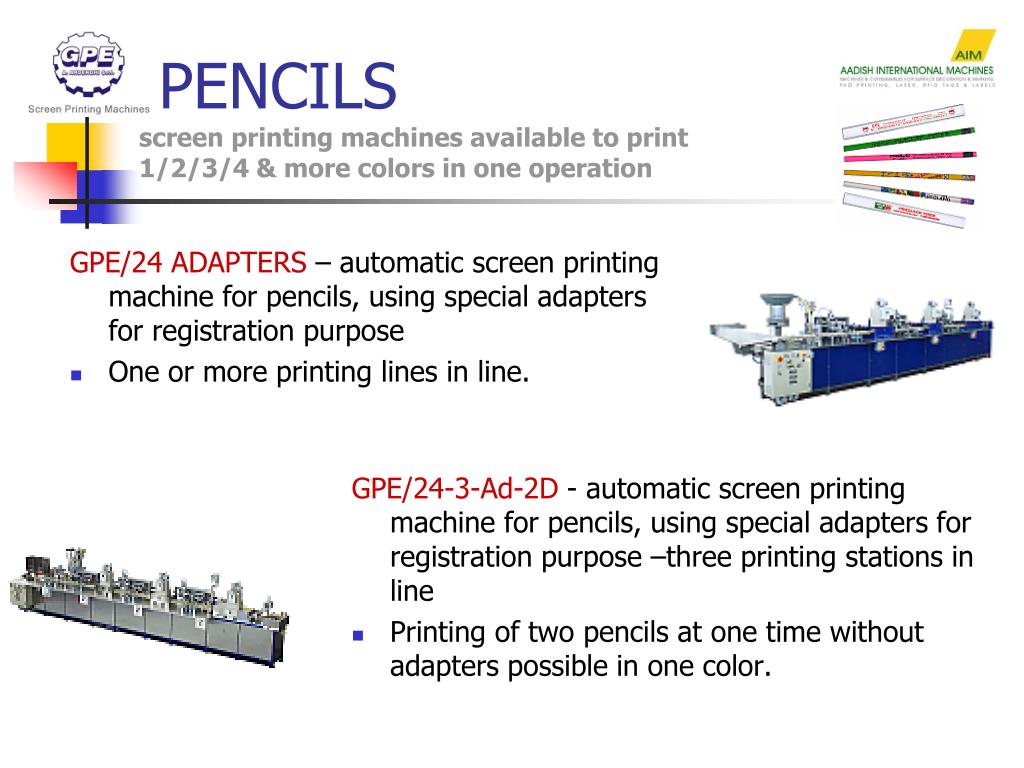

  29. PENCILSscreen printing machines available to print1/2/3/4 & more colors in one operation GPE/24 ADAPTERS – automatic screen printing machine for pencils, using special adapters for registration purpose One or more printing lines in line. GPE/24-3-Ad-2D - automatic screen printing machine for pencils, using special adapters for registration purpose –three printing stations in line Printing of two pencils at one time without adapters possible in one color.

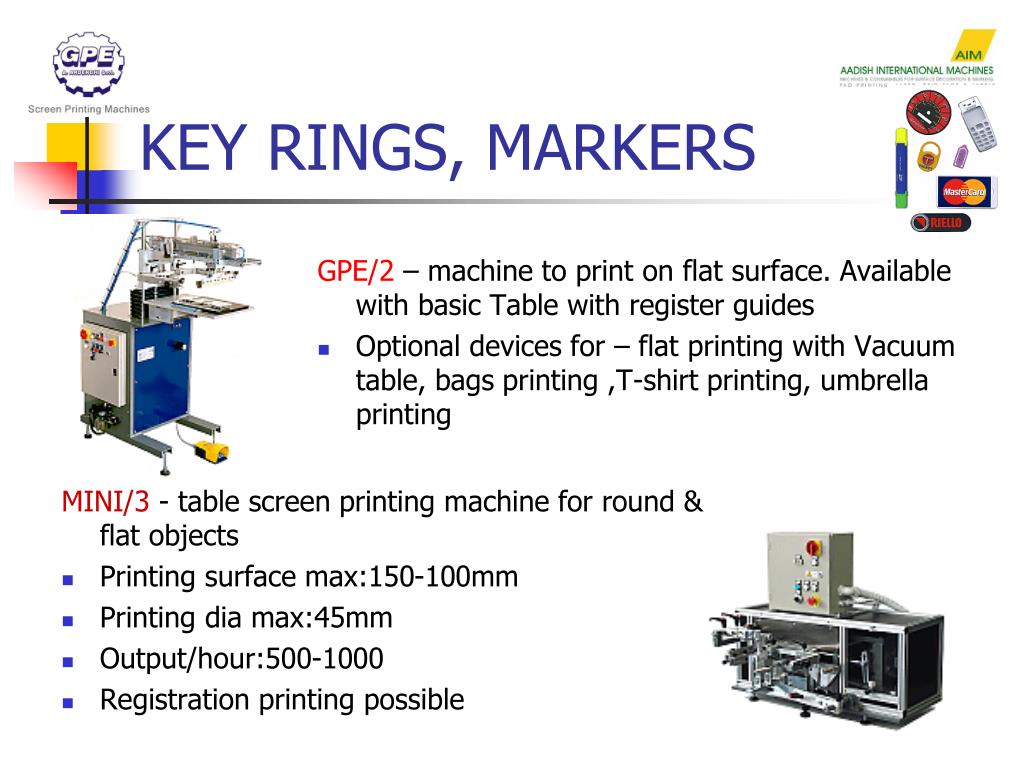

  30. KEY RINGS, MARKERS GPE/2 – machine to print on flat surface. Available with basic Table with register guides Optional devices for – flat printing with Vacuum table, bags printing ,T-shirt printing, umbrella printing MINI/3 - table screen printing machine for round & flat objects Printing surface max:150-100mm Printing dia max:45mm Output/hour:500-1000 Registration printing possible

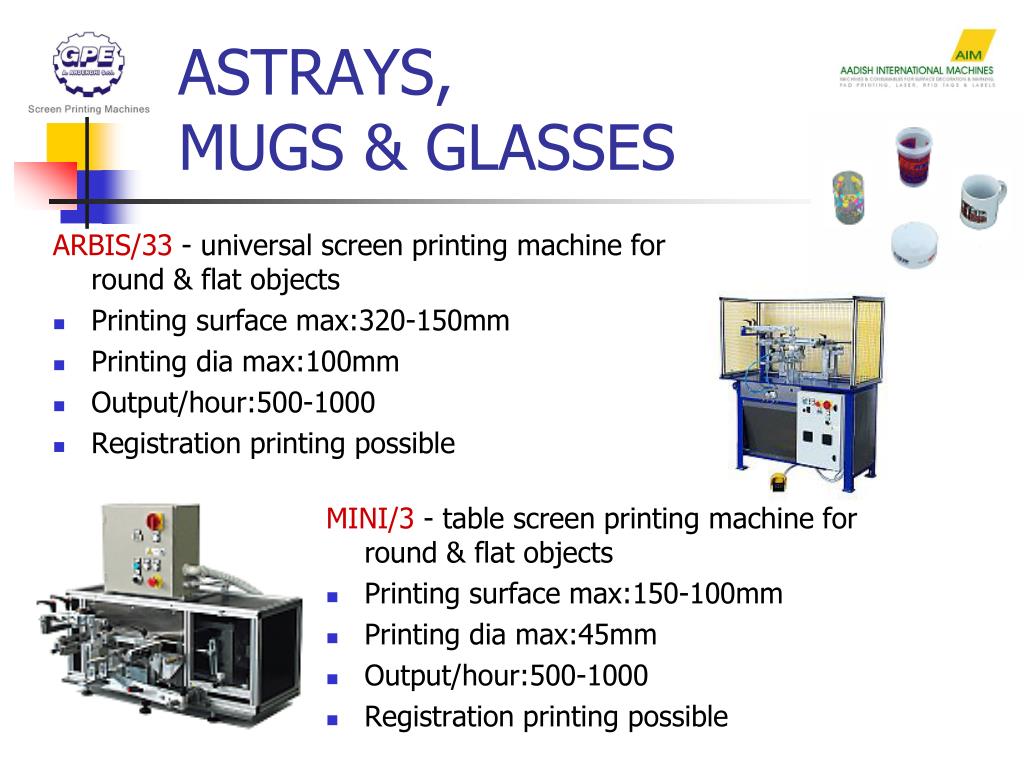

  31. ASTRAYS, MUGS & GLASSES ARBIS/33 - universal screen printing machine for round & flat objects Printing surface max:320-150mm Printing dia max:100mm Output/hour:500-1000 Registration printing possible MINI/3 - table screen printing machine for round & flat objects Printing surface max:150-100mm Printing dia max:45mm Output/hour:500-1000 Registration printing possible

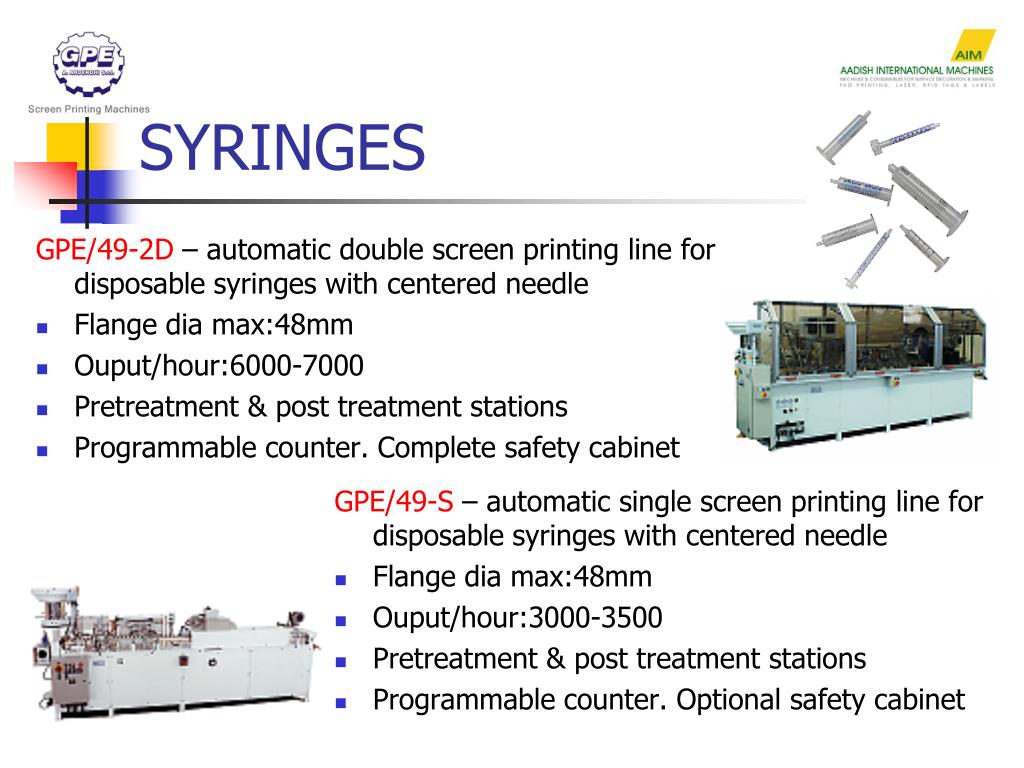

  32. SYRINGES GPE/49-2D – automatic double screen printing line for disposable syringes with centered needle Flange dia max:48mm Ouput/hour:6000-7000 Pretreatment & post treatment stations Programmable counter. Complete safety cabinet GPE/49-S – automatic single screen printing line for disposable syringes with centered needle Flange dia max:48mm Ouput/hour:3000-3500 Pretreatment & post treatment stations Programmable counter. Optional safety cabinet

  33. PIPPETTES, BURETTES GPE/24-2D PIPETTES – automatic screen printing line Two lines for double production Ouput/hour:6000-7000 Pretreatment & post treatment stations Programmable counter. Complete safety cabinet GPE/26-UVBURETTES – automatic screen printing line for burettes Ouput/hour:3000-3500 Pretreatment & post treatment stations Programmable counter. Complete safety cabinet

  34. TEST TUBES, CARTRIDGES GPE/24TEST TUBES – automatic screen printing machine for test tubes Ouput/hour:3000-3500 Pretreatment & post treatment stations Programmable counter. Complete safety cabinet GPE/24CARTRIDGES – automatic screen printing machine for plastic dental cartridges Ouput/hour:3000-3500 Pretreatment & post treatment stations Programmable counter.

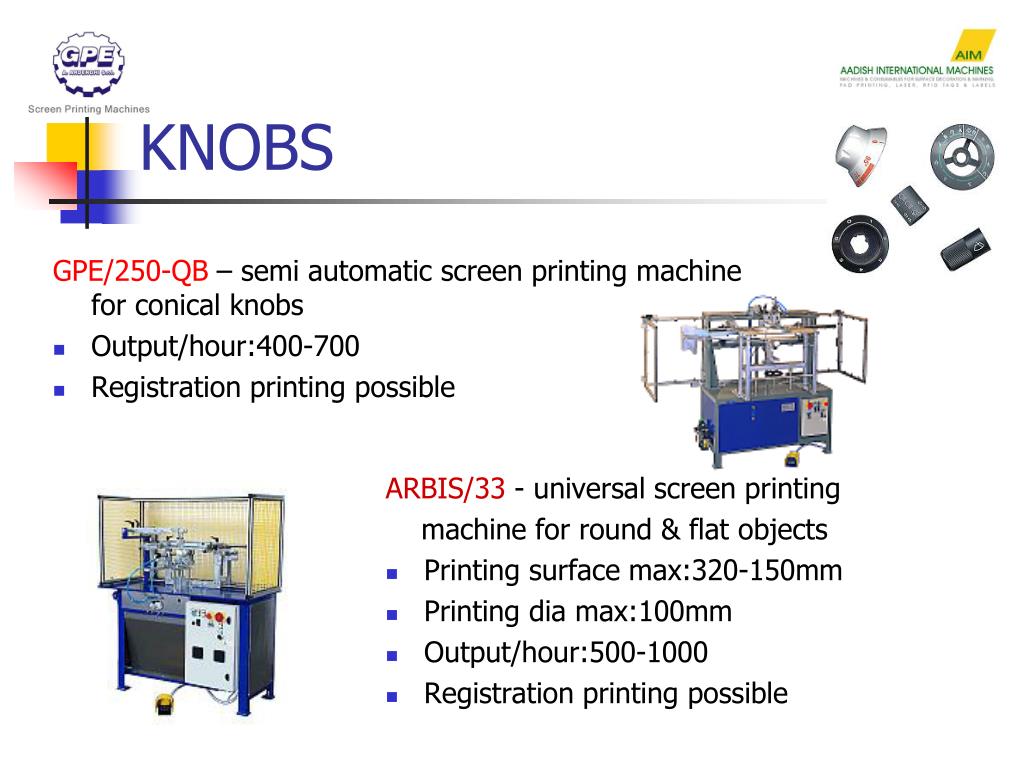

  35. KNOBS GPE/250-QB – semi automatic screen printing machine for conical knobs Output/hour:400-700 Registration printing possible ARBIS/33 - universal screen printing machine for round & flat objects Printing surface max:320-150mm Printing dia max:100mm Output/hour:500-1000 Registration printing possible

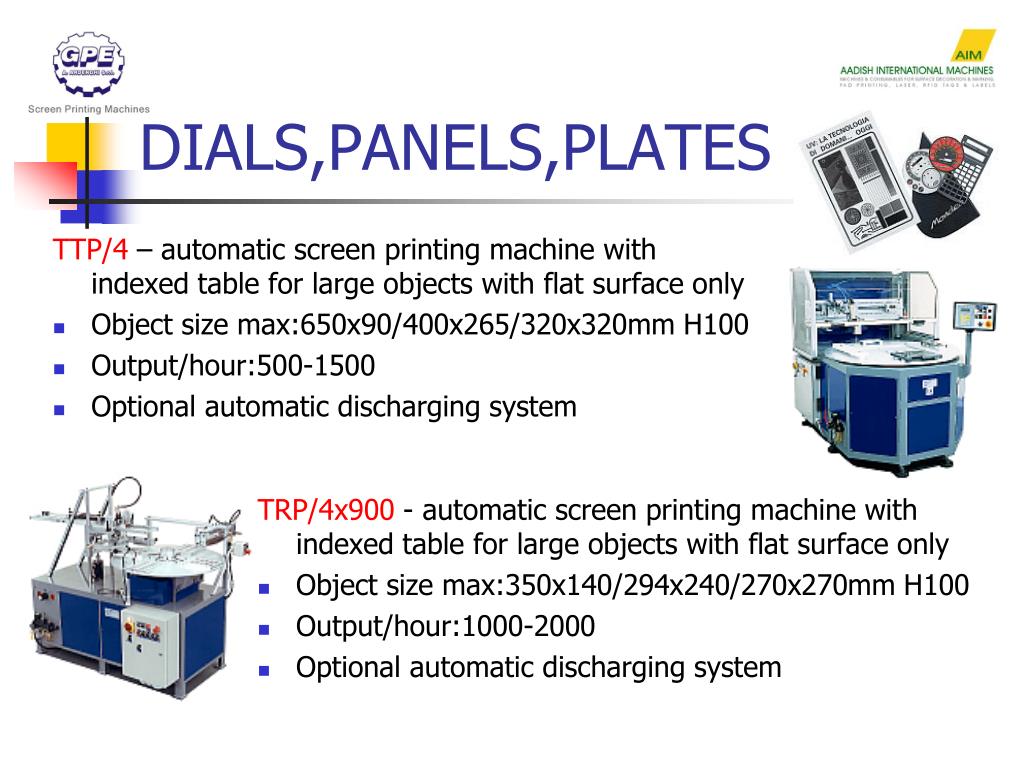

  36. DIALS,PANELS,PLATES TTP/4 – automatic screen printing machine with indexed table for large objects with flat surface only Object size max:650x90/400x265/320x320mm H100 Output/hour:500-1500 Optional automatic discharging system TRP/4x900 - automatic screen printing machine with indexed table for large objects with flat surface only Object size max:350x140/294x240/270x270mm H100 Output/hour:1000-2000 Optional automatic discharging system

  37. DIALS,PANELS,PLATES GPE/2 – machine to print on flat surface. Available with basic Table with register guides Optional devices for – flat printing with Vacuum table TRP/8-AN08- automatic screen printing machine with indexed table for small objects with flat surface only. Max size of object:150x100/120x120mm H70mm Printing stroke max:150mm Output/hour:1500-3000 Registration printing possible

  38. DOMESTIC APPLIANCES PARTS GPE/260 – screen printing machine for big flat objects Thickness of object max: 400 mm Printing surface max:1000 x 260 mm Output/hour:500-1000 Registration printing possible GPE/300 – screen printing machine for large objects Printing of curved & flat surfaces possible Thickness of object max: 400 mm Printing surface max:1000 x 260 mm Output/hour:500-1000 Registration printing possible

  39. DISHES,DISCS,TRAYSCIRCULAR ARTICLES WITH FLAT OR TAPERED EDGES • GPE/4 – semi automatic screen printing machine • 360 degrees printing of circular borders • Manual loading & discharging • Printed ring dia:50-400mm • Article dia max:450mm • Height of article max:500mm • Operational cycle of machine with the longest stroke possible is only 7 seconds • Printing done with rotating squeegee action

  40. RODS,PIPES,CUE STICKSSMALL DIA CYLINDRICAL OBJECTS WITH REMARKABLE LENGTHS GPE/6M Diameters of object max: 10 - 50 mm Length of printing surface max:1500 mm Length of actual printing max:500 mm Registration printing possible GPE/6-3 Diameters of object max: 10 - 50 mm Length of printing surface max:1700 mm Length of actual printing max:1400 mm Registration printing possible

  41. BUCKETS, JARS & CYLINDRICAL OBJECTS TVR/8x210-UV – screen printing machine for cylindrical & slightly conical cups & buckets Printing diameter:80-210mm Height of object:250mm GPE/250 – universal screen printing machine for large objects – printing stroke of 1000mm Printing surface max:1100x250mm Printing dia max:320mm Output/hour:500-1000 Flat objects size max:1100 xH220 Registration printing possible

  42. CYLINDRICAL BOTTLES GPE/250 – universal screen printing machine for large objects – printing stroke of 1000mm Printing surface max:1100x250mm Printing dia max:320mm Output/hr:500-1000 Flat objects size max:1100 xH220 Registration printing possible GPE/26 UV – automatic screen printing machine for cylindrical bottles Printing surface max:140x120mm Printing dia max:10- 45mm Output/hr:2500-3000 Registration printing possible

  43. CYLINDRICAL BOTTLES ARBIS/33 - universal screen printing machine for round & flat objects Printing surface max:320-150mm Printing dia max:100mm Output/hour:500-1000 Registration printing possible GPE/125 – 6 – automatic screen printing machine for aluminum bottles Six printing stations in line Inline pre & post treatment.

  44. ELLIPTICAL BOTTLES GPE/128-1 – one color automatic screen printing machines for elliptical bottles Radius of curvature:15-100mm Heights max:40-140mm Output/hour:2000-3000 Optional electrical feeder for thermoplastic inks to print on glass bottles available ARBIS/33 - universal screen printing machine for round & flat objects Printing surface max:320-150mm Printing dia max:100mm Output/hour:500-1000 Registration printing possible

  45. CONICAL BOTTLES ARBIS/33 - universal screen printing machine for round & flat objects Printing surface max:320-150mm Printing dia max:100mm Output/hour:500-1000 Registration printing possible GPE/100-UV – automatic screen printing machine for cylindrical bottles Heights max:50-225mm Printing dia max:15-58 & 30-85mm Output/hour:2500-3000 Registration & Inflation printing possible

  46. CONICAL BOTTLES GPE/250 – universal screen printing machine for large objects – printing stroke of 1000mm Printing surface max:1100x250mm Printing dia max:320mm Output/hour:500-1000 Flat objects size max:1100 xH220 Registration printing possible GPE/26 UV – automatic screen printing machine for cylindrical bottles Printing surface max:140x120mm Printing dia max:10- 45mm Output/hr:2500-3000 Two printing stations in line

  47. GLASS BOTTLES GPE/250 – universal screen printing machine for large objects – printing stroke of 1000mm Printing surface max:1100x250mm Printing dia max:320mm Output/hour:500-1000 Flat objects size max:1100 xH220 Registration printing possible ARBIS/33 - universal screen printing machine for round & flat objects Printing surface max:320-150mm Printing dia max:100mm Output/hour:500-1000 Registration printing possible

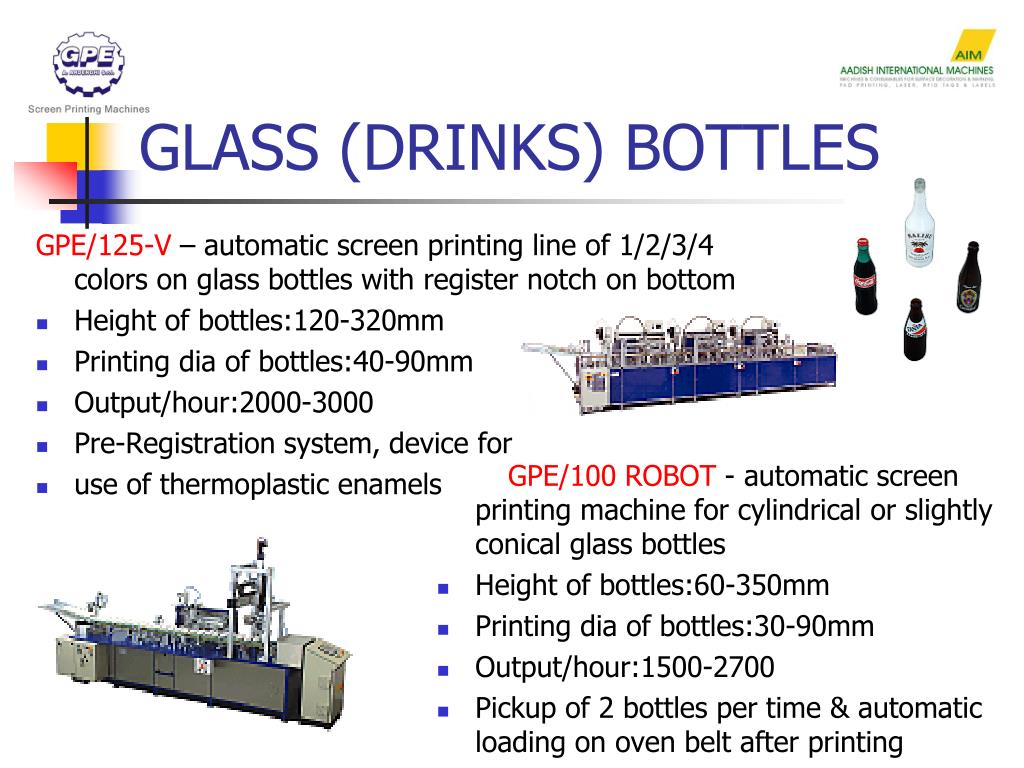

  48. GLASS (DRINKS) BOTTLES GPE/125-V – automatic screen printing line of 1/2/3/4 colors on glass bottles with register notch on bottom Height of bottles:120-320mm Printing dia of bottles:40-90mm Output/hour:2000-3000 Pre-Registration system, device for use of thermoplastic enamels GPE/100 ROBOT - automatic screen printing machine for cylindrical or slightly conical glass bottles Height of bottles:60-350mm Printing dia of bottles:30-90mm Output/hour:1500-2700 Pickup of 2 bottles per time & automatic loading on oven belt after printing

  49. BOTTLE CRATES GPE/250 – universal screen printing machine for large objects – printing stroke of 1000mm Printing surface max:1100x250mm Printing dia max:320mm Output/hour:500-1000 Flat objects size max:1100 xH220 Registration printing possible GPE/2 – machine to print on flat surface. Available with basic Table with register guides Optional devices for – flat printing with Vacuum table, bags printing ,T-shirt printing, umbrella printing
