  1. Wenbu computer control system advantages Version 20110101A

  2. Embroidery Quality matters? • Nowadays, people ask for high quality garments , embroidery quality is vital for garment quality. • Embroidery quality is essential in the world now. How to keep quality?

  3. Labor cost increase! • Training is costly • Skilled worker hard to find • Factory Cost control becomes difficult due to increase of material cost.

  4. New embroidery needs always come ,only flat machine doesn’t work! Need to have a machine that can expand with new devices and technology easily! Yes you need a Expandable platform!

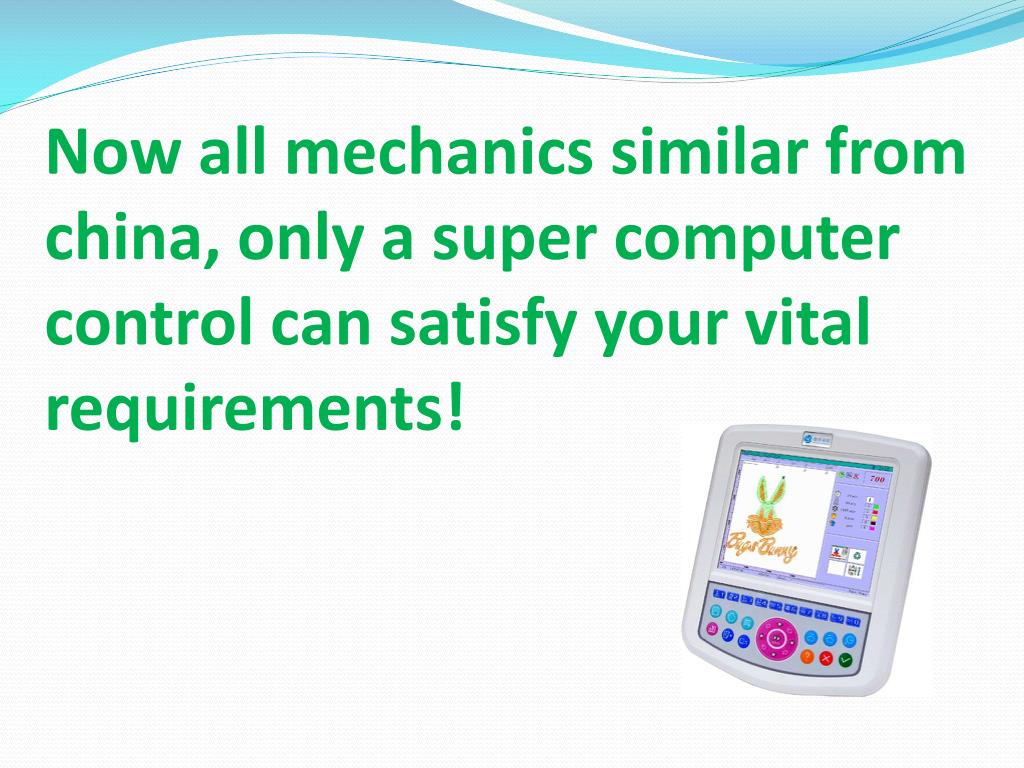

  5. Now all mechanics similar from china, only a super computer control can satisfy your vital requirements!

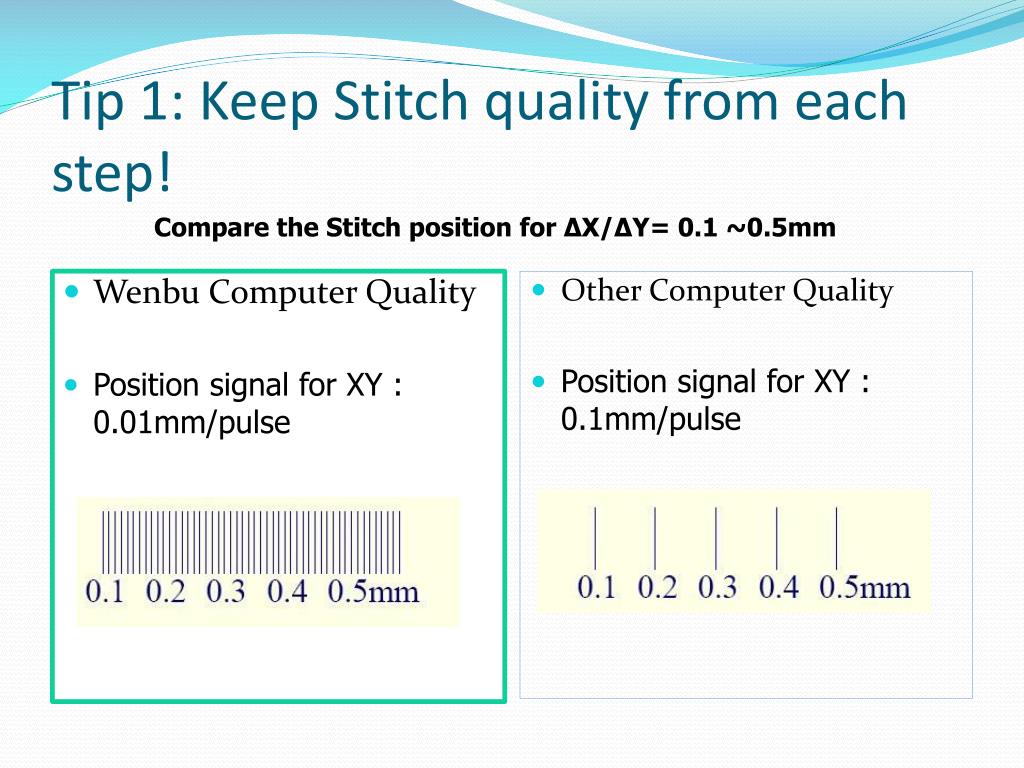

  6. Tip 1: Keep Stitch quality from each step! Compare the Stitch position for ΔX/ΔY= 0.1 ~0.5mm • Wenbu Computer Quality • Position signal for XY : 0.01mm/pulse • Other Computer Quality • Position signal for XY : 0.1mm/pulse

  7. How did we achieve that?

  8. Introducing Latest High speed Control technology from TAIWAN! • Based on real time communication and fault feedback for TECO X & Y servo motor drive system • We TALK with servo motor and set new parameter for each stitch for better working result! • Computer supports 1200RPM High speed. This is the key to achieve high speed and improve production efficiency!

  9. Why Teco? • Teco is the old brand from Taiwan with the latest servo technology. • Teco is famous for big quantity and reliable quality in industrial application area worldwide. • More over Teco maintains complete series of servo motor for over 2KW. This will satisfy the requirement of different machines models.

  10. Why Teco and Wenbu? • TECO maintains communication protocol with Wenbu computer to realize real time parameter adjustment • For each stitch, wenbu computer adjust the stitch position in real time according to feedback from servo motor. • Thus enable the frame to achieve stable movement even in high speed. This technology doesn’t exist in most foreign brands even.

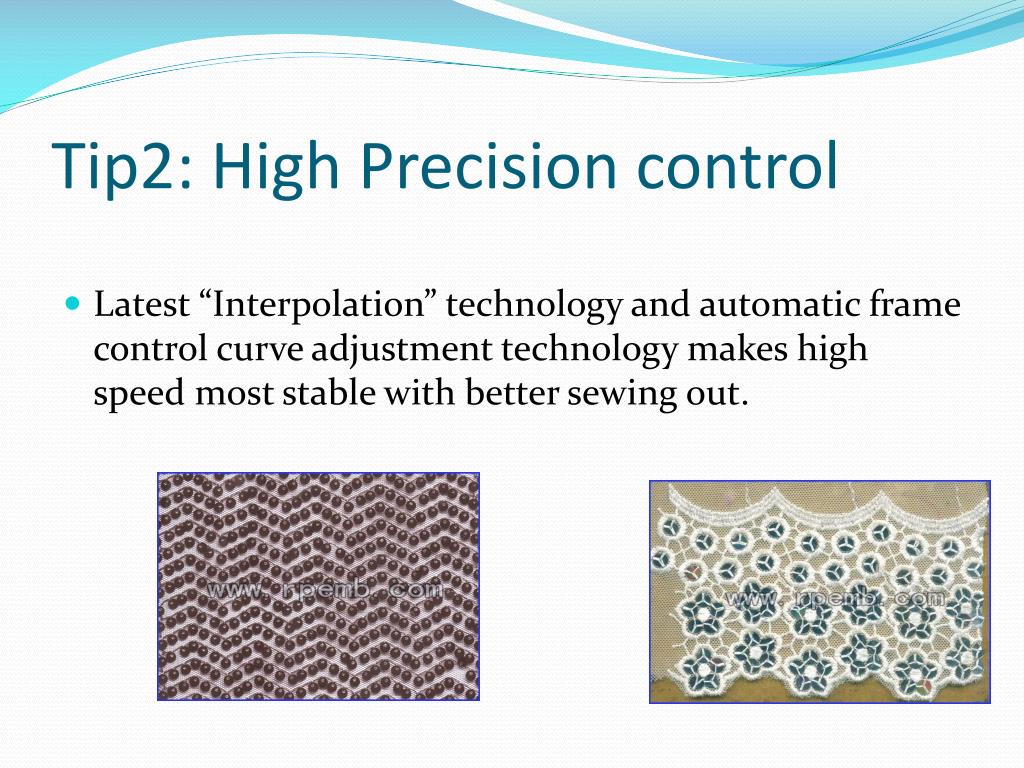

  11. Tip2: High Precision control • Latest “Interpolation” technology and automatic frame control curve adjustment technology makes high speed most stable with better sewing out.

  12. Δ X= 2.0mm Δ Y= 6.0mm Δ S =6.7mm Stitches position effect Theoretical stitch effect Other computer stitch Wenbu computer stitch

  13. Tip3: Life time expandable platform • With limited investment, you will get all new function like: • Lockstitch chenille • Easy zigzag device • Multiple sequins • Intelligenthead selection. • More special attachments functions Without the trouble to change your computer!

  14. Easy Chenille • Perfect design from wenbu punching software • High speed • Small & Nice corners

  15. Multiple sequins Color, size, shape of the sequin design are displayed in manner of WYSIWYG (What you see is what you get). Stable Sequins embroidery speed up to 1000rpm. Unlimited Combination of all sequin size and colors. Sequin head independent mending: All are UNIQUE functions

  16. Easy Zigzag Perfect zigzag cording embroidery With high quality stitches Perfect cornering Suits for high speed embroidery Single motor easy to maintain Good for thin cord.

  17. Intelligent head selection • With jumbo machine, customer can easily produce most beautiful big space continuous border embroidery, all thanks to the intelligent head selection function, max selection is 128 heads/times . • Display on computer which head is currently working and which head thread is broken etc. • It maximize the machine performance by fast clamping the heads automatically. (auto switch on &off of heads) • You may combine any head number in your embroidery freely. For example, in your 24 heads machine, you may combine Adjacent four heads into 6 heads groups , each group sew part of a big design. The selection is unlimited.

  18. Customer happiness counts most! Now you’ve got Quality, Speed , And Functions! ALL in ONE computer! What are you still waiting for?! Send your enquiry to local distributors today!

  19. Wenbu computer brings you wealth!
