Monitoring and Managing Server Performance

brant avatar
brant
12 diapositives · 1.1K Views · Jul 13, 2014

Monitoring and Managing Server Performance. Lecture 10. Server Monitoring. To become familiar with the server’s performance – typical behavior Prevent problems before they occur Diagnose existing problems or resource shortage. Benchmarks or baselines.

Monitoring and Managing Server Performance - slide 1
01 / 12Monitoring and Managing Server Performance
1 / 17

Télécharger la présentation

Monitoring and Managing Server Performance
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

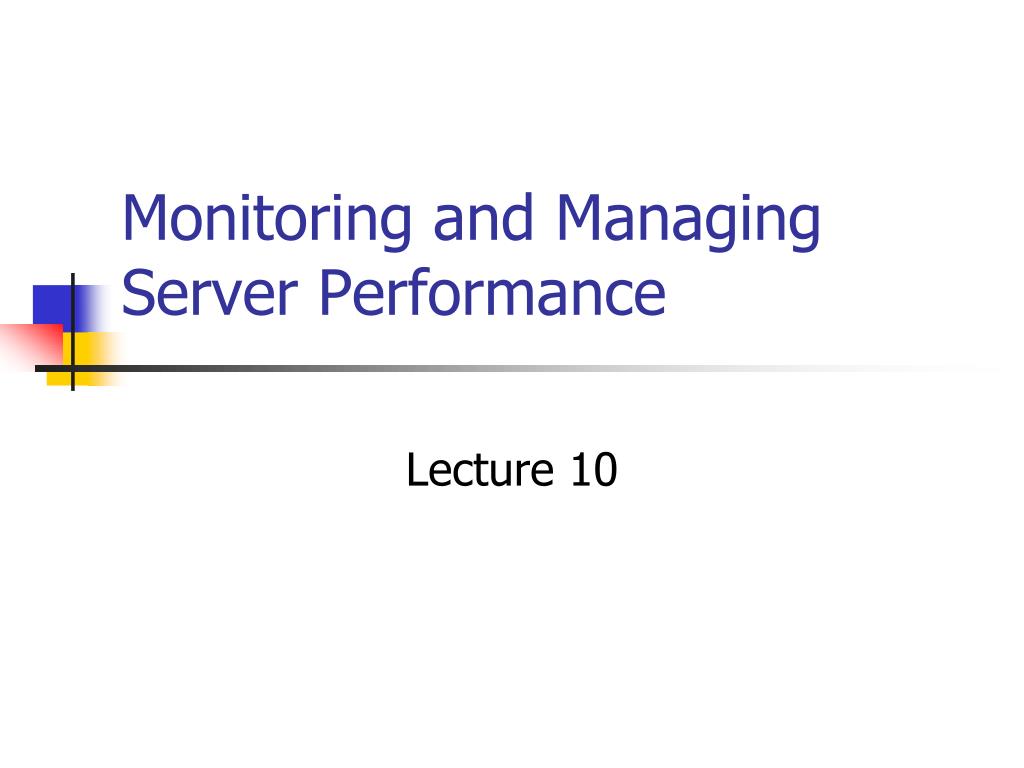

  1. Monitoring and Managing Server Performance Lecture 10

  2. Server Monitoring • To become familiar with the server’s performance – typical behavior • Prevent problems before they occur • Diagnose existing problems or resource shortage

  3. Benchmarks or baselines • Normal server characteristics/patterns to diagnose problems and identify components to be upgraded • Acquired by generating statistics about the system during no user activity periods and during normal activity periods, as well as during slow, average and peak periods • Gather benchmarks, and then frequently monitor server performance • Provide a basis for comparing data collected during problem situations with data showing normal performance conditions

  4. Sample benchmarks • Test benchmarks of disk, CPU, memory, and network response before releasing a new operating system, server hardware, or a complex application to users • Slow, typical, and heavy usage of disk, CPU, memory, and other server resources for each server, combined network and server resources • Growth of use of network and server resources at specific intervals, such as every six months to a year

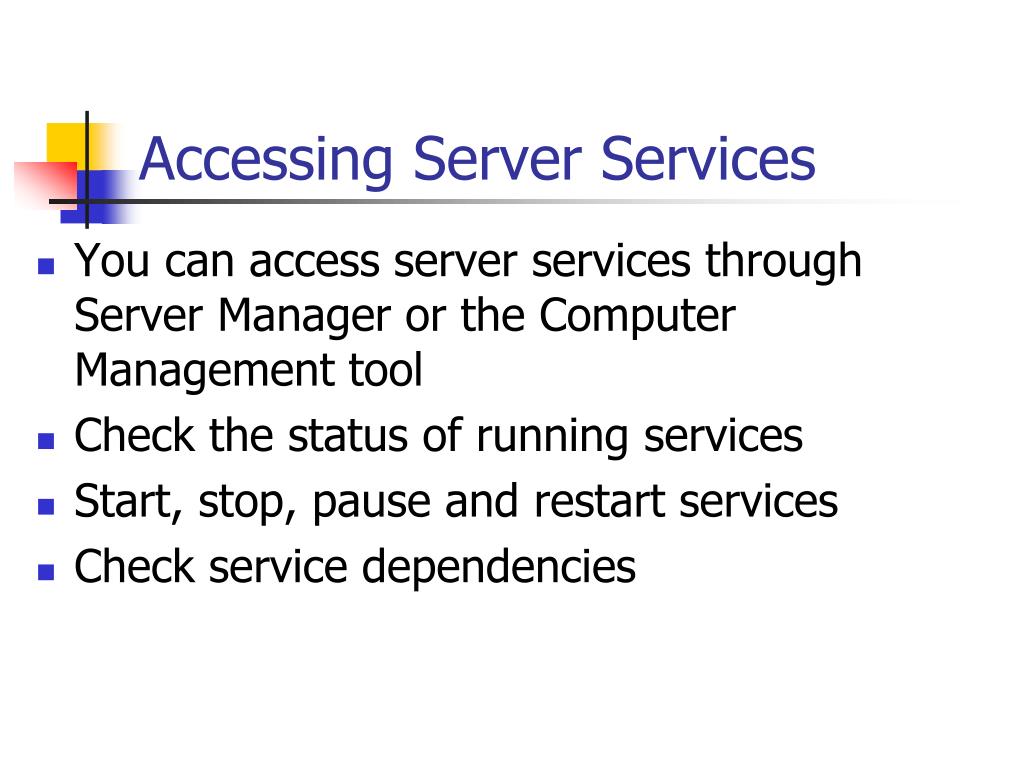

  5. Accessing Server Services • You can access server services through Server Manager or the Computer Management tool • Check the status of running services • Start, stop, pause and restart services • Check service dependencies

  6. Windows Task Manager • To monitor processes/applications • To view CPU/memory/networking stats • To view logged on users

  7. Performance Monitor • Objects, instances, counters • Monitor in real-time or log in files • Processor, Memory, PhysicalDisk, Logical Disk objects and counters – meaning and troubleshooting

  8. Performance Logs and Alerts • Allows you to record information for later use/analysis • Counter and Trace Logs • Allows you to setup alerts for certain conditions.

  9. Event Logs • Application • Security • System

  10. Implementing the SNMP Service • Used for network management on TCP/IP-based networks • Provides administrators with a way of centrally managing workstations, servers, hubs, and routers from a central computer running management software • SNMP can be used for the following: • Configuring network devices • Monitoring the performance of a network • Locating network problems • Monitoring network usage

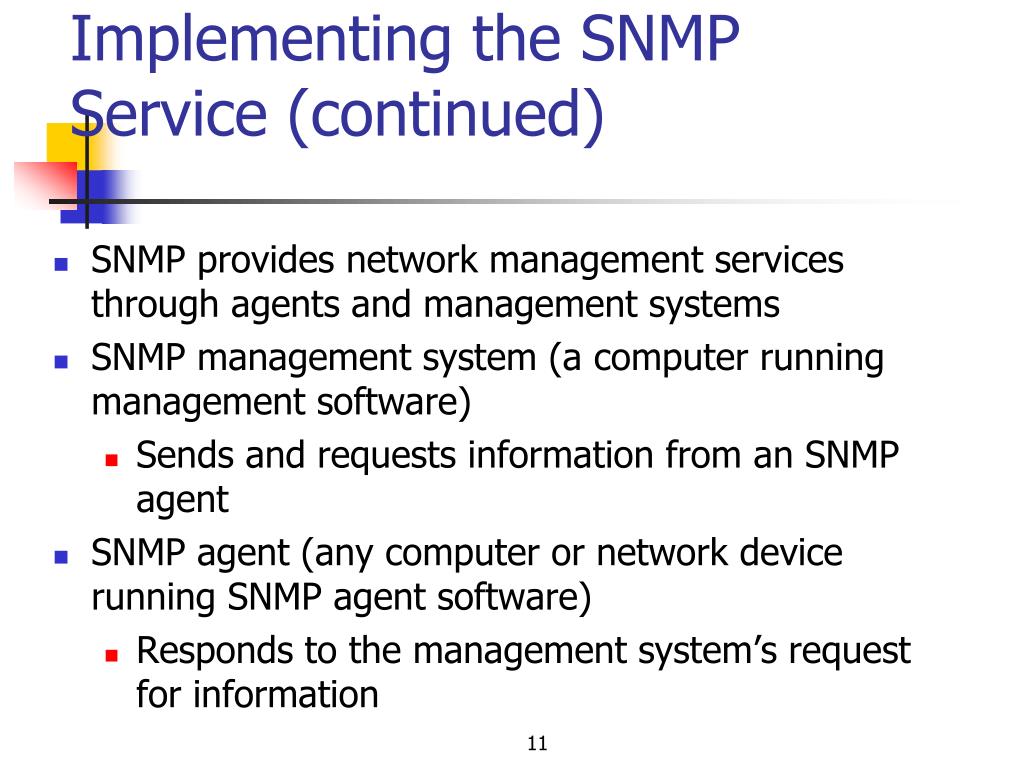

  11. Implementing the SNMP Service (continued) • SNMP provides network management services through agents and management systems • SNMP management system (a computer running management software) • Sends and requests information from an SNMP agent • SNMP agent (any computer or network device running SNMP agent software) • Responds to the management system’s request for information

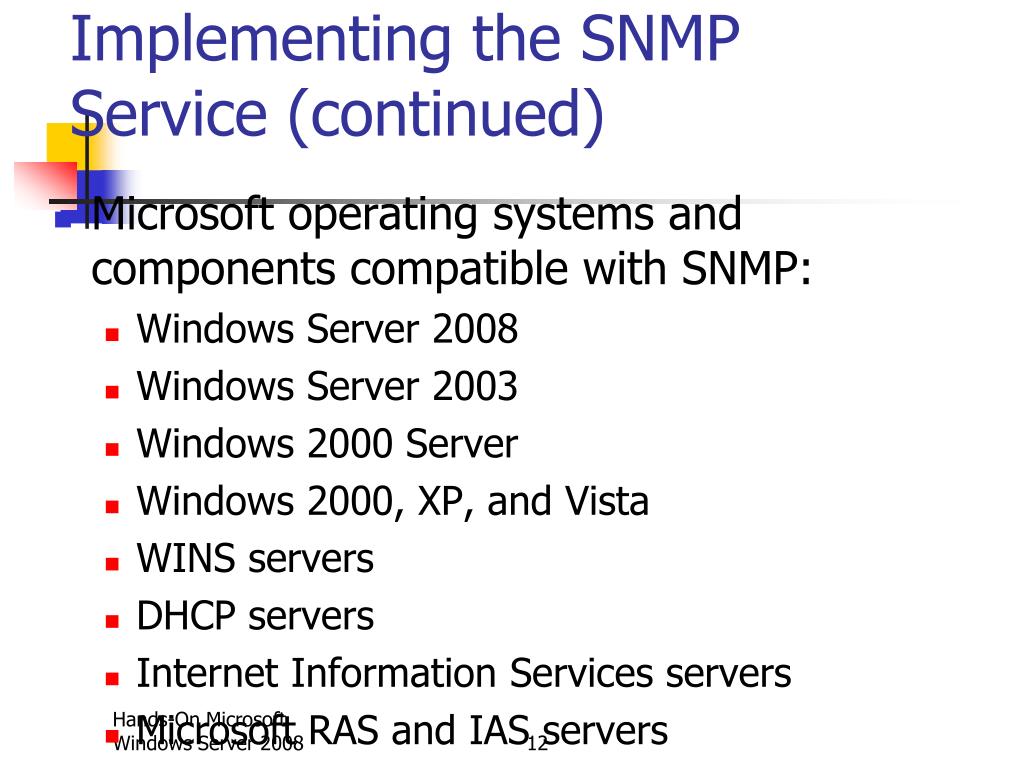

  12. Implementing the SNMP Service (continued) • Microsoft operating systems and components compatible with SNMP: • Windows Server 2008 • Windows Server 2003 • Windows 2000 Server • Windows 2000, XP, and Vista • WINS servers • DHCP servers • Internet Information Services servers • Microsoft RAS and IAS servers Hands-On Microsoft Windows Server 2008
