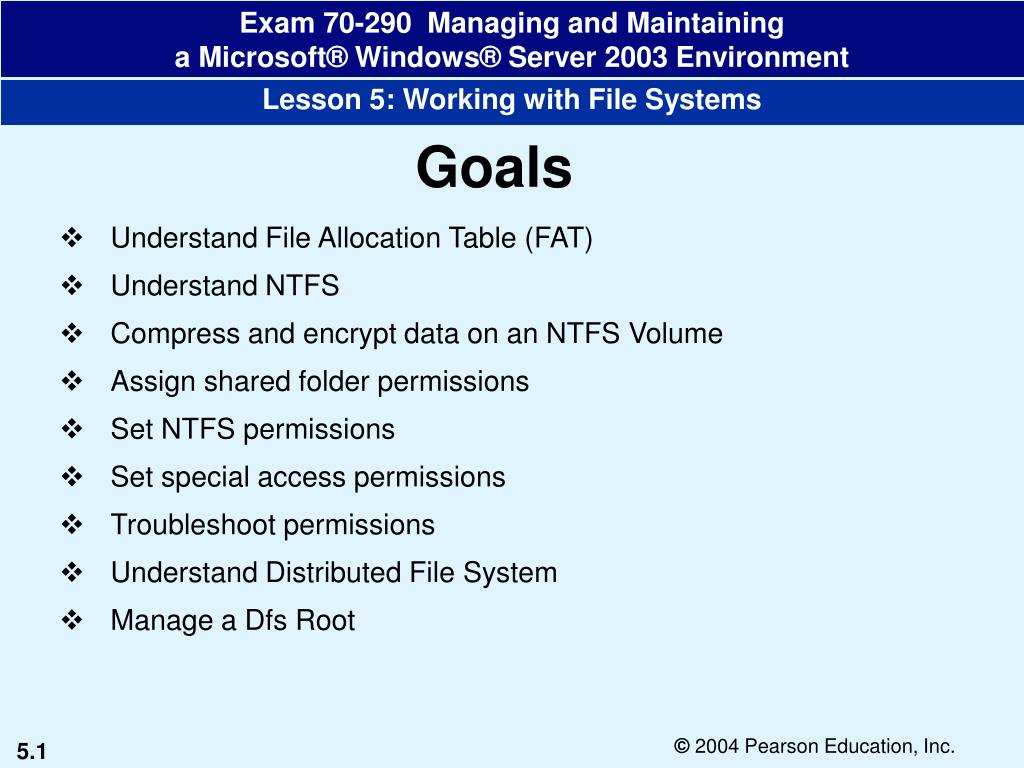

  1. Goals • Understand File Allocation Table (FAT) • Understand NTFS • Compress and encrypt data on an NTFS Volume • Assign shared folder permissions • Set NTFS permissions • Set special access permissions • Troubleshoot permissions • Understand Distributed File System • Manage a Dfs Root

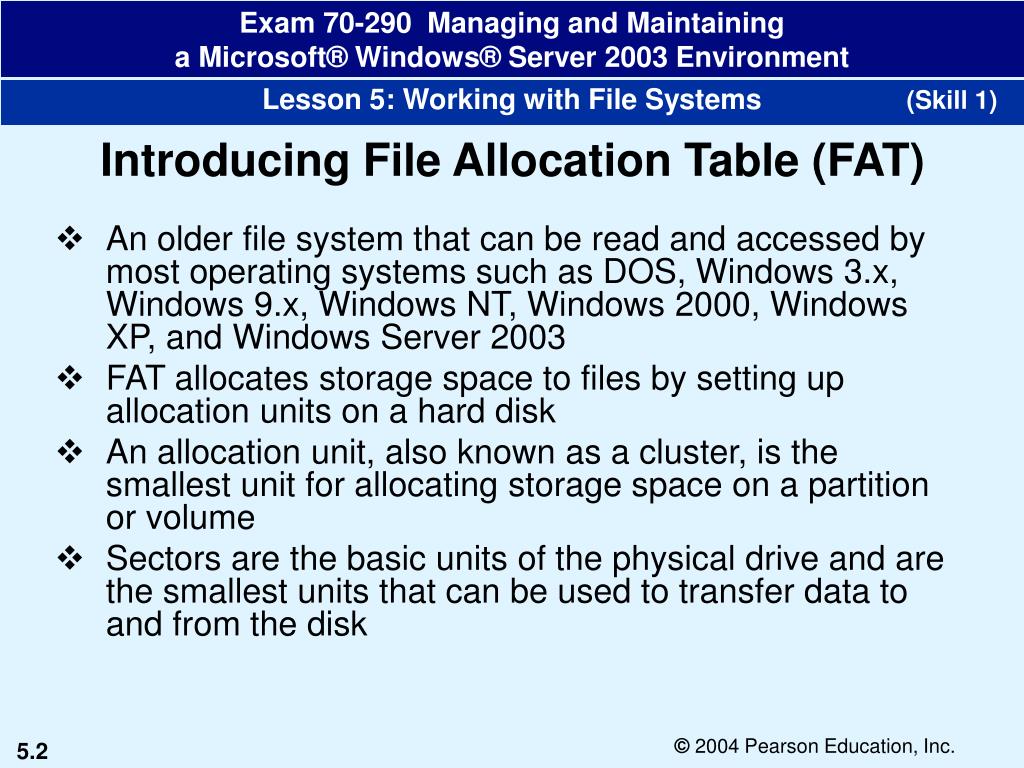

  2. (Skill 1) Introducing File Allocation Table (FAT) • An older file system that can be read and accessed by most operating systems such as DOS, Windows 3.x, Windows 9.x, Windows NT, Windows 2000, Windows XP, and Windows Server 2003 • FAT allocates storage space to files by setting up allocation units on a hard disk • An allocation unit, also known as a cluster, is the smallest unit for allocating storage space on a partition or volume • Sectors are the basic units of the physical drive and are the smallest units that can be used to transfer data to and from the disk

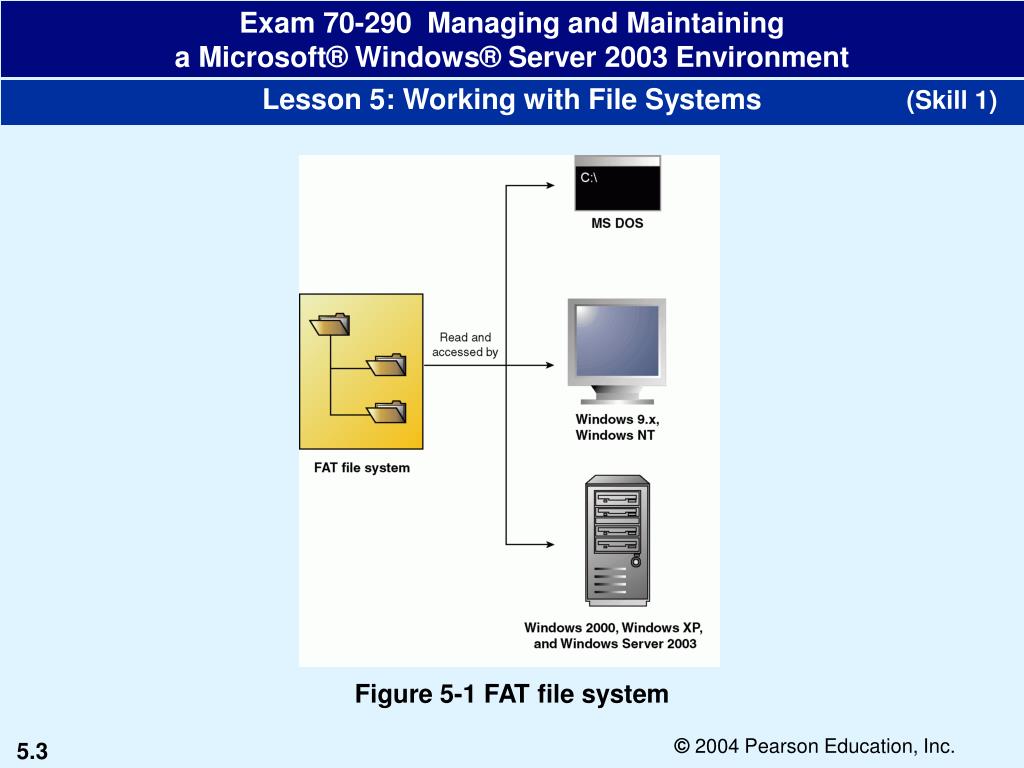

  3. (Skill 1) Figure 5-1 FAT file system

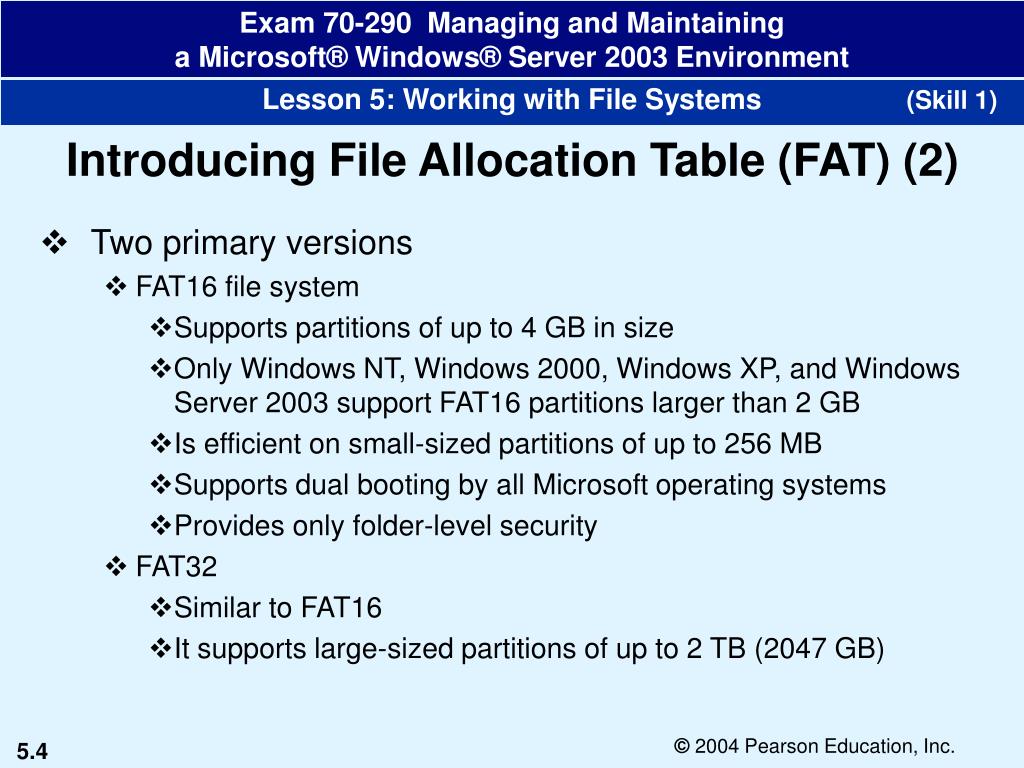

  4. (Skill 1) Introducing File Allocation Table (FAT) (2) • Two primary versions • FAT16 file system • Supports partitions of up to 4 GB in size • Only Windows NT, Windows 2000, Windows XP, and Windows Server 2003 support FAT16 partitions larger than 2 GB • Is efficient on small-sized partitions of up to 256 MB • Supports dual booting by all Microsoft operating systems • Provides only folder-level security • FAT32 • Similar to FAT16 • It supports large-sized partitions of up to 2 TB (2047 GB)

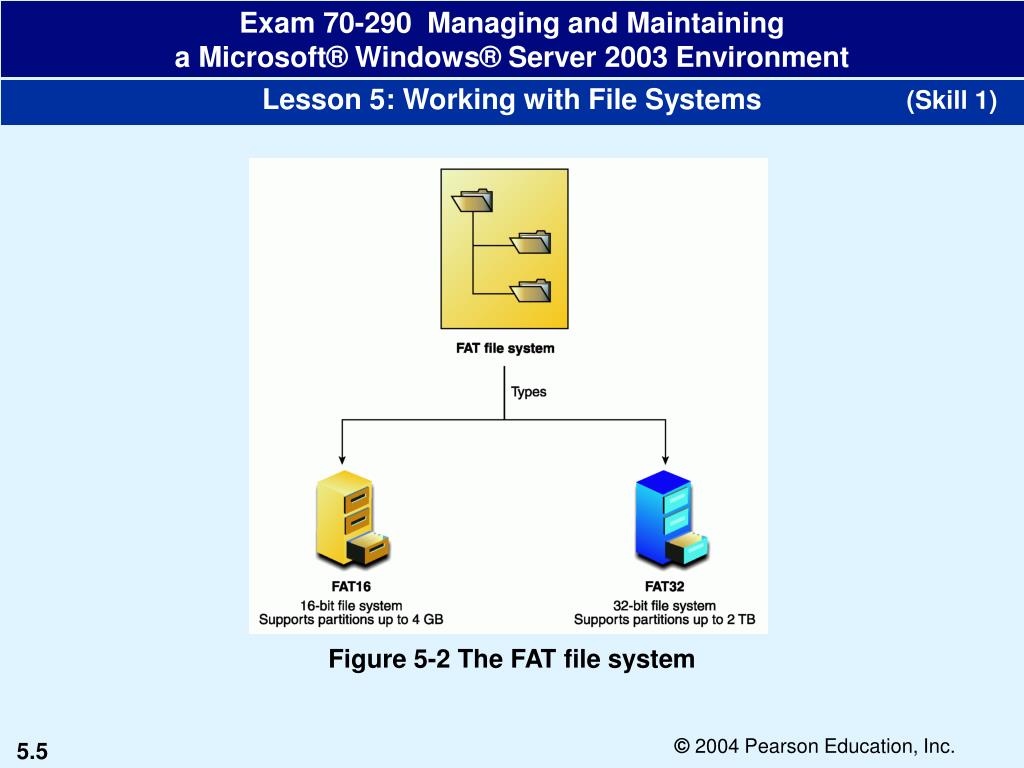

  5. (Skill 1) Figure 5-2 The FAT file system

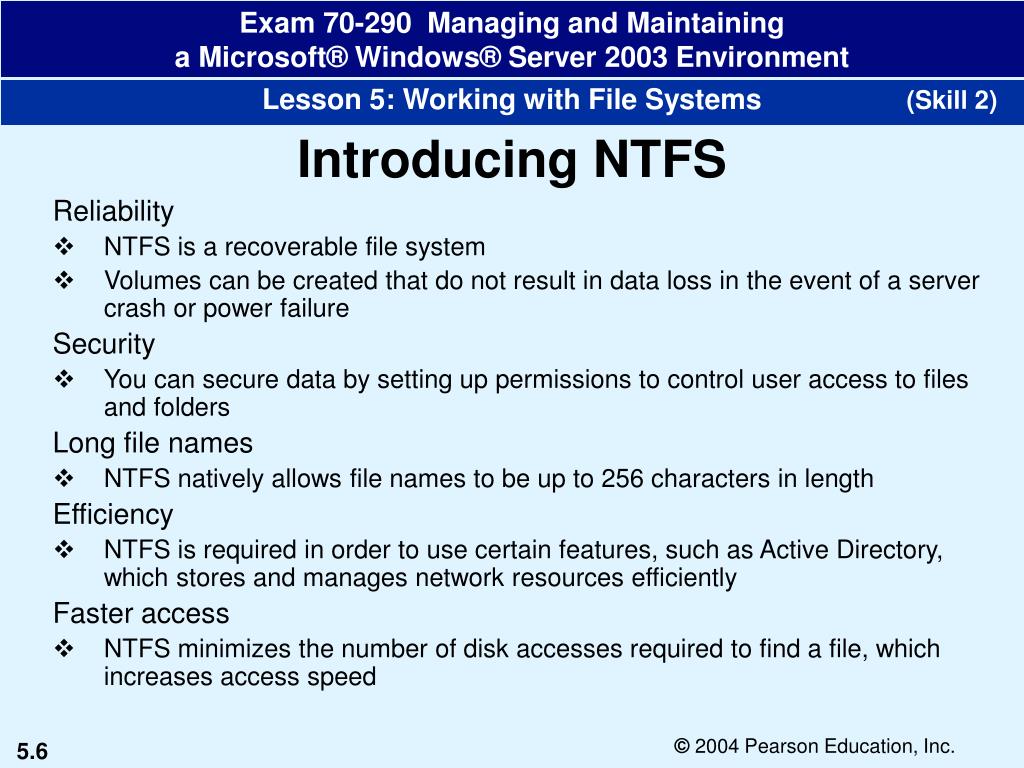

  6. (Skill 2) Introducing NTFS Reliability • NTFS is a recoverable file system • Volumes can be created that do not result in data loss in the event of a server crash or power failure Security • You can secure data by setting up permissions to control user access to files and folders Long file names • NTFS natively allows file names to be up to 256 characters in length Efficiency • NTFS is required in order to use certain features, such as Active Directory, which stores and manages network resources efficiently Faster access • NTFS minimizes the number of disk accesses required to find a file, which increases access speed

  7. (Skill 3) Compressing and Encrypting Data on an NTFS Volume Data compression • Built-in feature that increases available storage on a hard disk • In NTFS volumes, you can compress only specific files and folders or the entire volume • When you add a new file or folder to a compressed folder, it is compressed automatically • You cannot compress an encrypted file Data encryption • A security technique that attempts to ensure the confidentiality of a document by scrambling it using an encryption key • You cannot encrypt a compressed file

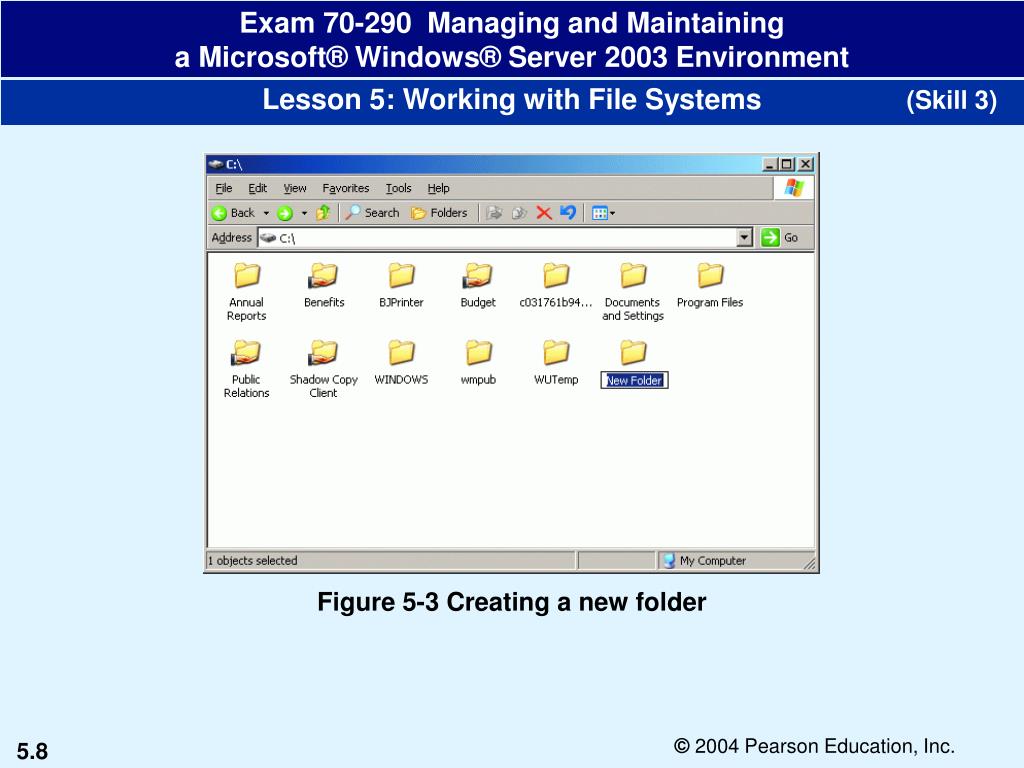

  8. (Skill 3) Figure 5-3 Creating a new folder

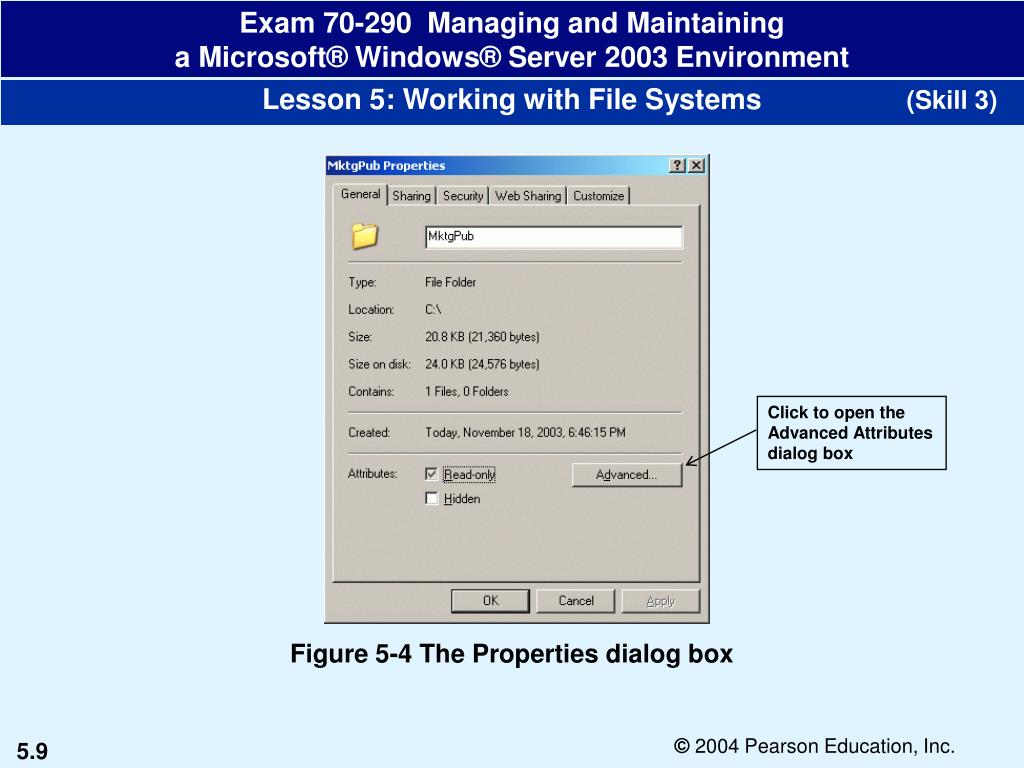

  9. (Skill 3) Click to open the Advanced Attributes dialog box Figure 5-4 The Properties dialog box

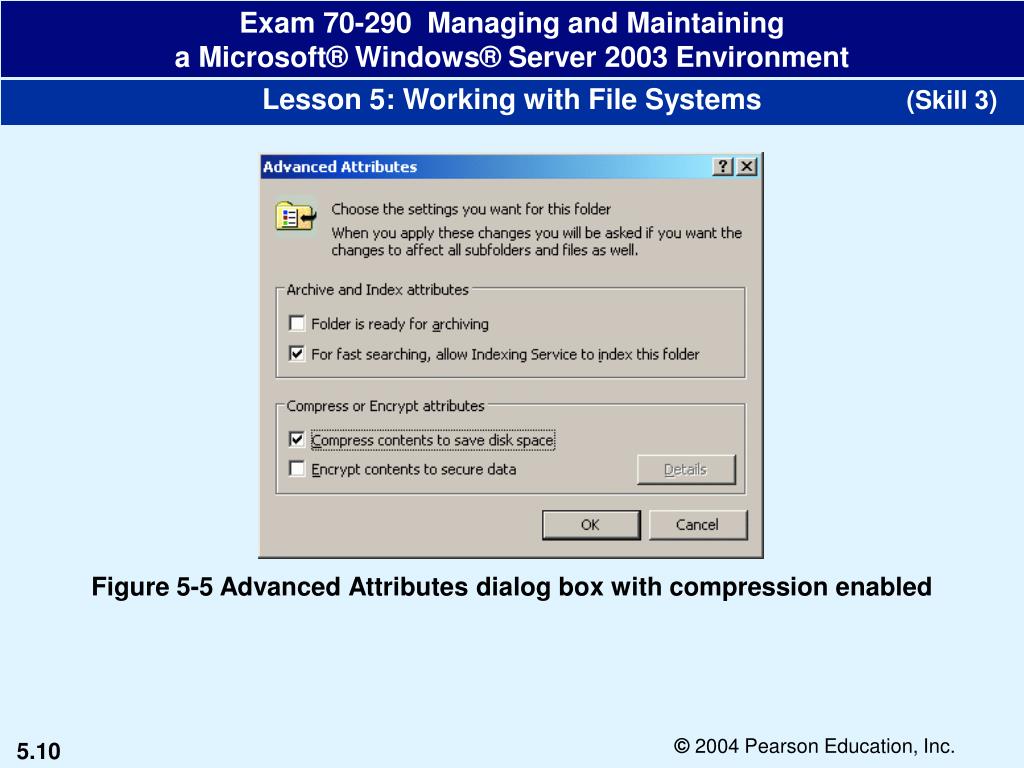

  10. (Skill 3) Figure 5-5 Advanced Attributes dialog box with compression enabled

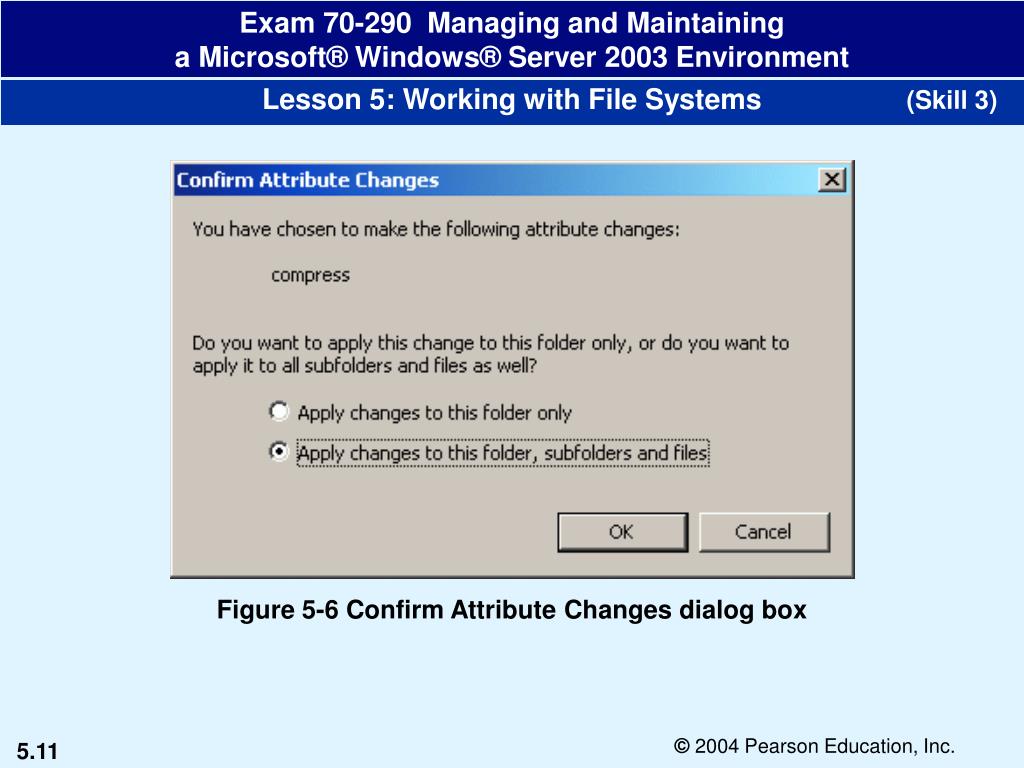

  11. (Skill 3) Figure 5-6 Confirm Attribute Changes dialog box

  12. (Skill 3) Figure 5-7 Advanced Attributes dialog box with encryption enabled

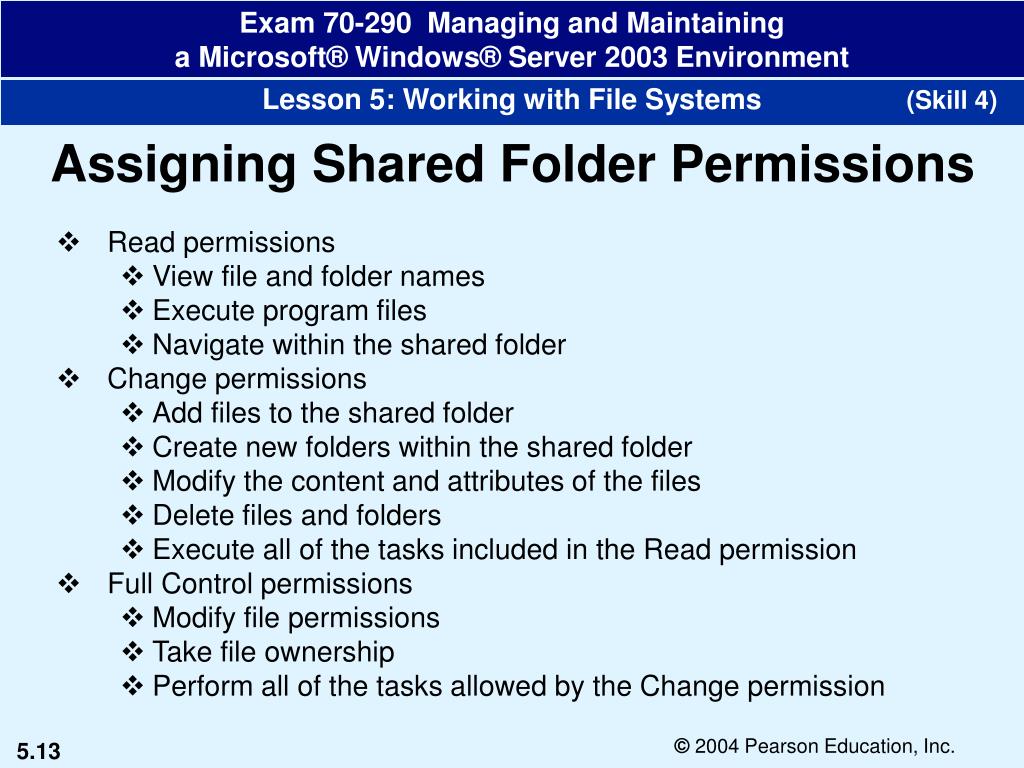

  13. (Skill 4) Assigning Shared Folder Permissions • Read permissions • View file and folder names • Execute program files • Navigate within the shared folder • Change permissions • Add files to the shared folder • Create new folders within the shared folder • Modify the content and attributes of the files • Delete files and folders • Execute all of the tasks included in the Read permission • Full Control permissions • Modify file permissions • Take file ownership • Perform all of the tasks allowed by the Change permission

  14. (Skill 4) Figure 5-8 Sharing a folder

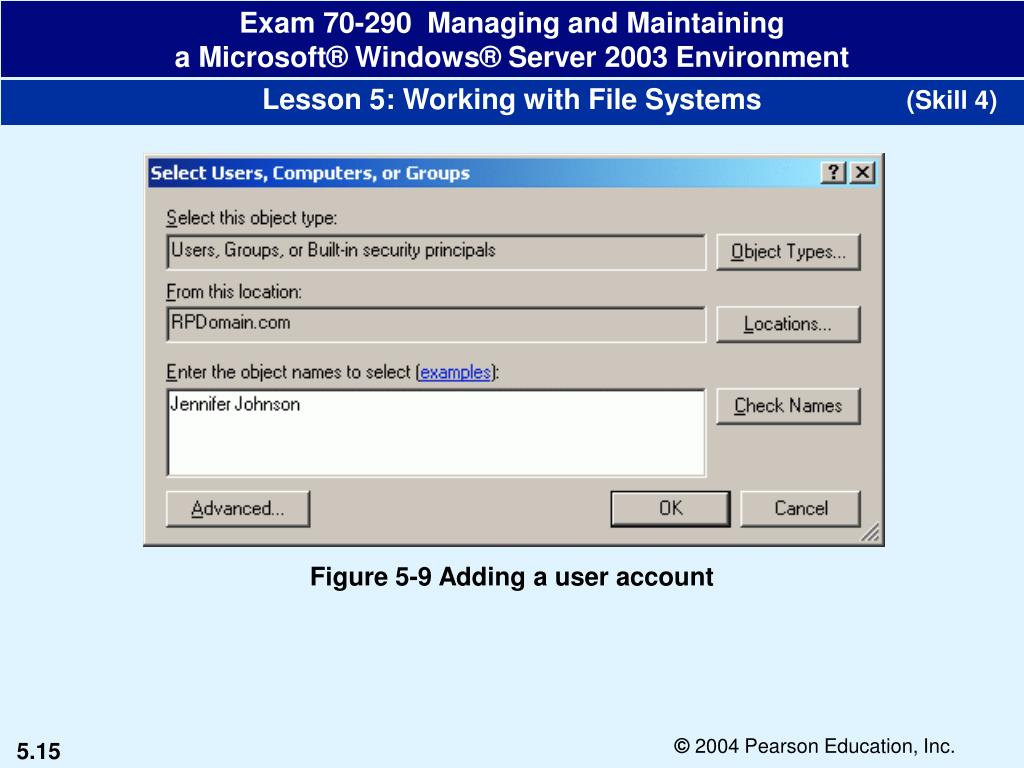

  15. (Skill 4) Figure 5-9 Adding a user account

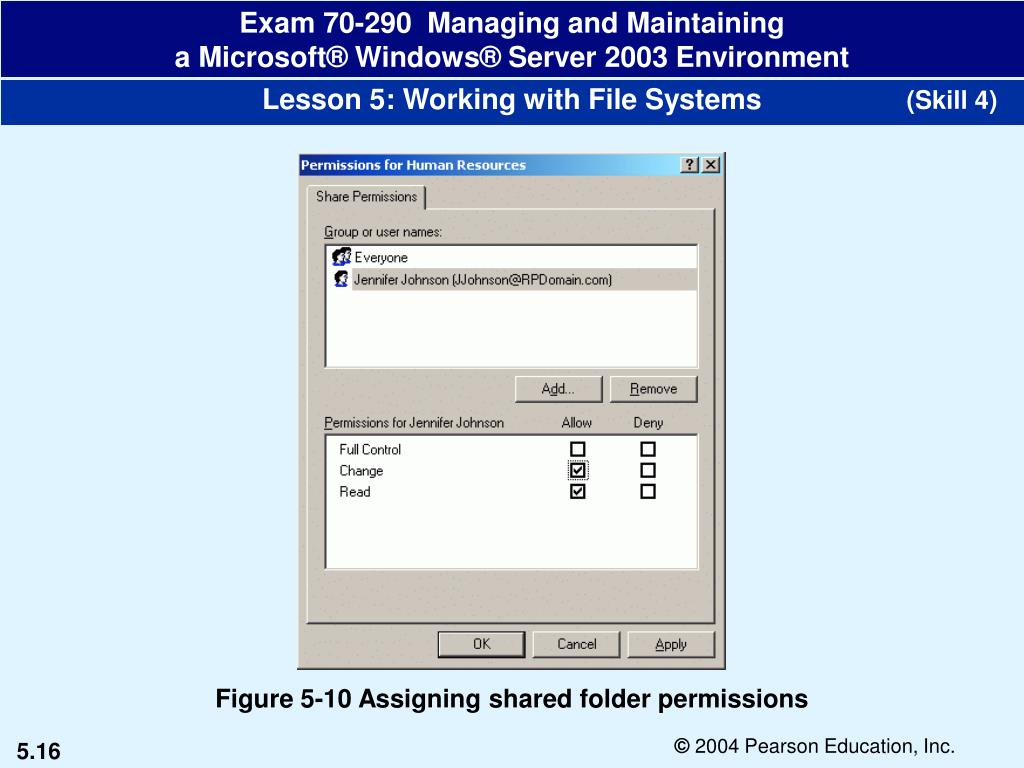

  16. (Skill 4) Figure 5-10 Assigning shared folder permissions

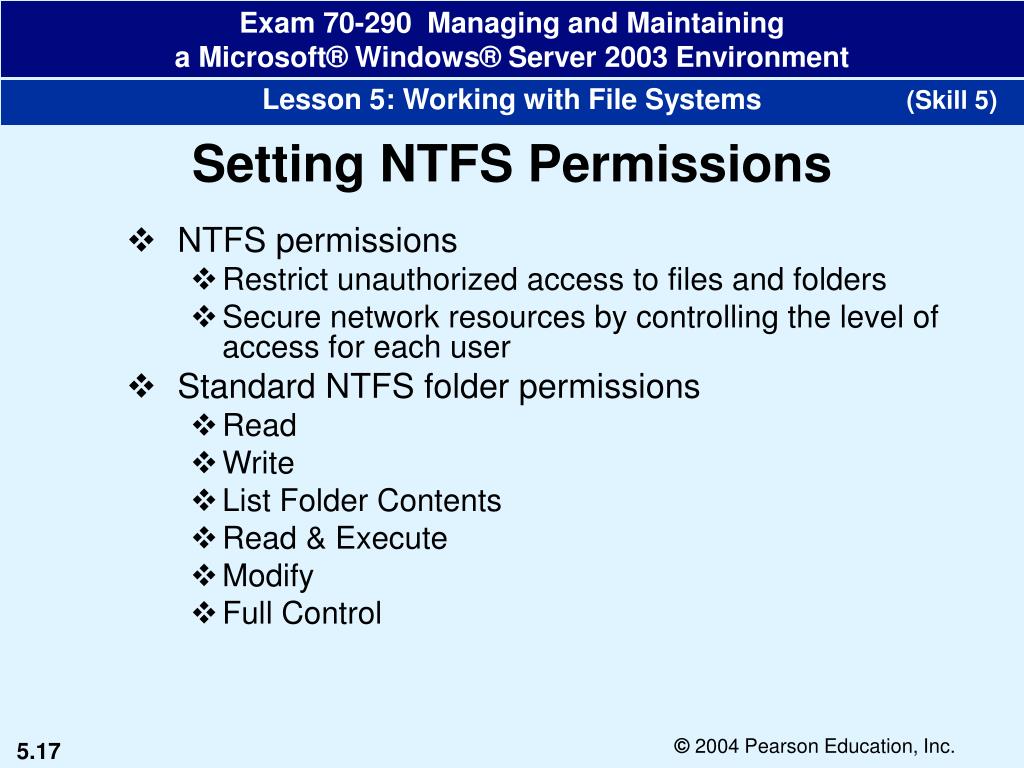

  17. (Skill 5) Setting NTFS Permissions • NTFS permissions • Restrict unauthorized access to files and folders • Secure network resources by controlling the level of access for each user • Standard NTFS folder permissions • Read • Write • List Folder Contents • Read & Execute • Modify • Full Control

  18. (Skill 5) Setting NTFS Permissions (2) • Standard NTFS file permissions include: • Read • Write • Read & Execute • Modify • Full Control

  19. (Skill 5) Setting NTFS Permissions (3) • When you apply permissions to a drive or folder, you are also applying those permissions to all files and folders underneath it, by default • Guidelines for assigning NTFS permissions • Create folders to organize data into categories • Assign users the lowest level of permissions required for them to perform their jobs • Assign the Read and Write permissions to the Users group • Avoid assigning the Full Control Permission for a folder • Deny permissions sparingly • Assign permissions to groups rather than to individual user accounts

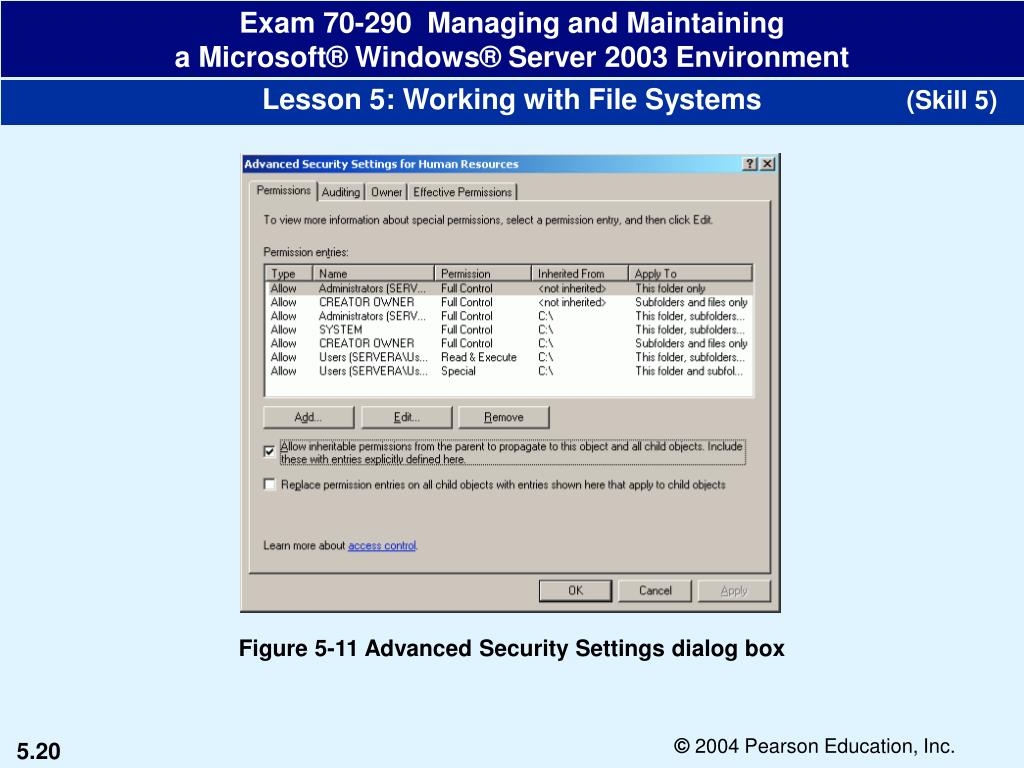

  20. (Skill 5) Figure 5-11 Advanced Security Settings dialog box

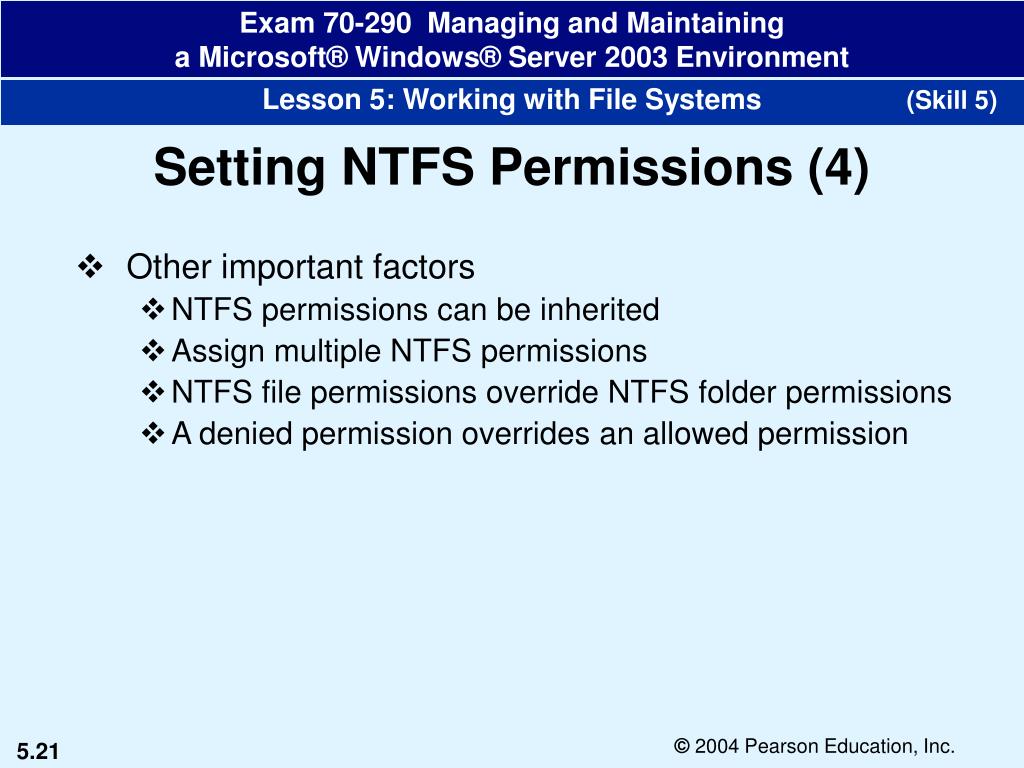

  21. (Skill 5) Setting NTFS Permissions (4) • Other important factors • NTFS permissions can be inherited • Assign multiple NTFS permissions • NTFS file permissions override NTFS folder permissions • A denied permission overrides an allowed permission

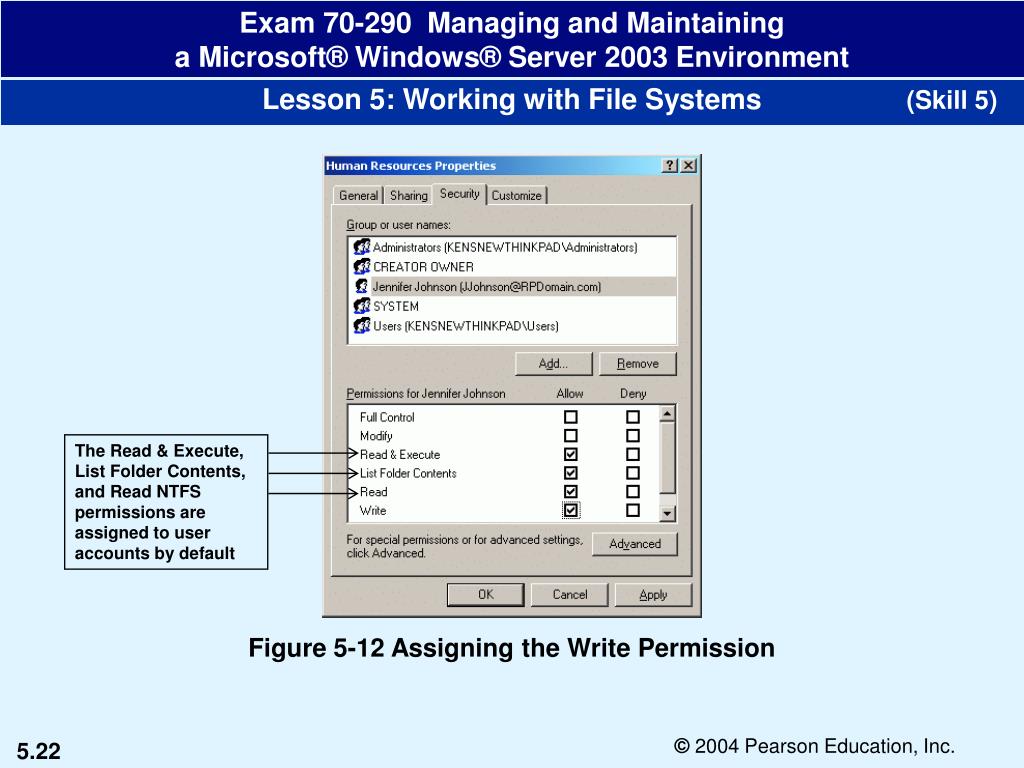

  22. (Skill 5) The Read & Execute, List Folder Contents, and Read NTFS permissions are assigned to user accounts by default Figure 5-12 Assigning the Write Permission

  23. (Skill 6) Setting Special Access Permissions • Standard NTFS permissions should suffice in most cases • Special level of permissions are available • Set and view special permissions in the Advanced Security Settings for <file_name /folder_name > dialog box from within the file properties • This dialog box gives you access to all possible permissions available for a file or folder • Do not configure special permissions unless absolutely necessary because setting them may make it difficult to determine the level of access assigned to a user

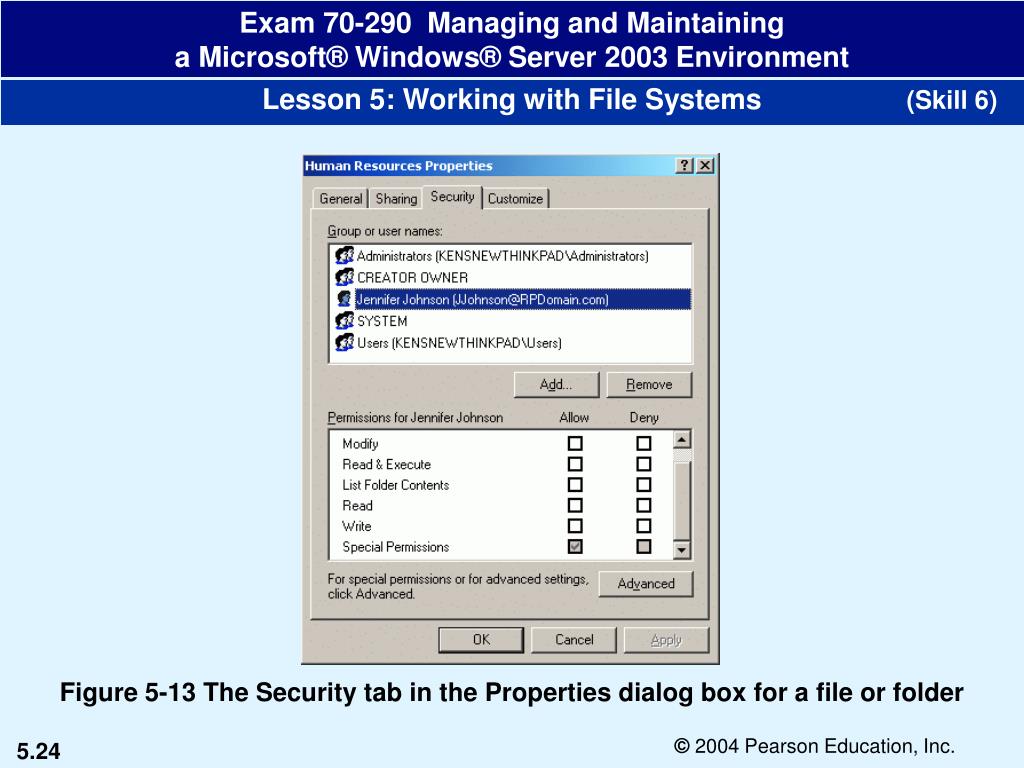

  24. (Skill 6) Figure 5-13 The Security tab in the Properties dialog box for a file or folder

  25. (Skill 6) Figure 5-14 Jennifer Johnson’s special permissions

  26. (Skill 6) Figure 5-15 The entry for Jennifer Johnson

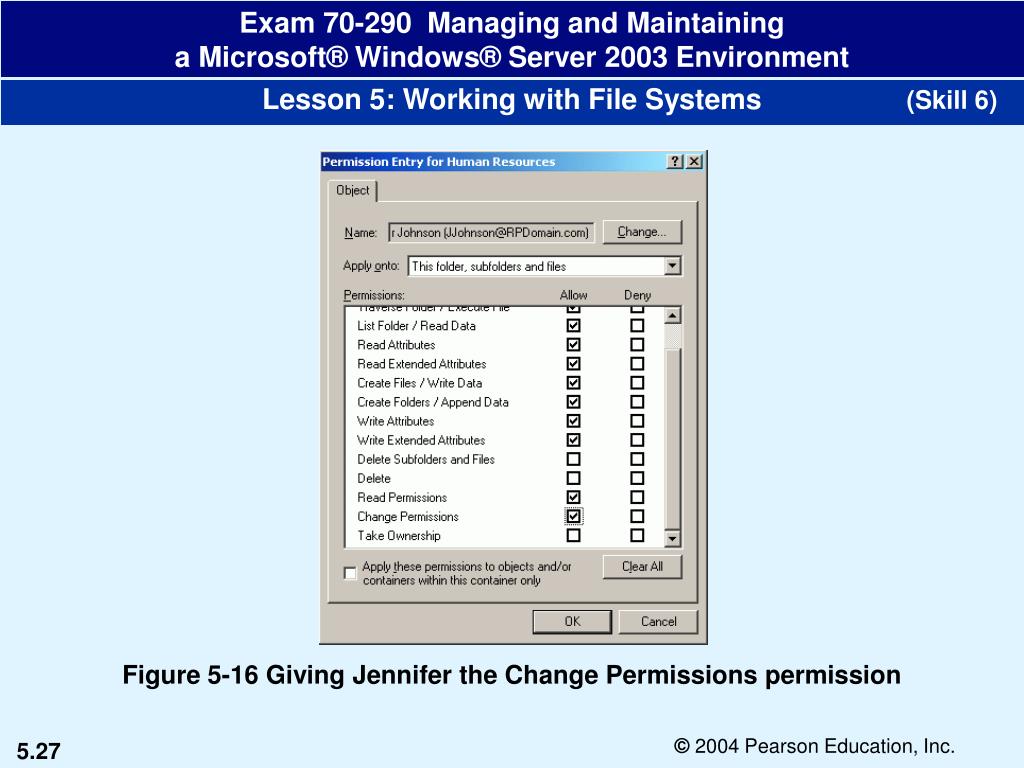

  27. (Skill 6) Figure 5-16 Giving Jennifer the Change Permissions permission

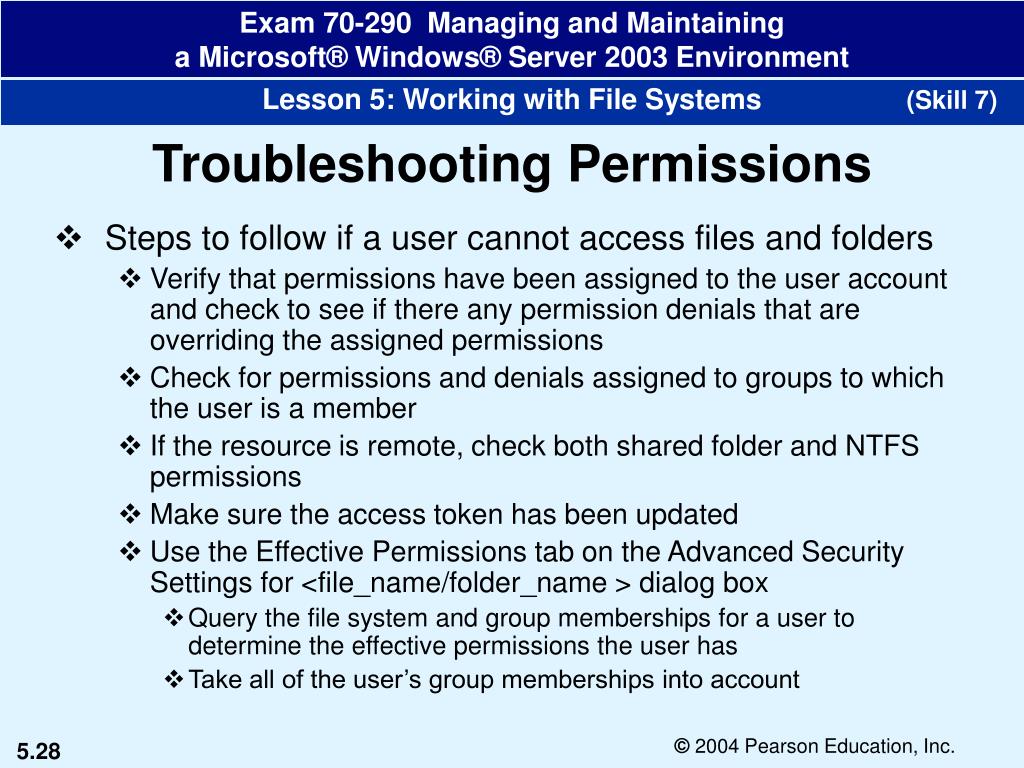

  28. (Skill 7) Troubleshooting Permissions • Steps to follow if a user cannot access files and folders • Verify that permissions have been assigned to the user account and check to see if there any permission denials that are overriding the assigned permissions • Check for permissions and denials assigned to groups to which the user is a member • If the resource is remote, check both shared folder and NTFS permissions • Make sure the access token has been updated • Use the Effective Permissions tab on the Advanced Security Settings for <file_name/folder_name > dialog box • Query the file system and group memberships for a user to determine the effective permissions the user has • Take all of the user’s group memberships into account

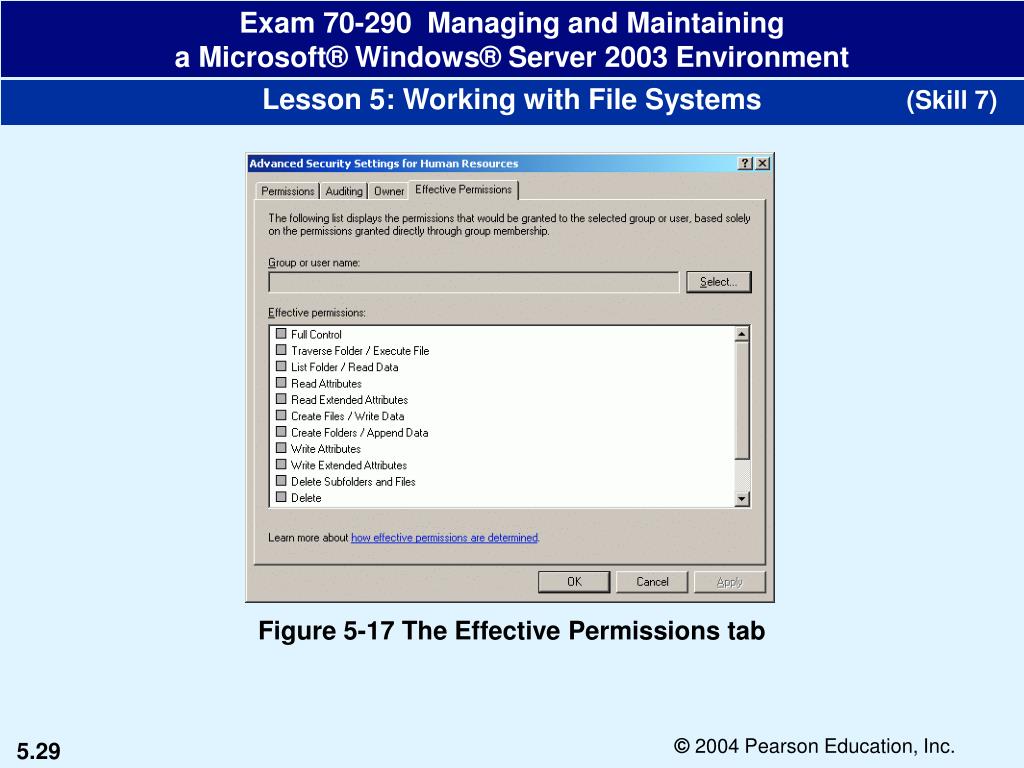

  29. (Skill 7) Figure 5-17 The Effective Permissions tab

  30. (Skill 7) Figure 5-18 Jennifer Johnson’s effective permissions
