  1. Thorax Ribs and Sternum

  2. Bony Thorax • Include • Thoracic vertebrae dorsally • Ribs laterally • Sternum and costal cartilage anteriorly • Function • Secure rib to sternum • Protective cage around vital organs • Supports shoulder girdles and upper limbs • Provides attachment points for muscles of back, chest, and shoulder • Intercostal spaces provide attachment for intercostal muscles that lift and depresses chest during breathing

  3. Sternum • Lies anterior midline of thorax • Resembles knife blade, flat, about 15 cm (6in) long • Made from 3 fused bones • Manubrium (superior) clavicular notches articulates with clavicles and first two pairs of ribs --Body (midline) forms the bulk of sternum articulates with second to seventh rib • Xiphoid process (inferior) • Attachment site for abdominal muscles

  4. Ribs • 12 Pair in males and females • Each rib articulate with both the body and the transverse process of its corresponding thoracic vertebra • From vertebral attachment, rib curve outward, then forward and downward

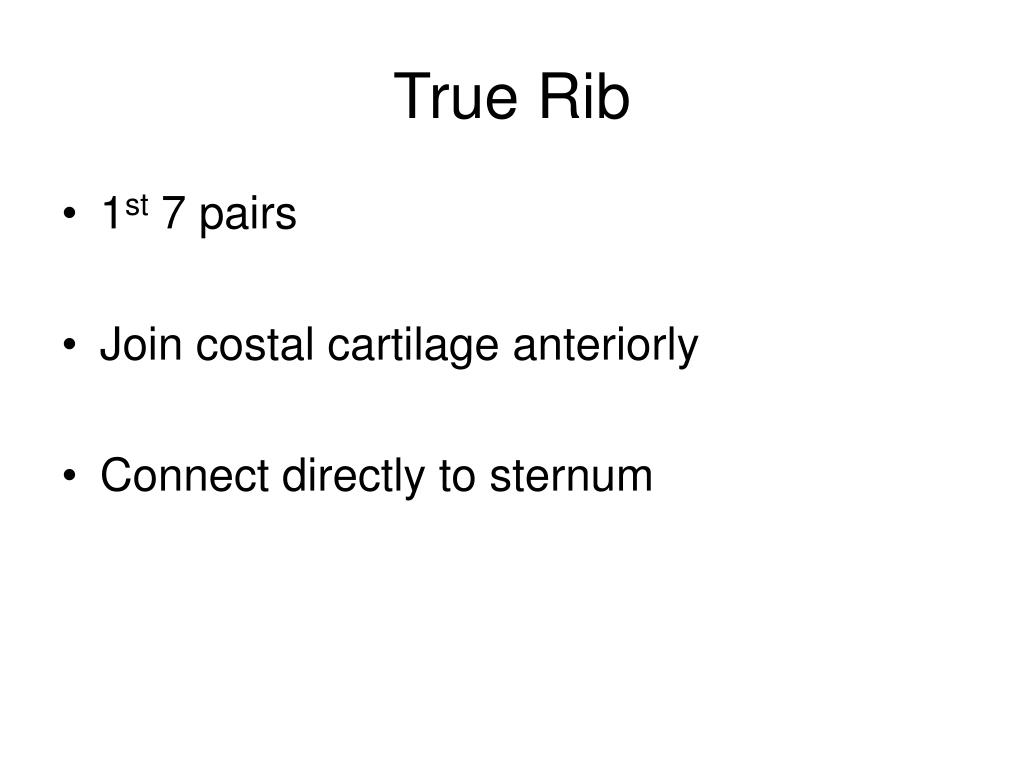

  5. True Rib • 1st 7 pairs • Join costal cartilage anteriorly • Connect directly to sternum

  6. False rib • Last 5 pairs of ribs • attach indirectly to sternum • Last two pairs of false ribs called floaters because they do not attach to sternum at all
