Thorax

Thorax. The Muscles of the Thorax: - consist of muscles w/ varying characteristics: a. connect adjoining ribs ( intercostales - externi , interni & intimi ) b. span several ribs ( subcostales ) c. connect ribs to sternum ( transversus thoracis )

vanida
Télécharger la présentation

Thorax

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Thorax

  2. The Muscles of the Thorax: - consist of muscles w/ varying characteristics: a. connect adjoining ribs (intercostales - externi, interni & intimi) b. span several ribs (subcostales) c. connect ribs to sternum (transversusthoracis) d. connect ribs to vertebrae (levatorescostarum, serratus post sup. & inferior) e. diaphragm

  3. Intercostales: - thin superimposed layers of muscle & tendinous fibers occupying the intercostal spaces External intercostal Internal Intercostal Innermost intercostal

  4. Intercostalesexterni: - 11 in number on each side - extend from tubercle of rib to cartilage of rib in front - muscle passes from lower border of 1 rib to upper border of rib below - fibers directed obliquely downwards & laterally

  5. Intercostalesinterni: • - 11 in number on each side • starts at sternum & extends backwards to • post. costal angles • - origin - costal groove • - inserts - upper border • of rib below • - fibers are directed • obliquely & at • right angles to • external intercostals • - actions: • - elevators of ribs • during respiration

  6. Intercostalesintimi(inner most intercostal): • merely as internal laminae of int. intercostalmuscle • Separated from it only by neurovascular bundle • - attached to internal aspects of 2 adjoining ribs • - insignificant & sometimes absent • - actions: • - act in conjunction • w/ internal • intercostalmuscle

  7. Subcostals: - consist of muscular & aponeuroticfasciculi - usually well developed only in lower part of thorax - descends from inner surface of 1 rib to internal surface of 2nd or 3rd rib below - action: - depresses ribs

  8. Transversus thoracis: - on internal surface of anterior wall of thorax - origin: - lower 3rd of post surfaces of body of sternum - xiphoid process - costal cart of lower 3 or 4 true ribs near sternal ends - insertion: - lower borders & inner surf of costal cart of 2nd, 3rd, 4th, 5th & 6th ribs - action: - draws down costal cartilage

  9. Levatorescostarum: - 12 on each side - origin - ends of transverse processes of C7 & T1 to T11 - pass obliquely downwards & laterally - insertion - upper edge & external surface of rib below vertebra - nerve supply: - lat branches of dorsal rami of corresponding thoracic nerves - action: - elevate ribs

  10. Serratus posterior superior: - thin, quadrilateral muscle, external to upper & posterior part of thorax - origin: - lower part of ligamentumnuchae - spines of C7 & upper 2 TV - supraspinous ligaments - insertion: - upper bord & ext surf of 2nd, 3rd, 4th & 5th ribs - nerve supply: - 2nd, 3rd, 4th & 5th intercostal nerves - action: - elevate ribs

  11. Serratus posterior inferior: • thin, irregular quadrilateral muscle at the junction of Thoracic Vertebrae & Lumbar Vertebrae • - origin: • - spines of lower 2 TV & upper 2-3 LV • - supraspinous ligament • - insertion: • - inf borders & surfaces of lower 4 ribs • - nerve supply: • - ventral rami of 9th to 12th thoracic spinal nerves • - action: • - draws lower ribs downwards & backwards

  12. Diaphragm: - a dome-shaped, musculofibrous sheet - separates thoracic fr. abdominal cavity - periphery is made up of muscle fibers attached to circumference of thoracic outlet - muscle fibers converge into a central tendon

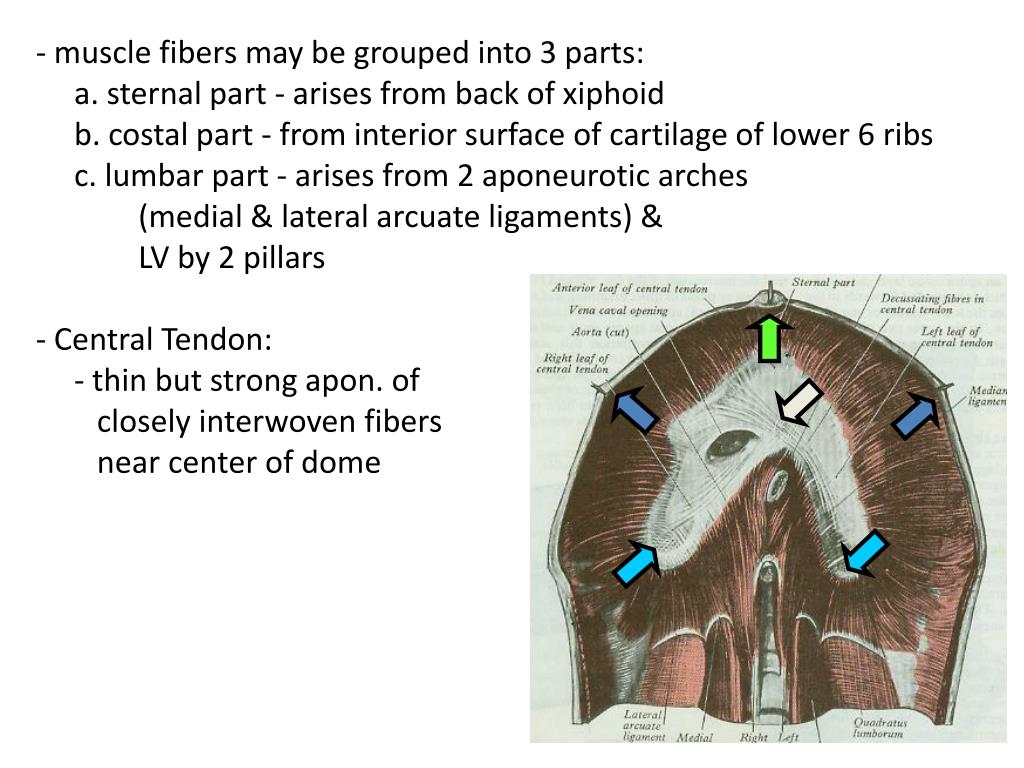

  13. - muscle fibers may be grouped into 3 parts: a. sternal part - arises from back of xiphoid b. costal part - from interior surface of cartilage of lower 6 ribs c. lumbar part - arises from 2 aponeurotic arches (medial & lateral arcuate ligaments) & LV by 2 pillars - Central Tendon: - thin but strong apon. of closely interwoven fibers near center of dome

  14. The Diaphragmatic Apertures: a. Aortic aperture - lowest & most posterior - level = T12 - Aorta, Thoracic duct, azygos & hemiaztgos veins b. Esophageal aperture - level = T10 - Esophagus, vago-sympathetic gastric nerves, L gastric vessels c. VanaCaval aperture - level = T8 - IVC & br of R phrenic nerve d. 2 lesser apertures - greater splanchnic nerve - lesser splanchnic nerve

  15. - nerve supply: - motor fibers - phrenic nerves - sensory fibers - lower 6 or 7 intercostalnerves to the periphery - actions: - essential muscle of inspiration - give additional power to all expulsive acts - fibers of right crus exert a sphincteric action on lower end of esophagus

  16. Thank You!
