Graphic Calculator. Day 3. Introduction. Familiarize yourself with the graphing calculators and its features. End Products. Basic Skill: Correct Mode. Press the ‘MODE’ button. Windows Dimension. Press ‘WINDOW’ button Select Maximum and Minimum x- and y- values. Y= Key.

brent-leonard
Télécharger la présentation

Graphic Calculator

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Graphic Calculator Day 3

  2. Introduction Familiarize yourself with the graphing calculators and its features

  3. End Products

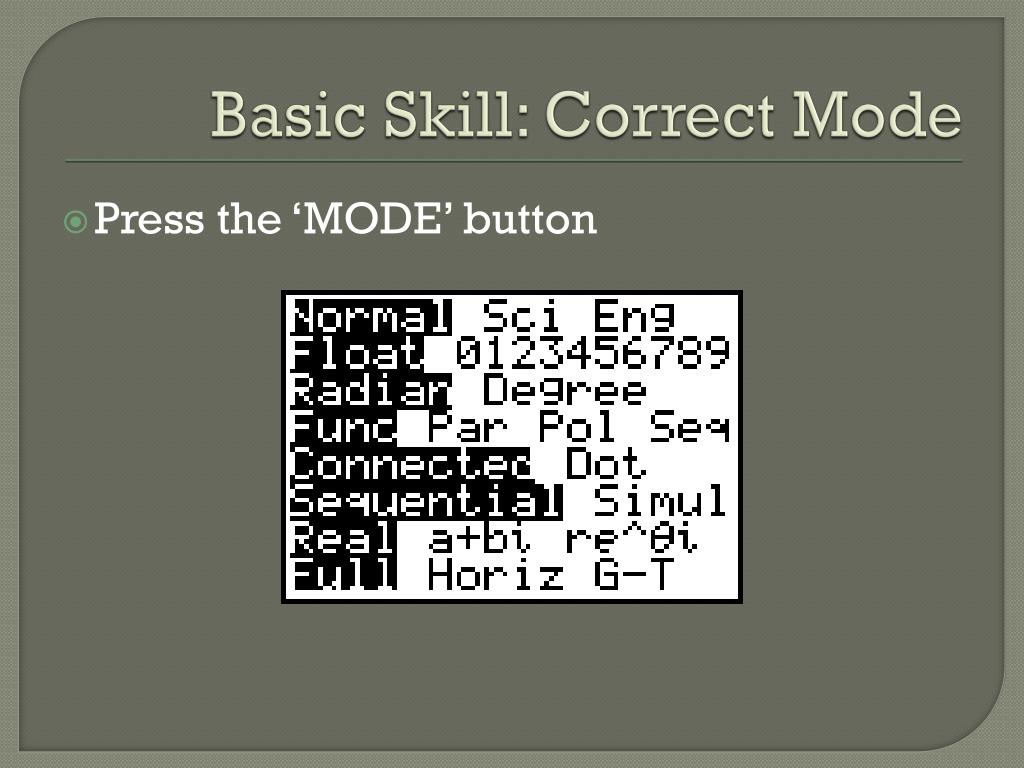

  4. Basic Skill: Correct Mode Press the ‘MODE’ button

  5. Windows Dimension Press ‘WINDOW’ button Select Maximum and Minimum x- and y- values

  6. Y= Key Press the ‘Y=’ button Write functions to create pictures Use your mathematical knowledge You can use up to 10 equations on the ‘Y=’ screen

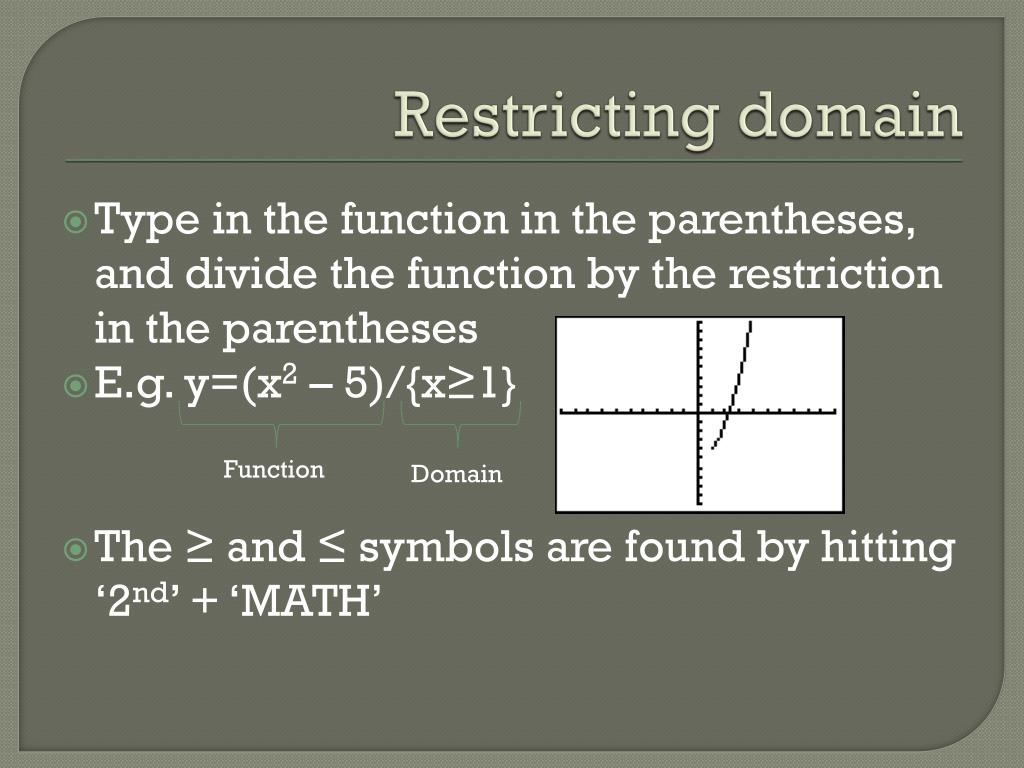

  7. Restricting domain Sometimes you may only require to graph a portion of the domain E.g. The function is y=x2 – 5 but it is only graphed for x≥1

  8. Restricting domain Function Domain Type in the function in the parentheses, and divide the function by the restriction in the parentheses E.g. y=(x2 – 5)/{x≥1} The ≥ and ≤ symbols are found by hitting ‘2nd’ + ‘MATH’

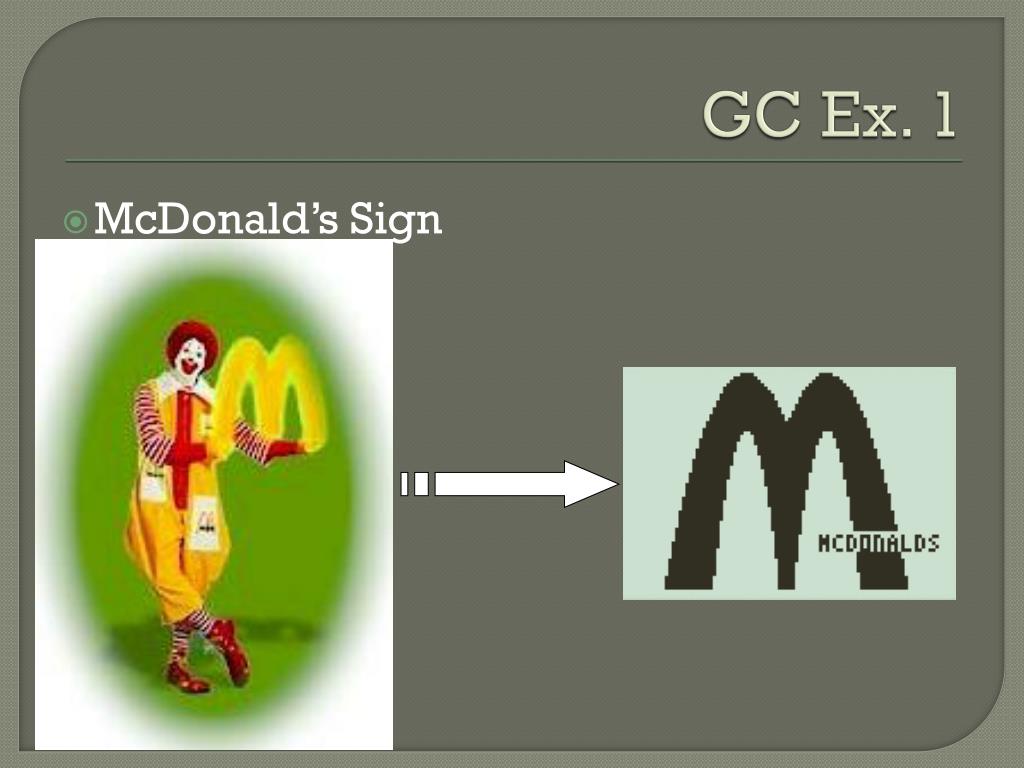

  9. GC Ex. 1 McDonald’s Sign

  10. How many curves do you need? 4 Curves

  11. y 4 x −2 0 Step 1 - Equations 0 What is the equation of this curve? y = - (x+2)2 + 8

  12. Step 1 - Equations Find the equations & domains of ALL 4 curves and draw your McDonald’s sign To help you, here are the WINDOW setting:

  13. GC Ex. 1 Solution

  14. Step 2 - Turn off the axis ‘2nd’ + ‘ZOOM’ (‘FORMAT’)

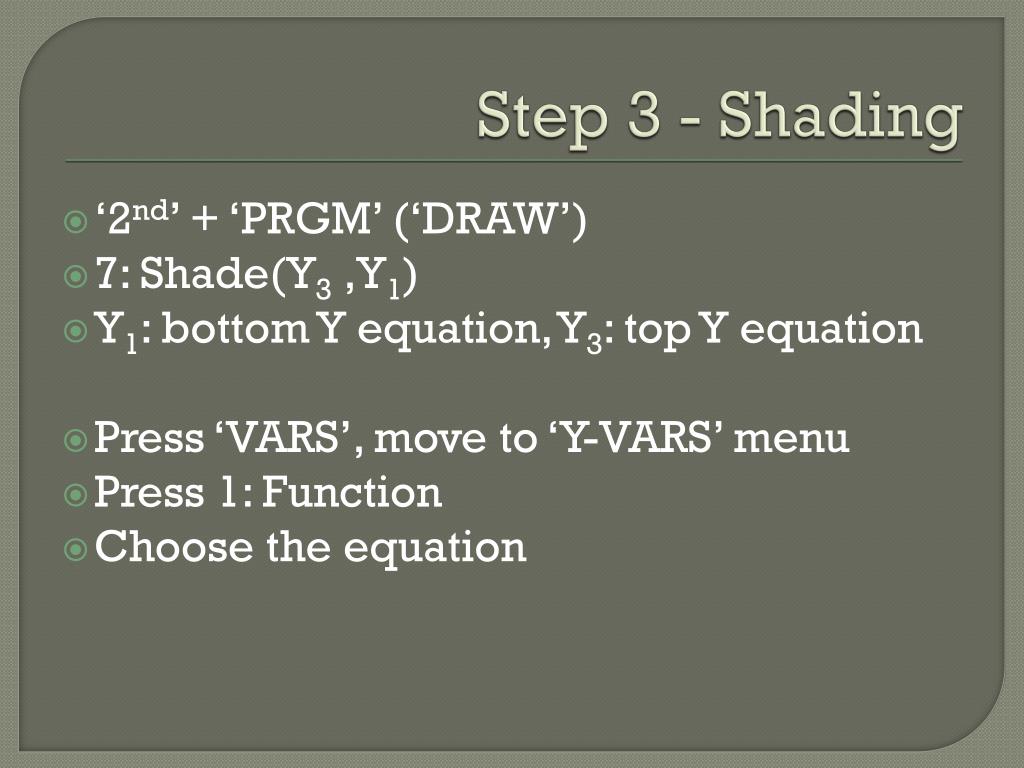

  15. Step 3 - Shading ‘2nd’ + ‘PRGM’ (‘DRAW’) 7: Shade(Y3 ,Y1) Y1: bottom Y equation, Y3: top Y equation Press ‘VARS’, move to ‘Y-VARS’ menu Press 1: Function Choose the equation

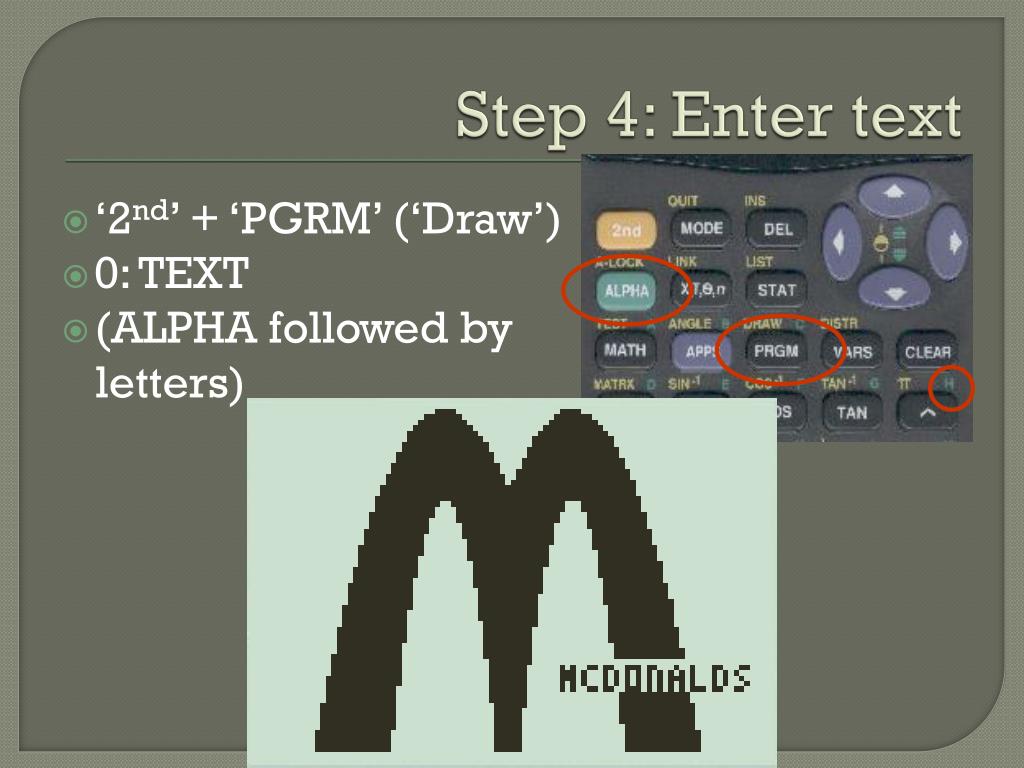

  16. Step 4: Enter text ‘2nd’ + ‘PGRM’ (‘Draw’) 0: TEXT (ALPHA followed by letters)

  17. Step 5: Storing picture ‘2nd’ + ‘PGRM’ (‘DRAW’) Use the arrow key to move to ‘STO’ menu 1: StorePic Key in a number from 1 to 9 Press Enter

  18. Step 6: Recalling picture ‘2nd’ + ‘PRGM’ (‘DRAW’) Use the arrow key to move to ‘STO’ menu 2: RecallPic Key in the number where you store it Press Enter

  19. Final product

  20. GC Ex. 1 Macdonald’s Logo

  21. GC Ex 2 Try it on your own…

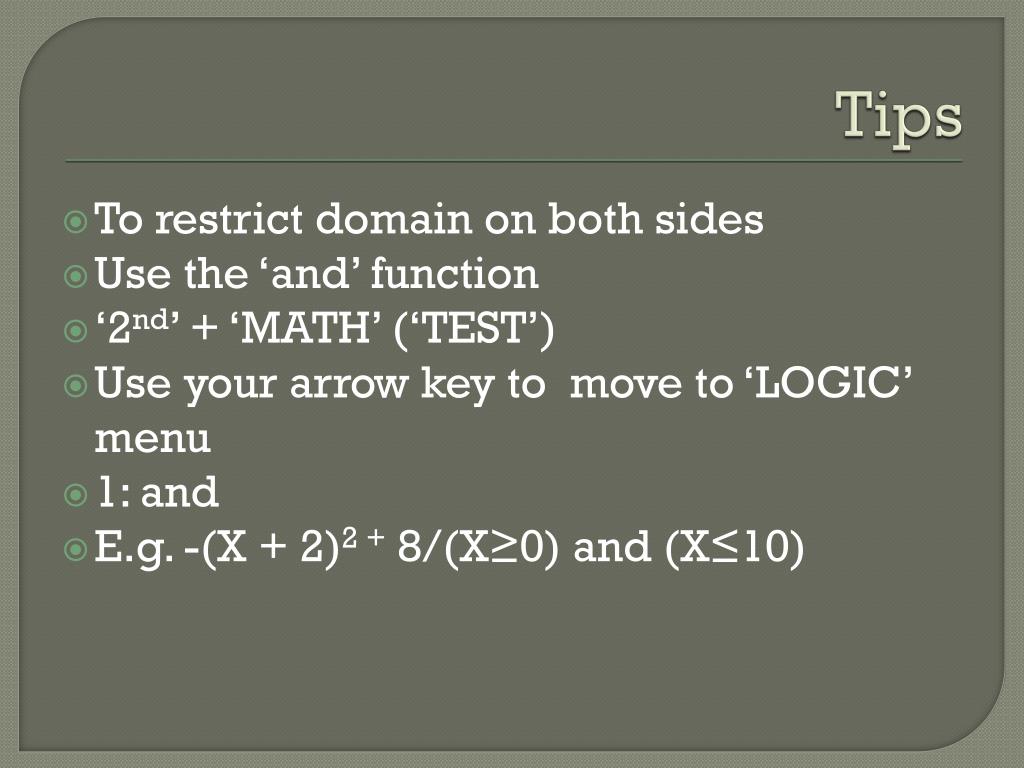

  22. Tips To restrict domain on both sides Use the ‘and’ function ‘2nd’ + ‘MATH’ (‘TEST’) Use your arrow key to move to ‘LOGIC’ menu 1: and E.g. -(X + 2)2 + 8/(X≥0) and (X≤10)

  23. Tips To draw the Sun Equation of the circle: X2 + Y2 = r2

  24. Drawing a straight vertical line Vertical lines cannot be graphed in function mode However, a very steep line can be produced What is y=x? Now, what is y=50x? …
