Digital Signal Processing Laboratory Course (521485S) at University of Oulu

1. Digital Signal Processing Laboratory Work 521485S Miguel Bordallo Department of Computer Science and Engineering (CSE) University of Oulu

2. Organization of the course • The course consists on only ONE exercise Assistant: • TMS320C67x exercise: • Miguel Bordallo: miguelbl@ee.oulu.fi ,TS301

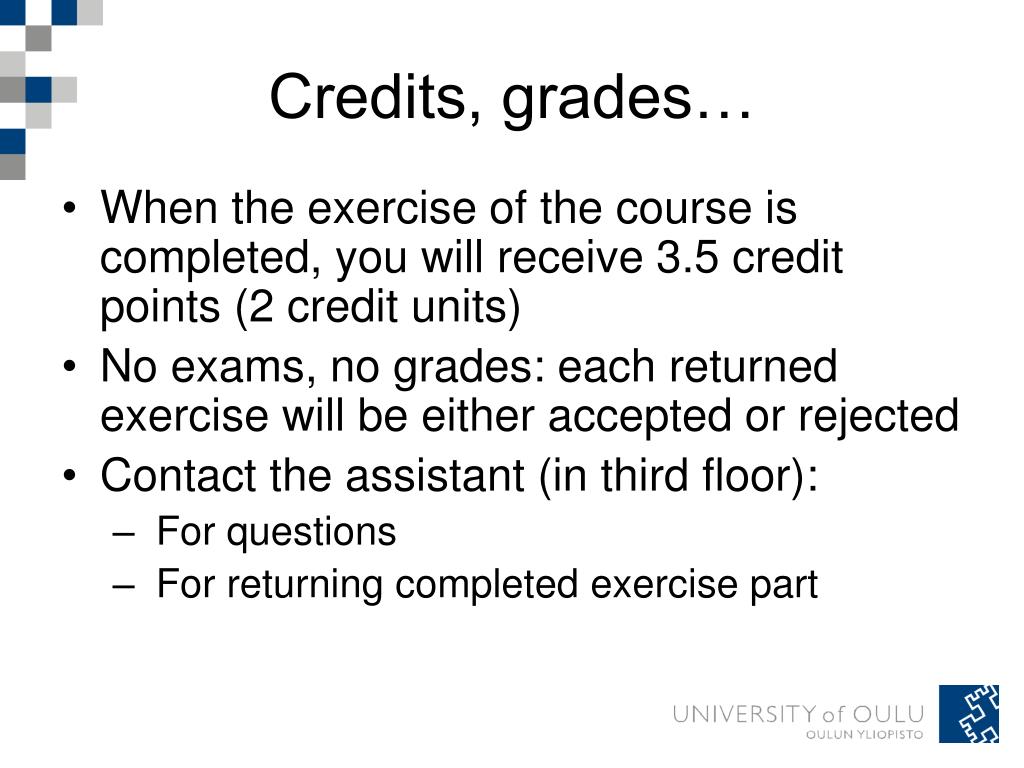

3. Credits, grades… • When the exercise of the course is completed, you will receive 3.5 credit points (2 credit units) • No exams, no grades: each returned exercise will be either accepted or rejected • Contact the assistant (in third floor): • For questions • For returning completed exercise part

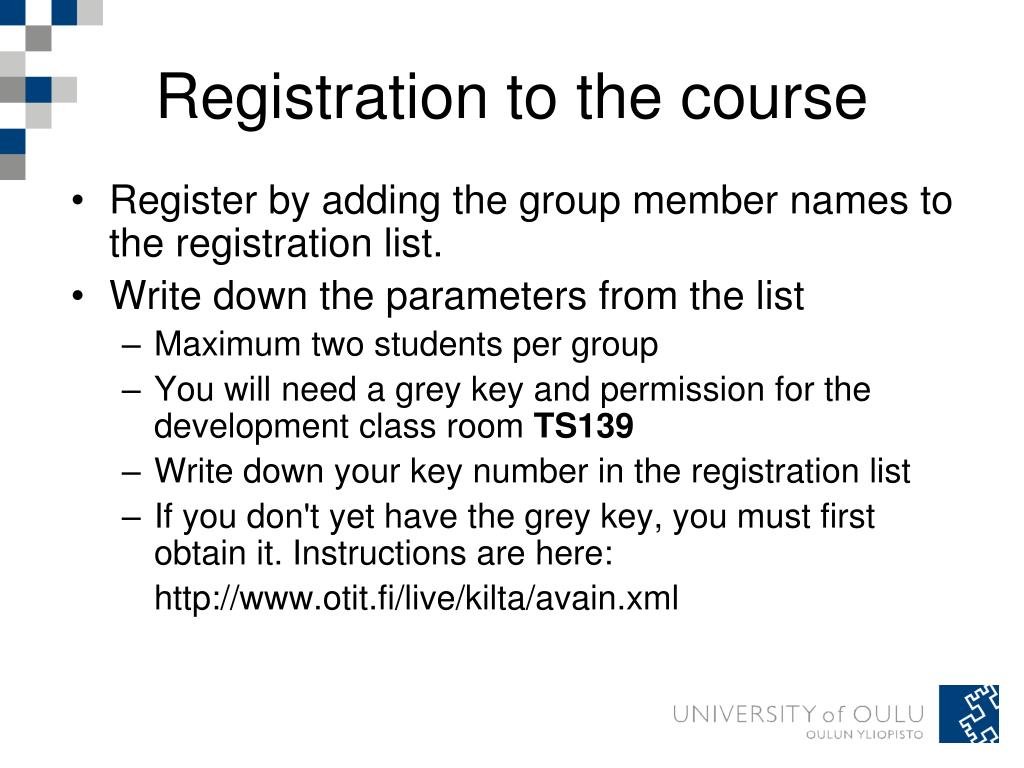

4. Registration to the course • Register by adding the group member names to the registration list. • Write down the parameters from the list • Maximum two students per group • You will need a grey key and permission for the development class room TS139 • Write down your key number in the registration list • If you don't yet have the grey key, you must first obtain it. Instructions are here: http://www.otit.fi/live/kilta/avain.xml

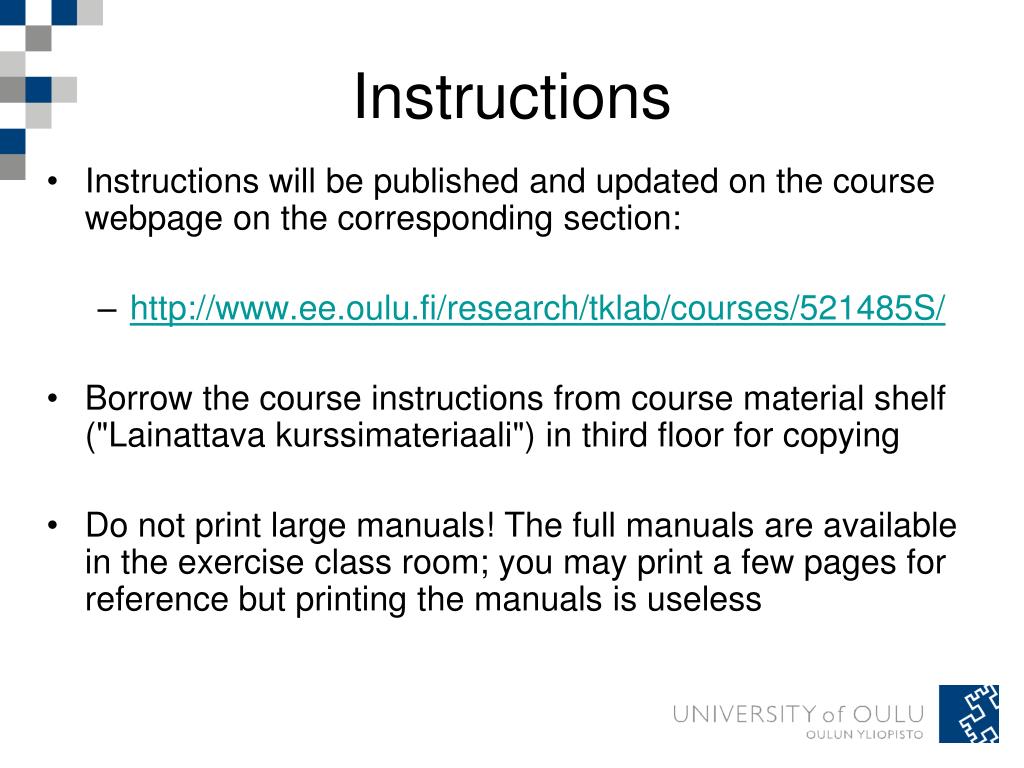

5. Instructions • Instructions will be published and updated on the course webpage on the corresponding section: • http://www.ee.oulu.fi/research/tklab/courses/521485S/ • Borrow the course instructions from course material shelf ("Lainattava kurssimateriaali") in third floor for copying • Do not print large manuals! The full manuals are available in the exercise class room; you may print a few pages for reference but printing the manuals is useless

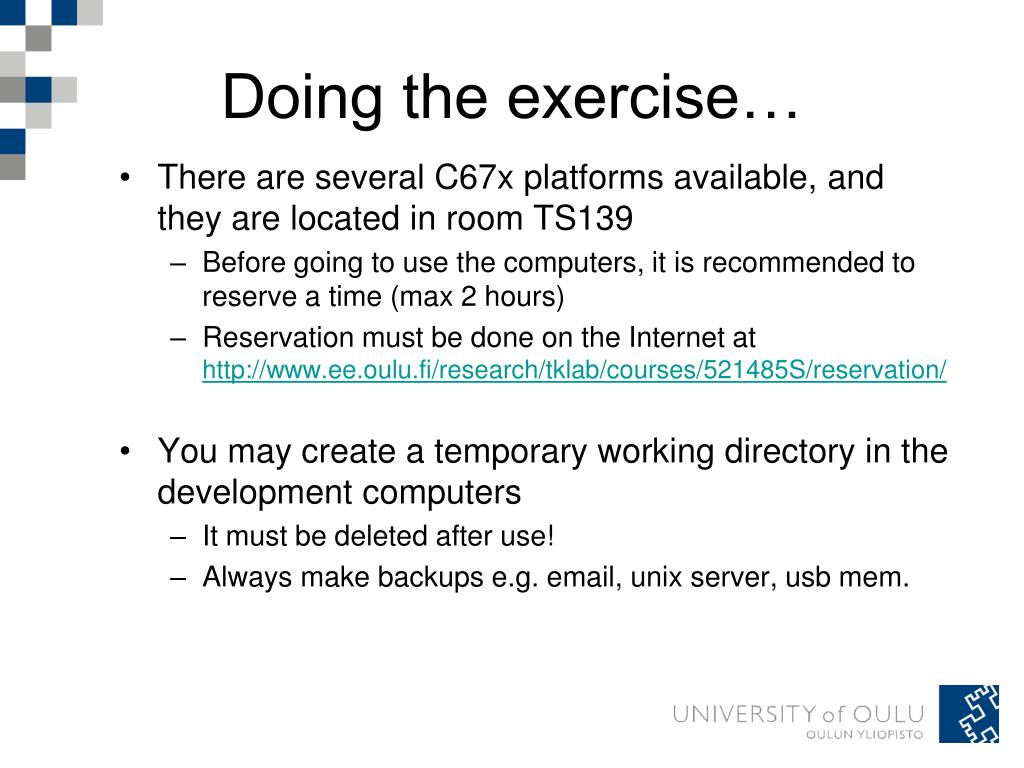

6. Doing the exercise… • There are several C67x platforms available, and they are located in room TS139 • Before going to use the computers, it is recommended to reserve a time (max 2 hours) • Reservation must be done on the Internet at http://www.ee.oulu.fi/research/tklab/courses/521485S/reservation/ • You may create a temporary working directory in the development computers • It must be deleted after use! • Always make backups e.g. email, unix server, usb mem.

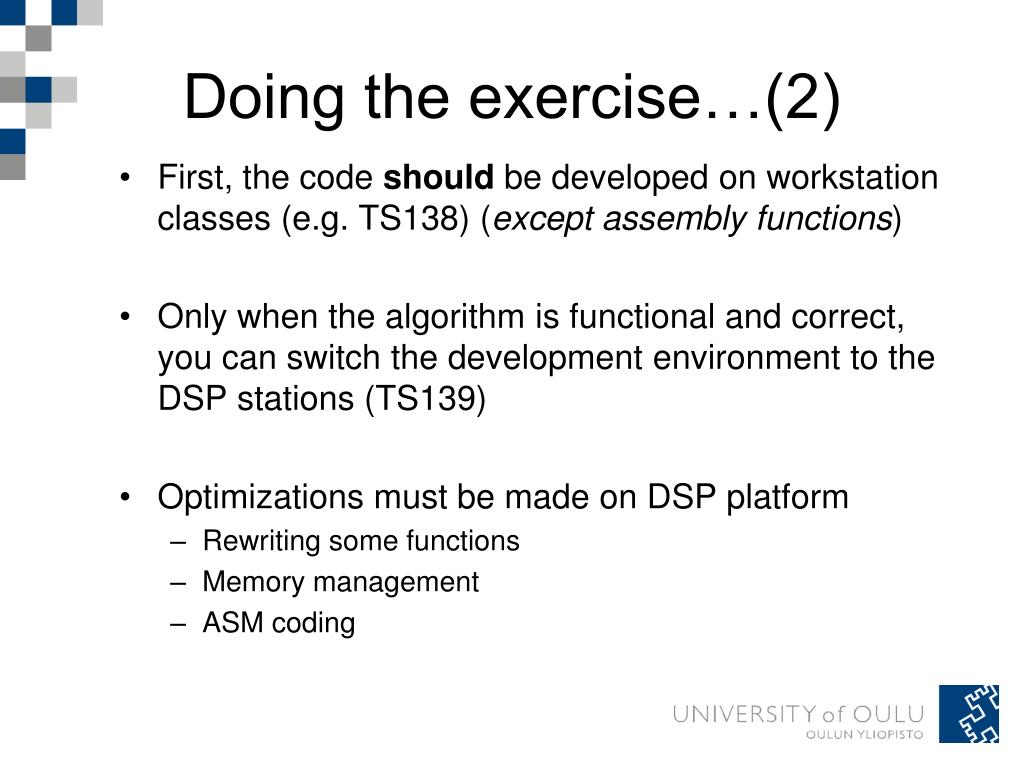

7. Doing the exercise…(2) • First, the code should be developed on workstation classes (e.g. TS138) (except assembly functions) • Only when the algorithm is functional and correct, you can switch the development environment to the DSP stations (TS139) • Optimizations must be made on DSP platform • Rewriting some functions • Memory management • ASM coding

8. Returning the exercise • The finished exercise work should be returned before June 30th, 2012 • It must contain answers for all questions and all written code in appendices. • Dsp_lab.c + multiply.s62 + DSP_report.pdf • If you are unable to finish the work in time, you should ask for additional time. • Although support is not guaranteed outside official dates • The code must be written in the “C” –language • A small exercise requires the use of DSP assembly language (specified in the exercise instructions)

9. Returning the work (2) • You may use any published information (books, Internet) for completing the work • You must always reference the source if you directly cite some material • The exercise instructions may require you to actually write yourself parts of the code (e.g. no copying of FFT code) • Copying code from other students is always prohibited

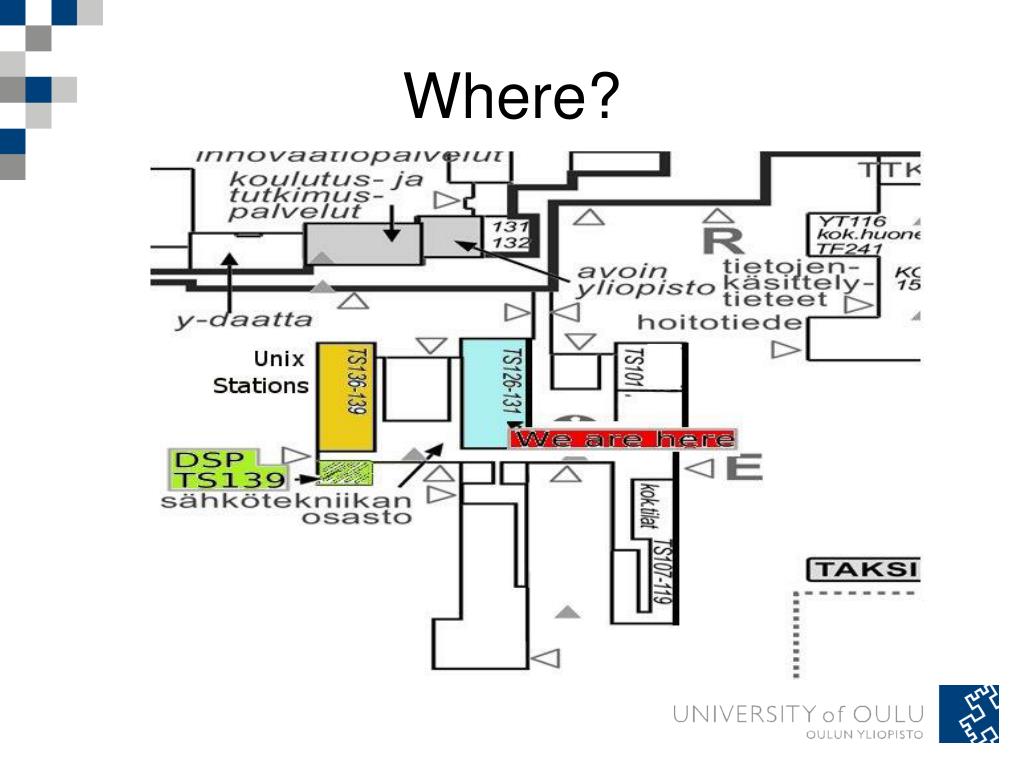

10. Where?

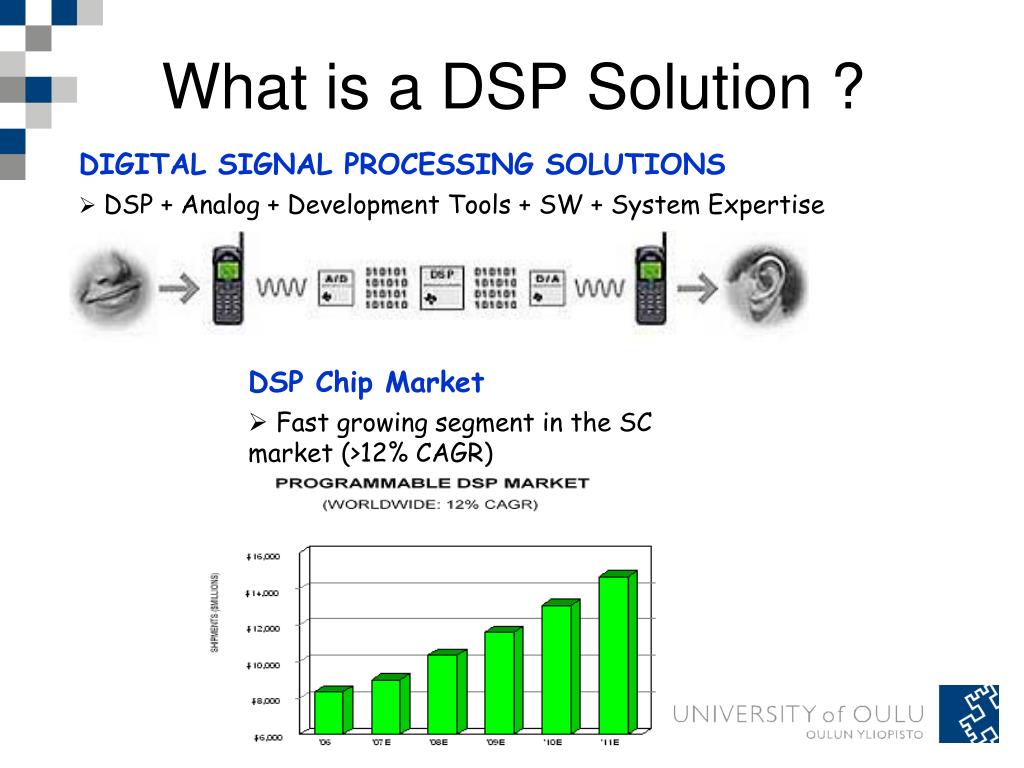

11. What is a DSP Solution ? • DIGITAL SIGNAL PROCESSING SOLUTIONS • DSP + Analog + Development Tools + SW + System Expertise • DSP Chip Market • Fast growing segment in the SC market (>12% CAGR)

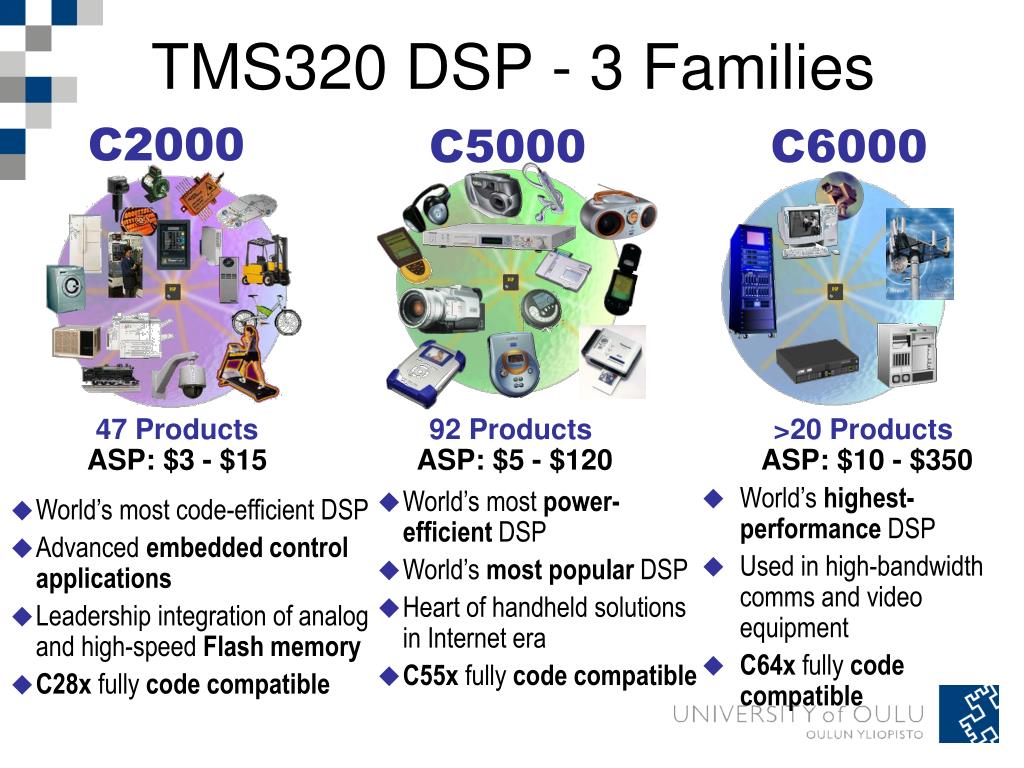

12. TMS320 DSP - 3 Families C2000 C5000 C6000 47 Products ASP: $3 - $15 92 Products ASP: $5 - $120 >20 Products ASP: $10 - $350 • World’s highest-performance DSP • Used in high-bandwidth comms and video equipment • C64x fully code compatible • World’s most power-efficient DSP • World’s most popular DSP • Heart of handheld solutions in Internet era • C55x fully code compatible • World’s most code-efficient DSP • Advanced embedded control applications • Leadership integration of analog and high-speed Flash memory • C28x fully code compatible

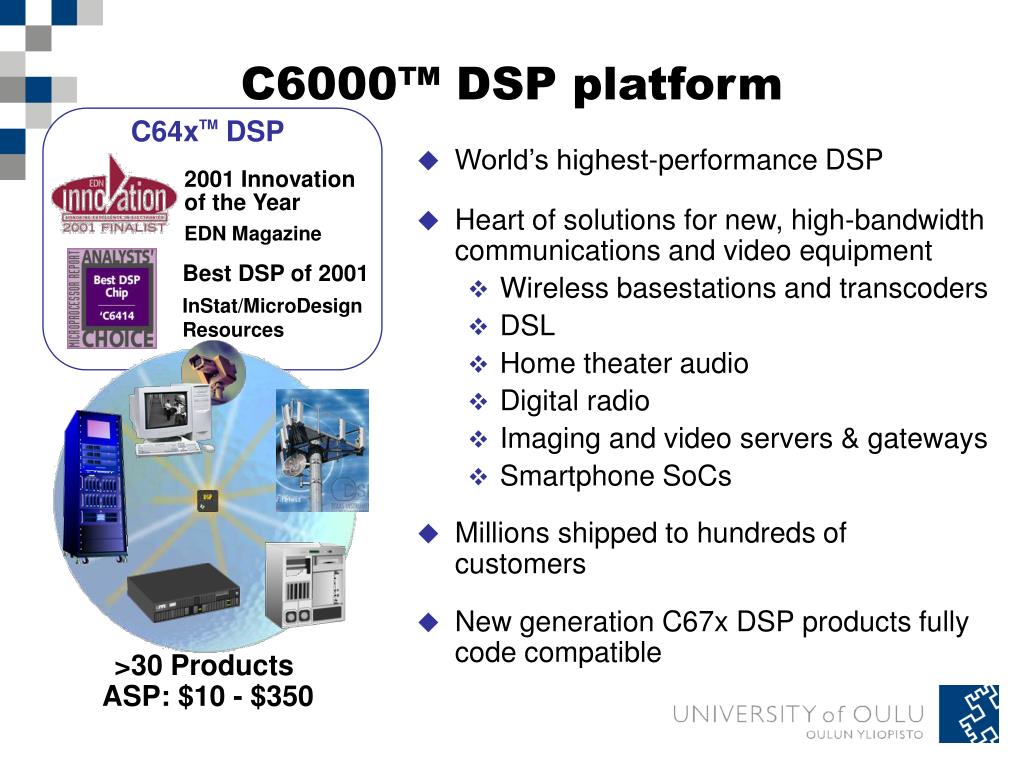

13. C64xTM DSP 2001 Innovation of the Year EDN Magazine Best DSP of 2001 InStat/MicroDesign Resources >30 Products ASP: $10 - $350 C6000™ DSP platform • World’s highest-performance DSP • Heart of solutions for new, high-bandwidth communications and video equipment • Wireless basestations and transcoders • DSL • Home theater audio • Digital radio • Imaging and video servers & gateways • Smartphone SoCs • Millions shipped to hundreds of customers • New generation C67x DSP products fully code compatible

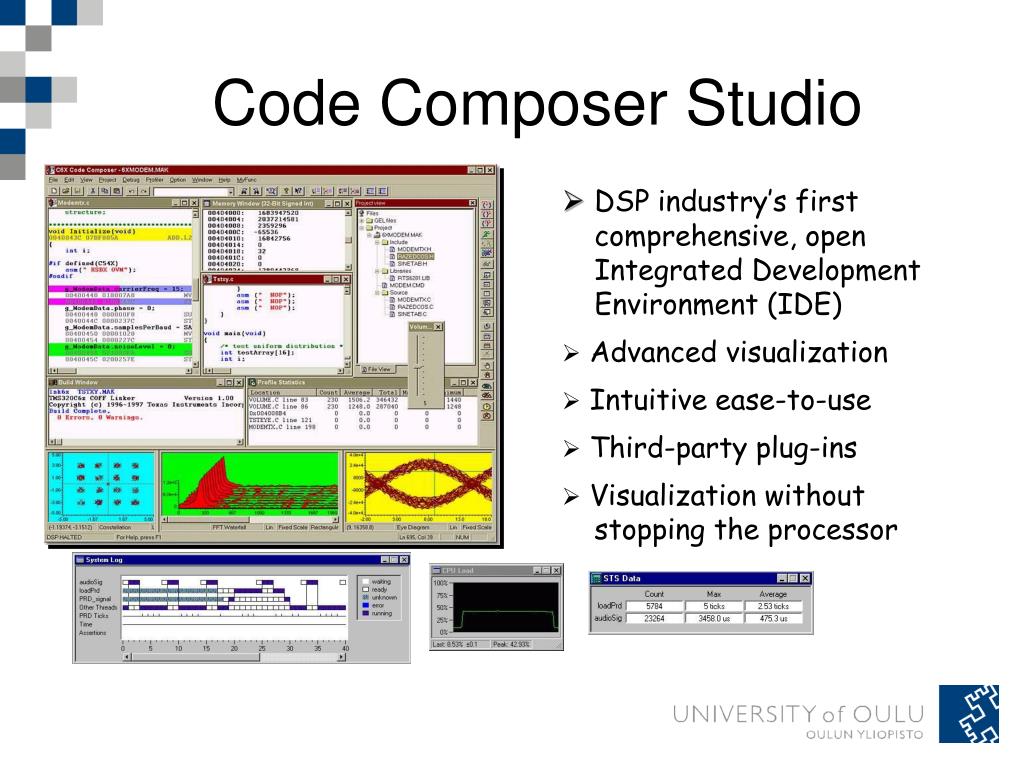

14. Code Composer Studio • DSP industry’s first comprehensive, open Integrated Development Environment (IDE) • Advanced visualization • Intuitive ease-to-use • Third-party plug-ins • Visualization without stopping the processor

15. Digital Signal Processing Laboratory Work 521485S C67x exercise http://www.ee.oulu.fi/research/tklab/courses/521485S/c67x.html Miguel Bordallo, miguelbl@ee.oulu.fi, TS301 Department of Computer Science and Engineering (CSE) University of Oulu

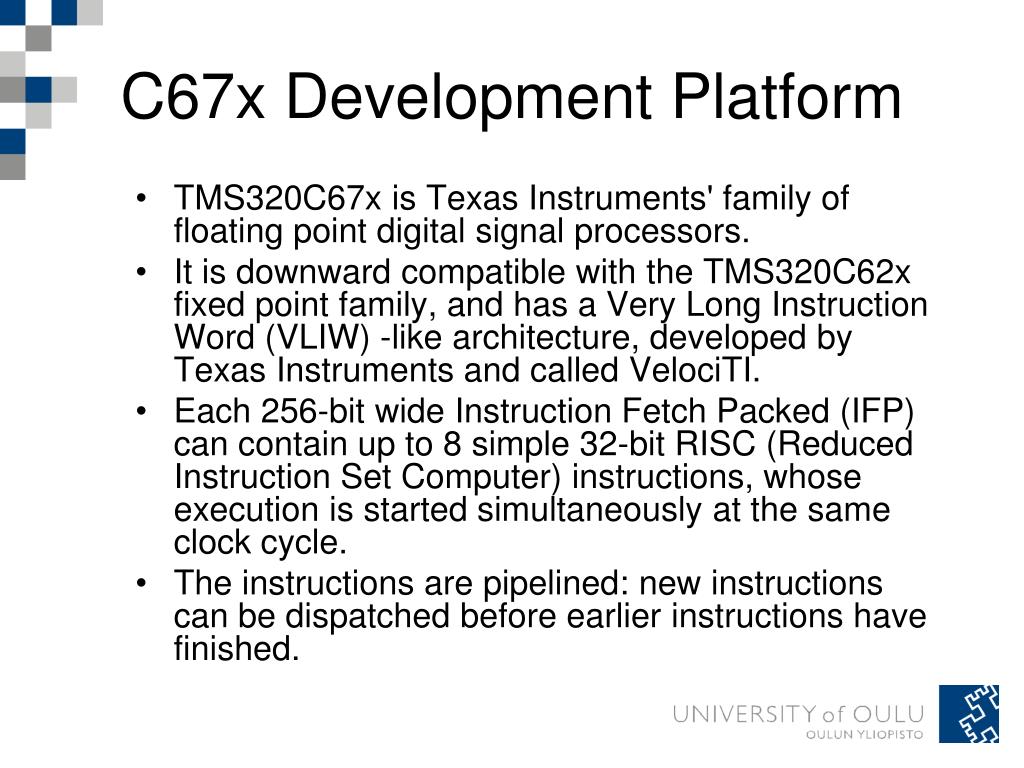

16. C67x Development Platform • TMS320C67x is Texas Instruments' family of floating point digital signal processors. • It is downward compatible with the TMS320C62x fixed point family, and has a Very Long Instruction Word (VLIW) -like architecture, developed by Texas Instruments and called VelociTI. • Each 256-bit wide Instruction Fetch Packed (IFP) can contain up to 8 simple 32-bit RISC (Reduced Instruction Set Computer) instructions, whose execution is started simultaneously at the same clock cycle. • The instructions are pipelined: new instructions can be dispatched before earlier instructions have finished.

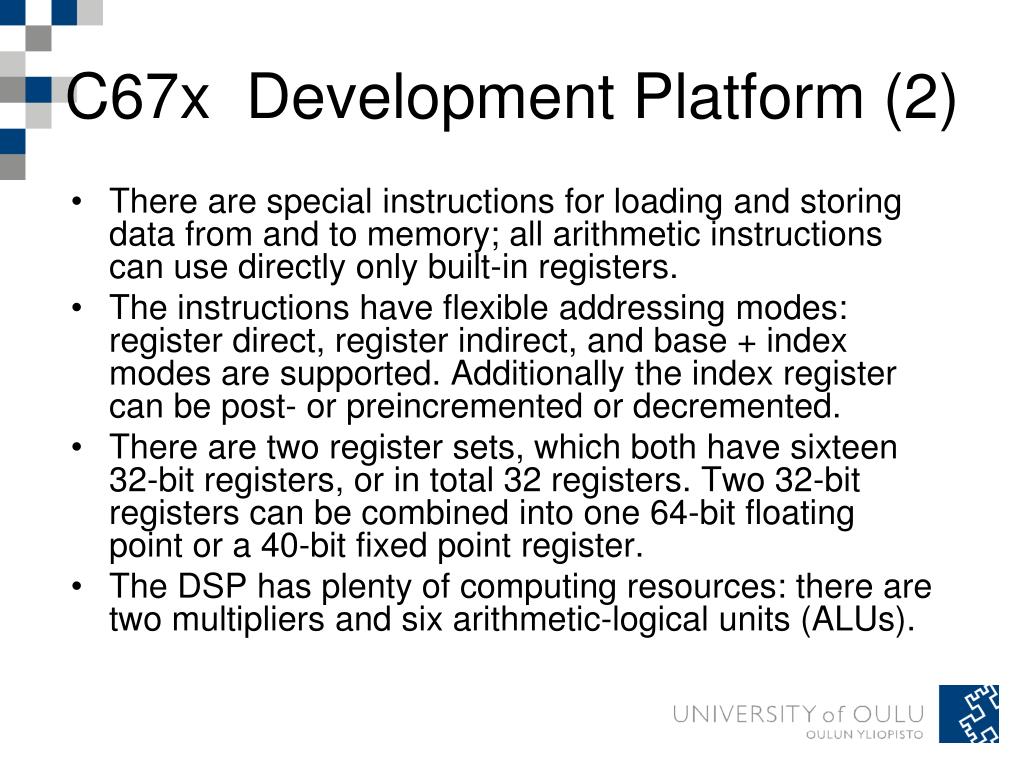

17. C67x Development Platform (2) • There are special instructions for loading and storing data from and to memory; all arithmetic instructions can use directly only built-in registers. • The instructions have flexible addressing modes: register direct, register indirect, and base + index modes are supported. Additionally the index register can be post- or preincremented or decremented. • There are two register sets, which both have sixteen 32-bit registers, or in total 32 registers. Two 32-bit registers can be combined into one 64-bit floating point or a 40-bit fixed point register. • The DSP has plenty of computing resources: there are two multipliers and six arithmetic-logical units (ALUs).

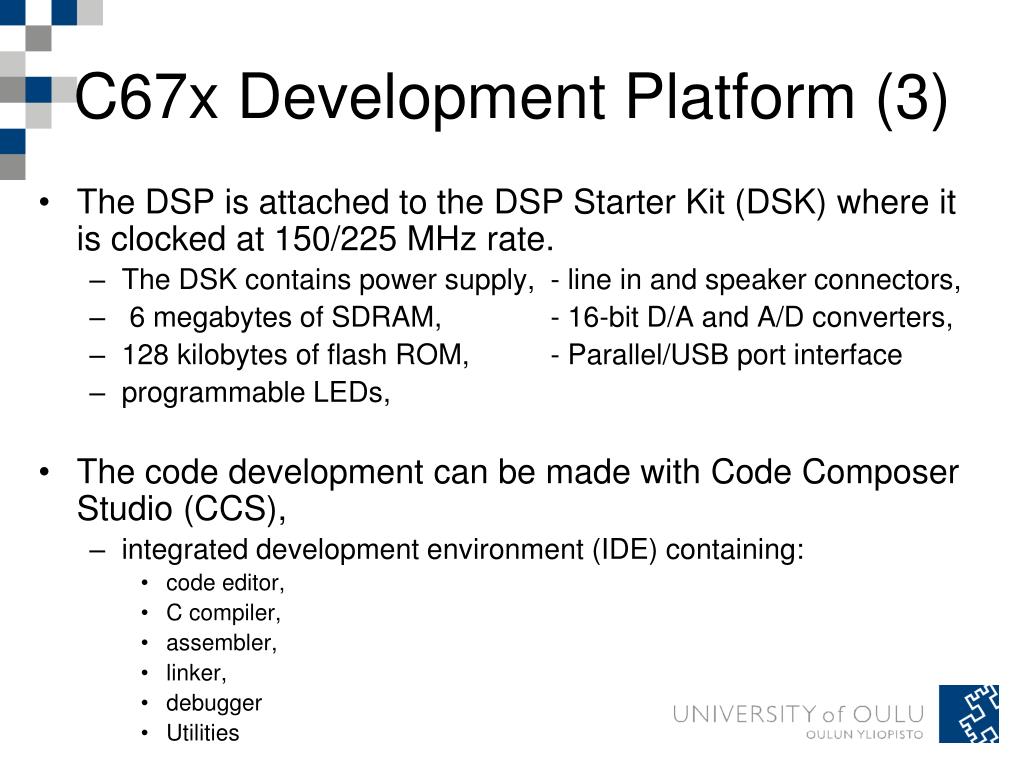

18. C67x Development Platform (3) • The DSP is attached to the DSP Starter Kit (DSK) where it is clocked at 150/225 MHz rate. • The DSK contains power supply, - line in and speaker connectors, • 6 megabytes of SDRAM, - 16-bit D/A and A/D converters, • 128 kilobytes of flash ROM, - Parallel/USB port interface • programmable LEDs, • The code development can be made with Code Composer Studio (CCS), • integrated development environment (IDE) containing: • code editor, • C compiler, • assembler, • linker, • debugger • Utilities

19. C67x Development Platform (4) • The Code Composer Studio contains a firmware kernel called DSP/BIOS, • provides basic runtime services for managing block-based data transfers. • Analog-to-digital (A/D) converter produces samples one by one, generating a hardware interrupt for each. • The DSP/BIOS collects the samples into a frame. • When the frame fills up, a software interrupt is generated • The control is transferred to the user application. • The application will receive the whole frame at once, • It does not need to take care of collecting single samples. • DSP/BIOS contains routines for outputting framed data via digital-to-analog (D/A) converter.

20. C67x Exercises • All C code can be written by modifying example program dsp_lab.c. • Exercise questions increase in complexity • Last questions combines results from previous questions: questions should be done in order • For doing the exercises, you must understand: • Generation of sine signals using IIR filters • Decimation • Interpolation • Implementation of a fast Fourier transform (FFT) • Frame based processing • Basics of C67x architecture (DSP assembly, DSP architecture • Most code should be written on any workstation, but the final program must run on the DSPs

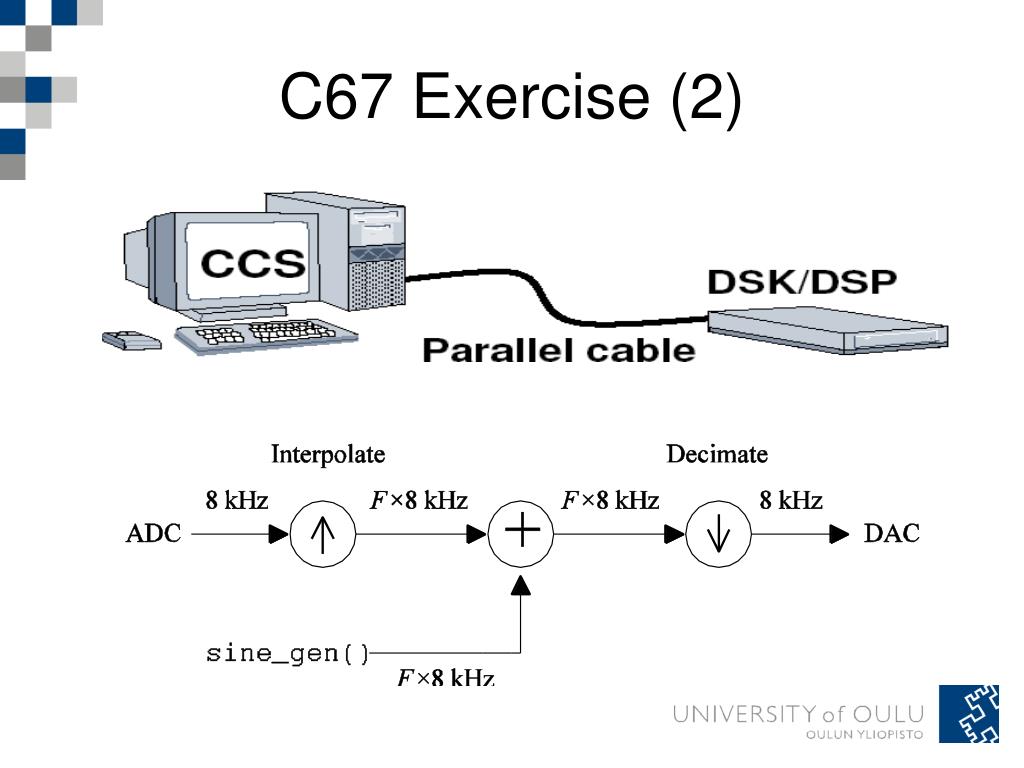

21. C67 Exercise (2)

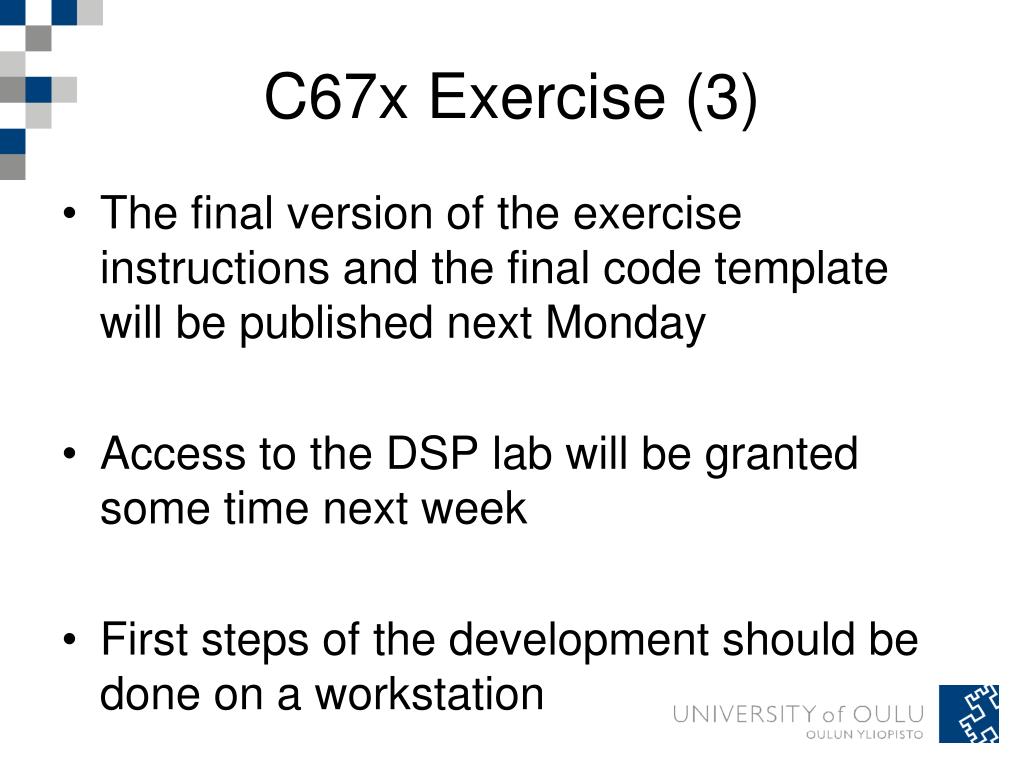

22. C67x Exercise (3) • The final version of the exercise instructions and the final code template will be published next Monday • Access to the DSP lab will be granted some time next week • First steps of the development should be done on a workstation

23. How to proceed ? • Read the instructions carefully (all of them) • Gather the documentation that you will need • Study the algorithms and concepts involved • Convolution, complex multiplication, IIR, FIR, overlap-save • Design the algorithms. Test some parts with MATLAB • (e.g. FFT) • Start coding on a Unix station • Test your code against well known results (e.g. in Matlab) • When the final code is working: • Think about the DSP architecture and make some changes • Check the memory usage. Check the data types. Check the use of very slow functions (such as pow() ) • Move to the DSP platform

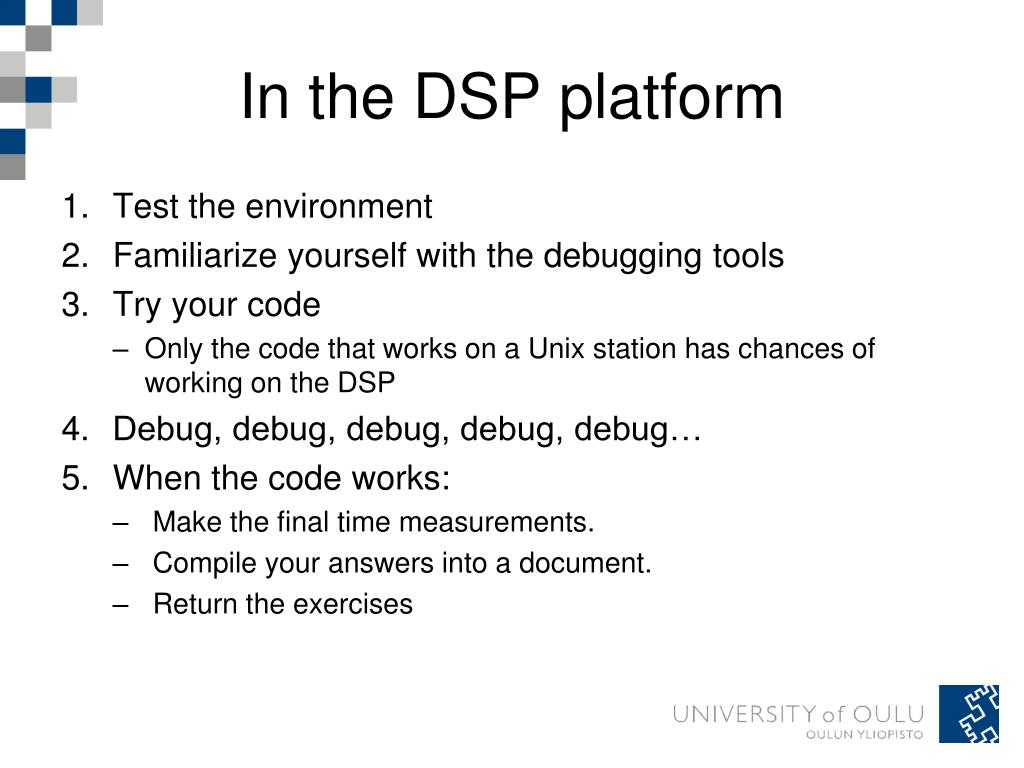

24. In the DSP platform • Test the environment • Familiarize yourself with the debugging tools • Try your code • Only the code that works on a Unix station has chances of working on the DSP • Debug, debug, debug, debug, debug… • When the code works: • Make the final time measurements. • Compile your answers into a document. • Return the exercises

25. In case of problems • Read the instructions and the webpage (FAQ) It might be that the question is already answered there • First, send and email to me. • Always attatch the code and results • Specify the problem as much as possible, so it can be reproduced. • I will answer with debugging strategies and suggestions of tests. • If all fails, I will set up a time to meet you in the lab.

26. Questions? ?? ?? ?? ?? ?? ?? ?? ??
