Compaction

Compaction. I.   *Definitions The process of forcing air out of the soil, resulting an increase in density. The effect of compaction on pore space II. *Types of compaction Rolling or kneading: most effective for clayey soils Vibrating: most effective for non-clayey soils

brigid
Télécharger la présentation

Compaction

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

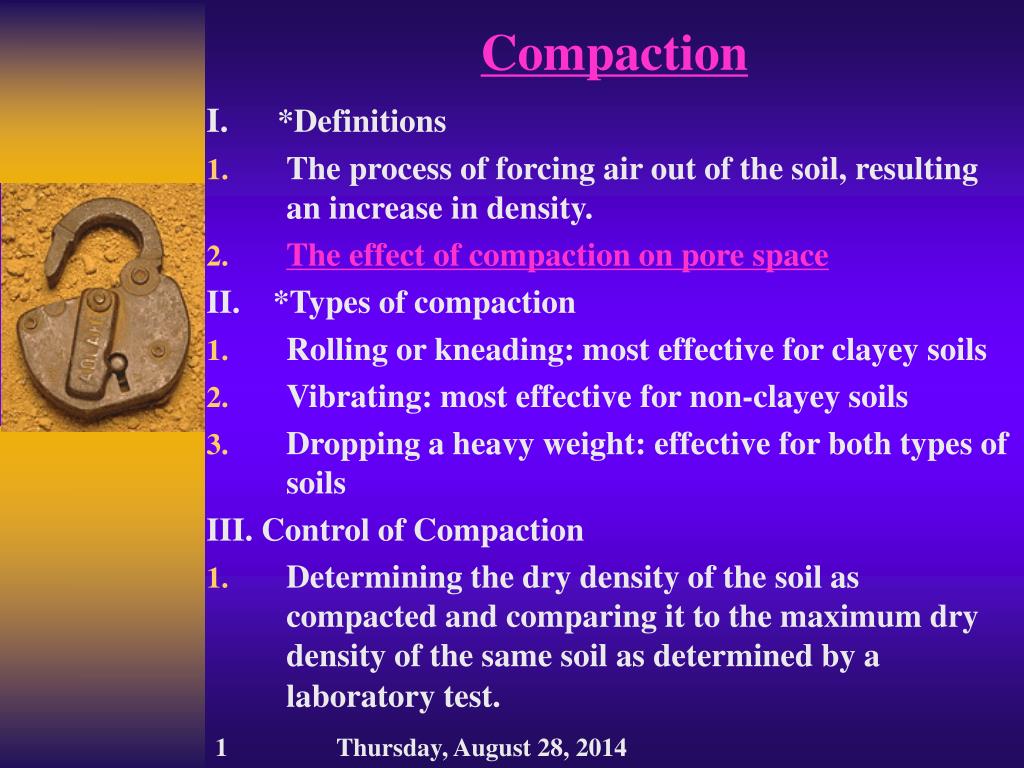

  1. Compaction I.  *Definitions The process of forcing air out of the soil, resulting an increase in density. The effect of compaction on pore space II. *Types of compaction Rolling or kneading: most effective for clayey soils Vibrating: most effective for non-clayey soils Dropping a heavy weight: effective for both types of soils III. Control of Compaction Determining the dry density of the soil as compacted and comparing it to the maximum dry density of the same soil as determined by a laboratory test. 1Thursday, August 28, 2014

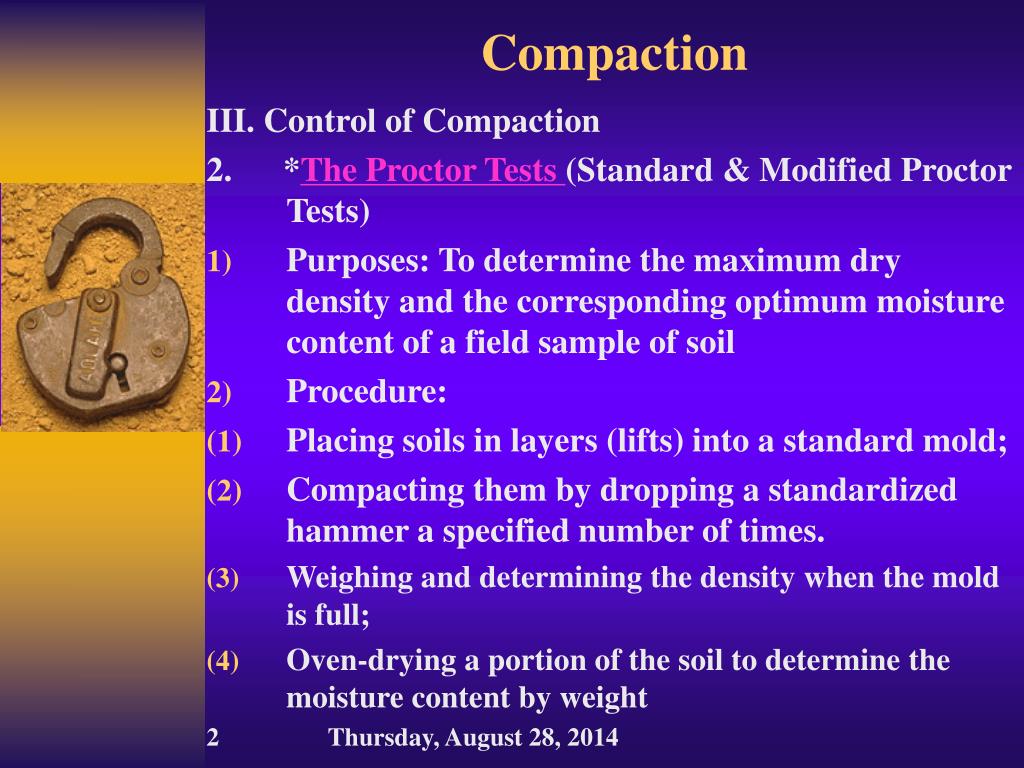

  2. Compaction III. Control of Compaction 2. *The Proctor Tests (Standard & Modified Proctor Tests) Purposes: To determine the maximum dry density and the corresponding optimum moisture content of a field sample of soil Procedure: Placing soils in layers (lifts) into a standard mold; Compacting them by dropping a standardized hammer a specified number of times. Weighing and determining the density when the mold is full; Oven-drying a portion of the soil to determine the moisture content by weight 2Thursday, August 28, 2014

  3. Compaction III. Control of Compaction Difference between standard & modified tests The amount of energy (the weight of hammer and the height from which it is dropped); The number of lifts; Typical compaction curves The amount of compaction depends on: compaction effort and water content of the soil Compaction effort Function of water in compaction: (2) A specific relative compaction can be achieved for the soil over a range of moisture contents 3Thursday, August 28, 2014

  4. Compaction *Misconceptions about compaction The first is that 100% relative compaction implies that all of the air has left the soil (zero air voids). However, the compaction curve never reaches the zero air voids curve and it is impossible to remove all of the air voids with conventional techniques. The second is that the Modified Proctor test has been standardized to approximate typical compact efforts achieved in the field with modern conventional equipment. However, it is not practical to attempt to achieve relative compactions at or above 100%. 4Thursday, August 28, 2014

  5. Compaction Misconceptions about compaction The third is that a given soil has a specific optimum moisture content. The optimum moisture content depends on the amount of compact energy and the method of compaction, and the increase in the compact energy decreases the optimum moisture content. Soil Compaction Equipment (Rammer, plate compactor, rollers) Homework (Ex. II on page 224 in the textbook) 5Thursday, August 28, 2014
