Ionic Solids Characteristics

Conductivity. Yes. No. In the molten or aqueous phase. In the solid phase. Ionic Solids Characteristics. Formed from a bond between a metal and nonmetal. Ionic Solids. Strong Electrostatic Attractions. Rigid crystalline structure. Relatively High

brilliant
Télécharger la présentation

Ionic Solids Characteristics

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Conductivity Yes No In the molten or aqueous phase In the solid phase Ionic Solids Characteristics Formed from a bond between a metal and nonmetal Ionic Solids Strong Electrostatic Attractions Rigid crystalline structure Relatively High Melting Point Hard, brittle solids

  2. The First Couple • # 1) Energy is released when bonds are formed. Energy is absorbed when bonds are broken. • #2) As a bond forms the PE decreases. • #3) Energy is released -> stability increases • #4) Two atoms combine to form a molecule, bond formed, energy is released

  3. H H H H #5 Which electron-dot diagram represents H2? Both hydrogen’s will equally share their valence electron

  4. #9) In which compound do the atoms have the greatest difference in electronegativity? • NaBr |0.9 – 3.0| = 2.1 • KF |0.8 – 4.0| = 3.2 • AlCl3 |1.6 – 3.2| = 1.6 • LiI |1.0 – 2.7| = 1.7

  5. #13) Given the reaction: M + 2H2O -> M(OH)2 + H2The metal represented by M is most likely a metal from Group The subscript of 2 on the hydroxide came from the charge on the metal (M). M(OH)2 M+2(OH)-1 So the Metal (M) must be from Group 2 because of its +2 oxidation state!

  6. #16) Element X has an electron configuration of 2-8-3. This element will combine with the phosphate ion to form a compound with the formula 3 Valence e-’s means that is will have an oxidation state of +3 X+3(PO4)-3 From Table E: phosphate has a -3 Criss Cross w/out charges X3(PO4)3 3 3 Reduce to Lowest Ratio X(PO4)

  7. H H H H #33 a. b. c. H2 is nonpolar and H2O is polar, like dissolves like, therefore H2 will not dissolve in H2O. 1Mg +1H2SO41H2+1MgSO4

  8. #34 + H N H H a. b. N H H H H

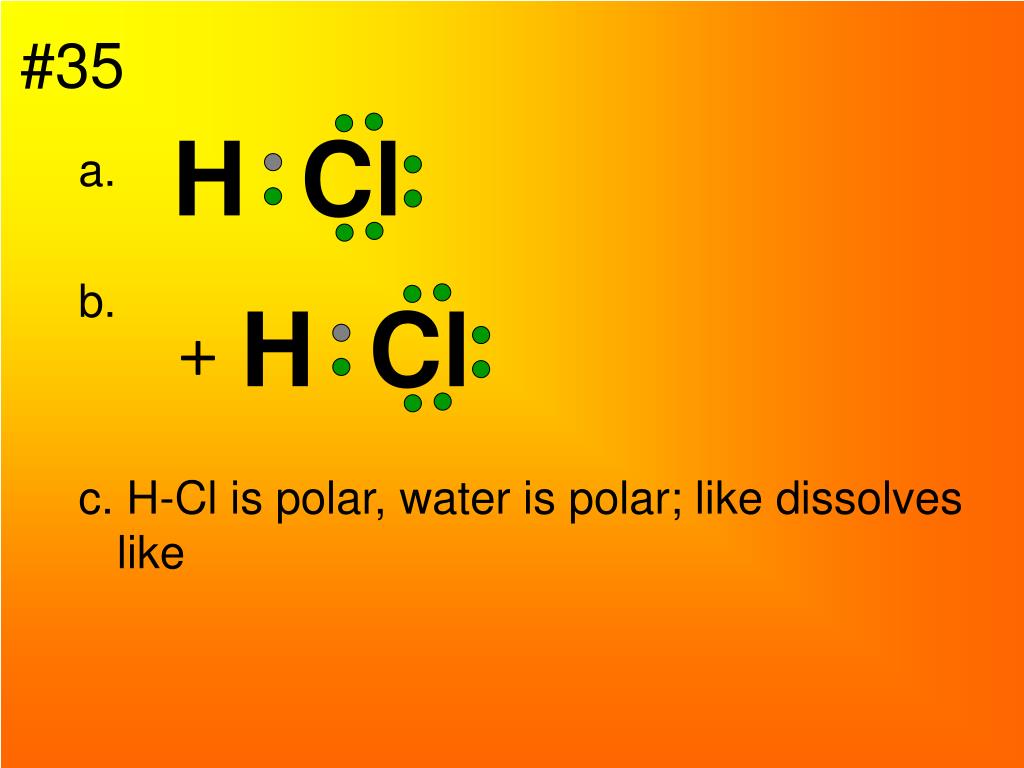

  9. #35 H Cl a. b. c. H-Cl is polar, water is polar; like dissolves like H Cl +

  10. #36 N N a. OR b. N2 is very stable, unreactive because of triple bond (a lot of energy was released when this bond was formed). N N
