Fractals – Lesson 4

Fractals – Lesson 4. The perimeter and area of the Von Koch Snowflake. Learning objectives. We are learning to: Understand the difference between term-to-term rules and position-to-term rules . Write an expression to describe the n th term of a sequence. Learning outcome.

brooks
Télécharger la présentation

Fractals – Lesson 4

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Fractals – Lesson 4 The perimeter and area of the Von Koch Snowflake

  2. Learning objectives We are learning to: • Understand the difference between term-to-term rules and position-to-term rules. • Write an expression to describe the nth term of a sequence. CEDS – Study Plus in Cornwall

  3. Learning outcome By the end of the lesson you will: • Understand the difference between term-to-term and position-to-term rules. • Have derived the position-to-term rule for the number of edges and the length of each edge of the Von Koch Snowflake. • Have made a discovery about the curious properties of the Von Koch snowflake. CEDS – Study Plus in Cornwall

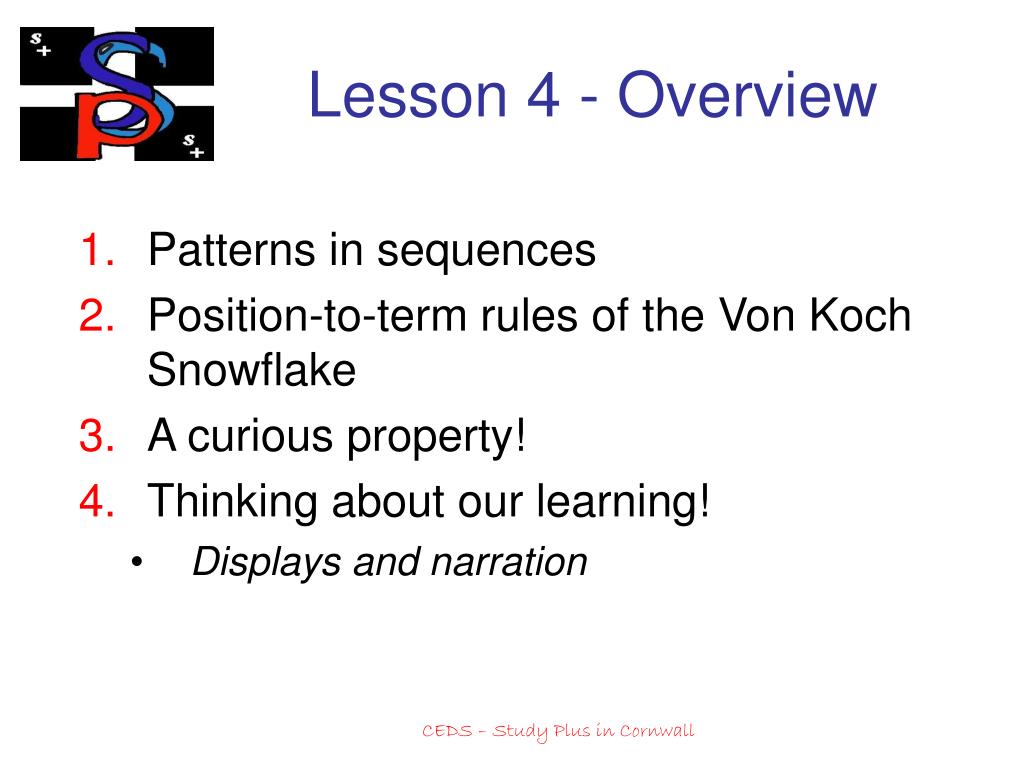

  4. Lesson 4 - Overview • Patterns in sequences • Position-to-term rules of the Von Koch Snowflake • A curious property! • Thinking about our learning! • Displays and narration CEDS – Study Plus in Cornwall

  5. 1. Patterns in sequences 1, 2, 4, 8, … … … Term to term rule CEDS – Study Plus in Cornwall

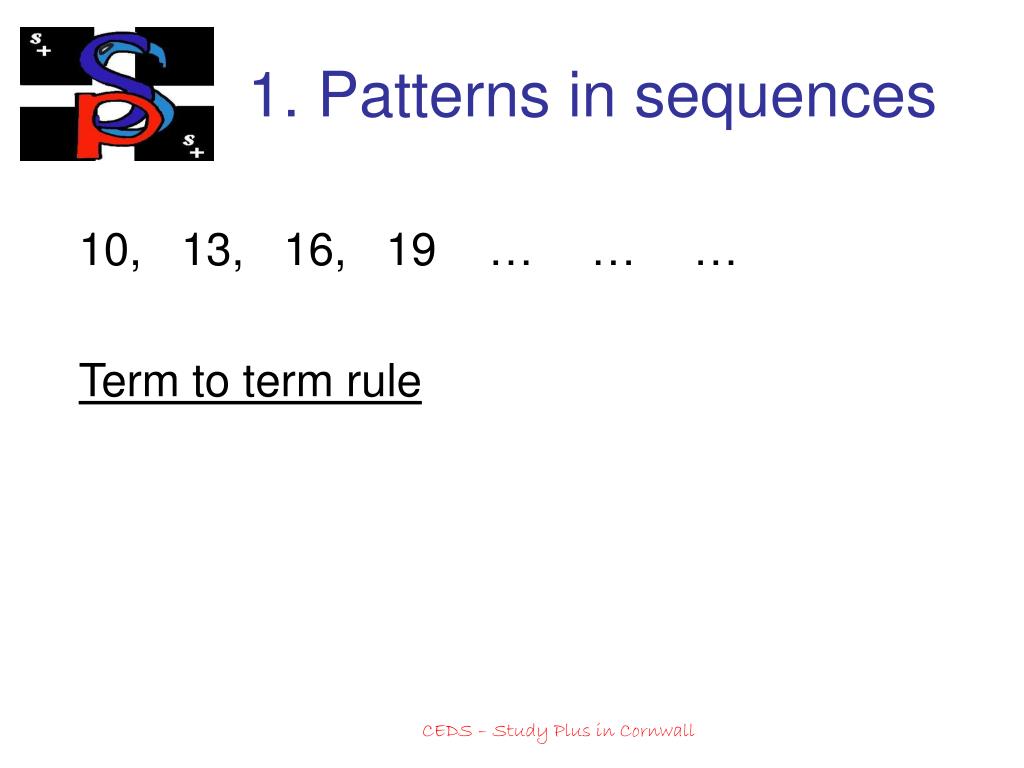

  6. 1. Patterns in sequences 10, 13, 16, 19 … … … Term to term rule CEDS – Study Plus in Cornwall

  7. 1. Patterns in sequences … … … … … … Term to term rule multiply by ½ CEDS – Study Plus in Cornwall

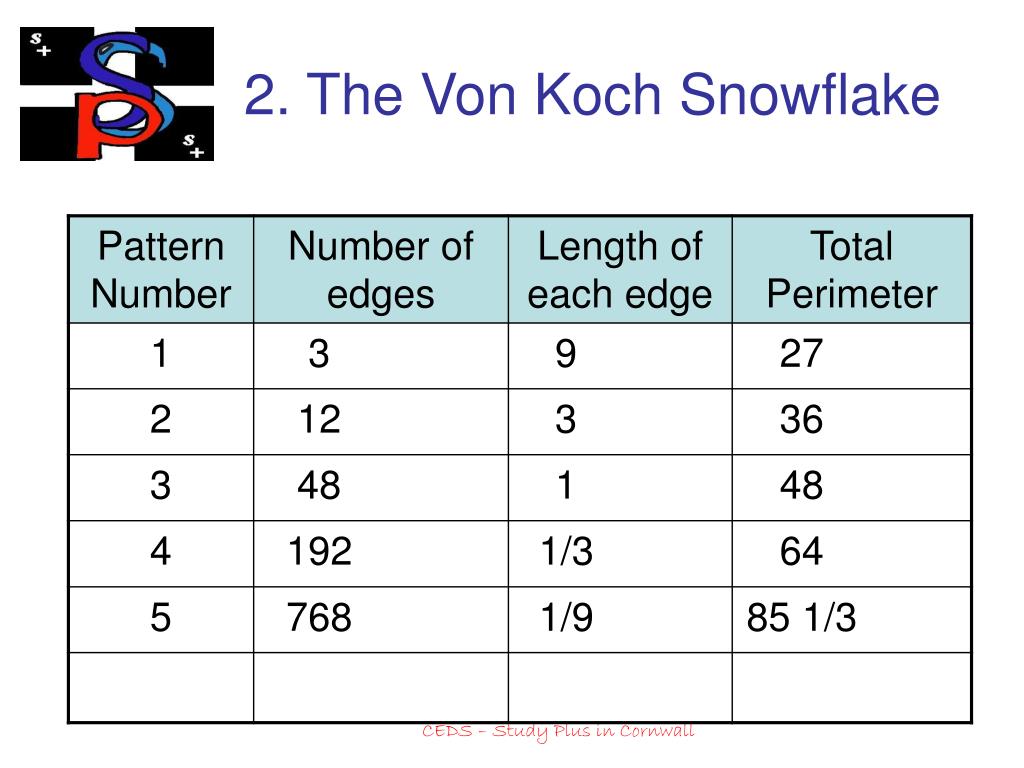

  8. 2. The Von Koch Snowflake CEDS – Study Plus in Cornwall

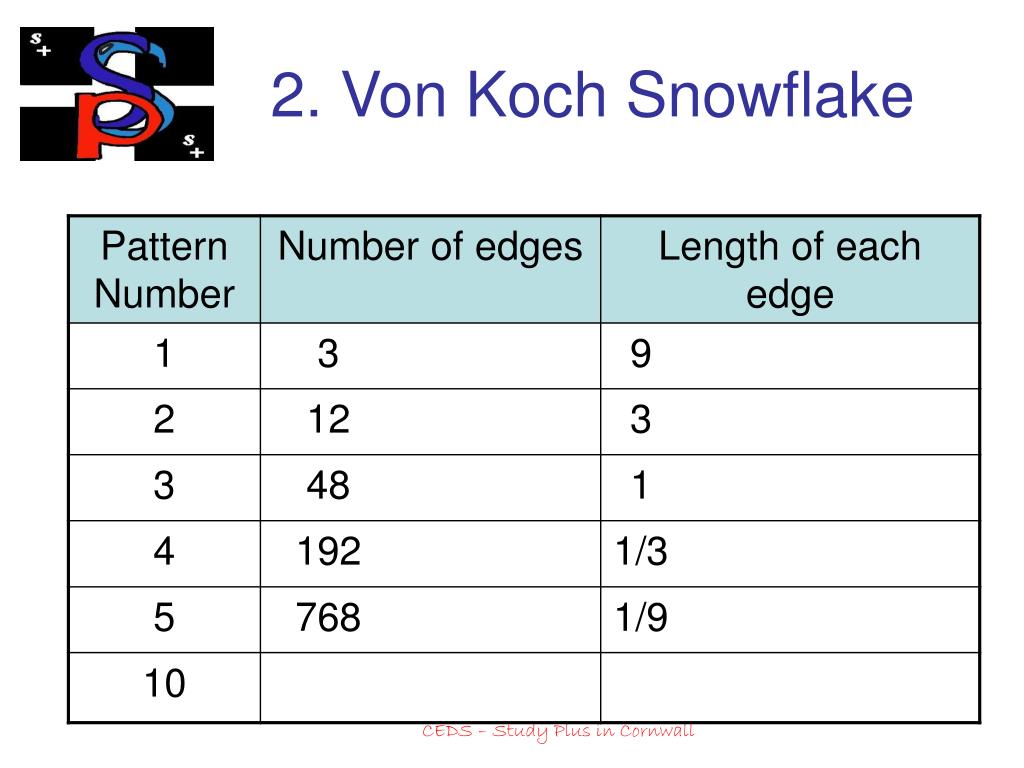

  9. 2. Von Koch Snowflake CEDS – Study Plus in Cornwall

  10. 2. Von Koch Snowflake CEDS – Study Plus in Cornwall

  11. Nth terms Number of edges sequence 3, 12, 48, 192, … … 3 x 4n-1 Length of each edge sequence 9, 3, 1, 1/3, … … 9 ÷ 3n-1 CEDS – Study Plus in Cornwall

  12. × 4/3 × 3/4 Sequence showing the length of the perimeter 27, 36, 48, 64, … CEDS – Study Plus in Cornwall

  13. What is the perimeter of pattern number 6? CEDS – Study Plus in Cornwall

  14. CEDS – Study Plus in Cornwall

  15. Learning outcome By the end of the lesson you will: • Understand the difference between term-to-term and position-to-term rules. • Have derived the position-to-term rule for the number of edges and the length of each edge of the Von Koch Snowflake. • Have made a discovery about the curious properties of the Von Koch snowflake. CEDS – Study Plus in Cornwall
