Analysis _circuit

Analysis _circuit. DVI1 input. ADV3003. ADV7604. FPGA_VS. DVI1 Output. ADV3003. ADV7510. DVI2 input. ADV3003. ADV7604. FPGA_VS. DVI2 Output. ADV3003. ADV7510. Signal Connection. DVI Signal generator. DVI1 input. DVI1 output. DVI1 input. Monitor1. Monitor2.

bruno-osborn
Télécharger la présentation

Analysis _circuit

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Analysis _circuit DVI1 input ADV3003 ADV7604 FPGA_VS DVI1 Output ADV3003 ADV7510 DVI2 input ADV3003 ADV7604 FPGA_VS DVI2 Output ADV3003 ADV7510

  2. Signal Connection DVI Signal generator DVI1 input DVI1 output DVI1 input Monitor1 Monitor2 When DVI cable from our monitor1 to Monitor2, plug/unplug several times, monitor 2 will noise happened. Monitor1 always display normally. And it would be disappeared by next time unplug/plug, and happened again sometimes.

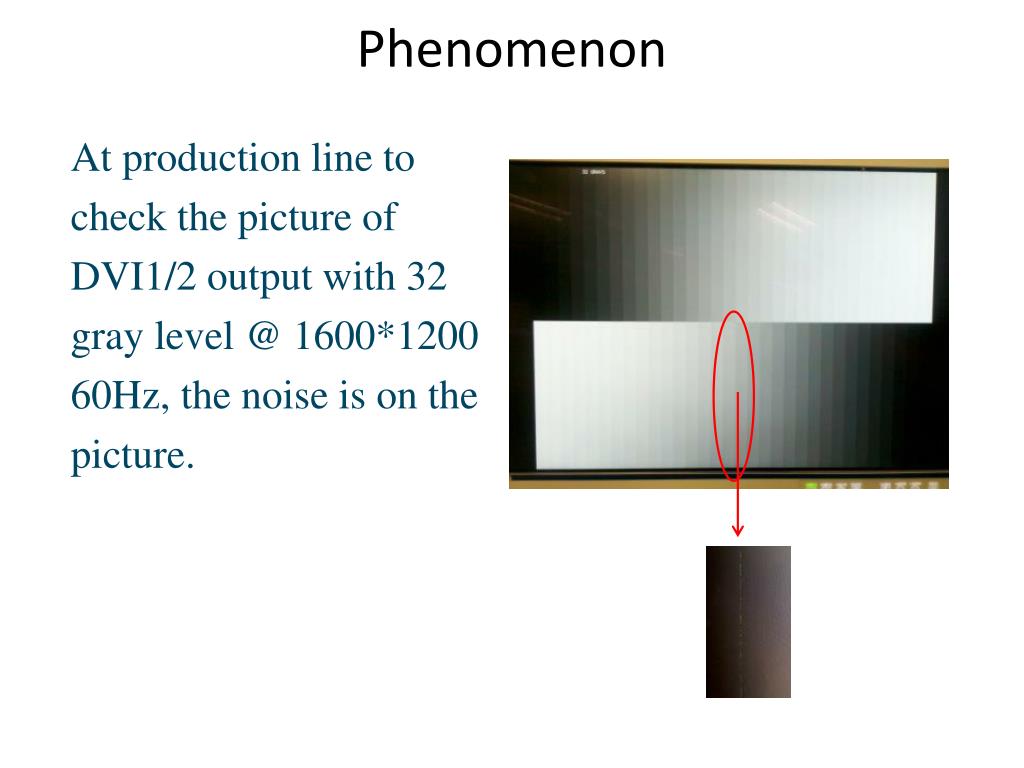

  3. Phenomenon • At production line to • check the picture of • DVI1/2 output with 32 • gray level @ 1600*1200 • 60Hz, the noise is on the • picture.
