  1. 802.1X & EAPState Machines(found at: http://www-personal.umich.edu/~jrv/eap.htm) Jim Burns Paul Congdon Nick Petroni John Vollbrecht

  2. New Significant 802.1aa/D5 Changes • Specification of interface between EAP/802.1X • No more EAP packet processing in 802.1X • Addition of controlled port in Supplicant • Initial Authenticator request comes from EAP • Ability for EAP to silently discard frames • Proposed inclusion of EAP machines in 802.1X Annex • EAPOL-Key exchange sequenced before EAP-Success • Propose to include generic 4-way handshake within 802.1X

  3. Issues to Discuss • How to best incorporate 802.11 into the 802.1X/EAP interface diagrams? • What is the proper sequence for key exchange and sending final EAP-Success? • What is the interface to generic 4-way handshake machine? • Where to define the specification of EAPOL-Key message processing?

  4. EAP / 802.1X Interface(excluding key exchange) Supplicant/Peer Authenticator EAP Method EAP Method EAP Layer EAP Layer eapReq eapFail eapSuccess eapNoReq eapResp eapNoResp eapSuccess eapFail eapRcvd eapResp eapRestart 802.1x 802.1x port enabled/disabled port enabled/disabled

  5. Key Interface with EAP802.1X & 802.11 EAP Method EAP Method EAP Layer EAP Layer keyAvailable keyAvailable 802.1x 802.1x portValid portValid Link Secure (physical or crypto) Link Secure (physical or crypto)

  6. EAP / EAP Method Interface EAP Method EAP Method Method-state Method-state Startmethod rcvRsp/NAK intCheck !intCheck intCheck !intCheck rxMethodReq EAP Layer EAP Layer 802.1x 802.1x

  7. Supplicant Front-End (userLogoff && !logoffSent) && !(initialize || !portEnabled) Initialize || !portEnabled DISCONNECTED startCount = 0; logoffSent = FALSE; portStatus = Unauthorized; suppAbort = TRUE; HELD heldWhile = heldPeriod; portStatus = Unauthorized; LOGOFF txLogoff; logoffSent = TRUE; portStatus = Unauthorized; heldWhile == 0 eapRcvd eapSuccess && portValid !userLogoff UTC AUTHENTICATED portStatus = Authorized; CONNECTING startWhen = startPeriod; startCount = startCount + 1; eapRcvd = FALSE; txStart; (startWhen == 0) && (startCount < maxStart) !portValid eapRcvd eapFail eapRcvd && portValid (((startWhen == 0) && (startCount >= maxStart)) !! eapSuccess) && portValid AUTHENTICATING startCount = 0; eapSuccess = FALSE; easFail = FALSE; suppTimeout = FALSE; suppStart = TRUE; eapRcvd = FALSE; suppTimeout eapFail

  8. Supplicant Back-End (portControl! = Auto) || Initialize || suppAbort REQUEST authWhile = 0; getSuppRsp; INITIALIZE previousId = 256; abortSupp; suppAbort = FALSE; eapResp RESPONSE txsuppRsp(receivedId, previousId); previousId = receivedId; eapResp = FALSE; eapNoResp UTC UTC RECEIVE authWhile = authPeriod; eapRcvd = FALSE; eapNoResp = FALSE; authWhile == 0 eapRcvd eapSucess || eapFail TIMEOUT suppTimeout = TRUE UTC IDLE suppStart = FALSE; suppStart

  9. EAP Peer

  10. Authenticator Front-End ((portControl==auto) && (portMode != portControl)) || Initialize || !portEnabled INITIALIZE portMode=auto; eapRestart=TRUE; UCT eapolLogoff && !authAbort DISCONNECTED portStatus=Unauthorized eapolLogoff=FALSE; HELD portSatus=Unauthorized quietWhile=quietPeriod; eapolLogoff=FALSE; eapolLogoff || !portValid UCT (quietWhile == 0) eapolLogoff CONNECTING eapolStart=FALSE; reAuthenticate=FALSE !eapolLogoff && !authAbort eapolStart || reAuthenticate (eapReq || eapSuccess || eapFail) && (eapRestart == FALSE) authFail AUTHENTICATED portStatus=Authorized ABORTING authAbort=TRUE; eapRestart=TRUE; authSuccess && portValid AUTHENTICATING authSuccess=FALSE; authFail=FALSE; authTimeout=FALSE; authStart=TRUE; reAuthenticate || eapolStart || eapolLogoff || authTimeout

  11. (portControl!=Auto)|| Initialize || authAbort (aWhileReq==0) && (reqCount != maxReq) REQUEST txReq(); aWhileReq=suppTimeout; inc(reqCount); INITIALIZE abortAuth; eapNoRequest=FALSE; authAbort=FALSE; (aWhileReq == 0) && (reqCount != maxReq) eapResp eapRequest eapResp RESPONSE eapRequest=eapSuccess=FALSE; authTimeout=FALSE; eapResp=eapFail=FALSE; eapNoRequest=FALSE; aWhile=serverTimeout; reqCount=0; sendRespToServer(); IGNORE eapNoRequest = FALSE; (aWhileReq==0) && (reqCount>=maxReq) AuthStart && eapRequest (aWhileReq==0) && (reqCount>=maxReq) eapNoRequest eapSuccess && ((keyTxEnabled && !keyAvailable) || !keyTxEnabled) eapFail aWhile==0 TIMEOUT authTimeout=TRUE; FAIL txReq(); authFail=TRUE; SUCCESS txReq(); authSuccess=TRUE; AuthStart && eapFail UCT UCT UCT IDLE authStart=FALSE; reqCount=0; AuthStart && eapSuccess Authenticator Backend

  12. EAP Authenticator

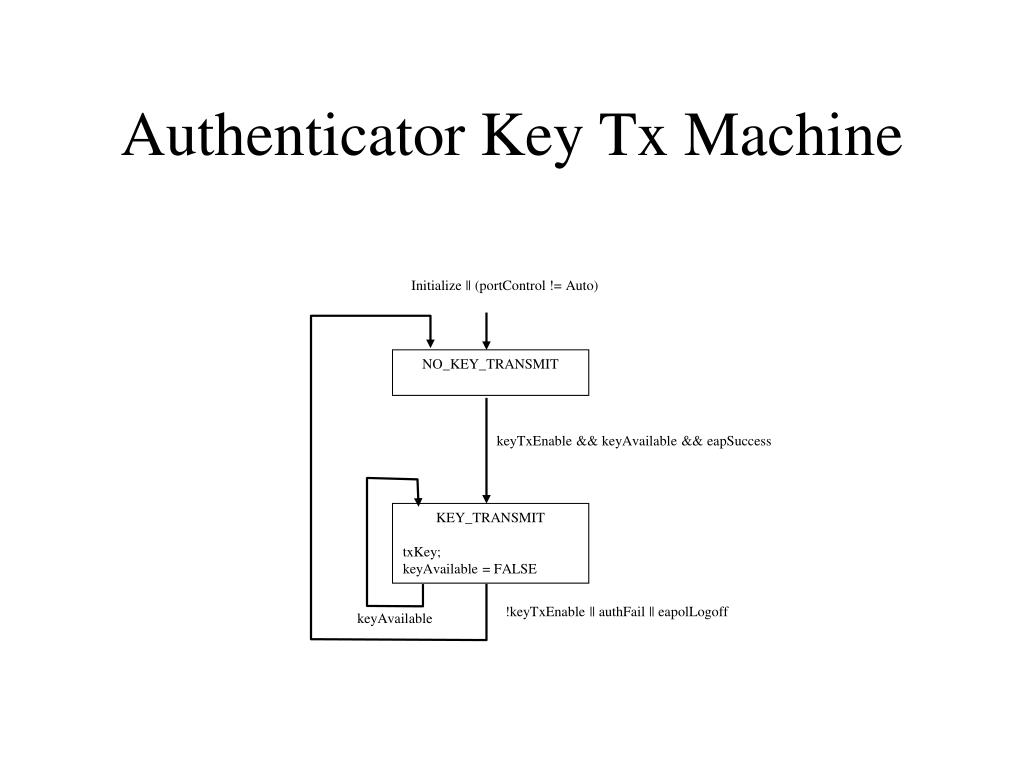

  13. Authenticator Key Tx Machine Initialize || (portControl != Auto) NO_KEY_TRANSMIT keyTxEnable && keyAvailable && eapSuccess KEY_TRANSMIT txKey; keyAvailable = FALSE !keyTxEnable || authFail || eapolLogoff keyAvailable

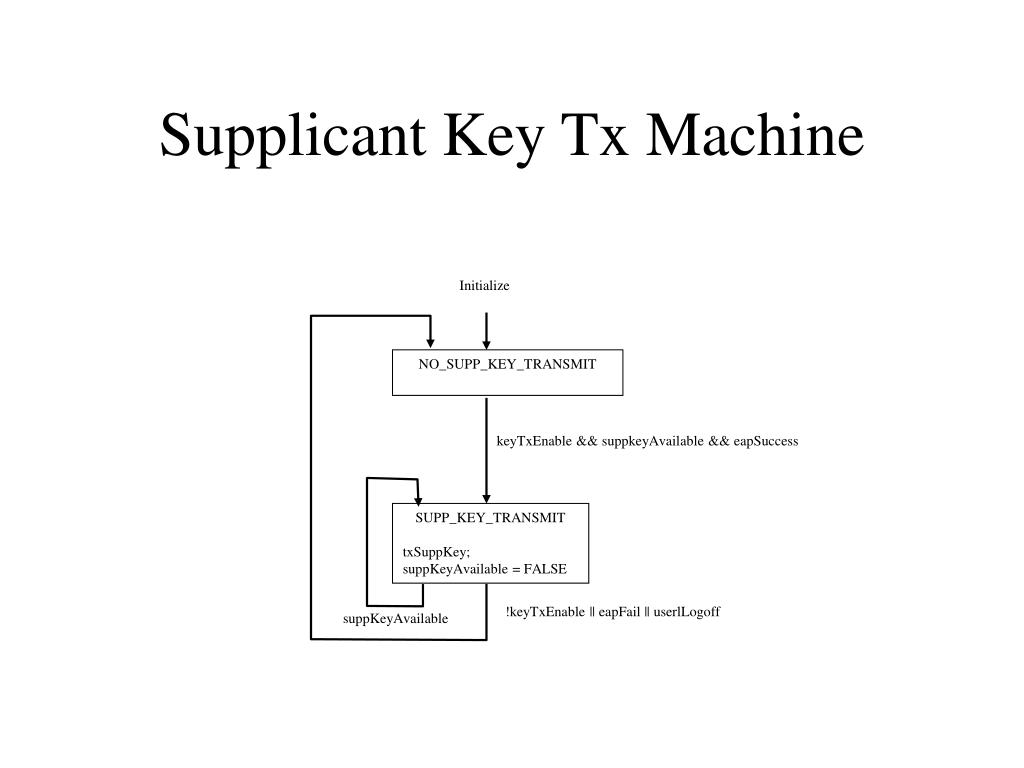

  14. Supplicant Key Tx Machine Initialize NO_SUPP_KEY_TRANSMIT keyTxEnable && suppkeyAvailable && eapSuccess SUPP_KEY_TRANSMIT txSuppKey; suppKeyAvailable = FALSE !keyTxEnable || eapFail || userlLogoff suppKeyAvailable
