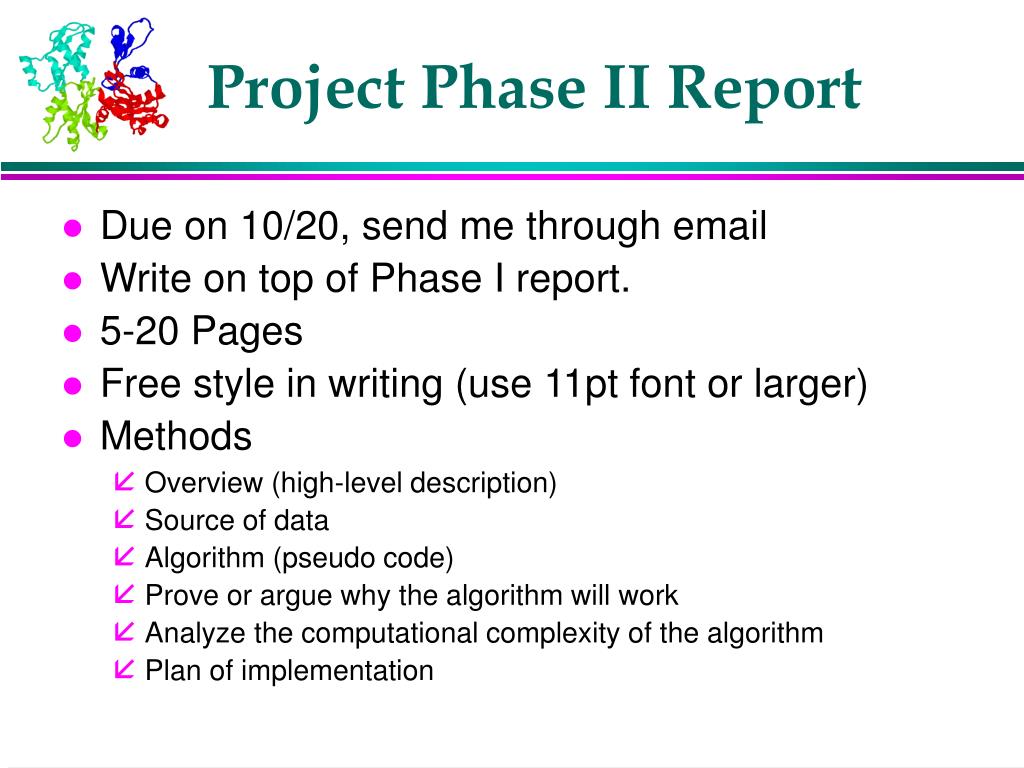

  1. Project Phase II Report • Due on 10/20, send me through email • Write on top of Phase I report. • 5-20 Pages • Free style in writing (use 11pt font or larger) • Methods • Overview (high-level description) • Source of data • Algorithm (pseudo code) • Prove or argue why the algorithm will work • Analyze the computational complexity of the algorithm • Plan of implementation

  2. Multiple Sequence Alignment Dong Xu Computer Science Department 109 Engineering Building West E-mail: xudong@missouri.edu 573-882-7064 http://digbio.missouri.edu

  3. As we proceed … Warning: Muddy Road Ahead!!!

  4. Outline • Background (what, why) • Scoring function • Dynamic programming • Star alignment • Progressive alignment • Profile and Psi-Blast

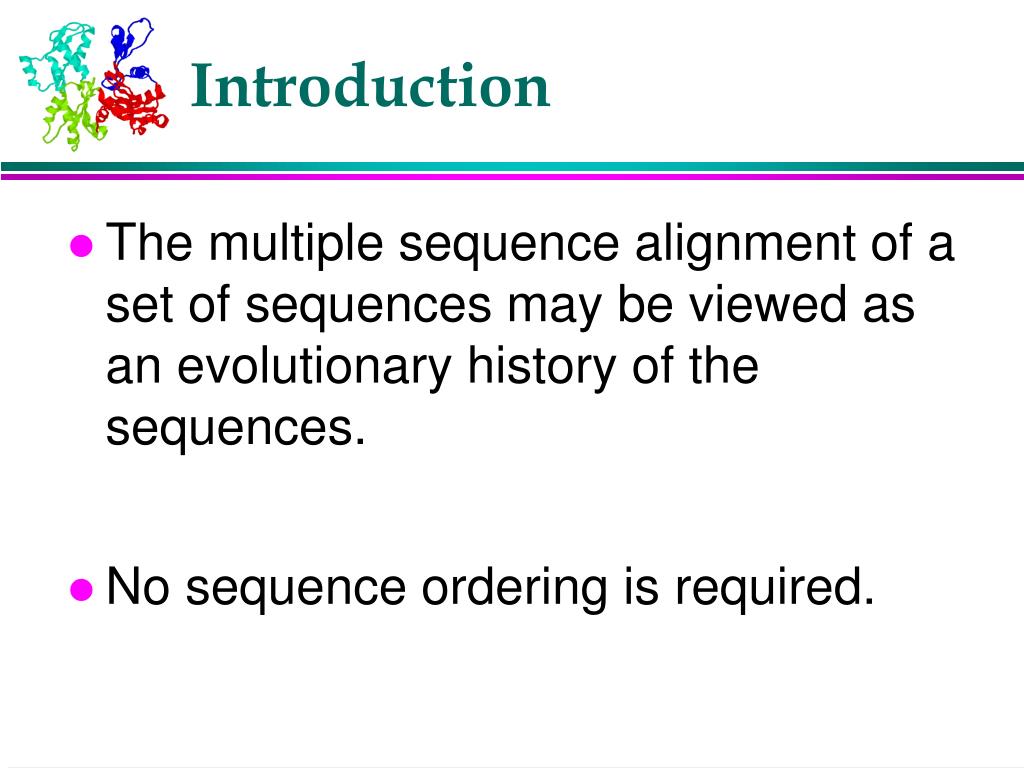

  5. Introduction • The multiple sequence alignment of a set of sequences may be viewed as an evolutionary history of the sequences. • No sequence ordering is required.

  6. An Example of Multiple Alignment VTISCTGSESNIGAG-NHVKWYQQLPG VTISCTGTESNIGS--ITVNWYQQLPG LRLSCSSSDFIFSS--YAMYWVRQAPG LSLTCTVSETSFDD--YYSTWVRQPPG PEVTCVVVDVSHEDPQVKFNWYVDG-- ATLVCLISDFYPGA--VTVAWKADS-- AALGCLVKDYFPEP--VTVSWNSG--- VSLTCLVKEFYPSD--IAVEWWSNG--

  7. Why Multiple Alignment (1) • Natural extension of Pairwise Sequence Alignment • “Pairwise alignment whispers… multiple alignment shouts out loud” Hubbard et al 1996 • Much more sensitive in detecting sequence relationship and patterns

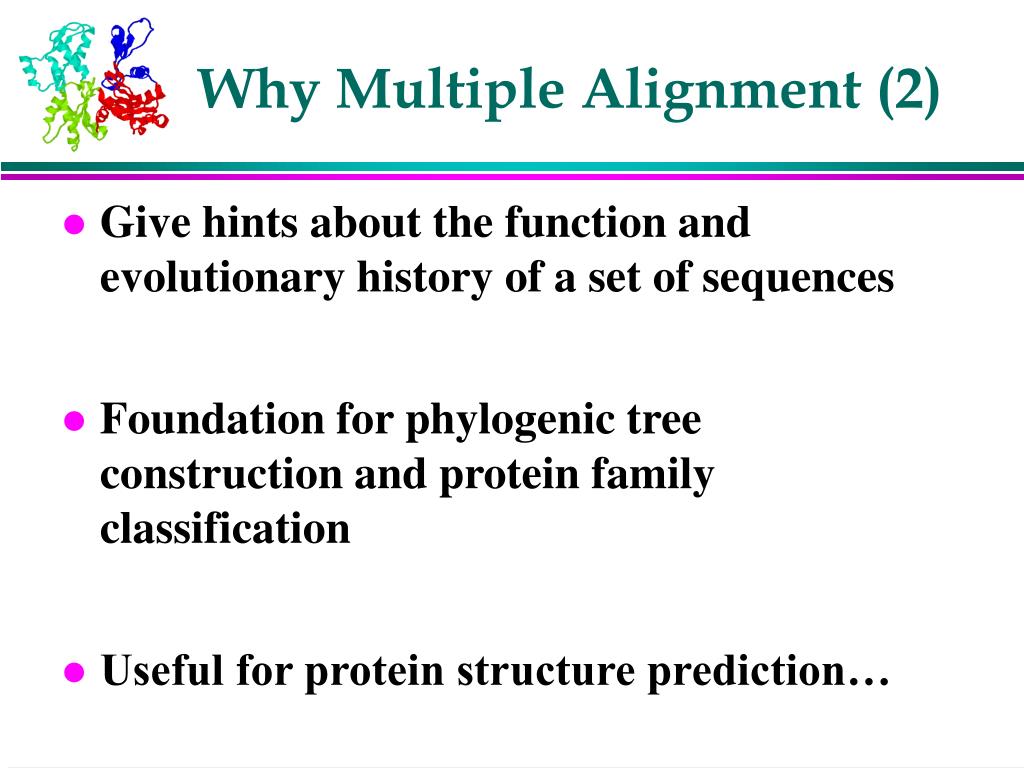

  8. Why Multiple Alignment (2) • Give hints about the function and evolutionary history of a set of sequences • Foundation for phylogenic tree construction and protein family classification • Useful for protein structure prediction…

  9. Outline • Background (what, why) • Scoring function • Dynamic programming • Star alignment • Progressive alignment • Profile and Psi-Blast

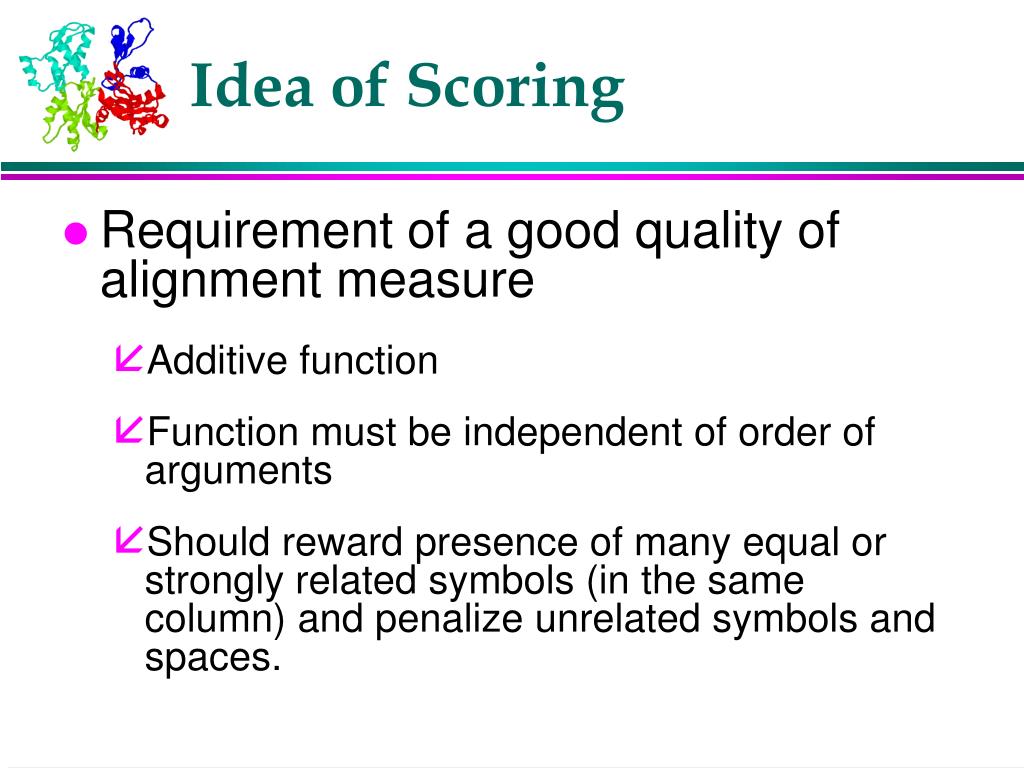

  10. Idea of Scoring • Requirement of a good quality of alignment measure • Additive function • Function must be independent of order of arguments • Should reward presence of many equal or strongly related symbols (in the same column) and penalize unrelated symbols and spaces.

  11. Distance from Consensus • Consensus sequnece: single sequence which represents the most common amino acid/base in that position D D G A V - E A L D G G - - - E A L E G G I L V E A L D - G I L V Q A V E G G A V V Q A L D G G A/I V/L V E A L • distance from consensus: total number of characters in the alignment that differs from the consensus character of their columns

  12. Sum-of-pairs’ (SP) measure • The Sum of Pairs (SP) method is as follows: Given (1) a set of N aligned sequences each of length L in the form of a L x N MSA alignment matrix M and (2) a substitution matrix (PAM or BLOSUM) that gives a cost c(x,y) for aligning two characters x, y . • The SP score SP(mi) for the I-th column of M denoted by mi is calculated: SP(mi) = SUM(j, k) [ c( mij , mik) ] • The SP score for M is SUM(i) [SP(mi) ]

  13. Feature of SP Measure • Theorem: Let alpha be a multiple alignment of the set of sequences s1, …, sk; and alpha(I,j) denote the pairwise alignment of si and sj as induced by alpha. Then SP-score(alpha) = Sum over i,j [score(alpha(i,j)] • The above is only true if we have s(-,-) = 0. • This is because in pairwise alignment the presence of two aligned spaces (–) in the two sequences are ignored.

  14. Profile Distance • In the minimum entropy approach the score of multiple alignment is defined as the sum of entropies of the columns (the entropy of a column is related with the frequency of letter x in the column) • Information content • Profile score

  15. Outline • Background (what, why) • Scoring function • Dynamic programming • Star alignment • Progressive alignment • Profile and Psi-Blast

  16. Dynamic Programming • Multiple sequence alignment can be done with dynamic programming, using (n+1)k memory cells, where n is the length of each of the k sequences to be aligned. Sequence 2 Sequence 3 Sequence 1

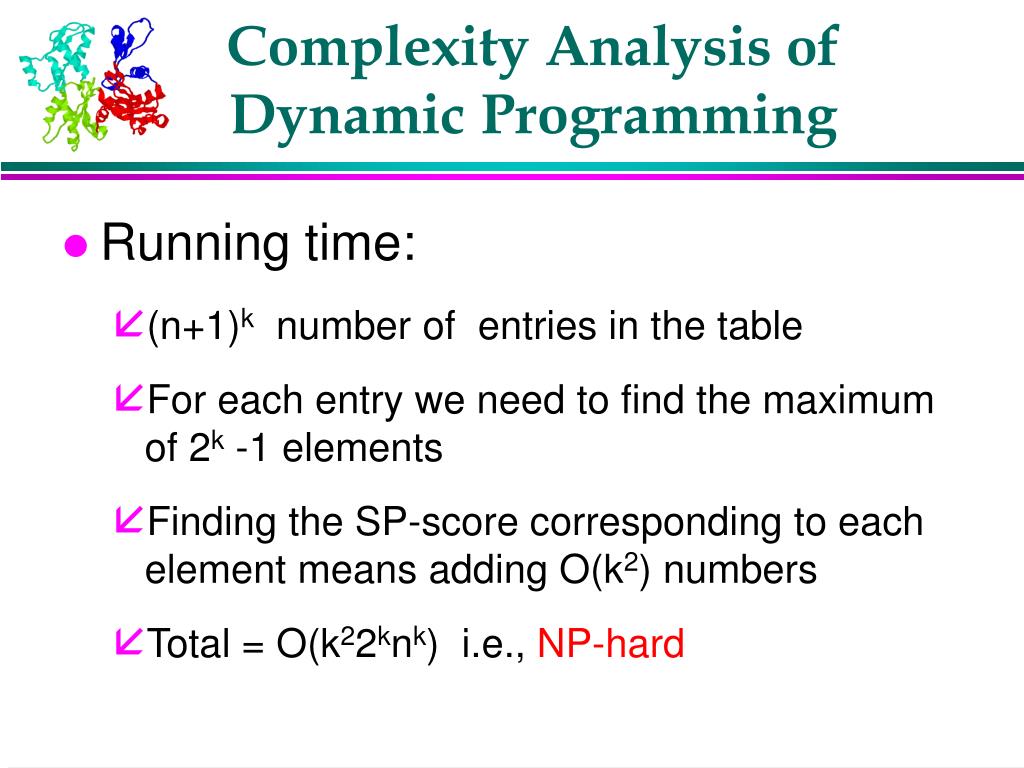

  17. Complexity Analysis of Dynamic Programming • Running time: • (n+1)k number of entries in the table • For each entry we need to find the maximum of 2k -1 elements • Finding the SP-score corresponding to each element means adding O(k2) numbers • Total = O(k22knk) i.e., NP-hard

  18. Outline • Background (what, why) • Scoring function • Dynamic programming • Star alignment • Progressive alignment • Profile and Psi-Blast

  19. Center Star Method • The center star method is an approximation algorithm, if scores can be decoupled into pairwise distances. • minimizing sum of pairwise distances. • Works well when a distance satisfies the triangle inequality: dst <= dsc + dct for all sequences s, t, and c.

  20. Star Alignments • Select a sequence sc as the center of the star • For each sequence s1, …, sk such that index i  c, perform a Needleman-Wunsch global alignment • Aggregate alignments with the principle “once a gap, always a gap.”

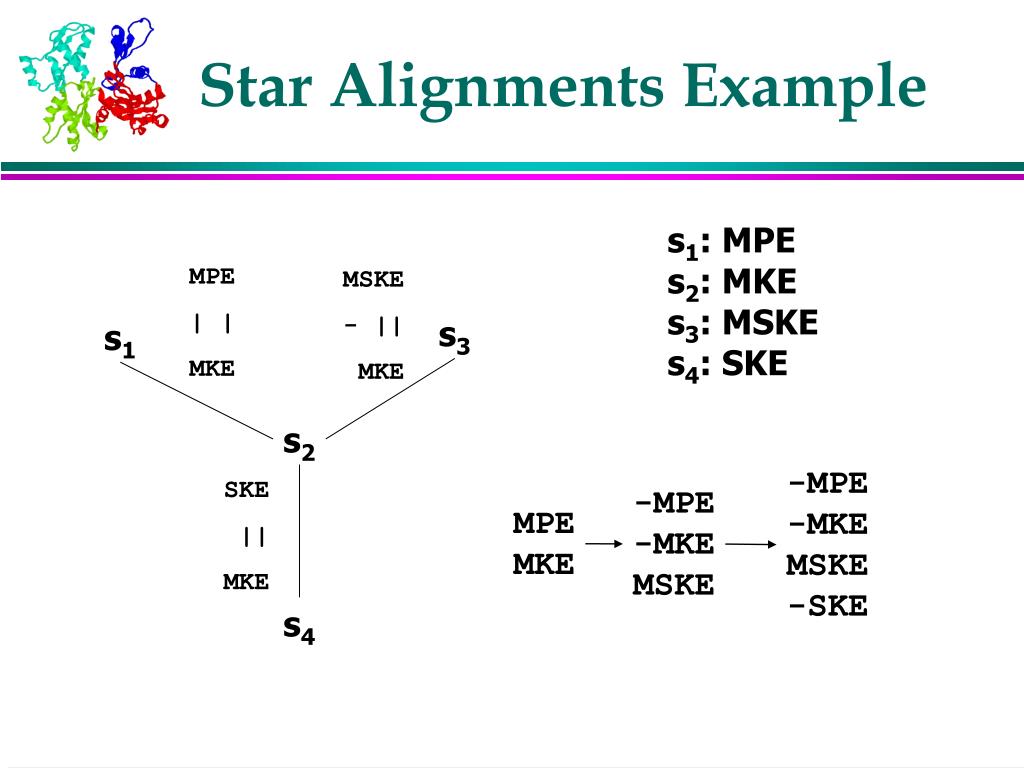

  21. Star Alignments Example s1: MPE s2: MKE s3: MSKE s4: SKE MPE | | MKE MSKE - || MKE s3 s1 s2 -MPE -MKE MSKE -SKE SKE || MKE -MPE -MKE MSKE MPE MKE s4

  22. Choosing a Center • Try them all and pick the one with the best score • Calculate all O(k2) alignments, and pick the sequence sc that maximizes

  23. Performance • Therefore, if C is the center star method SP score, then C/2 is a lower bound to the SP score of any multiple alignment. • C is at most as bad as twice of the optimum, and this bound on how bad the result can be makes the center star method an approximation algorithm to the NP-hard problem.

  24. Complexity Analysis • Assuming k sequences have length n • O(n2) to calculate 1 global alignment • O(k2) global alignments to calculate • O(k2n2) overall cost

  25. Outline • Background (what, why) • Scoring function • Dynamic programming • Star alignment • Progressive alignment • Profile and Psi-Blast

  26. Progressive Alignment • Devised by Feng and Doolittle in 1987. • Essentially a heuristic method, not guaranteed to find the ‘optimal’ alignment. • Multiple alignment is achieved by successive application of pairwise methods.

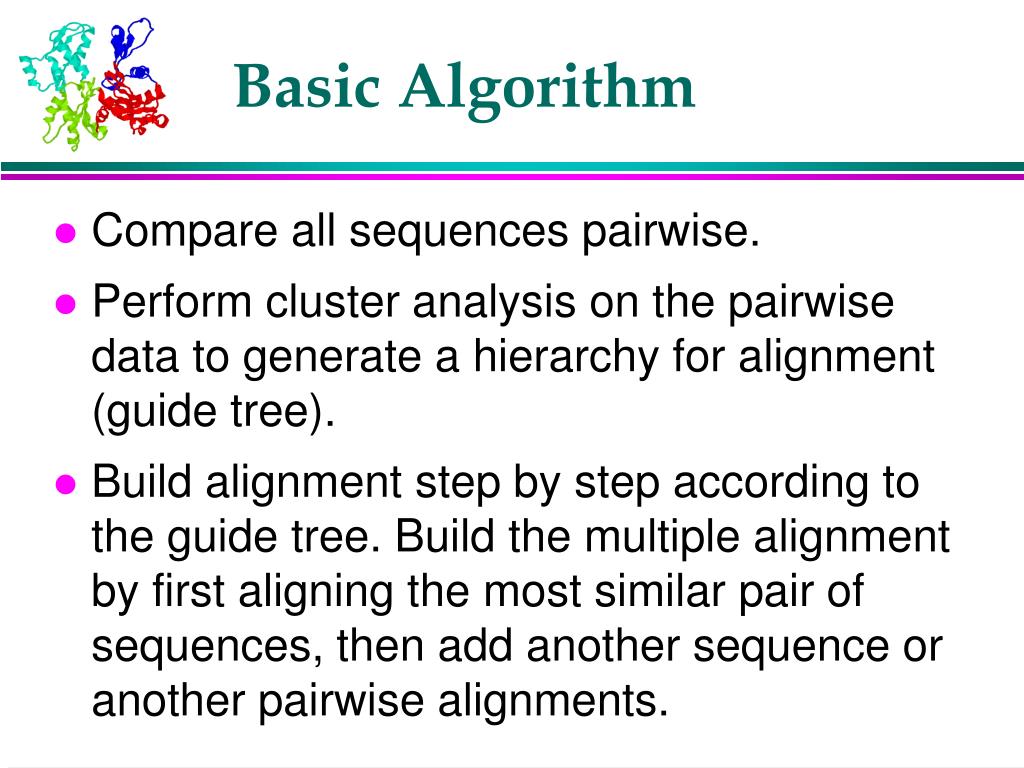

  27. Basic Algorithm • Compare all sequences pairwise. • Perform cluster analysis on the pairwise data to generate a hierarchy for alignment (guide tree). • Build alignment step by step according to the guide tree. Build the multiple alignment by first aligning the most similar pair of sequences, then add another sequence or another pairwise alignments.

  28. Steps in Progressive Multiple Alignment • Compare pairwise sequences • Perform cluster analysis on pairwise data to generate hierarchy for alignment

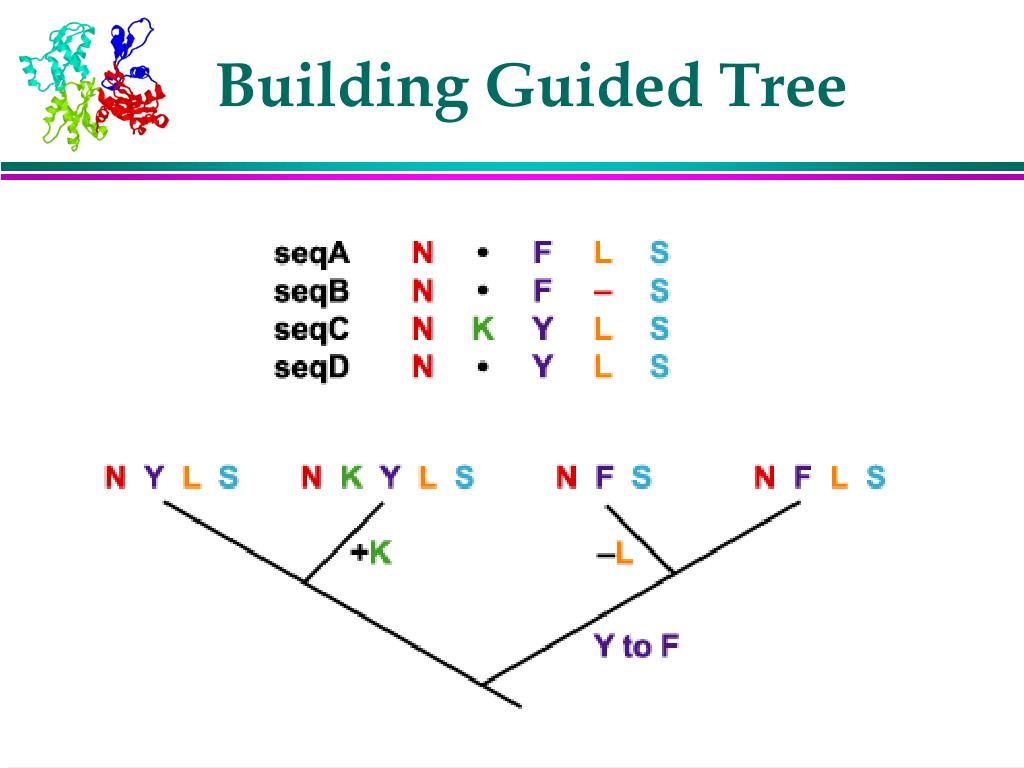

  29. Building Guided Tree

  30. Hbb_Human - Hbb_Horse .17 - Hba_Human .59 .60 - Hba_Horse .59 .59 .13 - Myg_Whale .77 .77 .75 .75 - Hbb_Human 2 3 Hbb_Horse Hba_Human 1 Hba_Horse 4 Myg_Whale Using Weight Quick pairwise alignment: calculate distance matrix Neighbor-joining tree(guide tree)

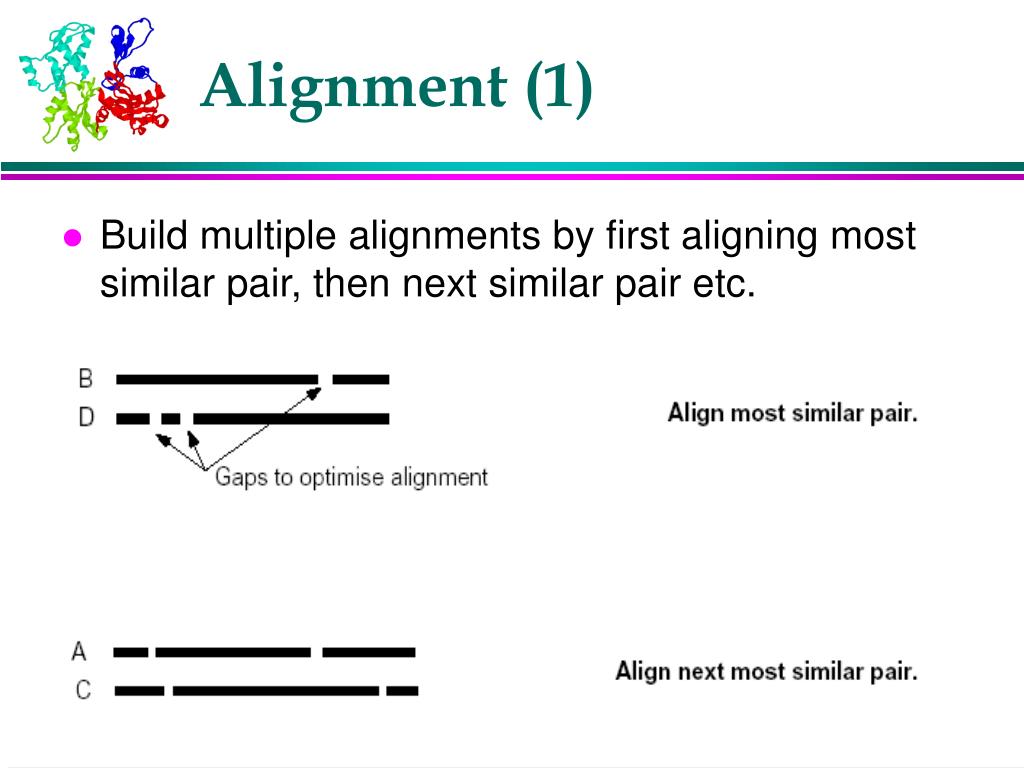

  31. Alignment (1) • Build multiple alignments by first aligning most similar pair, then next similar pair etc.

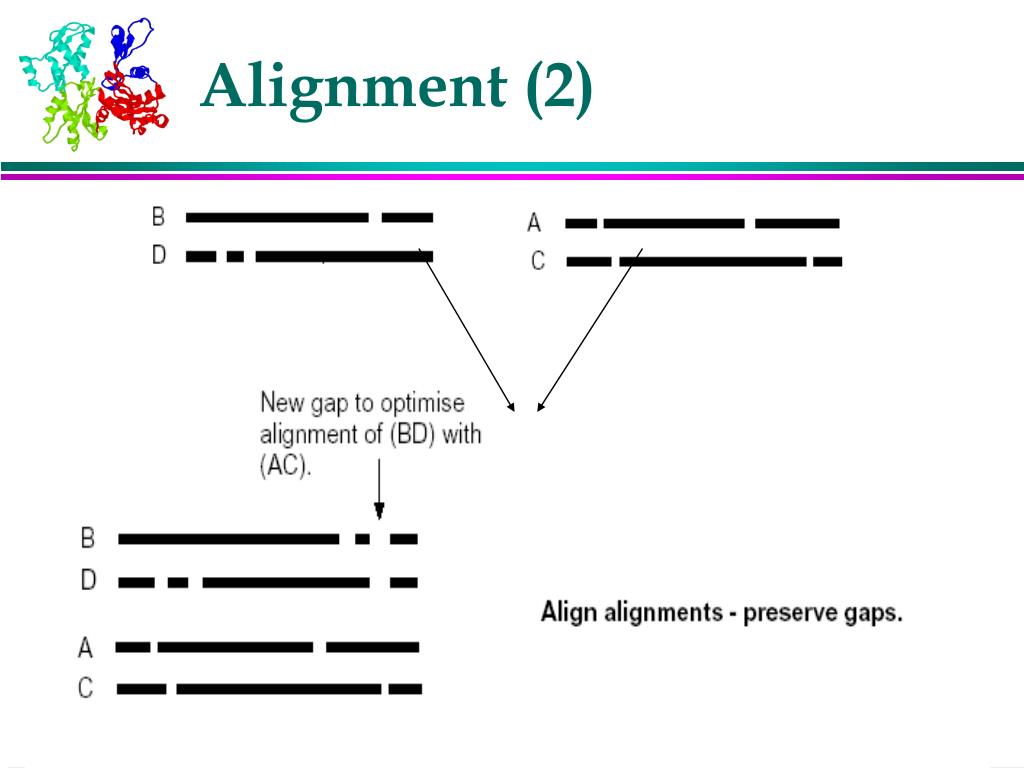

  32. Alignment (2)

  33. Scoring PQRRZW YQRKZX YZTUOP TZZ_FO Total Score = [w(R, U ) + w(R,  ) + w(K, U) + w(K, ) ] / 4

  34. CLUSTAL • Most successful implementation of progressive alignment (Des Higgins) • CLUSTAL - gives equal weight to all sequences • CLUSTALW - has the ability to give different weights to the sequences • CLUSTALX - provides a GUI to CLUSTAL • http://searchlauncher.bcm.tmc.edu/multi-align/multi-align.html

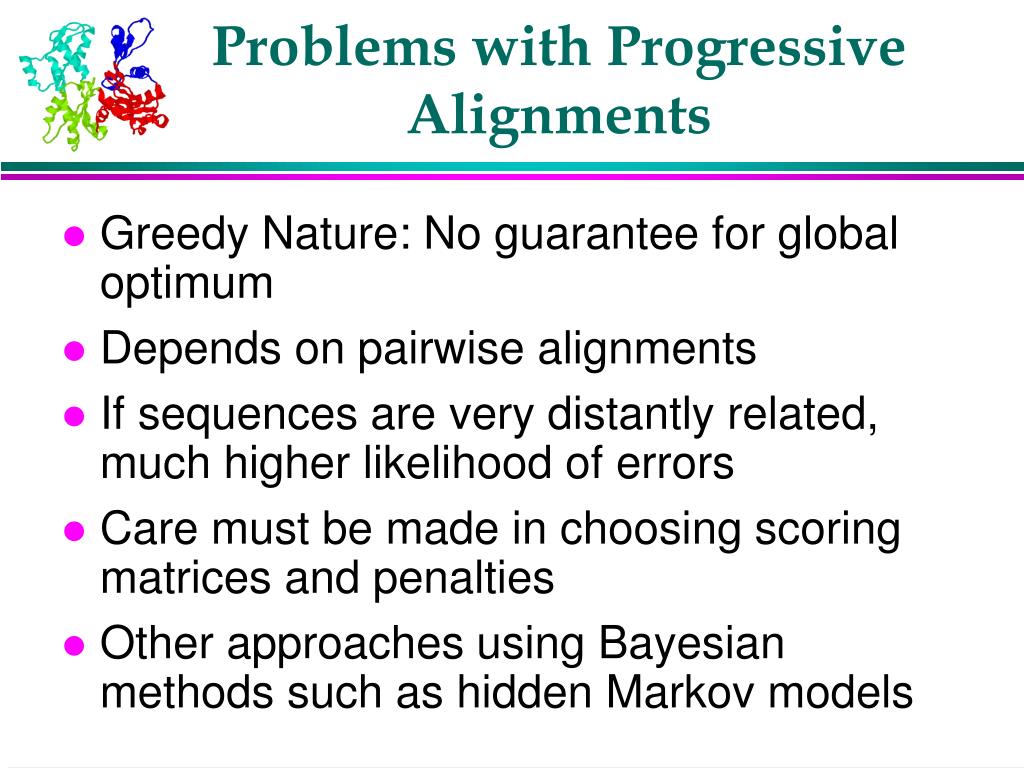

  35. Problems with Progressive Alignments • Greedy Nature: No guarantee for global optimum • Depends on pairwise alignments • If sequences are very distantly related, much higher likelihood of errors • Care must be made in choosing scoring matrices and penalties • Other approaches using Bayesian methods such as hidden Markov models

  36. Outline • Background (what, why) • Scoring function • Dynamic programming • Star alignment • Progressive alignment • Profile and Psi-Blast

  37. Concept of Profile Seq1-> Seq2-> Seq3-> Seq4-> Information about the degree of conservation of sequence positions is included

  38. Position-specific Score Matrix (PSSM) • For protein of length L, scoring matrix is L x 20, PSSM(i,j) --“Profile”: specific scores for each of the 20 amino acids at each position in a sequence. • For highly conserved residues at a particular position, a high positive score is assigned, and others are assigned high negatives. • For a weakly conserved position, a value close to zero is assigned to all the amino acid types.

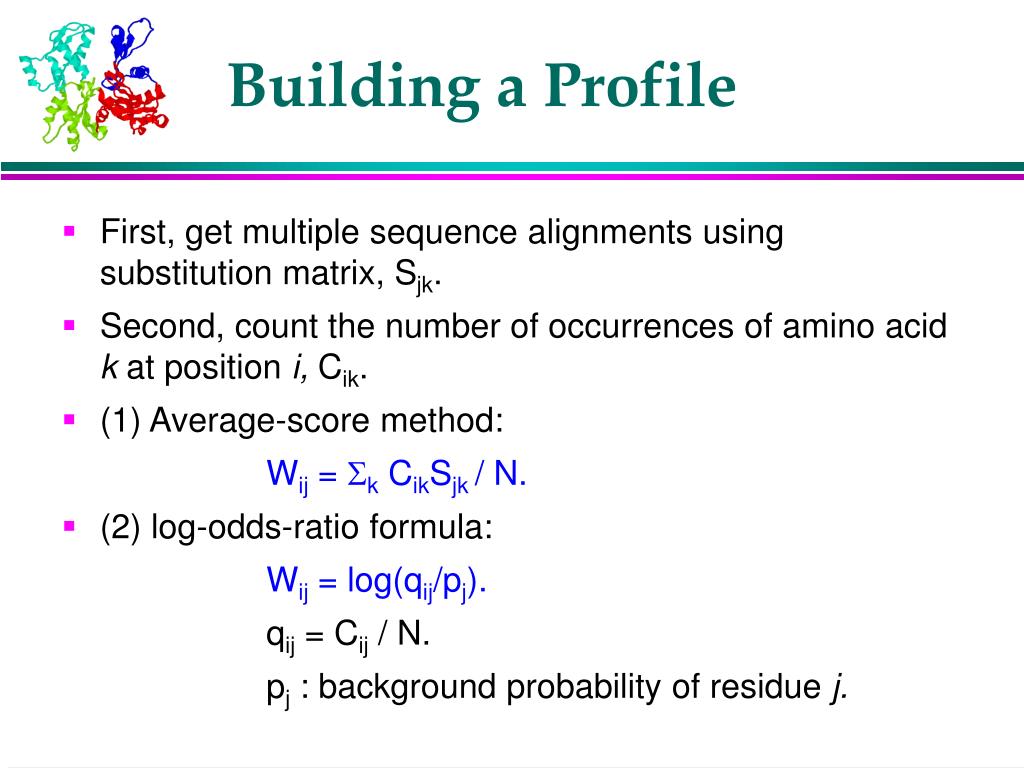

  39. Building a Profile • First, get multiple sequence alignments using substitution matrix, Sjk. • Second, count the number of occurrences of amino acid k at position i, Cik. • (1) Average-score method: Wij = Sk CikSjk / N. • (2) log-odds-ratio formula: Wij = log(qij/pj). qij = Cij / N. pj : background probability of residue j.

  40. Calculating Profiles (1) • Gribskov et al, Proc. Natl. Acad. Sci. USA 84, 4355-4358, 1987 ACGCTAFKI GCGCTAFKI ACGCTAFKL GCGCTGFKI GCGCTLFKI ASGCTAFKL ACACTAFKL Wij = Sk CikSjk / N C1A = 4, C1G = 3 W1A = (4  SAA + 3  SAG) / 7 = (4  4 + 3  0) / 7 = 2.3

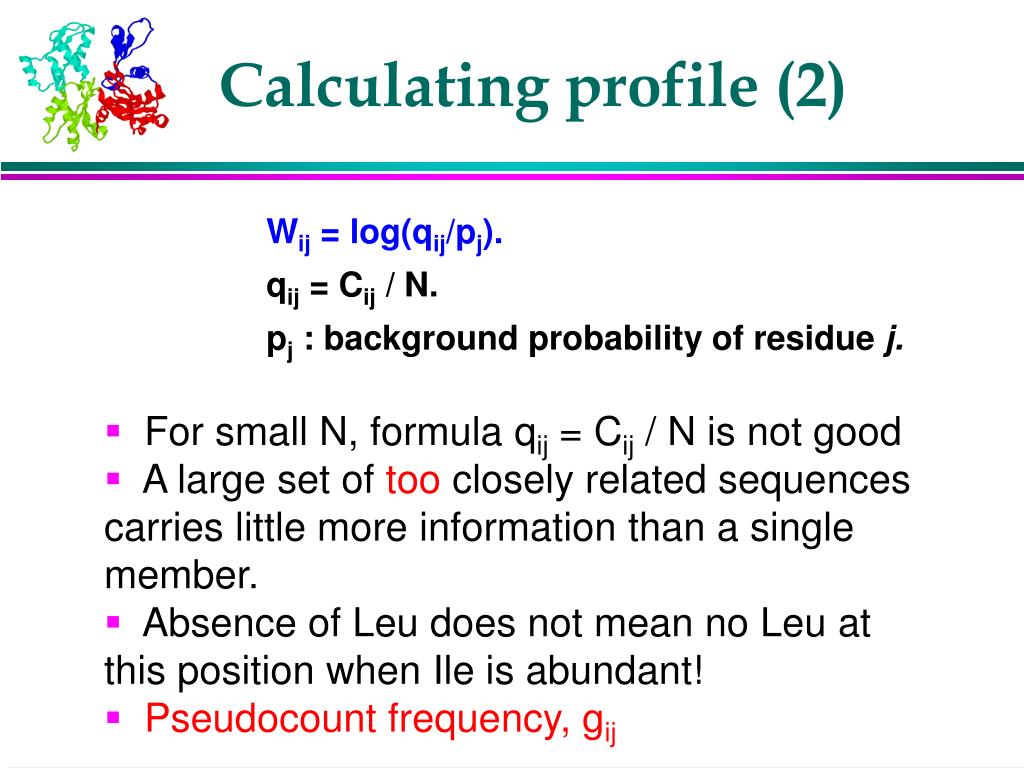

  41. Calculating profile (2) Wij = log(qij/pj). qij = Cij / N. pj : background probability of residue j. • For small N, formula qij = Cij / N is not good • A large set of too closely related sequences carries little more information than a single member. • Absence of Leu does not mean no Leu at this position when Ile is abundant! • Pseudocount frequency, gij

  42. Frequency Matrix • Effective frequency, fij j • Frequency matrix element, fij, is the probability of amino acid j at position i. gij = pjSk qikexp (lSkj) pj: : background frequency

  43. Frequency matrix, example j (amino acid type) 1,…,20 0.03 0.02 0.01 0.01 0.01 0.02 0.02 0.02 0.01 0.22 0.27 0.02 0.12 0.03 0.01 0.02 0.03 0.00 0.01 0.080.04 0.02 0.17 0.03 0.01 0.02 0.03 0.03 0.01 0.03 0.08 0.03 0.01 0.01 0.02 0.07 0.34 0.00 0.01 0.040.07 0.03 0.02 0.03 0.01 0.12 0.13 0.03 0.01 0.01 0.02 0.04 0.01 0.01 0.38 0.07 0.07 0.00 0.01 0.020.07 0.03 0.09 0.06 0.01 0.03 0.14 0.03 0.06 0.01 0.02 0.09 0.01 0.01 0.15 0.16 0.05 0.00 0.01 0.020.03 0.11 0.08 0.03 0.01 0.12 0.13 0.02 0.01 0.04 0.04 0.13 0.09 0.01 0.02 0.04 0.03 0.00 0.01 0.040.03 0.12 0.05 0.03 0.01 0.10 0.05 0.02 0.01 0.04 0.14 0.10 0.16 0.01 0.01 0.04 0.03 0.00 0.01 0.040.04 0.04 0.12 0.06 0.00 0.06 0.12 0.03 0.03 0.01 0.02 0.18 0.02 0.02 0.02 0.15 0.04 0.03 0.01 0.020.06 0.02 0.08 0.03 0.00 0.08 0.19 0.02 0.04 0.05 0.07 0.09 0.04 0.01 0.02 0.12 0.04 0.00 0.01 0.030.03 0.01 0.01 0.01 0.01 0.02 0.01 0.01 0.02 0.15 0.31 0.01 0.02 0.12 0.01 0.02 0.02 0.01 0.02 0.130.06 0.03 0.05 0.06 0.03 0.07 0.19 0.02 0.02 0.03 0.06 0.10 0.01 0.05 0.02 0.07 0.07 0.00 0.05 0.030.22 0.10 0.03 0.08 0.01 0.03 0.12 0.02 0.01 0.01 0.06 0.11 0.01 0.01 0.03 0.05 0.07 0.00 0.02 0.030.02 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.08 0.34 0.01 0.02 0.26 0.01 0.02 0.02 0.01 0.02 0.100.03 0.05 0.02 0.03 0.00 0.10 0.29 0.12 0.01 0.01 0.08 0.13 0.02 0.03 0.02 0.03 0.03 0.00 0.01 0.020.06 0.10 0.10 0.07 0.00 0.06 0.13 0.03 0.06 0.01 0.02 0.18 0.01 0.01 0.02 0.08 0.04 0.00 0.03 0.010.09 0.22 0.07 0.03 0.00 0.06 0.04 0.02 0.02 0.04 0.07 0.18 0.01 0.01 0.01 0.07 0.05 0.00 0.01 0.030.03 0.01 0.02 0.01 0.01 0.01 0.02 0.01 0.01 0.17 0.41 0.01 0.03 0.05 0.01 0.03 0.04 0.00 0.04 0.050.04 0.02 0.10 0.05 0.00 0.06 0.02 0.48 0.02 0.01 0.02 0.05 0.01 0.01 0.01 0.05 0.03 0.00 0.01 0.010.05 0.01 0.01 0.01 0.01 0.02 0.08 0.01 0.06 0.13 0.09 0.02 0.04 0.05 0.01 0.02 0.02 0.01 0.25 0.080.06 0.06 0.07 0.05 0.01 0.06 0.09 0.02 0.01 0.02 0.02 0.07 0.01 0.02 0.09 0.17 0.13 0.00 0.02 0.020.02 0.01 0.01 0.04 0.00 0.02 0.05 0.01 0.01 0.06 0.11 0.01 0.01 0.43 0.03 0.03 0.03 0.01 0.04 0.03  i (position) 1,…,L

  44. Profile Alignment (1) sequence profile ACD……VWY

  45. Profile Alignment (2) • alignment of alignments • Sequence – Profile Alignment. • Profile – Profile Alignment. • Penalize gaps in conserved regions more heavily than gaps in more variable regions • Dynamic Programming. • (same idea as in Pairwise Sequence Alignment) • Optimal alignment in time O(a2l2)a = alphabet size, l = sequence length

  46. PsiBlast • Psi (Position Specific Iterated) is an automatic profile-like search • The program first performs a gapped blast search of the database. The information of the significant alignments is then used to construct a “position specific” score matrix. This matrix replaces the query sequence in the next round of database searching • The program may be iterated until no new significant are found

  47. Search (Building Profile) with PSI-BLAST • Query sequence is “master” for multiple alignment. • Profile length = query sequence length. • Find family members with low E-value (e.g. <0.01). • Exclude sequences with >98% identity. • Build frequency matrix. • Build PSSM. • Build alignment using PSSM. • Add new sequences. • Iterate…

  48. Significance of Psi Blast • PSI-BLAST estimates the statistical significance of the local alignments found. Because profile substitution scores are constructed to a fixed scale, and gap scores remain independent of position, the statistical theory and parameters for gapped BLAST alignments remain applicable to profile alignments. • Much more sensitive than BLAST • E-values can be misleading!

  49. Reading Assignments • Suggested reading: • Chapter 4 in “Current Topics in Computational Molecular Biology, edited by Tao Jiang, Ying Xu, and Michael Zhang. MIT Press. 2002.” • Optional reading: • Chapter 7 in “Pavel Pevzner: Computational Molecular Biology - An Algorithmic Approach. MIT Press, 2000.”

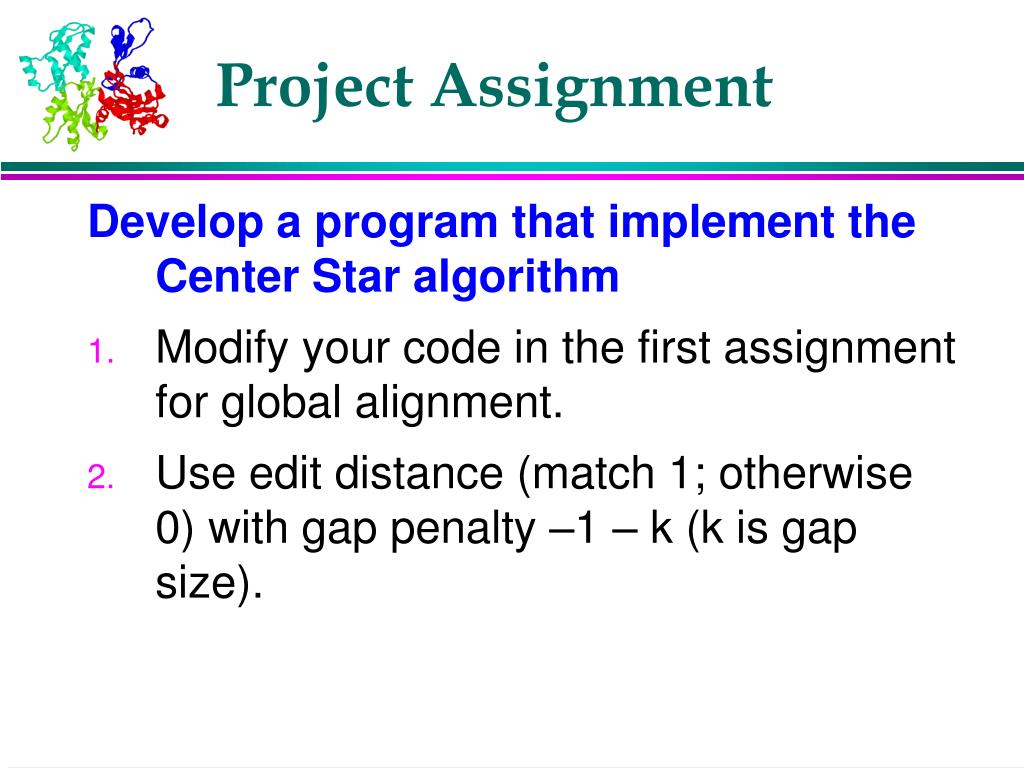

  50. Develop a program that implement the Center Star algorithm Modify your code in the first assignment for global alignment. Use edit distance (match 1; otherwise 0) with gap penalty –1 – k (k is gap size). Project Assignment
