Single Site Acceptance Report for TIGO UMTS Project Phase II

Single Site Acceptance Report for TIGO UMTS Project Phase II. NodeB: VALLA MONTES DE SAN BARTOLO 3GVMSB PSC: 180, 181, 182 Date: 19 - OCTUBRE - 2010. Huawei El Salvador. 1. 5. 8. 7. 6. 4. 3. 2. 9. Contents. RSCP Before/After (CS and PS).

amma
Télécharger la présentation

Single Site Acceptance Report for TIGO UMTS Project Phase II

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

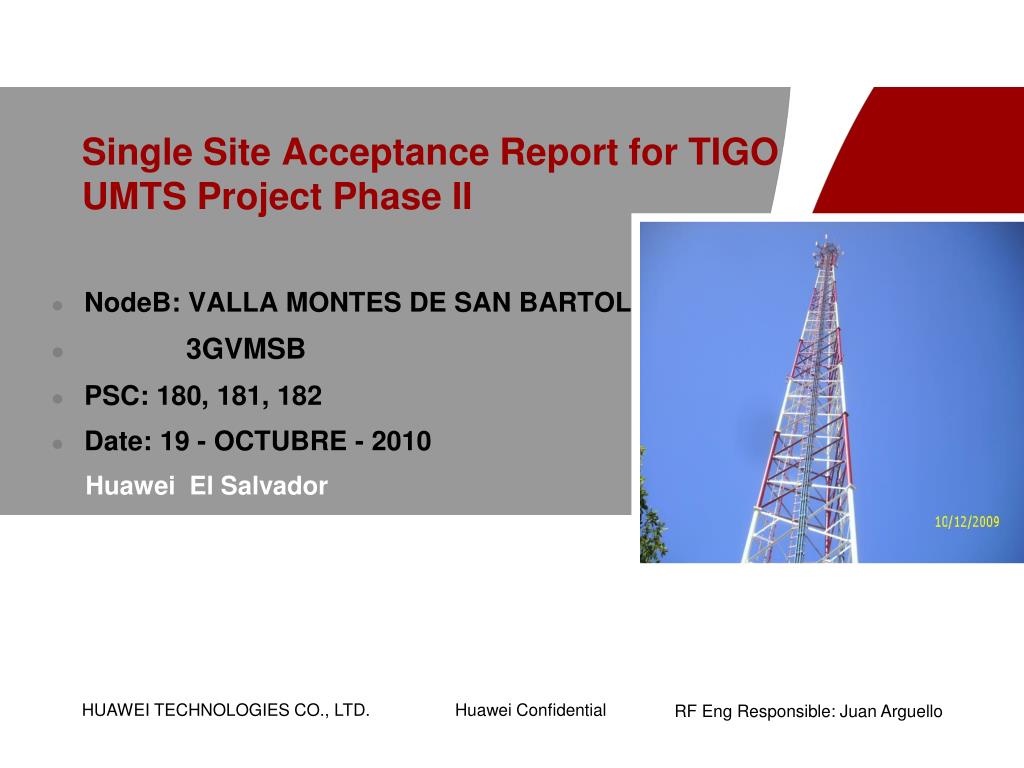

  1. Single Site Acceptance Report for TIGOUMTS Project Phase II • NodeB: VALLA MONTES DE SAN BARTOLO • 3GVMSB • PSC: 180, 181, 182 • Date: 19 - OCTUBRE - 2010 Huawei El Salvador

  2. 1 5 8 7 6 4 3 2 9 Contents RSCP Before/After (CS and PS) Ec/Io Before/After (CS and PS) Best Server in Active Set Before/ After RSCP per PSC CS Active Set and Monitor Set Before/After CS SHO - PS HHO Before/After Statistical Data (Accesibility & Retainability) Before/After HSDPA Parameter Data of Design of the New Site

  3. CS RSCP – 3GVMSB Before

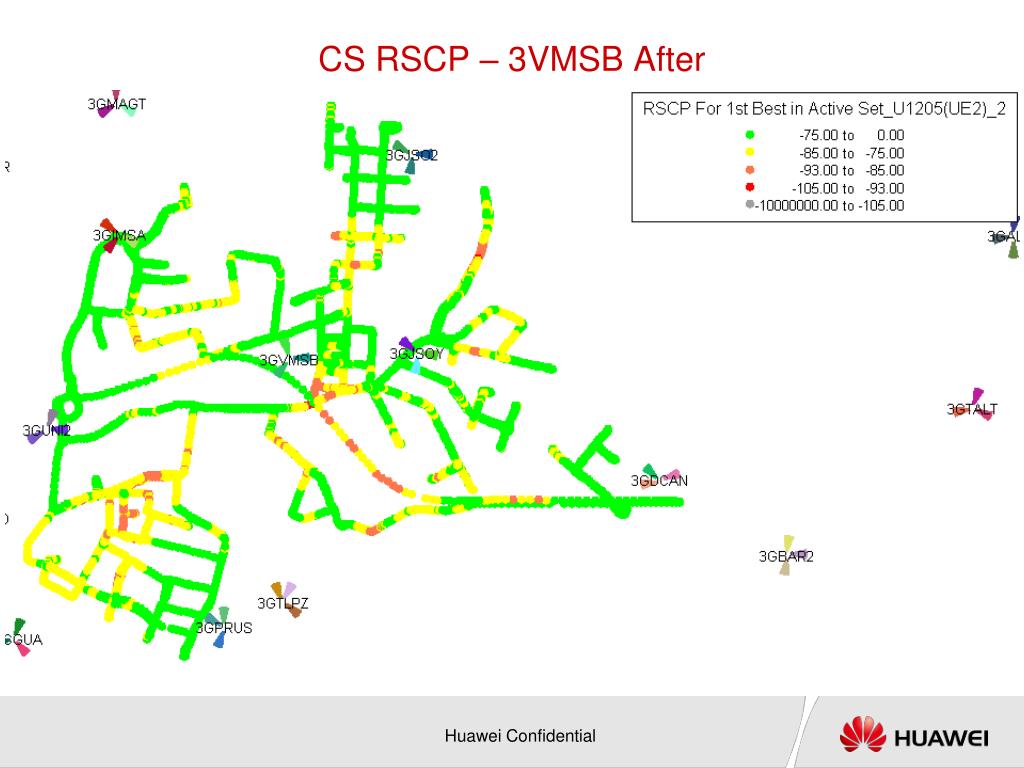

  4. CS RSCP – 3VMSB After

  5. PS RSCP – 3GVMSB Before

  6. PS RSCP – 3GVMSB After

  7. 1 5 8 7 6 4 3 2 9 Contents RSCP Before/After (CS and PS) Ec/Io Before/After (CS and PS) Best Server in Active Set Before/ After RSCP per PSC CS Active Set and Monitor Set Before/After CS SHO - PS HHO Before/After Statistical Data (Accesibility & Retainability) Before/After HSDPA Parameter Data of Design of the New Site

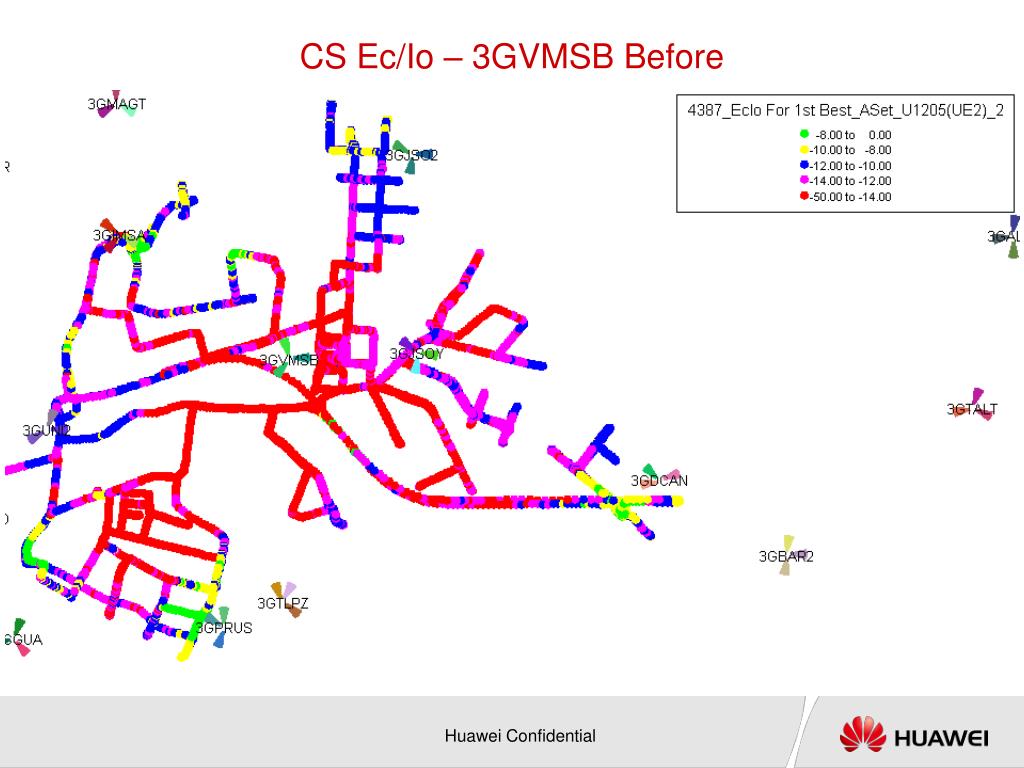

  8. CS Ec/Io – 3GVMSB Before

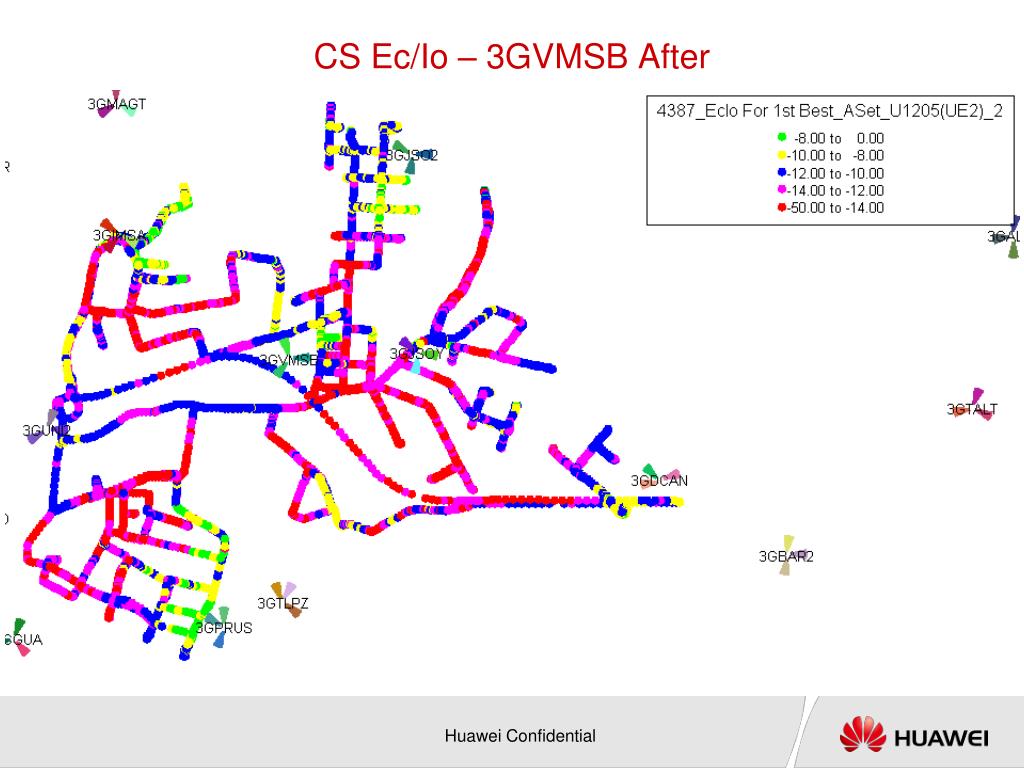

  9. CS Ec/Io – 3GVMSB After

  10. PS Ec/Io – 3GVMSB Before

  11. PS Ec/Io – 3GVMSB After

  12. 1 5 8 7 6 4 3 2 9 Contents RSCP Before/After (CS and PS) Ec/Io Before/After (CS and PS) Best Server in Active Set Before/ After RSCP per PSC CS Active Set and Monitor Set Before/After CS SHO - PS HHO Before/After Statistical Data (Accesibility & Retainability) Before/After HSDPA Parameter Data of Design of the New Site

  13. 3GVMSB Best SC in Active Set Before

  14. 3GVMSB Best SC in Active Set After

  15. 1 5 8 7 6 4 3 2 9 Contents RSCP Before/After (CS and PS) Ec/Io Before/After (CS and PS) Best Server in Active Set Before/ After RSCP per PSC CS Active Set and Monitor Set Before/After CS SHO - PS HHO Before/After Statistical Data (Accesibility & Retainability) Before/After HSDPA Parameter Data of Design of the New Site

  16. 3GVMSB RSCP Sector A, B and C

  17. 3GVMSB SC 180 RSCP Sector A

  18. 3GVMSB SC 181 RSCP Sector B

  19. 3GVMSB SC 182 RSCP Sector C

  20. 1 5 8 7 6 4 3 2 9 Contents RSCP Before/After (CS and PS) Ec/Io Before/After (CS and PS) Best Server in Active Set Before/ After RSCP per PSC CS Active Set and Monitor Set After CS SHO - PS HHO Before/After Statistical Data (Accesibility & Retainability) Before/After HSDPA Parameter Data of Design of the New Site

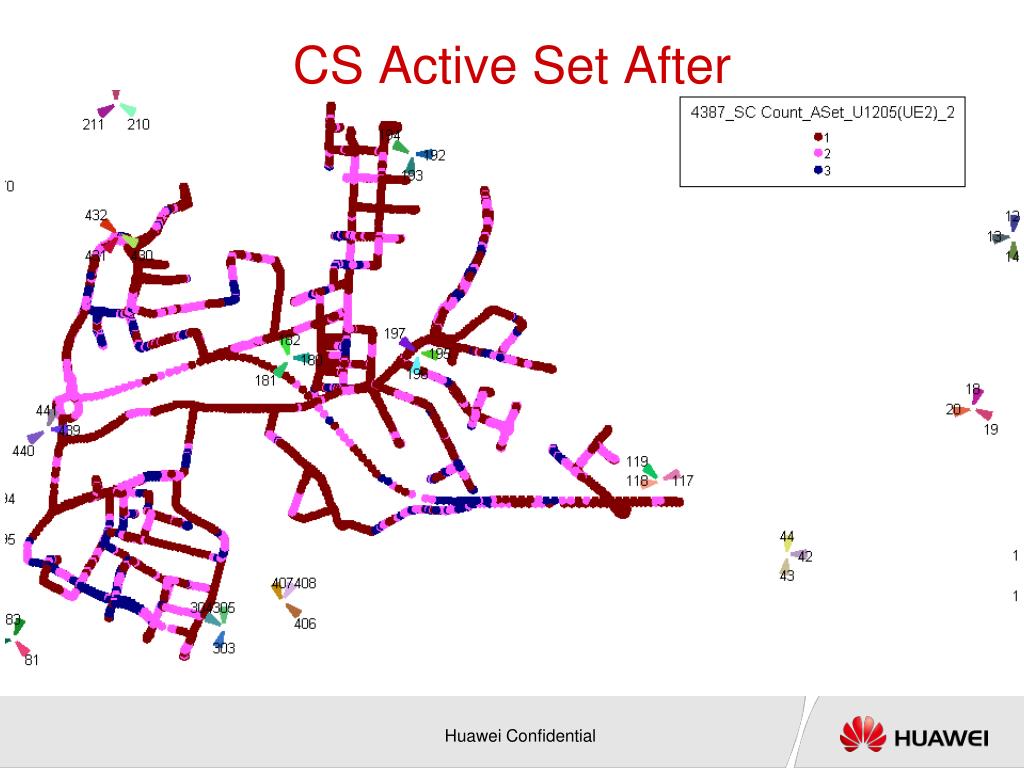

  21. CS Active Set After

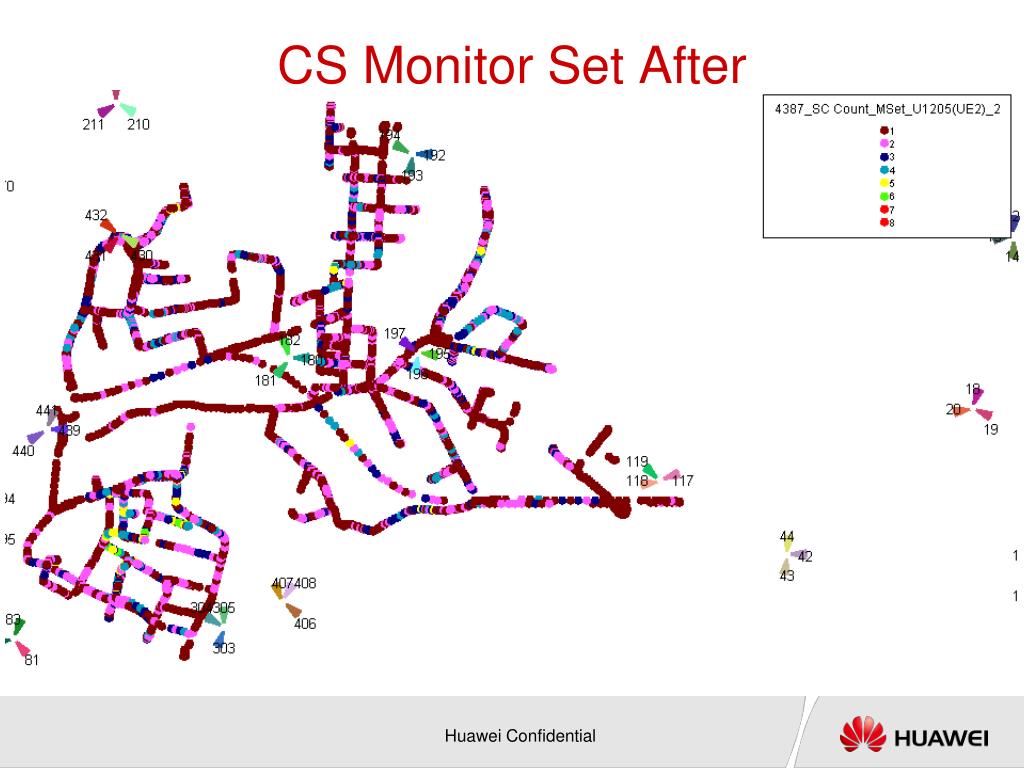

  22. CS Monitor Set After

  23. 1 5 8 7 6 4 3 2 9 Contents RSCP Before/After (CS and PS) Ec/Io Before/After (CS and PS) Best Server in Active Set Before/ After RSCP per PSC CS Active Set and Monitor Set Before/After CS SHO - PS HHO Before/After Statistical Data (Accesibility & Retainability) Before/After HSDPA Parameter Data of Design of the New Site

  24. IntraFrequencyHandover

  25. 3GVMSB CS SHO Before

  26. 3GVMSB CS SHO After

  27. 3GVMSB PS HHO Before

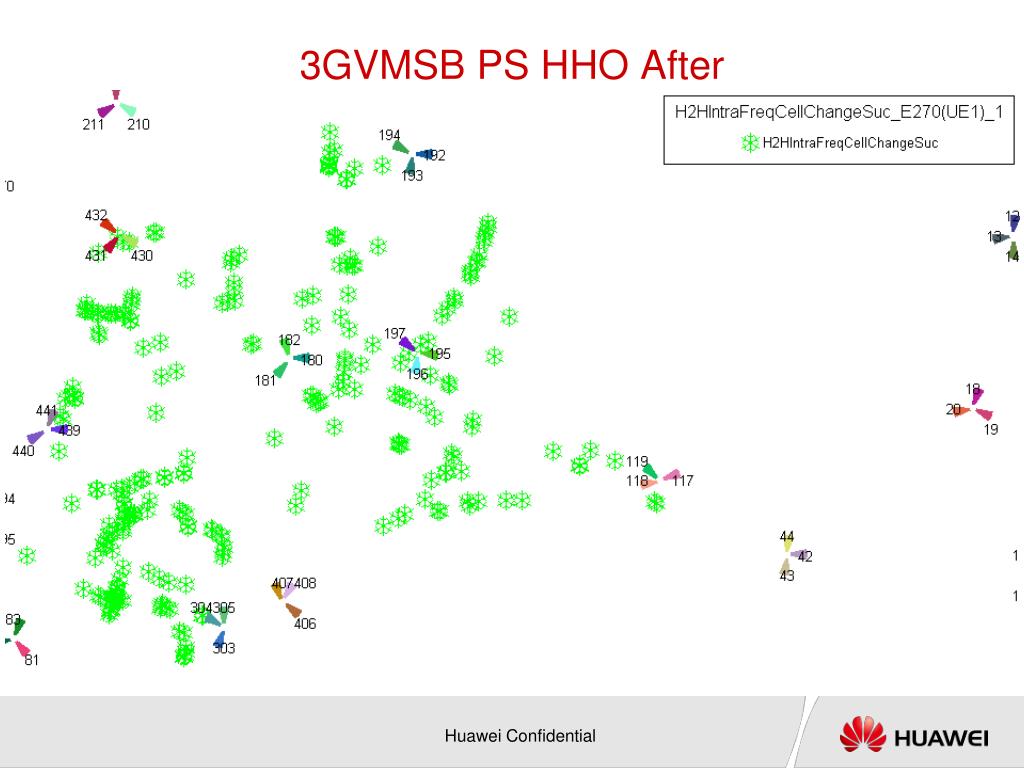

  28. 3GVMSB PS HHO After

  29. 1 5 8 7 6 4 3 2 9 Contents RSCP Before/After (CS and PS) Ec/Io Before/After (CS and PS) Best Server in Active Set Before/ After RSCP per PSC CS Active Set and Monitor Set Before/After CS SHO - PS HHO Before/After Statistical Data (Accessibility, Retainability & Static) After HSDPA Parameter Data of Design of the New Site

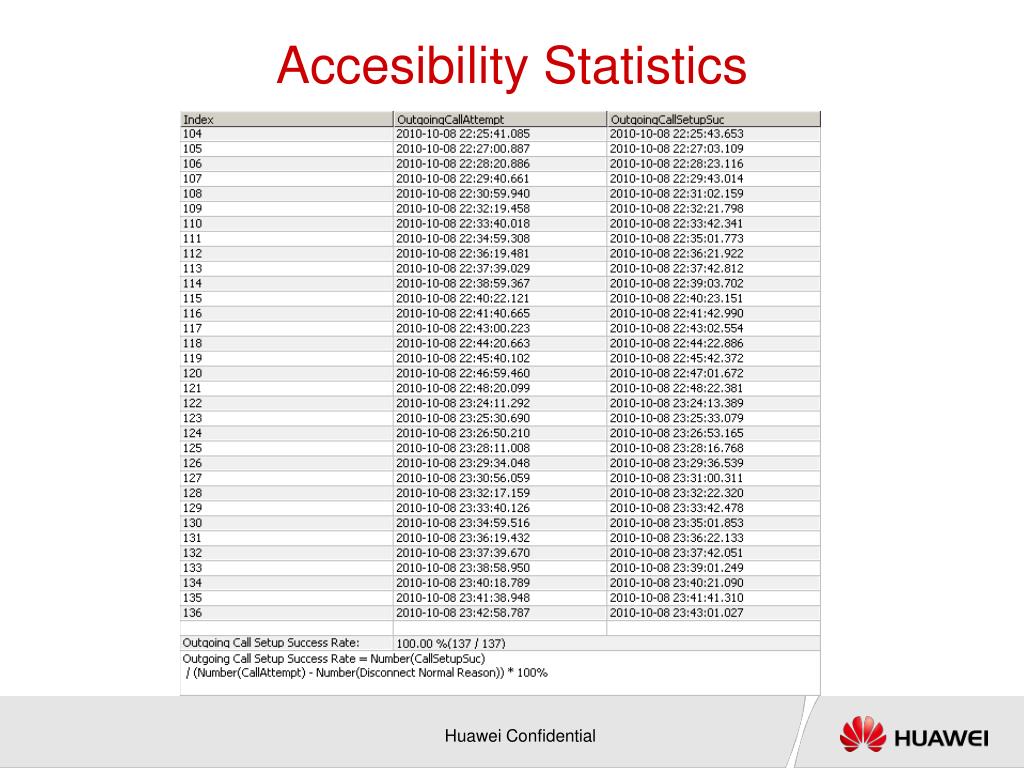

  30. Accesibility Statistics

  31. Retainability

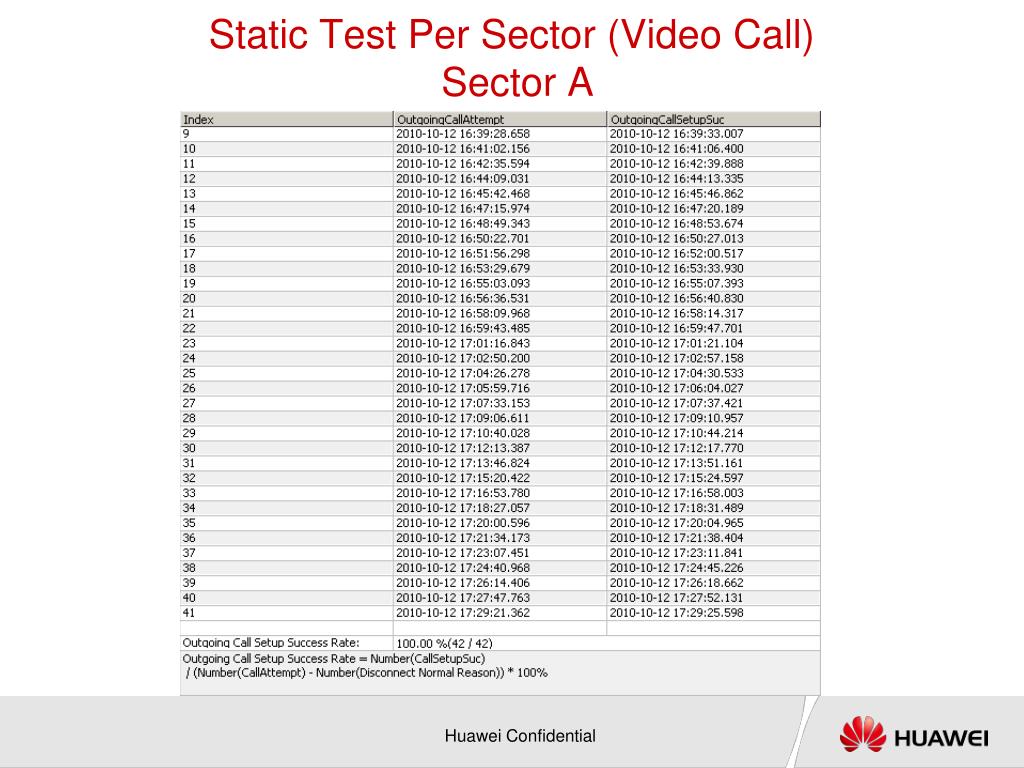

  32. Static Test Per Sector (Video Call) Sector A

  33. Static Test Per Sector (R99) Sector A

  34. Static Test Per Sector (Video Call) Sector B

  35. Static Test Per Sector (R99) Sector B

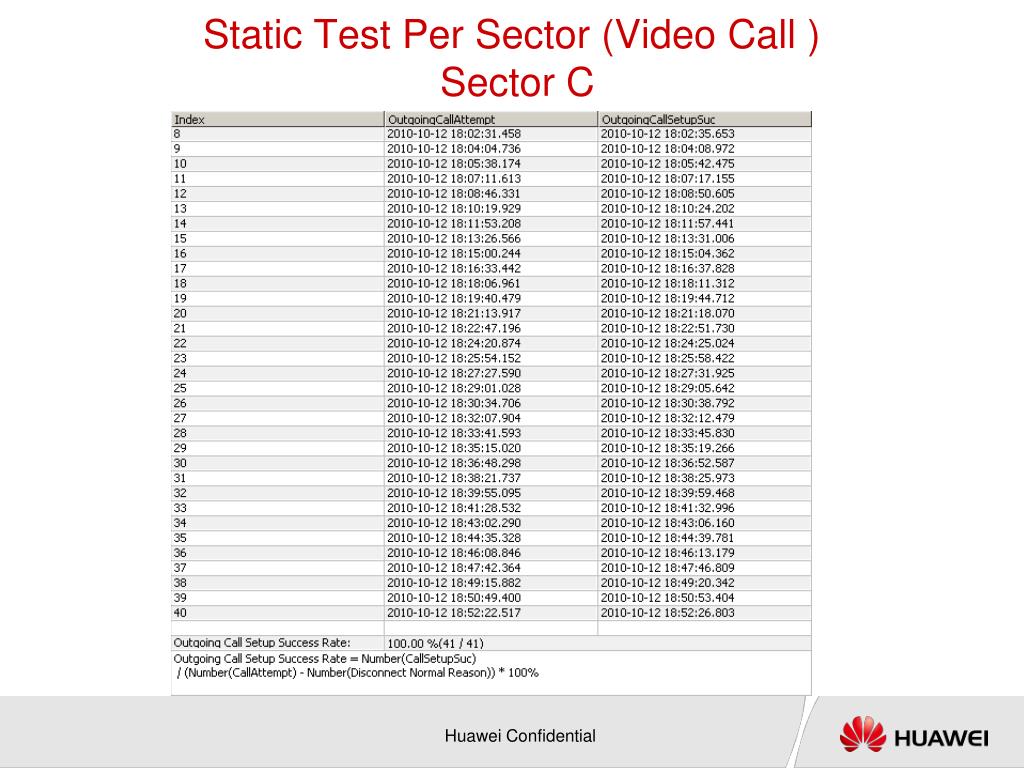

  36. Static Test Per Sector (Video Call ) Sector C

  37. Static Test Per Sector (R99) Sector C

  38. 3GVMSB RSCP Histogram Before

  39. 3GVMSB RSCP Histogram After

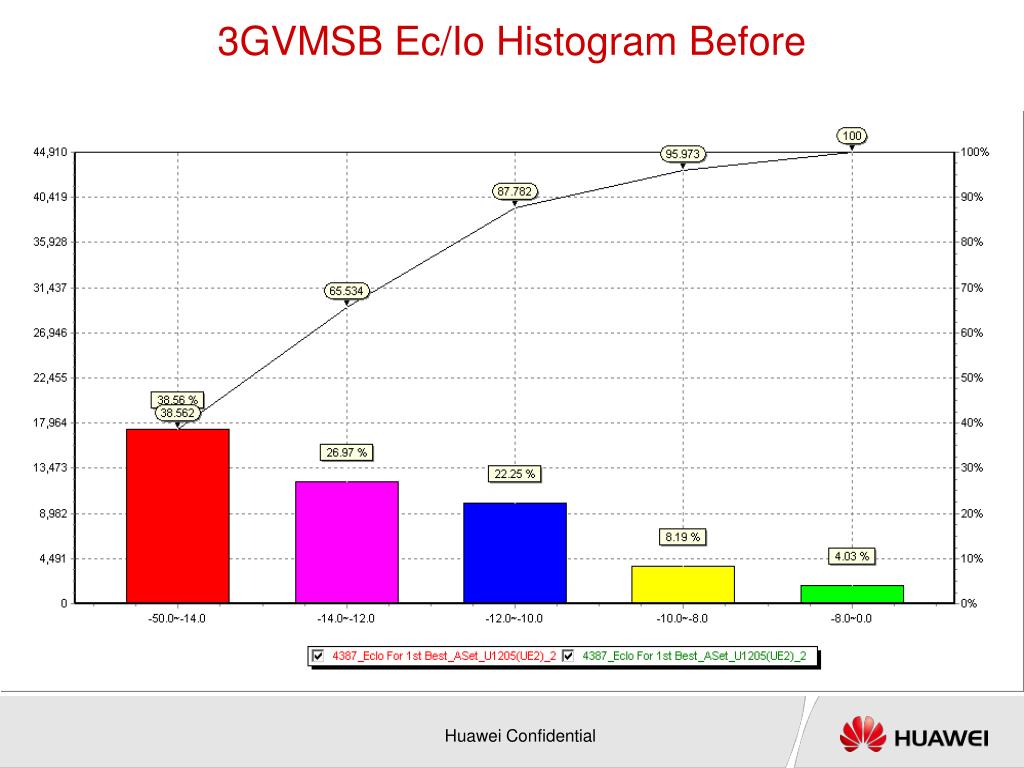

  40. 3GVMSB Ec/Io Histogram Before

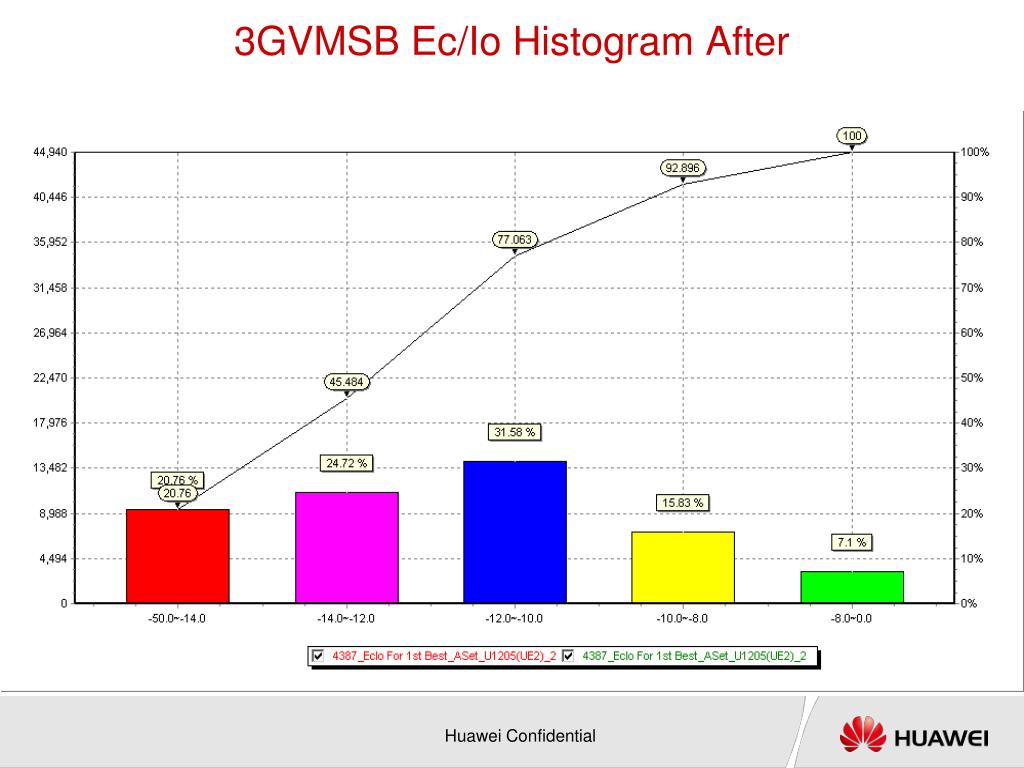

  41. 3GVMSB Ec/Io Histogram After

  42. 1 5 8 7 6 4 3 2 9 Contents RSCP Before/After (CS and PS) Ec/Io Before/After (CS and PS) Best Server in Active Set Before/ After RSCP per PSC CS Active Set and Monitor Set Before/After CS SHO - PS HHO Before/After Statistical Data (Accesibility & Retainability) Before/After HSDPA Parameter Data of Design of the New Site

  43. HSDPA Delta Served Rate (kbps) Before/After 8.1

  44. 3GVMSB HSDPA Delta Served Rate Before

  45. 3GVMSB HSDPA Delta Served Rate After

  46. HSDPA HS-DPCCH CQI Before/After 8.2

  47. 3GVMSB HS-DPCCH CQI Before

  48. 3GVMSB HS-DPCCH CQI After

  49. 1 5 8 7 6 4 3 2 9 Contents RSCP Before/After (CS and PS) Ec/Io Before/After (CS and PS) Best Server in Active Set Before/ After RSCP per PSC CS Active Set and Monitor Set Before/After CS SHO - PS HHO Before/After Statistical Data (Accesibility & Retainability) Before/After HSDPA Parameter Data of Design of the New Site

  50. Data of Design of 3GVMSB
