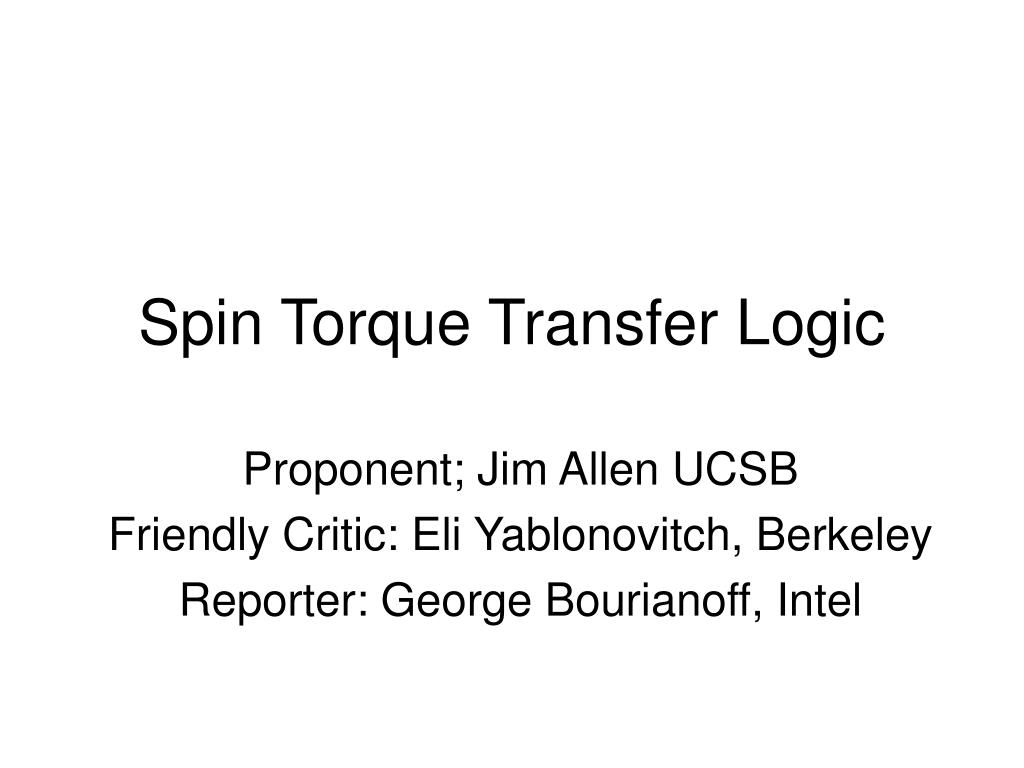

  1. Spin Torque Transfer Logic Proponent; Jim Allen UCSB Friendly Critic: Eli Yablonovitch, Berkeley Reporter: George Bourianoff, Intel

  2. Spin Torque Transfer Technology A perspective: from Jim STT-RAM will be developed for memory embedded in logic applications. STT Nano-oscillators development needs to guided by potential application. Research on potential STT Logic will be leveraged by developments in STT-RAM

  3. GMR and STT --- Spin Logic Device? Can we control GMR by Magnetostatically coupling to a STT switch ?? O. Ozatay,a_ N. C. Emley, P. M. Braganca, A. G. F. Garcia, G. D. Fuchs, I. N. Krivorotov,R. A. Buhrman, and D. C. Ralph, “Spin transfer by nonuniform current injection into a nanomagnet”, Appl. Phys. Lett., 88, 202502 (2006).

  4. Summary from Eli • 1. Giant Magneto-Resistive Effect Switch: • Better than today's technology, but not quite to the level of theoretical goal. • 2. Spin-Torque Switch: Slightly better than GMR Switch, • and capable of achieving theoretical goal at slow clock speeds, <100MHz. • Comment - Eli estimates up with 5 μA switching current vs 500 μA experimental

  5. Summary • Do we know what the critical questions are to make progress? Yes • Reduce current for CIMS • Demonstration of magneto-static proximity coupling of GMR device and STT switch • What are the motivations • Non-volatility, low power, integrated logic/memory functionality • Can we leverage related technologies? Yes STRAM • Does the current status justify more resources? • Yes Fig. 13 Current required to observe CIMS as a function of junction size for four different critical current densities. The aspect ratio is assumed to be two. The black thick solid line shows the required current for the magnetic-field write. The gray thick line shows the current that a CMOS with the gate width equal to the junction size can provide (100 μA/100 nm is assumed). The TRS technology nodes are also shown. Symbols are guides for the eyes. Ref 12.

  6. Other comments • Other logic devices are possible e.g. Harris spin FET • Latching functionality is very difficult to integrate into clocked, synchronous circuits • What is the performance of NAND gate relative to CMOS? Power, speed, area
