Physics 6C

cain avatar
cain
13 diapositives · 343 Views · Jul 27, 2014

Physics 6C. Heisenberg Uncertainty Principle. Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB. Heisenberg Uncertainty Principle. Basic Idea – you can’t get exact measurements 2 Versions:. Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB.

Physics 6C - slide 1
01 / 13Physics 6C
1 / 17

Télécharger la présentation

Physics 6C
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

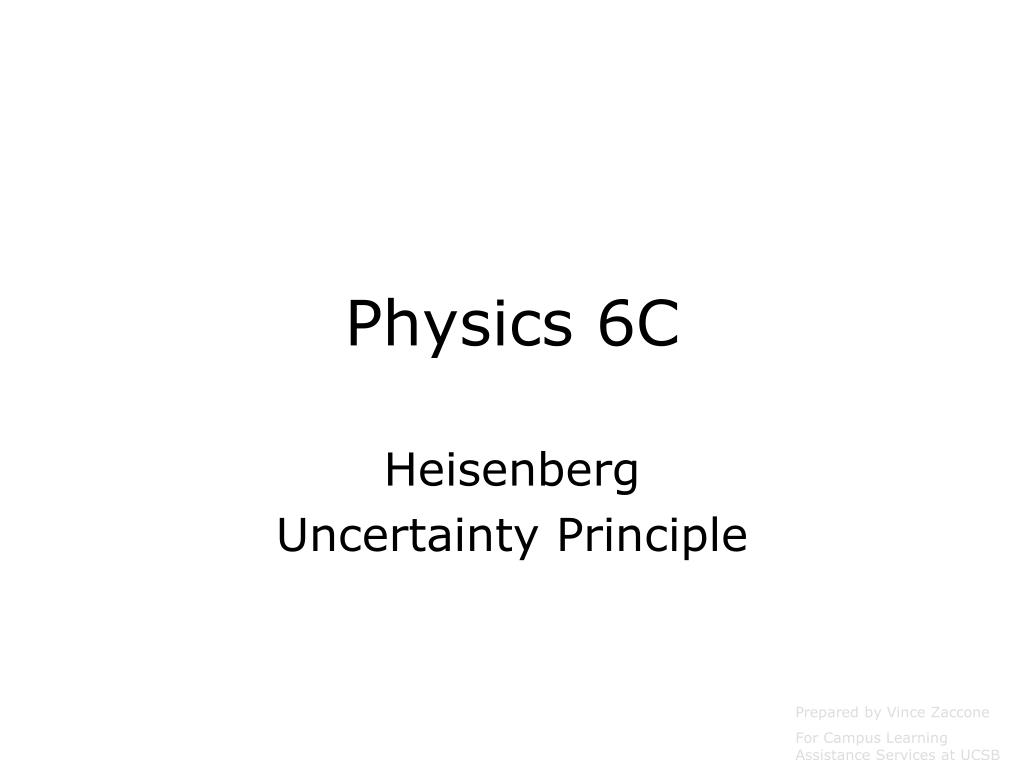

  1. Physics 6C Heisenberg Uncertainty Principle Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  2. Heisenberg Uncertainty Principle Basic Idea – you can’t get exact measurements 2 Versions: Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

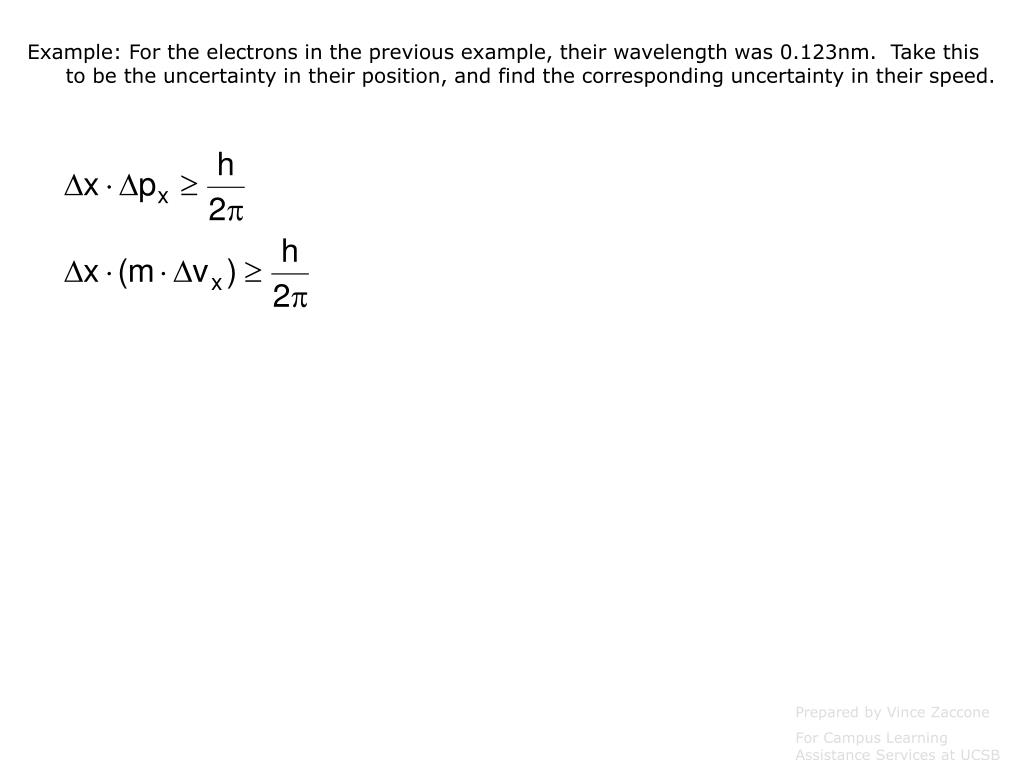

  3. Example: For the electrons in the previous example, their wavelength was 0.123nm. Take this to be the uncertainty in their position, and find the corresponding uncertainty in their speed. Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  4. Example: For the electrons in the previous example, their wavelength was 0.123nm. Take this to be the uncertainty in their position, and find the corresponding uncertainty in their speed. Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  5. Example: For the electrons in the previous example, their wavelength was 0.123nm. Take this to be the uncertainty in their position, and find the corresponding uncertainty in their speed. Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  6. Example: For the electrons in the previous example, their wavelength was 0.123nm. Take this to be the uncertainty in their position, and find the corresponding uncertainty in their speed. Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  7. Example: For the electrons in the previous example, their wavelength was 0.123nm. Take this to be the uncertainty in their position, and find the corresponding uncertainty in their speed. Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  8. Example: For the electrons in the previous example, their wavelength was 0.123nm. Take this to be the uncertainty in their position, and find the corresponding uncertainty in their speed. Compare this to the velocity we found in the previous problem. That value was 5.9x106. So the uncertainty is almost as much as the actual velocity! Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  9. ExampleA certain atom has an energy level 3.50eV above the ground state. When excited to this state, it remains 4.0µs, on average, before emitting a photon and returning to the ground state. a) What is the energy of the photon? What is the wavelength of the photon? b) What is the smallest possible uncertainty in the energy of the photon? Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  10. ExampleA certain atom has an energy level 3.50eV above the ground state. When excited to this state, it remains 4.0µs, on average, before emitting a photon and returning to the ground state. a) What is the energy of the photon? What is the wavelength of the photon? b) What is the smallest possible uncertainty in the energy of the photon? The photon has energy 3.50 eV. Its wavelength is calculated in the usual way: Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  11. ExampleA certain atom has an energy level 3.50eV above the ground state. When excited to this state, it remains 4.0µs, on average, before emitting a photon and returning to the ground state. a) What is the energy of the photon? What is the wavelength of the photon? b) What is the smallest possible uncertainty in the energy of the photon? The photon has energy 3.50 eV. Its wavelength is calculated in the usual way: Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  12. ExampleA certain atom has an energy level 3.50eV above the ground state. When excited to this state, it remains 4.0µs, on average, before emitting a photon and returning to the ground state. a) What is the energy of the photon? What is the wavelength of the photon? b) What is the smallest possible uncertainty in the energy of the photon? The photon has energy 3.50 eV. Its wavelength is calculated in the usual way: Use Heisenberg’s formula to find the minimum uncertainty in the energy: Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  13. ExampleA certain atom has an energy level 3.50eV above the ground state. When excited to this state, it remains 4.0µs, on average, before emitting a photon and returning to the ground state. a) What is the energy of the photon? What is the wavelength of the photon? b) What is the smallest possible uncertainty in the energy of the photon? The photon has energy 3.50 eV. Its wavelength is calculated in the usual way: Use Heisenberg’s formula to find the minimum uncertainty in the energy: Note that this is much smaller than the energy of the photon, so the uncertainty is negligible. Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB
