  1. SkateBoard Design By Jarrod Plant

  2. Situation/Brief As students at Orewa college we are blessed with an environment that allows us to play golf, swim, surf, ride on ripstick, fishing and skating. The benefits of these activities are because its fun, it helps your fitness, it gives you a buzz its good for your coordination, it is relaxing, good for self image and socially healthy

  3. Mental And Physical Needs

  4. Nelson Creek Skateboards • Nelson Creek skateboards are homemade in nelson and are a well known company

  5. CheapSkates And UnderGround Skate • Cheapskates • What they sell: • Skateboards • Protective gears • Snowboards • Bags • Clothes • Footwear • Accessories • Surfboards • Scooters • They have stores located in takapuna, mteden, and Papatoetoe • Underground skate have a shop located in Orewa • They sell lots of new Zealand brands and other countries brands

  6. Finding Trends • Looking at this table I can see that the most common types of boards are standards and only few who don’t have skateboards

  7. Point tip, Cruising wheels, Racing Stripes on the Grip for Effect, Kick For Ollieing up curbs, Flow Design, cruising Trucks.

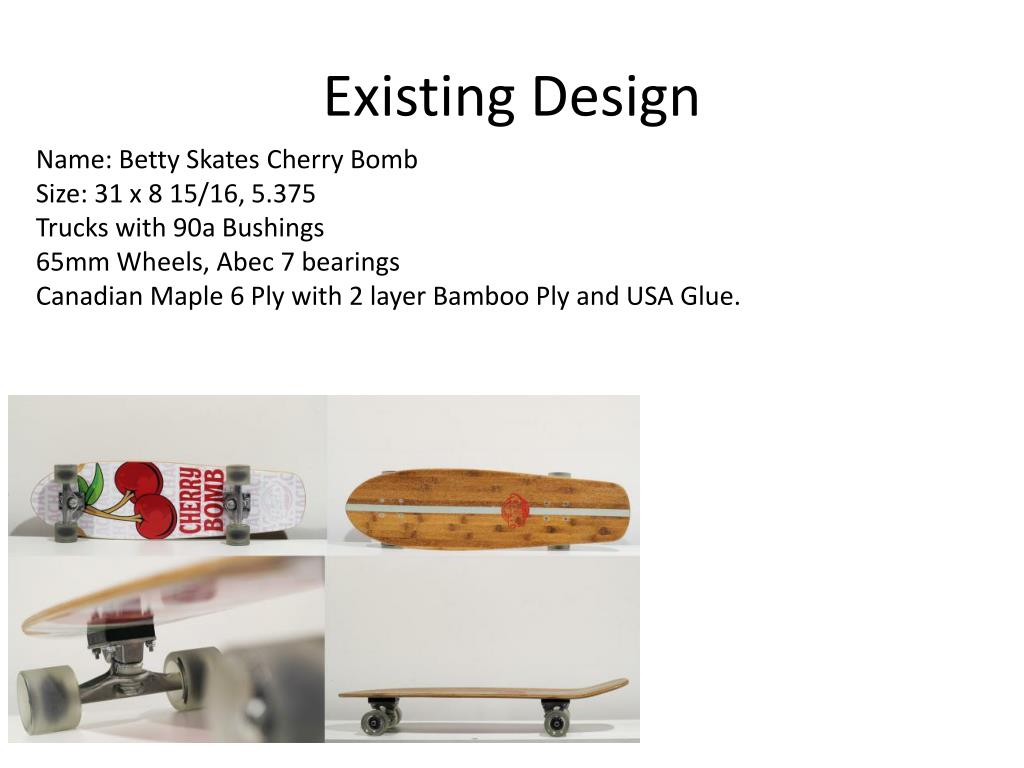

  8. Existing Design Name: Betty Skates Cherry Bomb Size: 31 x 8 15/16, 5.375 Trucks with 90a Bushings 65mm Wheels, Abec 7 bearings Canadian Maple 6 Ply with 2 layer Bamboo Ply and USA Glue.

  9. Name: Blur Skate Complete Size: 7.75 inch Quality Maple 7 ply Deck- 51mm High 99a Wheels- Raw Trucks- ABEC 7 Bearings- Quality Black Grip Tape

  10. Globe Bantam Pink DECK24" LENGTH WITH TAIL KICK7" WIDTHWHEELHIGH GRADE URETHANE62MM/83A CONICAL WHEELSTRUCK4.25" SLANT

  11. STAR WARS YODA CRUZER Deck Size: 10" X 28.5" Cruzerfeatures wheel wells, 68mm, 78a Star Wars™ cruzer wheels, and Bullet Trucks

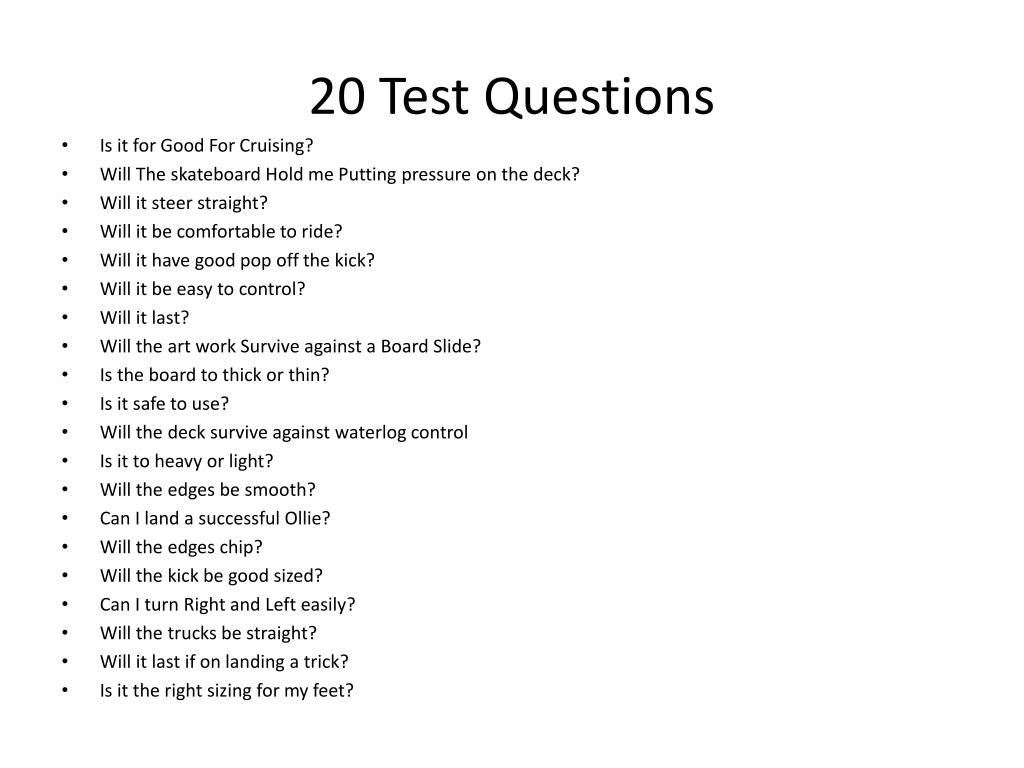

  12. 20 Test Questions • Is it for Good For Cruising? • Will The skateboard Hold me Putting pressure on the deck? • Will it steer straight? • Will it be comfortable to ride? • Will it have good pop off the kick? • Will it be easy to control? • Will it last? • Will the art work Survive against a Board Slide? • Is the board to thick or thin? • Is it safe to use? • Will the deck survive against waterlog control • Is it to heavy or light? • Will the edges be smooth? • Can I land a successful Ollie? • Will the edges chip? • Will the kick be good sized? • Can I turn Right and Left easily? • Will the trucks be straight? • Will it last if on landing a trick? • Is it the right sizing for my feet?

  13. Conclusion • I am going to design a Old School board that could be marketed by Underground Skate . It will be ridden anywhere ranging from Skate Parks and cruising the streets. I will take into consideration the rides weight because I don’t like to ride something too heavy. Its height is just as important because if its to high the kick wont work as well. It will be built with durability in mind because The safety of it will be depended on The value for money. As for the performance, will depend on how well it is made according to my highly developed design.

  14. How my technological modelling supports my decision-making

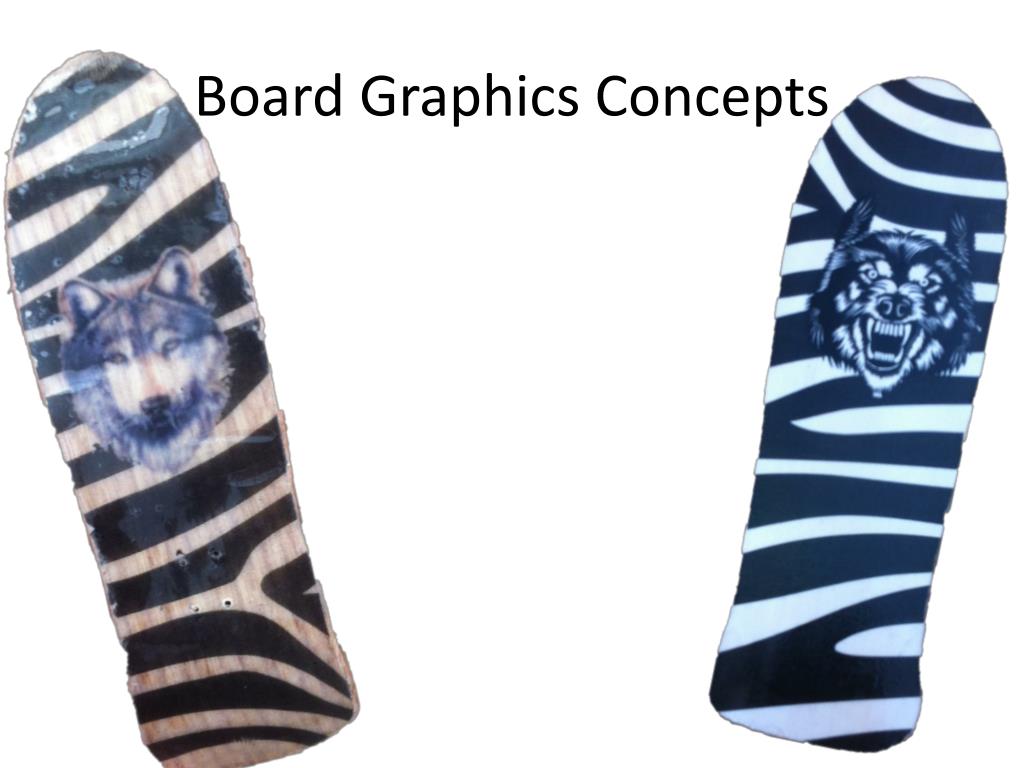

  15. Board Graphics Concepts

  16. Flow Chart
