  1. Duct numbering for EE- 06.B 07.B 06.A 07.A 08.B 08.A 09.B 09.A 10.B 10.A 11.B 11.A 12.B 12.A 13.A 13.B 14.A 14.B 06/08/2003 Wolfgang Funk - CERN CMS 1

  2. View towards I.P. for EE+ View from I.P. for EE- LV 6*7.4 (259) HV 1*15.3 (184) OF 2*4.3X2 (18) signal 2*9 (128) CO 1*14 is (314mm**2) CO 1*14 con (154) N2 1*8 (51) OF 15*4.3X2 (129) HV 37*3 (262) Sniff 1*6 (29) Duct 05.A Sum: (1528) P F B ret N2 sn Duct 06.B Similar to Duct 03.A LV 6*7.4 (259) HV 1*15.3 (184) OF 2*4.3X2 (18) signal 2*9 (128) LV 10*12.2 (1169) CO 1*14 con (154) Signal 2*10 (158) Duct 05.B P ret Sum: (2070) 14/23 Duct 06.A Similar to Duct 03.B 06/08/2003 Wolfgang Funk - CERN CMS 2

  3. LV 6*7.4 (259) HV 1*15.3 (184) OF 4*4.3X2 (35) signal 2*9 (128) LV 10*12.2 (1169mm**2) CO 1*14 con (154) Signal 1*10 (79) Duct 04.A Sum: (2008) P F P ret Duct 07.B Similar to Duct 02.A HV 37*3 (262) CO 1*14 is (314) OF 15*4.3X2 (129) LV 12*7.4 (518) HV 2*15.3 (368) signal 4*9 (256) Duct 04.B Sum: (1847) P F Duct 07.A Similar to Duct 02.B 06/08/2003 Wolfgang Funk - CERN CMS 3

  4. FES F CO 4*10 is (804mm**2) CO 1*14 is (314) CO 1*12 is (255) CO 1*14 con (154) LV 6*7.4 (259) HV 1*15.3 (184) OF 4*4.3X2 (35) signal 2*9 (128) OF 15*4.3X2 (129) HV 37*3 (262) Duct 03.A Sum: (2532) OES OES BF BF BF BF R F Duct 08.B Similar to Duct 05.A LV 6*7.4 (259) HV 1*15.3 (184) OF 2*4.3X2 (18) Signal 2*9 (128) LV 10*12.2 (1169) CO 1*14 con (154) Signal 2*10 (158) Duct 03.B Sum: (2070) P F P ret Duct 08.A Similar to Duct 05.B 06/08/2003 Wolfgang Funk - CERN CMS 4

  5. LV 6*7.4 (259) HV 1*15.3 (184) OF 2*4.3X2 (18) signal 2*9 (128) LV 10*12.2 (1169mm**2) CO 1*14 con (154) Signal 1*10 (79) DCS 1*11 (95) DCS 1*7.2 (41) DCS 1*5.8 (26) Duct 02.A Sum: (2153) P F P ret Duct 09.B Similar to Duct 04.A CO 2*14 is (628) Laser 1*10 (79) OF 15*4.3X2 (129) MEM 12*2.2 (46) MEM 2*1.5X2 (6) HV 37*3 (262) LV 12*7.4 (518) HV 2*15.3 (368) OF 4*4.3X2 (36) signal 4*9 (256) Duct 02.B Sum: (2328) P F P F Duct 09.A Similar to Duct 04.B Note: additional cables between MEM and balconies: LV 4*5 (88), Ving 1*5 (22), OF 2*4.3X2 (128) MEM cables (MEM 12*2.2 (46) and MEM 2*1.5X2 (6) are only between MEM and Dees Sum: (2514) 06/08/2003 Wolfgang Funk - CERN CMS 5

  6. CO 1*71 (3960) CO 1*14 (154) Duct 01.A B ret ret Duct 10.B 06/08/2003 Wolfgang Funk - CERN CMS 6

  7. CO 1*71 (3960) CO 1*14 (154) Duct 01.B B ret ret Duct 10.A 06/08/2003 Wolfgang Funk - CERN CMS 7

  8. LV 12*7.4 (518) HV 2*15.3 (368) OF 4*4.3X2 (36) signal 4*9 (256) CO 2*14 is (628) HV 37*3 (262) OF 15*4.3X2 (129) Duct 18.A Sum: (2197) P F P F Duct 11.B Similar to Duct 16.A LV 6*7.4 (259) HV 1*15.3 (184) OF 2*4.3X2 (18) signal 2*9 (128) LV 10*12.2 (1169mm**2) CO 1*14 con (154) Signal 1*10 (79) DCS 1*11 (95) DCS 1*7.2 (41) DCS 1*5.8 (26) Duct 18.B Sum: (2153) P F P ret Duct 11.A Similar to Duct 16.B 06/08/2003 Wolfgang Funk - CERN CMS 8

  9. LV 6*7.4 (259) HV 1*15.3 (184) OF 2*4.3X2 (18) Signal 2*9 (128) LV 10*12.2 (1169) CO 1*14 con (154) Signal 2*10 (158) Duct 17.A Sum: (2070) P F P ret Duct 12.B Similar to Duct 15.A CO 4*10 is (804mm**2) CO 1*14 is (314) CO 1*12 con (113) CO 1*14 con (154) LV 6*7.4 (259) HV 1*15.3 (184) OF 4*4.3X2 (35) signal 2*9 (128) OF 15*4.3X2 (129) HV 37*3 (262) Duct 17.B OES Sum: (2382) OES FES R BF BF BF R BF F Duct 12.A Similar to Duct 15.B 06/08/2003 Wolfgang Funk - CERN CMS 9

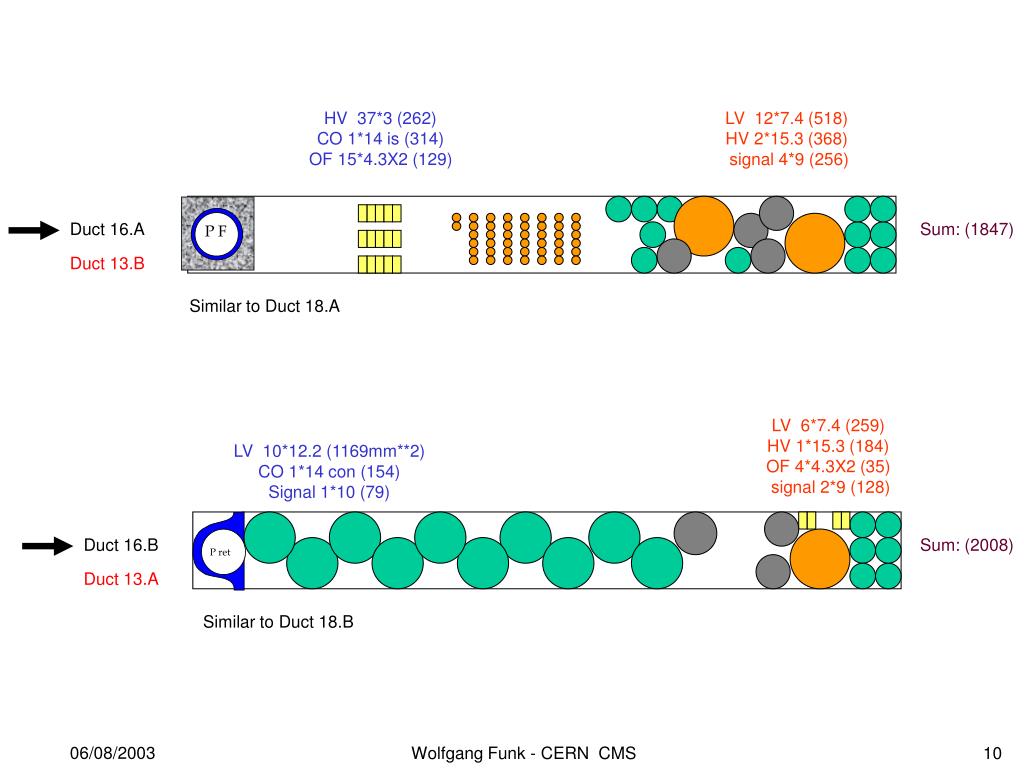

  10. HV 37*3 (262) CO 1*14 is (314) OF 15*4.3X2 (129) LV 12*7.4 (518) HV 2*15.3 (368) signal 4*9 (256) Duct 16.A Sum: (1847) P F Duct 13.B Similar to Duct 18.A LV 6*7.4 (259) HV 1*15.3 (184) OF 4*4.3X2 (35) signal 2*9 (128) LV 10*12.2 (1169mm**2) CO 1*14 con (154) Signal 1*10 (79) Duct 16.B Sum: (2008) P F P ret Duct 13.A Similar to Duct 18.B 06/08/2003 Wolfgang Funk - CERN CMS 10

  11. LV 6*7.4 (259) OF 2*4.3X2 (18) signal 2*9 (128) LV 10*12.2 (1169) CO 1*14 con (154) Signal 2*10 (158) Duct 15.A P ret Sum: (1886) 14/23 Duct 14.B Similar to Duct 17.A LV 6*7.4 (259) HV 1*15.3 (184) OF 1*4.3X2 (18) signal 2*9 (128) HV 37*3 (262) OF 15*4.3X2 (129) Sniff 1*6 (29) CO 1*14 is (314mm**2) CO 1*14 con (154) N2 1*8 (51) LV 4*7.4 (172) N2/sniff 1*12 (113) Duct 15.B Sum: (1813) P F B ret N2 sn N2 Duct 14.A Similar to Duct 17.B Note: ES N2 pipe is input on one Dee and output on other Dee (same diameter) 06/08/2003 Wolfgang Funk - CERN CMS 11

  12. History New version 14/7/03 to avoid crossing of services at EE patch panel area according to Justin’s proposal of patch panel design of spring ’03: • move ES services out of 10B-/10A- into 9A-/11B- (no space in ducts with ES pipes). • Move PF from 7A- to 9A- and from 13B- to 11B- to avoid crossing of cooling pipe over ring flange bean. • Move half of OF from 6B-/8B-/13B-/11B- to 7A-/9A-/14A-/12A- to have less crossings. • Move half of HV from 7A-/9A-/14A-/12A- to 6B-/8B-/13B-/11B- to have less crossings. • Change of DCS scheme: no DCS cable anymore in 7B-/13A-, but 3 DCS cables in 9B-/11A-, no overall cross section increase. New version 6/8/03 to increase LV cable sets to 20/Quadrant (before 18/Quadrant) because of new “EE-mechatronics’’ design of Tony: • 2 more LV EE cables each in ducts 7B-,9B-,11A-,13A- . 06/08/2003 12 Wolfgang Funk - CERN CMS
