  1. Contour Detection and Hierarchical Image Segmentation P. Arbelaez, M. Maire, C. Fowlkes, J. Malik. Contour Detection and Hierarchical image Segmentation. IEEE Trans. on PAMI , 2011. Student: Hsin-Min Cheng Advisor: Sheng-Jyh Wang

  2. Outline • Introduction • Contour Detection • Hierarchical Segmentation • Results • Conclusion

  3. Introduction • Contour Original Image Contour

  4. Introduction • Segmentation Original Image Segmentation

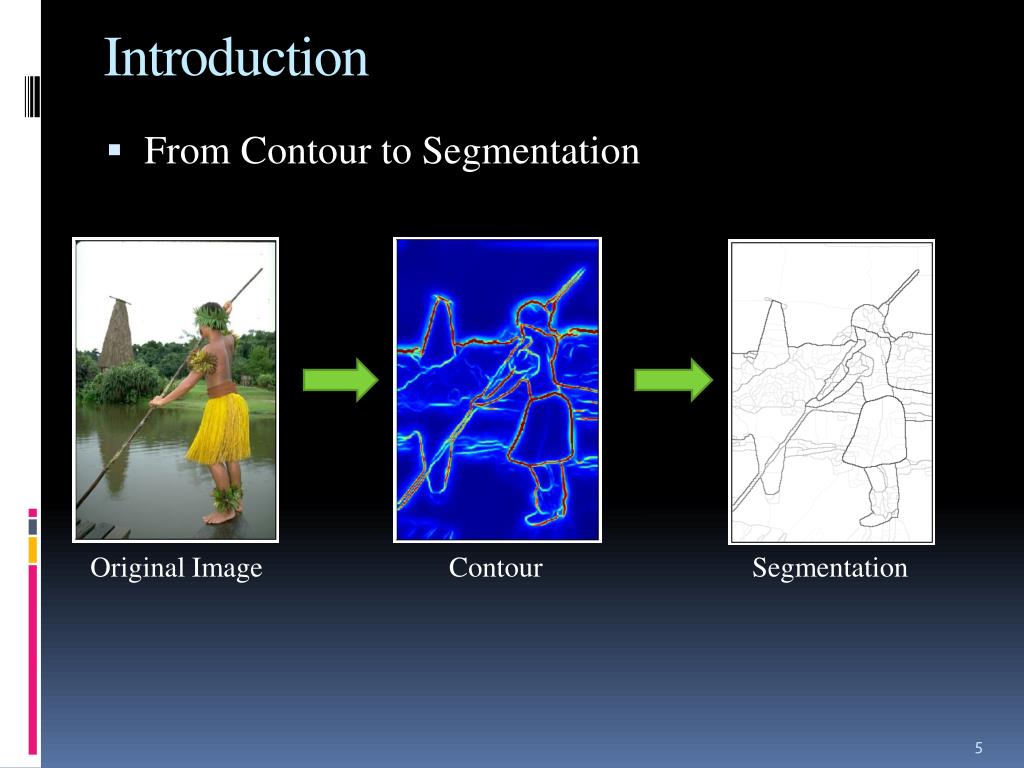

  5. Introduction • From Contour to Segmentation Original Image Contour Segmentation

  6. Introduction • Goal • Contour Detection • Hierarchical Segmentation from Contours Original Image Contour Segmentation

  7. Outline • Introduction • Contour Detection • Hierarchical Segmentation • Results • Conclusion

  8. Contour Detection 1. Learn local boundary cues 2. Global framework to capture closure, continuity 3. Local Cues and global cues combination

  9. Contour Detection • Learn local boundary cues Local Boundary Cues Image Cue Combination Brightness Model Color Texture

  10. Contour Detection • Learn local boundary cues • Brightness • L*a*b* colorspace • Color • L*a*b* colorspace • Texture • Convolve with 17 filters Filters for creating textons

  11. Contour Detection • Learn local boundary cues • Oriented gradient of histograms • Example • Gradient magnitude G at location(x, y) • Three scales of r ure 11

  12. Contour Detection • Learn local boundary cues • Local Cues Combination ure 12 12

  13. Contour Detection • Global framework to capture closure, continuity V: image pixels E: connections between pairs of nearby pixels =>Build a weighted graph G=(V,E) from image

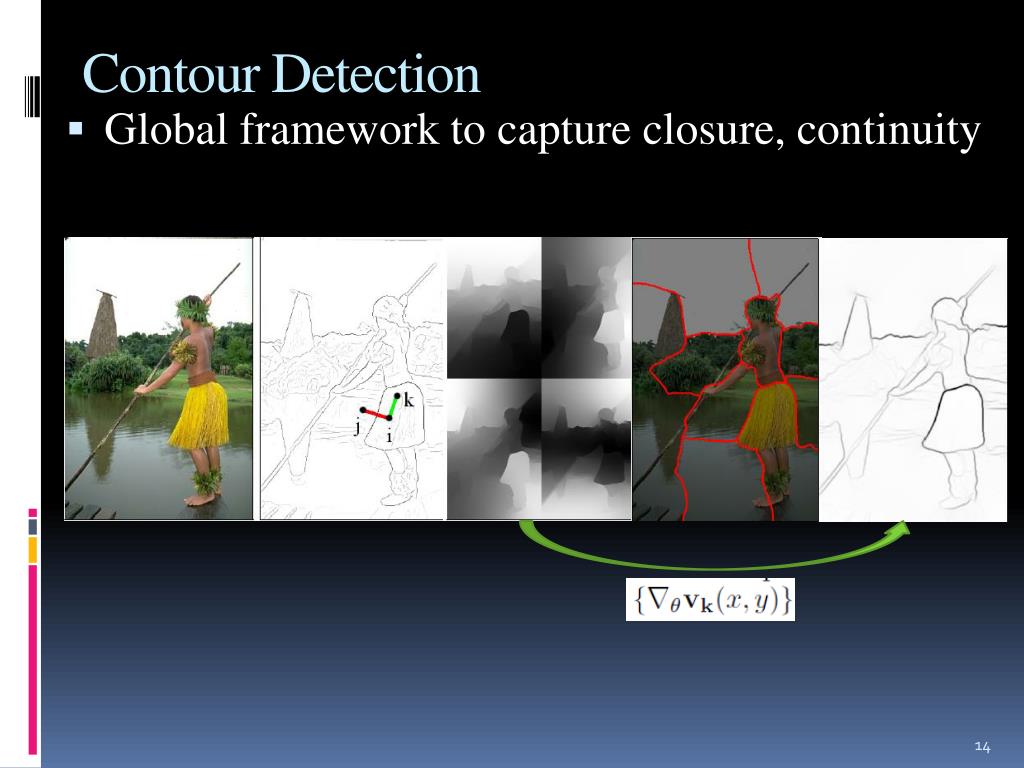

  14. Contour Detection • Global framework to capture closure, continuity

  15. Contour Detection • Local Cues and global cues combination Local Cues Global cues

  16. Outline • Introduction • Contour Detection • Hierarchical Segmentation • Results • Conclusion

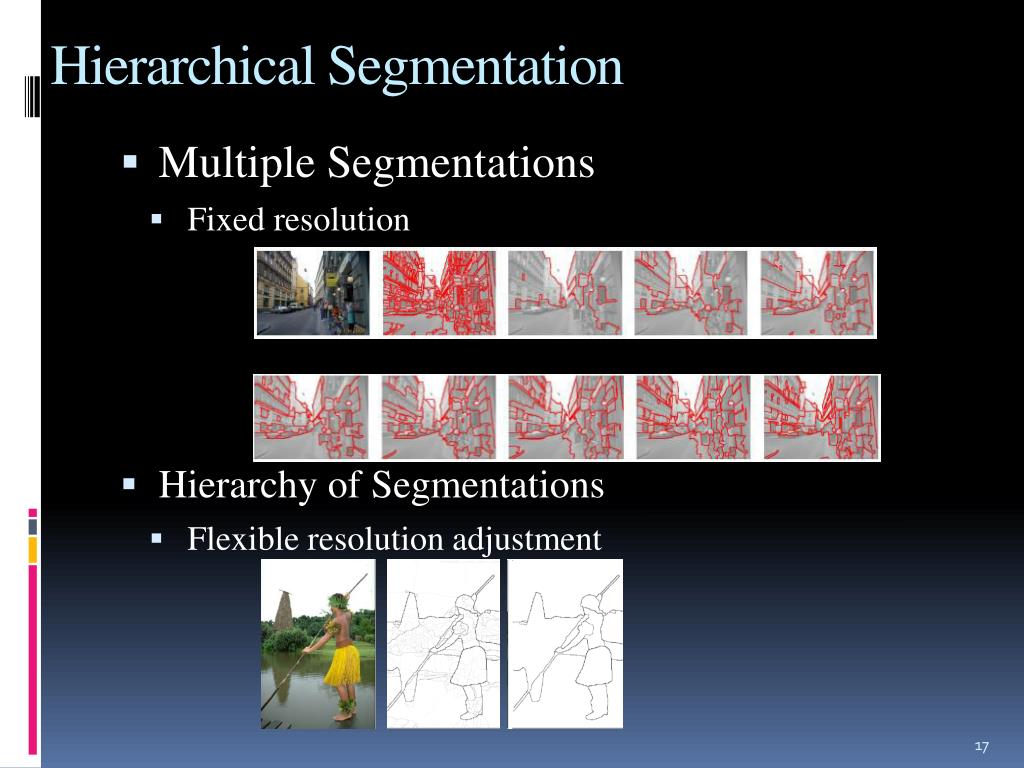

  17. Hierarchical Segmentation • Multiple Segmentations • Fixed resolution • Hierarchy of Segmentations • Flexible resolution adjustment

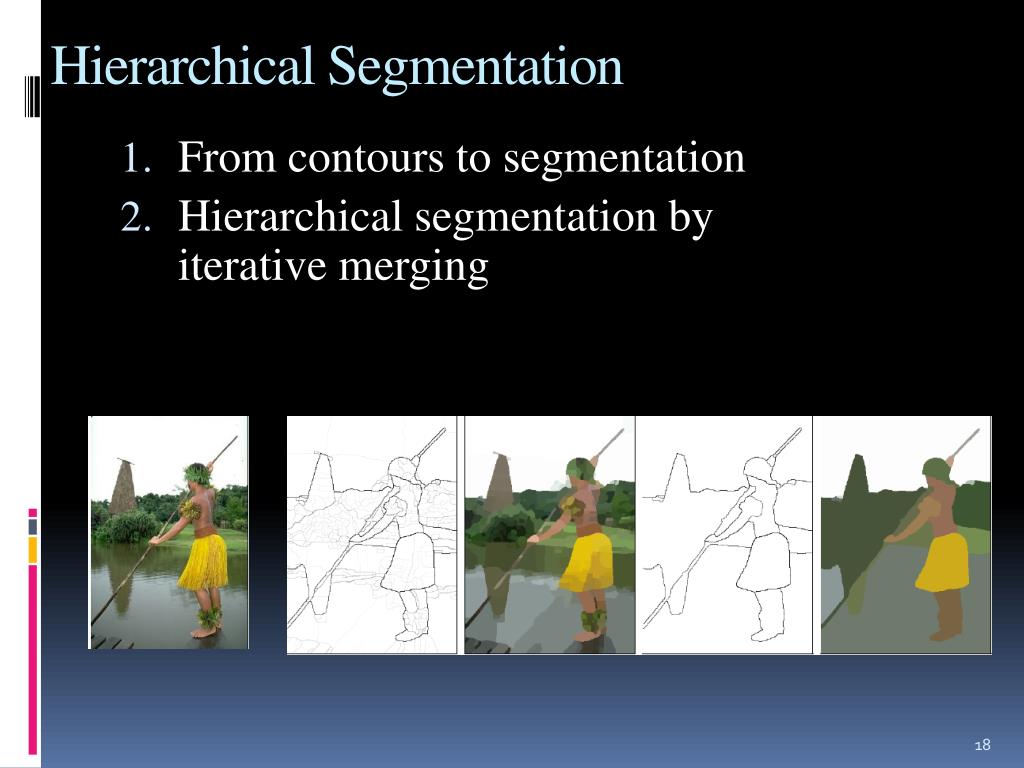

  18. Hierarchical Segmentation • From contours to segmentation • Hierarchical segmentation by iterative merging

  19. Hierarchical Segmentation • From contours to segmentation • Watershed Transform • Concept

  20. Hierarchical Segmentation • From contours to segmentation • Watershed Transform • Example

  21. Hierarchical Segmentation • From contours to segmentation • Watershed Transform Artifacts Boundary strength Weight each arc

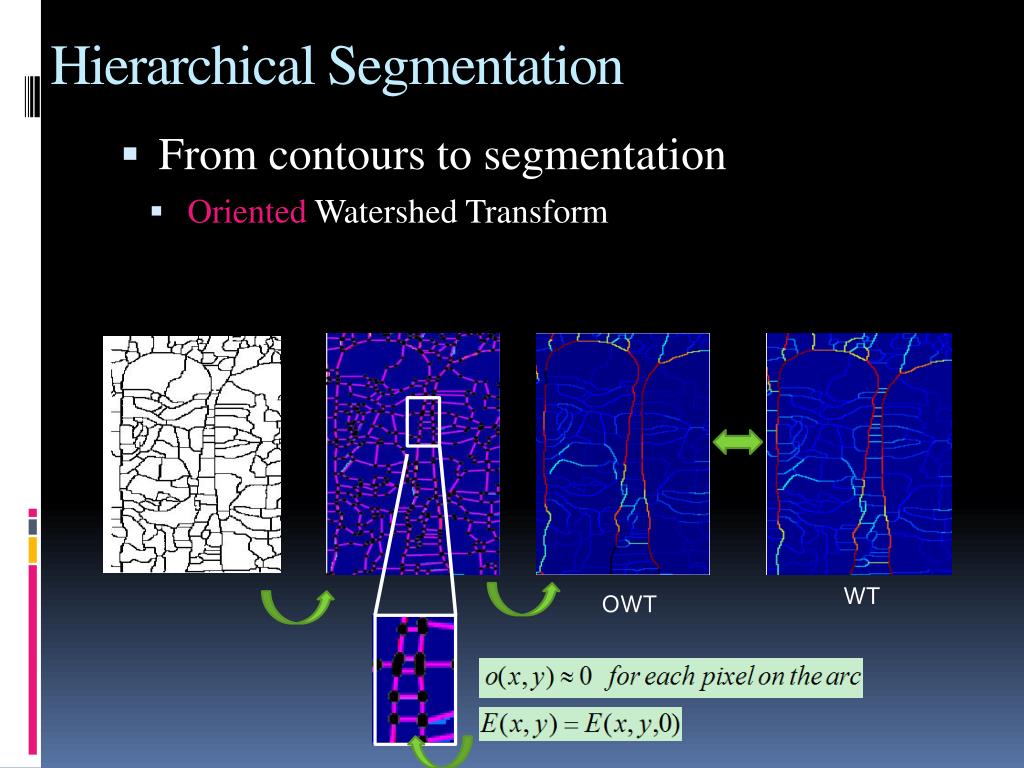

  22. Hierarchical Segmentation • From contours to segmentation • Oriented Watershed Transform WT OWT

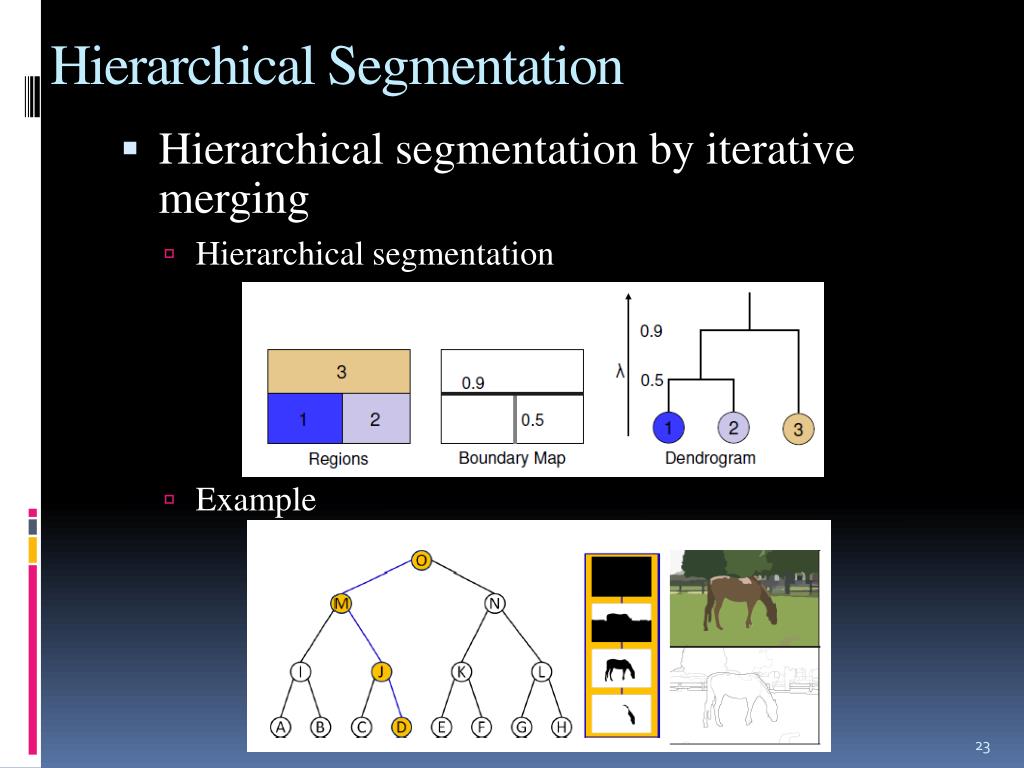

  23. Hierarchical Segmentation • Hierarchical segmentation by iterative merging • Hierarchical segmentation • Example

  24. Brief Summary Original Image - Local cues - Global cues Oriented Gradient of histograms Contour Oriented Watershed Transform Hierarchical Segmentation Iterative Merging

  25. Outline • Introduction • Contour Detection • Hierarchical Segmentation • Results • Conclusion

  26. Result

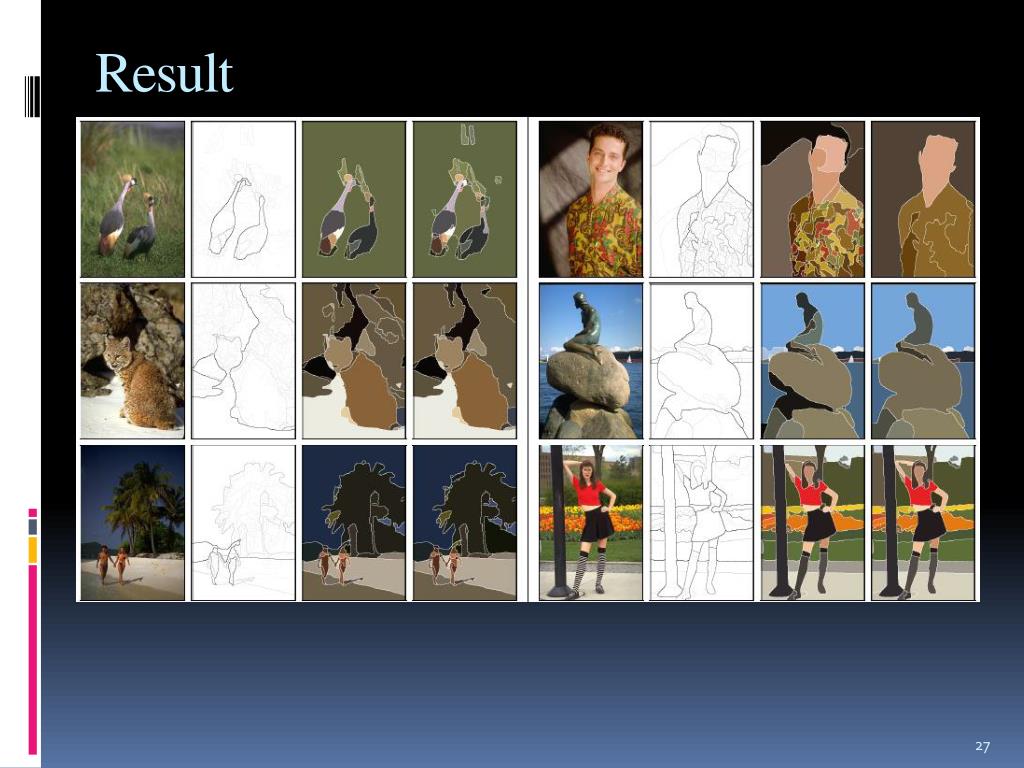

  27. Result

  28. Result • BSDS300 Dataset Evaluation of contour detector Evaluation of segmentation algorithms

  29. Outline • Introduction • Contour Detection • Hierarchical Segmentation • Results • Conclusion

  30. Conclusion • A high performance contour detector, combining local and global image information • A method to transform any contour detector signal into a hierarchy of regions while preserving contour quality

  31. Reference • P. Arbelaez, M. Maire, C. Fowlkes and J. Malik. Contour Detection and Hierarchical Image Segmentation. IEEE TPAMI, Vol. 33, No. 5, pp. 898-916, May 2011 • P. Arbelaez, M. Maire, C. Fowlkes and J. Malik. From Contours to Regions: An Empirical Evaluation. In CVPR 2009. • P. Arbelaez and L. Cohen. Constrained Image Segmentation from Hierarchical Boundaries. In CVPR 2008.
