  1. Configuring Linksys Wireless Ethernet Bridge Prof. Yousif @ Valencia Community College

  2. Wireless Ethernet Bridge • Home Page • Default Address 192.168.1.225

  3. Enable LAC#5

  4. The default SSID is “linksys” unless a beacon is heard with a different SSID

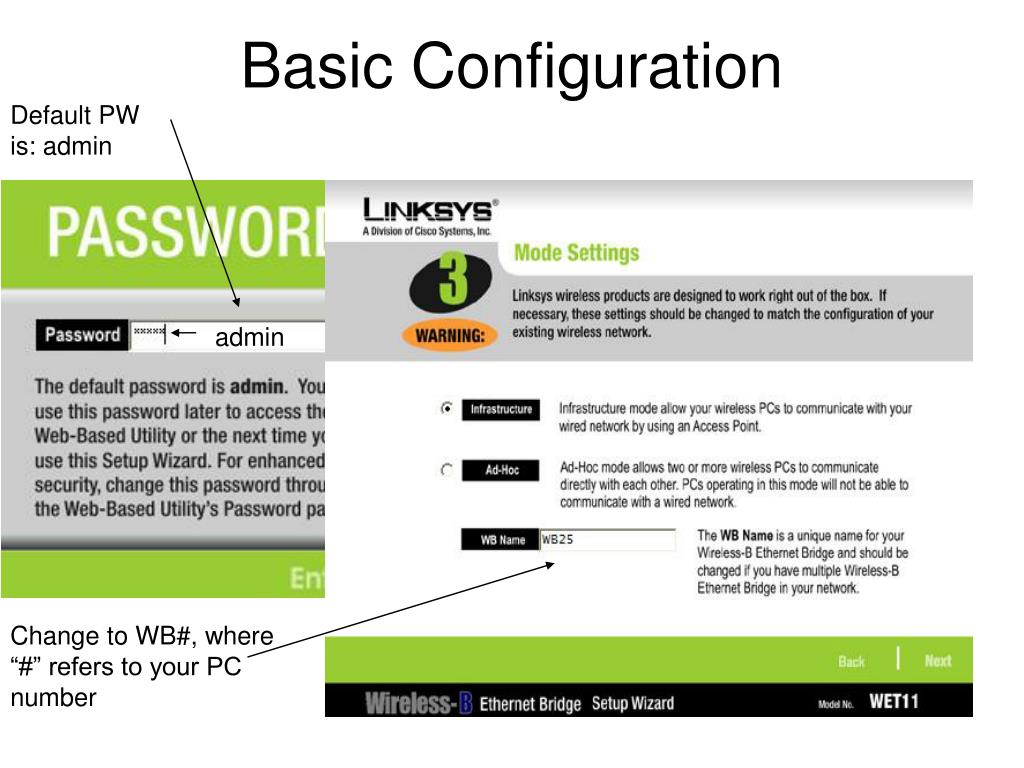

  5. Basic Configuration Default PW is: admin admin Change to WB#, where “#” refers to your PC number

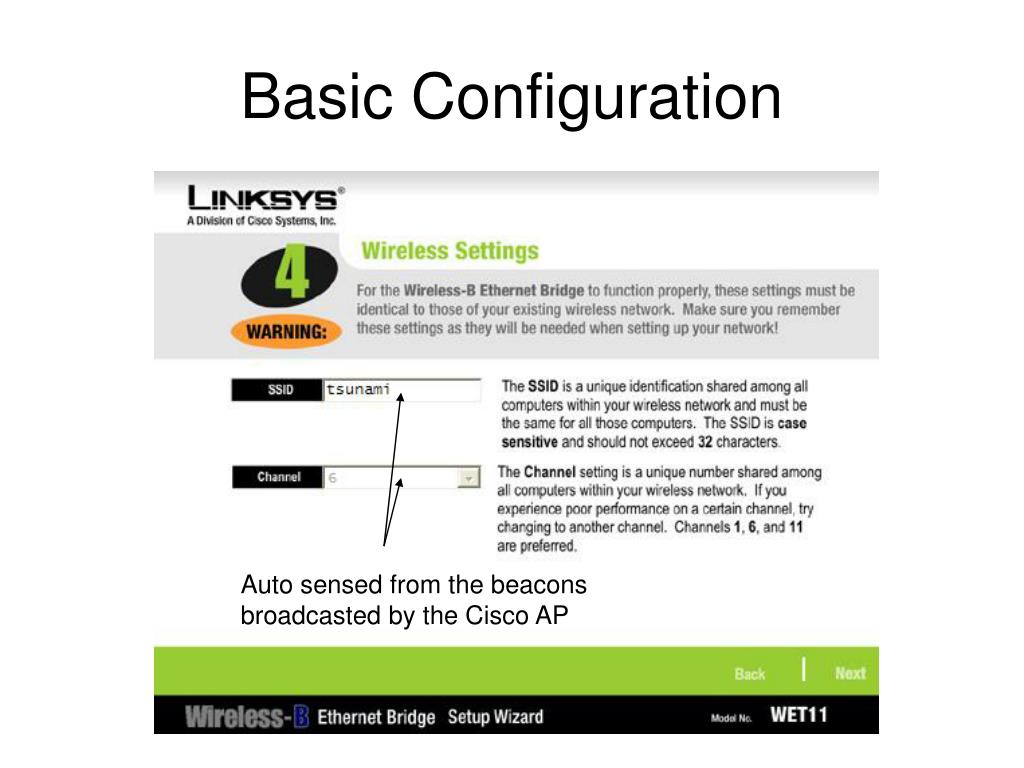

  6. Basic Configuration Auto sensed from the beacons broadcasted by the Cisco AP

  7. Basic Configuration Must enter GW Address

  8. No Security Config. “Later”

  9. Confirm!

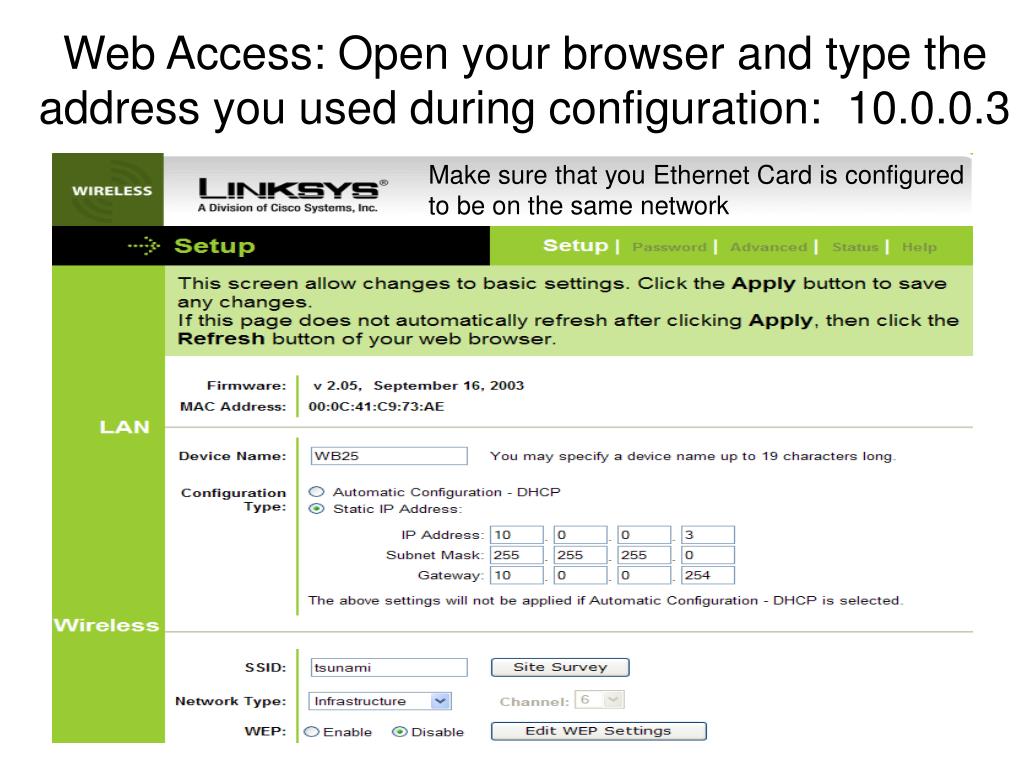

  10. Web Access: Open your browser and type the address you used during configuration: 10.0.0.3 Make sure that you Ethernet Card is configured to be on the same network

  11. Confirm Association IP Add. Of PC MAC Add. Of W. Bridge

  12. Check the Firmware Version Old

  13. Upgrade the WB Firmware

  14. Download the firmware Capture

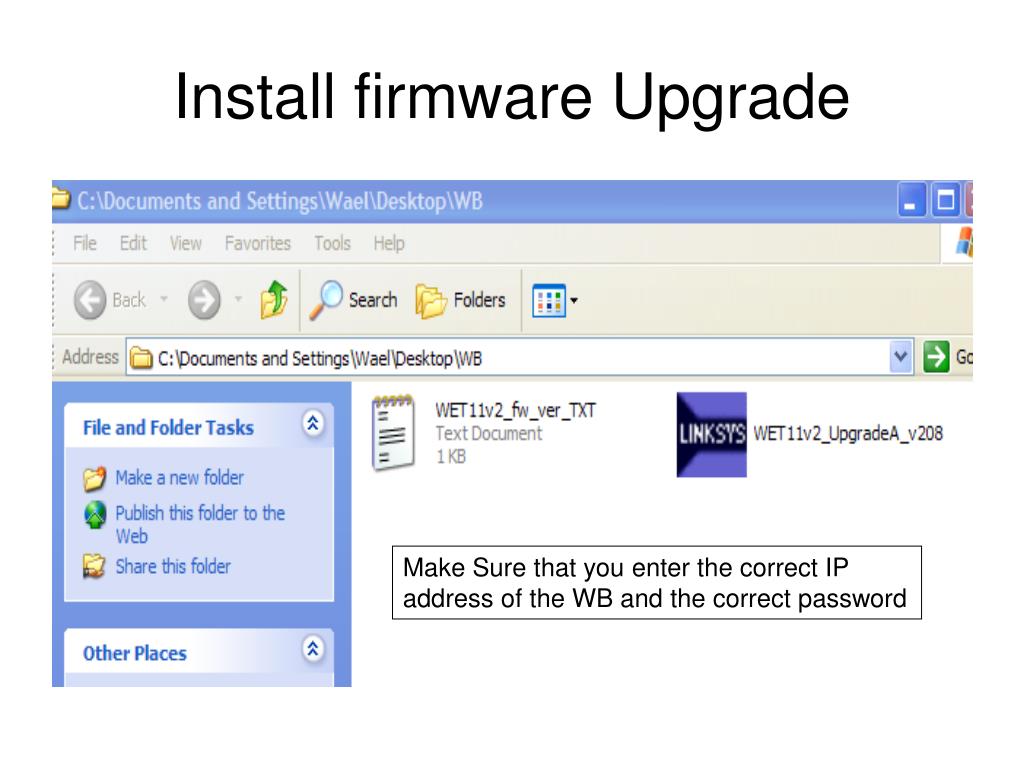

  15. Install firmware Upgrade Make Sure that you enter the correct IP address of the WB and the correct password

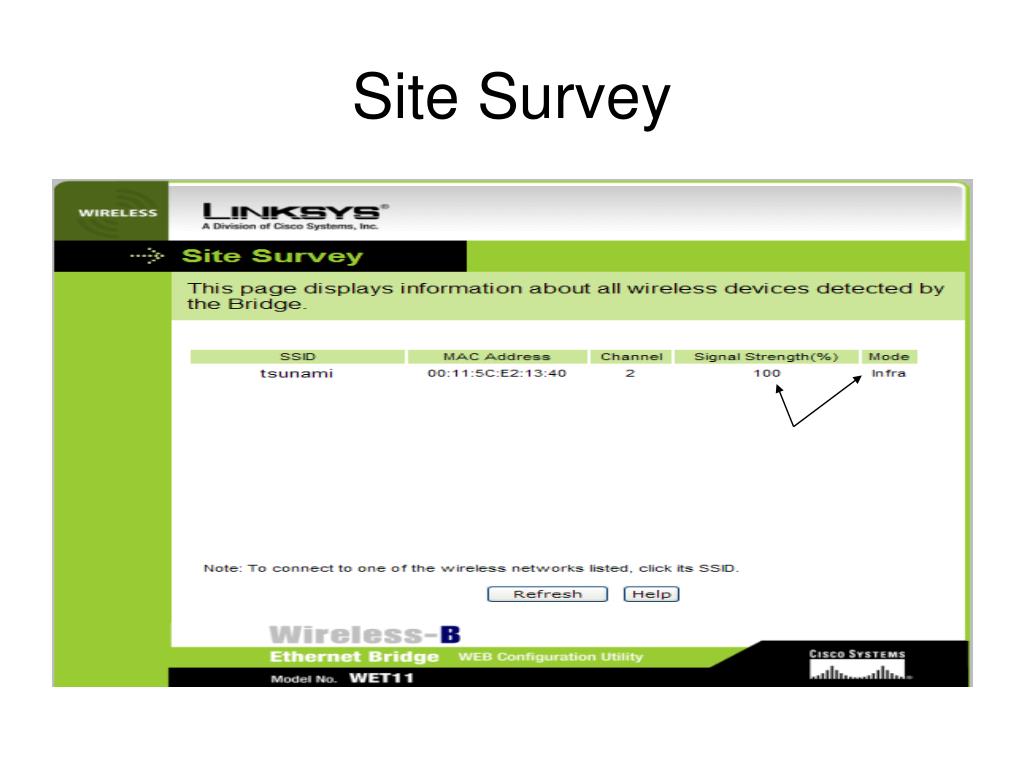

  16. Site Survey

  17. Supports WEP Only,Doesn’t Support WPA
