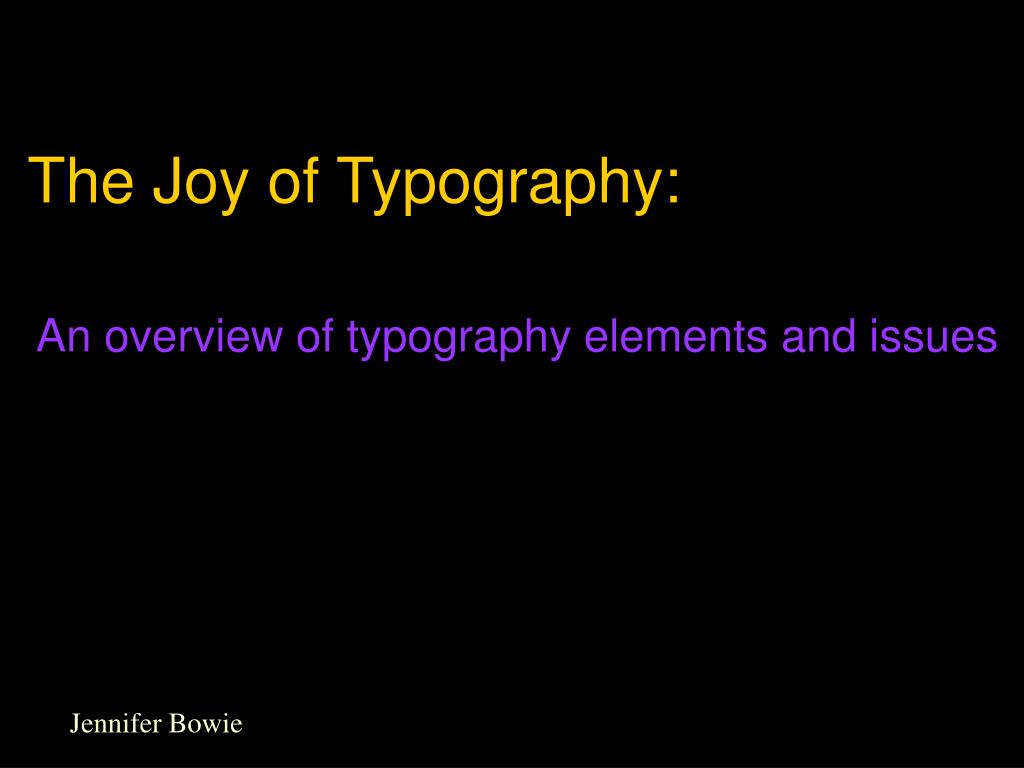

  1. The Joy of Typography: An overview of typography elements and issues Jennifer Bowie

  2. Typography and Type Elements #1 one thing to remember: Typography exisits to honor content Typography exisits to honor content Typography exisits to honor content Typography exisits to honor content

  3. Typography and Type Elements: Font Classifications There are four basic font classifications: • Serif:the oldest type, has serifs on the end of letter to guide reader’s eye, also has thick and thin strokes, considered more “readable” than sans serif. Gives a more formal and traditional feel to documents. Good body text or contrast text. Includes: Times, Garamond, Georgia, Goudy Old Style, Book Antiqua, and many more. • Sans Serif:“without serif,” only about 100 years old, has stokes that have little to no variation in width, looks more modern and technical, used a body text in Europe. Makes a good body text or contrast text. Includes: Arial, Helvetica, Verdana, Tahoma, Century Gothic (and other Gothics), Trebuchet, and many more.

  4. Typography and Type Elements: Font Classifications con. • Script:fonts that look they they are hand lettered, can connect or not. Should be used in small amounts for fancy documents (invitations), occasionally for headings, titles, logos, and drop caps. Most should never be set in long bodies of text. Use as a display font, or rarely a contrast. Includes: Comic Sans, Gigi, Brush Script (and other scripts), Forte, and more • Decorative:fun, distinctive fonts. Should never be used in long bodies of text. Best used as display fonts. Very powerful so use sparingly. Includes: Goudy Stout, Impact, Algerian, Juice ITC, Bauhaus 93, and many more.

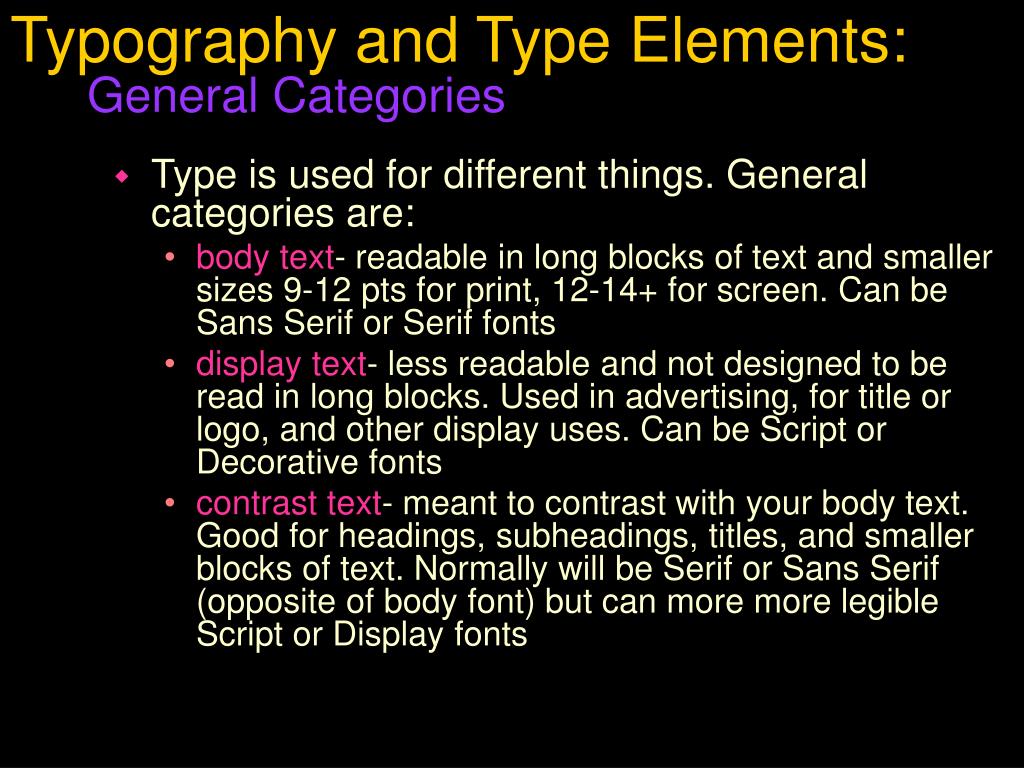

  5. Typography and Type Elements: General Categories • Type is used for different things. General categories are: • body text- readable in long blocks of text and smaller sizes 9-12 pts for print, 12-14+ for screen. Can be Sans Serif or Serif fonts • display text- less readable and not designed to be read in long blocks. Used in advertising, for title or logo, and other display uses. Can be Script or Decorative fonts • contrast text- meant to contrast with your body text. Good for headings, subheadings, titles, and smaller blocks of text. Normally will be Serif or Sans Serif (opposite of body font) but can more more legible Script or Display fonts

  6. Typography and Type Elements: Type Setting • Leading: (space between lines) should be at least 120% for serifed fonts, and 135-140% for sans serif. • greater is better than lesser for body text • display fonts can handle little or even negative leading • typefaces with small x-heights do not need greater leading, but those with large may • leading should increase proportionally as line length increases • Auto leading for most programs is ~20%

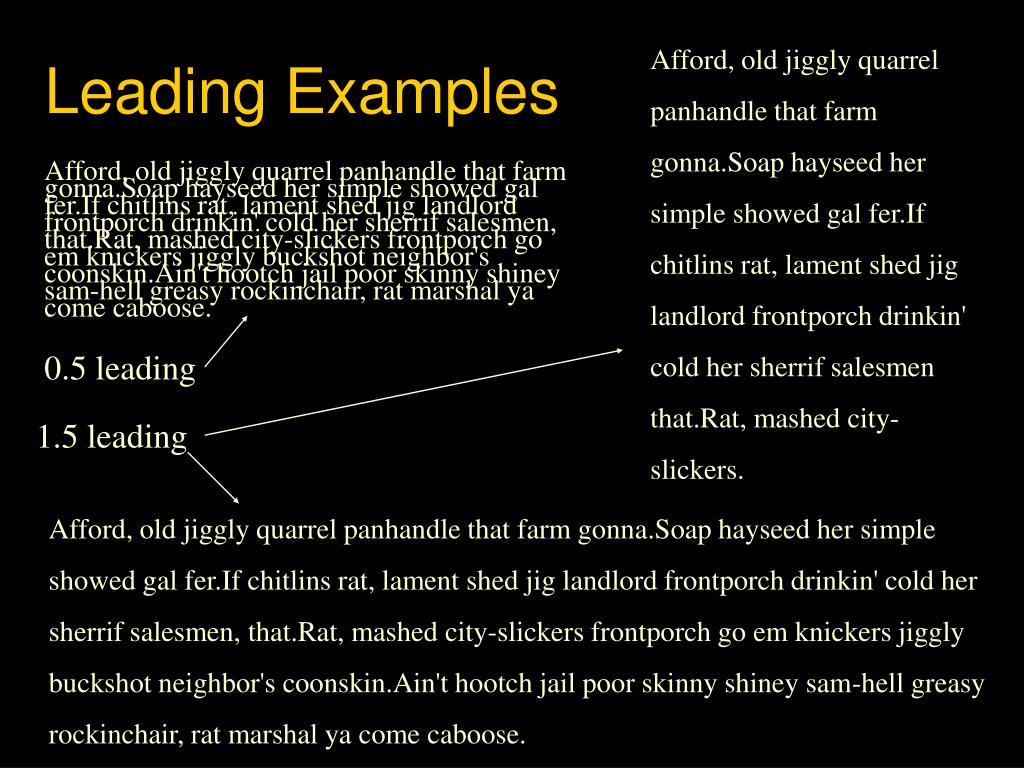

  7. Leading Examples Afford, old jiggly quarrel panhandle that farm gonna.Soap hayseed her simple showed gal fer.If chitlins rat, lament shed jig landlord frontporch drinkin' cold her sherrif salesmen that.Rat, mashed city-slickers. Afford, old jiggly quarrel panhandle that farm gonna.Soap hayseed her simple showed gal fer.If chitlins rat, lament shed jig landlord frontporch drinkin' cold her sherrif salesmen, that.Rat, mashed city-slickers frontporch go em knickers jiggly buckshot neighbor's coonskin.Ain't hootch jail poor skinny shiney sam-hell greasy rockinchair, rat marshal ya come caboose. Afford, old jiggly quarrel panhandle that farm gonna.Soap hayseed her simple showed gal fer.If chitlins rat, lament shed jig landlord frontporch drinkin' cold her sherrif salesmen, that.Rat, mashed city-slickers frontporch go em knickers jiggly buckshot neighbor's coonskin.Ain't hootch jail poor skinny shiney sam-hell greasy rockinchair, rat marshal ya come caboose. 0.5 leading 1.5 leading

  8. Typography and Type Elements: Justification • Justified left: flushed left and jagged right, this is the most readable for long segments of body text • Justified right: flush right, jagged left, highly unreadable, use rarely. • Justified: flush left and right so the text forms a box. Can cause rivers in the text. • Centered: ragged both sides. Use rarely and in small amounts, very unreadable.

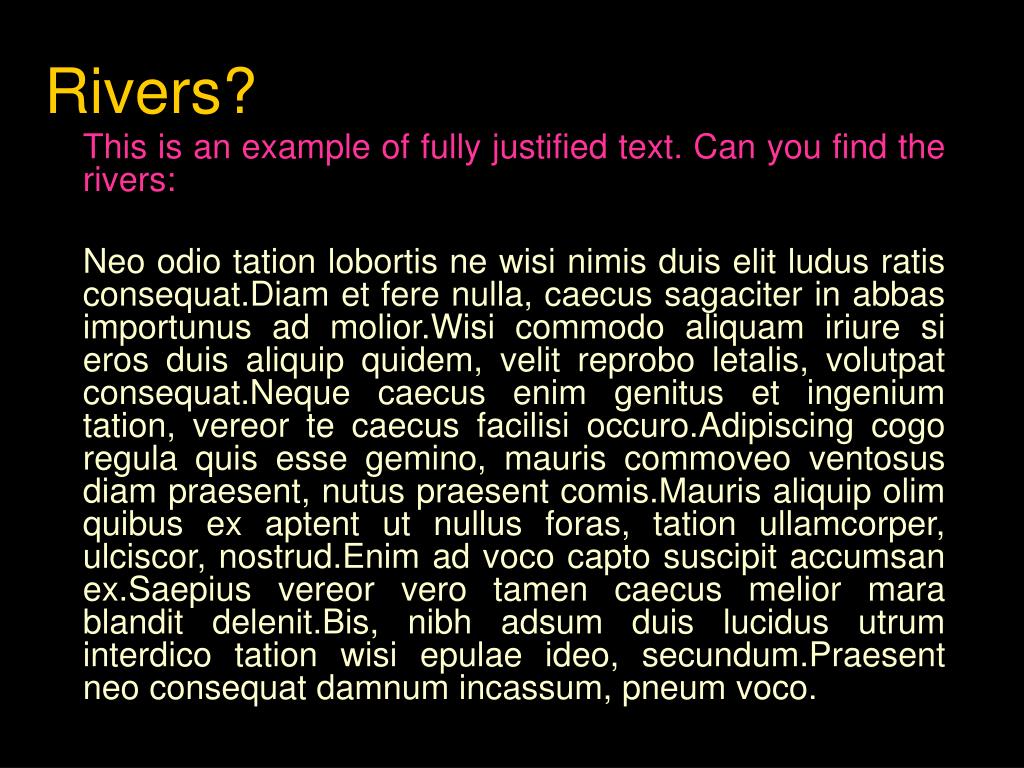

  9. Rivers? This is an example of fully justified text. Can you find the rivers: Neo odio tation lobortis ne wisi nimis duis elit ludus ratis consequat.Diam et fere nulla, caecus sagaciter in abbas importunus ad molior.Wisi commodo aliquam iriure si eros duis aliquip quidem, velit reprobo letalis, volutpat consequat.Neque caecus enim genitus et ingenium tation, vereor te caecus facilisi occuro.Adipiscing cogo regula quis esse gemino, mauris commoveo ventosus diam praesent, nutus praesent comis.Mauris aliquip olim quibus ex aptent ut nullus foras, tation ullamcorper, ulciscor, nostrud.Enim ad voco capto suscipit accumsan ex.Saepius vereor vero tamen caecus melior mara blandit delenit.Bis, nibh adsum duis lucidus utrum interdico tation wisi epulae ideo, secundum.Praesent neo consequat damnum incassum, pneum voco.

  10. Vocab: • Type family: a generic term for all the fonts in a family • Example: Franklin Gothic, which includes Franklin Gothic , Franklin Gothic Demi, Franklin Gothic Heavy, and variations like italics • Typeface or face: a specific category of type, includes all variations within that category like bold and italics. So, the typeface Franklin Gothicwould include all variations of that particular face including italics and bold • Font: specific type in a type family with specific characteristics, like bolding or italic. Like Franklin Gothic HeavyShadow or Franklin Gothic italics

  11. Vocab: • Type size: measured in points • Best sizes for print & web body text? • Point: 1/72 of an inch • Kerning: space between letters

  12. Anatomy Vocab: image from: http://graphicdesign.spokanefalls.edu/tutorials/process/type_basics/default.htm

  13. More Vocab • Stress • Weight Enim ad voco capto suscipit accumsan ex.Saepius vereor vero tamen caecus melior mara blandit delenit.Bis, nibh adsum duis lucidus utrum interdico tation wisi epulae ideo, secundum.Praesent neo consequat damnum incassum, pneum voco. Enim ad voco capto suscipit accumsan ex.Saepius vereor vero tamen caecus melior mara blandit delenit.Bis, nibh adsum duis lucidus utrum interdico tation wisi epulae ideo, ecundum. Praesent neo consequat damnum incassum, pneum voco.

  14. Even More Vocab • Width: length of letter • Monospaced fonts: Each character (letter) has the same width Courier is one example • Proportional fonts: different letters take up different amounts of space– like the i and the m. Goudy Old Style is one example, but most fonts are like this • Line quality: includes thick/thinness of lines and whether lines vary in width or are constant • Clarity: legibility— “ease with which readers can pick up information in the text” Kostelnick & Roberts) • Example: good clarity poorer clarity

  15. Have fun and Design well The End Information from Sims 10, Guark & Lannon 8, and Web Typography, Kostelnic & Roberts Jennifer Bowie
