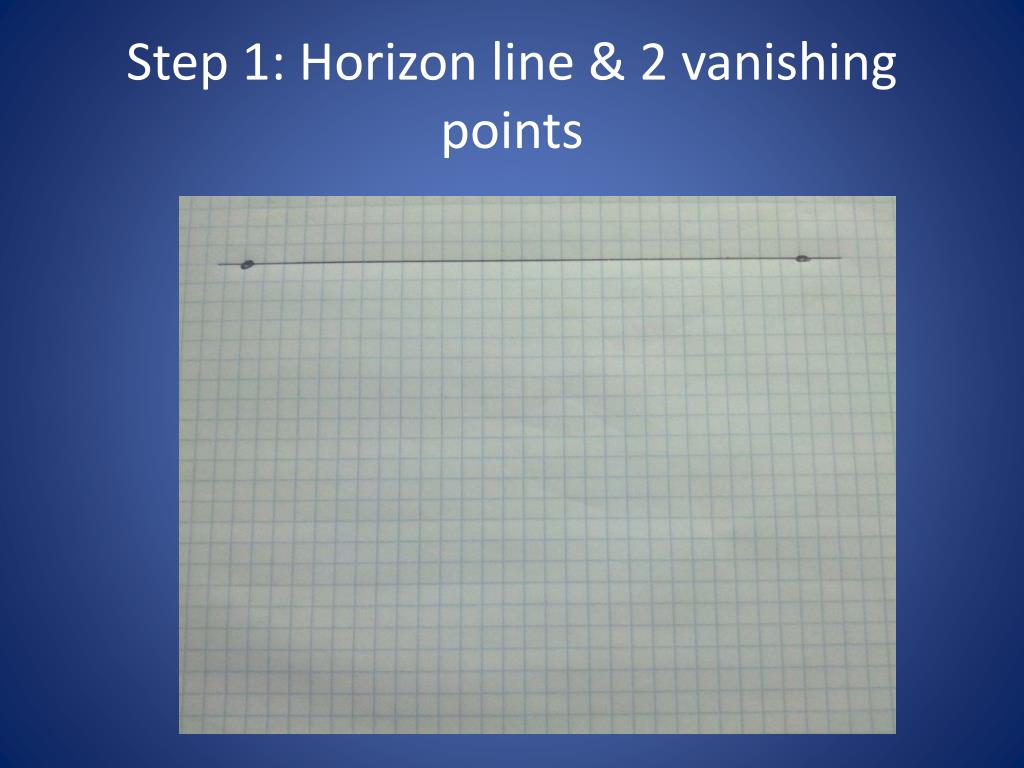

Two Point Perspective. Widget Walkthrough . We’ll be drawing this widget. Step 1: Horizon line & 2 vanishing points. Draw an edge. Top corner to vanishing points. Decide how long you want right side to be, place dot along construction line.
E N D
Two Point Perspective Widget Walkthrough
Decide how long you want right side to be, place dot along construction line
That corner needs to be attached to both vanishing points and a vertical line
Now decide how long you want the other side to be – place a dot there

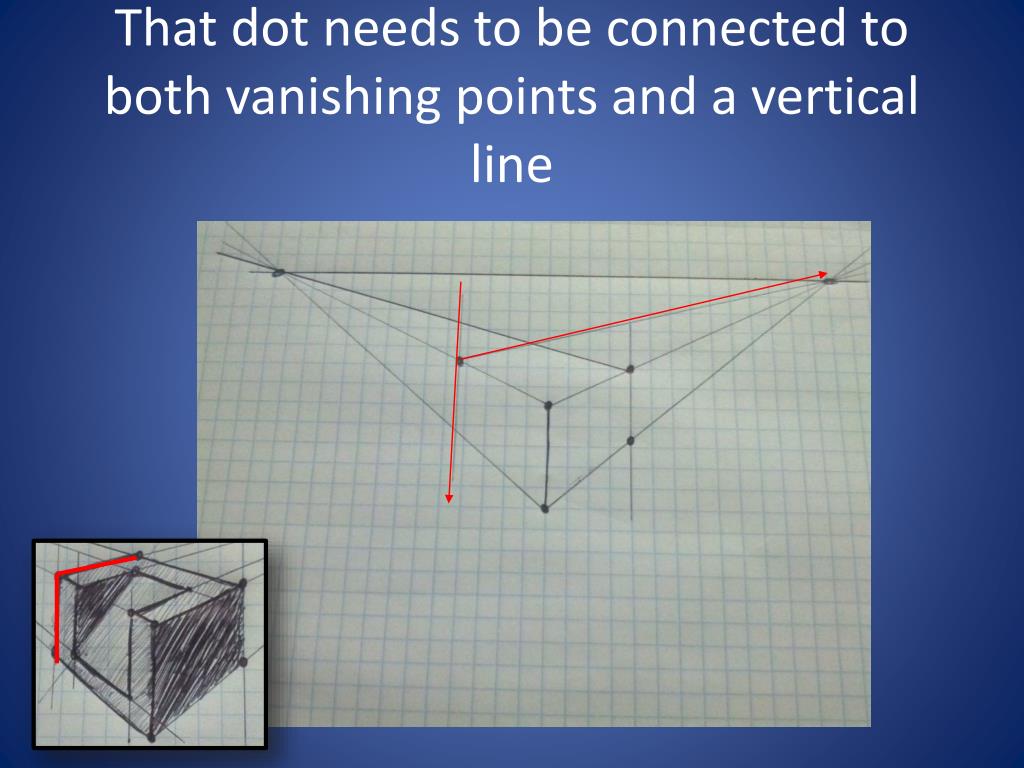

That dot needs to be connected to both vanishing points and a vertical line
You’ve discovered the back left corner and the front left corner!
Now we need to work on the details of the top of this widget
Now let’s drop those vertical lines from the two dots we placed earlier
