  1. CPE555A:Real-Time Embedded Systems Lecture 11 Ali Zaringhalam Stevens Institute of Technology 1 1

  2. Outline • Non-deterministic FSM • Transition types • Default • Reset • Termination • History • Hierarchical FSM • FSM Composition CS555A – Real-Time Embedded Systems Stevens Institute of Technology CS555A – Real-Time Embedded Systems Stevens Institute of Technology 2

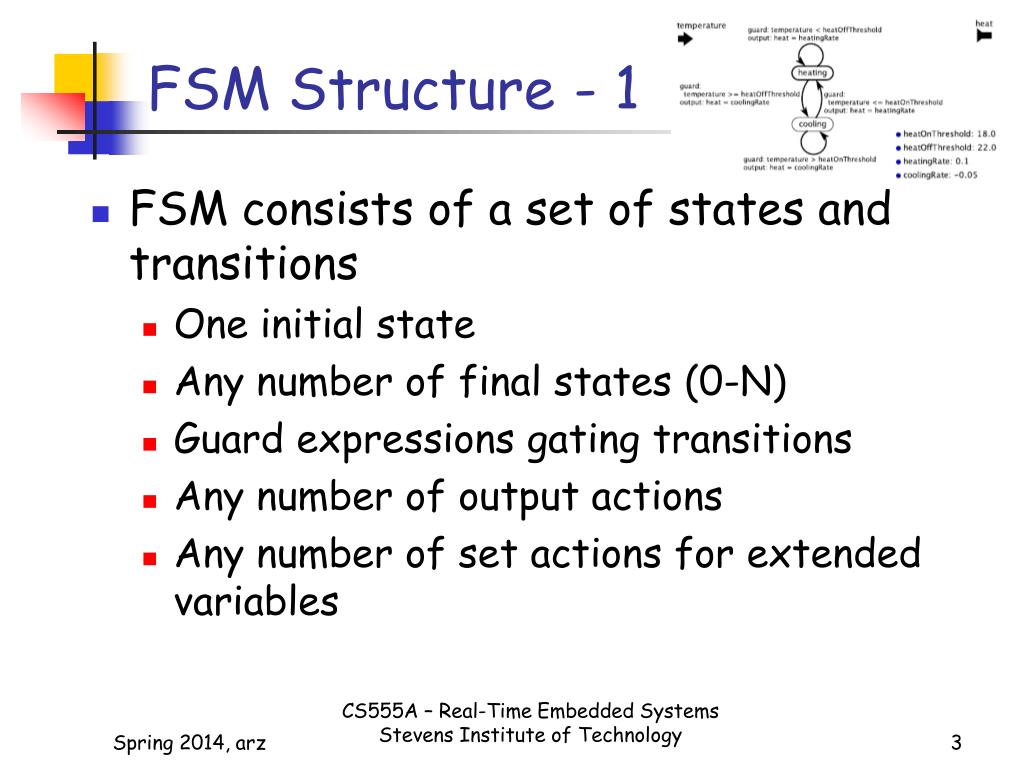

  3. FSM Structure - 1 • FSM consists of a set of states and transitions • One initial state • Any number of final states (0-N) • Guard expressions gating transitions • Any number of output actions • Any number of set actions for extended variables CS555A – Real-Time Embedded Systems Stevens Institute of Technology

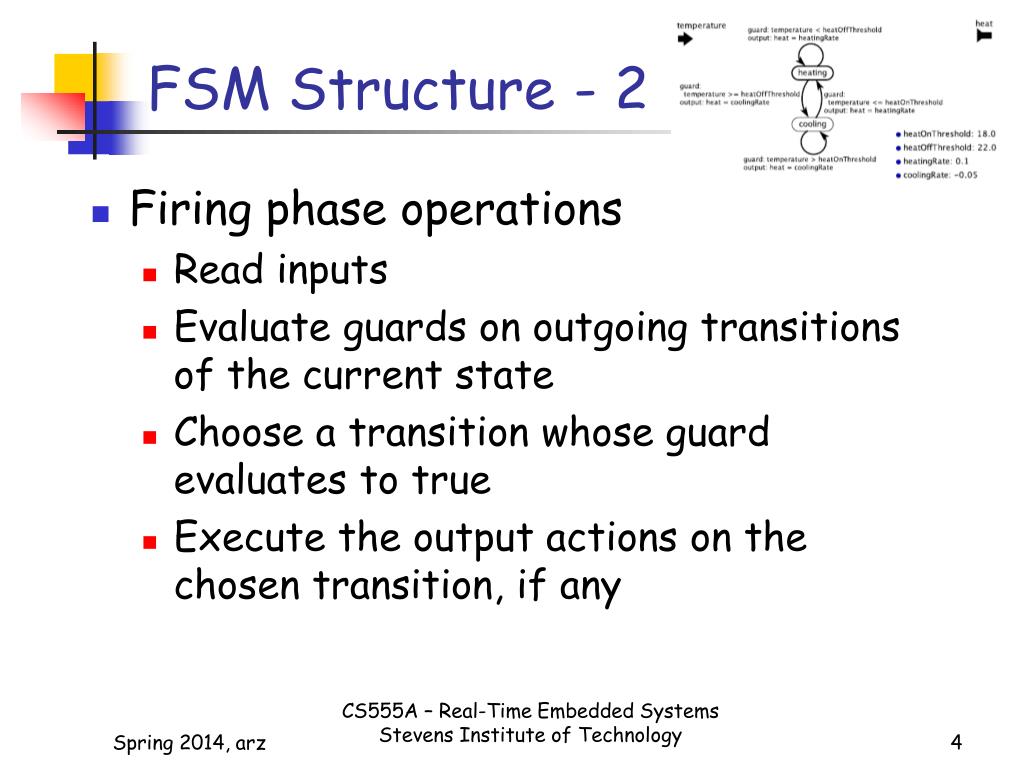

  4. FSM Structure - 2 • Firing phase operations • Read inputs • Evaluate guards on outgoing transitions of the current state • Choose a transition whose guard evaluates to true • Execute the output actions on the chosen transition, if any CS555A – Real-Time Embedded Systems Stevens Institute of Technology

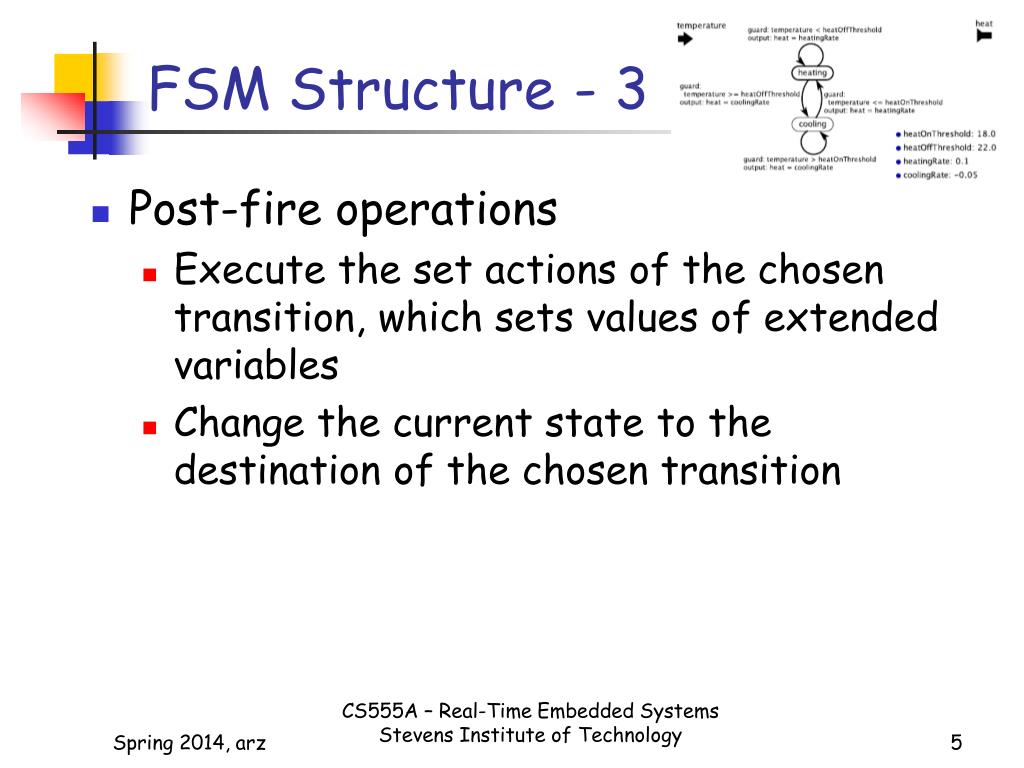

  5. FSM Structure - 3 • Post-fire operations • Execute the set actions of the chosen transition, which sets values of extended variables • Change the current state to the destination of the chosen transition CS555A – Real-Time Embedded Systems Stevens Institute of Technology

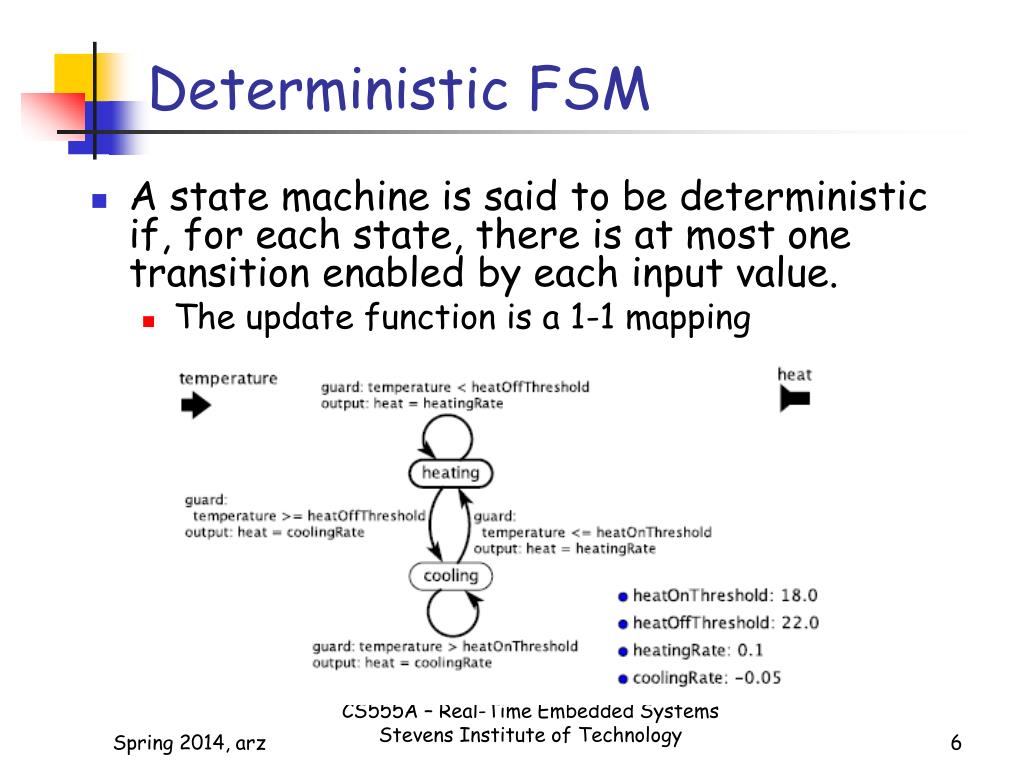

  6. Deterministic FSM • A state machine is said to be deterministic if, for each state, there is at most one transition enabled by each input value. • The update function is a 1-1 mapping CS555A – Real-Time Embedded Systems Stevens Institute of Technology

  7. Non-Deterministic FSM • If for each state, more than one transition is enabled by an input value, the FSM is non-deterministic • The update function is 1-many mapping In the heating state both red transitions fire on any input. • The update function of a non-deterministic FSM has a 1-many mapping between (state, inputs) -> (state, output) • It is useful to think of it as a multi-valued function CS555A – Real-Time Embedded Systems Stevens Institute of Technology

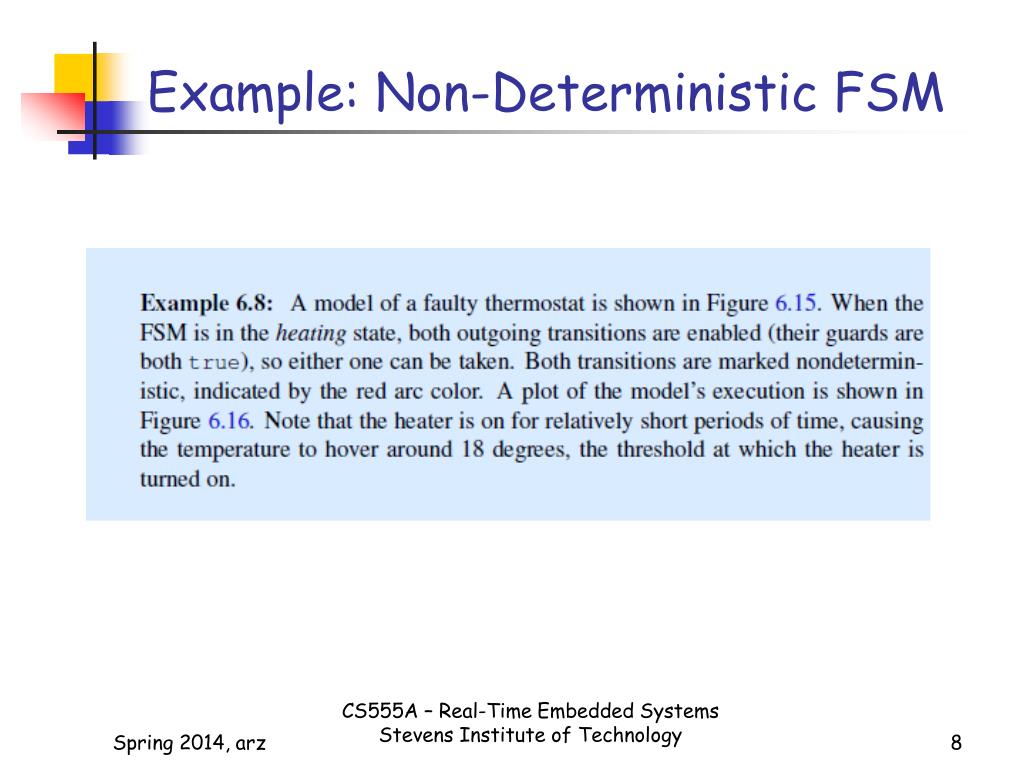

  8. Example: Non-Deterministic FSM CS555A – Real-Time Embedded Systems Stevens Institute of Technology

  9. Non-Deterministic FSM Model • In a nondeterministic FSM, if more than one transition is enabled and they are all marked • nondeterministic, then one is chosen in the fire phase based on some environment criteria. In this model the SDF director picks a transition at random. • The selection criteria is not a part of the FSM specification which only models that both transitions are possible. CS555A – Real-Time Embedded Systems Stevens Institute of Technology

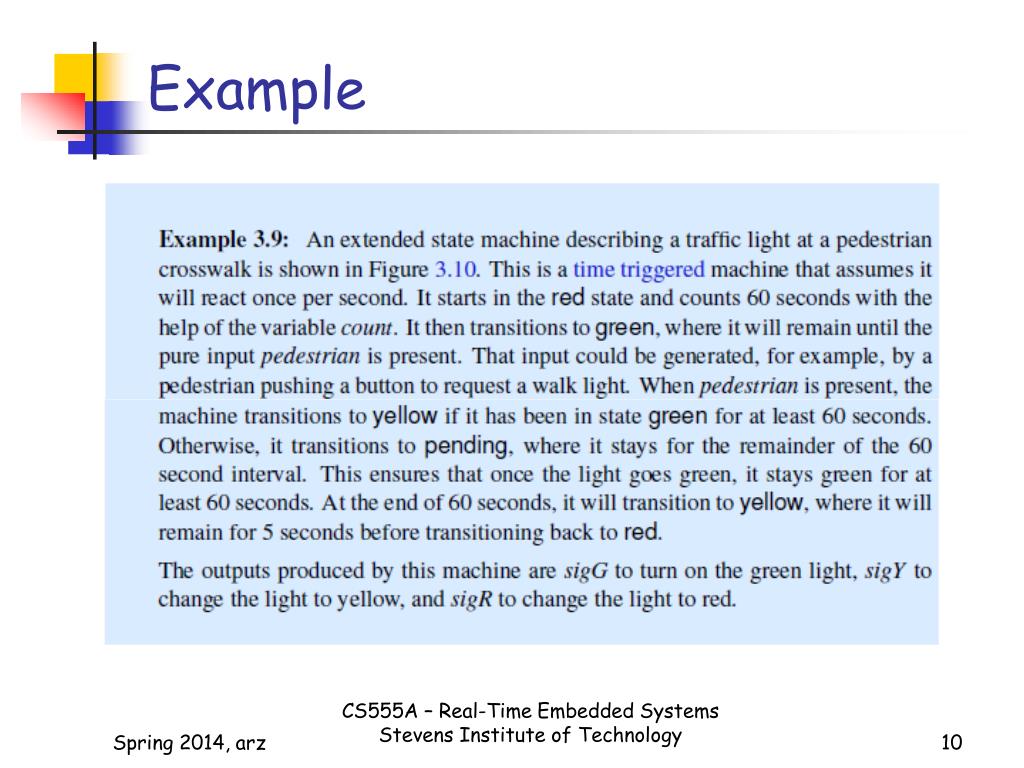

  10. Example CS555A – Real-Time Embedded Systems Stevens Institute of Technology

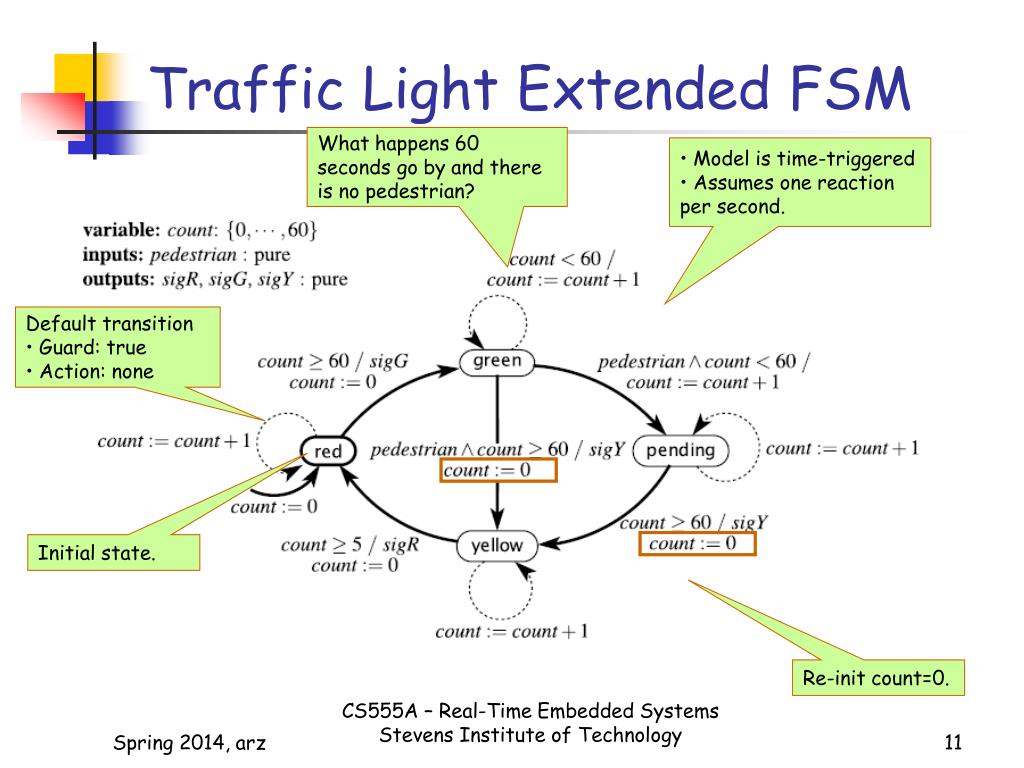

  11. Traffic Light Extended FSM What happens 60 seconds go by and there is no pedestrian? • Model is time-triggered • Assumes one reaction per second. • Default transition • Guard: true • Action: none Initial state. Re-init count=0. CS555A – Real-Time Embedded Systems Stevens Institute of Technology

  12. Stuttering & Receptiveness • A stuttering reaction is one where the inputs and outputs are all absent and the machine does not change state. No progress is made and nothing changes • In the “green” state, the FSM stutters after 60 seconds and no pedestrian arrival • Receptiveness: In a receptive FSM, for each state, there is at least one transition possible on each input symbol • Even in the stuttering “green” state, the FSM transitions when a pedestrian arrives • So the FSM is receptive CS555A – Real-Time Embedded Systems Stevens Institute of Technology

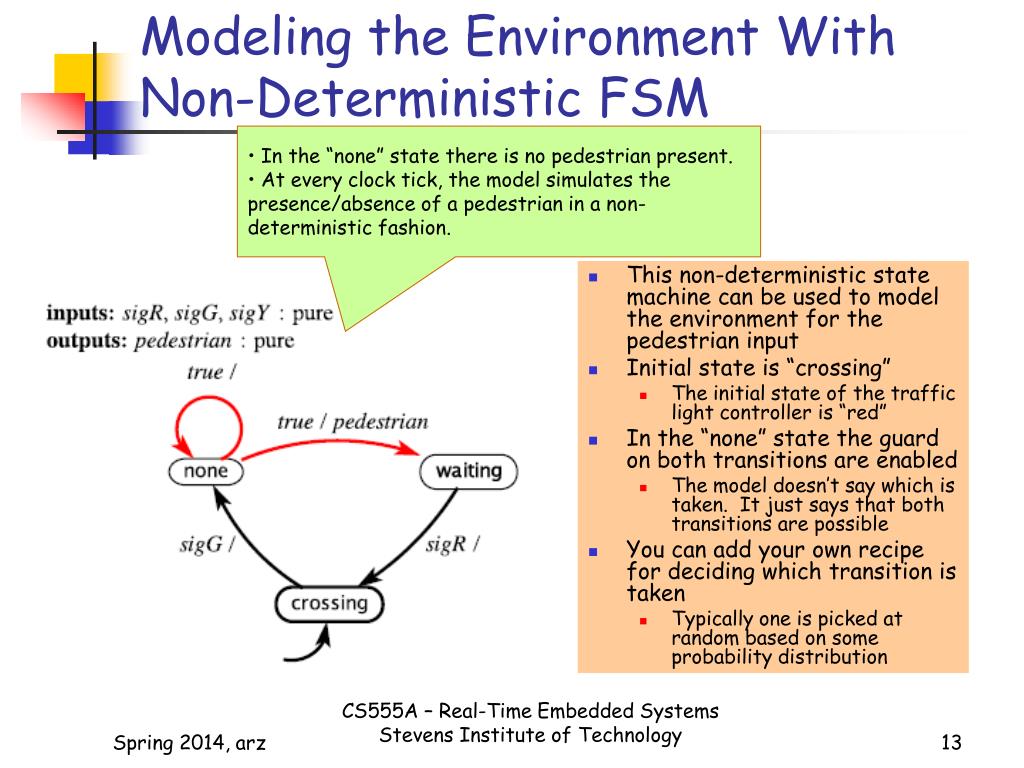

  13. Modeling the Environment With Non-Deterministic FSM • In the “none” state there is no pedestrian present. • At every clock tick, the model simulates the presence/absence of a pedestrian in a non-deterministic fashion. • This non-deterministic state machine can be used to model the environment for the pedestrian input • Initial state is “crossing” • The initial state of the traffic light controller is “red” • In the “none” state the guard on both transitions are enabled • The model doesn’t say which is taken. It just says that both transitions are possible • You can add your own recipe for deciding which transition is taken • Typically one is picked at random based on some probability distribution CS555A – Real-Time Embedded Systems Stevens Institute of Technology

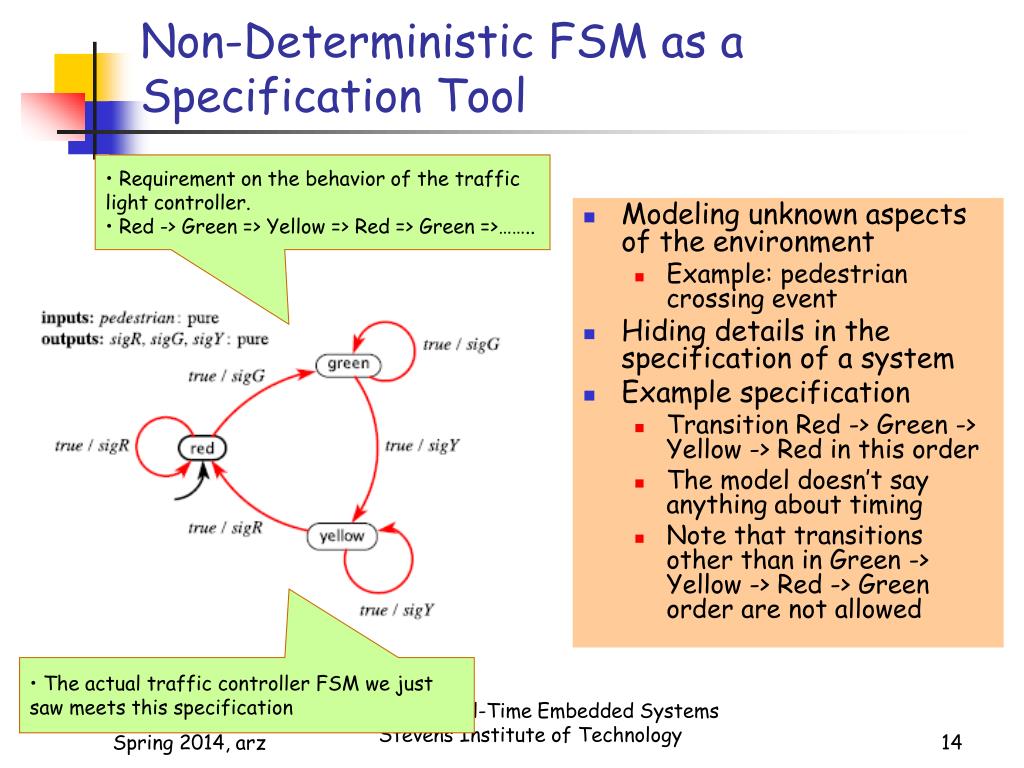

  14. Non-Deterministic FSM as a Specification Tool • Requirement on the behavior of the traffic light controller. • Red -> Green => Yellow => Red => Green =>…….. • Modeling unknown aspects of the environment • Example: pedestrian crossing event • Hiding details in the specification of a system • Example specification • Transition Red -> Green -> Yellow -> Red in this order • The model doesn’t say anything about timing • Note that transitions other than in Green -> Yellow -> Red -> Green order are not allowed • The actual traffic controller FSM we just saw meets this specification CS555A – Real-Time Embedded Systems Stevens Institute of Technology

  15. Behaviors & Traces • FSM behavior consists of a sequence of steps • A trace is the record of inputs, outputs and states in a behavior • A computation tree is a graphical representation of all possible traces • FSMs are suitable for formal analysis of system behavior, such as reachability of unsafe states • Is there a transition from yellow -> green? • This can be verified with a verification tool against the specification. CS555A – Real-Time Embedded Systems Stevens Institute of Technology

  16. CS555A – Real-Time Embedded Systems Stevens Institute of Technology

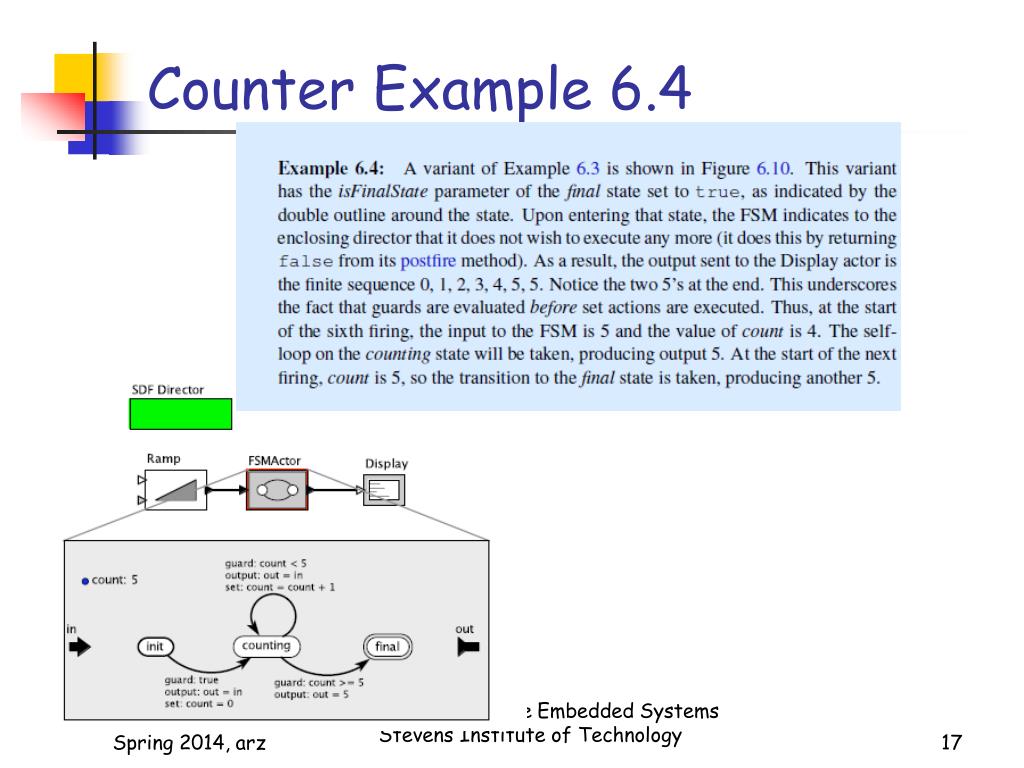

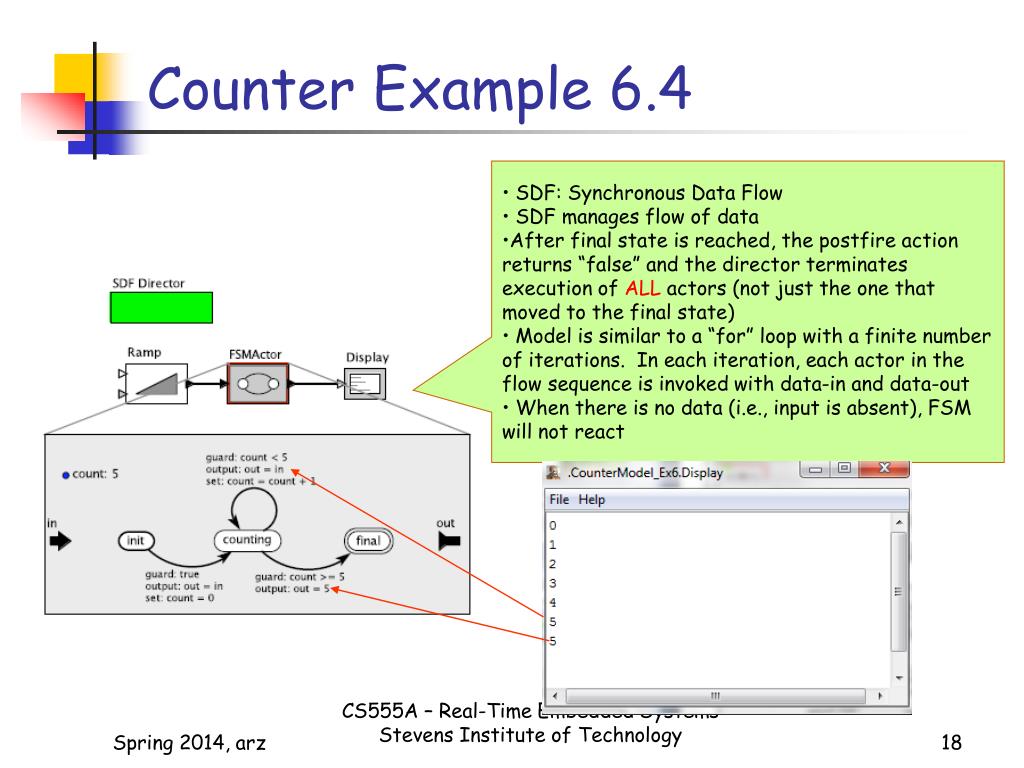

  17. Counter Example 6.4 CS555A – Real-Time Embedded Systems Stevens Institute of Technology

  18. Counter Example 6.4 • SDF: Synchronous Data Flow • SDF manages flow of data • After final state is reached, the postfire action returns “false” and the director terminates execution of ALL actors (not just the one that moved to the final state) • Model is similar to a “for” loop with a finite number of iterations. In each iteration, each actor in the flow sequence is invoked with data-in and data-out • When there is no data (i.e., input is absent), FSM will not react CS555A – Real-Time Embedded Systems Stevens Institute of Technology

  19. Example 6.5 • Notice that unlike in the SDF case, there is no input into the FSMActor. • The FSM fires each time there is a clock input from the SR director • Both FSMActor & Display actors are fired in each cycle • The NonStrictDisplay displays “absent” when there is no input • A normal display will display nothing • SR: Synchronous Reactive • Manages periodic events which may or may not be accompanied by data • So FSM can react to absence of data as well • After final state is reached , the postfire action returns “false” and the director terminates execution of this actor but continues to execute other actors • Model is similar to a polling thread. Periodically, the input is polled and an action is taken depending on presence/absence of input • When there is no data (i.e., input is absent), FSM can react as well CS555A – Real-Time Embedded Systems Stevens Institute of Technology

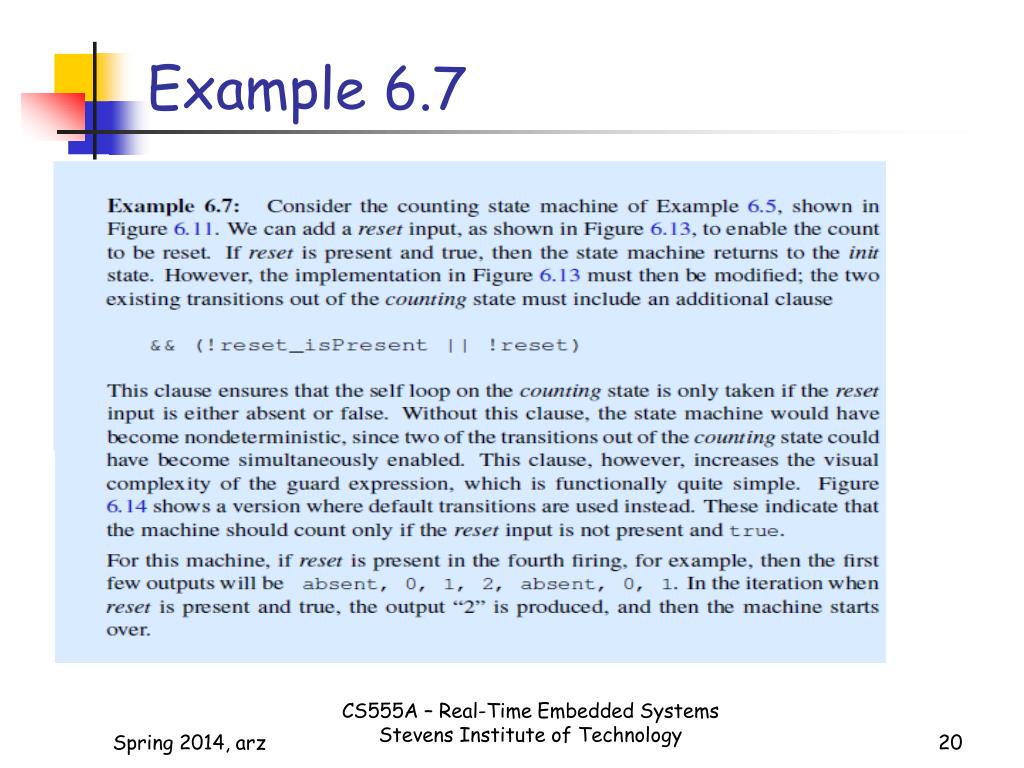

  20. Example 6.7 CS555A – Real-Time Embedded Systems Stevens Institute of Technology

  21. Example 6.7 CS555A – Real-Time Embedded Systems Stevens Institute of Technology

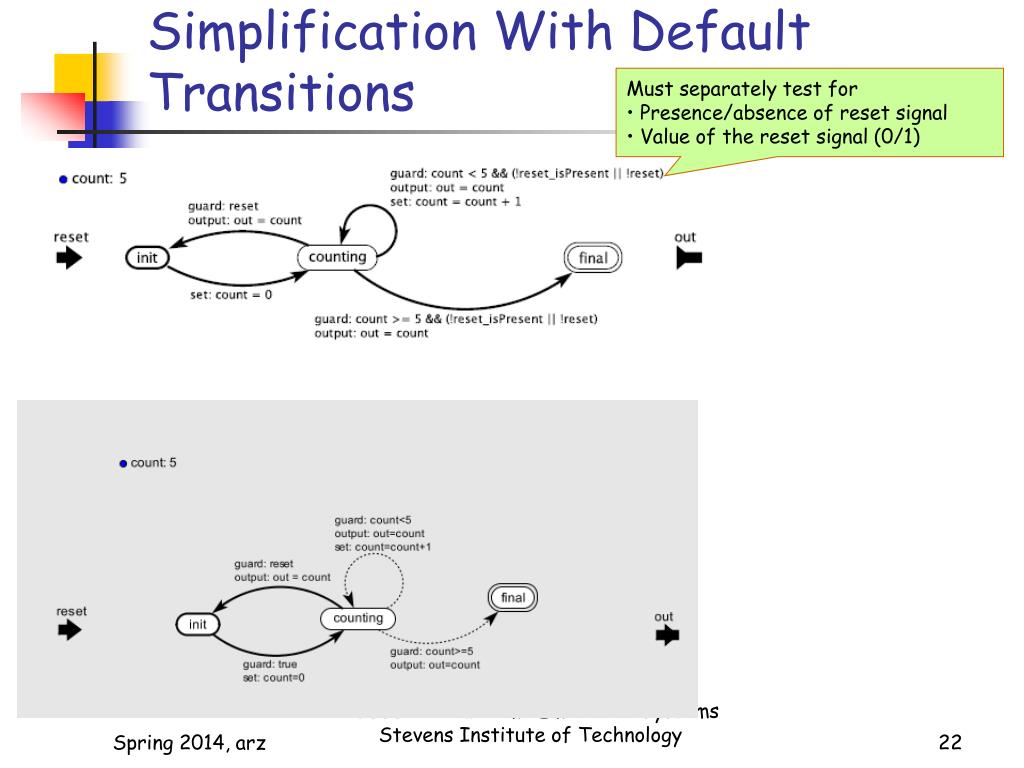

  22. Simplification With Default Transitions • Must separately test for • Presence/absence of reset signal • Value of the reset signal (0/1) CS555A – Real-Time Embedded Systems Stevens Institute of Technology

  23. Immediate Transition • If a state A has an immediate transition to another state B, then that transition will be taken in the same firing as a transition into state A if the guard on the immediate transition is true. The transition into and out of A will occur in the same firing • A is called a transient state. Immediate transition. Transient state CS555A – Real-Time Embedded Systems Stevens Institute of Technology

  24. Example 6.9 Reset Final Reset Final No absent outout into display until termination Immediate transition. CS555A – Real-Time Embedded Systems Stevens Institute of Technology

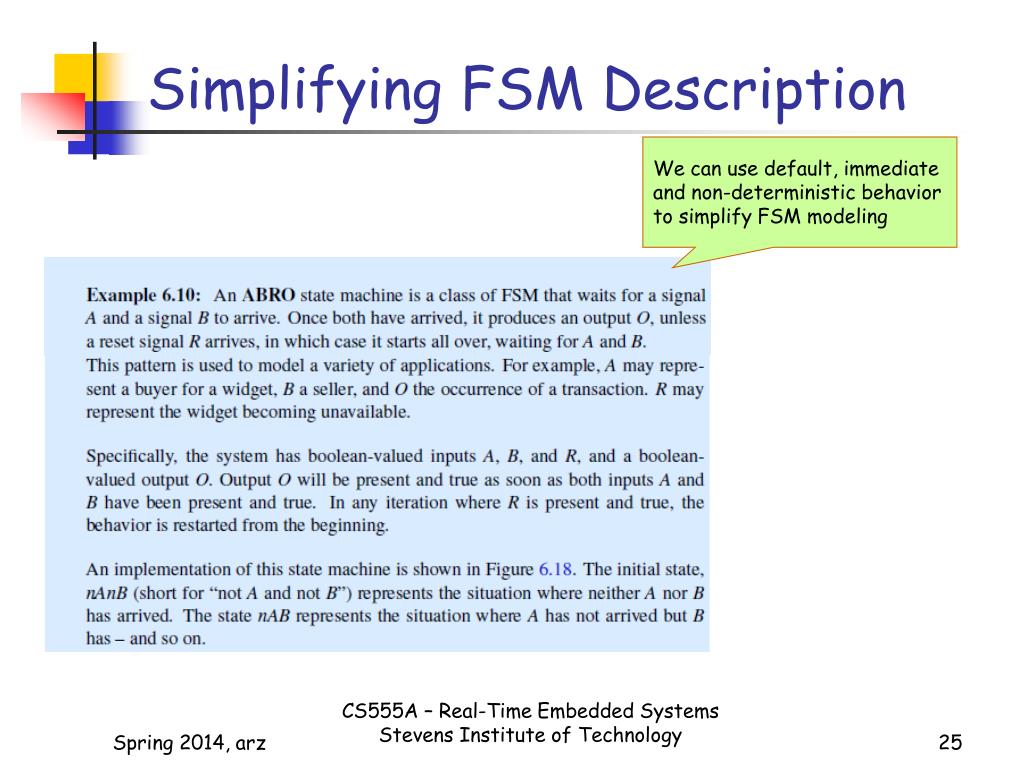

  25. Simplifying FSM Description We can use default, immediate and non-deterministic behavior to simplify FSM modeling CS555A – Real-Time Embedded Systems Stevens Institute of Technology

  26. Two Solutions • Brute-force deterministic solution • Simplified non-deterministic solution with default and immediate transitions CS555A – Real-Time Embedded Systems Stevens Institute of Technology

  27. Brute Force Solution CS555A – Real-Time Embedded Systems Stevens Institute of Technology

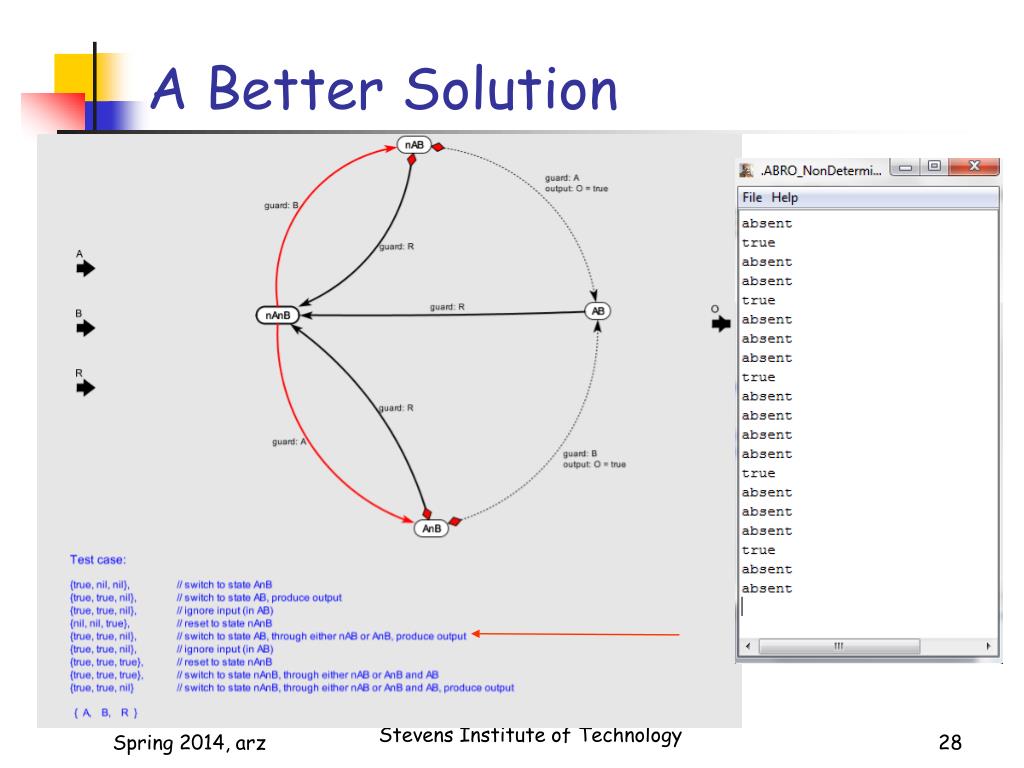

  28. A Better Solution CS555A – Real-Time Embedded Systems Stevens Institute of Technology

  29. The refinement of a state is another nested FSM. • The outer FSM is in state B if the refinement of B is in either C or D. CS555A – Real-Time Embedded Systems Stevens Institute of Technology

  30. FSM Flattening & Depth-First Semantics • Note that when g4 = true AND g1 = true, C does NOT transition to D but both outputs a4 and a1 are generated. • C->D followed by D->A are logically simultaneous. • g2=true causes A-> B = { C | D} • Two ways to exit C • g1=true causes C->A • g4=true causes C->D • What happens if both g1=true and g4=true? • Different semantics are possible and used • Depth-first semantic: deepest refinement reacts first, followed by the container FSM • Consider what happens when g1=true AND g4=true Initial state. Initial state of refinement. CS555A – Real-Time Embedded Systems Stevens Institute of Technology

  31. Order of Operations & Conflicts • The innermost output a4 happens before a1 • If they conflict the outer output dominates CS555A – Real-Time Embedded Systems Stevens Institute of Technology

  32. With preemptive transitions, the ambiguity of conflicting outputs goes away. Red originating circle in the arrow indicates preemptive transition. CS555A – Real-Time Embedded Systems Stevens Institute of Technology

  33. Full arrowhead indicates History transition CS555A – Real-Time Embedded Systems Stevens Institute of Technology

  34. You must track all four possible states: (A,C), (A,D), (B,C) and (B,D). CS555A – Real-Time Embedded Systems Stevens Institute of Technology

  35. Empty arrowhead indicates Reset transition CS555A – Real-Time Embedded Systems Stevens Institute of Technology

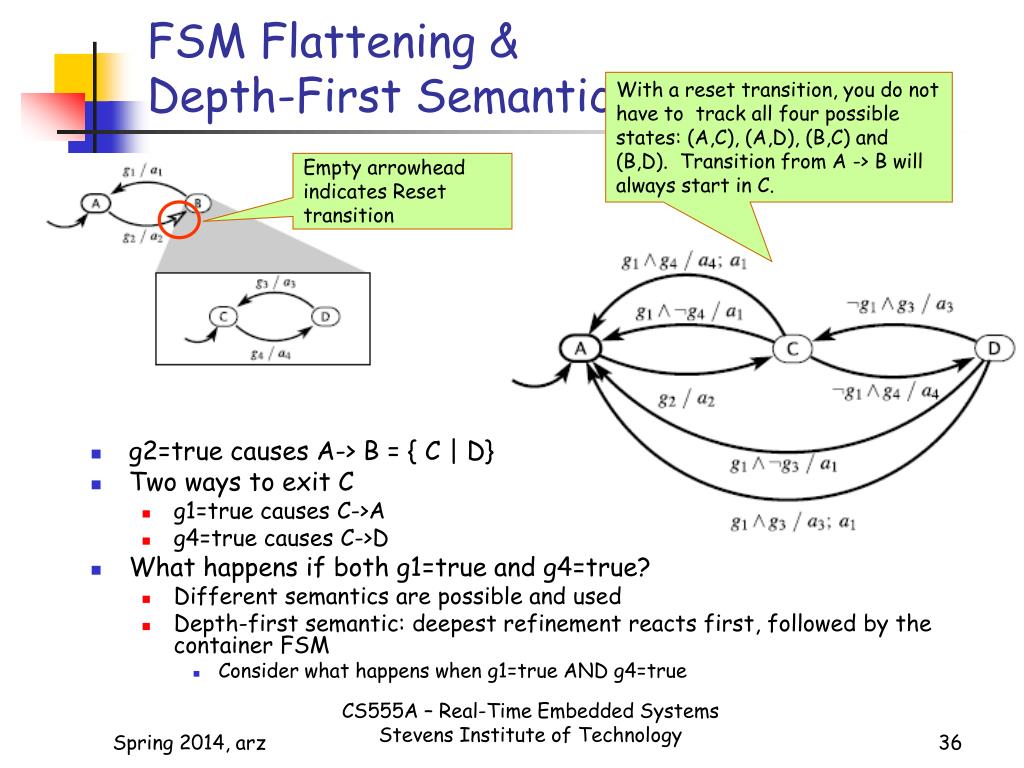

  36. FSM Flattening & Depth-First Semantics With a reset transition, you do not have to track all four possible states: (A,C), (A,D), (B,C) and (B,D). Transition from A -> B will always start in C. Empty arrowhead indicates Reset transition • g2=true causes A-> B = { C | D} • Two ways to exit C • g1=true causes C->A • g4=true causes C->D • What happens if both g1=true and g4=true? • Different semantics are possible and used • Depth-first semantic: deepest refinement reacts first, followed by the container FSM • Consider what happens when g1=true AND g4=true CS555A – Real-Time Embedded Systems Stevens Institute of Technology

  37. Ptolemy & Text Symbols Full arrowhead indicates History transition Empty arrowhead indicates Reset transition • In Ptolemy • Full arrowhead stands for reset transition • History transition is indicated by a H at the arrowhead CS555A – Real-Time Embedded Systems Stevens Institute of Technology

  38. Example 6.11 CS555A – Real-Time Embedded Systems Stevens Institute of Technology

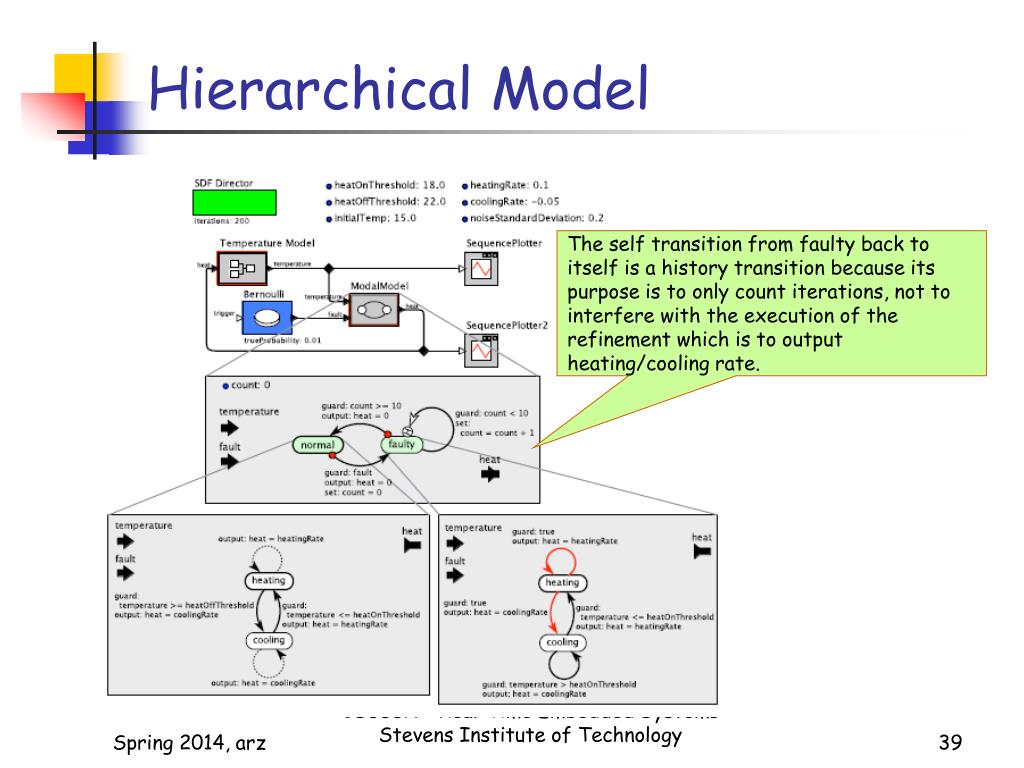

  39. Hierarchical Model The self transition from faulty back to itself is a history transition because its purpose is to only count iterations, not to interfere with the execution of the refinement which is to output heating/cooling rate. CS555A – Real-Time Embedded Systems Stevens Institute of Technology

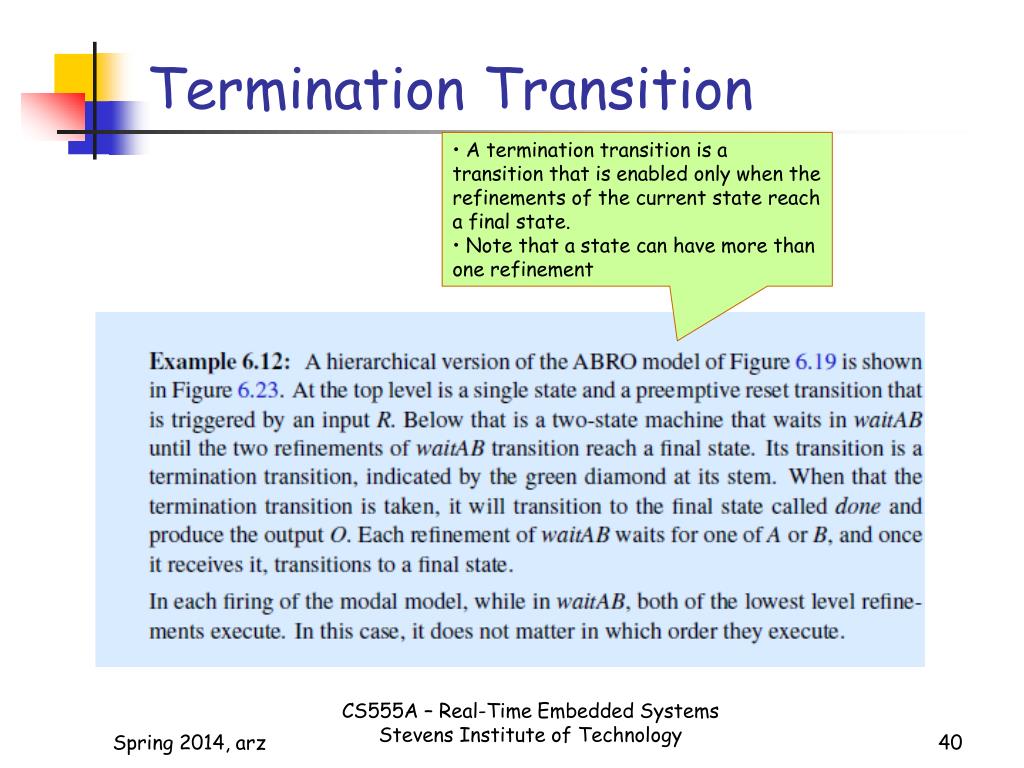

  40. Termination Transition • A termination transition is a transition that is enabled only when the refinements of the current state reach a final state. • Note that a state can have more than one refinement CS555A – Real-Time Embedded Systems Stevens Institute of Technology

  41. Example 6.12 • Transition is: • Preemptive transition • Reset transition • Termination transition is taken when: • Refinement A transitions to doneA • Refinement B transitions to doneB Two refinements for the same actor. CS555A – Real-Time Embedded Systems Stevens Institute of Technology

  42. Type checking: the outputs of A must be in the set of acceptable inputs to B. CS555A – Real-Time Embedded Systems Stevens Institute of Technology

  43. If the composition is asynchronous, then the output of A must be buffered before B can use it. • If the composition is synchronous, then both A and B react. But the reaction of A precedes the reaction of A. So the output of A is available as input into B. (Programming analogy is a program which calls A. A in turn calls B on the stack and passes its output parameters as input.) CS555A – Real-Time Embedded Systems Stevens Institute of Technology

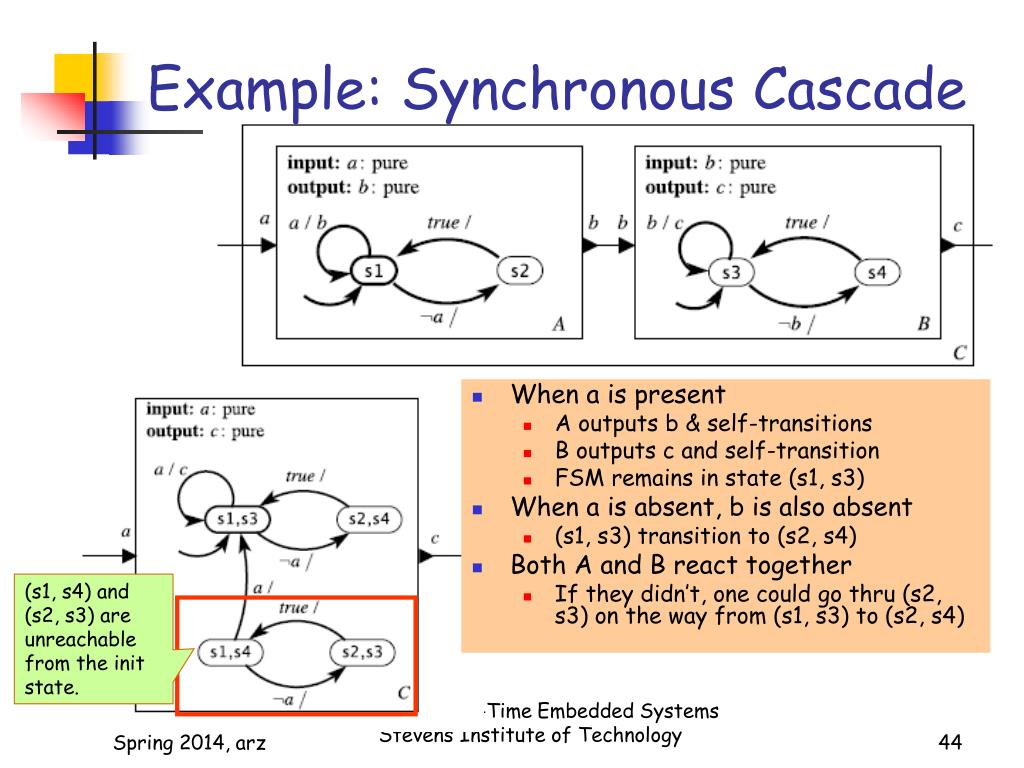

  44. When a is present A outputs b & self-transitions B outputs c and self-transition FSM remains in state (s1, s3) When a is absent, b is also absent (s1, s3) transition to (s2, s4) Both A and B react together If they didn’t, one could go thru (s2, s3) on the way from (s1, s3) to (s2, s4) Example: Synchronous Cascade (s1, s4) and (s2, s3) are unreachable from the init state. CS555A – Real-Time Embedded Systems Stevens Institute of Technology

  45. Example CS555A – Real-Time Embedded Systems Stevens Institute of Technology

  46. Traffic Light Extended FSM What happens 60 seconds go by and there is no pedestrian? • Model is time-triggered • Assumes one reaction per second. • Default transition • Guard: true • Action: none Initial state. Re-init count=0. CS555A – Real-Time Embedded Systems Stevens Institute of Technology

  47. Composition of Traffic Light With Pedestrian Light The pedR & pedG signals control the pedestrian light signal. sigR from the traffic ligh FSM CS555A – Real-Time Embedded Systems Stevens Institute of Technology

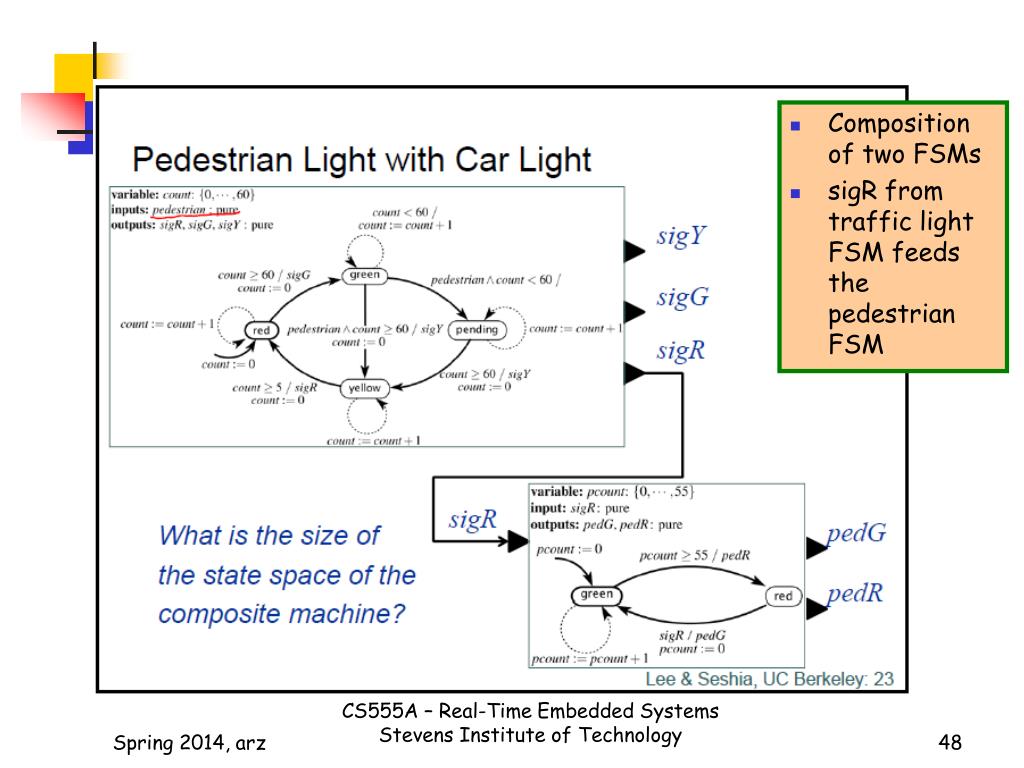

  48. Composition of two FSMs sigR from traffic light FSM feeds the pedestrian FSM CS555A – Real-Time Embedded Systems Stevens Institute of Technology

  49. State Enumeration • State = (Traffic light state, pedestrian light state) • (red, red) • (red, green) • (yellow, red) • (yellow, green) • (green, red) • (green , green) • (pending, red) • (pending, green) • 61 distinct values for count variable • 56 distinct values for pcount variable • 8x61x56 distinct states • How may are reachable? State combinations in red font are not safe and must be made unreachable by design What guarantees that this state is not reached? CS555A – Real-Time Embedded Systems Stevens Institute of Technology

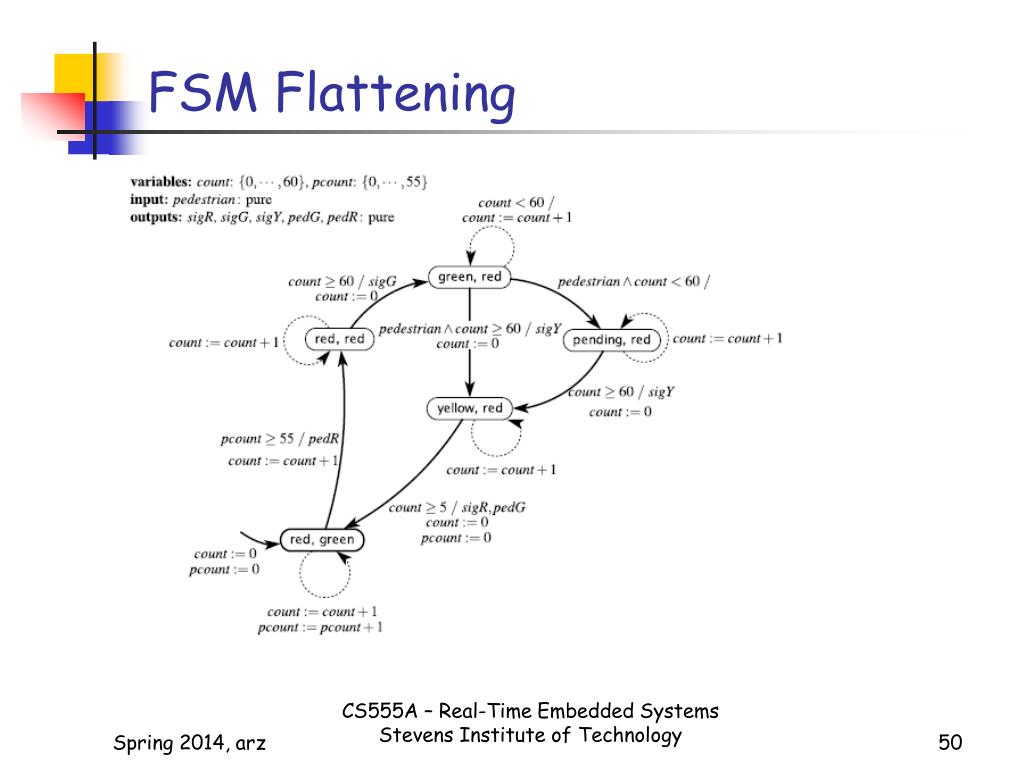

  50. FSM Flattening CS555A – Real-Time Embedded Systems Stevens Institute of Technology
