Real-Time Operating Systems

Real-Time Operating Systems. Read Chapter 6 ( David E. Simon, An Embedded Software Primer ) Read Chapter 1/ Chapter 2 (Labrosse). What, Why, How?. What does real time mean? What is an OS? Why would I need an OS? Why would I need a real time OS? How do we use an OS on embedded systems?.

kourtney
Télécharger la présentation

Real-Time Operating Systems

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Real-Time Operating Systems Read Chapter 6 (David E. Simon, An Embedded Software Primer) Read Chapter 1/ Chapter 2 (Labrosse)

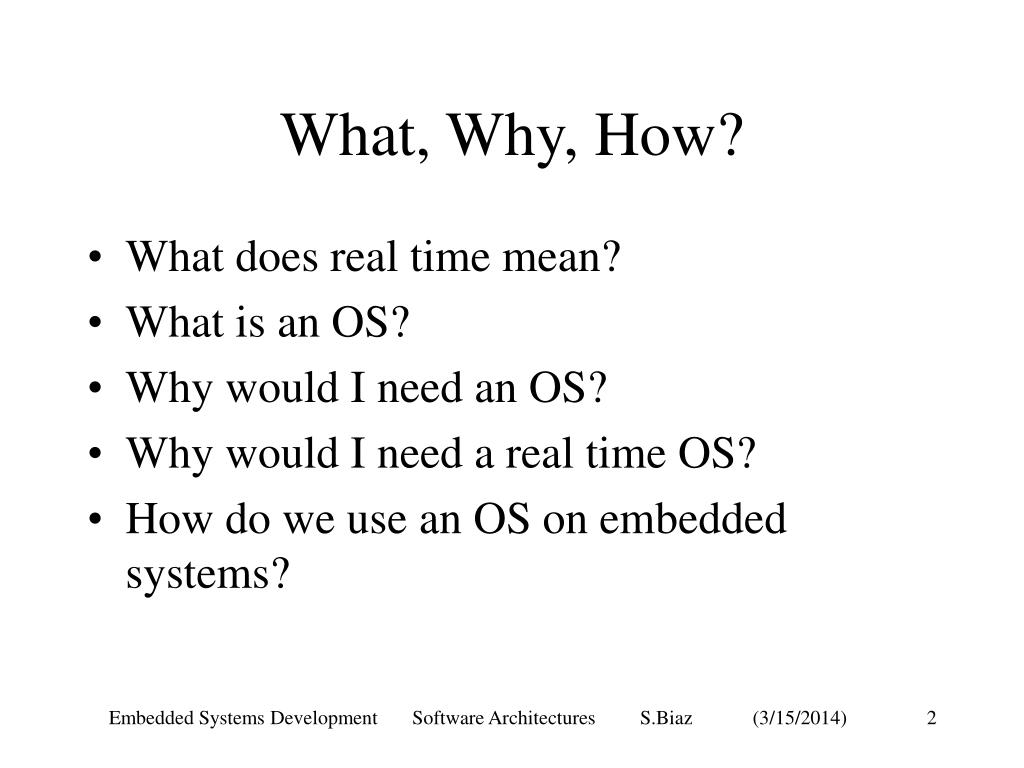

  2. What, Why, How? • What does real time mean? • What is an OS? • Why would I need an OS? • Why would I need a real time OS? • How do we use an OS on embedded systems? Embedded Systems Development Software Architectures S.Biaz

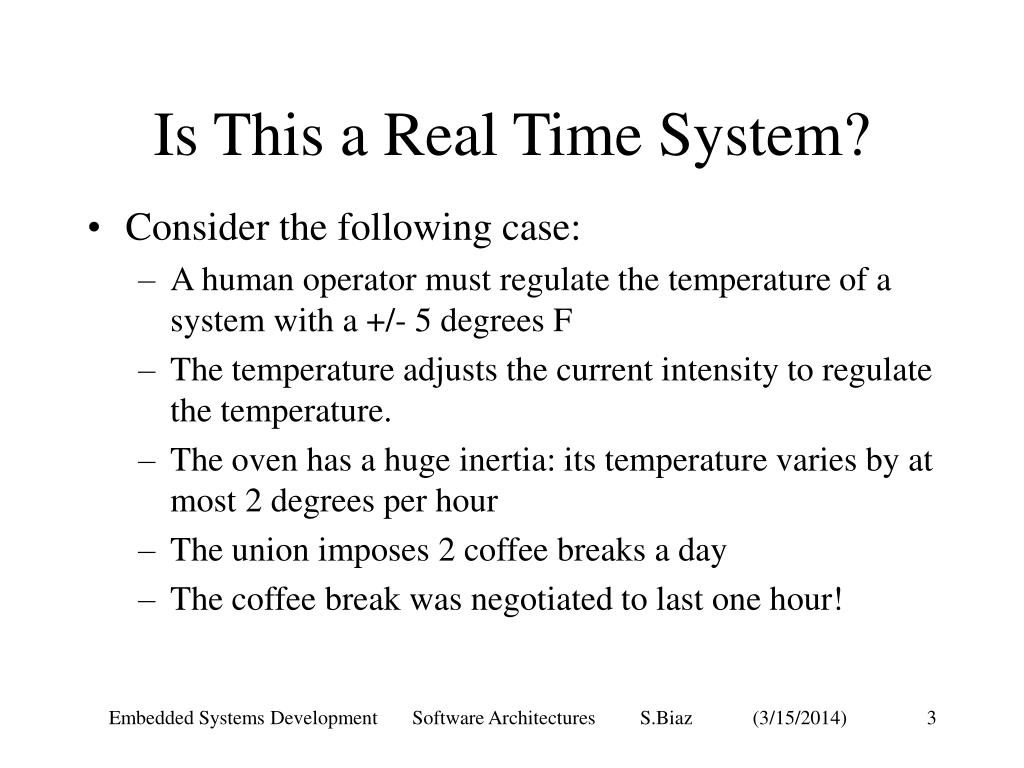

  3. Is This a Real Time System? • Consider the following case: • A human operator must regulate the temperature of a system with a +/- 5 degrees F • The temperature adjusts the current intensity to regulate the temperature. • The oven has a huge inertia: its temperature varies by at most 2 degrees per hour • The union imposes 2 coffee breaks a day • The coffee break was negotiated to last one hour! Embedded Systems Development Software Architectures S.Biaz

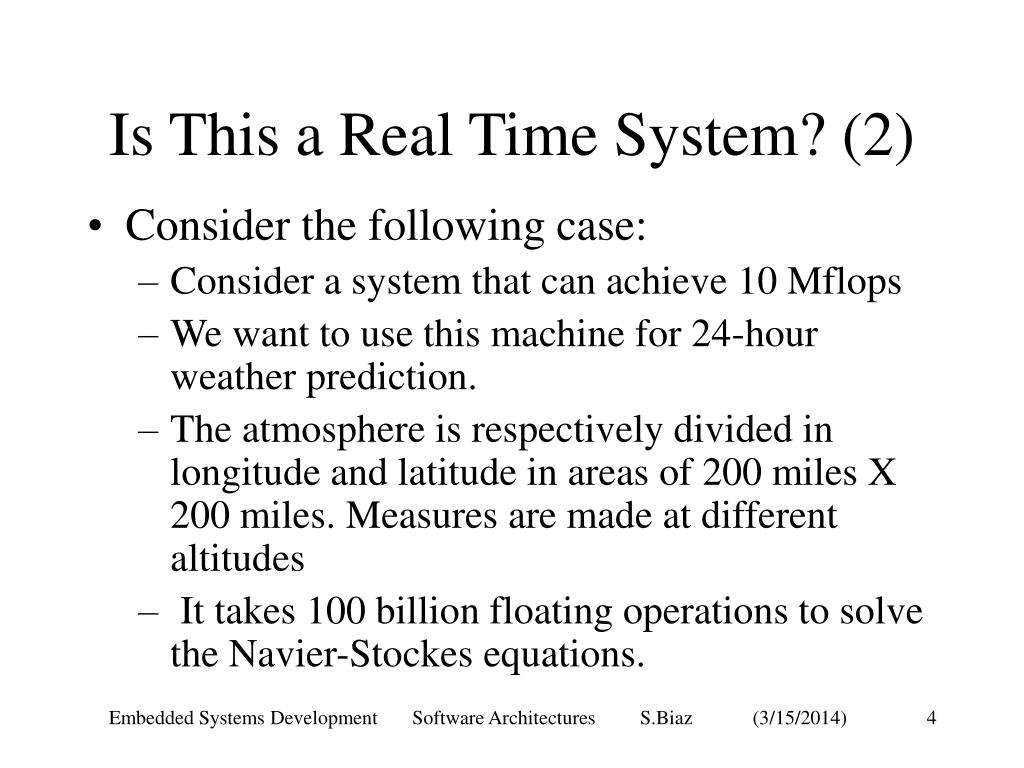

  4. Is This a Real Time System? (2) • Consider the following case: • Consider a system that can achieve 10 Mflops • We want to use this machine for 24-hour weather prediction. • The atmosphere is respectively divided in longitude and latitude in areas of 200 miles X 200 miles. Measures are made at different altitudes • It takes 100 billion floating operations to solve the Navier-Stockes equations. Embedded Systems Development Software Architectures S.Biaz

  5. Is This a Real Time System? (3) • Consider the following case: • Consider the problem on previous slide. • The resolution of 200 miles is too coarse • Suppose we double the resolution in 4 dimensions. • Volume of data increases 16 fold, so does execution time Embedded Systems Development Software Architectures S.Biaz

  6. What Is an O.S? • A piece of software • It provides tools to manage (for embedded systems) • Processes, (or tasks) • Memory space Embedded Systems Development Software Architectures S.Biaz

  7. What Is an Operating System? • What? It is a program (software) that acts as an intermediary between a user of a computer and the computer hardware. • Why? Make the use of a computer CONVENIENT and EFFICIENT. • How? • We have one semester to answer this question. Embedded Systems Development Software Architectures S.Biaz

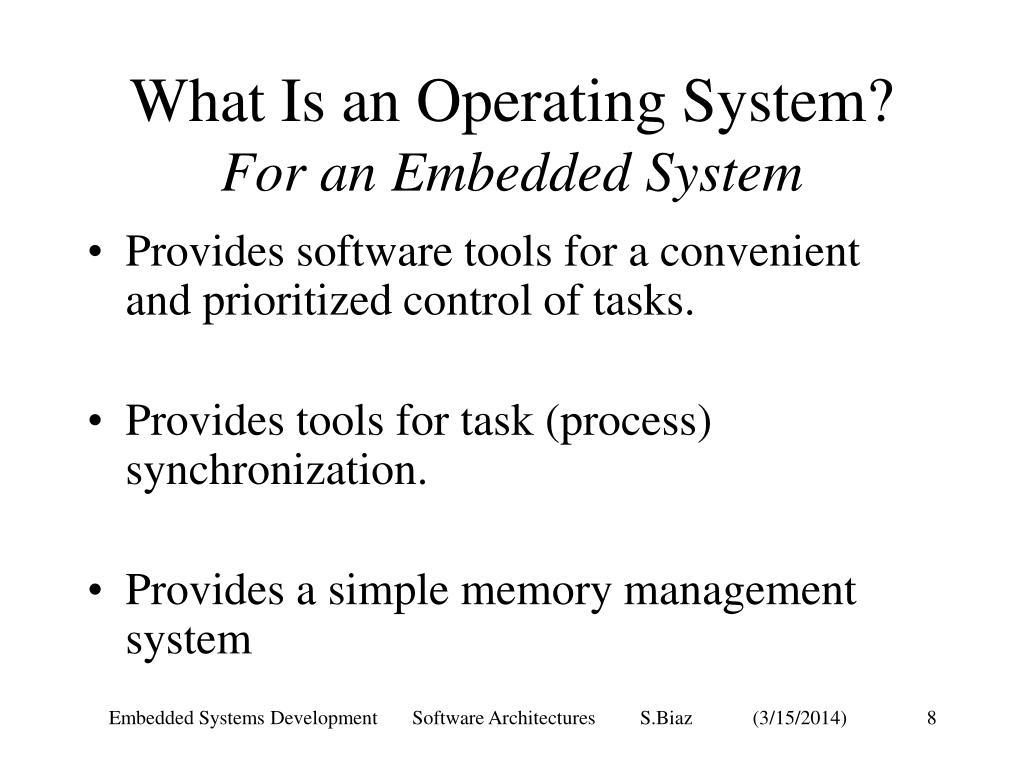

  8. What Is an Operating System?For an Embedded System • Provides software tools for a convenient and prioritized control of tasks. • Provides tools for task (process) synchronization. • Provides a simple memory management system Embedded Systems Development Software Architectures S.Biaz

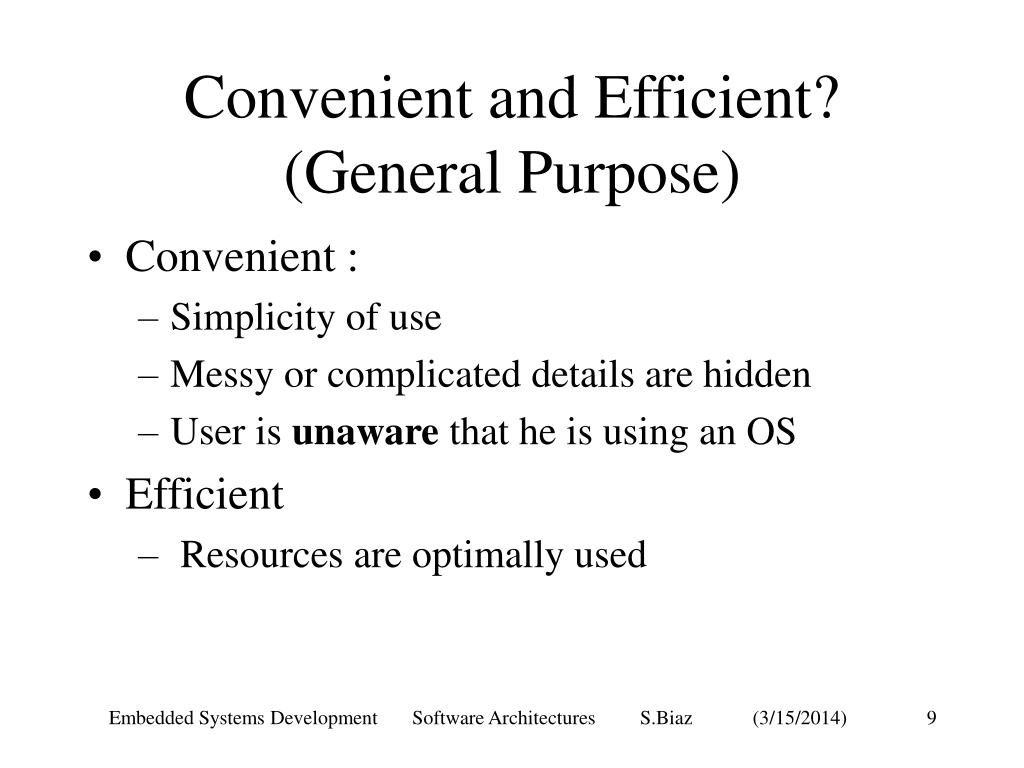

  9. Convenient and Efficient?(General Purpose) • Convenient : • Simplicity of use • Messy or complicated details are hidden • User is unaware that he is using an OS • Efficient • Resources are optimally used Embedded Systems Development Software Architectures S.Biaz

  10. Abstract View of A System(General Purpose) Embedded Systems Development Software Architectures S.Biaz

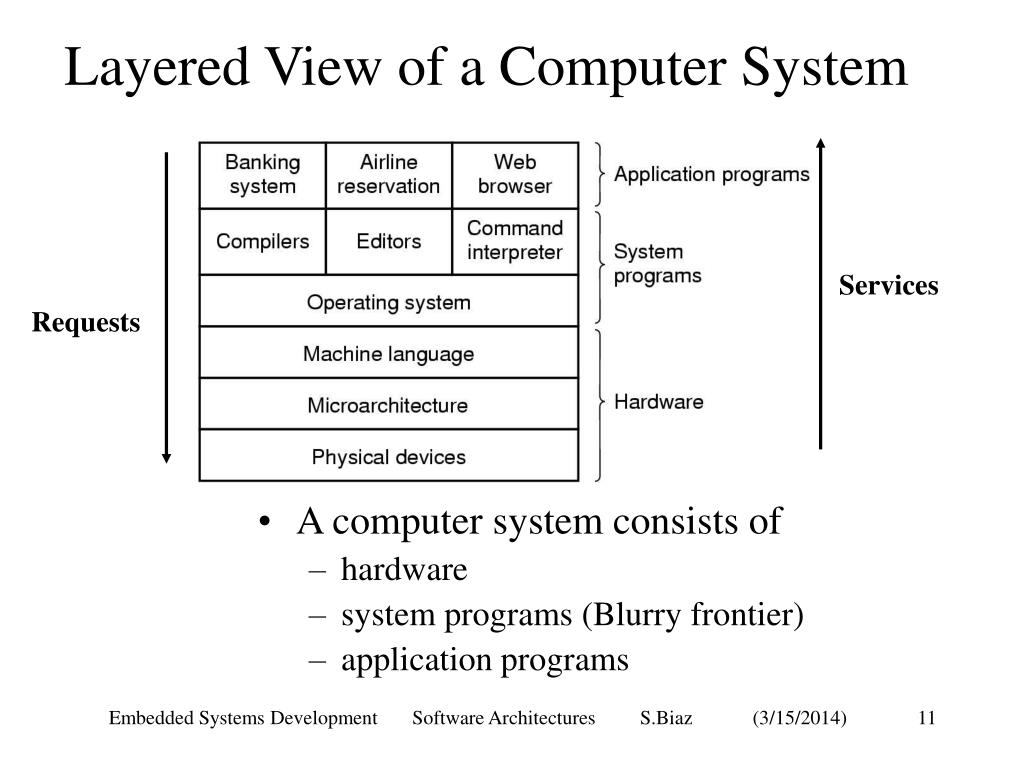

  11. Layered View of a Computer System • A computer system consists of • hardware • system programs (Blurry frontier) • application programs Services Requests Embedded Systems Development Software Architectures S.Biaz

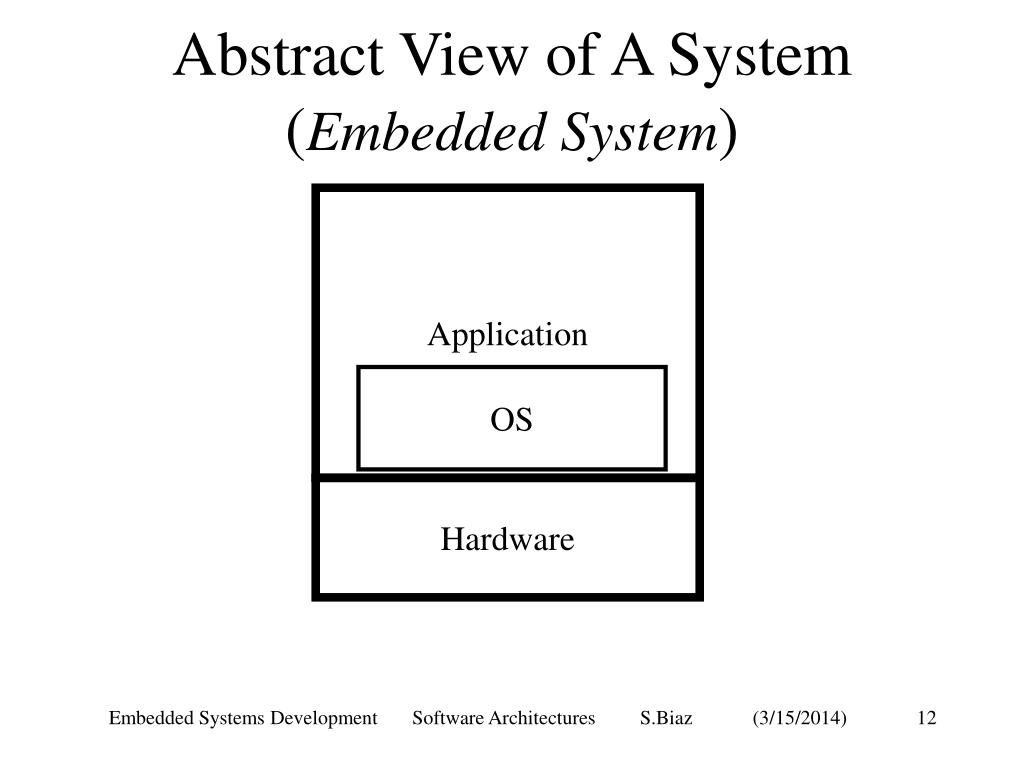

  12. Abstract View of A System(Embedded System) Application OS Hardware Embedded Systems Development Software Architectures S.Biaz

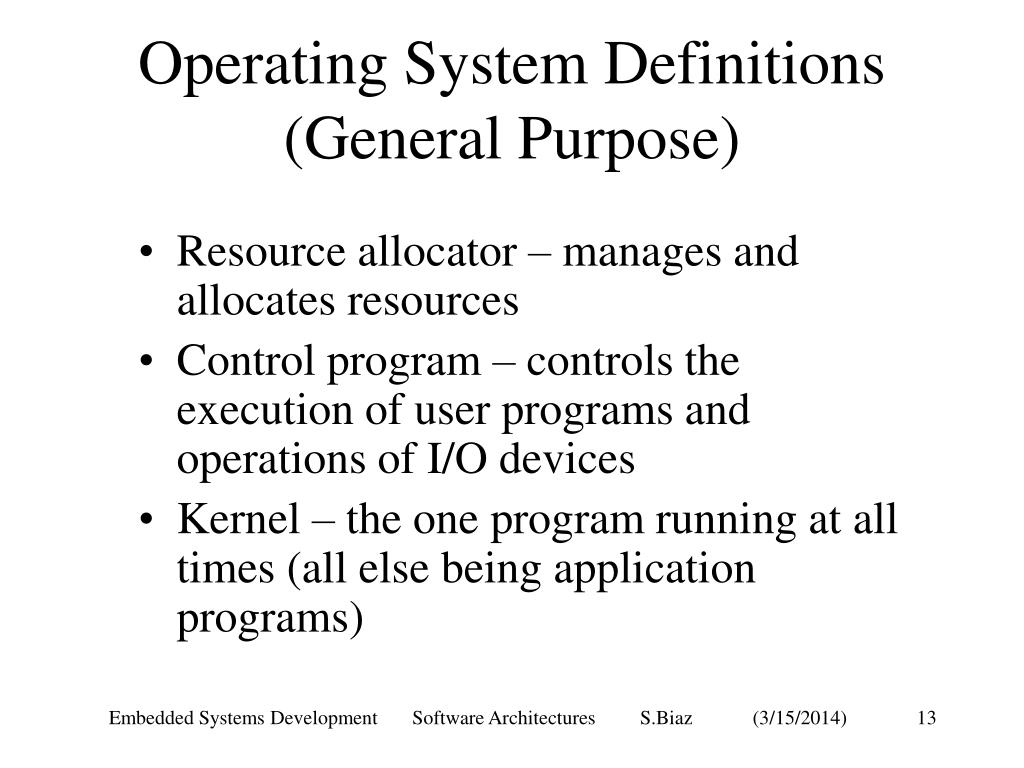

  13. Operating System Definitions(General Purpose) • Resource allocator – manages and allocates resources • Control program – controls the execution of user programs and operations of I/O devices • Kernel – the one program running at all times (all else being application programs) Embedded Systems Development Software Architectures S.Biaz

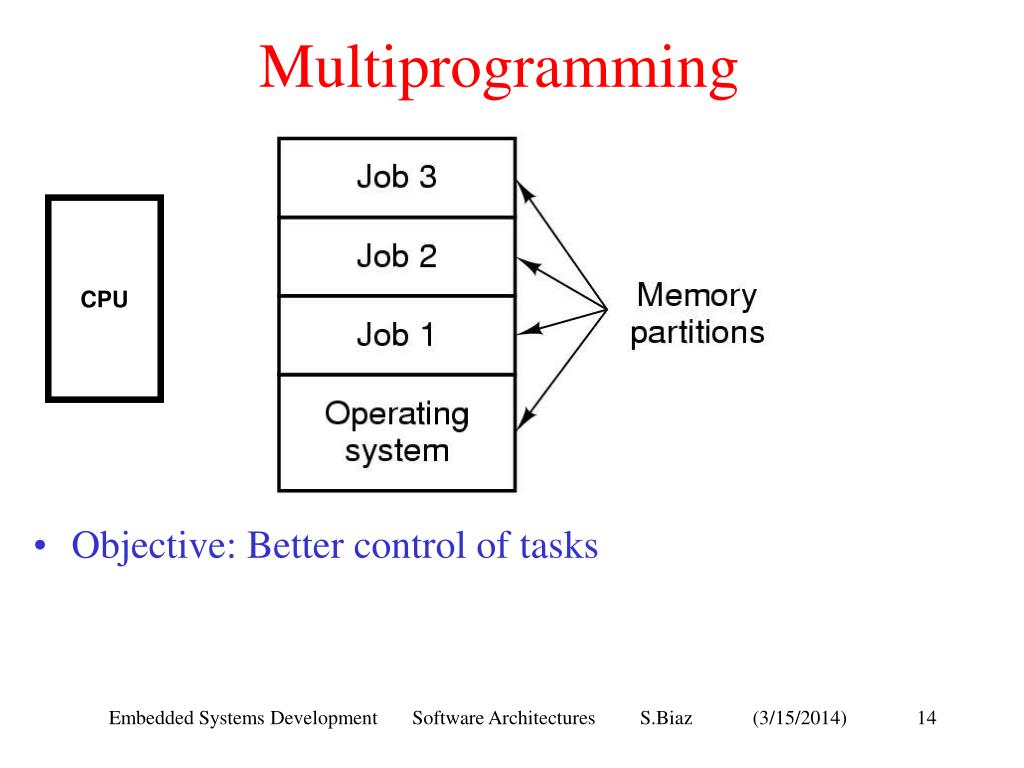

  14. Multiprogramming CPU • Objective: Better control of tasks Embedded Systems Development Software Architectures S.Biaz

  15. Dual-Mode Operation • Sharing system resources requires operating system to ensure that an incorrect program or poorly behaving human cannot cause other programs to execute incorrectly • OS must provide hardware support to differentiate between at least two modes of operations 1.User mode – execution done on behalf of a user 2. Monitor mode (also kernel mode or system mode) – execution done on behalf of operating system Embedded Systems Development Software Architectures S.Biaz

  16. Dual-Mode Operation (Cont.) • Mode bit added to computer hardware to indicate the current mode: monitor (0) or user (1) • When an interrupt or fault occurs hardware switches to monitor mode Interrupt/fault kernel user set user mode Privileged instructions can be issued only in kernel mode Embedded Systems Development Software Architectures S.Biaz

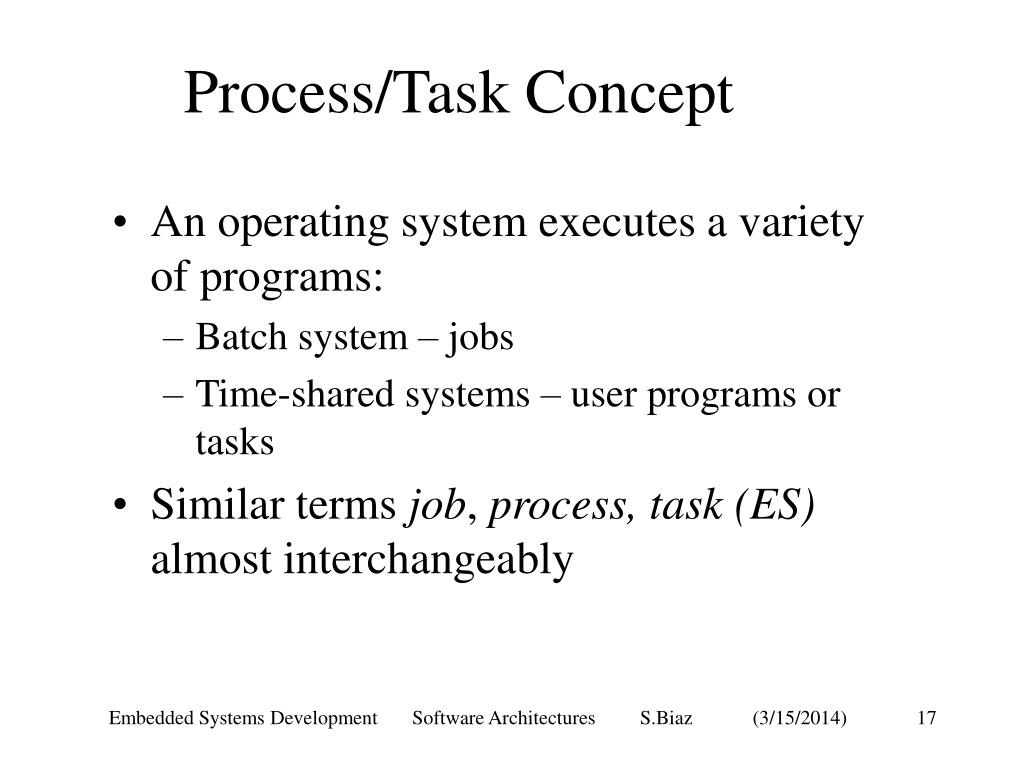

  17. Process/Task Concept • An operating system executes a variety of programs: • Batch system – jobs • Time-shared systems – user programs or tasks • Similar terms job, process, task (ES) almost interchangeably Embedded Systems Development Software Architectures S.Biaz

  18. Process/Task Concept (Cont.) • Process – a program in execution; process execution must progress in sequential fashion • A process includes: • program counter • stack • data section Embedded Systems Development Software Architectures S.Biaz

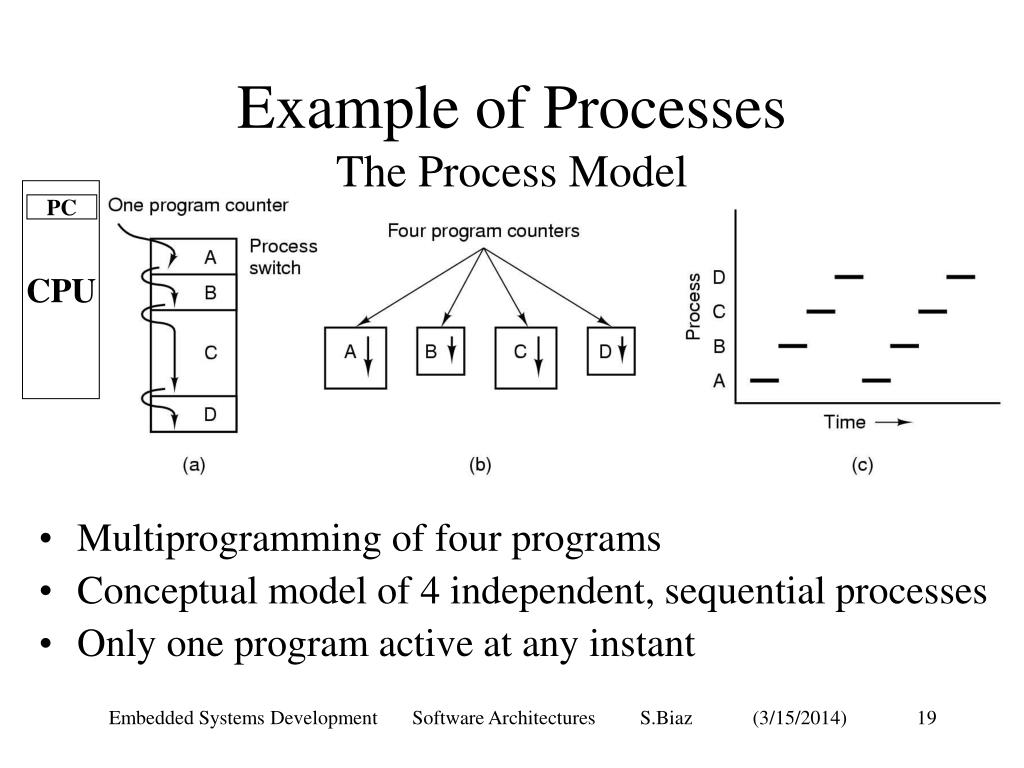

  19. Example of ProcessesThe Process Model CPU PC • Multiprogramming of four programs • Conceptual model of 4 independent, sequential processes • Only one program active at any instant Embedded Systems Development Software Architectures S.Biaz

  20. Multitasking Embedded Systems Development Software Architectures S.Biaz

  21. Key Difference on Embedded Systems • General Purpose OS: processes may be initiated by: • Different users • Different application • Embedded system: tasks are part of a unique application Embedded Systems Development Software Architectures S.Biaz

  22. Process/Task State • Bottom line: keep track of which process/task runs (has the CPU) • As a process executes, it changes state (in some states, process/task does need CPU) • new: The process is being created • running: Instructions are being executed • waiting: The process is waiting for some event to occur • ready: The process is waiting to be assigned to a process • terminated: The process has finished execution Embedded Systems Development Software Architectures S.Biaz

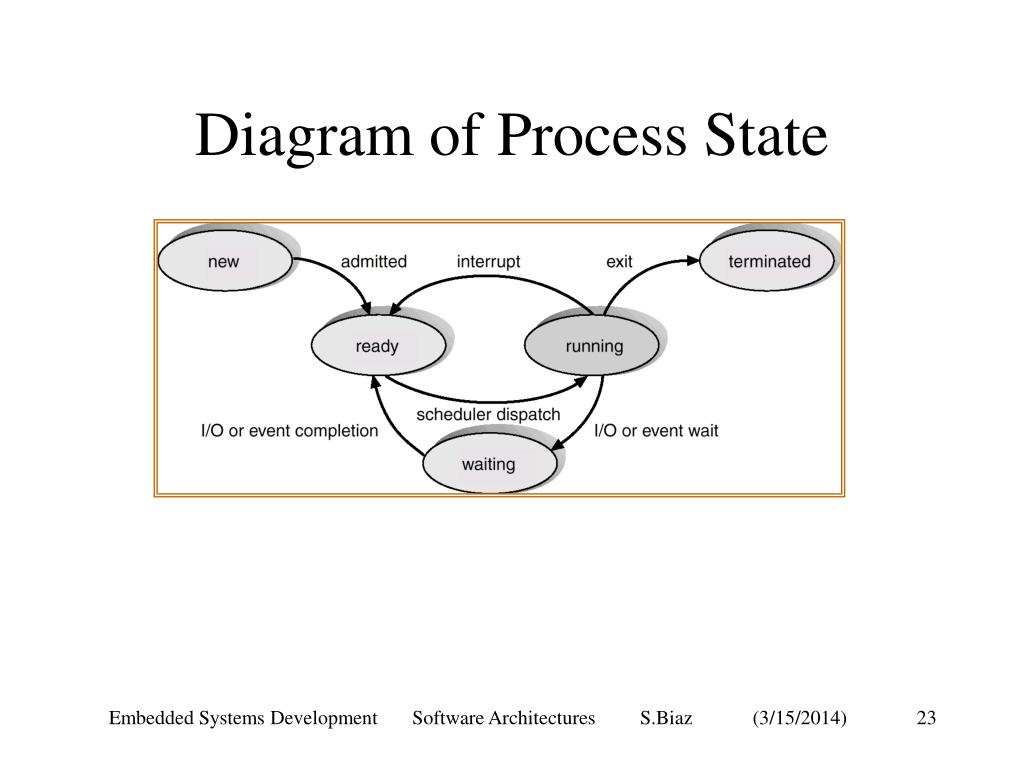

  23. Diagram of Process State Embedded Systems Development Software Architectures S.Biaz

  24. Diagram of Task State Embedded Systems Development Software Architectures S.Biaz

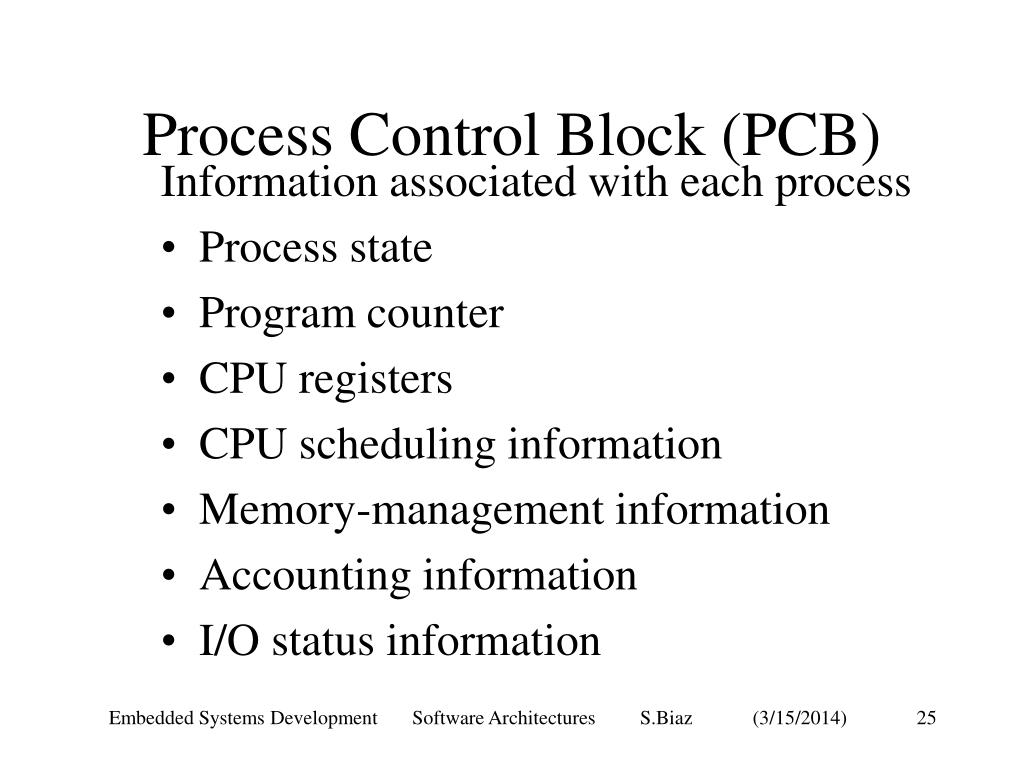

  25. Process Control Block (PCB) Information associated with each process • Process state • Program counter • CPU registers • CPU scheduling information • Memory-management information • Accounting information • I/O status information Embedded Systems Development Software Architectures S.Biaz

  26. Process Control Block (PCB) Embedded Systems Development Software Architectures S.Biaz

  27. CPU Switch From Process to Process:Context Switch Embedded Systems Development Software Architectures S.Biaz

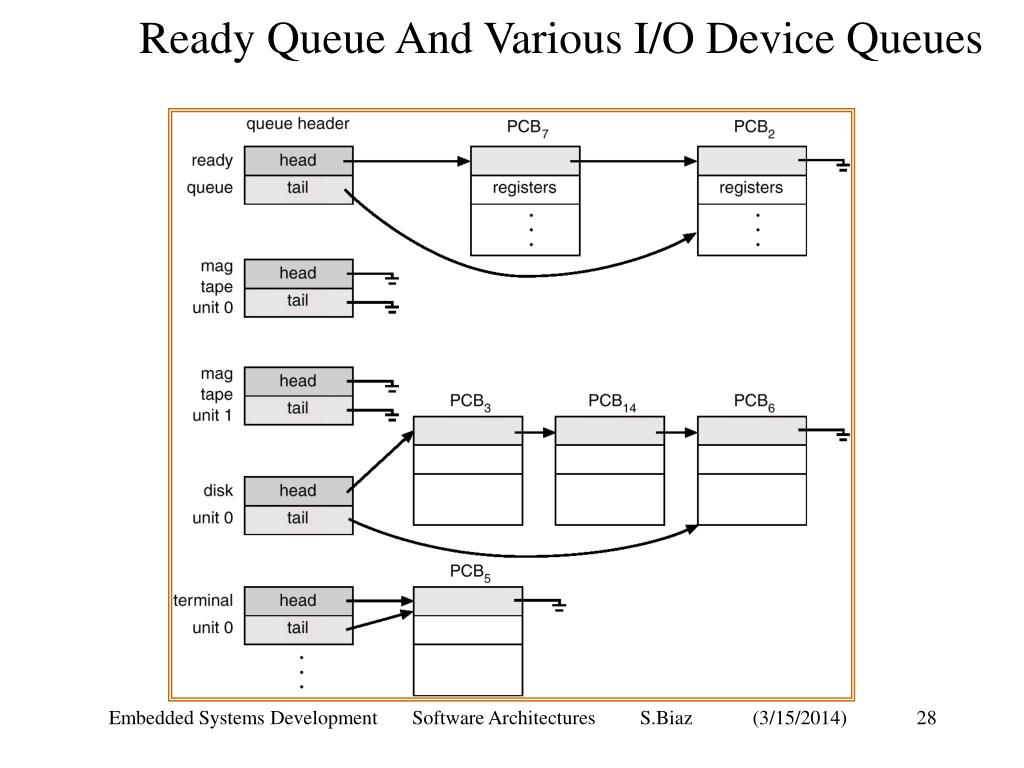

  28. Ready Queue And Various I/O Device Queues Embedded Systems Development Software Architectures S.Biaz

  29. CPU Scheduler • What? This is a prime OS function that decides which process/task will run • Why? The application is made of multiple processes/tasks with possibly different time constraints. CPU scheduler implements this prioritization • How? On embedded systems, priorities assigned by the programmer are the main criteria Embedded Systems Development Software Architectures S.Biaz

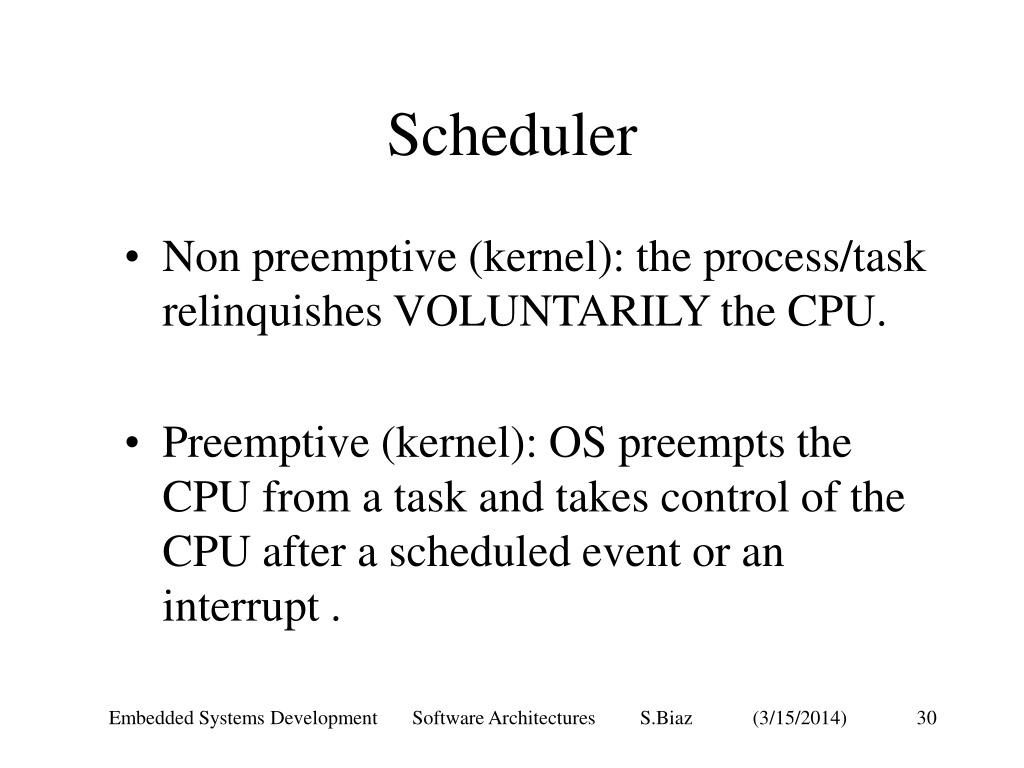

  30. Scheduler • Non preemptive (kernel): the process/task relinquishes VOLUNTARILY the CPU. • Preemptive (kernel): OS preempts the CPU from a task and takes control of the CPU after a scheduled event or an interrupt . Embedded Systems Development Software Architectures S.Biaz

  31. Example:(http://www.netrino.com/Publications/Glossary/RMA.html)Example:(http://www.netrino.com/Publications/Glossary/RMA.html) • P1 = 50ms, C1= 25ms (CPU uti. = 50%) • P2 = 100ms, C2= 40ms (CPU uti. = 40%) • Looks like total CPU utilization is less than 100%: can these tasks be scheduled real time? (not missing their deadlines, next cycle start) • How to schedule these and not miss deadlines? Embedded Systems Development Software Architectures S.Biaz

  32. Example (cont’d):(http://www.netrino.com/Publications/Glossary/RMA.html) • Case 1: Priority(Task1) > Priority(Task2) • Case 2: Priority(Task2) > Priority(Task1) • P1 = 50ms, C1= 25ms (CPU uti. = 50%) • P2 = 100ms, C2= 40ms (CPU uti. = 40%) Embedded Systems Development Software Architectures S.Biaz

  33. Question: • If I assign priorities such that most frequent tasks get highest priorities, does my scheduling GUARANTEE meeting the deadlines? Embedded Systems Development Software Architectures S.Biaz

  34. Answer: Rate Monotonic Scheduling (RMS) • Given • m periodic events • event i occurs within period Pi and requires at most Ci seconds • Tasks are independent (do not have to synchronize) • Tasks are prioritized based on highest rate. Highest priority goes first • Preemptive scheduling is used • Then the load can only be handled if and only if m C å £ i m(2(1/m) -1) P = i 1 i Embedded Systems Development Software Architectures S.Biaz

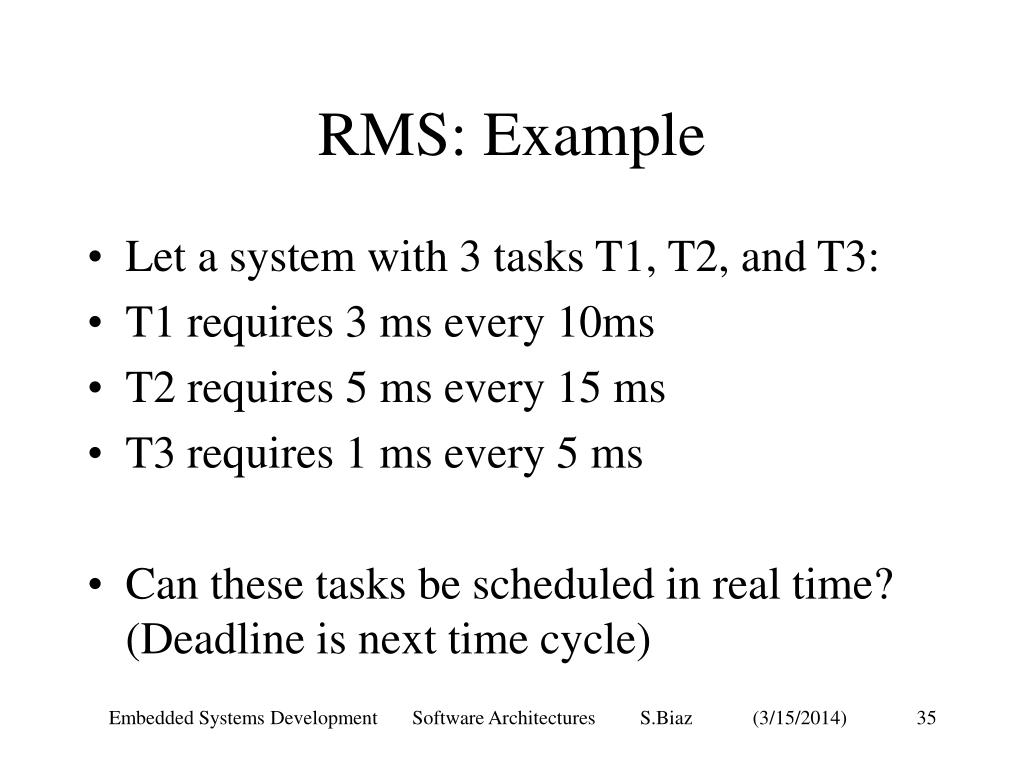

  35. RMS: Example • Let a system with 3 tasks T1, T2, and T3: • T1 requires 3 ms every 10ms • T2 requires 5 ms every 15 ms • T3 requires 1 ms every 5 ms • Can these tasks be scheduled in real time? (Deadline is next time cycle) Embedded Systems Development Software Architectures S.Biaz

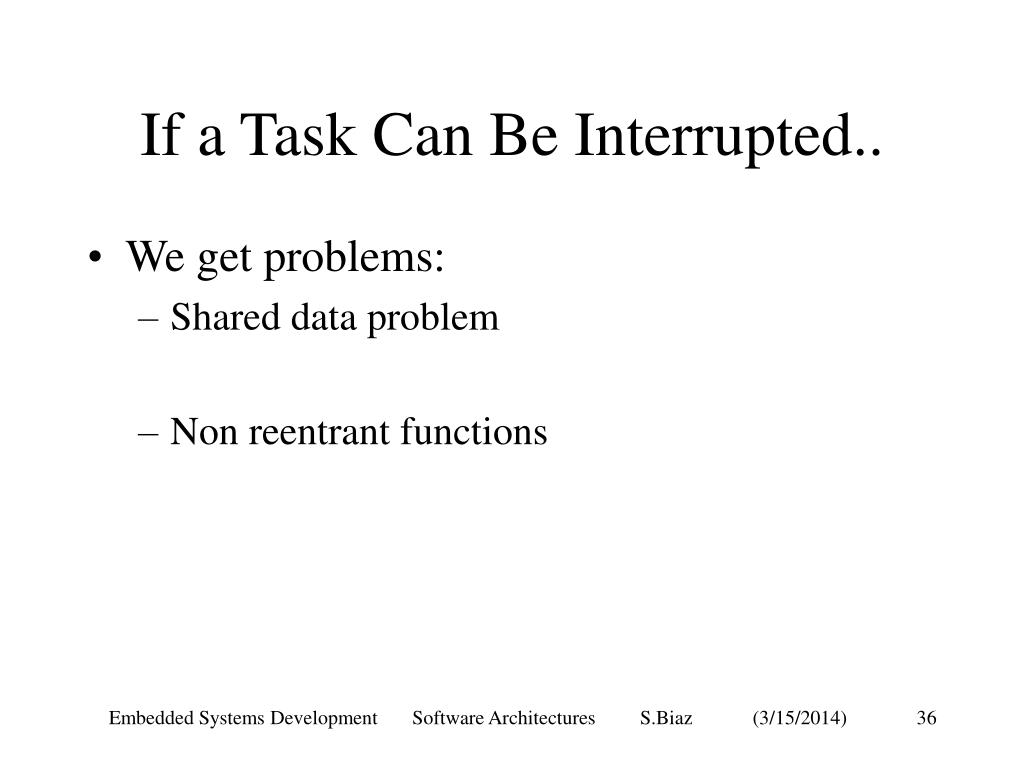

  36. If a Task Can Be Interrupted.. • We get problems: • Shared data problem • Non reentrant functions Embedded Systems Development Software Architectures S.Biaz

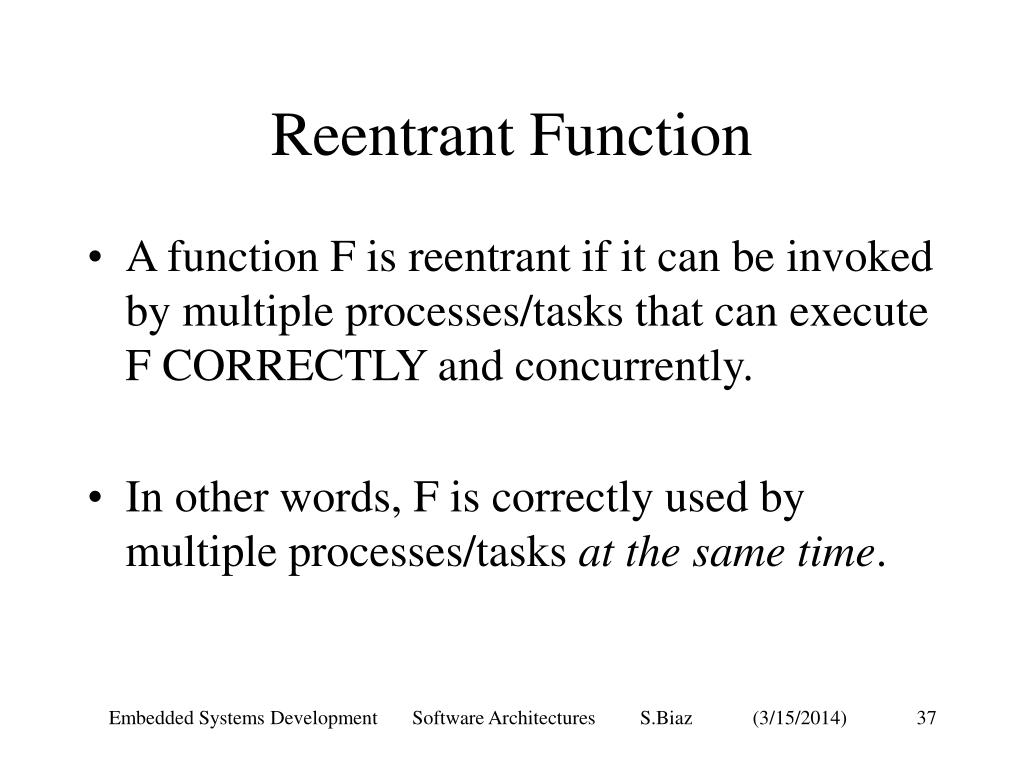

  37. Reentrant Function • A function F is reentrant if it can be invoked by multiple processes/tasks that can execute F CORRECTLY and concurrently. • In other words, F is correctly used by multiple processes/tasks at the same time. Embedded Systems Development Software Architectures S.Biaz

  38. Reentrant Function (2) • In general, if a function modifies only local variables (usually stored on stack), it is reentrant. • Example: non reentrant function int temp; /* global variable */ void swap(int *x, int *y){ temp = *x; *x = *y; *y = temp; } Embedded Systems Development Software Architectures S.Biaz

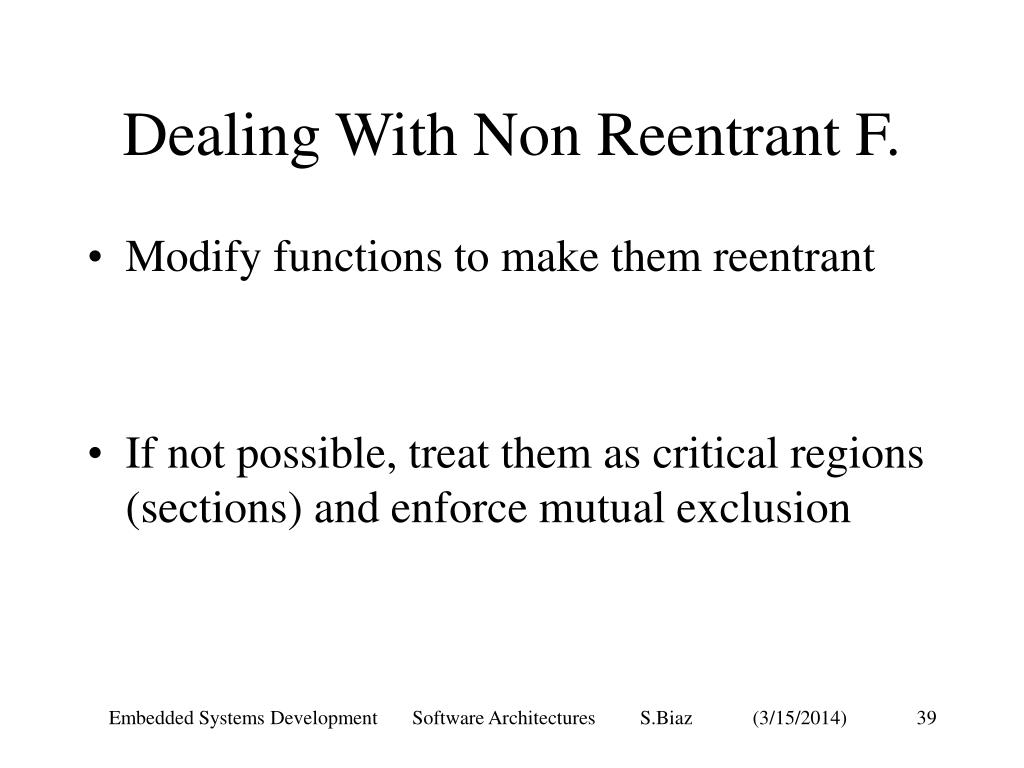

  39. Dealing With Non Reentrant F. • Modify functions to make them reentrant • If not possible, treat them as critical regions (sections) and enforce mutual exclusion Embedded Systems Development Software Architectures S.Biaz

  40. Enforcing Mutual Exclusion • Disable/Enable interrupts: • OS_ENTER_CRITICAL() • OS_EXIT_CRITICAL() • Using Test-and-Set function • Disable/Enable scheduling: • OSSchedLock() • OSSchedUnlock() • Using semaphores Embedded Systems Development Software Architectures S.Biaz

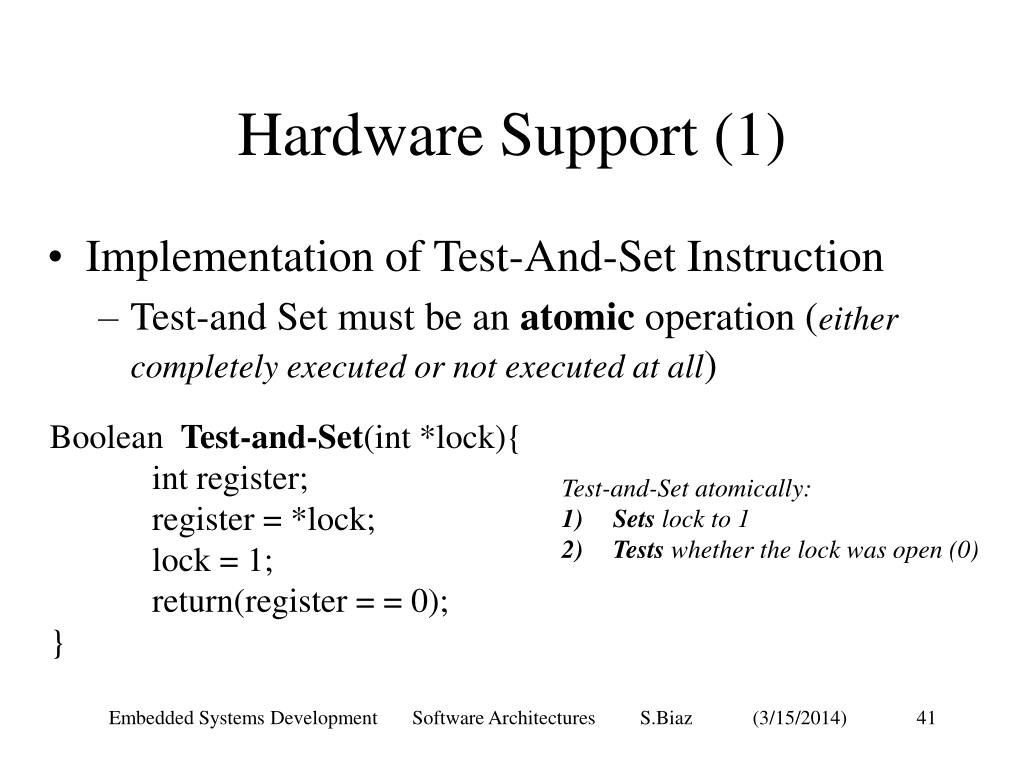

  41. Hardware Support (1) • Implementation of Test-And-Set Instruction • Test-and Set must be an atomic operation (either completely executed or not executed at all) Boolean Test-and-Set(int *lock){ int register; register = *lock; lock = 1; return(register = = 0); } • Test-and-Set atomically: • Sets lock to 1 • Tests whether the lock was open (0) Embedded Systems Development Software Architectures S.Biaz

  42. Mutual Exclusion Using Test-And-Set while (1){ While (!Test-And-Set(&Lock)); Critical Region Lock = 0; Remainder } /* end while (1) */ System variables: Lock = 0; while (1){ While (!Test-And-Set(&Lock)); Critical Region Lock = 0; Remainder } /* end while (1) */ Mutual Exclusion ? Yes Bounded Waiting ? Yes Progress ? Yes Embedded Systems Development Software Architectures S.Biaz

  43. Semaphore (Cont’d) • Down function: (Wait) if (S <= 0) sleep(); S = S – 1; • Up function: (Signal) S = S + 1; wake up some process Mutexes are binary semaphores Embedded Systems Development Software Architectures S.Biaz

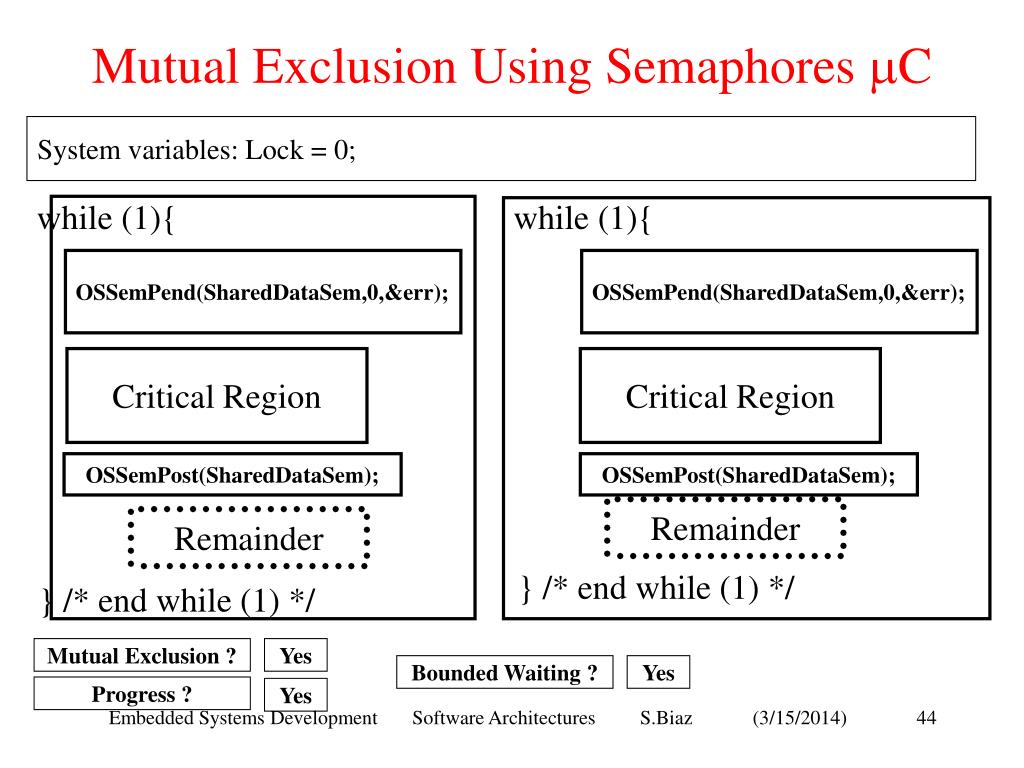

  44. Mutual Exclusion Using Semaphores mC System variables: Lock = 0; while (1){ while (1){ OSSemPend(SharedDataSem,0,&err); OSSemPend(SharedDataSem,0,&err); Critical Region Critical Region OSSemPost(SharedDataSem); OSSemPost(SharedDataSem); Remainder Remainder } /* end while (1) */ } /* end while (1) */ Mutual Exclusion ? Yes Bounded Waiting ? Yes Progress ? Yes Embedded Systems Development Software Architectures S.Biaz

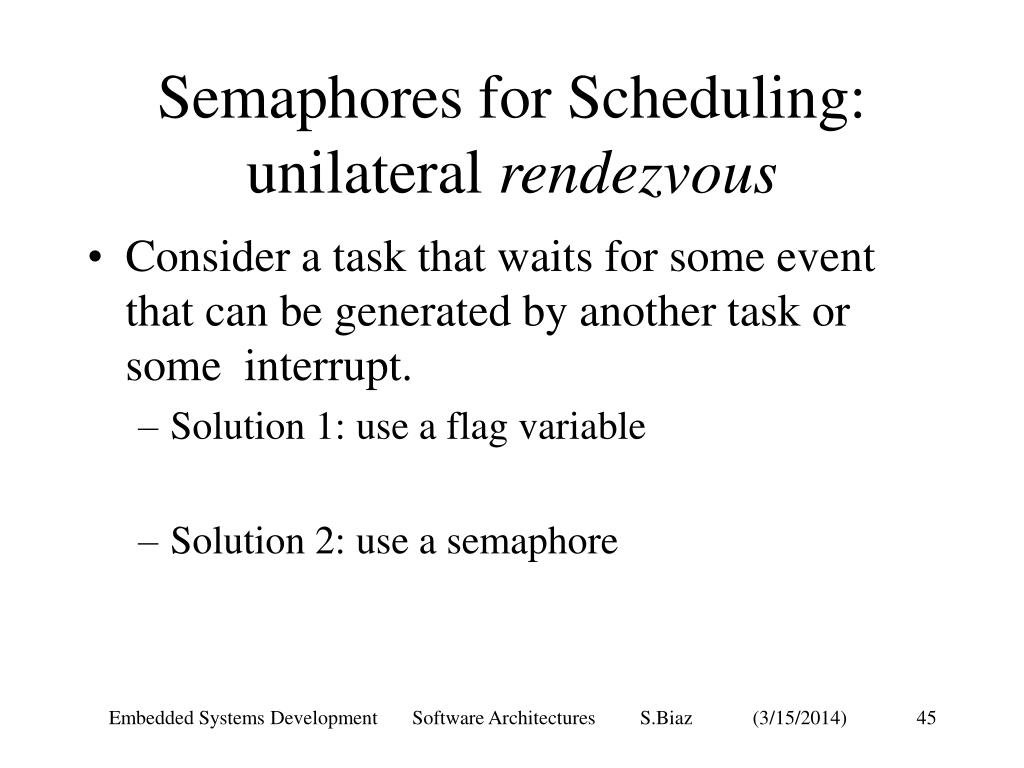

  45. Semaphores for Scheduling:unilateral rendezvous • Consider a task that waits for some event that can be generated by another task or some interrupt. • Solution 1: use a flag variable • Solution 2: use a semaphore Embedded Systems Development Software Architectures S.Biaz

  46. Semaphores for Scheduling: unilateral rendezvous (2) Embedded Systems Development Software Architectures S.Biaz

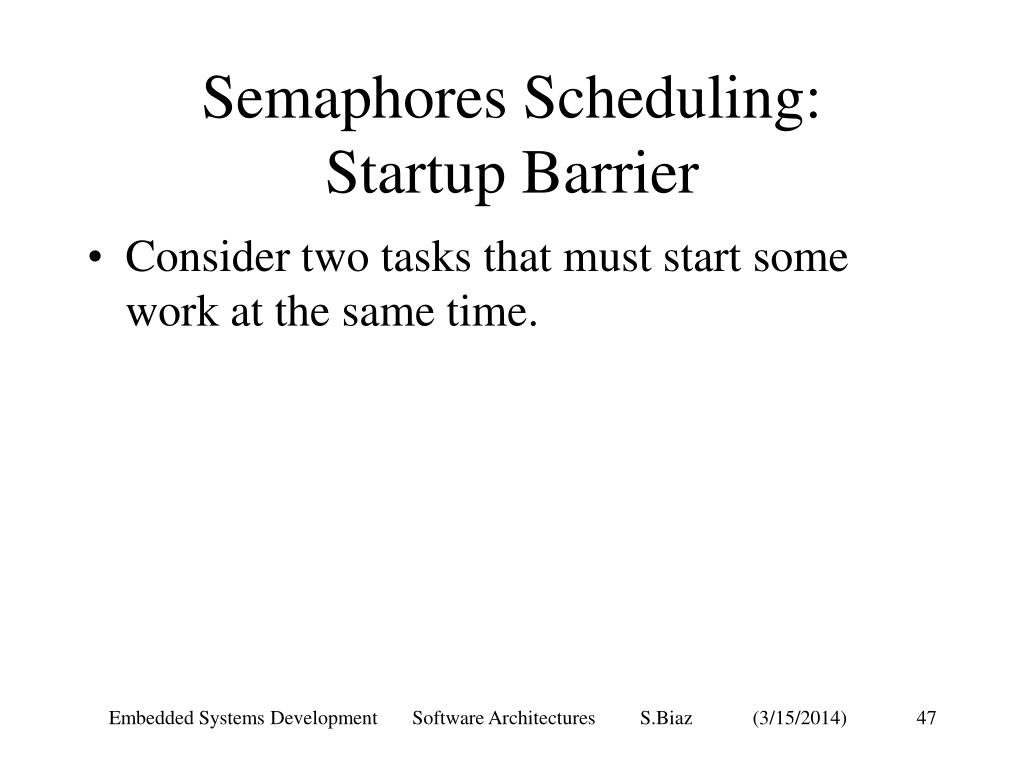

  47. Semaphores Scheduling:Startup Barrier • Consider two tasks that must start some work at the same time. Embedded Systems Development Software Architectures S.Biaz

  48. Intertask Communication (IPC !)

  49. Process/Task Communication • Necessary and useful for multi-tasking systems and/or in a distributed system • Design and implementation issues : • How to establish links among processes ? • Link’s connectivity : how processes are linked ? How many of them should be linked • Link’s capability: how many messages can be passed ? Embedded Systems Development Software Architectures S.Biaz

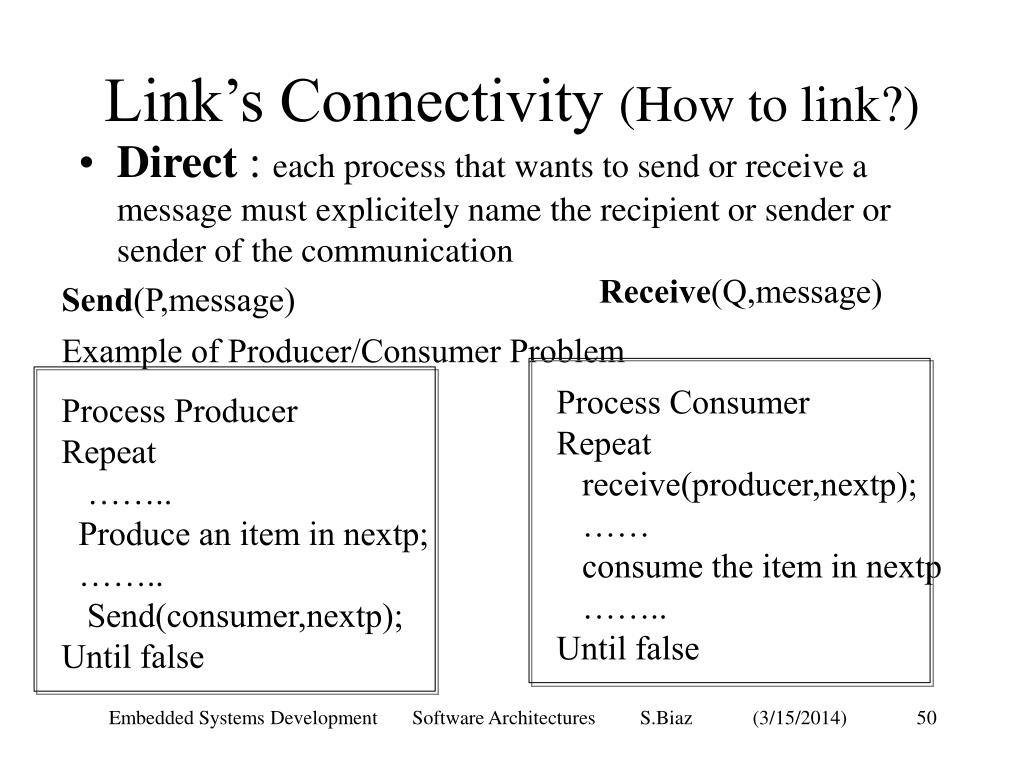

  50. Link’s Connectivity (How to link?) • Direct : each process that wants to send or receive a message must explicitely name the recipient or sender or sender of the communication Receive(Q,message) Send(P,message) Example of Producer/Consumer Problem Process Consumer Repeat receive(producer,nextp); …… consume the item in nextp …….. Until false Process Producer Repeat …….. Produce an item in nextp; …….. Send(consumer,nextp); Until false Embedded Systems Development Software Architectures S.Biaz
