Radiative processes during GRB prompt emission

Radiative processes during GRB prompt emission. Based on works by Asaf Pe’er (ITC / Harvard University) in collaboration with Peter Meszaros (PSU) , Martin Rees ( IoA ) Christoffer Lundman , Felix Ryde (Stockholm ), Sin é ad McGlynn (MPE) . June 2012. Outline.

carlo
Télécharger la présentation

Radiative processes during GRB prompt emission

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Radiative processes during GRB prompt emission Based on works by AsafPe’er(ITC / Harvard University) in collaboration with Peter Meszaros(PSU), Martin Rees (IoA) ChristofferLundman, Felix Ryde(Stockholm), Sinéad McGlynn(MPE) June 2012

  2. Outline • The problem: understanding what we see • Emission from optically thick regions • Broadening mechanisms of Planck spectrum:A theory of photospheric emission from collimated outflows • Success: separation of high energy emission from low energy part. • Failure: still, no natural explanation to observed spectra.

  3. Outline • The problem: understanding what we see • Emission from optically thick regions • Broadening mechanisms of Planck spectrum:A theory of photospheric emission from collimated outflows • Success: separation of high energy emission from low energy part. • Failure: still, no natural explanation to observed spectra.

  4. High optical depth: >1 Low optical depth: <1 General picture: the “fireball” model • Paczynski (1986); Goodman (1986); Rees & Meszaros (1992, 1994); EGEk E(EB) Cons: No quantitative explanation of obs. (Emission ?) Some parts are not explained at all (e.g., particle acc.) Some parts are ‘problematic’ (e.g., Internal shocks) Pros: In qualitative agreement with all obs; Obtain AG as a prediction

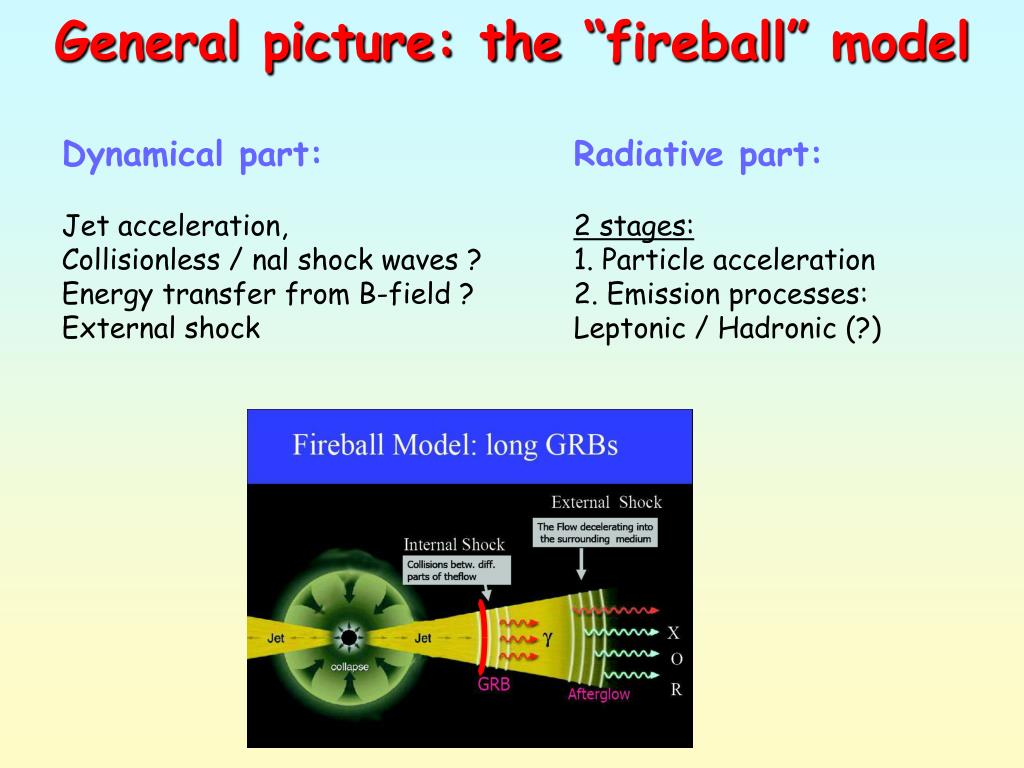

  5. General picture: the “fireball” model Dynamical part:Jet acceleration,Collisionless / nal shock waves ?Energy transfer from B-field ?External shock Radiative part:2 stages:1. Particle acceleration2. Emission processes:Leptonic / Hadronic (?)

  6. Prompt GRB spectra: the “Band” curse a(+2) b LognFn GBM Logn 10keV 100MeV “Band” function: Broken power law (4 free parameters) -- good fit to (narrow band) spectra;NO PHYSICAL MEANING !!! David Tierney,Michael Briggs talks

  7. Fermi - GBM burstsMost are similar to BATSE bursts: <a>~-1 a(+2) BATSE data:Kaneko+06 Nava+11; Goldstein+12(picture taken from Ghisellini) b LognFn GBM Logn • Violate ‘synchrotron line of death’ (Preece98); • Emission mechanism cannot be (only) synchrotron

  8. Fermi - GBM burstsMost GRBs have similar properties to BATSE bursts BATSE data:Kaneko+06 Inconsistent with sync. origin Nava+11; Goldstein+12(picture taken from Ghisellini) b LognFn GBM Logn a(+2) Photon spectral index • Violate ‘synchrotron line of death’ (Preece98); • Emission mechanism cannot be (only) synchrotron Main (observational) motivation to study photospheric emission Synchrotron line of death >>

  9. Spectral analysis latest news: abandoning the “Band” fits Fit to GRB110721A: “Band” + BB The Fermi team + AP, in prep.; see Magnus Axelsson, Briggs talks

  10. Outline • The problem: understanding what we see • Emission from optically thick regions • Broadening mechanisms of Planck spectrum:A theory of photospheric emission from collimated outflows • Success: separation of high energy emission from low energy part. • Failure: still, no natural explanation to observed spectra.

  11. High optical depth: >1 Low optical depth: <1 General picture: the “fireball” model EGEk E(EB) Variability -> several emission zones; NOTHING tells what is the emission radius !!

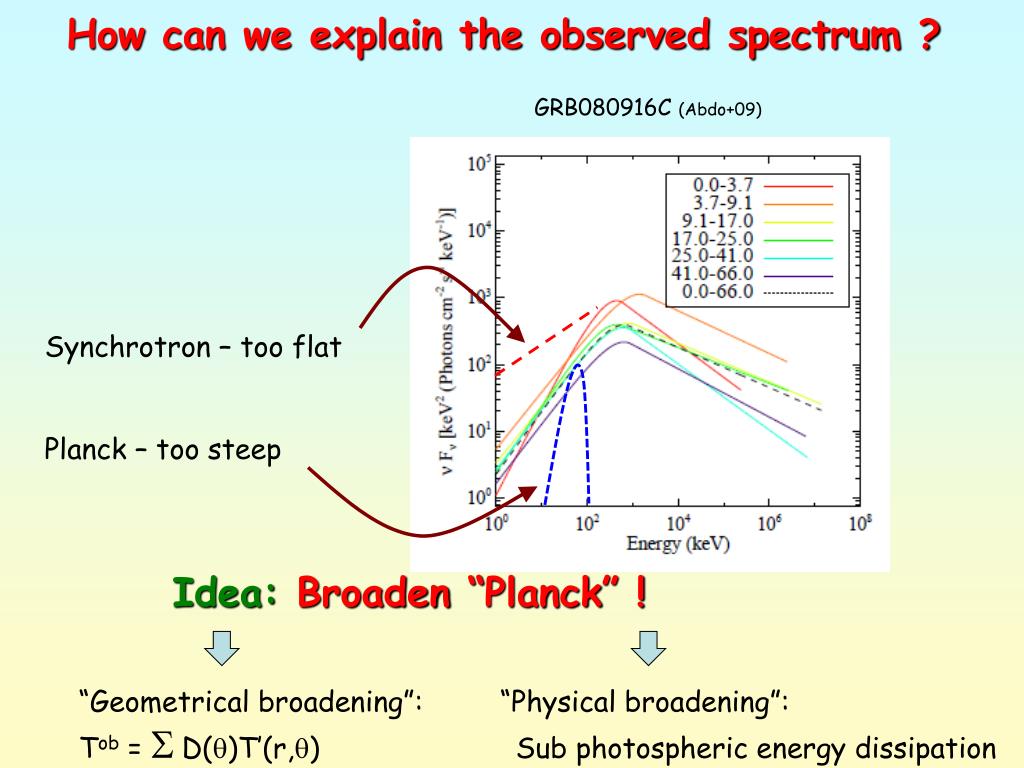

  12. How can we explain the observed spectrum ? GRB080916C (Abdo+09) Synchrotron – too flat Planck – too steep Idea: Broaden “Planck” !“Geometrical broadening”: “Physical broadening”:Tob = SD(q)T’(r,q) Sub photospheric energy dissipation

  13. I. “Physical broadening” of the photospheric signal • Basic idea: • Energy dissipated (heating plasma)at r<=rpht.Key point: ng>> ne • Definition: at r=rpht, tge=dRnesT = 1 • atr<=rpht, teg=dRngsT >> 1Every electron undergoes many scattering !! • tcool,elec << tdyn Pe’er, Meszaros & Rees (2005, 2006) Beloborodov (2010); Vurm+ (2011) Lazatti & Begelman (2010)Giannios (2012) Electrons rapidly cools !!

  14. I. “Physical broadening” of the photospheric signal Basic idea: Energy dissipated (heating plasma)at r<=rpht. tcool,elec << tdyn  Electrons rapidly cool ..but are also heated ! System in ‘quasi steady state’: external heating & IC cooling Plasma characterized by 2 temperatures: Tel(steady state) >Tph. Pe’er, Meszaros & Rees (2005, 2006) Beloborodov (2010); Vurm+ (2011) Lazatti & Begelman (2010)Giannios (2012)

  15. I. “Physical broadening” of the photospheric signal Basic idea: Energy dissipated (heating plasma)at r<=rpht. Plasma characterized by 2 temperatures: Tel(steady state) >Tph. The resulting spectrum:Above the thermal peak -> depends (mainly) on:1. tge(# scatterings) 2. ue/uth Below the thermal peak:Synchrotron (from COLD particles)…. Comptonized. Pe’er, Meszaros & Rees (2005, 2006) Beloborodov (2010); Vurm+ (2011) Lazatti & Begelman (2010)Giannios (2012) Conclusion: Multiple IC scattering broadens the thermal peak

  16. Examples of possible spectral shapes:sub photospheric energy dissipation High B Low B High B Low B tge= 1 tge= 10 Pe’er, Meszaros & Rees (2006)See talk by Giannios

  17. Complex relation between thermal and n.t. emission Pe’er, Meszaros & Rees 2006 • See also • Giannios 2006, 2012 • Giannios & Spruit 2007 • Ioka + 2007 • Pe’er + 2010 • Beloborodov 2010 • Lazatti & Begelman 2010 “Quasi steady state”: Electrons distribution is not power lawReal life spectra is not easy to model !! (NOT simple broken Power law)

  18. Outline • The problem: understanding what we see • Emission from optically thick regions • Broadening mechanisms of Planck spectrum:A theory of photospheric emission from collimated outflows • Success: separation of high energy emission from low energy part. • Failure: still, no natural explanation to observed spectra.

  19. How can we explain the observed spectrum ? GRB080916C (Abdo+09) Synchrotron – too flat Planck – too steep Idea: Broaden “Planck” !“Geometrical broadening”: “Physical broadening”:Tob = SD(q)T’(r,q) Sub photospheric energy dissipation

  20. Relativistic wind Photon emission radius II. “Geometrical broadening”photosphere in relativistically expanding plasma Pe’er (2008) High lat. >>

  21. Extending the definition of a photosphere Thermal photons escape from the entire space ! Photons escape radii and angles - described by probability density function P(r,) Pe’er (2008) ; see also Beloborodov (2011)

  22. Observed photospheric spectrum: multicolor black body Pe’er & Ryde (2011) “Limb darkening” in rel. expanding plasma !! At early times: multicolor BB.At late times, Fn~n0 -> Identical to “Band” a

  23. More ambitious goal: maybe photospheric emission is not “just a component” “reality”: G=G(q) (Lundman, AP & Ryde, in prep) (Zhang, Woosley & MacFadyen, 03)

  24. Photospheric emission: ‘realistic’ velocity profile G qj qv q G0 qj qv p 4 freeparameters: (Lundman, AP & Ryde, in prep)

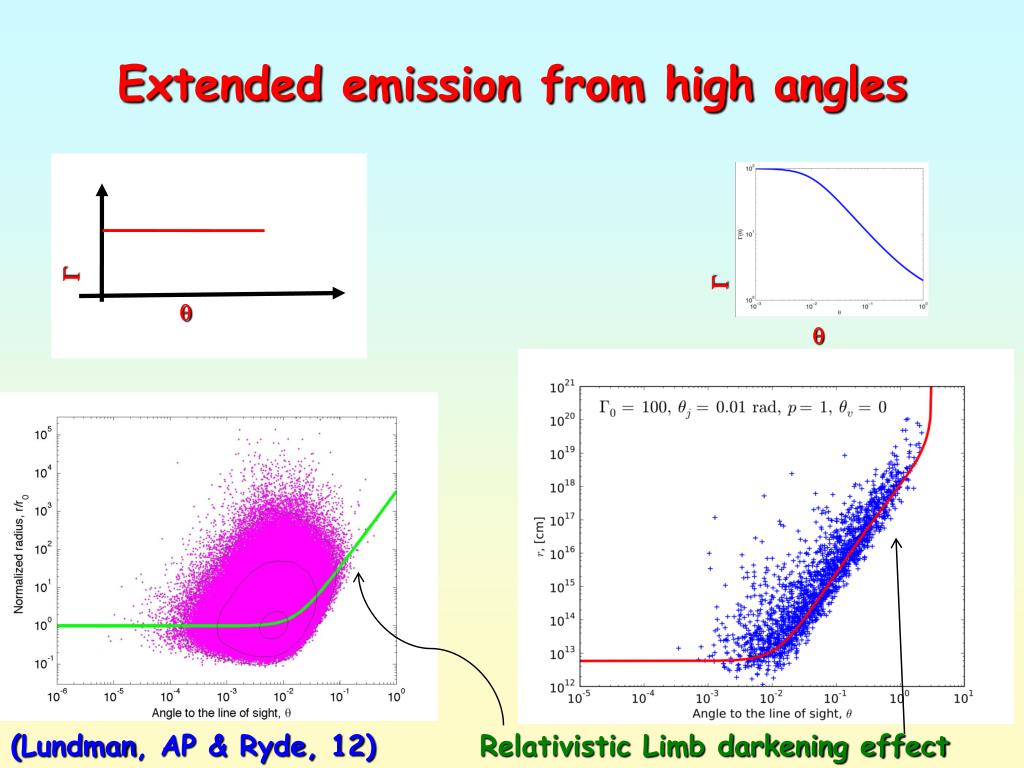

  25. Extended emission from high angles G G q q (Lundman, AP & Ryde, 12) Relativistic Limb darkening effect

  26. G0=100; G0qj = 3; qv =0 ; p=4

  27. Flat spectra for different viewing angles G0=100; G0qj = 1; p=1 ; qv = {0,1,2} qj(red, green, magenta)

  28. Photospheric emission: flat spectrum !! (Nava+11; Goldstein+12) a+1 = 0 -> a=-1 Not conclusive yet… but very promising (Lundman, AP & Ryde, in prep)

  29. Outline • The problem: understanding what we see • Emission from optically thick regions • Broadening mechanisms of Planck spectrum:A theory of photospheric emission from collimated outflows • Success: separation of high energy emission from low energy part. • Failure: still, no natural explanation to observed spectra.

  30. Example: numerical fit to GRB090902B ‘Two zones’ model Dissipation radius Magnetic field strength Rg = 1017,1016,1015.5, 1015 cm eB=0.33,0.1,0.01 Self consistent physical picture of both emission zones ; Full determination of parameters values.Natural explanation to delayed H.E. emission Pe’er et. al., 2012

  31. Combined sub- and super- photospheric emission:numerical results Pe’er + 12: GRB090902B -thermal + dissipation above the photosphere Ryde + 11:spectral broadening by sub-photospheric dissipation synchrotron IC of photosphere and sync. Thermal Comptonization Requirements:uel ~ uth; strong B (eB ~ tens %); t ~ few No time - skip to summary >>

  32. Outline • The problem: understanding what we see • Emission from optically thick regions • Broadening mechanisms of Planck spectrum:A theory of photospheric emission from collimated outflows • Success: separation of high energy emission from low energy part. • Failure: still, no natural explanation to observed spectra.

  33. Key spectral features: Geometric broadening Sub photospheric dissipation, multiple regions. 1. a~-1 2. E_pk ~ sub-MeV 3. Separated* & delayedGeV component

  34. Bottom lines & summary • Major efforts in understanding the physical origin of prompt emission • Failure of optically thin models, raise interest in photospheric emission. • Sub-photospheric heating leads to broadening of Planck spectrum. • Photospheric emission from collimated outflow may hold the key to the observed spectra.
