PHINMS: Application Integration

casey avatar
casey
23 diapositives · 404 Views · Sep 01, 2014

PHINMS: Application Integration. Raja Kailar, Ph.D. Overview. PHINMS – brief overview and history Application Integration View Summary. What is PHINMS? (Business Perspective). Secure, reliable message transport Used by PH agencies to send data to CDC

PHINMS: Application Integration - slide 1
01 / 23PHINMS: Application Integration
1 / 17

Télécharger la présentation

PHINMS: Application Integration
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. PHINMS: Application Integration Raja Kailar, Ph.D.

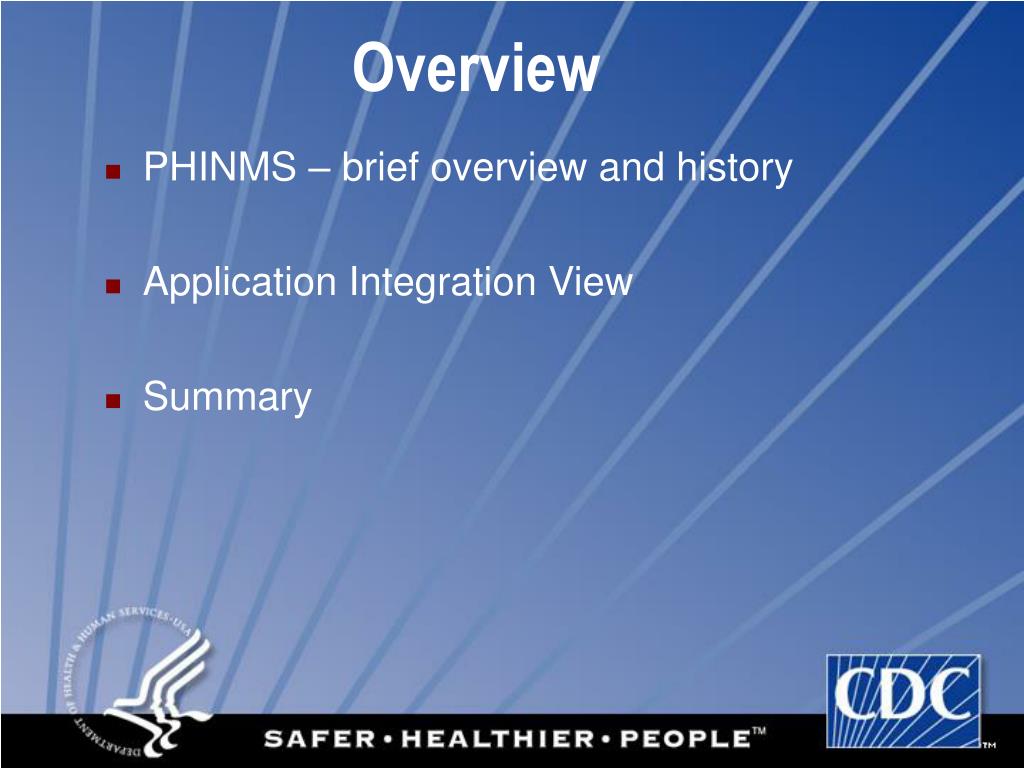

  2. Overview • PHINMS – brief overview and history • Application Integration View • Summary

  3. What is PHINMS?(Business Perspective) • Secure, reliable message transport • Used by PH agencies to send data to CDC • Applications using PHINMS include: BioSense, ELR, LRN, NBS, HCN, NHSN • Some states using PHINMS internally: NYS, NYC, MN, OK, CA • 4-year old product deemed “mission critical” by CDC

  4. PHINMS Usage

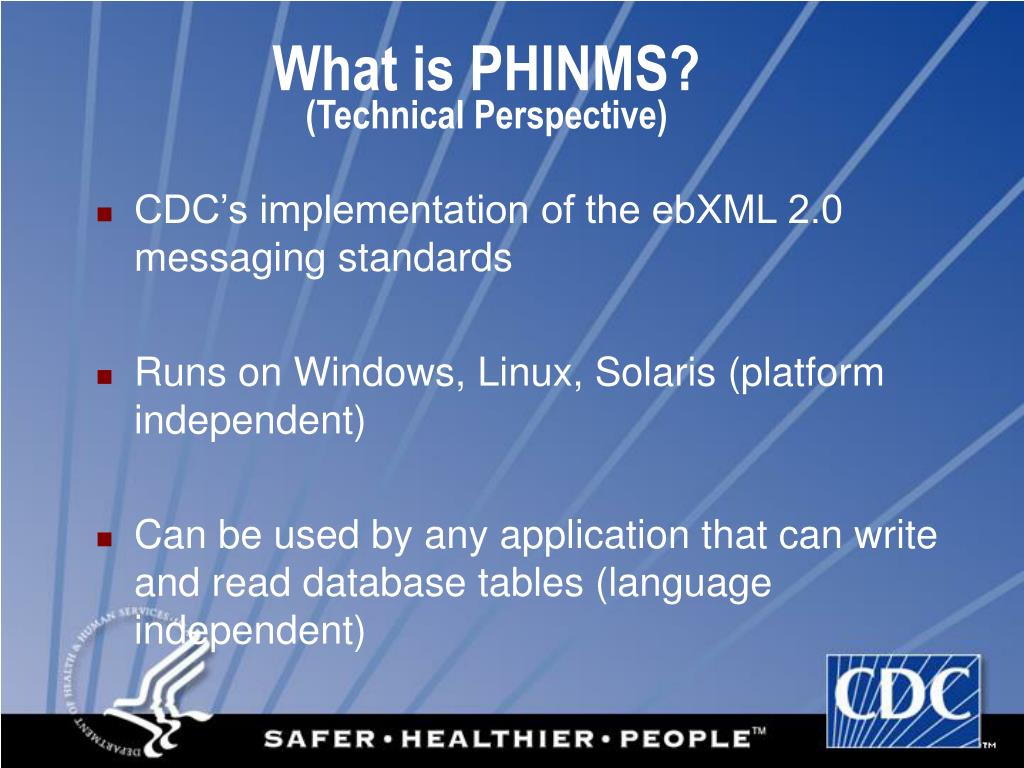

  5. What is PHINMS?(Technical Perspective) • CDC’s implementation of the ebXML 2.0 messaging standards • Runs on Windows, Linux, Solaris (platform independent) • Can be used by any application that can write and read database tables (language independent)

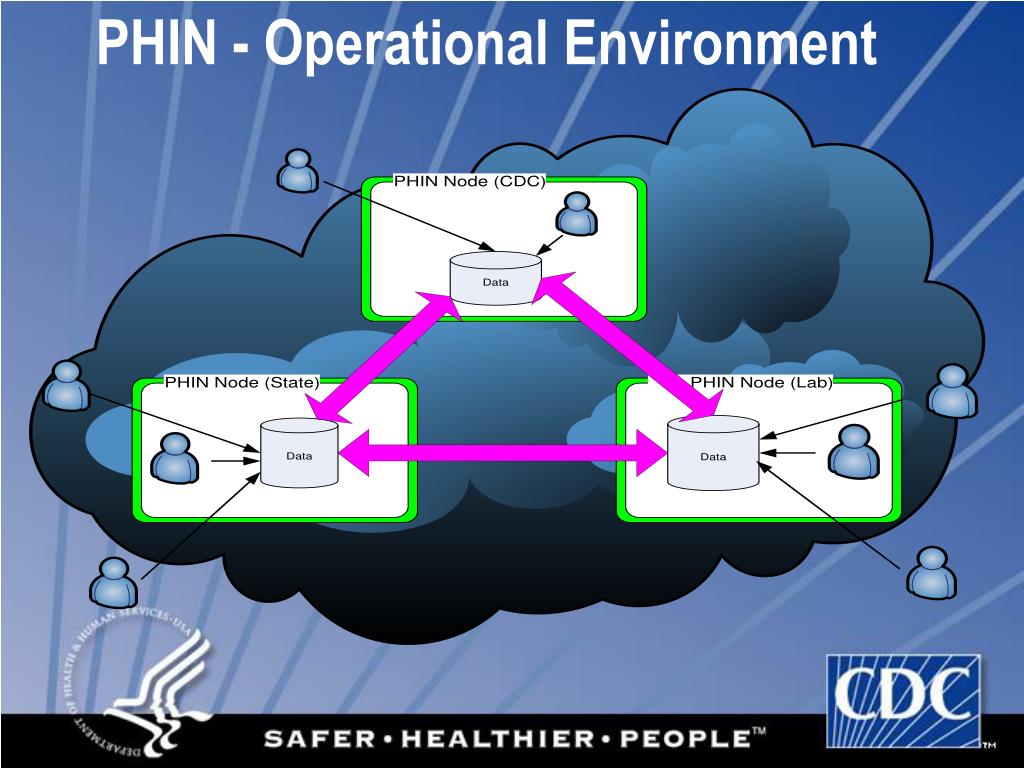

  6. PHIN - Operational Environment

  7. State Private Key (Decrypt) State Public Key (Encrypt) HL7 HL7 DB Q DB Q PHINMS – Typical Message Flow State Lab Internet Proxy Server PHINMS Receiver PHINMS Sender DMZ Firewall Firewall

  8. Application Integration View

  9. Overview • Provide guidelines for business and technical decisions on messaging • Analyze application interfacing considerations • Explore ways to leverage messaging infrastructure to satisfy new data sharing needs

  10. Data Sharing Models

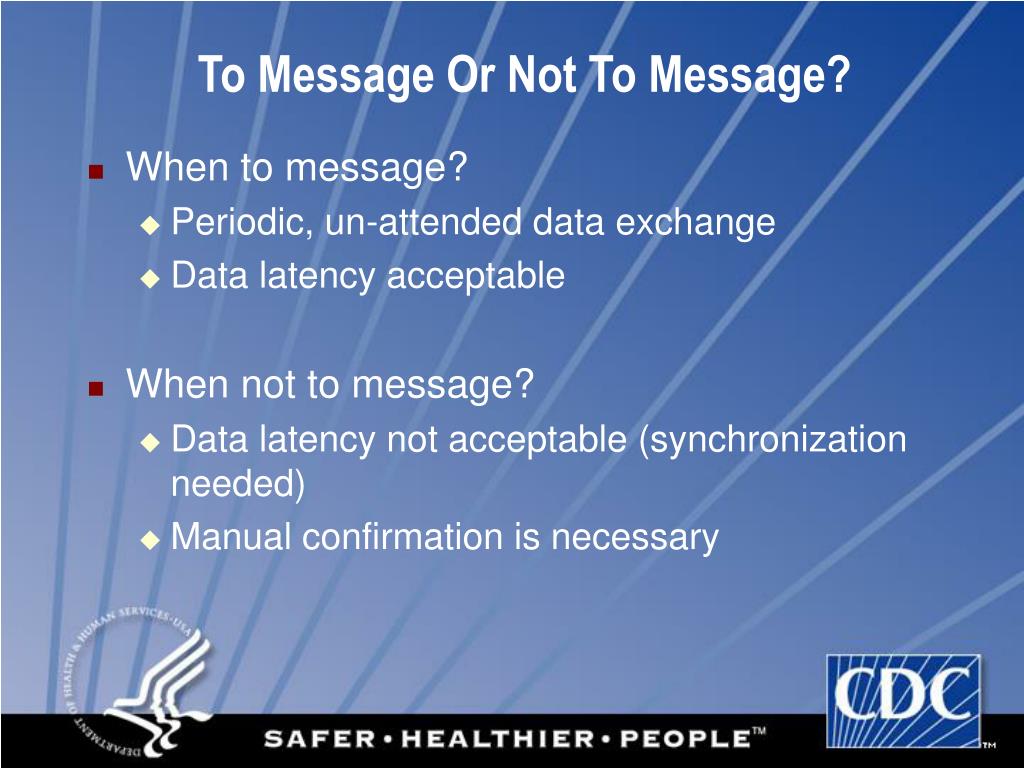

  11. To Message Or Not To Message? • When to message? • Periodic, un-attended data exchange • Data latency acceptable • When not to message? • Data latency not acceptable (synchronization needed) • Manual confirmation is necessary

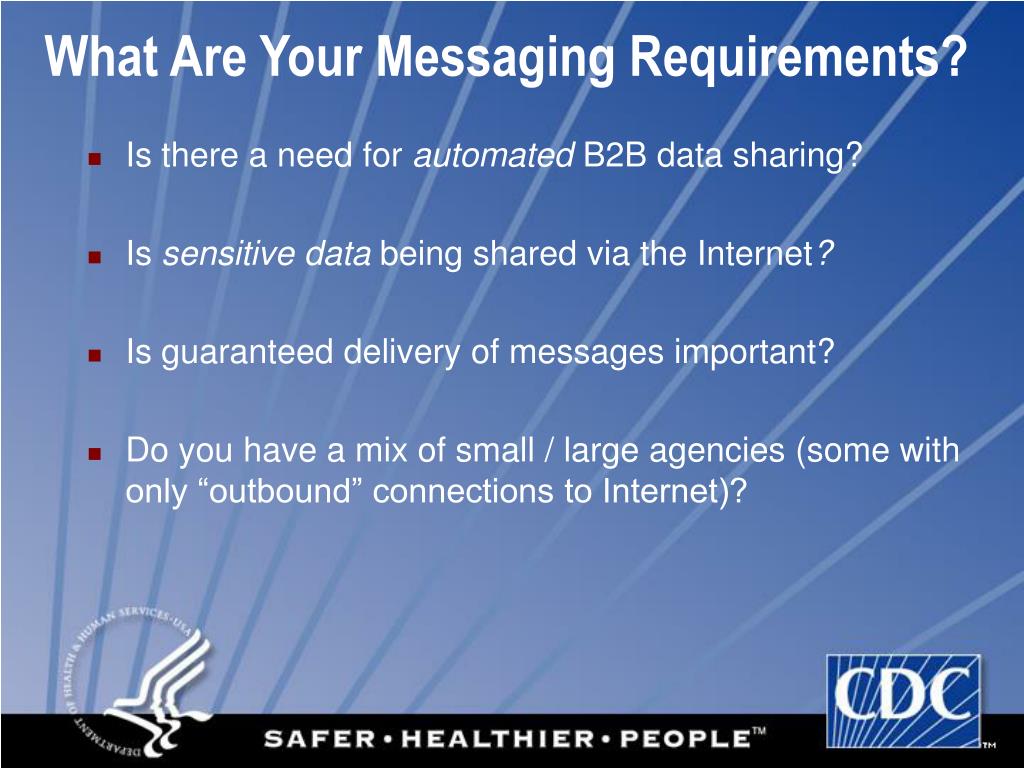

  12. What Are Your Messaging Requirements? • Is there a need for automated B2B data sharing? • Is sensitive data being shared via the Internet? • Is guaranteed delivery of messages important? • Do you have a mix of small / large agencies (some with only “outbound” connections to Internet)?

  13. Is PHINMS the Right Tool For You? Requirement:Secure, Reliable Messaging over Internet

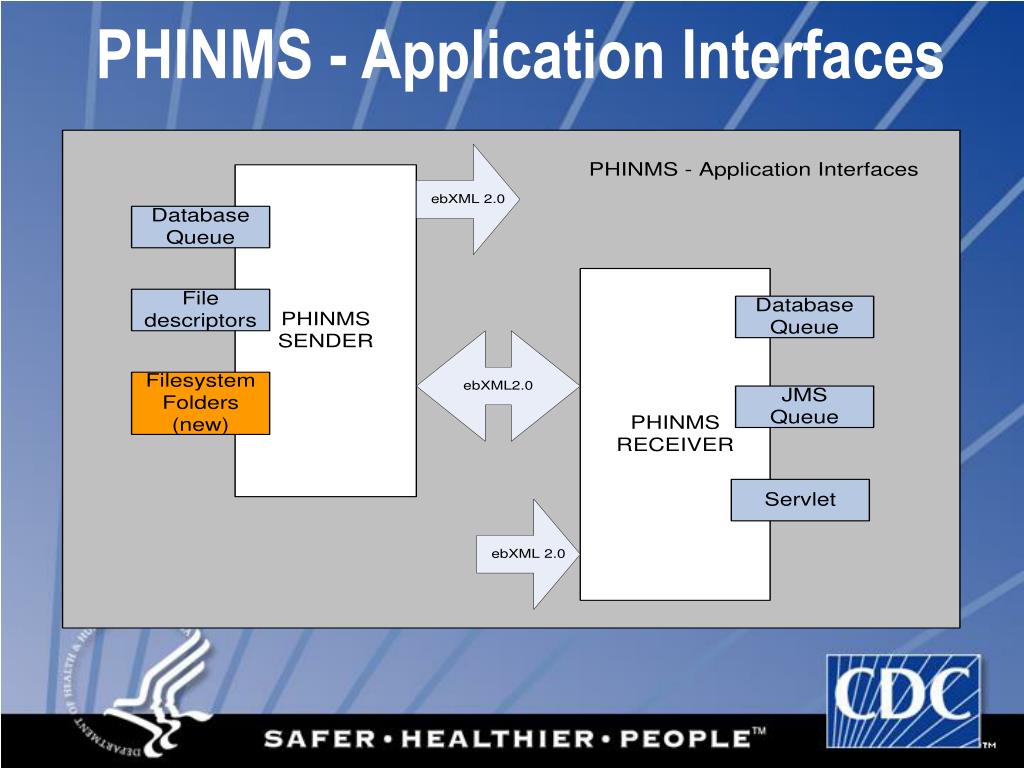

  14. PHINMS - Application Interfaces

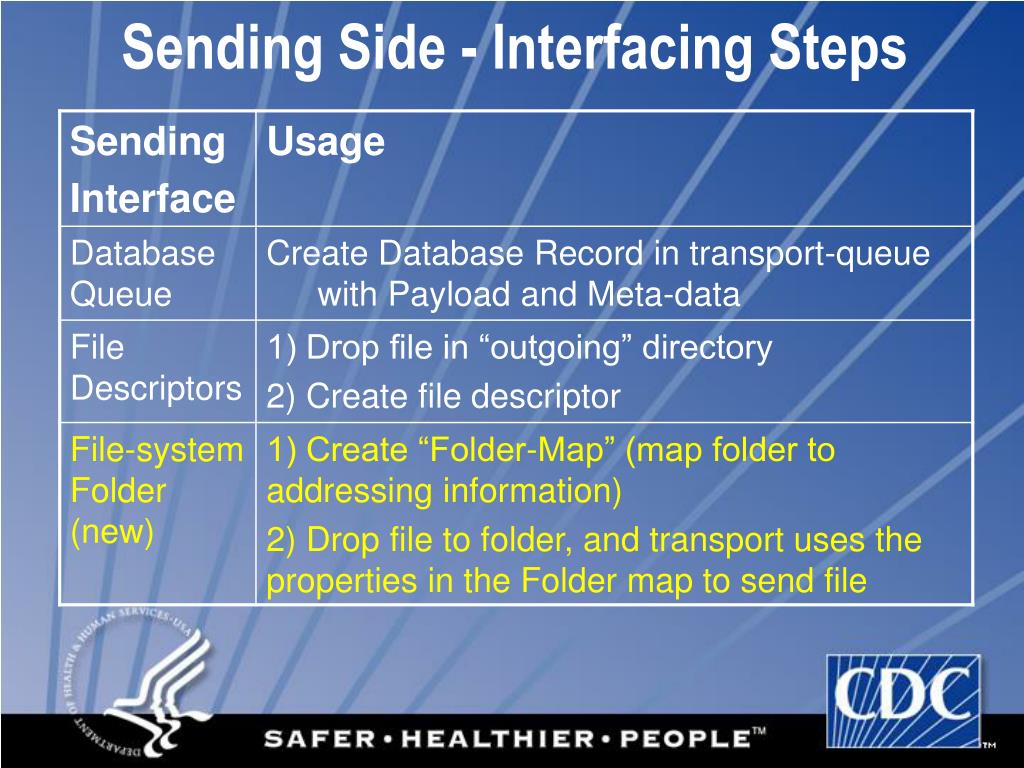

  15. Sending Side - Interfacing Steps

  16. Sending Interface Considerations

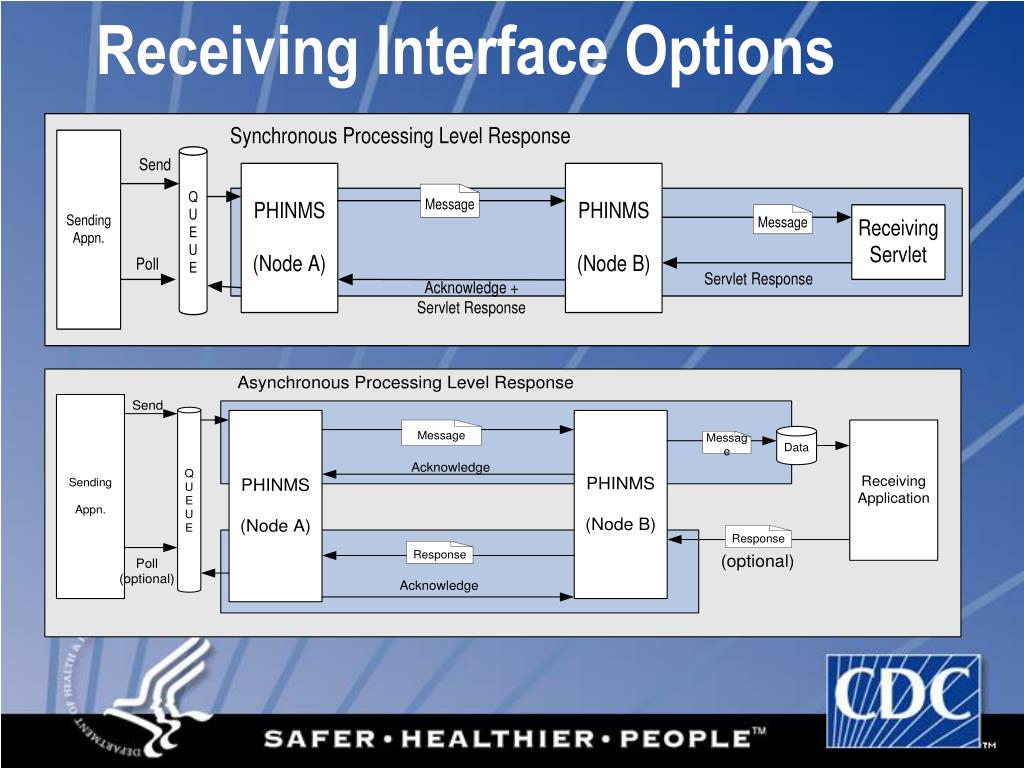

  17. Receiving Interface Options

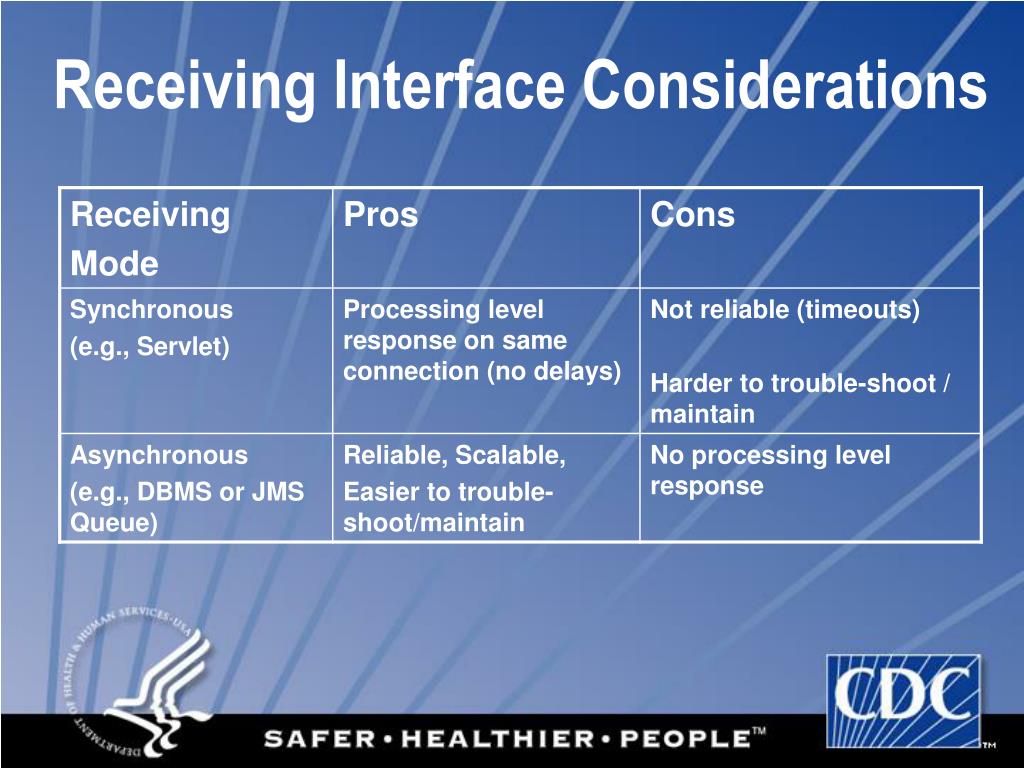

  18. Receiving Interface Considerations

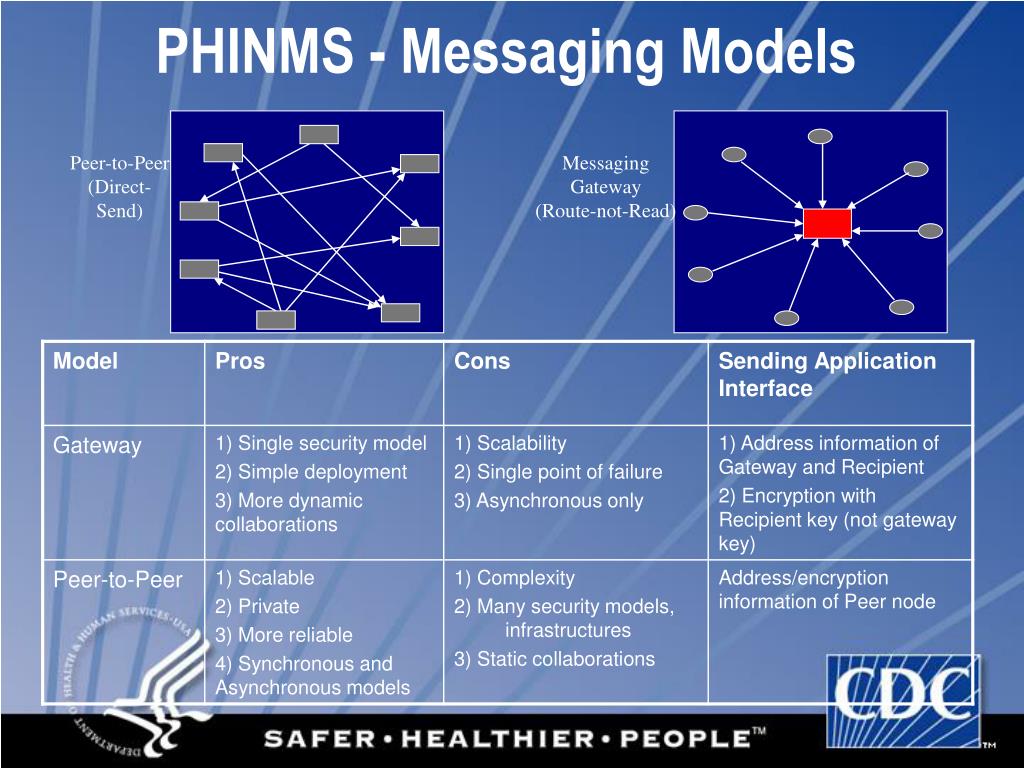

  19. PHINMS - Messaging Models Peer-to-Peer (Direct-Send) Messaging Gateway (Route-not-Read)

  20. Leveraging Existing PHINMS For New Data Sharing

  21. PHINMS - Scaling Considerations

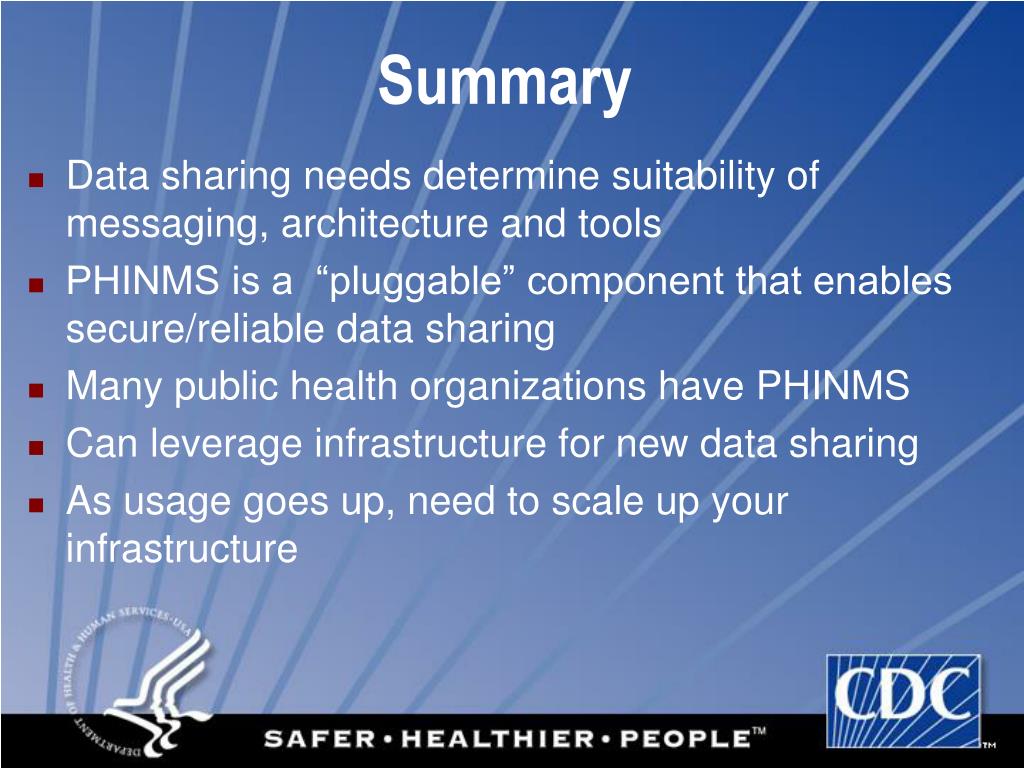

  22. Summary • Data sharing needs determine suitability of messaging, architecture and tools • PHINMS is a “pluggable” component that enables secure/reliable data sharing • Many public health organizations have PHINMS • Can leverage infrastructure for new data sharing • As usage goes up, need to scale up your infrastructure

  23. Questions?
