  1. Bethany Beach Volunteer Fire Company Riding Assignments Presentation February 28, 2011

  2. BETHANY BEACH VOLUNTEER FIRE COMPANY Riding Assignments Purpose • To establish riding member assignments for Engine and Truck Company operations at fire emergencies Scope: • This standard regulates the tactical assignments for each riding position on engine and truck companies.

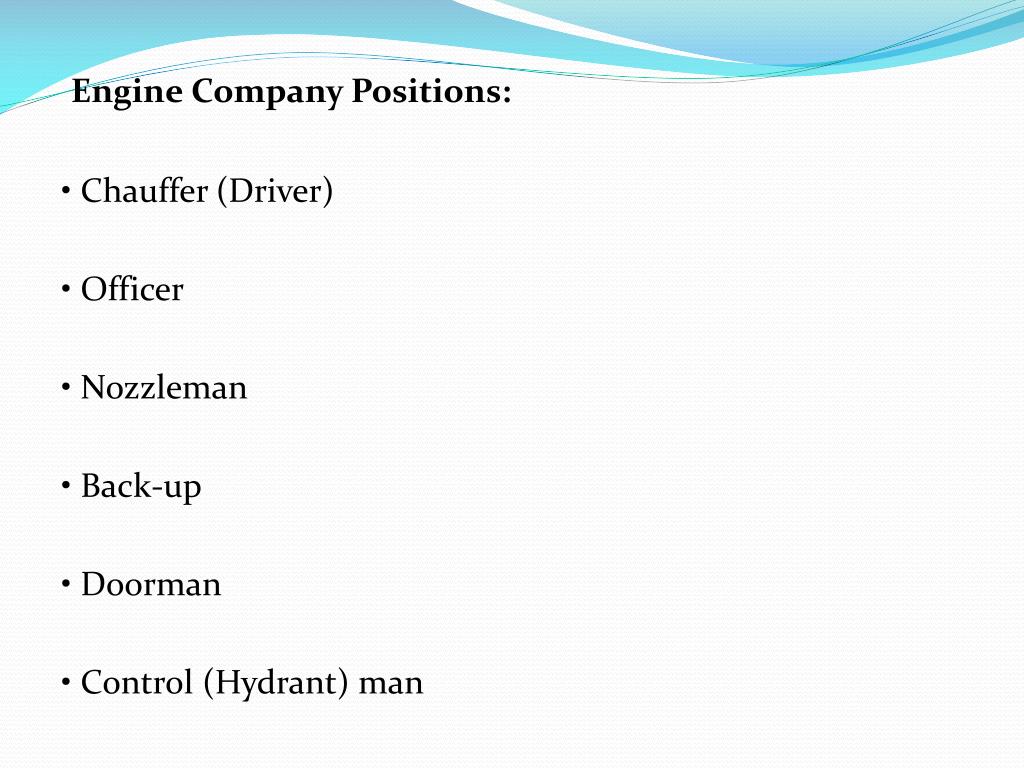

  3. Engine Company Positions: • Chauffer (Driver) • Officer • Nozzleman • Back-up • Doorman • Control (Hydrant) man

  4. Engine Company Assignments Chauffer (Driver): • Drives apparatus safely to scene and properly positions • Secure water source – supply line connection • Ensure cross-lay is flaked out of hose bed and/or static line is connected • Monitor radio for instructions • Operates Pump • Communicate status of water, fuel and other key information to IC

  5. Officer: • Directs apparatus placement • Initial size-up and attack mode • Communicates fire conditions and location of fire to IC • Calls for the line to be charged • Controls the door to fire area • Communicates with OV, directs fire attack and hose-line advancement, monitors conditions

  6. Officer Tools: • Radio • Thermal Imaging Camera • Officer’s Tool or set of irons (if no Truck Company present) • Flashlight

  7. Nozzleman: This position should be assigned to the Senior Firefighter during initial attack phase. • Stretches the proper size attack line and length • Flakes out line prior to initiating fire attack • Bleeds air when line initially charged • Controls stream and hose-line advancement, with Officer • Performs hydraulic ventilation

  8. Nozzleman Tools:  • Radio  • Flashlight Back-up Man:  • Second FF on hose-line • Stretching and flaking out hose-line in preparation for fire attack • Chock doors while making stretch • Supports nozzleman by absorbing as much nozzle reaction as possible • Work in unison with nozzleman for hose-line advancement and direction change • Note: Back-up man may have to force entry if Truck Company is not on scene

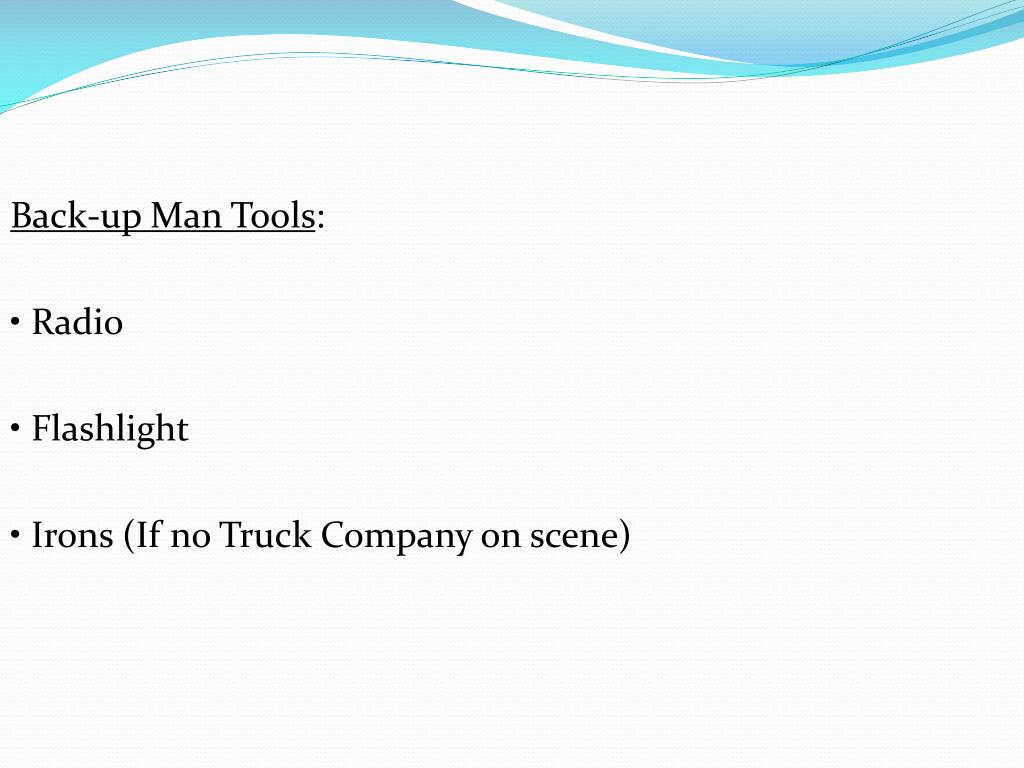

  9. Back-up Man Tools: • Radio • Flashlight • Irons (If no Truck Company on scene)

  10. Doorman: • If Control Man unavailable – ensures that cross-lay is out of the bed and/or assists with connection of static lay • If Control Man unavailable – estimates the hose needed if a static lay is used • Assists in flaking out line from door to the back-up position • Chocks doors to prevent closing on hose-line • Supports hose-line advancement by feeding hose • Monitors fire conditions at the doorway and reports any deterioration in condition • For relief purposes, assumes nozzle position

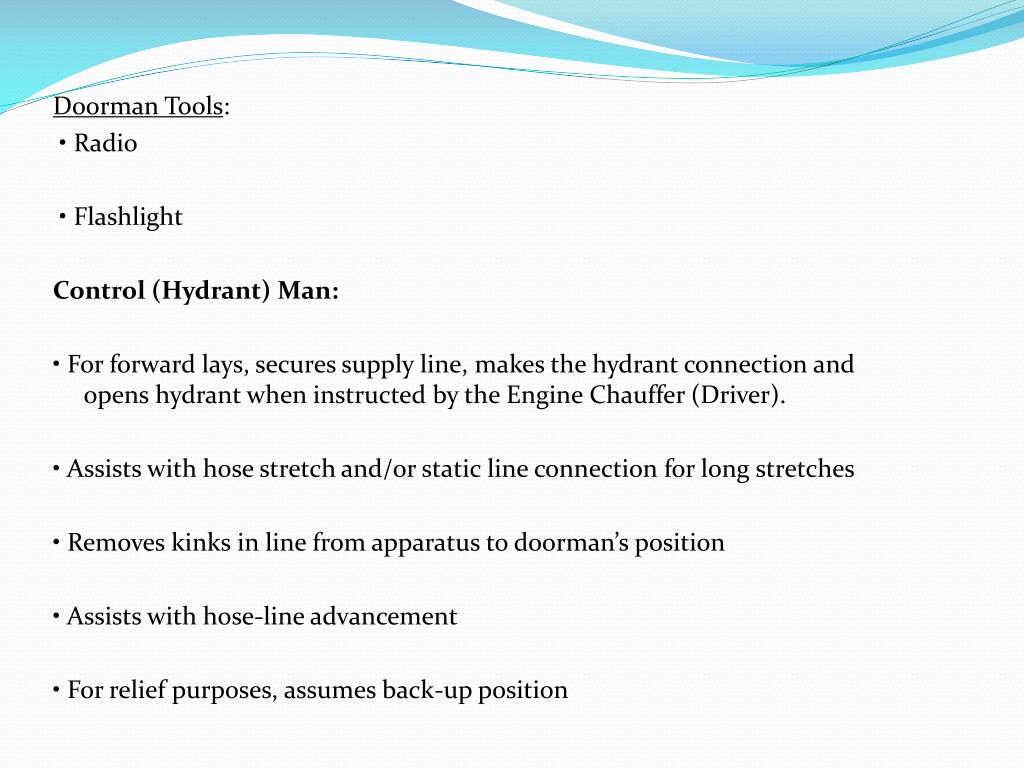

  11. Doorman Tools:  • Radio  • Flashlight Control (Hydrant) Man: • For forward lays, secures supply line, makes the hydrant connection and opens hydrant when instructed by the Engine Chauffer (Driver). • Assists with hose stretch and/or static line connection for long stretches • Removes kinks in line from apparatus to doorman’s position • Assists with hose-line advancement • For relief purposes, assumes back-up position

  12. Control (Hydrant Man) Tools: • Radio • Flashlight • Hydrant wrench • Spanner wrench

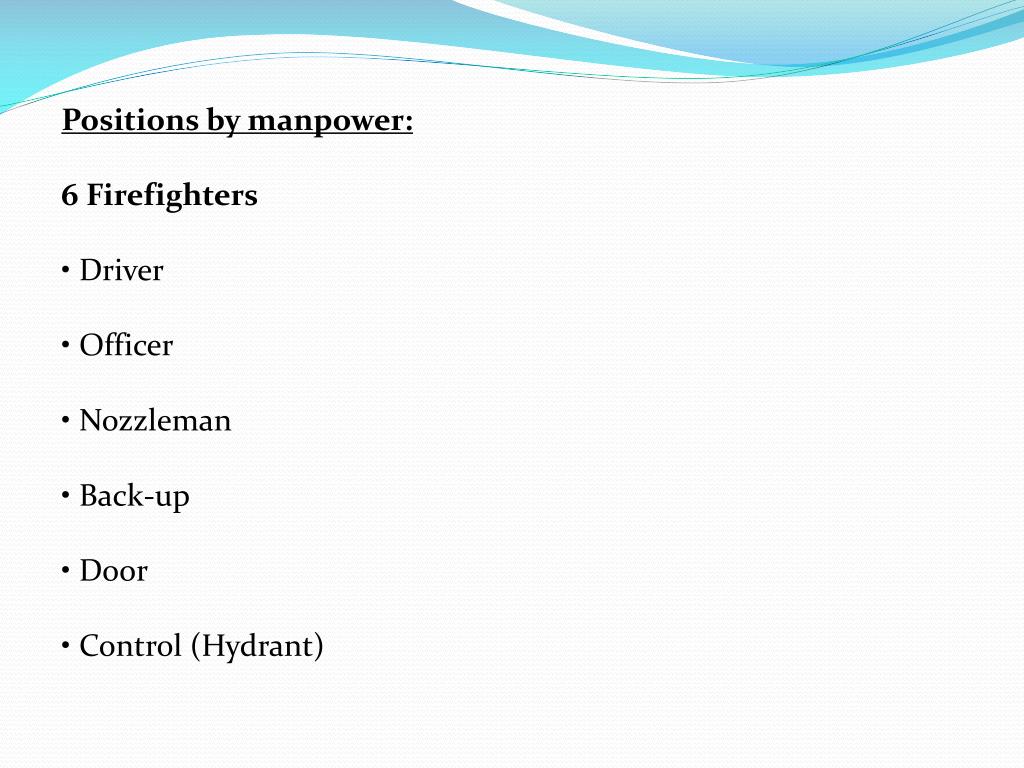

  13. Positions by manpower: 6 Firefighters • Driver • Officer • Nozzleman • Back-up • Door • Control (Hydrant)

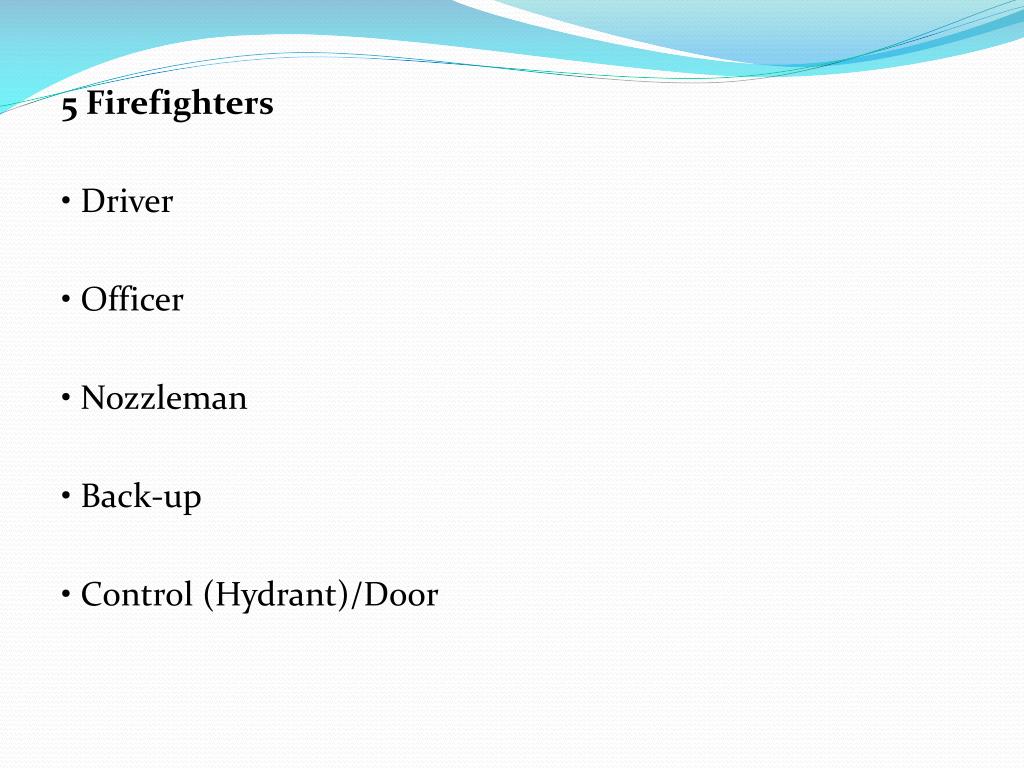

  14. 5 Firefighters • Driver • Officer • Nozzleman • Back-up • Control (Hydrant)/Door

  15. 4 Firefighters • Driver • Officer/Back-up • Nozzleman • Control (hydrant)/Back-up 3 Firefighters • Driver/Control (assist with stretch) • Officer/Back-up • Nozzleman/Control (hydrant)

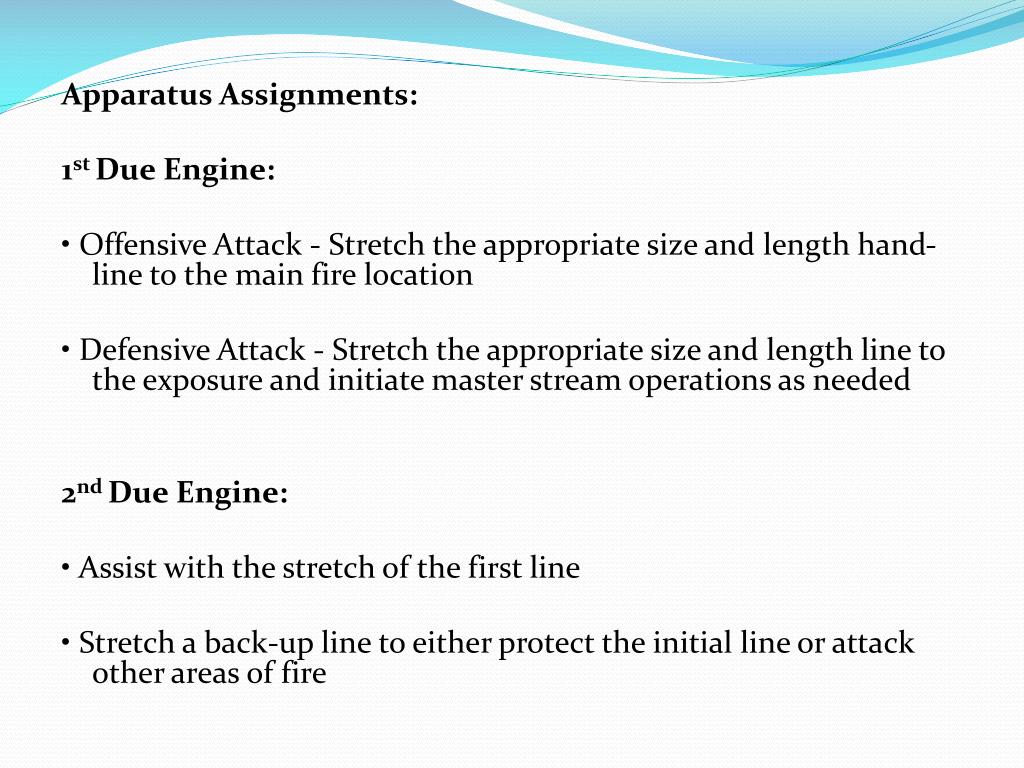

  16. Apparatus Assignments: 1st Due Engine: • Offensive Attack - Stretch the appropriate size and length hand-line to the main fire location • Defensive Attack - Stretch the appropriate size and length line to the exposure and initiate master stream operations as needed 2nd Due Engine: • Assist with the stretch of the first line • Stretch a back-up line to either protect the initial line or attack other areas of fire

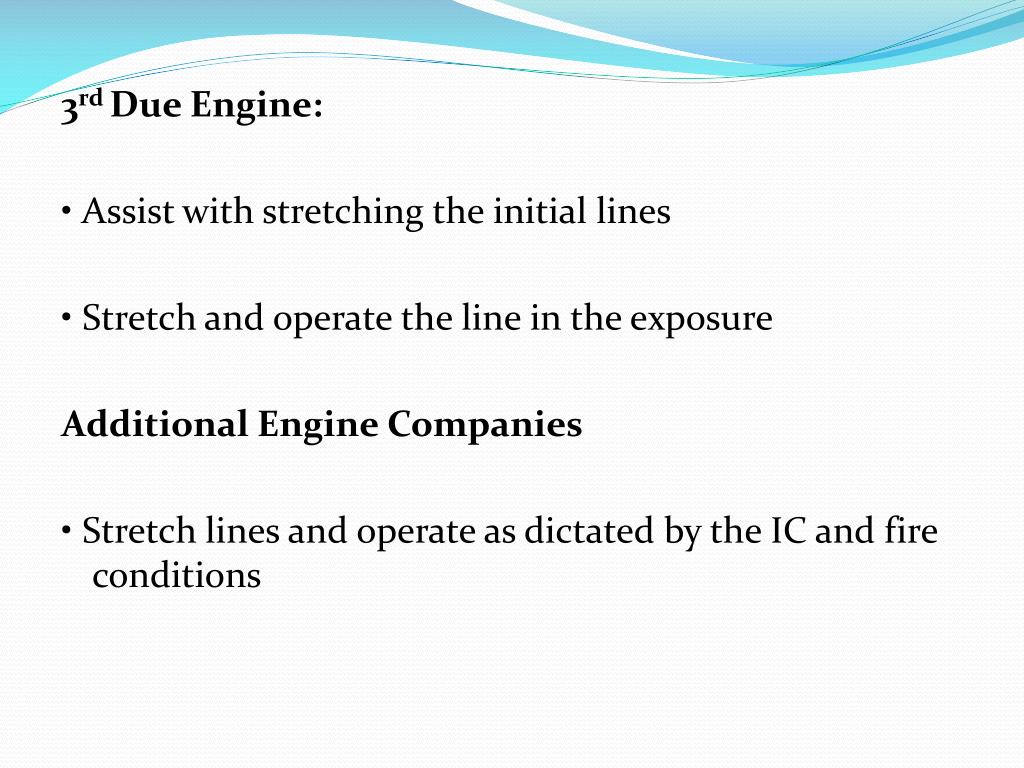

  17. 3rd Due Engine: • Assist with stretching the initial lines • Stretch and operate the line in the exposure Additional Engine Companies • Stretch lines and operate as dictated by the IC and fire conditions

  18. Truck Company Riding Assignments Truck Company Positions: • Chauffer (Driver) • Officer • Irons • Can • Outside Vent Man (OV or OVM) • Roof

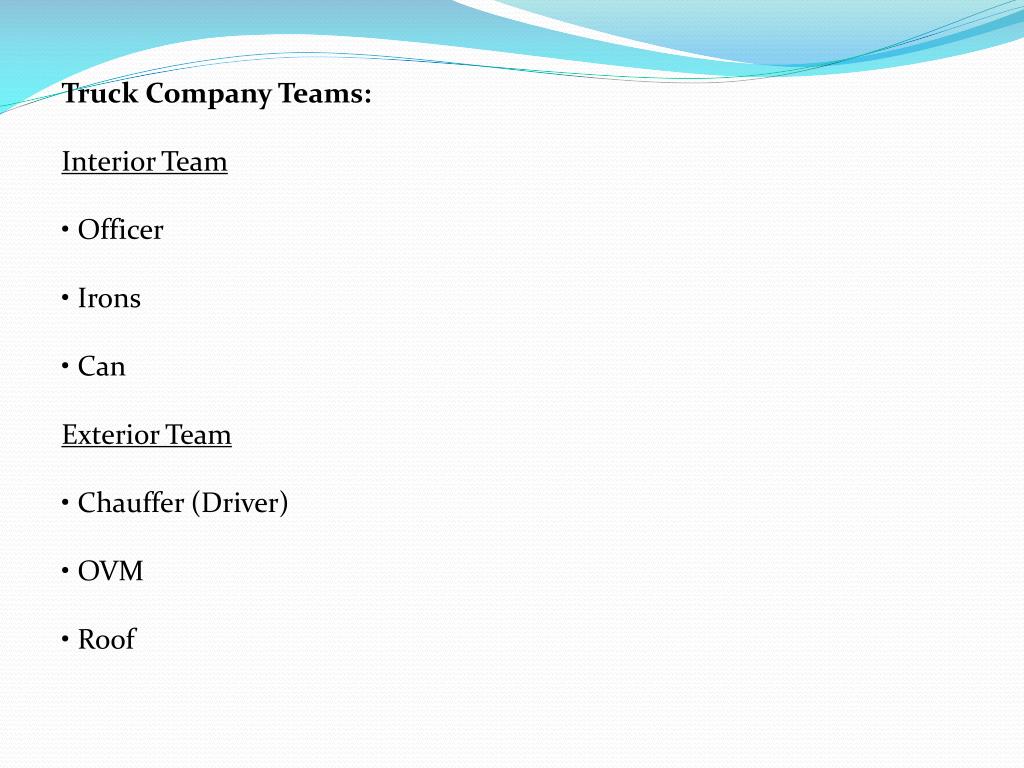

  19. Truck Company Teams: Interior Team • Officer • Irons • Can Exterior Team • Chauffer (Driver) • OVM • Roof

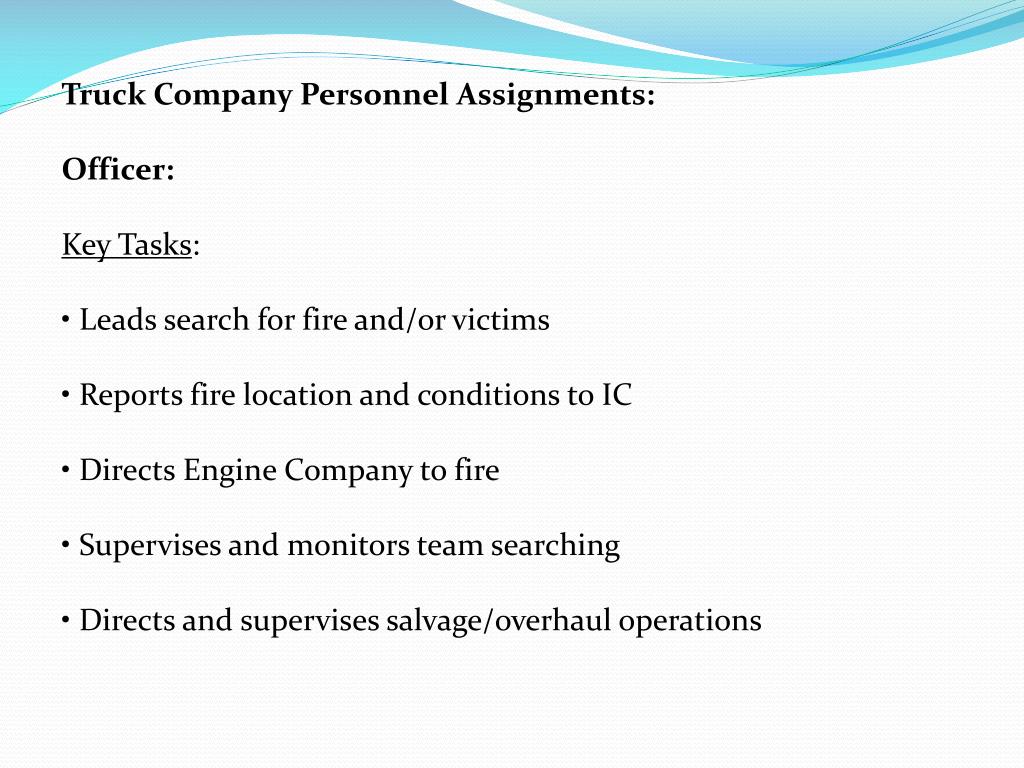

  20. Truck Company Personnel Assignments: Officer: Key Tasks: • Leads search for fire and/or victims • Reports fire location and conditions to IC • Directs Engine Company to fire • Supervises and monitors team searching • Directs and supervises salvage/overhaul operations

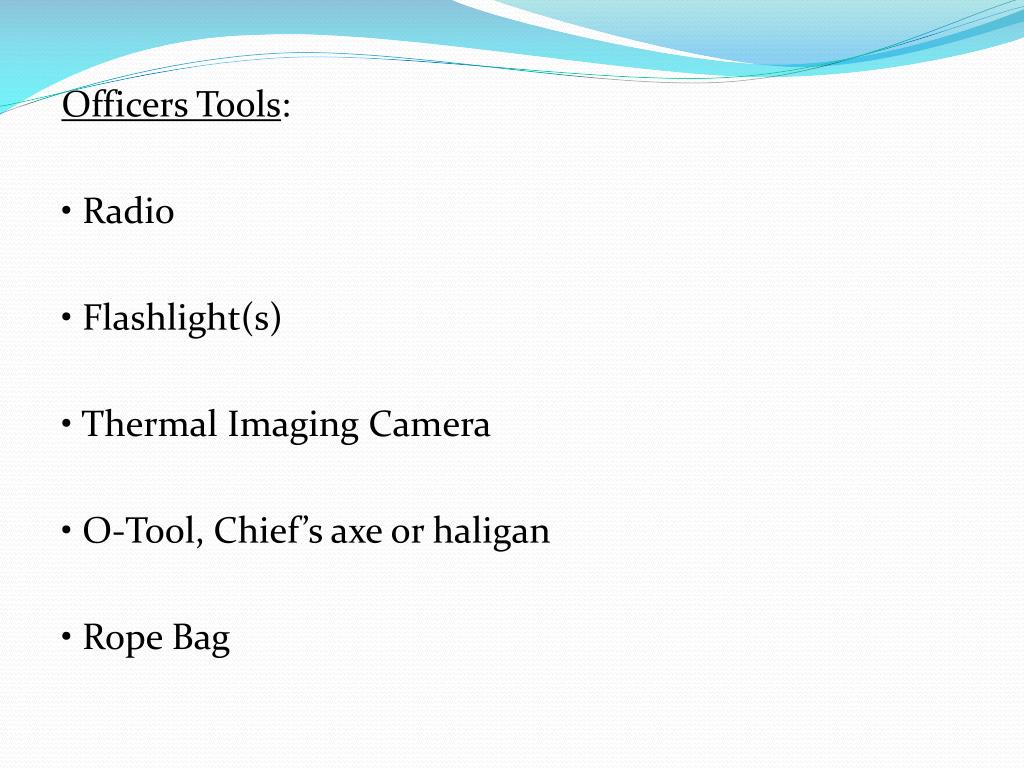

  21. Officers Tools: • Radio • Flashlight(s) • Thermal Imaging Camera • O-Tool, Chief’s axe or haligan • Rope Bag

  22. Irons: Key Tasks: • Forcible entry • Search for fire and life • Ventilation, in areas being searched Irons Tools: • Radio (if available) • Flashlight  • Flathead axe and Haligan Bar (Irons)

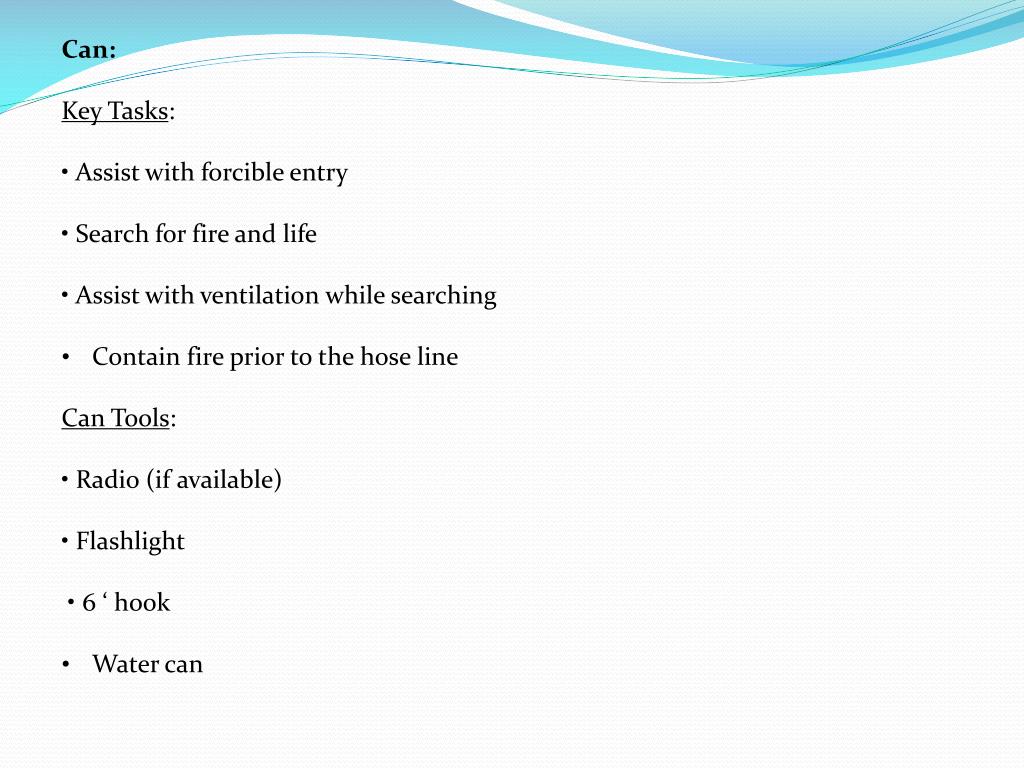

  23. Can: Key Tasks: • Assist with forcible entry • Search for fire and life • Assist with ventilation while searching • Contain fire prior to the hose line Can Tools: • Radio (if available) • Flashlight  • 6 ‘ hook • Water can

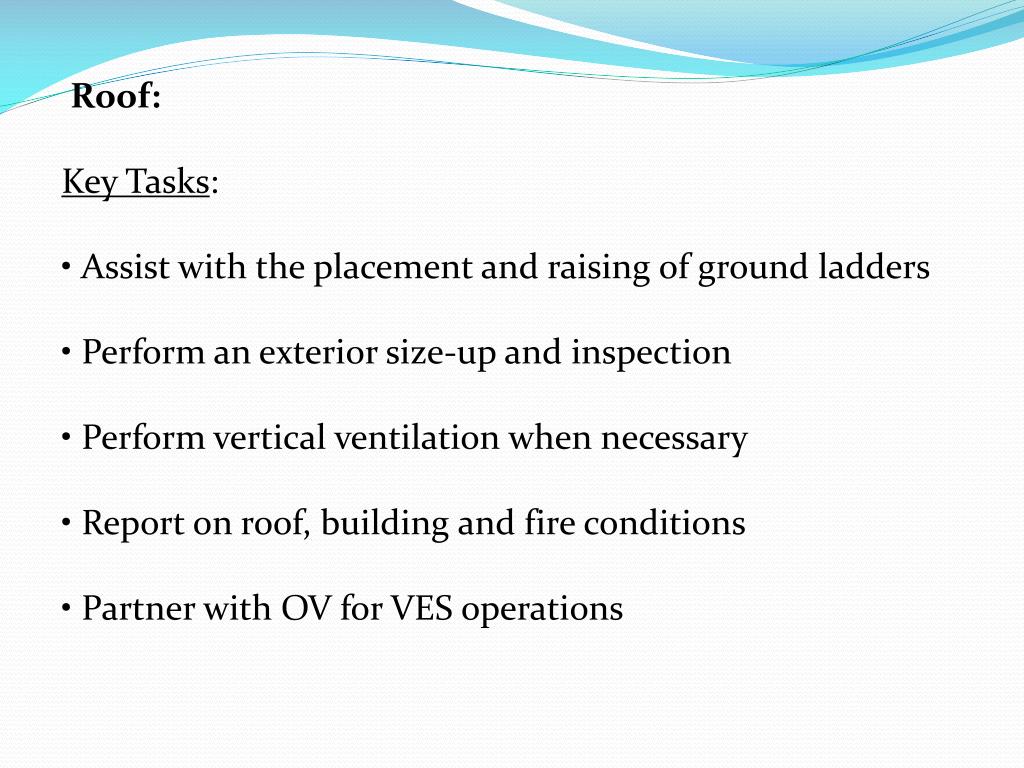

  24. Roof: Key Tasks: • Assist with the placement and raising of ground ladders • Perform an exterior size-up and inspection • Perform vertical ventilation when necessary • Report on roof, building and fire conditions • Partner with OV for VES operations

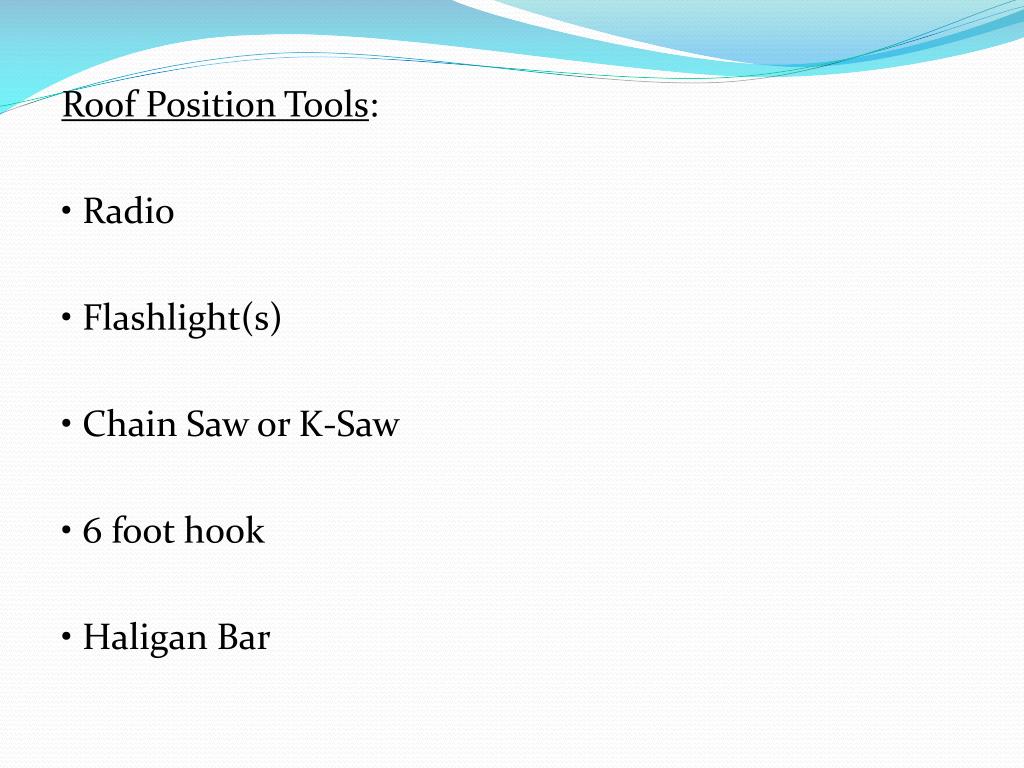

  25. Roof Position Tools: • Radio • Flashlight(s) • Chain Saw or K-Saw • 6 foot hook • Haligan Bar

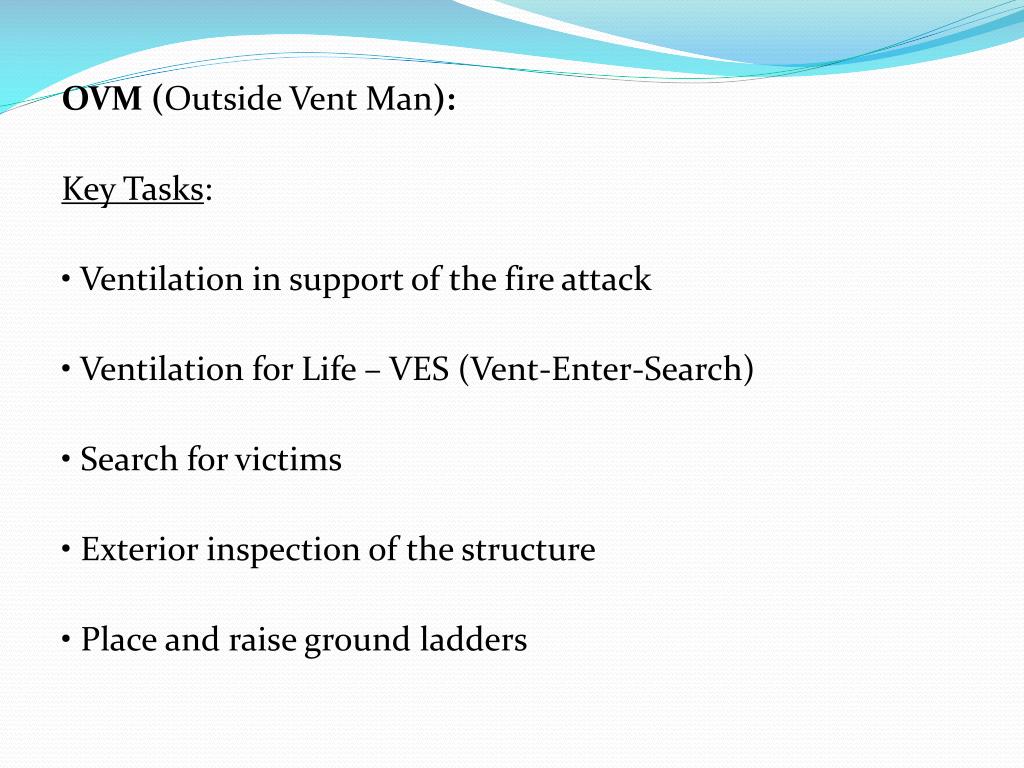

  26. OVM (Outside Vent Man): Key Tasks: • Ventilation in support of the fire attack • Ventilation for Life – VES (Vent-Enter-Search) • Search for victims • Exterior inspection of the structure • Place and raise ground ladders

  27. OVM Tools: • Radio • Flashlight • 6 Foot Hook • Haligan Bar • Ground Ladder

  28. Chauffer (Driver): Key Tasks: • Place and operate apparatus and aerial device • Assist with placement and raising of ground ladders • Assist OV and Roof positions Chauffer Tools: • Radio • Aerial ladder • Ground ladders

  29. Positions by Staffing and occupancy: 6 Firefighters • Chauffer (Driver) • Officer • Irons • Can • OVM • Roof

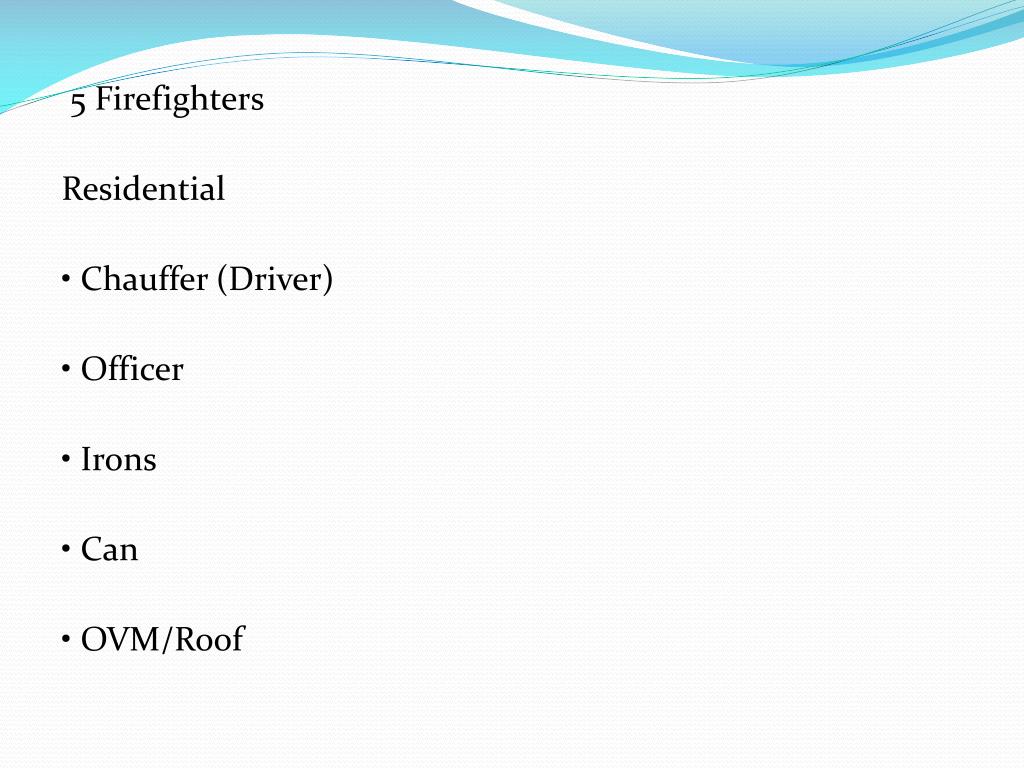

  30.  5 Firefighters Residential • Chauffer (Driver) • Officer • Irons • Can • OVM/Roof

  31. Commercial • Chauffer (Driver) • Officer/Irons • Can • OVM • Roof

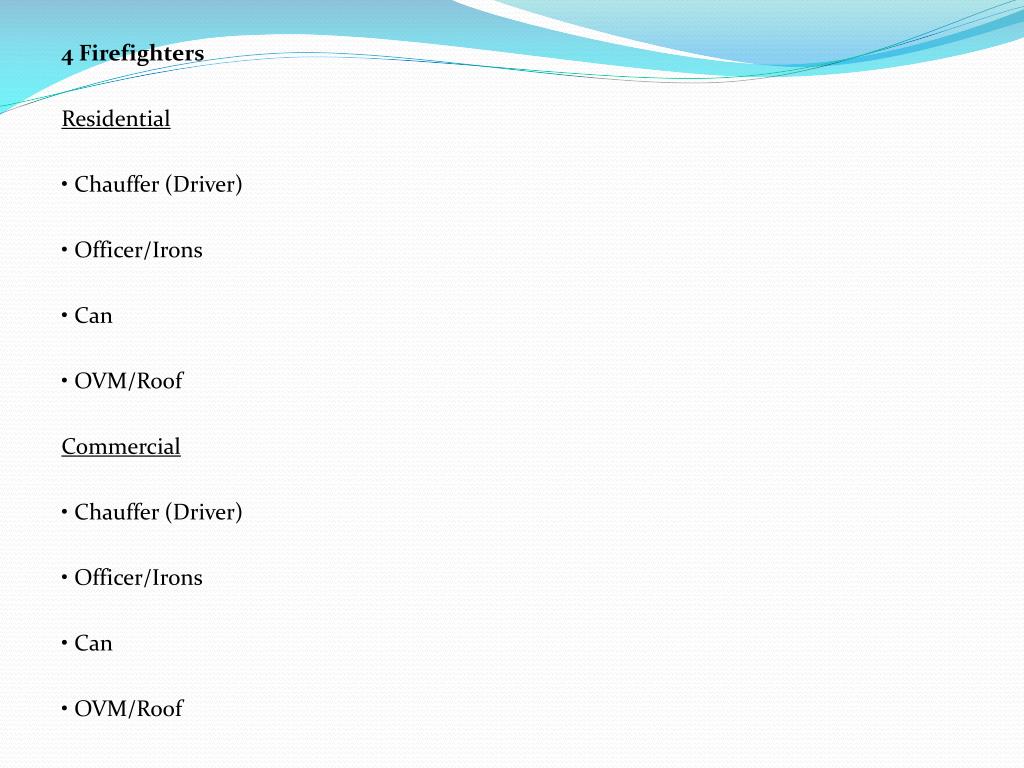

  32. 4 Firefighters Residential • Chauffer (Driver) • Officer/Irons • Can • OVM/Roof Commercial • Chauffer (Driver) • Officer/Irons • Can • OVM/Roof

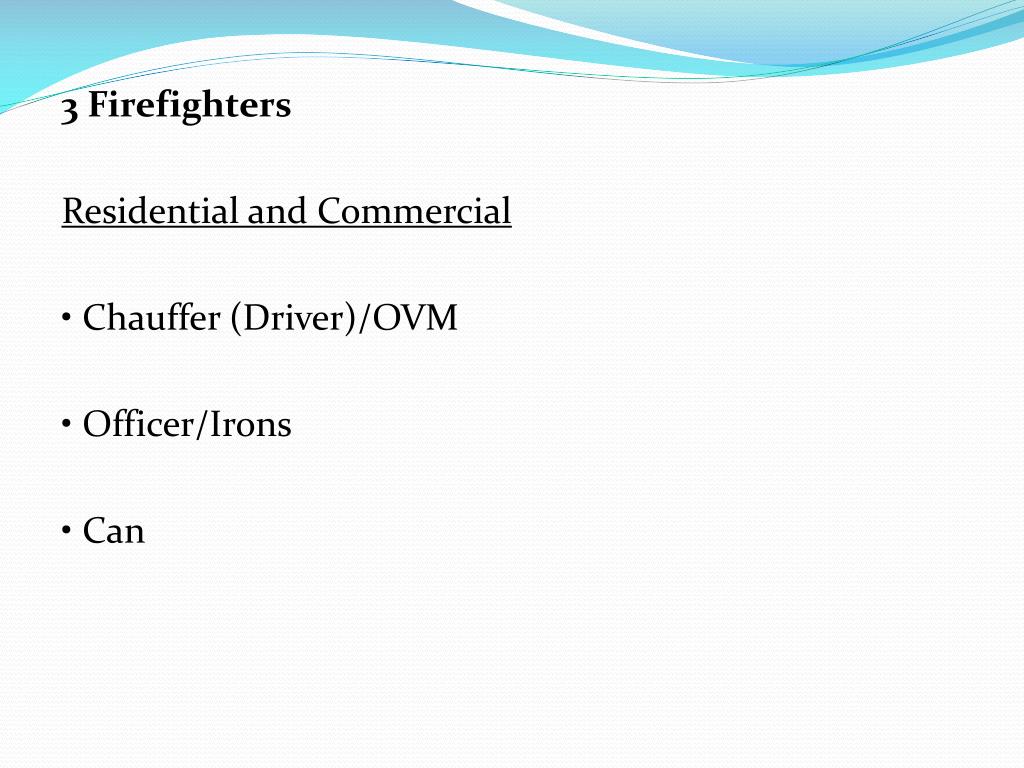

  33. 3 Firefighters Residential and Commercial • Chauffer (Driver)/OVM • Officer/Irons • Can

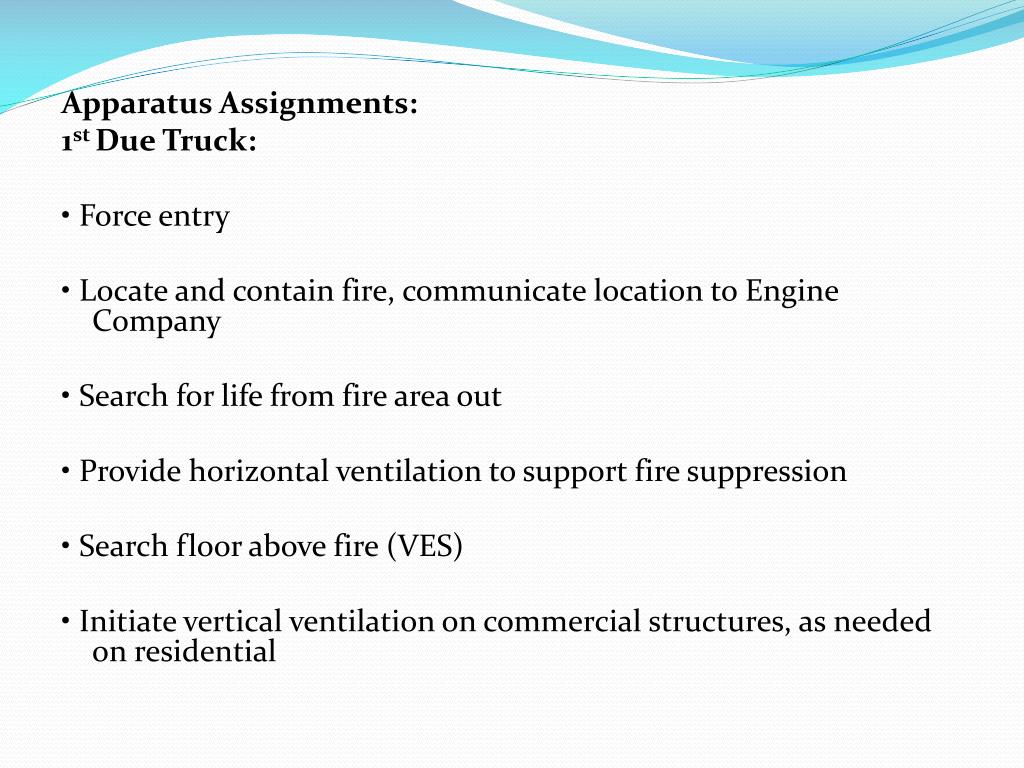

  34. Apparatus Assignments: 1st Due Truck: • Force entry • Locate and contain fire, communicate location to Engine Company • Search for life from fire area out • Provide horizontal ventilation to support fire suppression • Search floor above fire (VES) • Initiate vertical ventilation on commercial structures, as needed on residential

  35. 2nd Due Truck: • Search on floor above fire for life • Assists with horizontal ventilation • Vertical ventilation • Raise additional ground ladders (exterior crew to bring with them) • Check for fire extension • Secure utilities

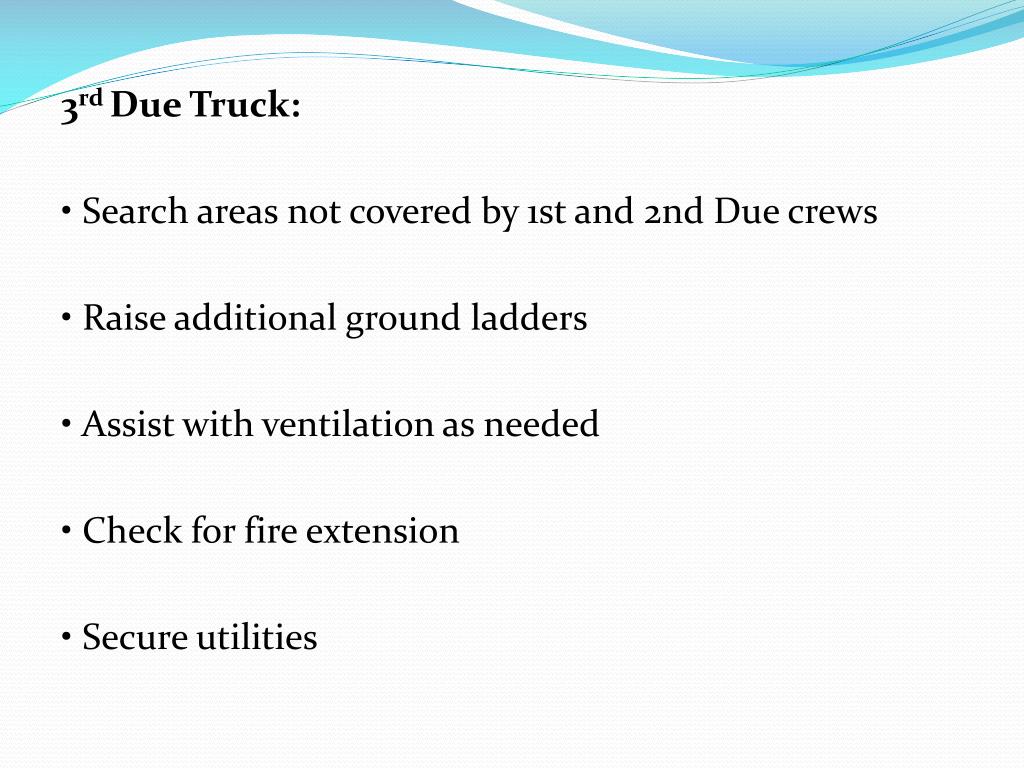

  36. 3rd Due Truck: • Search areas not covered by 1st and 2nd Due crews • Raise additional ground ladders • Assist with ventilation as needed • Check for fire extension • Secure utilities

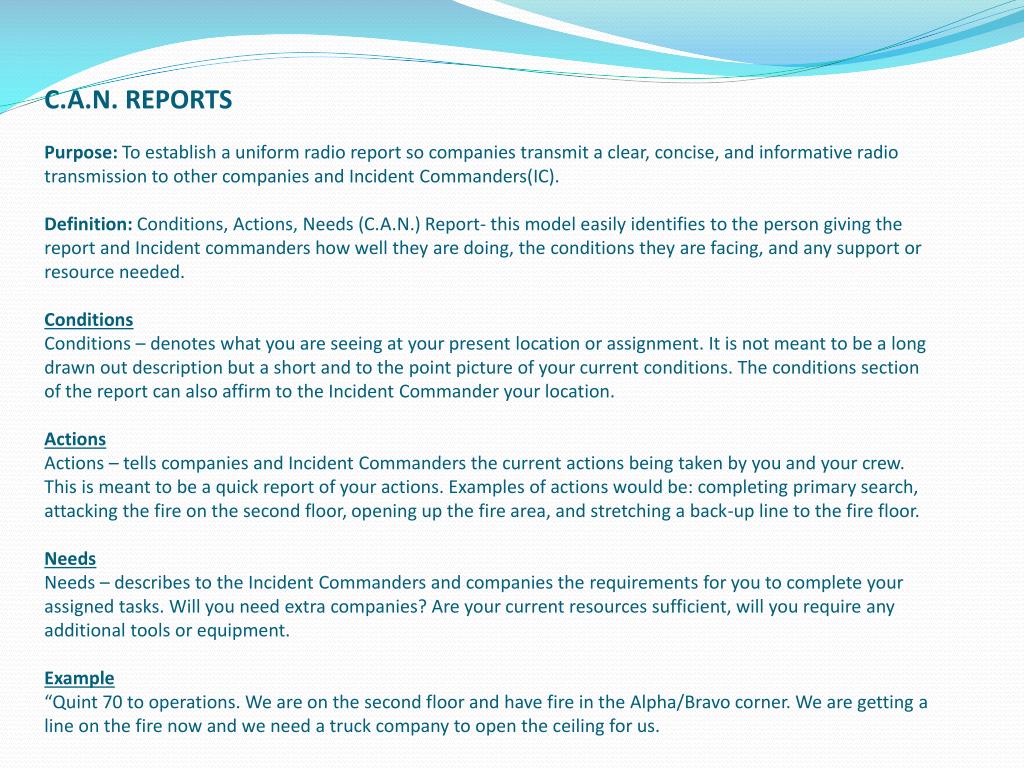

  37. C.A.N. REPORTSPurpose: To establish a uniform radio report so companies transmit a clear, concise, and informative radio transmission to other companies and Incident Commanders(IC).Definition: Conditions, Actions, Needs (C.A.N.) Report- this model easily identifies to the person giving the report and Incident commanders how well they are doing, the conditions they are facing, and any support or resource needed.ConditionsConditions – denotes what you are seeing at your present location or assignment. It is not meant to be a long drawn out description but a short and to the point picture of your current conditions. The conditions section of the report can also affirm to the Incident Commander your location.ActionsActions – tells companies and Incident Commanders the current actions being taken by you and your crew. This is meant to be a quick report of your actions. Examples of actions would be: completing primary search, attacking the fire on the second floor, opening up the fire area, and stretching a back-up line to the fire floor.NeedsNeeds – describes to the Incident Commanders and companies the requirements for you to complete your assigned tasks. Will you need extra companies? Are your current resources sufficient, will you require any additional tools or equipment. Example“Quint 70 to operations. We are on the second floor and have fire in the Alpha/Bravo corner. We are getting a line on the fire now and we need a truck company to open the ceiling for us.

  38. Thanks for your participation!
