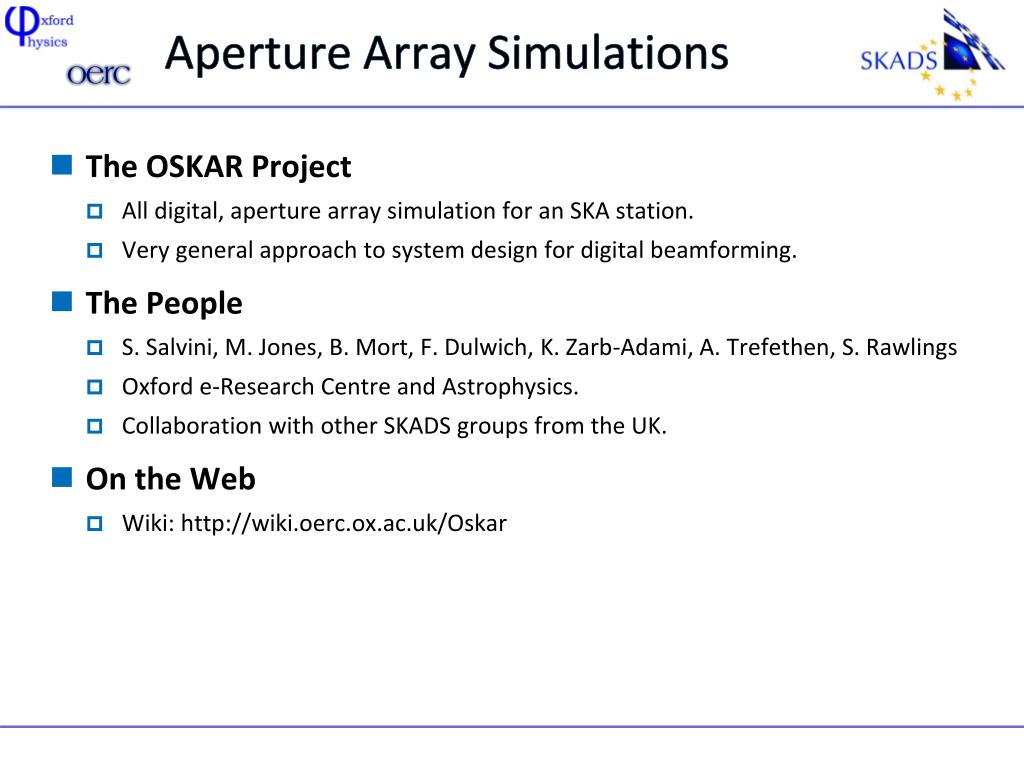

  1. Aperture Array Simulations • The OSKAR Project • All digital, aperture array simulation for an SKA station. • Very general approach to system design for digital beamforming. • The People • S. Salvini, M. Jones, B. Mort, F. Dulwich, K. Zarb-Adami, A. Trefethen, S. Rawlings • Oxford e-Research Centre and Astrophysics. • Collaboration with other SKADS groups from the UK. • On the Web • Wiki: http://wiki.oerc.ox.ac.uk/Oskar

  2. The OSKAR Station Simulator • Scope and Goals • Narrowband (pre-channelised), all digital system. • Scalable to large numbers of antennas (~105). • Choice of number of beams and channels (limited by available processing power). • Simulation of noise, other time variable corruptions, corrections. • Design • Parallelised and scalable. • Hierarchical. • Separate data paths for signal and beamforming weights. • Simplified beamforming math. • Modular framework with data checkpoints.

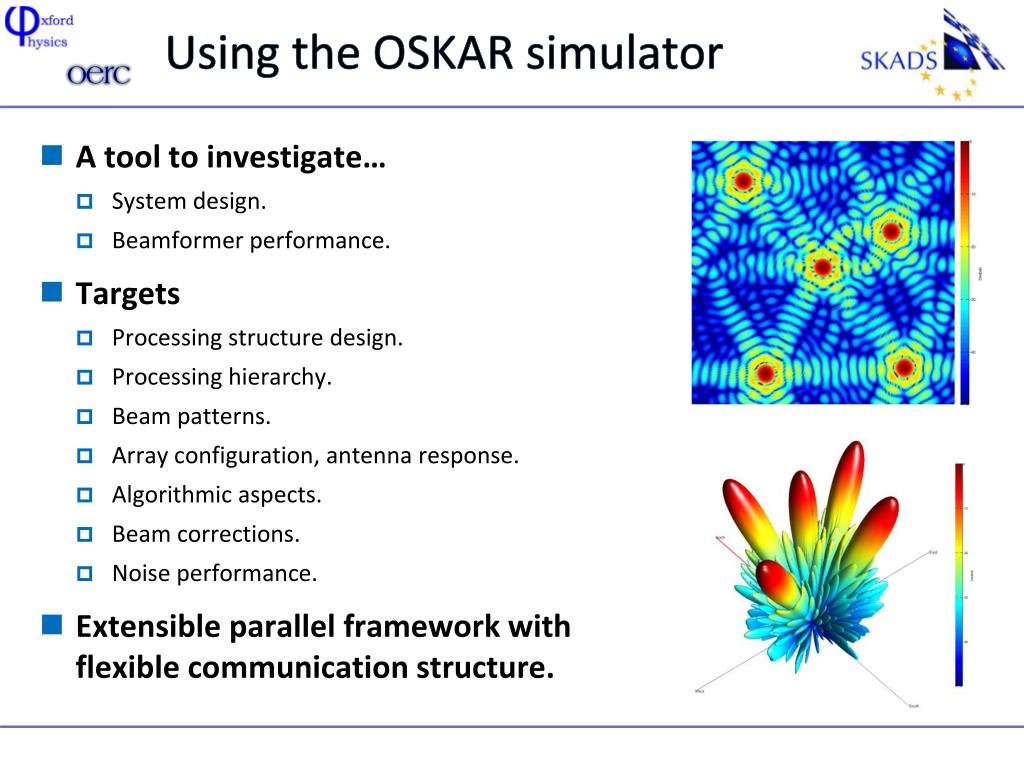

  3. Using the OSKAR simulator • A tool to investigate… • System design. • Beamformer performance. • Targets • Processing structure design. • Processing hierarchy. • Beam patterns. • Array configuration, antenna response. • Algorithmic aspects. • Beam corrections. • Noise performance. • Extensible parallel framework with flexible communication structure.

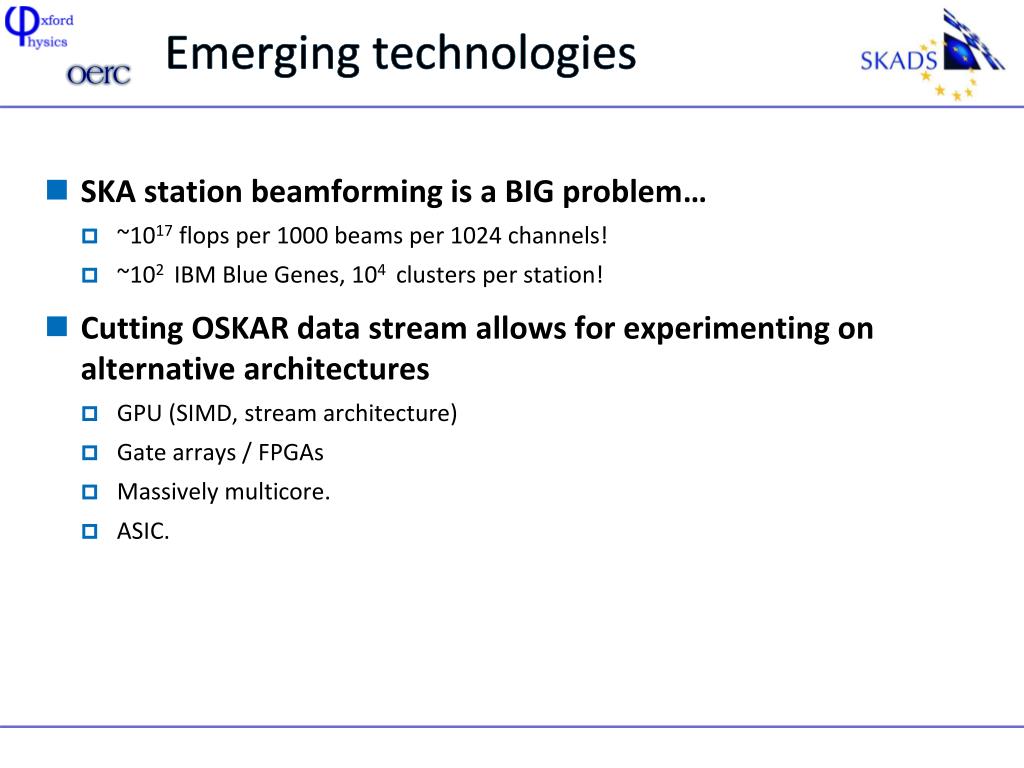

  4. Emerging technologies • SKA station beamforming is a BIG problem… • ~1017 flops per 1000 beams per 1024 channels! • ~102 IBM Blue Genes, 104 clusters per station! • Cutting OSKAR data stream allows for experimenting on alternative architectures • GPU (SIMD, stream architecture) • Gate arrays / FPGAs • Massively multicore. • ASIC.

  5. Summary • OSKAR: simulation of all-digital, aperture array beamforming for an SKA station. • Modular, flexible, parallel simulator framework to investigate beamforming and system design. • OSKAR to be delivered Spring 2009 • Project wiki: http://wiki.oerc.ox.ac.uk/Oskar
